100kWh 200kWh Commercial BESS Solar LiFePO4 Battery Storage Cabinet with Eve 280Ah 314Ah Cells for Industrial Energy Storage System

Basic Specifications

Model NO.ES-200K

Nominal Voltage358.4V/716.8V

Nominal Capacity200kWh

Cycle Life6000 cycles+

Warranty10 Years

Protection ClassIP55

Inverter Power50kW

Firefighting TypeAerosol

Cooling MethodAir Cooling

AC OutputThree Phase 220V/380V

Product Description

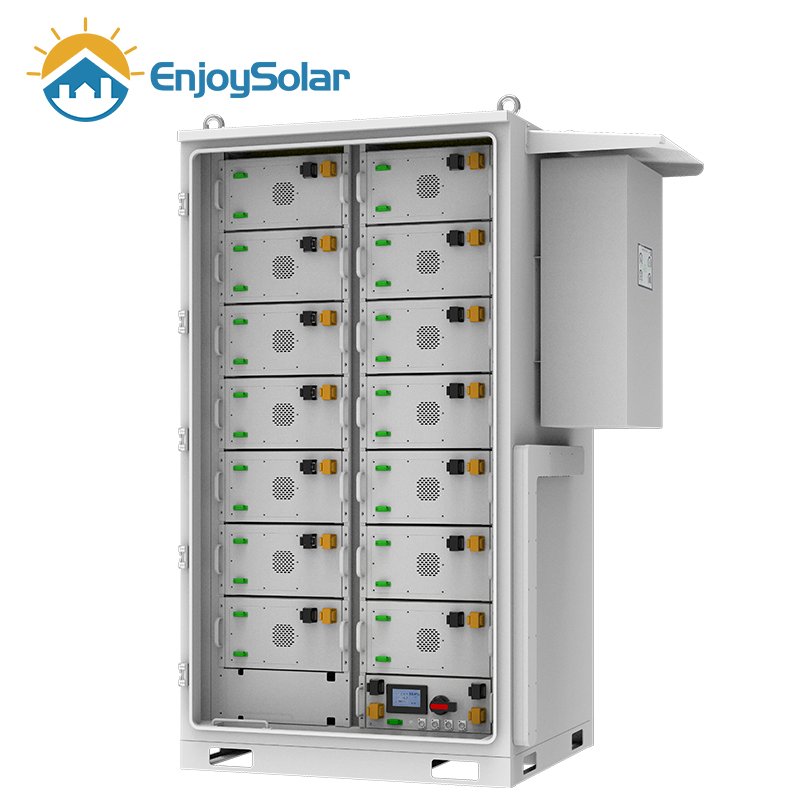

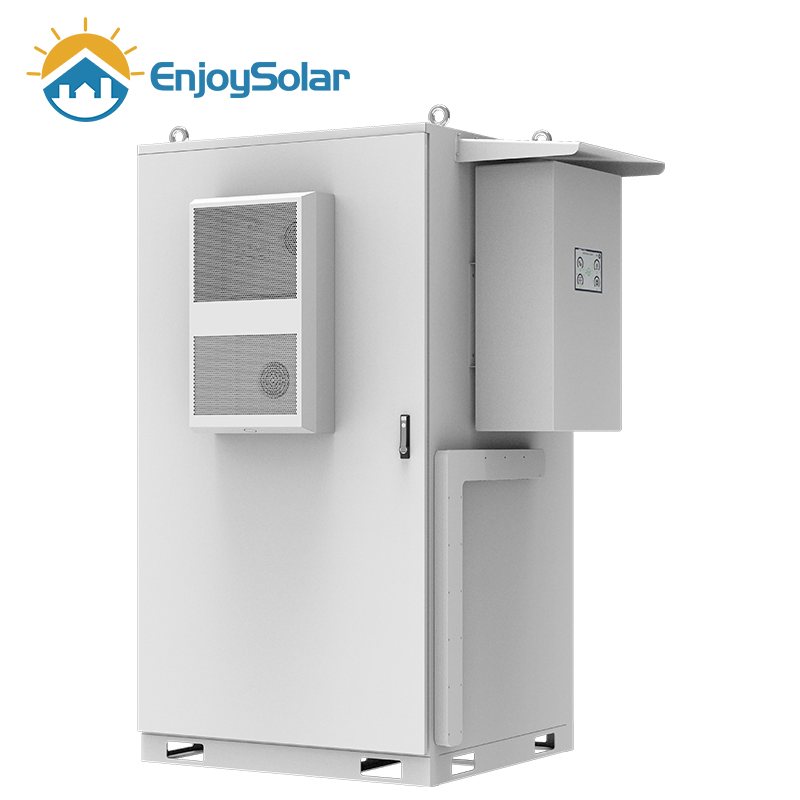

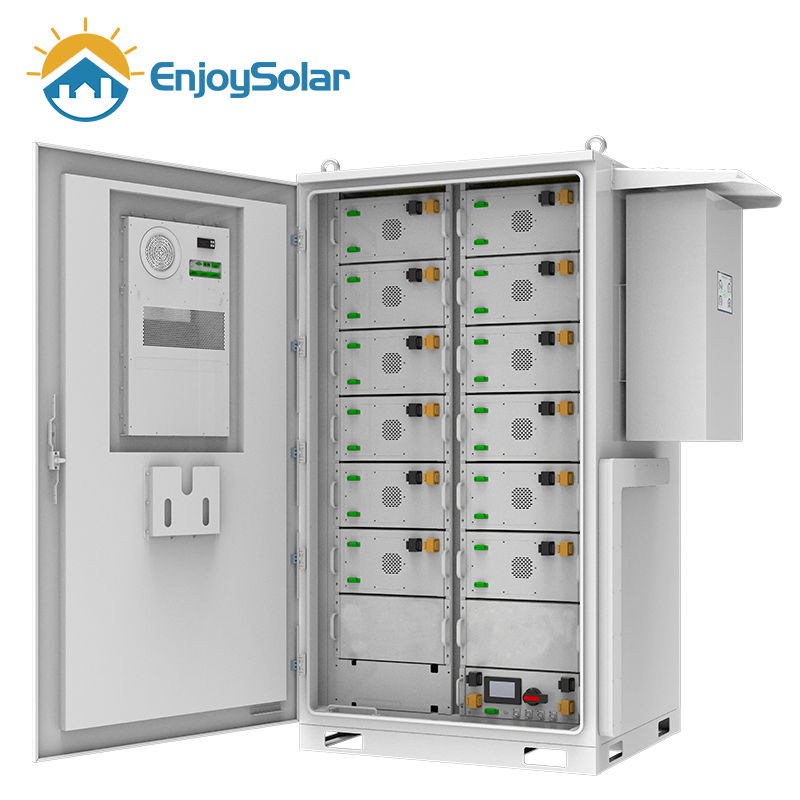

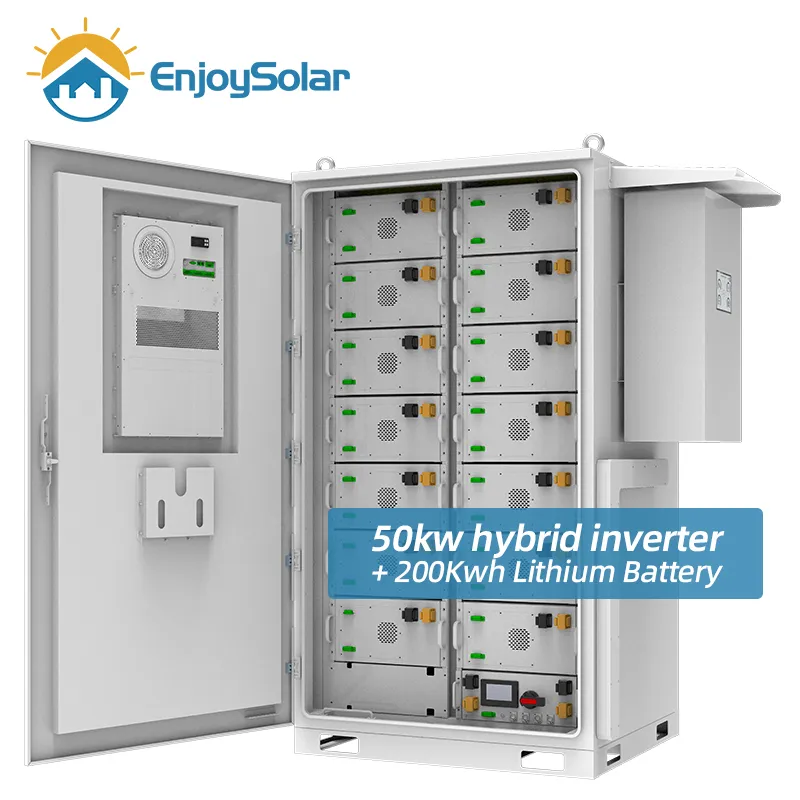

ES-200K Energy Storage Integration

Safer: Cobalt Free Lithium iron Phosphate (LFP) Battery ensures safety and long lifespan. Intelligent BMS provides complete protection.

Reliable: Supports high discharge power, IP55 rating, natural cooling, and operates in wide temperature ranges from -20ºC to 55ºC.

Flexible: Modular design for easy expansion. Perfectly suited for commercial applications to increase self-consumption ratios.

Convenient: Auto networking modules, remote monitoring, and easy firmware upgrades via USB.

Core Components

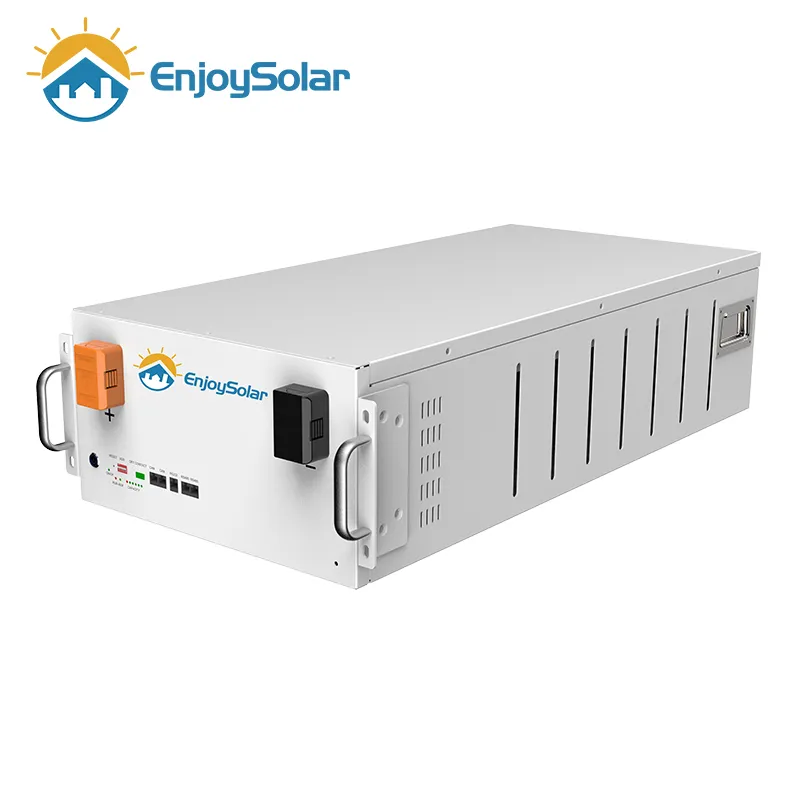

51.2V 280Ah Battery Module

19-inch modular design, lightweight and compact. High energy density with square aluminum core and stable intelligent system control.

50kW Hybrid Solar Inverter

100% unbalanced output supported. AC coupling to retrofit existing systems. Parallel operation up to 10 units for on-grid/off-grid.

Technical Parameters

MODEL	ES-100K	ES-200K	ES-172K
Nominal Voltage	358.4V	716.8V	614.4V
Nominal Capacity	280AH	280AH	280AH
Cabinet Size (mm)	125012452175	162612452175	162612452175
Weight (kg)	1260KG	2200KG	2000KG
Max Charge/Discharge Current	140A	140A	140A
Battery Type	51.2V-280AH	51.2V-280AH	51.2V-280AH
Nominal Capacity (kWh)	100KWh	200KWh	172KWh
Cycle Life	>6000 times (0.5C/0.5C-80% DOD)
Communication	RS485/CAN/Ethernet

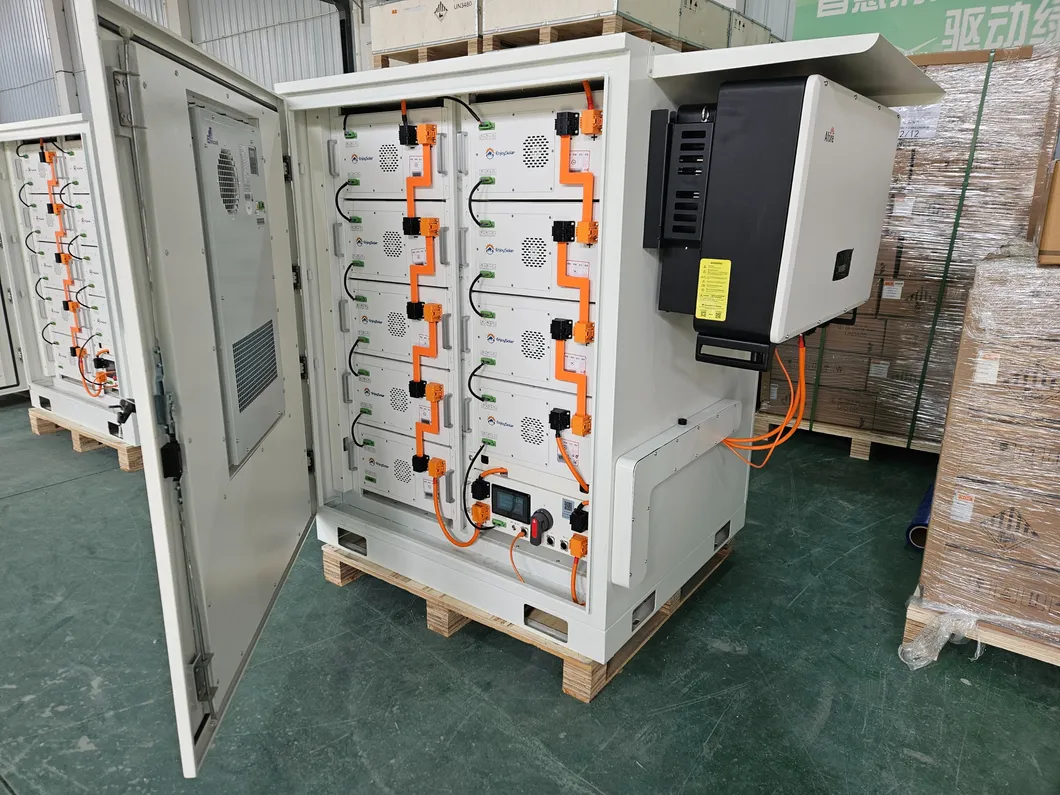

Packaging & Shipping

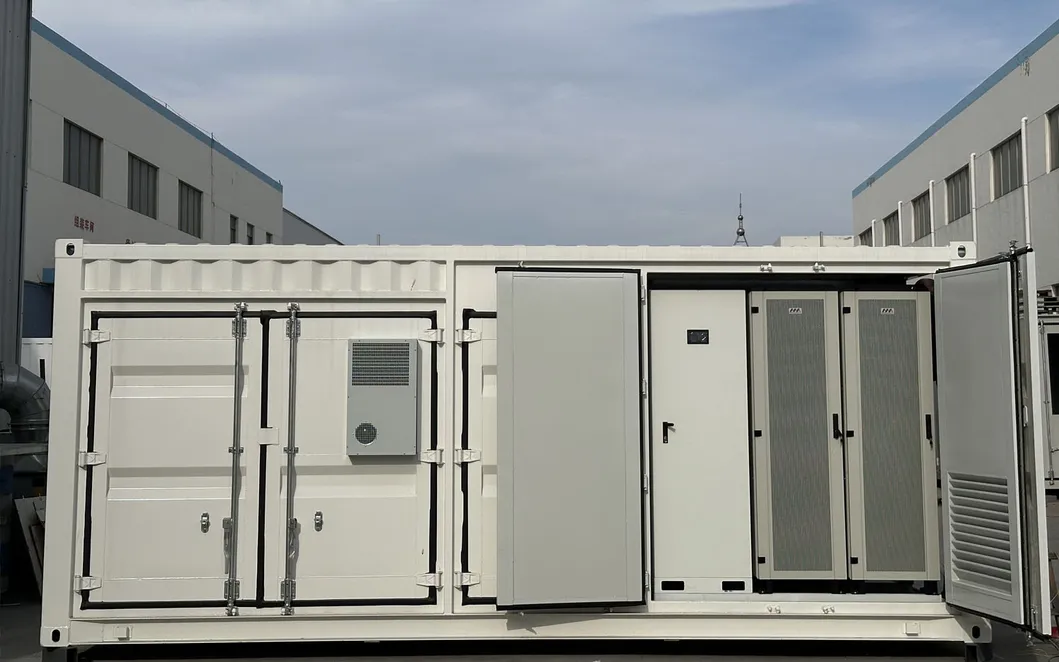

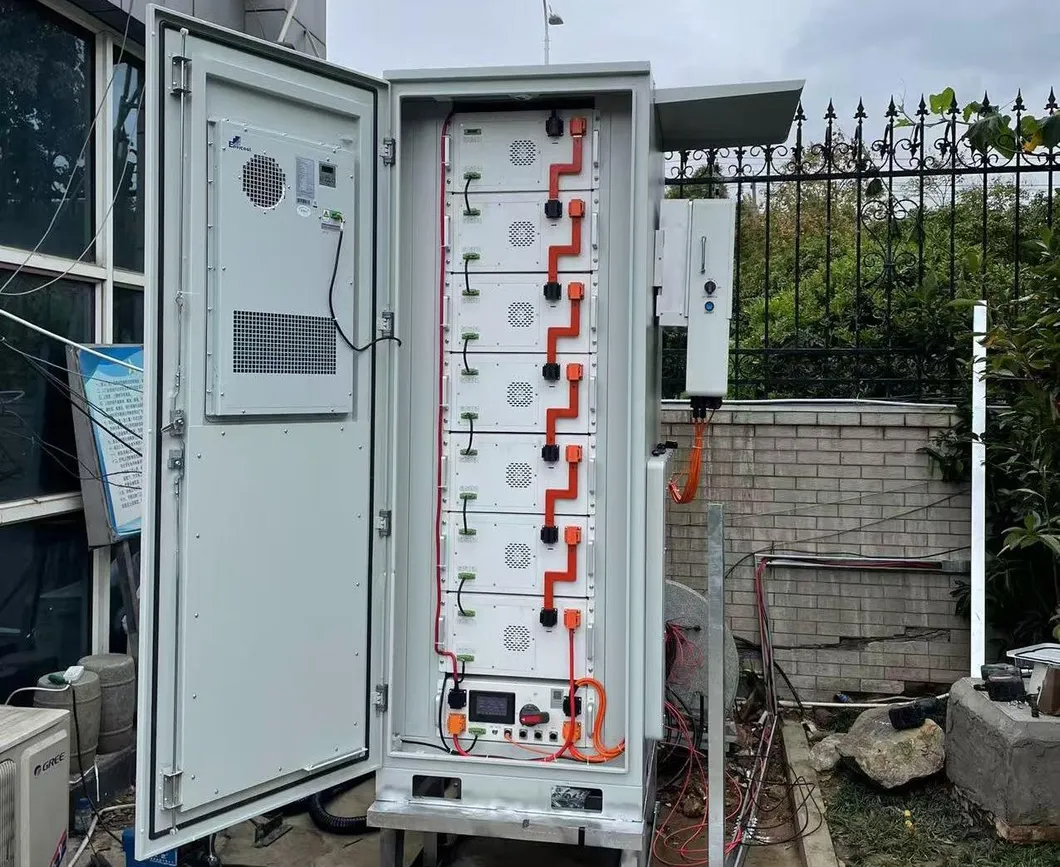

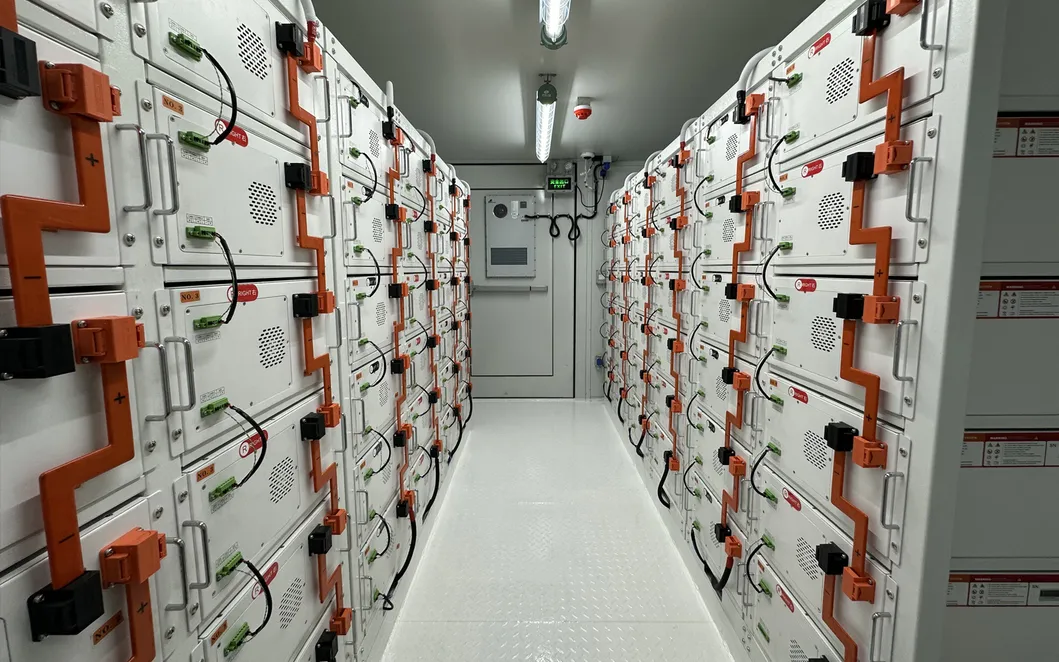

Project Portfolio

Frequently Asked Questions

Q: What are your main products?

We provide a comprehensive range of solar solutions, including solar energy systems, panels, inverters, powerwalls, lithium-ion batteries, and mounting systems with all necessary accessories.

Q: Are you a factory or a trading company?

We are a specialized factory with over seven years of experience in manufacturing solar energy series products. Clients are welcome to visit our production facilities.

Q: Can you support OEM and field installation?

Yes, as a professional manufacturer, we offer full OEM services and on-site installation support, along with comprehensive technical and after-sales services.

Q: How do you ensure product quality?

Quality is our priority. We employ a dedicated professional QC team to strictly monitor every stage of production. Products are only dispatched once they meet all quality standards.

Q: What are your manufacturing strengths?

We utilize fully automatic production lines with advanced international equipment. This allows us to provide highly competitive pricing and quality while meeting large-scale demand.

Q: How can I get assistance with my order?

You can connect with our sales team via online chat or send an inquiry email; we will respond immediately to assist with your requirements.

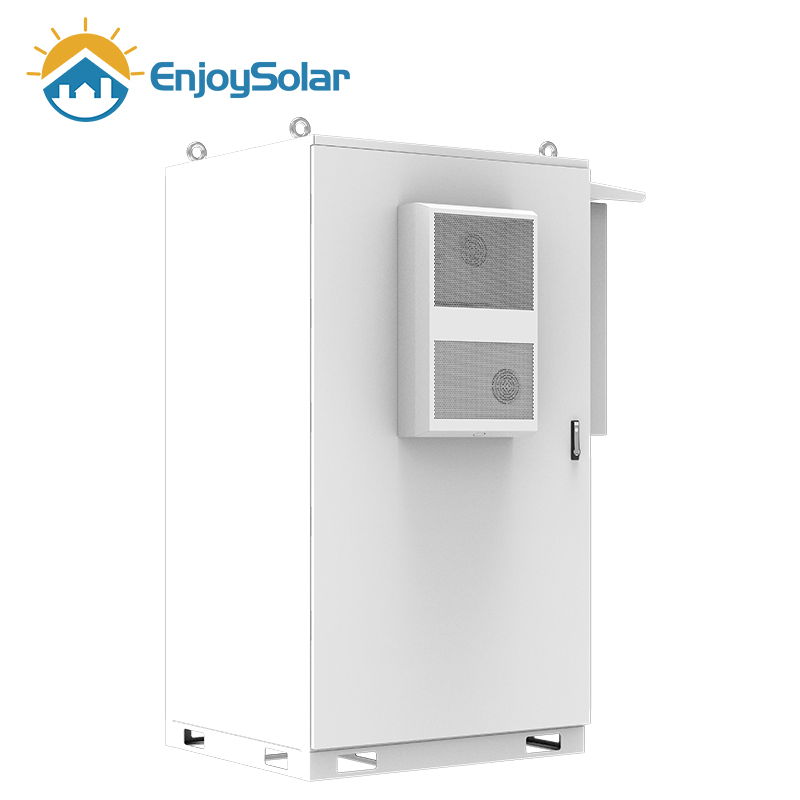

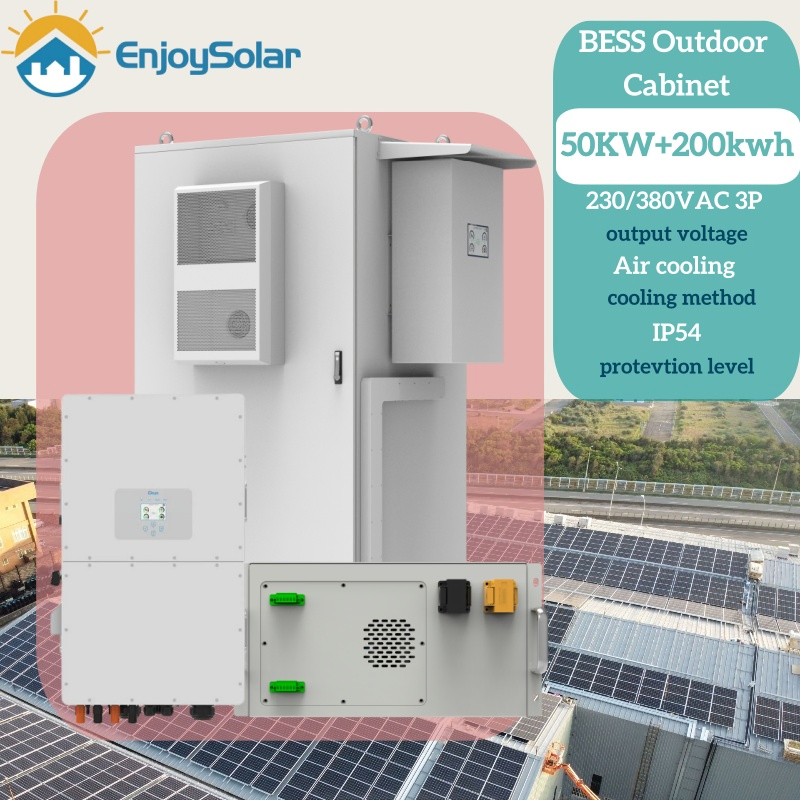

Es 100kwh 200kwh Solar Lithium Ion Battery Cabinet with Eve 3.2V 280ah 314ah LiFePO4 Cell for Commercial Solar Battery Energy Storage System
