1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1 / 5
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System
1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System

1p24s Combination Mode 100kw 215kwh LiFePO4 Lithium Battery Energy Storage Cabinet Industrial and Commercial Air-Cooled Cabinet Hybrid System

Customization: Available
Nominal Voltage: 768
Warranty: Yes
Send Inquiry

Product Description

i

Basic Information

Model NO.
100K/215A-L
Nominal Capacity
215
Cycle Life
20000
Battery Type
302V/280ah
Rated Power
110kVA
Grid Voltage
768V
Frequency
50Hz/60Hz
Origin
China
📦

Packaging & Delivery

Package Size
150.00cm * 205.00cm * 145.50cm
Gross Weight
3000.000kg
★

Product Highlights

Energy Storage System

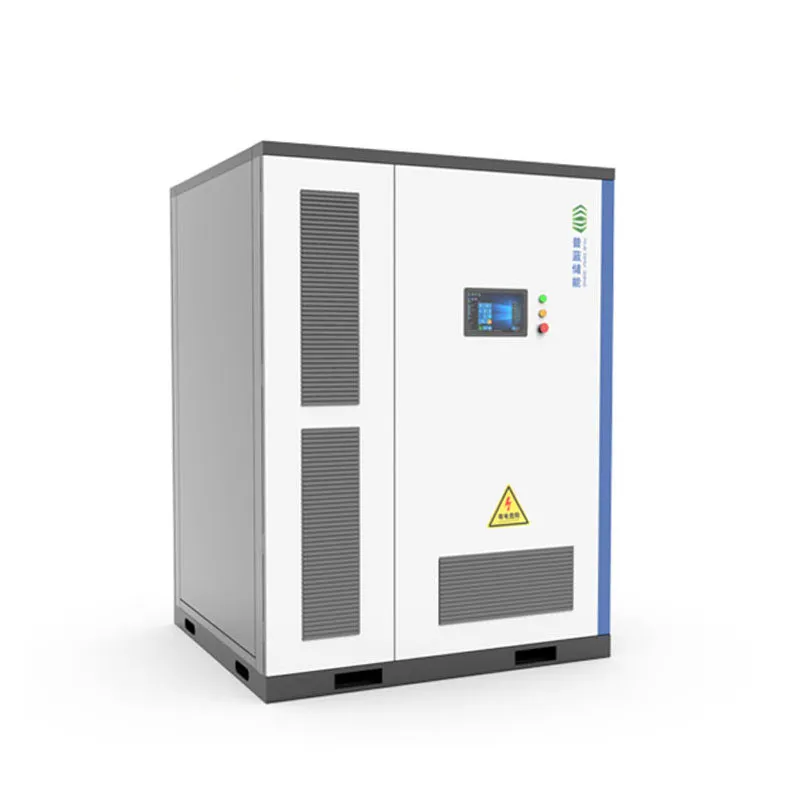

LiFePO4 Battery Unit

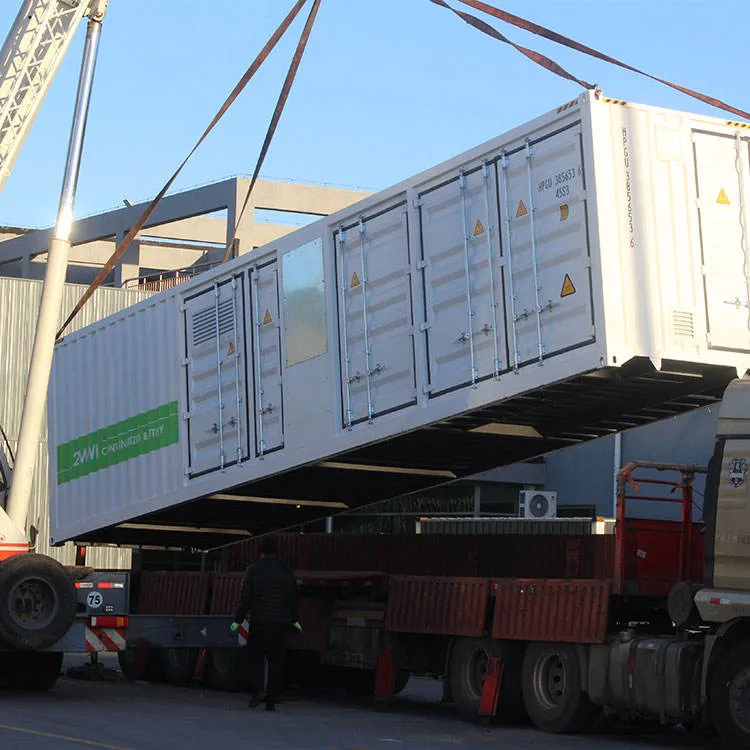

Industrial Cabinet
Model 100K/215A-L 100K/215A-H 100K/215L-L 125K/261L-H
Battery Parameters
Nominal Capacity(Ah) 280 280 280 314
Combination Mode 1P24S 1P16S 1P48S 1P52S
Rated Capacity(KWh) 215.04 215.04 215.04 261.248
Rated Voltage(V) 768 768 768 832
Grid-connected / Off-line Parameters
Rated Power(KW) 100 100 100 125
Max. Power(KVA) 110 110 110 137.5
System Parameters
Fire Fighting Methods Aerosol/Perfluorohexanone Perfluorohexanone
Cooling Method Air-cooled Liquid-cooled
Temperature Range -20~50ºC
Fire Rating IP54
Technical Drawing 1
Technical Drawing 2

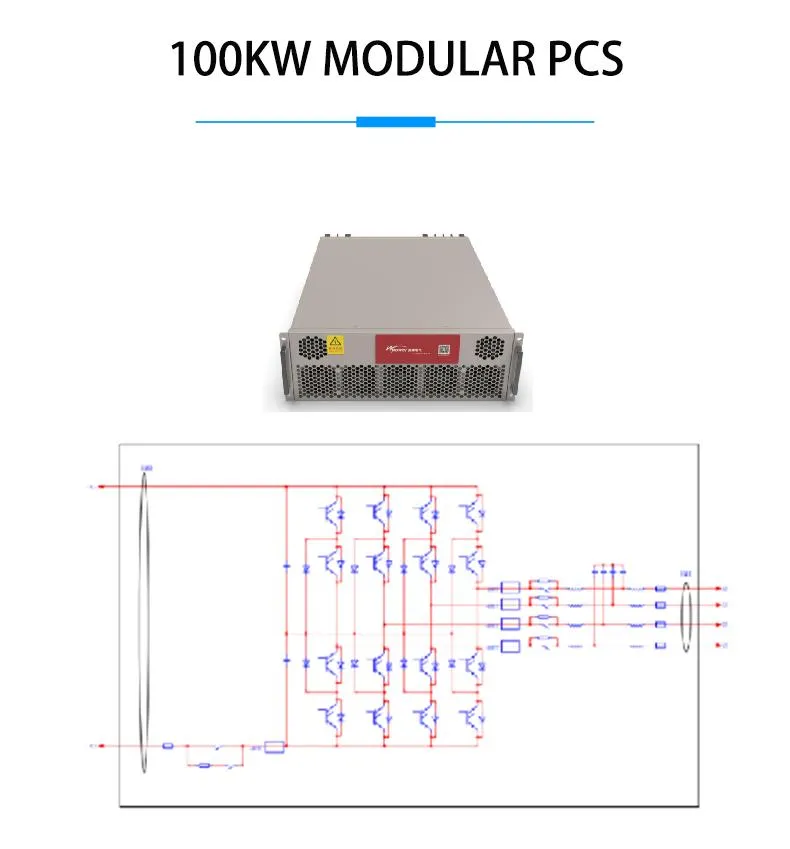

Technical Drawing 3

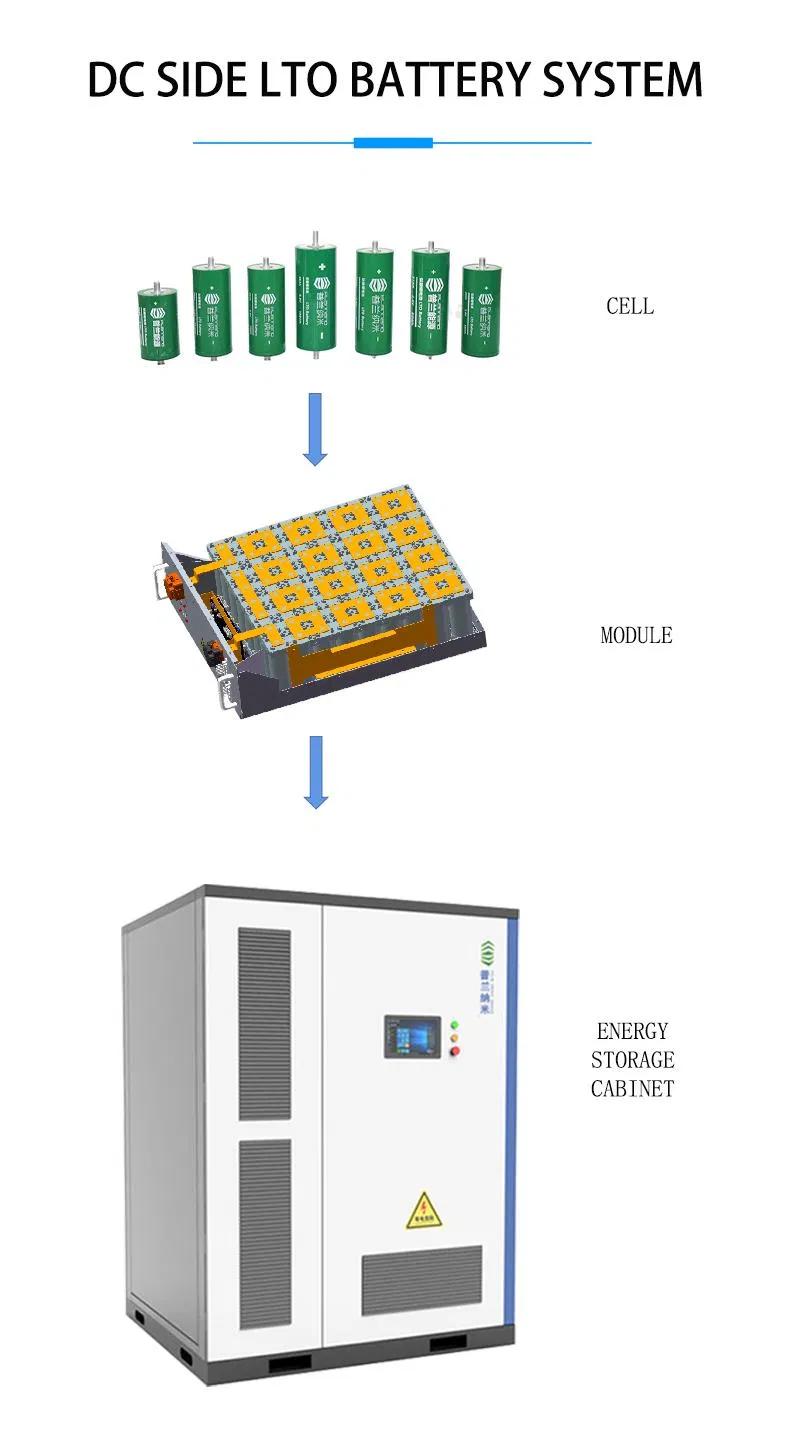

Internal Component 1

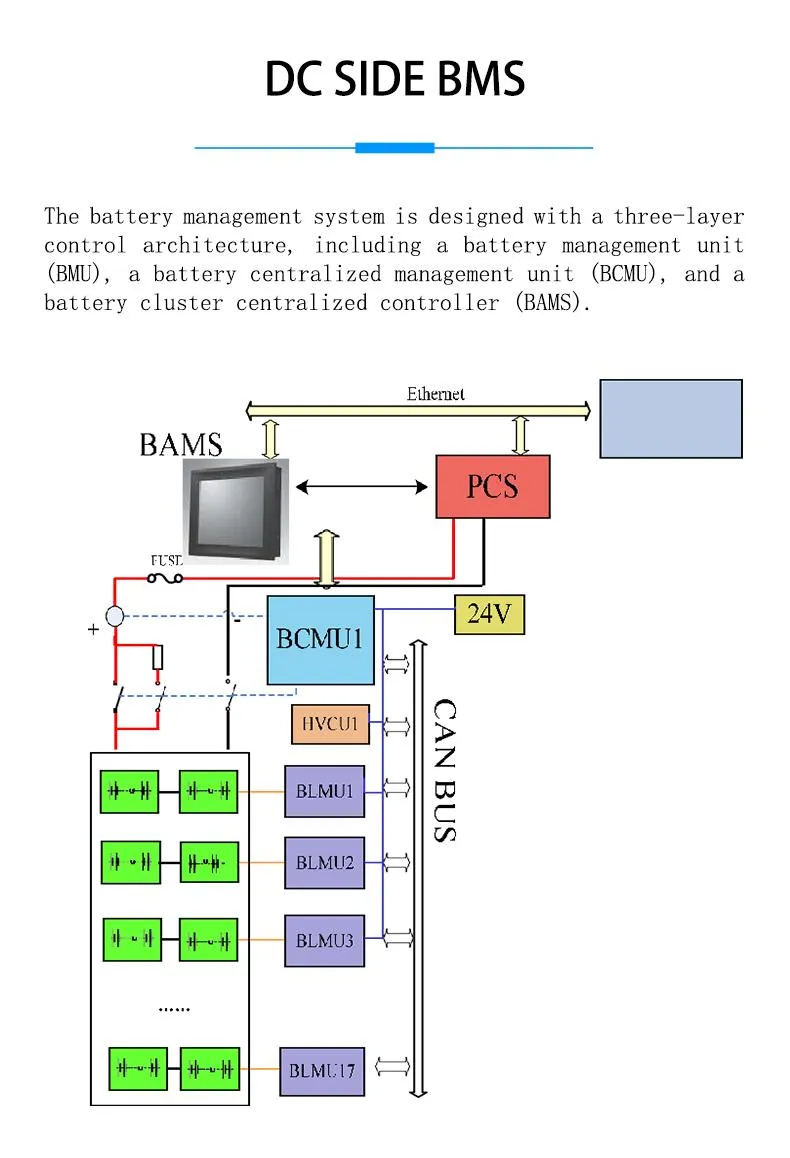

Internal Component 2
Performance Chart 1
Performance Chart 2

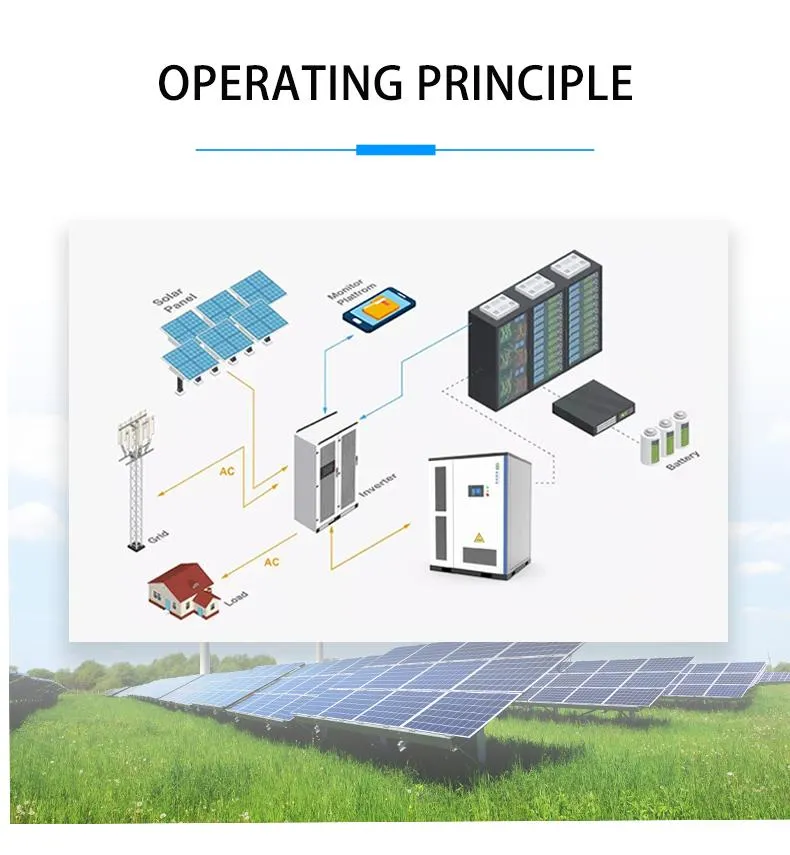

Application 1
Application 2

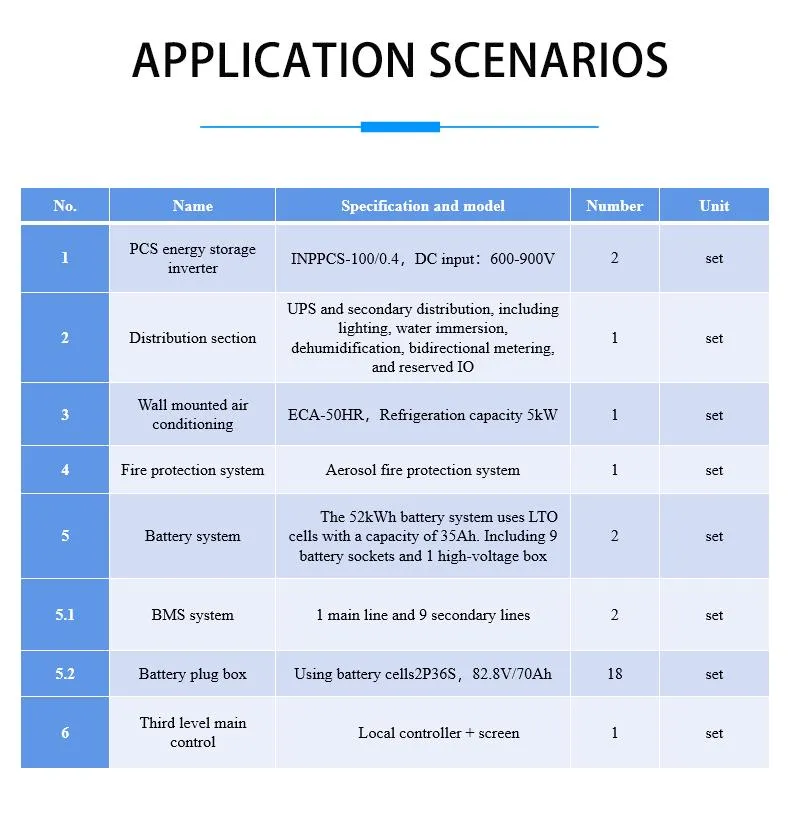

Safety Cert

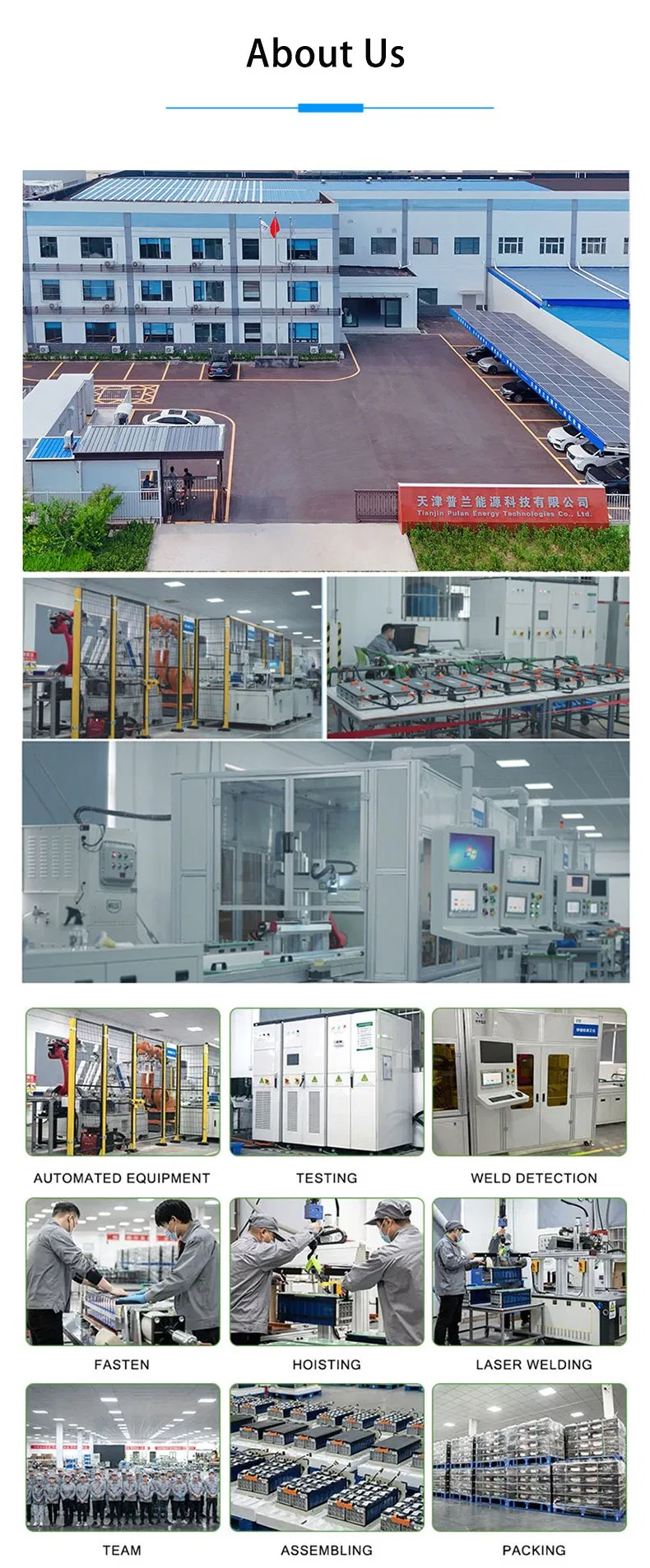

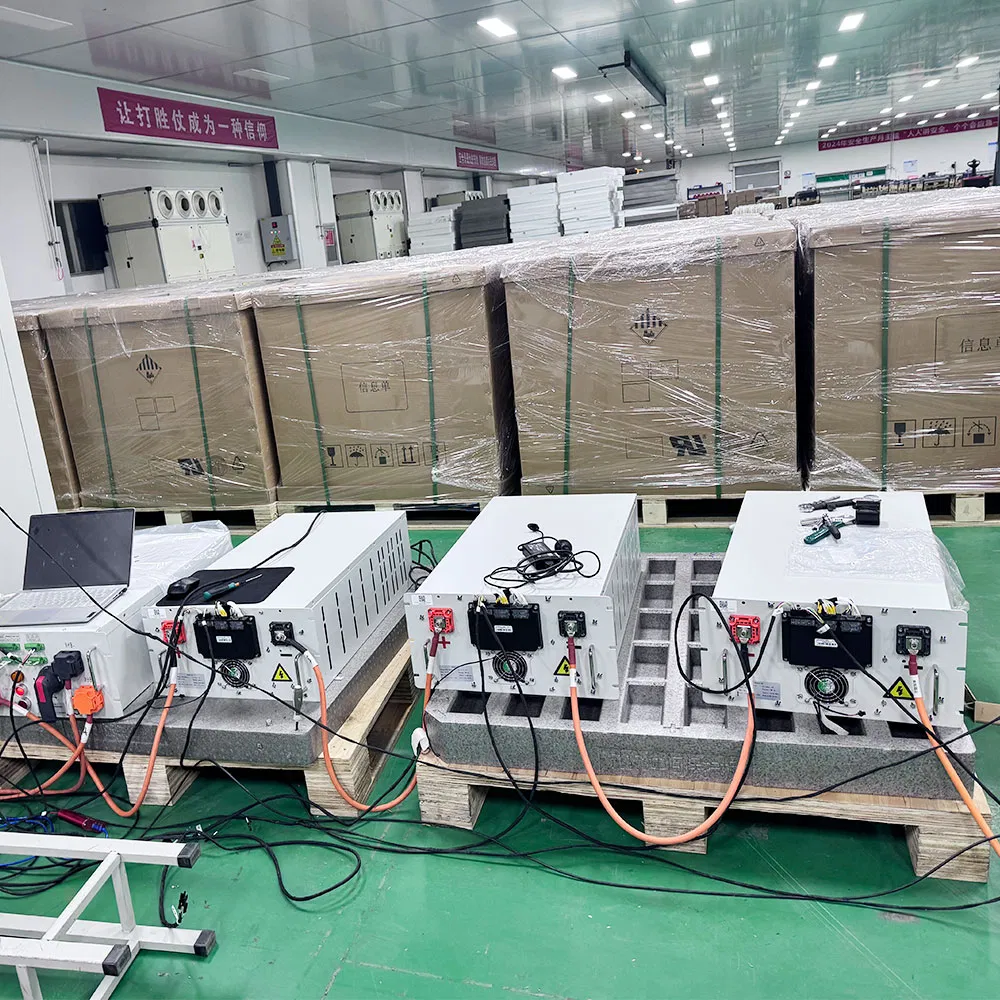

Manufacturing
Shipping
C

Professional Profile

Our company is a high-tech enterprise focusing on the research, development, manufacturing, and marketing of graphene-based materials and their applications in clean energy. We are dedicated to providing complete green-energy storage solutions and power system products for our global clients.

Equipped with high-standard test instruments and a top-class technical management team, we own more than 50 patents in the application of graphene-based materials. Our production lines are capable of mass-producing advanced products including graphene, LTO, Si/C materials, and super capacitor cells ranging from 0.1F to 3000F.

Our core products, such as the 215kWh LiFePO4 energy storage cabinets and LTO battery modules (20Ah to 500Ah), are widely applied in new-energy vehicles, rail transportation, smart grids, micro-grids, and industrial energy-saving fields. We prioritize reliability and integrity, aiming to manufacture high-quality clean-energy products through the latest scientific achievements.
?

Frequently Asked Questions

What is the rated capacity of the 100K/215A-L model?
The 100K/215A-L model features a rated capacity of 215.04 KWh.
What types of cooling systems are integrated into these cabinets?
Depending on the specific model, the systems use either Air-cooled or Liquid-cooled technology to maintain optimal operating temperatures.
What are the fire safety features of the energy storage system?
The systems are equipped with Aerosol or Perfluorohexanone fire fighting methods and carry an IP54 protection rating.
What communication protocols does the unit support?
The system supports CAN, RS485, and LAN communication methods for seamless integration with monitoring systems.
What is the standard cycle life for these battery systems?
Based on the basic configuration, these battery systems are designed for a cycle life of up to 20,000 cycles.
In what temperature range can the system operate?
The energy storage cabinet is designed to operate efficiently within a temperature range of -20ºC to 50ºC.
