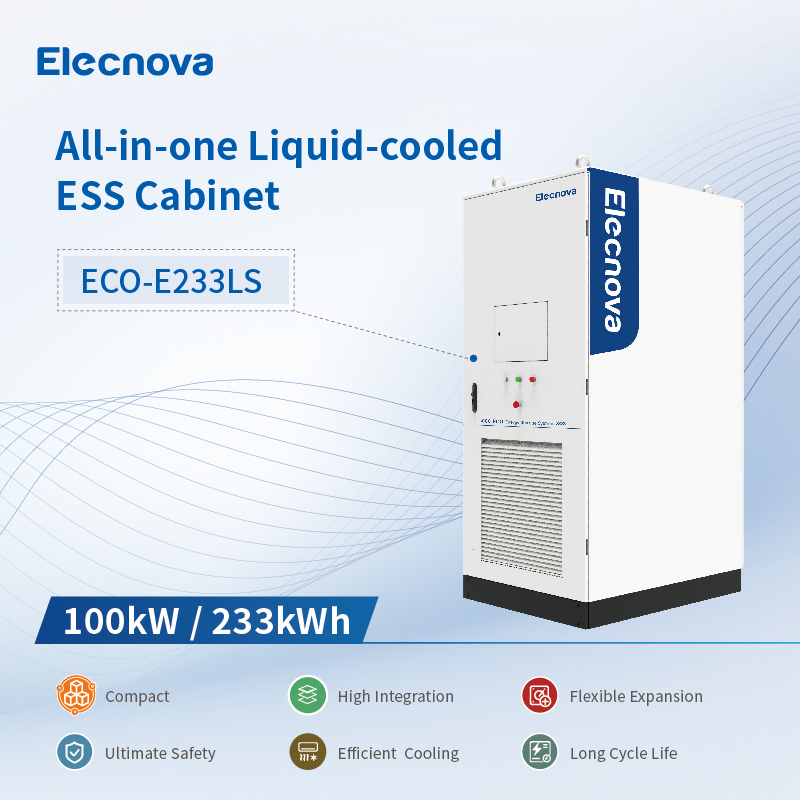

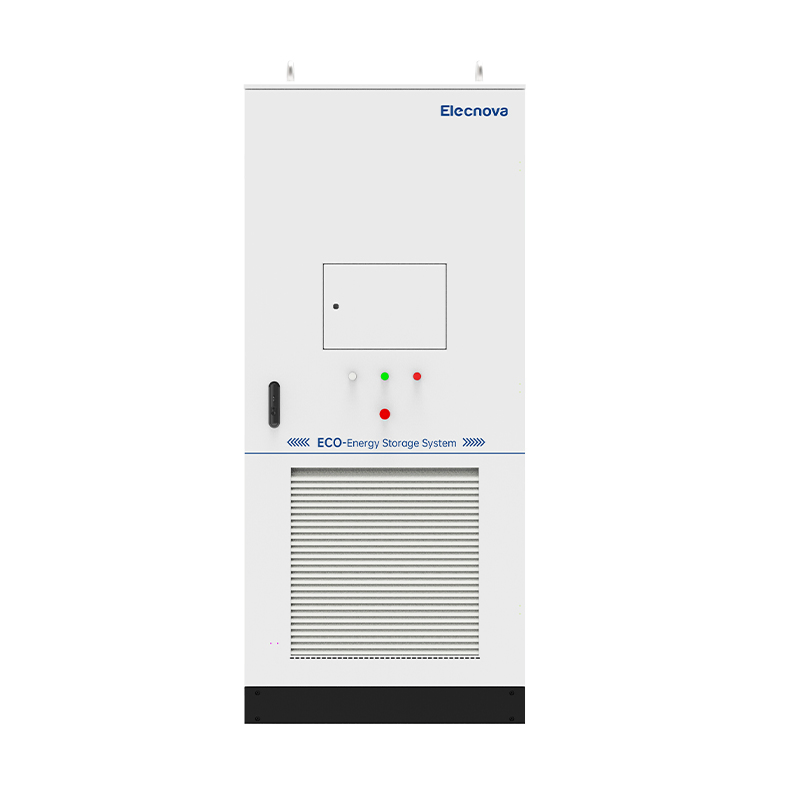

100kw 233kwh LiFePO4 Battery Energy Storage System Cabinet

1 / 5

100kw 233kwh LiFePO4 Battery Energy Storage System Cabinet

Customization:	Available
Weight:	2800kg
Nominal Voltage:	728~936V DC

Send Inquiry

Product Description

📋

Basic Information

Model NO.

ECO-E233LS

Warranty

2 Years

Nominal Capacity

100kw

Cycle Life

≥8,000 Times

Cell Type

LFP280ah

Battery System

233.96kwh/1p260s

Ingress Rating

IP65

Operating Temp

-25℃~55℃

Efficiency

≥90%

Cooling

Active Liquid Cooling

🔋

Product Description

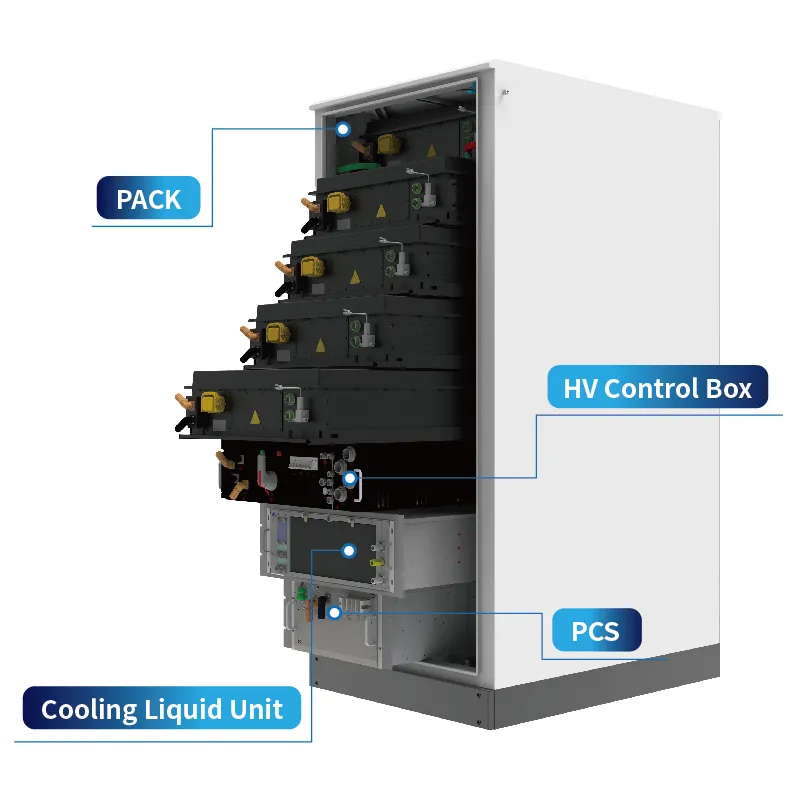

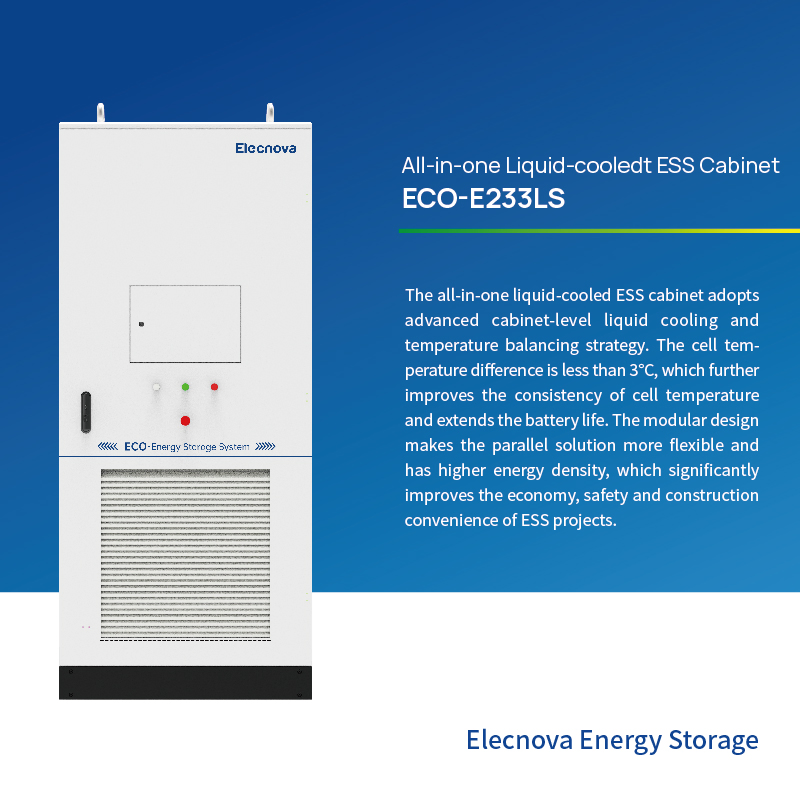

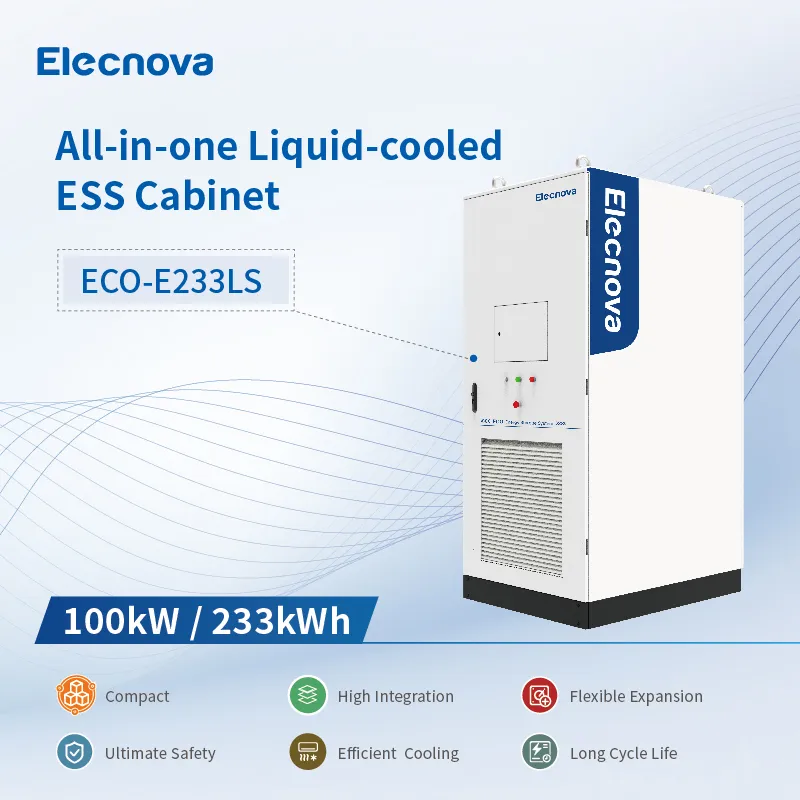

"All in One" design Liquid Cooling Energy Storage System Cabinet

The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

⚙️

Technical Specifications

DC Battery Parameters
Battery Cell Type	LFP 280Ah
Battery System Configuration	233.96kWh/1P260S
Battery Voltage Range	728~936V DC
System Rated Voltage	768V DC
AC Side Parameters
AC Rated Power	100kW
AC Maximum Power	110kW
Grid Rated Voltage	400Vac/3P+N+PE
Rated Grid Frequency	50Hz/60Hz
System Parameters
Energy Conversion Efficiency	≥90%
Charge/Discharge Rate	0.5P
Discharge Depth	95%DOD
Protection Level	IP55
Dimensions (WDH)	1,0501,3502,400 (mm)
Compliance Standards	UN38.3, IEC62619, UL1973, UL9540, CE-EMC

❓

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a professional manufacturing facility with advanced production lines dedicated to energy storage solutions.

Q2: Does your company provide customized manufacturing?

A: Yes, we provide comprehensive OEM/ODM services. Our experienced R&D team works closely with customers to deliver high-efficiency, tailored solutions.

Q3: How long is the typical delivery time?

A: For items in stock, delivery takes 3-5 working days. For custom or out-of-stock items, the lead time is approximately 15-21 days.

Q4: Do you provide samples for testing?

A: Samples are available upon request; however, customers are required to pay for the sample cost and the associated freight charges.

Q5: What are your standard terms of payment?

A: For orders under $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% due before shipment.

Q6: What is the lifespan and maintenance like for this system?

A: The system features a cycle life of ≥8,000 times. With active liquid cooling, temperature consistency is maintained, significantly reducing maintenance needs and extending cell life.
