| System Specifications - Model H225 | |
|---|---|
| System Nominal Voltage | 716.8V |
| System Nominal Energy | 225kWh |
| Nominal Capacity | 314Ah |
| Max. Charge/Discharge Current | 140A |
| Protection Class | IP54 / IP55 |
| Cooling Method | Industrial Air-conditioner |
| Dimensions (W*D*H) | 1626x1245x2175mm |

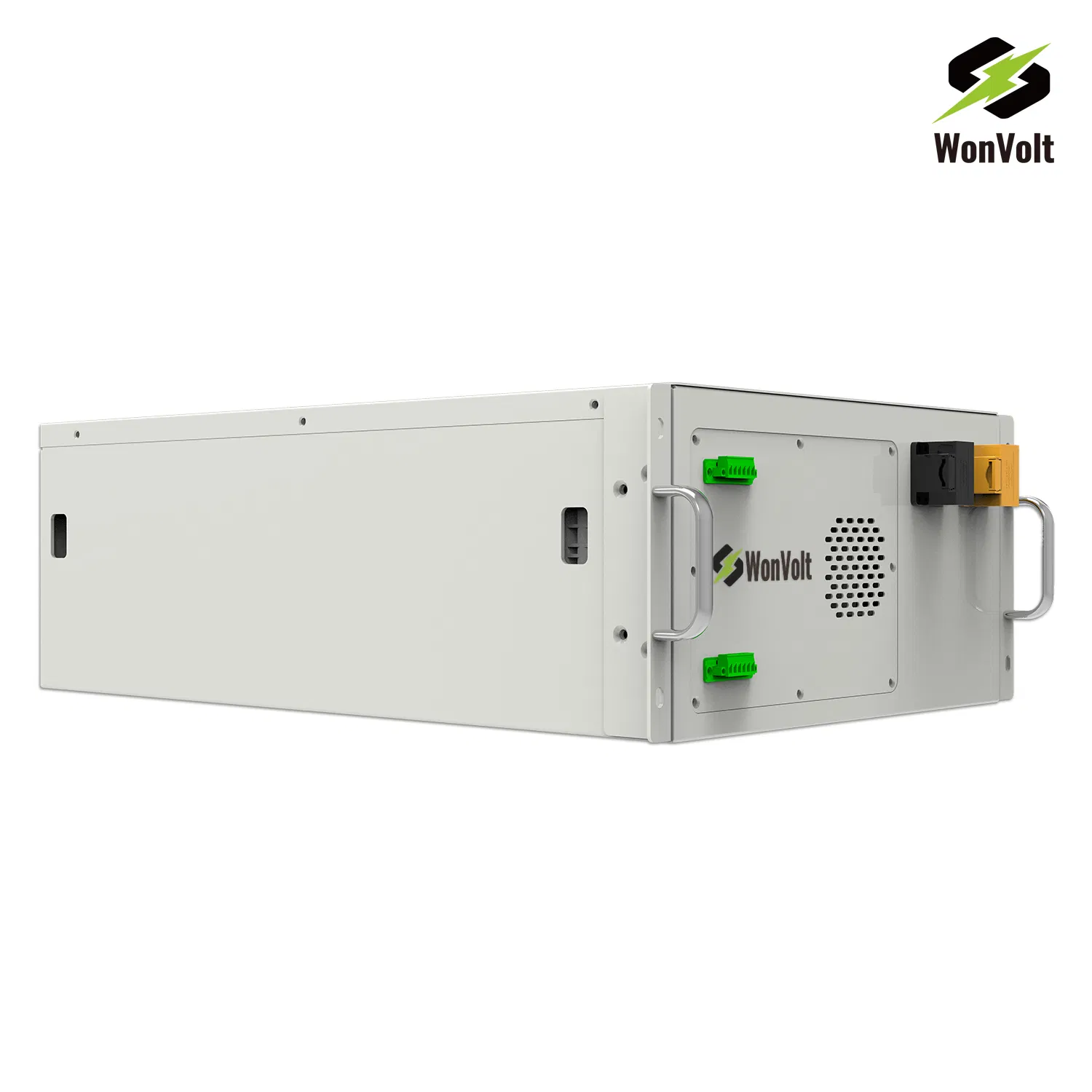

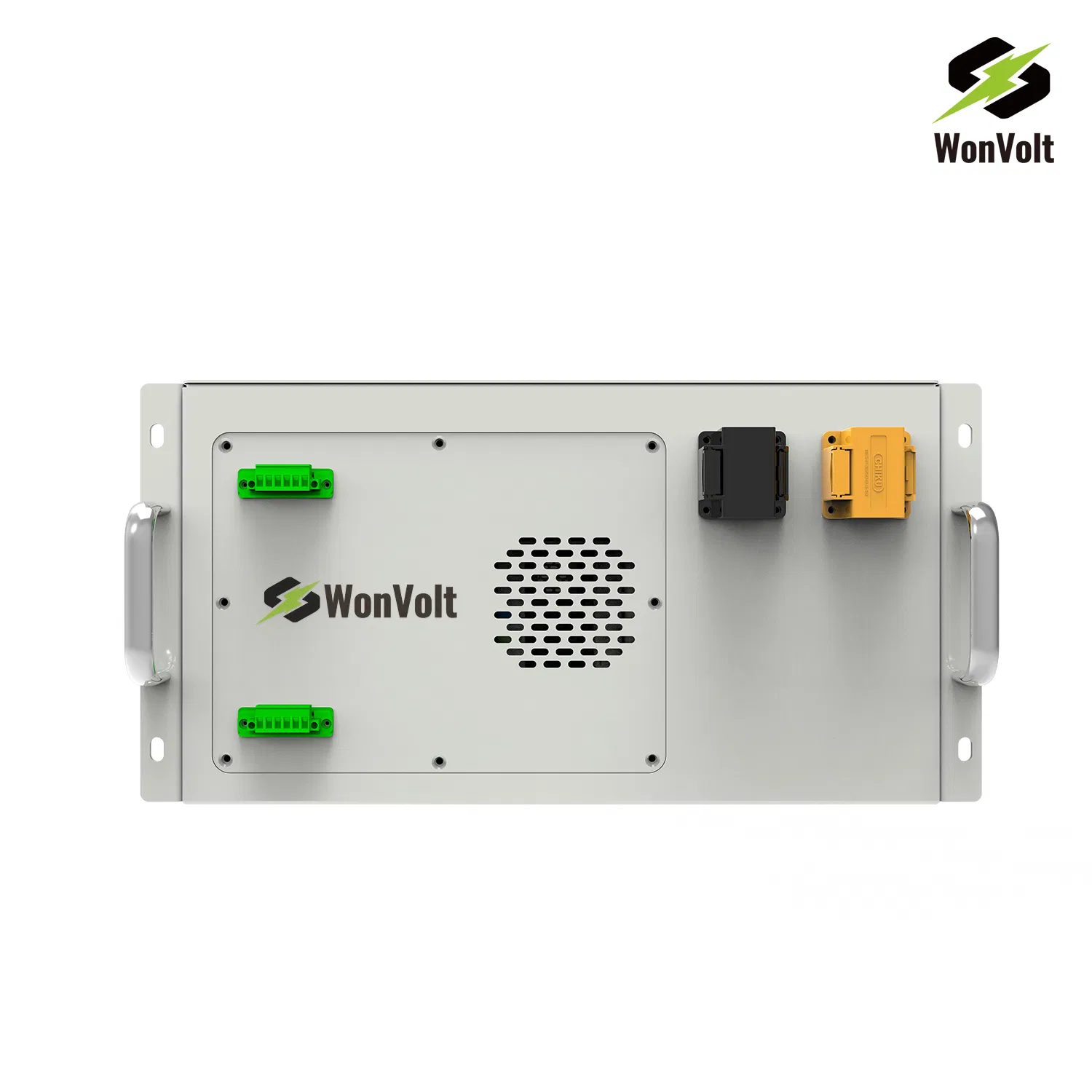

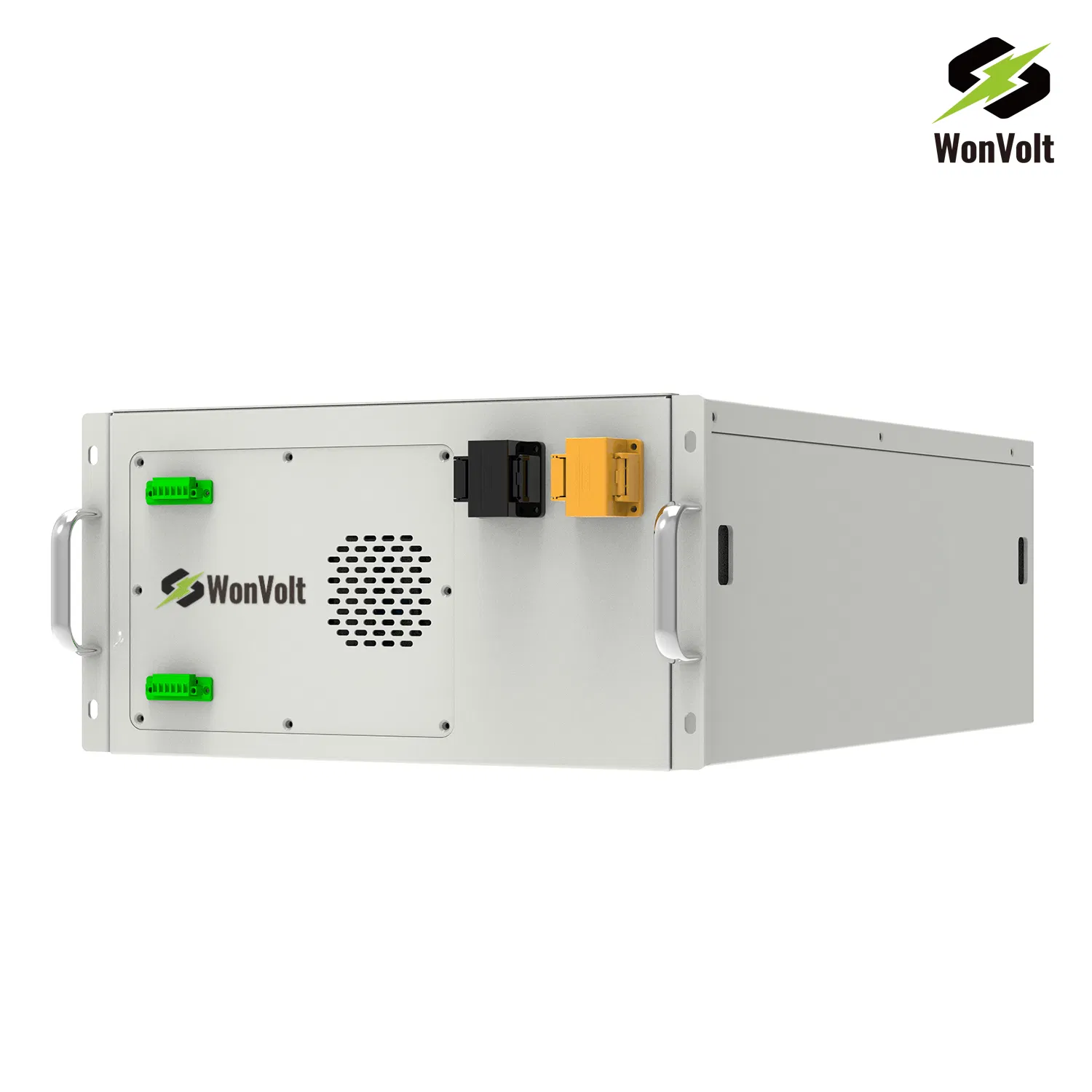

| Battery Type | LFP 51.2V 314Ah |
| Cell Brand | HIGEE / CATL / REPT / etc. |
| Cycle Times | 10000 Times (0.5C - 25ºC - 90%DOD) |
| Inverter Range | 75kW ~ 125kW |
| AC Voltage Range | 380VAC (360VAC ~ 440VAC) |
The system features a design life of over 15 years at standard operating temperatures (25°C), ensuring long-term reliability for utility and industrial applications.

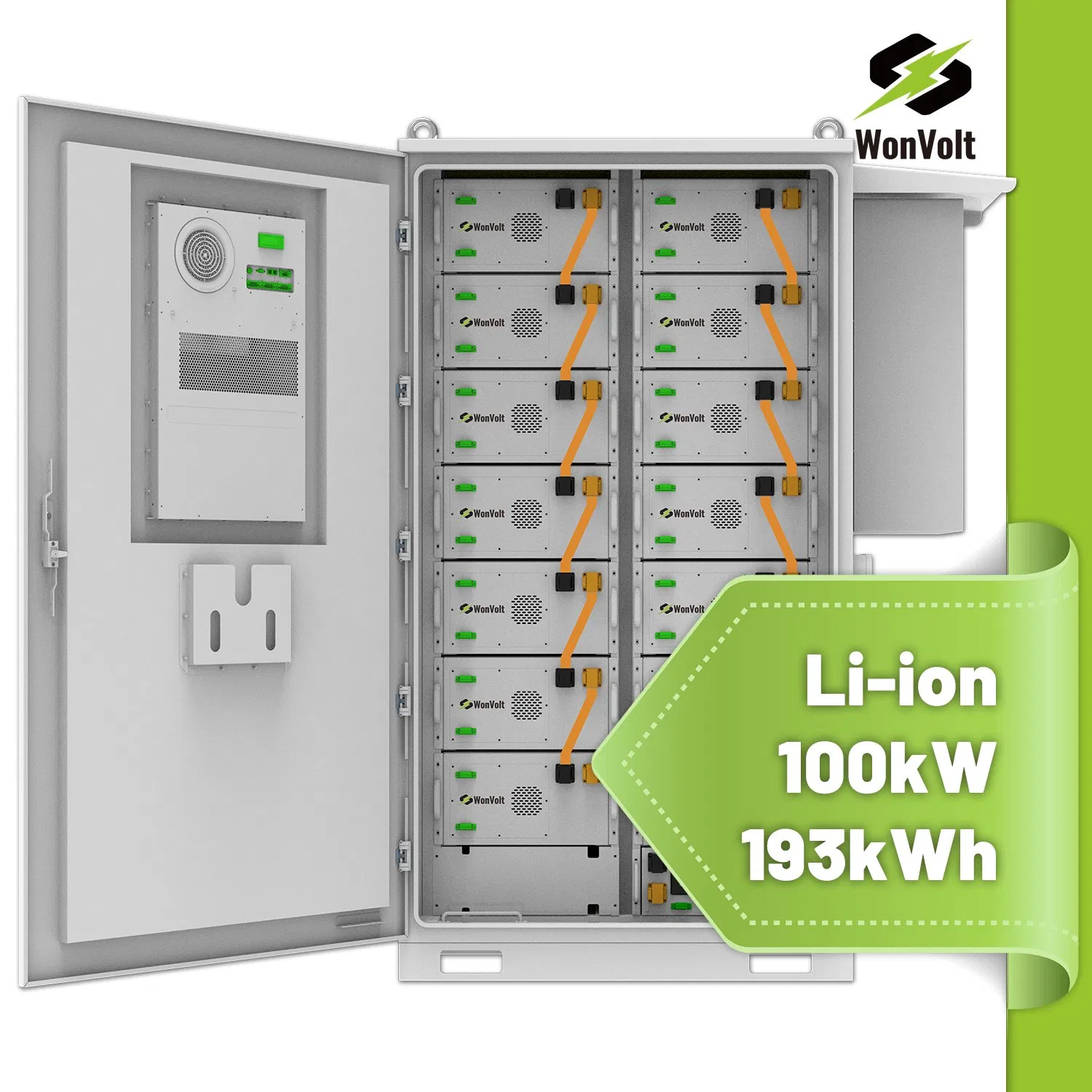

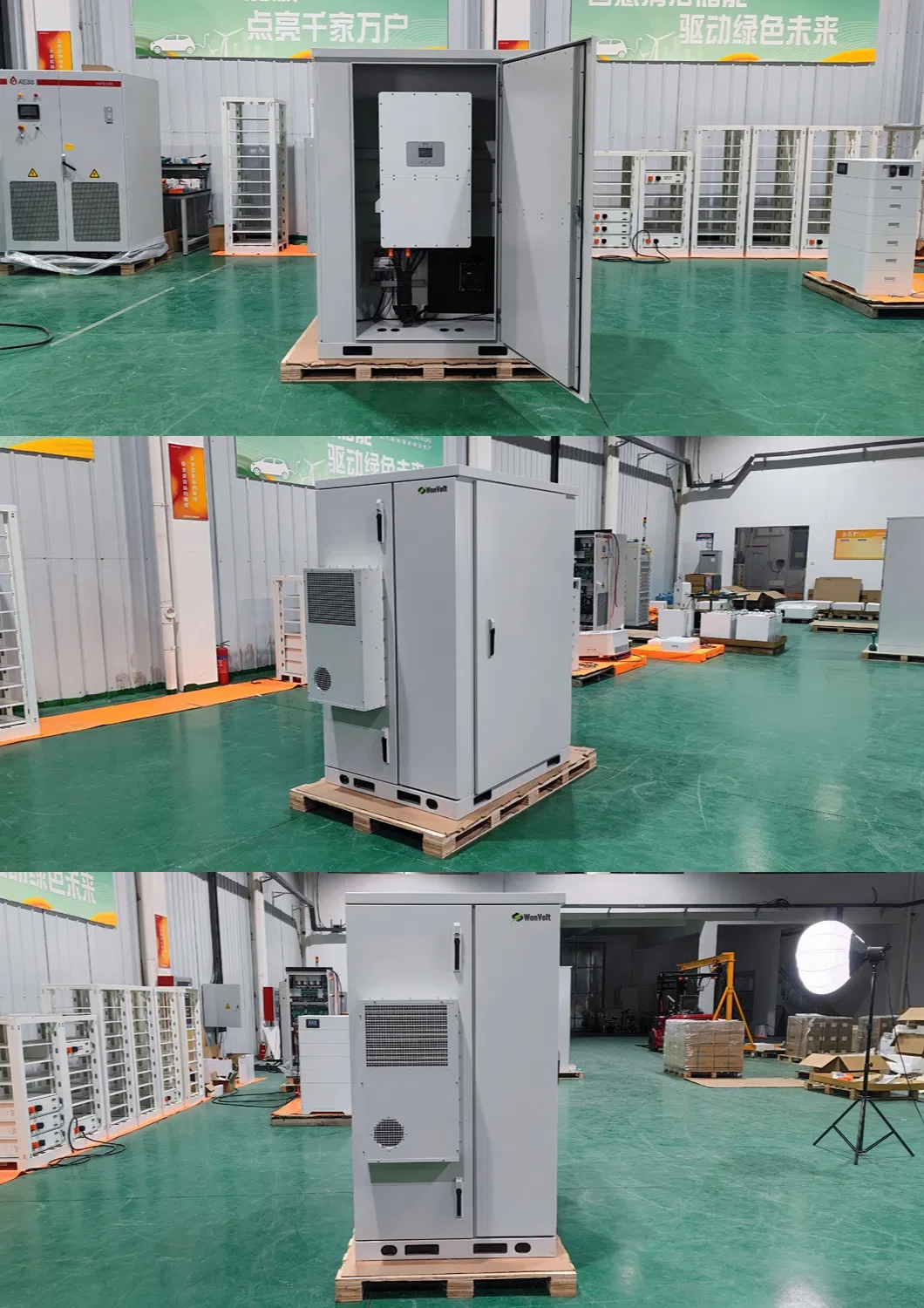

The cabinet is equipped with an integrated industrial-grade air conditioner (Smart Air Cooling) to maintain an optimal temperature environment for the battery cells.
The system supports major inverter brands including Deye, Solis, Afore, ATESS, Growatt, and Megarevo via Ethernet, Modbus, or TCP/IP communication protocols.
For maximum safety, the system includes a gas aerosol firefighting system and is built to IP54/IP55 protection standards for outdoor durability.

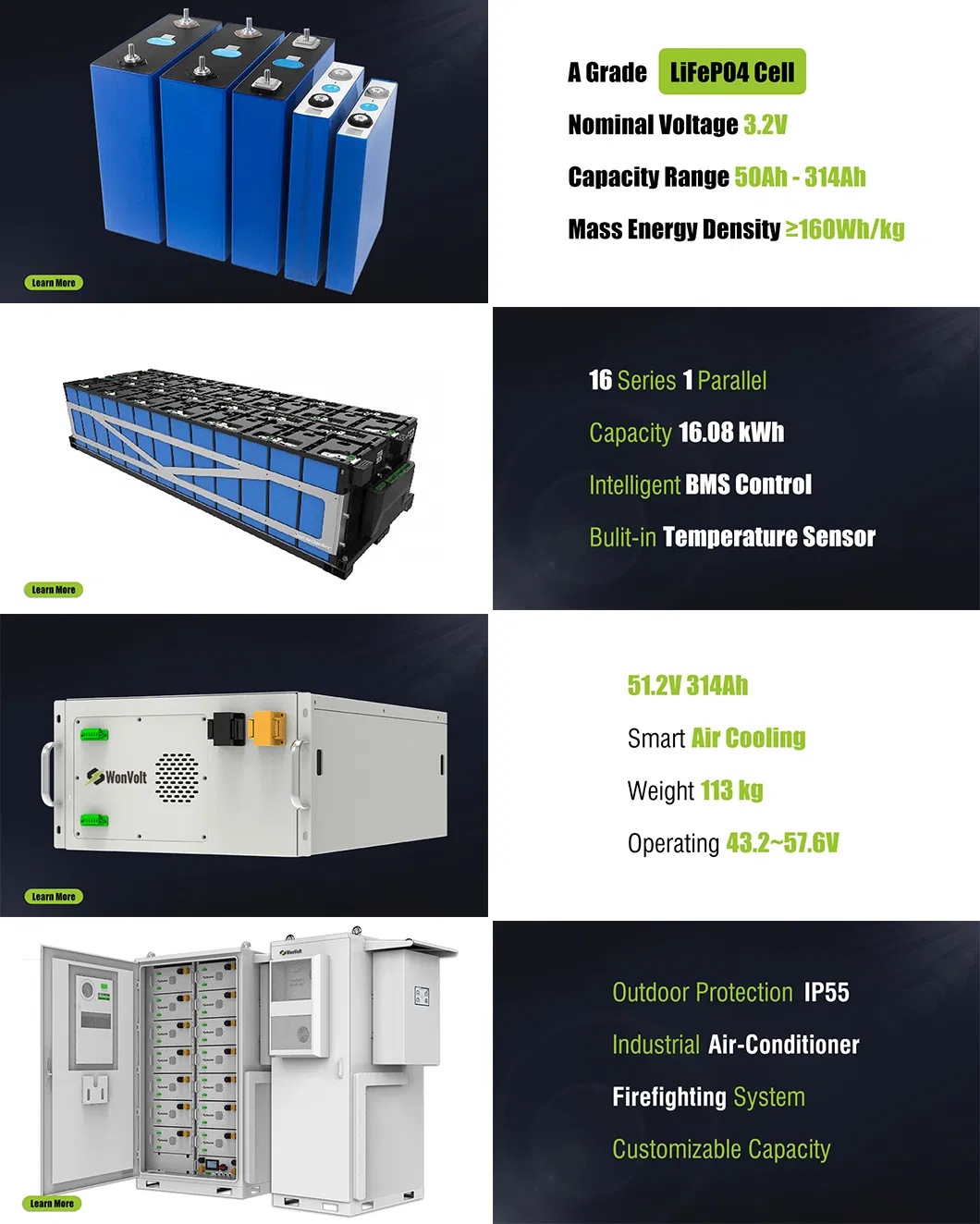

The 314Ah LFP cells provide up to 10,000 cycles at 0.5C discharge rate and 90% Depth of Discharge (DOD) under standard conditions.
Yes, the Utility Cabinet is designed for rapid response applications including grid frequency regulation and peak shaving.
