📋 Overview
Model NO.
WV-100KW-215KWh-0.5C
Nominal Capacity
100kw/200kwh+
Application
Commercial and Industrial
Battery Type
LiFePO4/Lithium
Battery Capacity
100-600kwh
Support
UPS/Black Start/Dg
Cooling
Smart Air Cooling
Mounting
Metal Rooftop, Tile Rooftop or Ground
Certificate
CE Un38.3 IEC En50549
Parallel
Yes, up to 3 Units
🏢 Commercial ESS

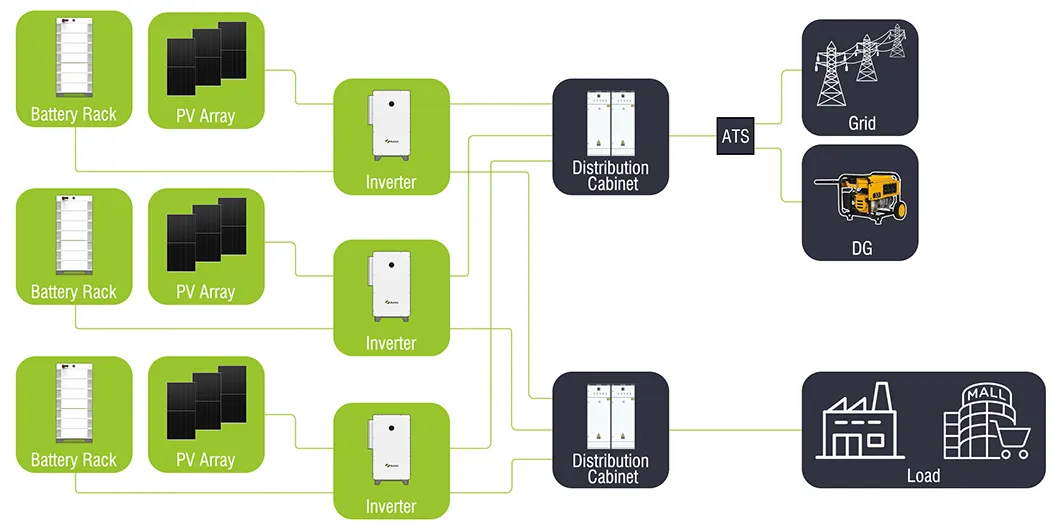

⚙️ System Configuration
| Equipment |
Model |
100KW System |
200KW System |
300KW System |

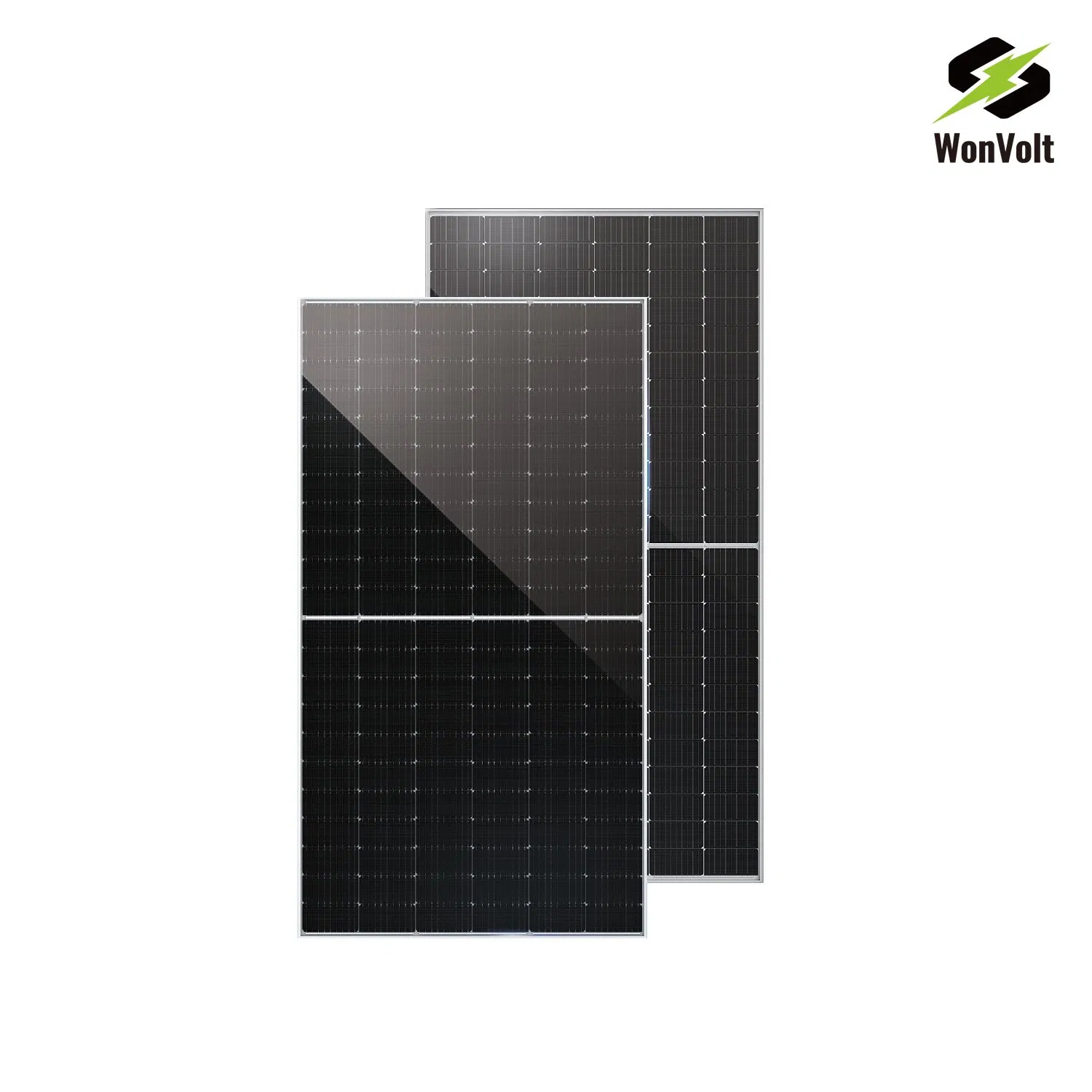

| PV Module |
565W Series |
187 |
374 |
561 |

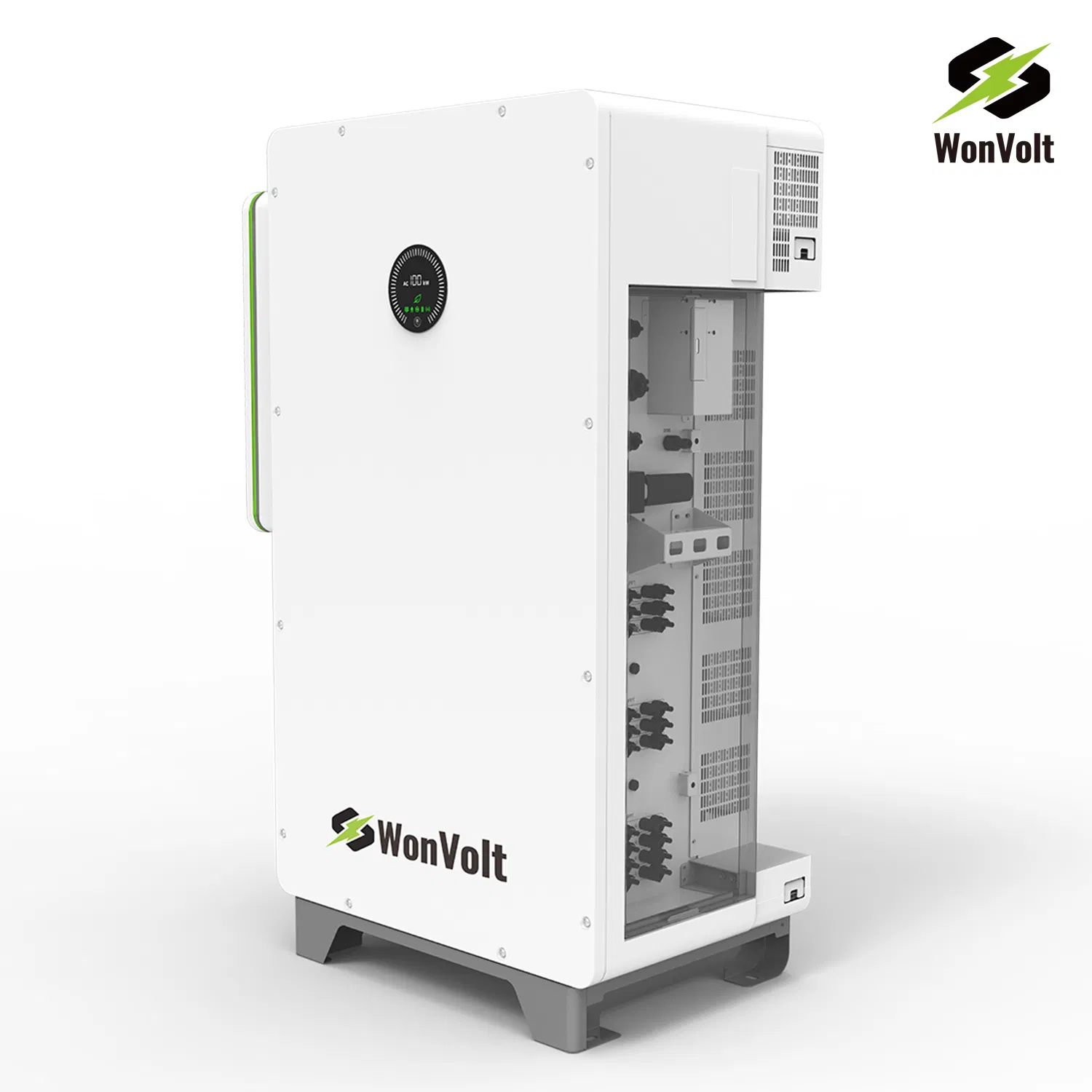

| Inverter |
WIT-100K-HU |
1 |
2 |
3 |

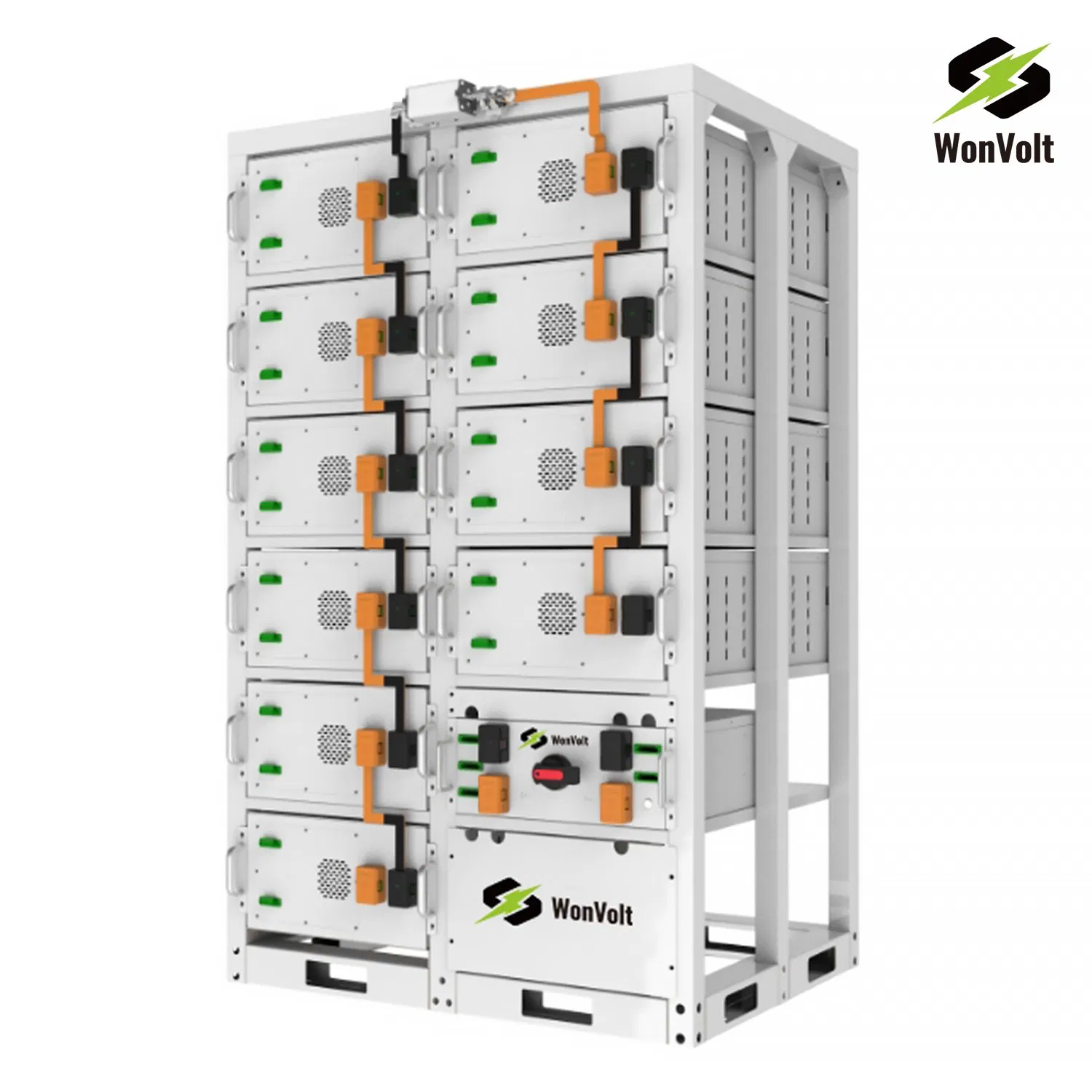

| Battery Pack |
High Voltage Series |
14 |
28 |
42 |
| Control Box |
Smart BMS |
1 |
2 |
3 |
| Connector |
MC4 |
40 |
80 |
120 |
| ATS (Optional) |
ATS300KW |
1 |
1 |
1 |

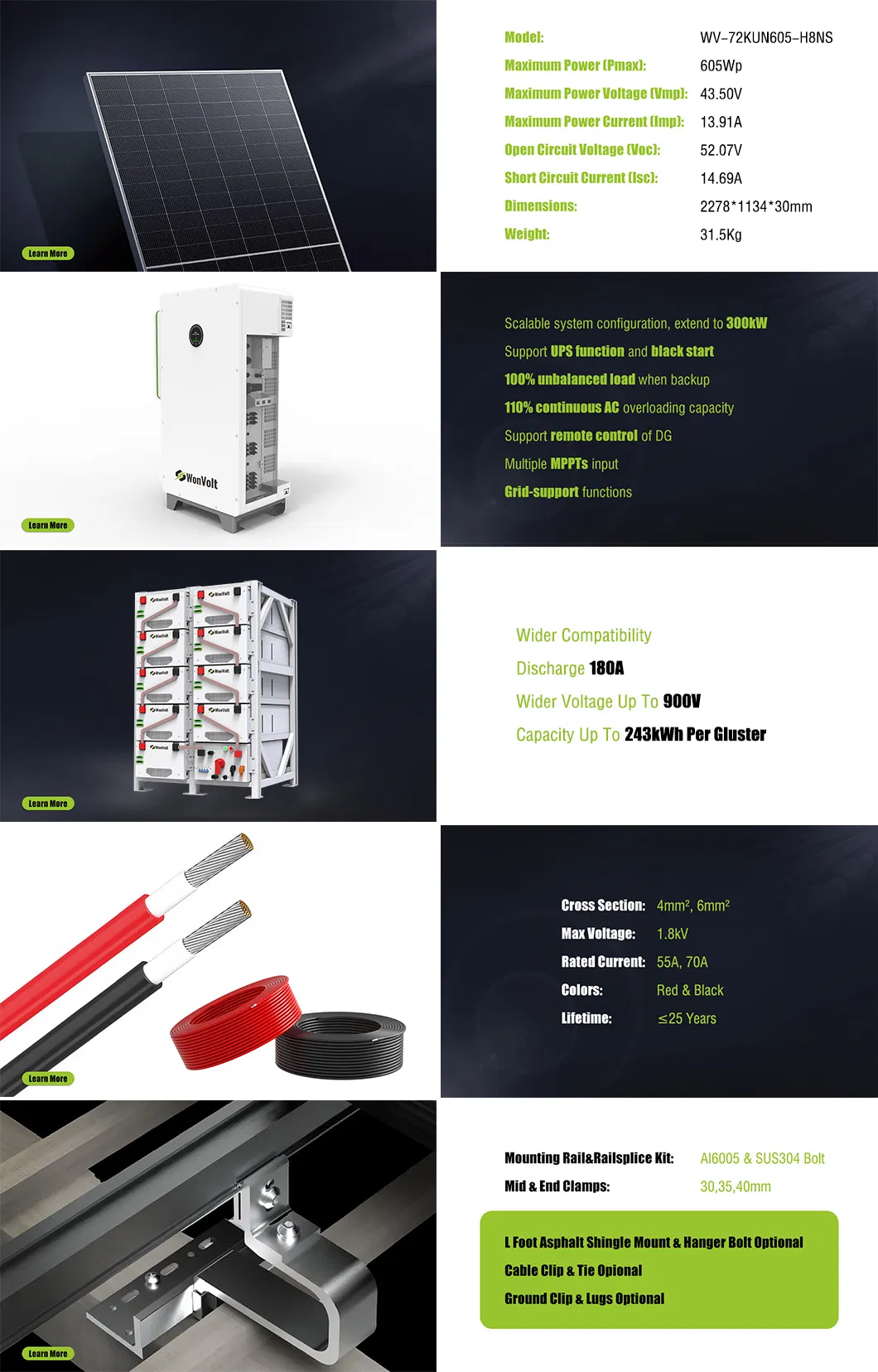

📝 Product Description

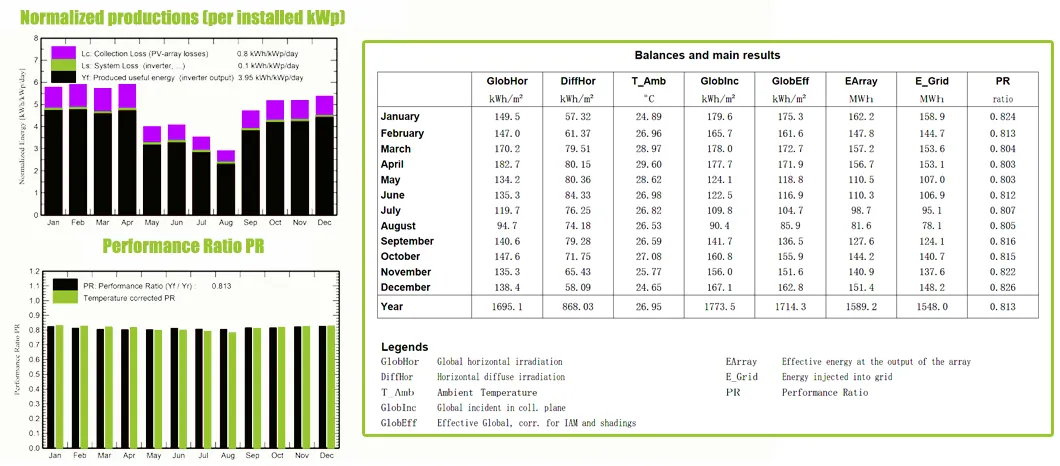

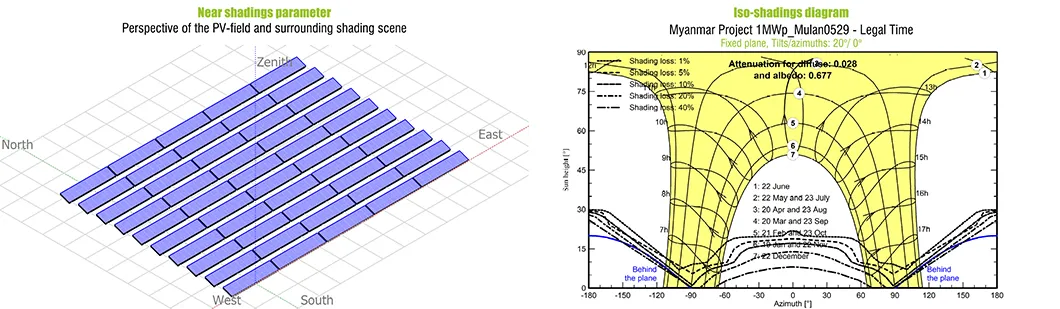

🛠️ Technical Support

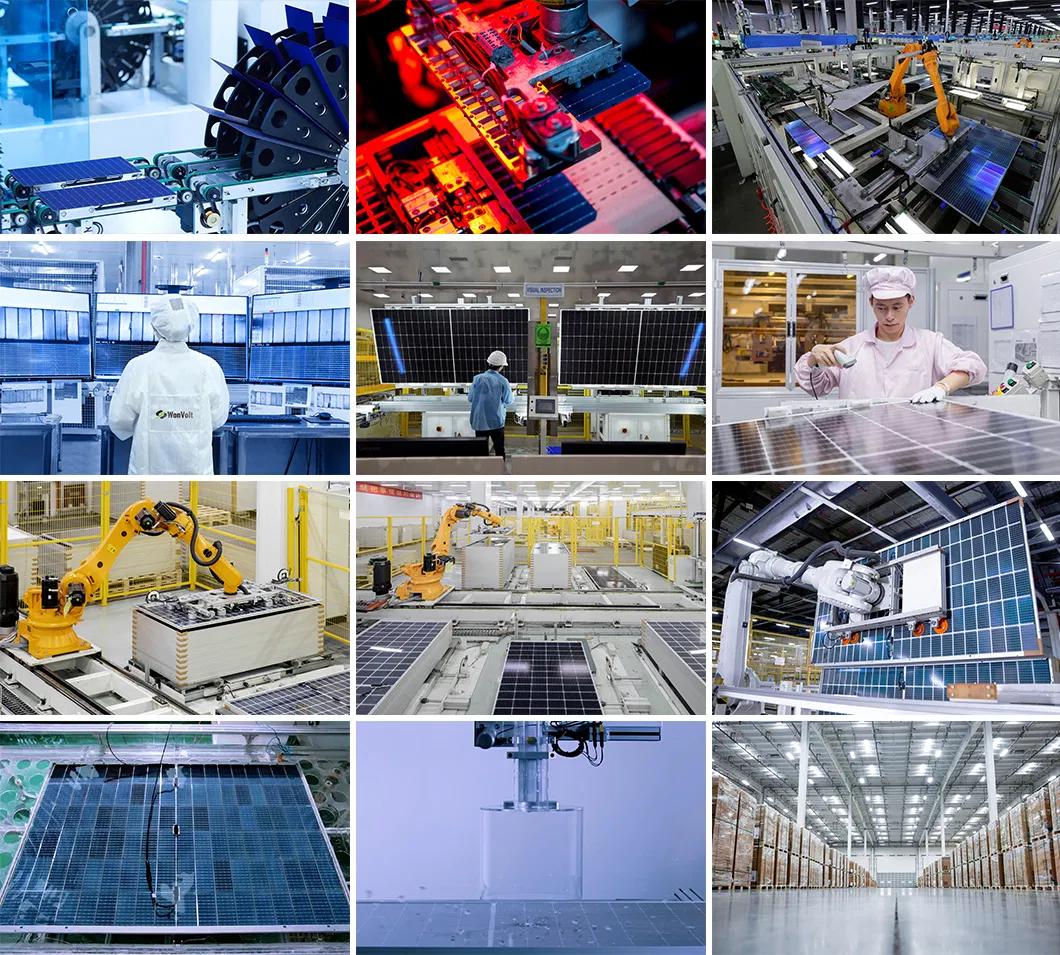

🏭 Production Factory
🌟 Reference Projects
❓ Frequently Asked Questions
What is the expected cycle life of the battery system?
The system features high-quality LiFePO4 cells with a cycle life of over 6,000 times, ensuring long-term reliability for industrial applications.
Can this system be used for off-grid applications?
Yes, the system supports UPS functionality, Black Start, and DG (Diesel Generator) integration, making it suitable for both on-grid and off-grid scenarios.
What cooling method does the ESS use?
The system is equipped with a Smart Air Cooling system to maintain optimal operating temperatures and ensure battery stability.
Is the system scalable or parallel-capable?
Yes, the energy storage system can be connected in parallel, supporting up to 3 units for increased capacity.
What certifications does this product hold?
Our storage systems are certified with CE, UN38.3, IEC, and EN50549 standards, meeting international safety and quality requirements.
Does the system support remote monitoring?
Yes, remote monitoring is available via WIFI or the SEM-X module, allowing for real-time tracking of system performance.
