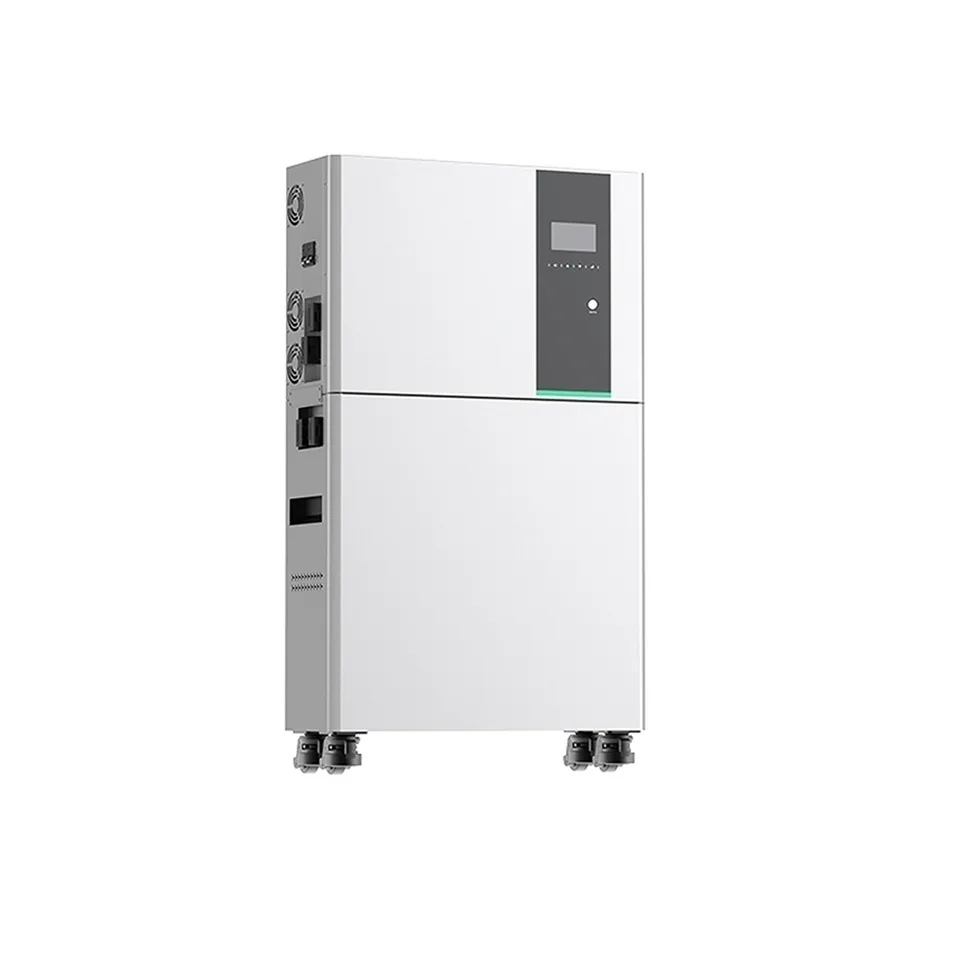

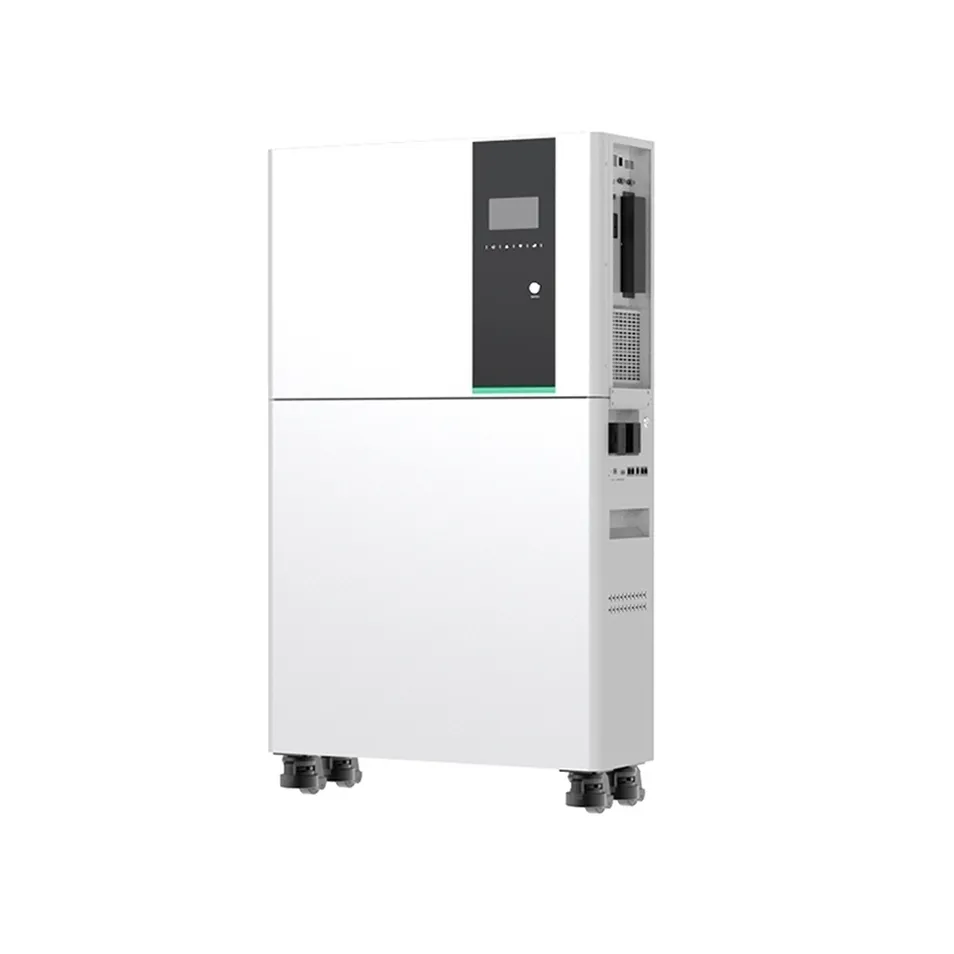

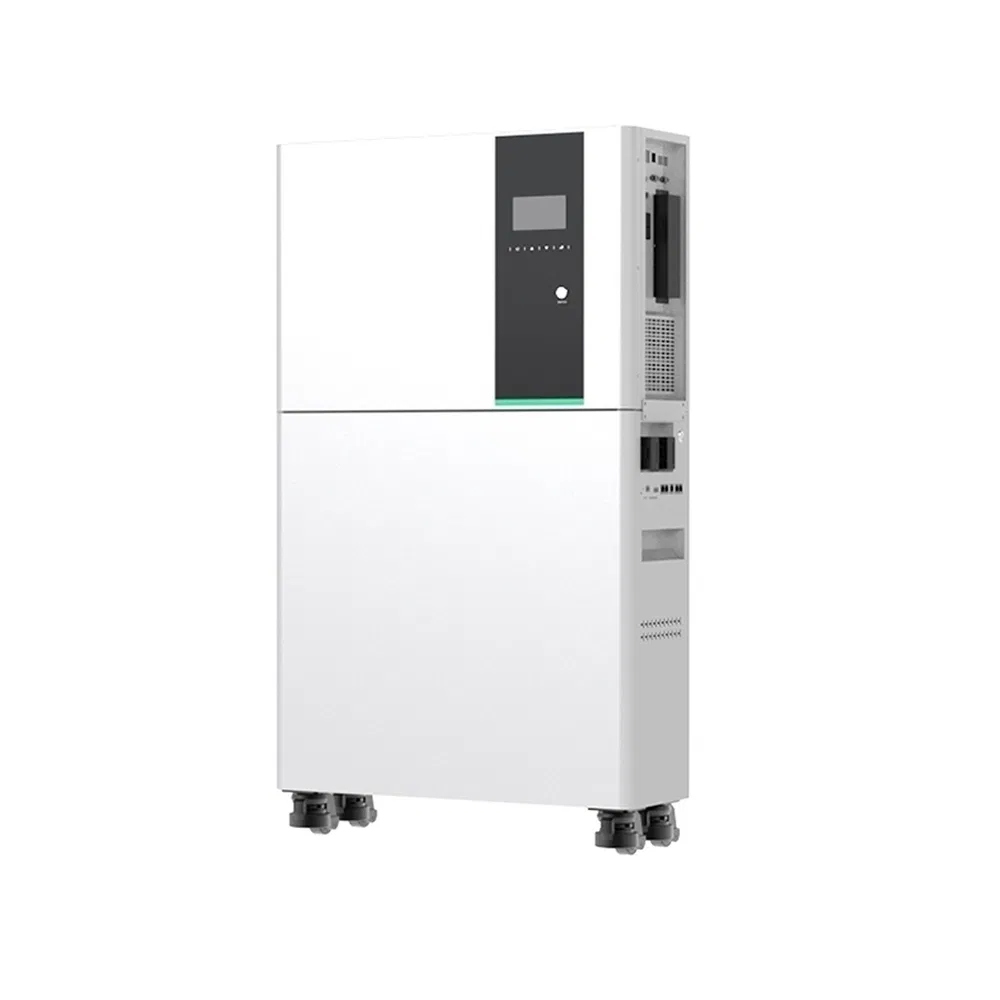

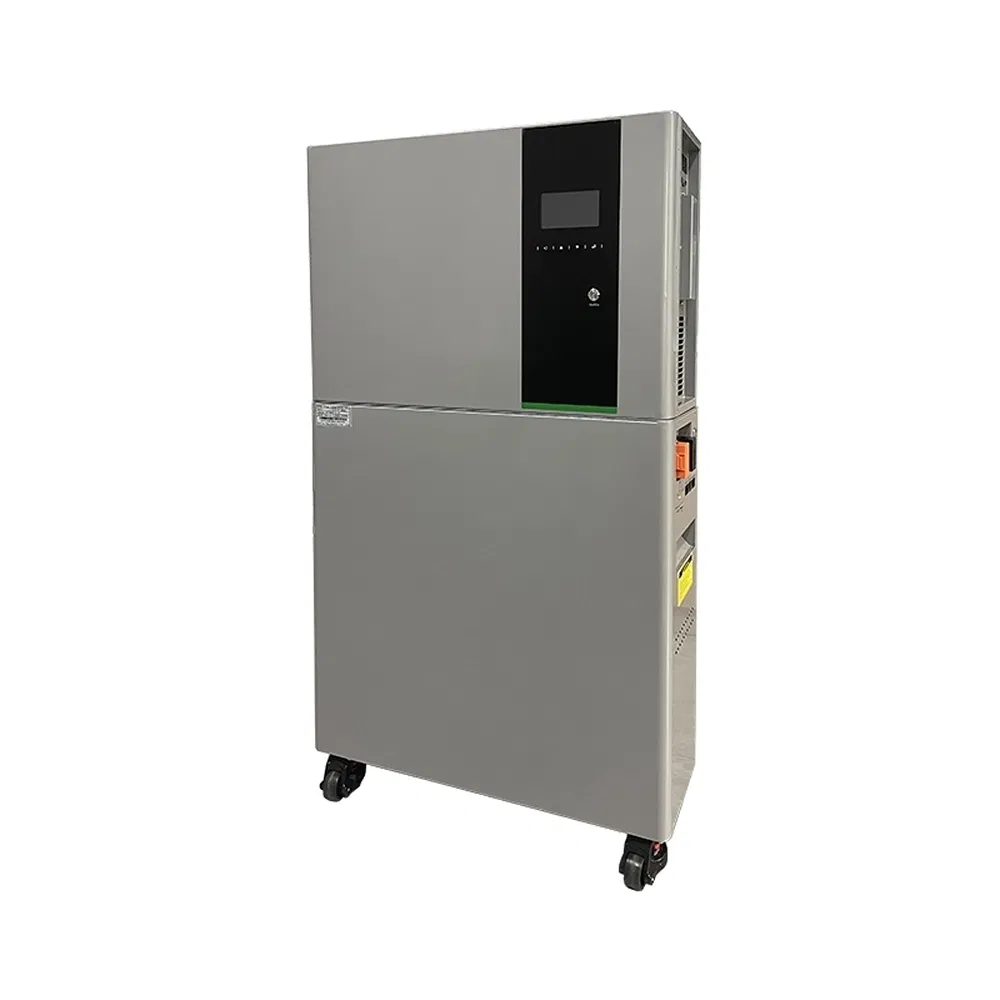

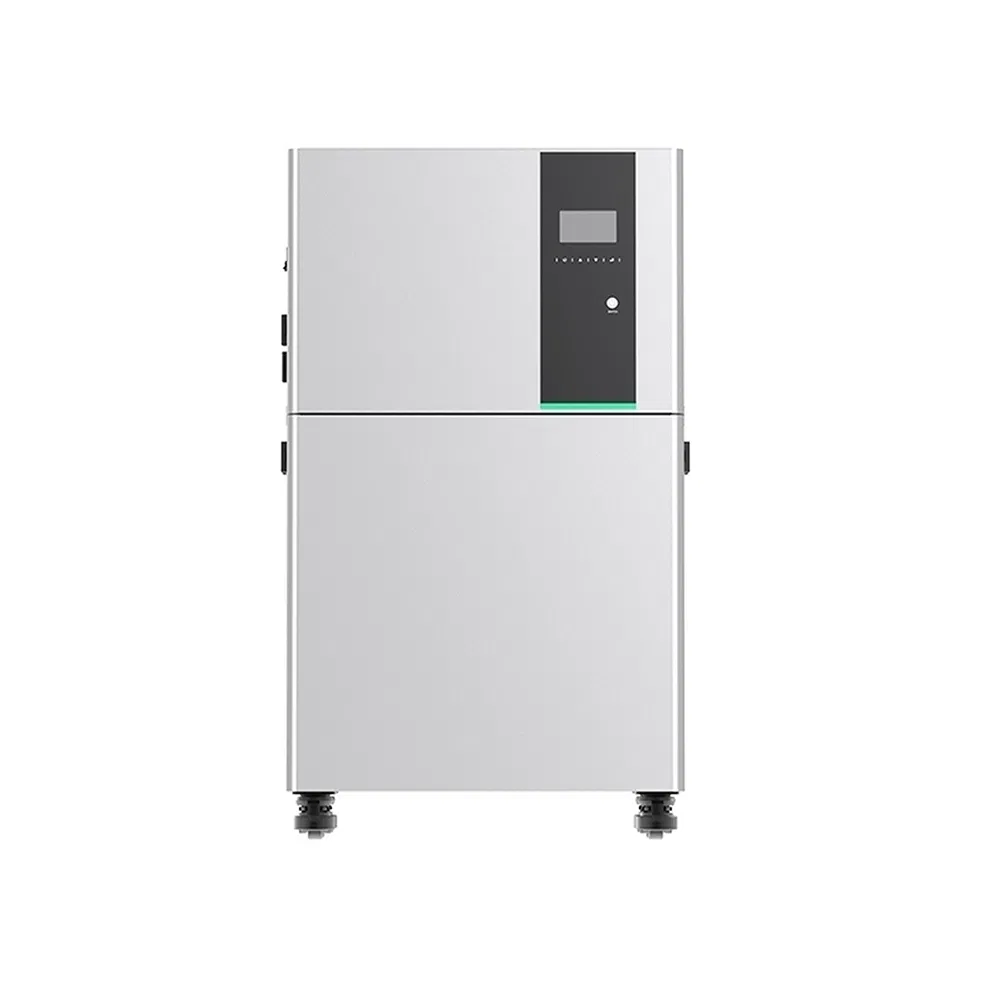

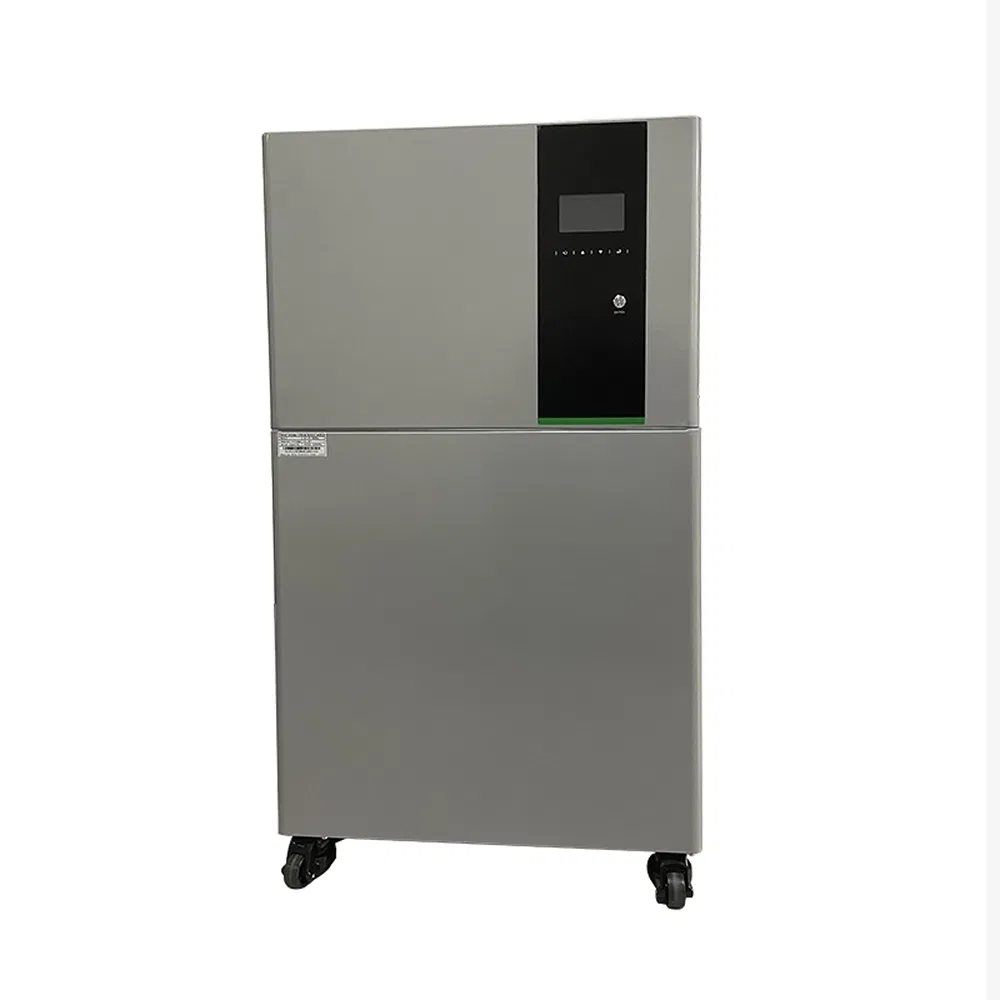

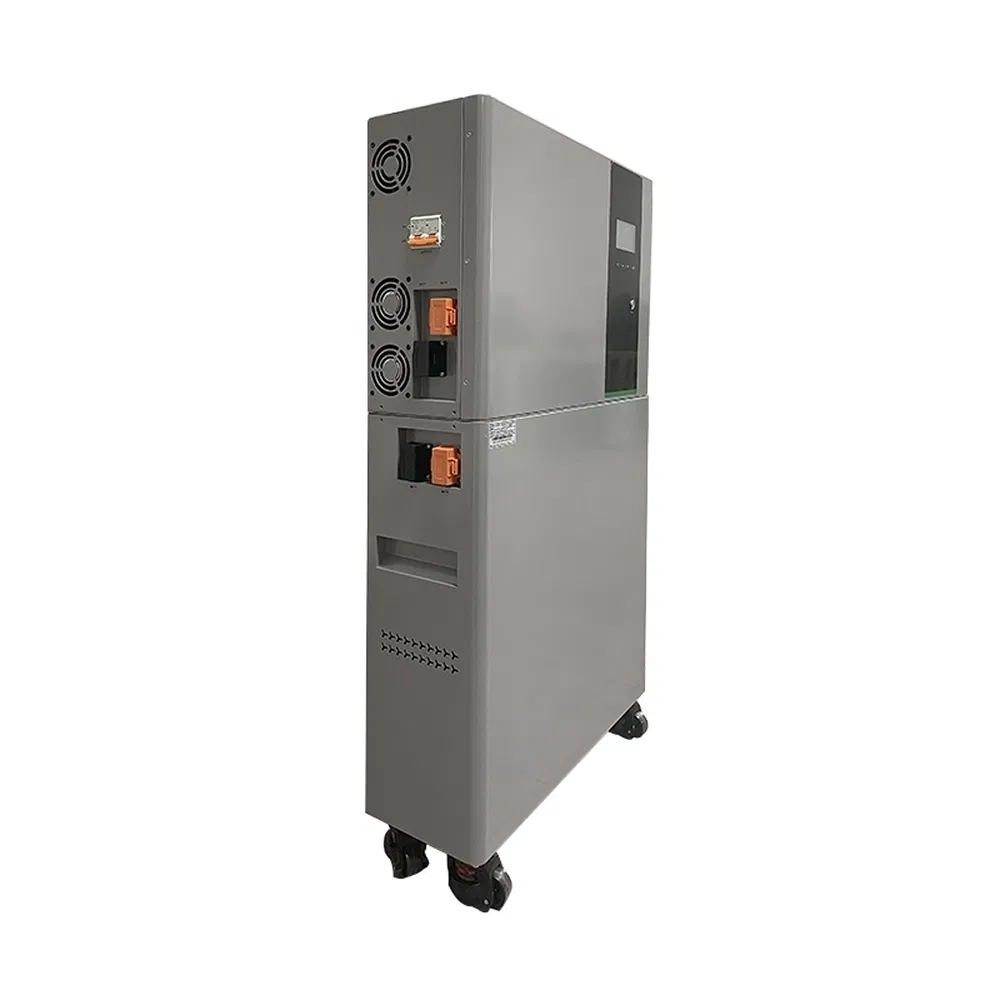

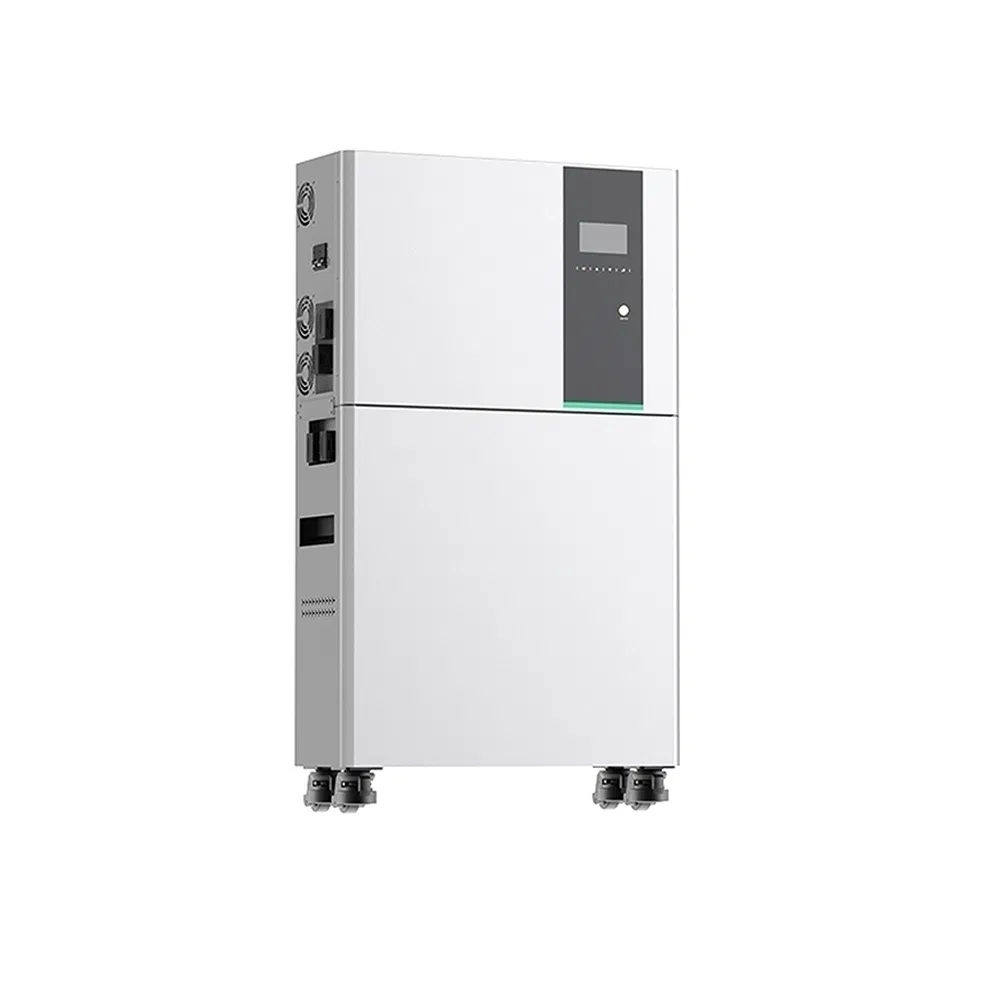

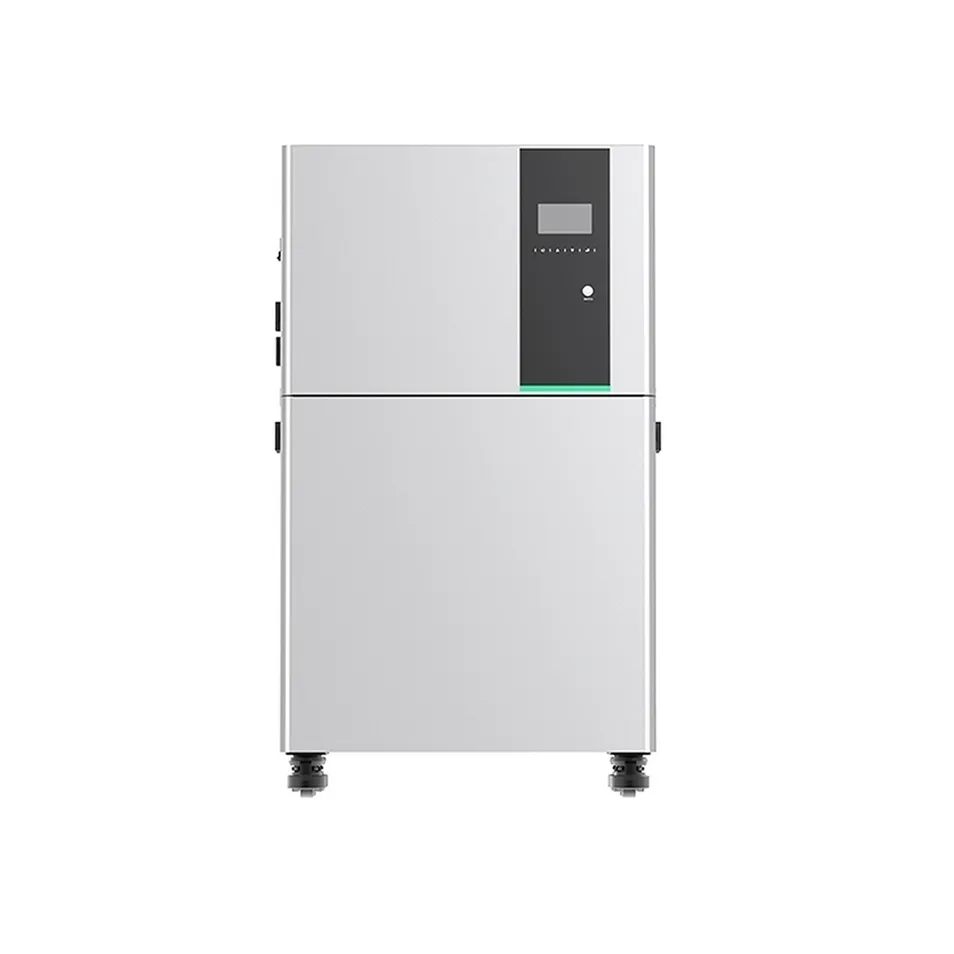

ENERGY STORAGE BATTERY SYSTEM
The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.
A complete integrated system combines the inverter, battery, and control functions in a single unit, eliminating wiring and reducing installation time.
Designed for residential applications, providing backup power and energy independence with performance for household energy consumption.
High inverter compatibility and a broad input voltage range ensure seamless integration with various solar panel configurations.
| Model NO. | OLU-10000A-15 |
|---|---|
| Product Name | Energy Storage Battery System |
| Nominal Capacity | 15.36 Kwh |
| Rated Power | 10kW |
| Cycle Life | 25+/-2c, 0.5c/0.5c, EOL 80% >= 6000 |
| Waveform | Pure Sine Wave |
| AC Rated Voltage | 230VAC |
|---|---|
| Selectable Voltage Range | 90-280VAC |
| Frequency Range | 50Hz/60Hz |
| Max. Efficiency | 93.50% |
| Switchover Time | 10ms |
| Max. PV Array Power | 11kW |
| MPPT Operating Voltage | 90-450VDC |
| Nominal Voltage | 51.2V |
|---|---|
| Battery Voltage Range | 40-58.4V |
| Standard Charge Current | 0.5C @ 25ºC |
| Max. Charging Current | 200A @ 25℃ |
| Max. Discharge Current | 200A @ 25℃ |

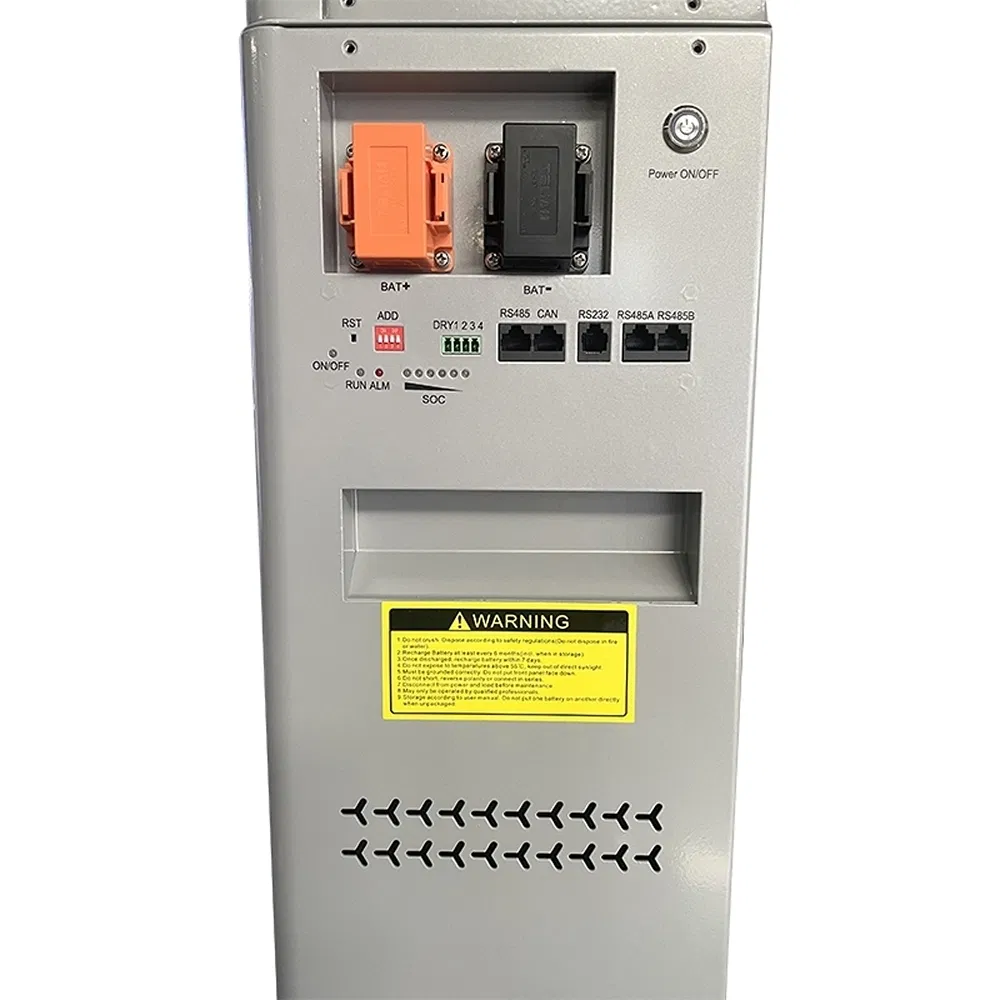

| Communication Interface | RS485 / RS232 / CAN |
Advanced battery energy management system provides comprehensive protection and optimization.
High-quality components and robust construction deliver exceptional durability with extended cycle life.
