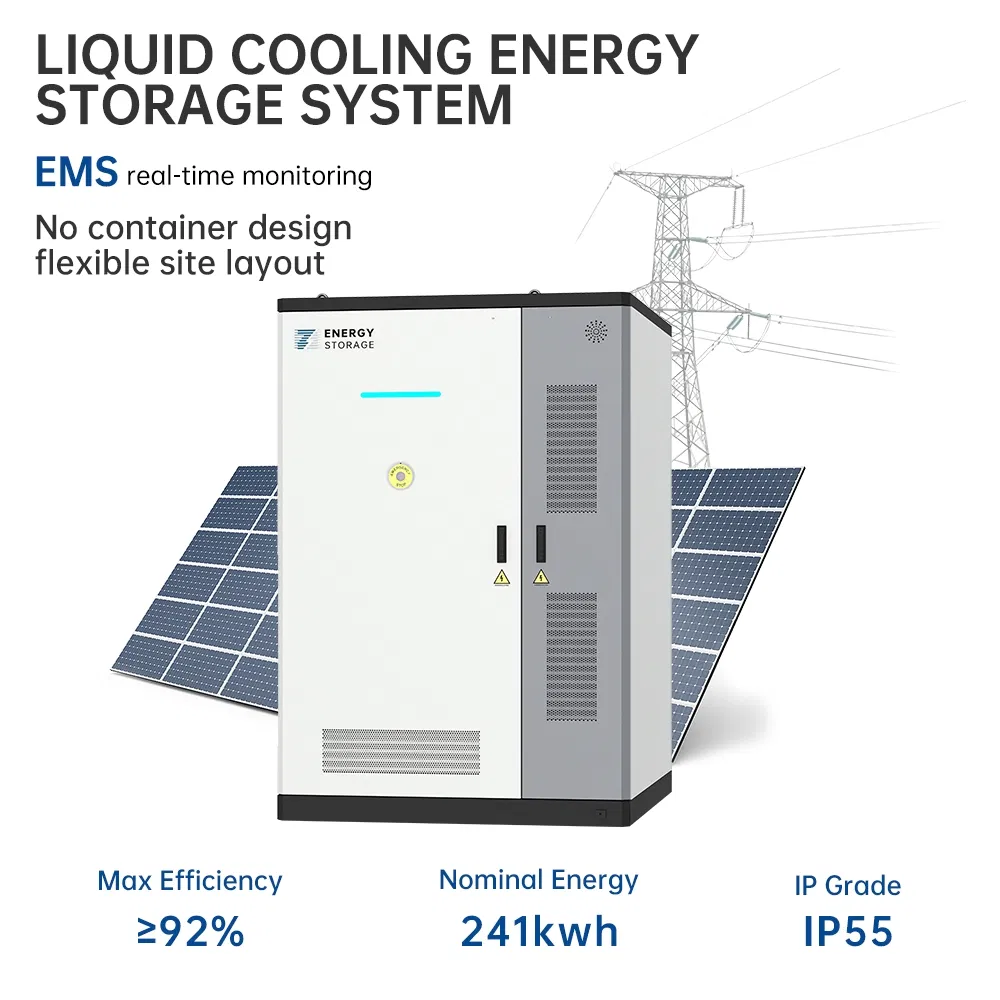

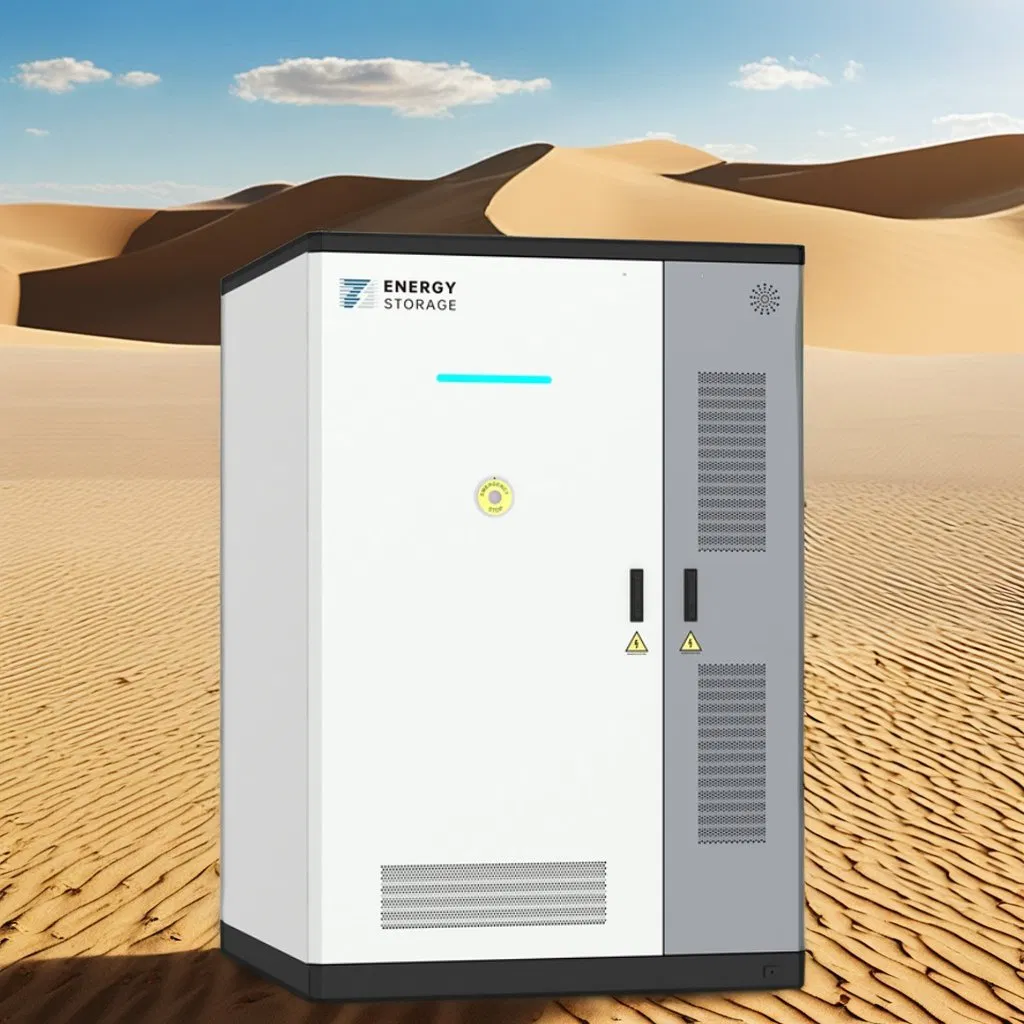

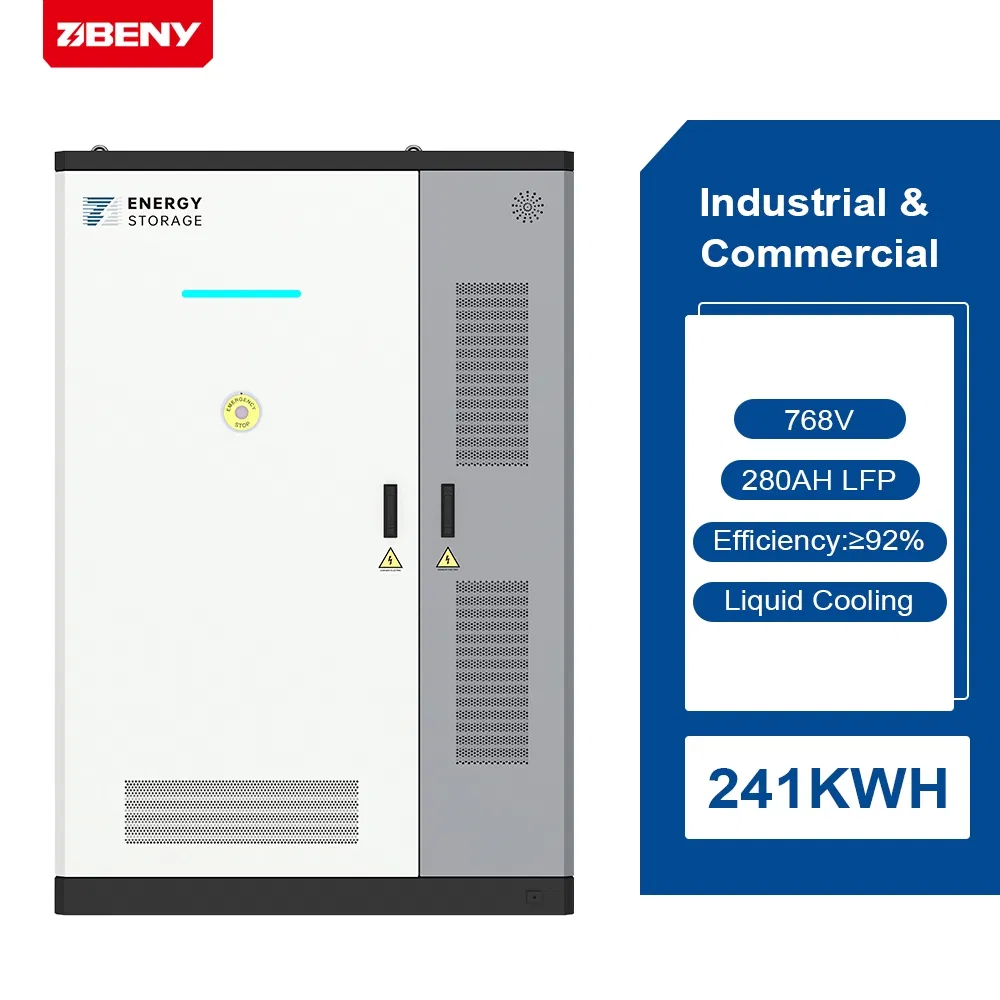

LiFePO4 Battery Commercial Industrial Energy Storage System 241kwh High Solar Voltage Lithium Energy Battery

Customization: Available
Nominal Voltage: 768V
Warranty: 5 Years

Product Description

Basic Specifications

Model NO.
BYHV-241SLC
Nominal Capacity
314ah
Cycle Life
8000
Nominal Energy
241kwh
Rated Voltage
768V
Operating Voltage
628V ~ 855V
Rated Current
140A
Rated Power
100kw
Rated Frequency
50Hz/60Hz
Power Factor
0.99
Output Harmonics
< 3%
Protection Class
IP55
Package Size
132X140X205 cm
Gross Weight
2400.00kg

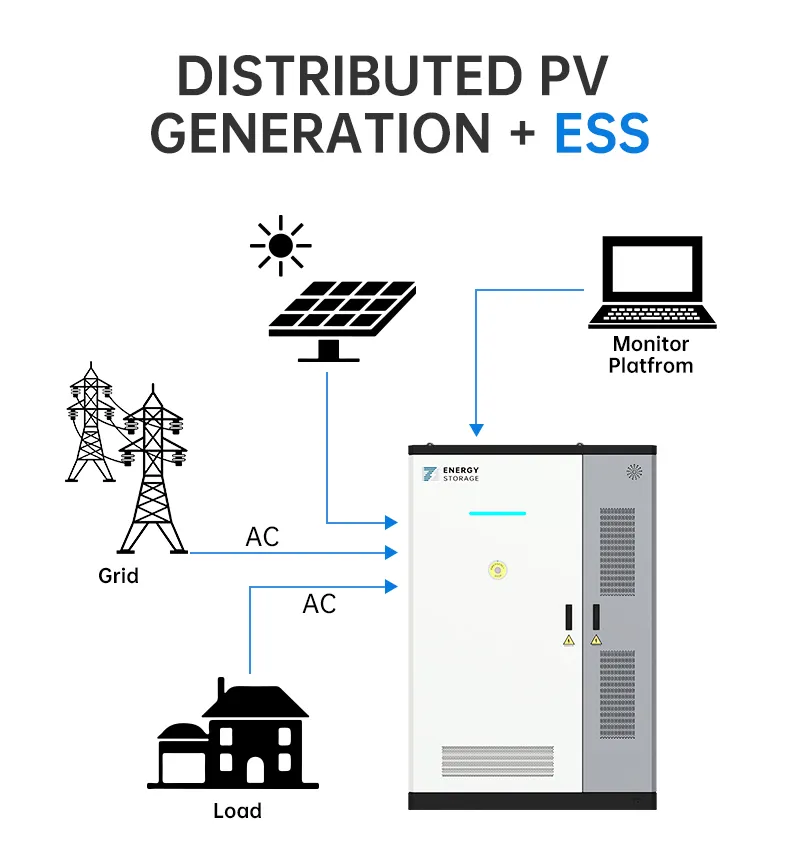

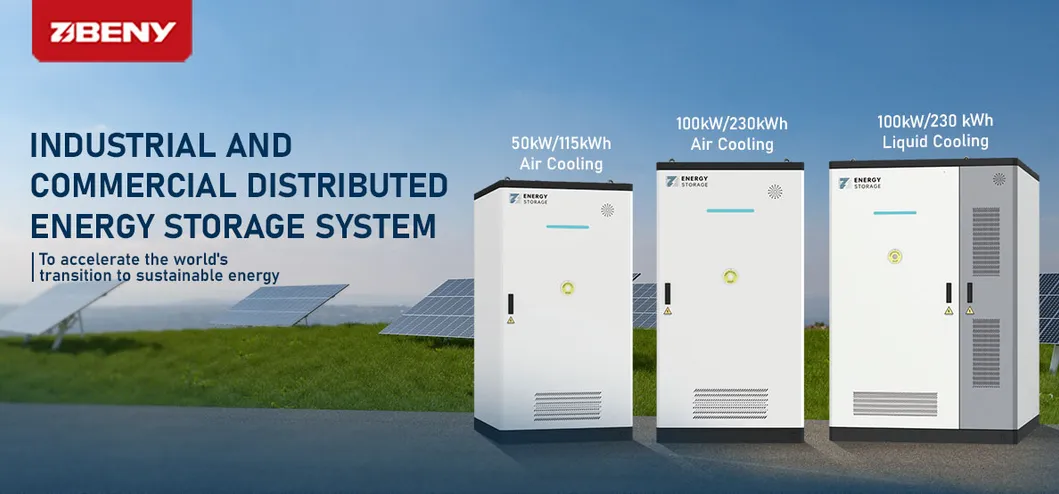

Energy Storage System Overview

Why Choose Our Solutions

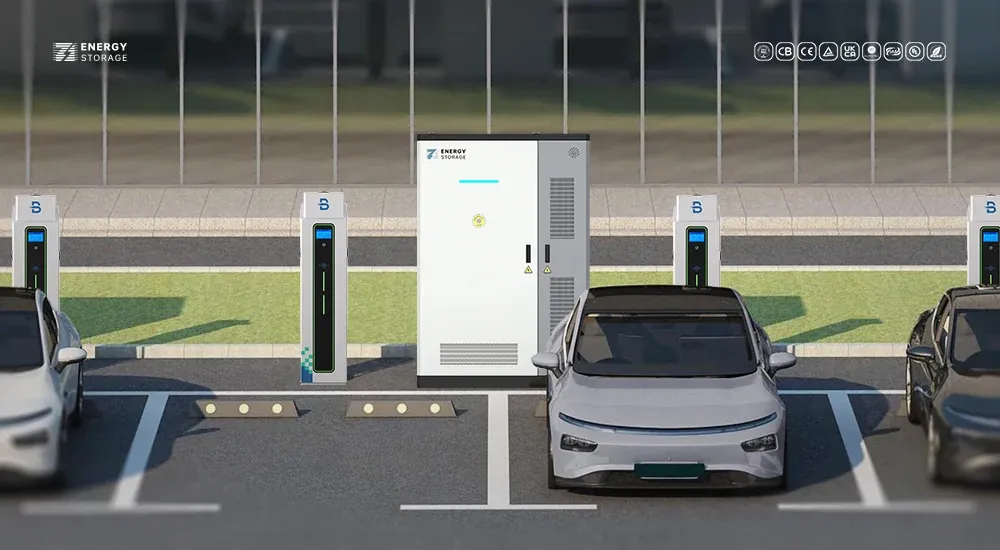

Selection Advantages

Rigorous Testing

From raw material screening to product design, guided by multiple safety standards. With 3710 quality control points monitored in real time from components to systems, we ensure the absolute safety and reliability of delivered products.

First-line Suppliers

All energy storage components utilize top-tier suppliers like Ningde Times, Phoenix, Kehua, and Delta. This strict selection provides customers with the strongest hardware security guarantee.

Multi-level Security

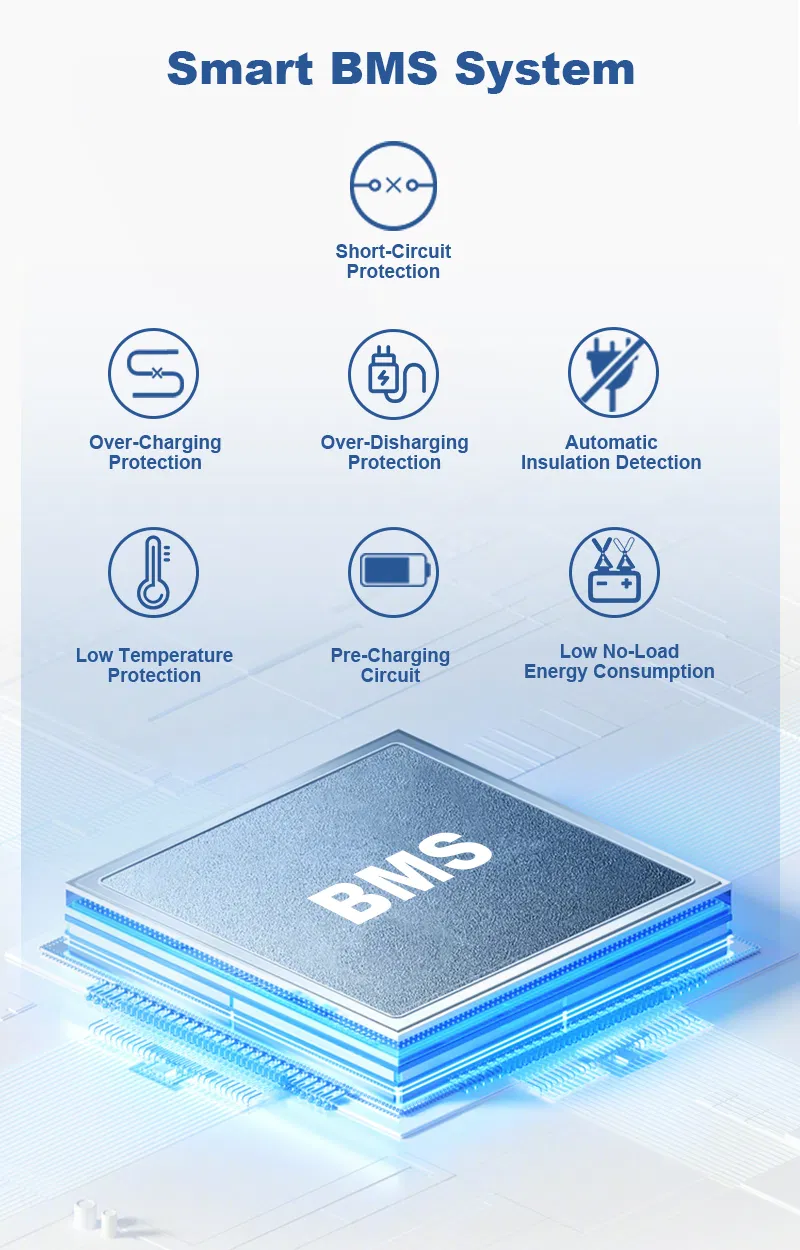

Superimposed system management from BMS to PCS safety control, plus AC/DC multi-level electrical protection. Certified under IEC62619, IEC 63056, and IEC60730-1 standards.

Safety Warning Algorithm

Advanced safety warning algorithms excavate the evolution mechanism of internal battery characteristics, judging the risk of internal short circuits in real time and predicting SOC/SOH attenuation.

Product Advantages

ESS Advantage

241kWh/100kW System

  • ✓ High Performance: Annual stable operation efficiency of 90%.
  • ✓ Long Life: Core component life > 15 years with 8000 cycle life.
  • ✓ Intelligent: 24/7 remote operation and maintenance; unattended automatic control.
  • ✓ Easy Expansion: Single cabinet covers < 3 square meters; 1-2 days deployment.
Internal Structure

Intelligent Monitoring Ecosystem

PowerView

Client software for real-time viewing of operating status, economic benefits, and historical data.

Supervisor

O&M software that monitors system health and predicts maintenance needs 24/7.

Analyzer

AI data analysis software using electrochemical models to adjust operating strategies in real time.

Bidder

Virtual power plant software for participating in power market trading and improving ROI.

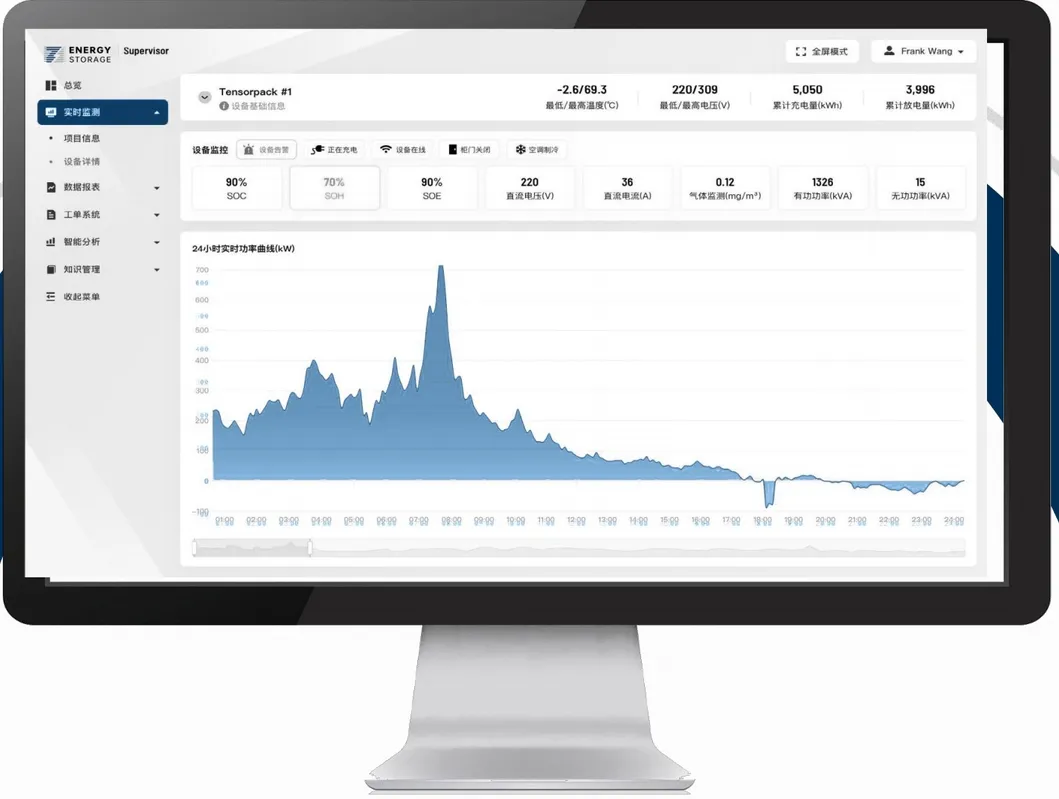

Software Interface

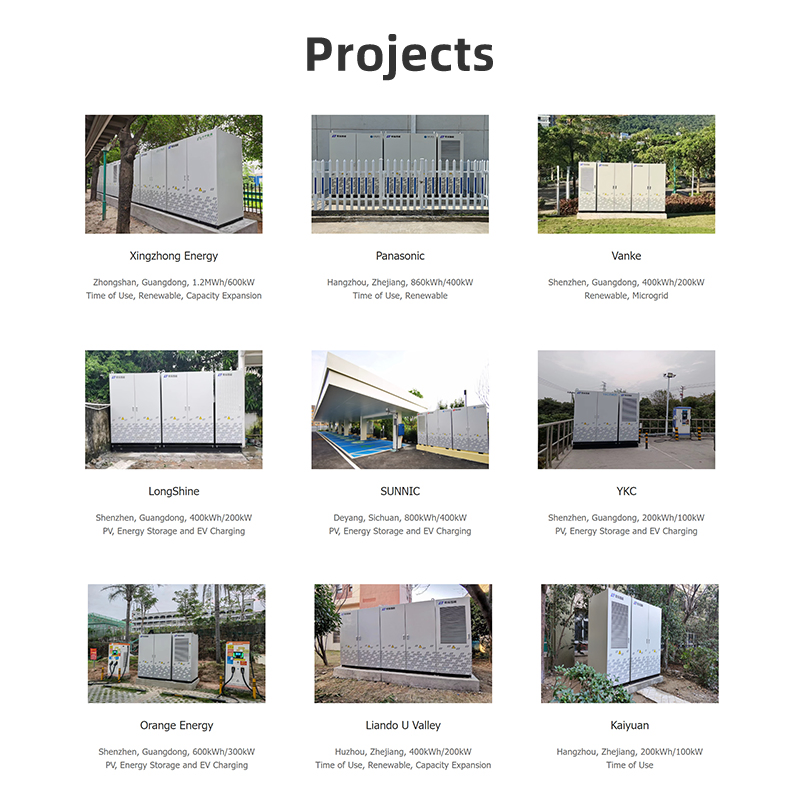

Global Implementation & Projects

Global Presence

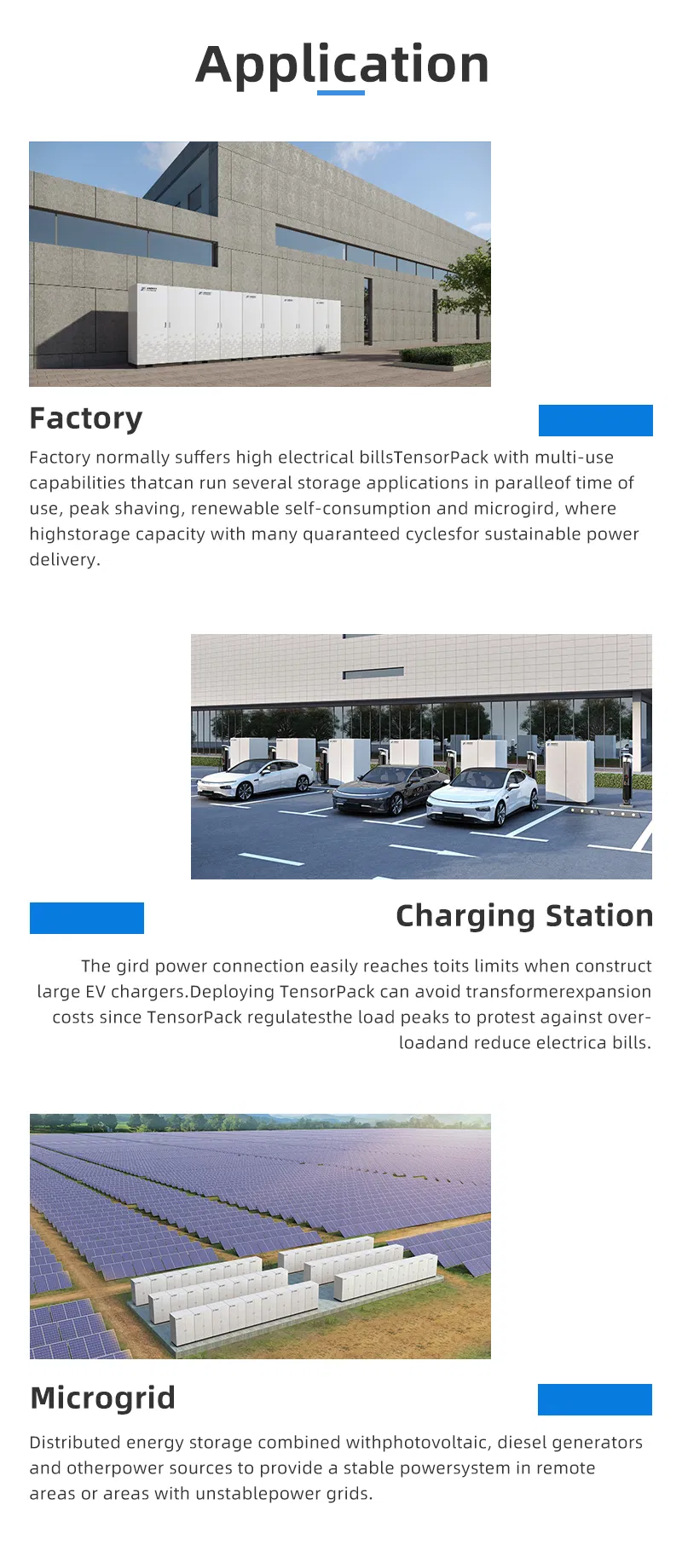

Participating in various photovoltaic, battery storage, and EV charging system projects globally, including Europe, Americas, and Asia. We attend major industry exhibitions annually to stay updated with market trends and cutting-edge technology.

Frequently Asked Questions

Q1: What is the expected cycle life of the LiFePO4 battery system? The system offers a long cycle life of up to 8000 cycles, ensuring core component durability for over 15 years of operation.

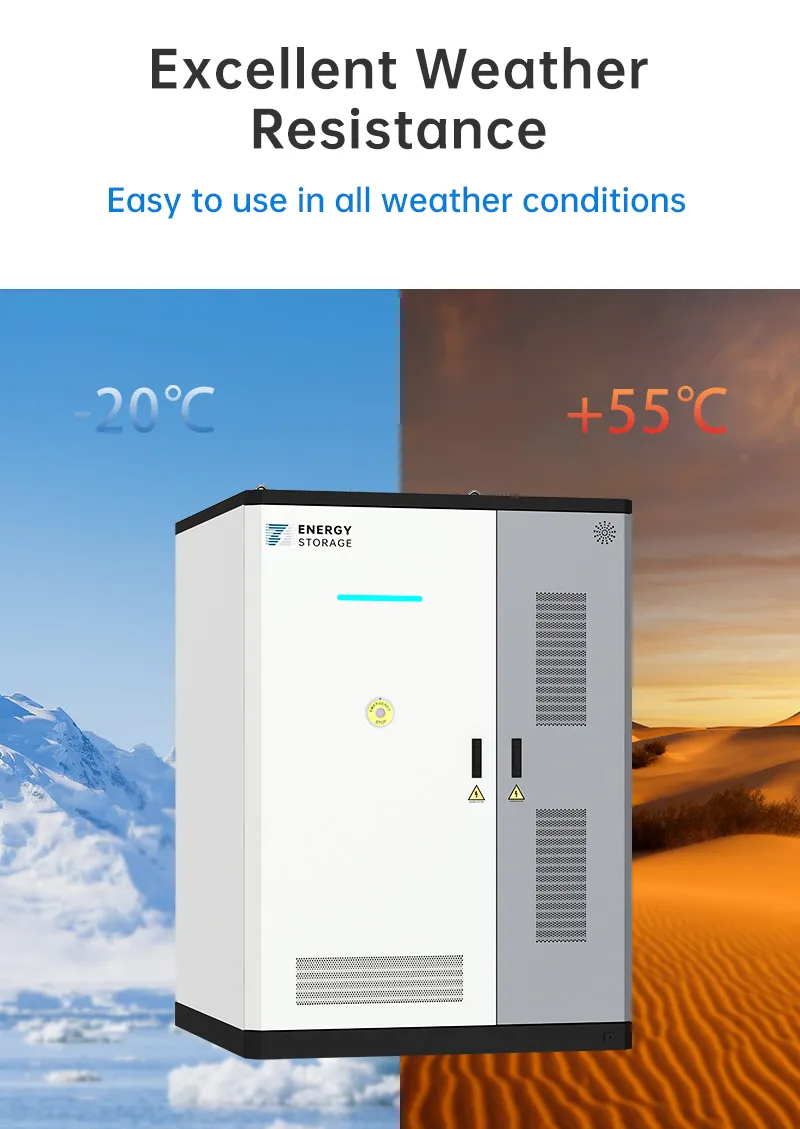

Q2: Can the energy storage system be installed outdoors? Yes, the system is designed with an IP55 protection class, making it suitable for various commercial and industrial outdoor environments.
Q3: How does the remote monitoring system work? We provide an intelligent ecosystem including PowerView and Supervisor software, allowing 24/7 remote monitoring of operating parameters and predictive maintenance.
Q4: What safety certifications does the product meet? The system has passed rigorous international safety certifications including IEC 62619, IEC 63056, IEC 62477, and IEC 61000.
Q5: Is the system expandable for larger energy needs? Yes, the cabinet design is modular and flexible, allowing for easy expansion. A single cabinet requires less than 3 square meters.
Q6: What is the after-sale policy for damaged cells? We conduct rigorous inspections before assembly. If a cell is found to be broken upon delivery (not due to man-made damage), we promise to provide a replacement for free.
