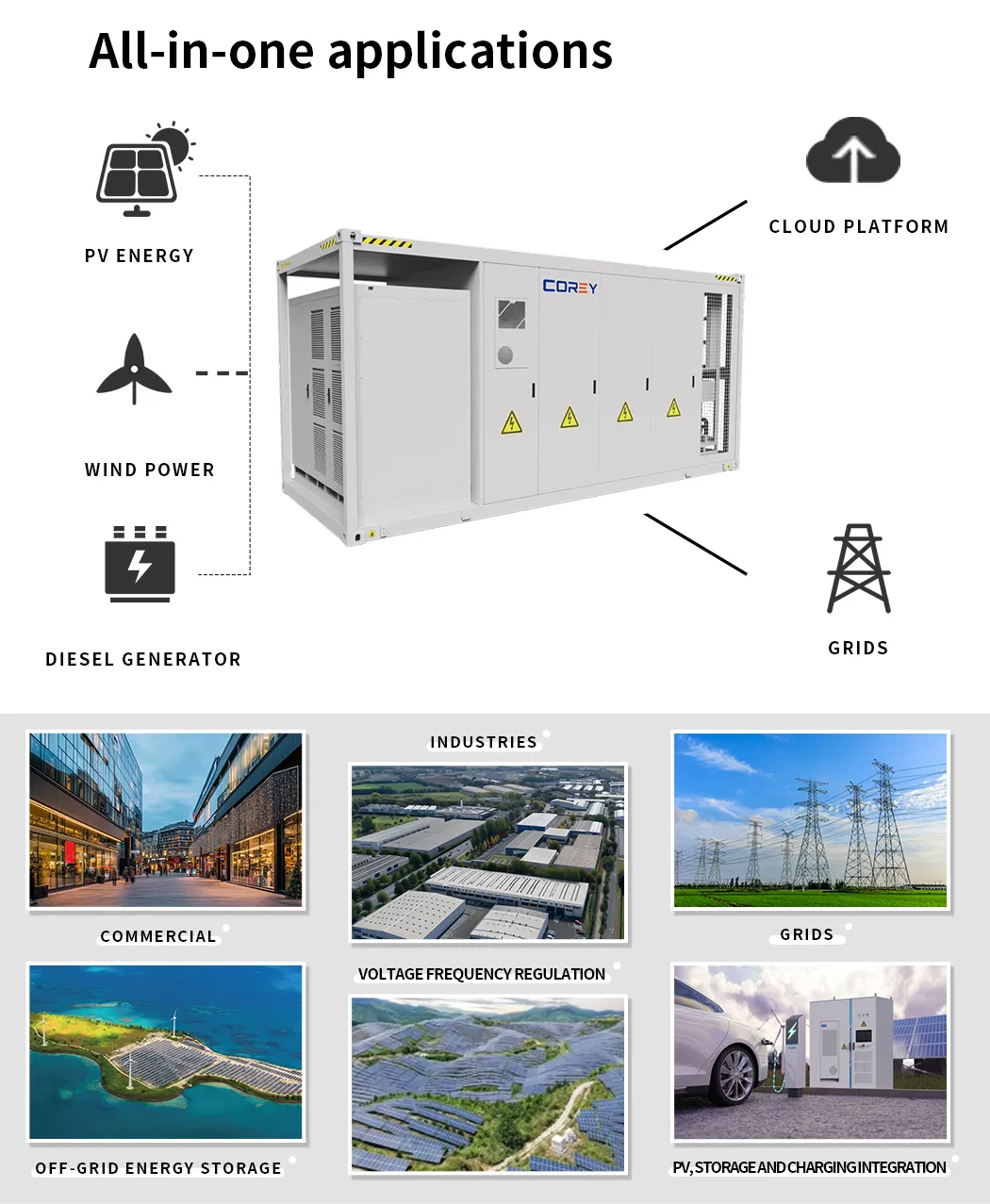

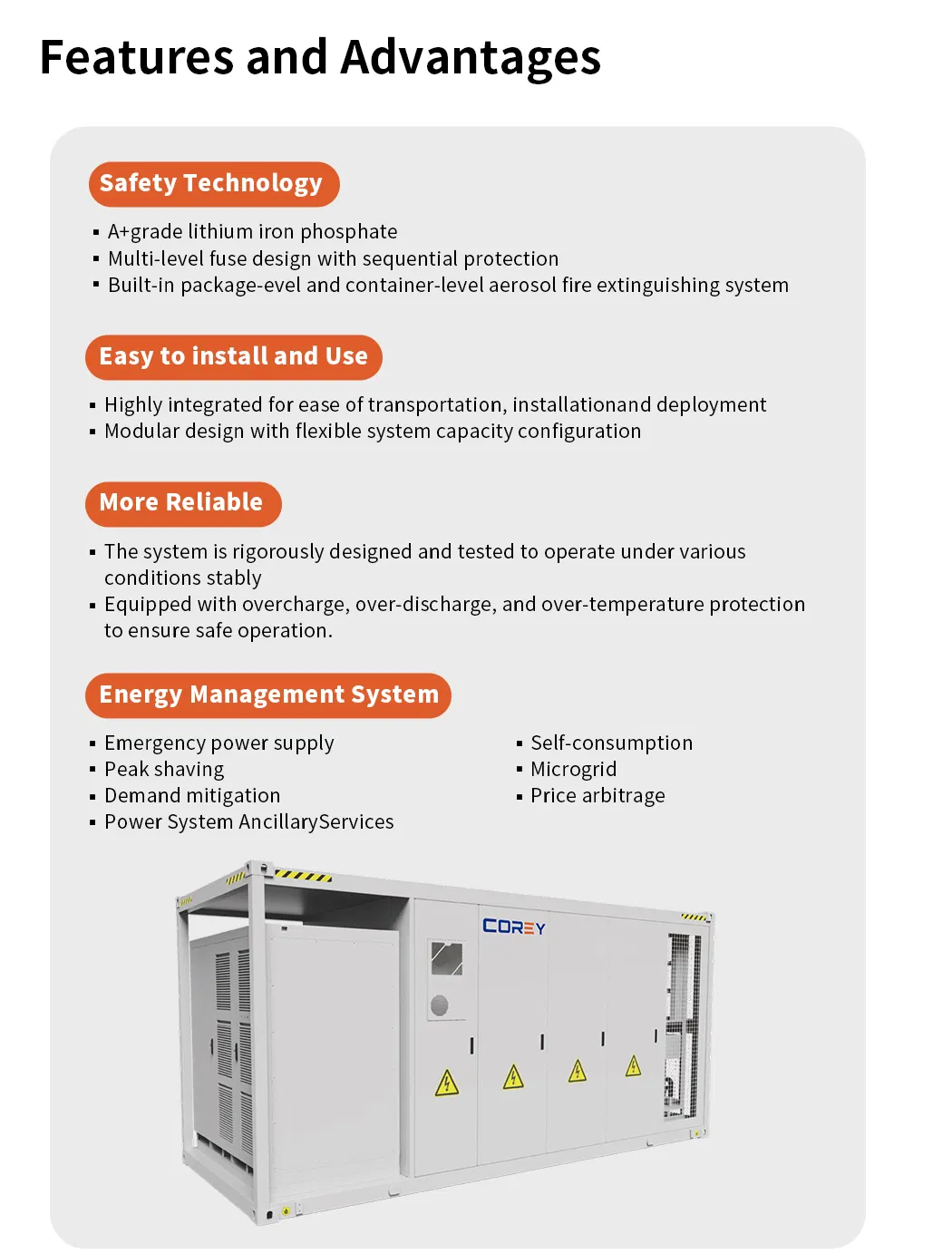

What can these energy storage products do for you?
Leverage the differential between peak and valley electricity prices, charging during low-cost periods and discharging during high-cost peak periods.
Function as a backup power source during grid outages to deliver uninterrupted power to facilities.
Mitigate load fluctuations, minimize voltage and frequency deviations for stable operation.
Modify electricity usage patterns in response to grid requirements and earn financial incentives.
| Specification | Detail |
|---|---|
| Battery Data | |
| Nominal Energy | 2089kwh |
| Nominal Voltage | 1331.2V |
| Battery Model | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | ≥8000 cycles (@25°C, 0.5P) |
| Cell Specification | 3.2V 314Ah |
| String Configuration | 1P416S |
| Number of Racks | 5 |
| Operating Voltage | 1164.8V - 1497.6V |
| Safety & PCS | |
| Fire Extinguishing | Aerosol, Water sprinkler system |

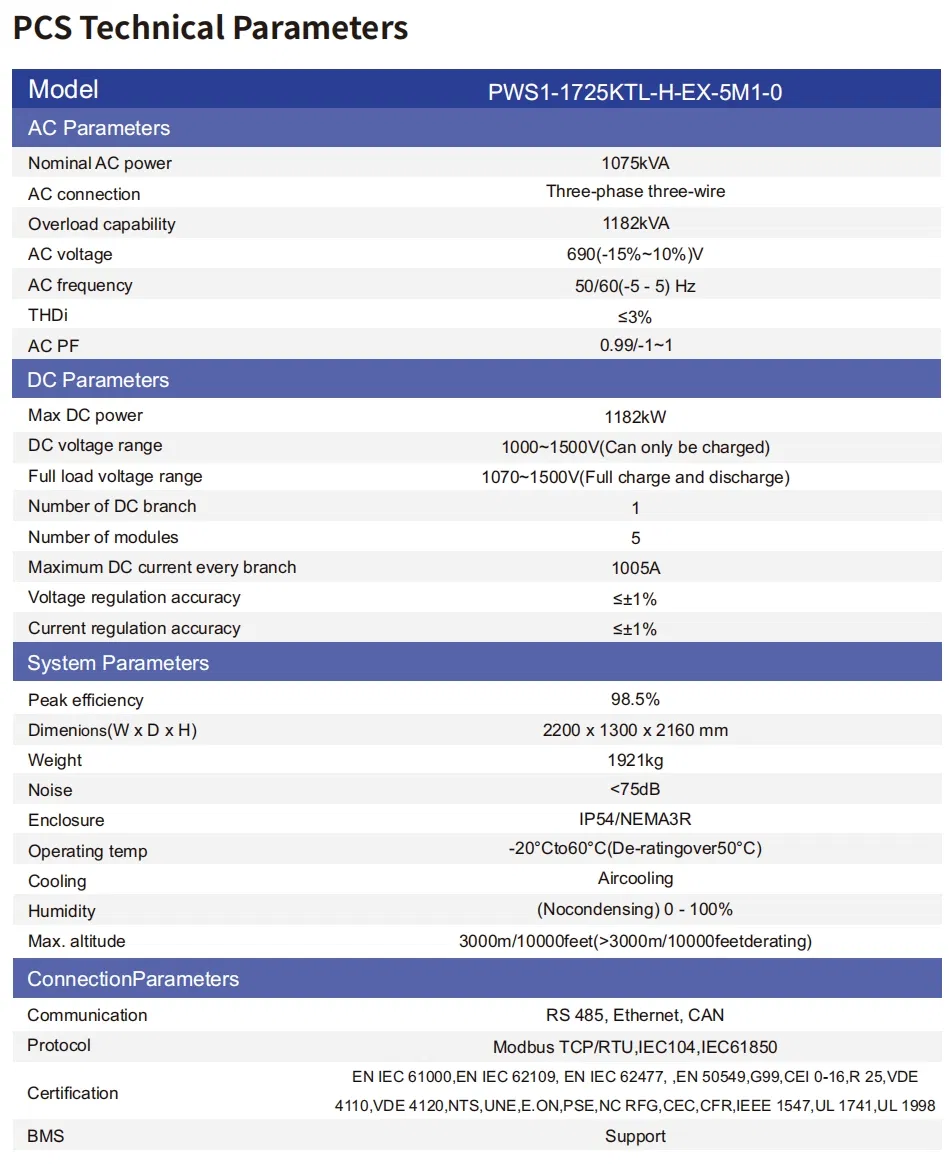

| Rated Power (PCS) | 1075kW |
| General Information | |
| Dimensions (WxDxH) | 6058 x 2438 x 2896 mm |
| Weight | ≤24000kg |
| IP Rating | IP54 |
| Altitude | ≤3000m |
| Communication | LAN / CAN / RS485 |
| Compliance | IEC/EN 62619, IEC/EN 61000, UN3536, UN38.3 |
