Experience unparalleled excellence with the 1MW-5MW Gas Generator Set, a beacon of reliability and performance in power generation.
Environmental Performance: Exhaust gas quality is maintained at ≤ 500mg/Nm³ (NOx) with temperatures capped at ≤ 450 ºC, ensuring compliance with stringent environmental standards.

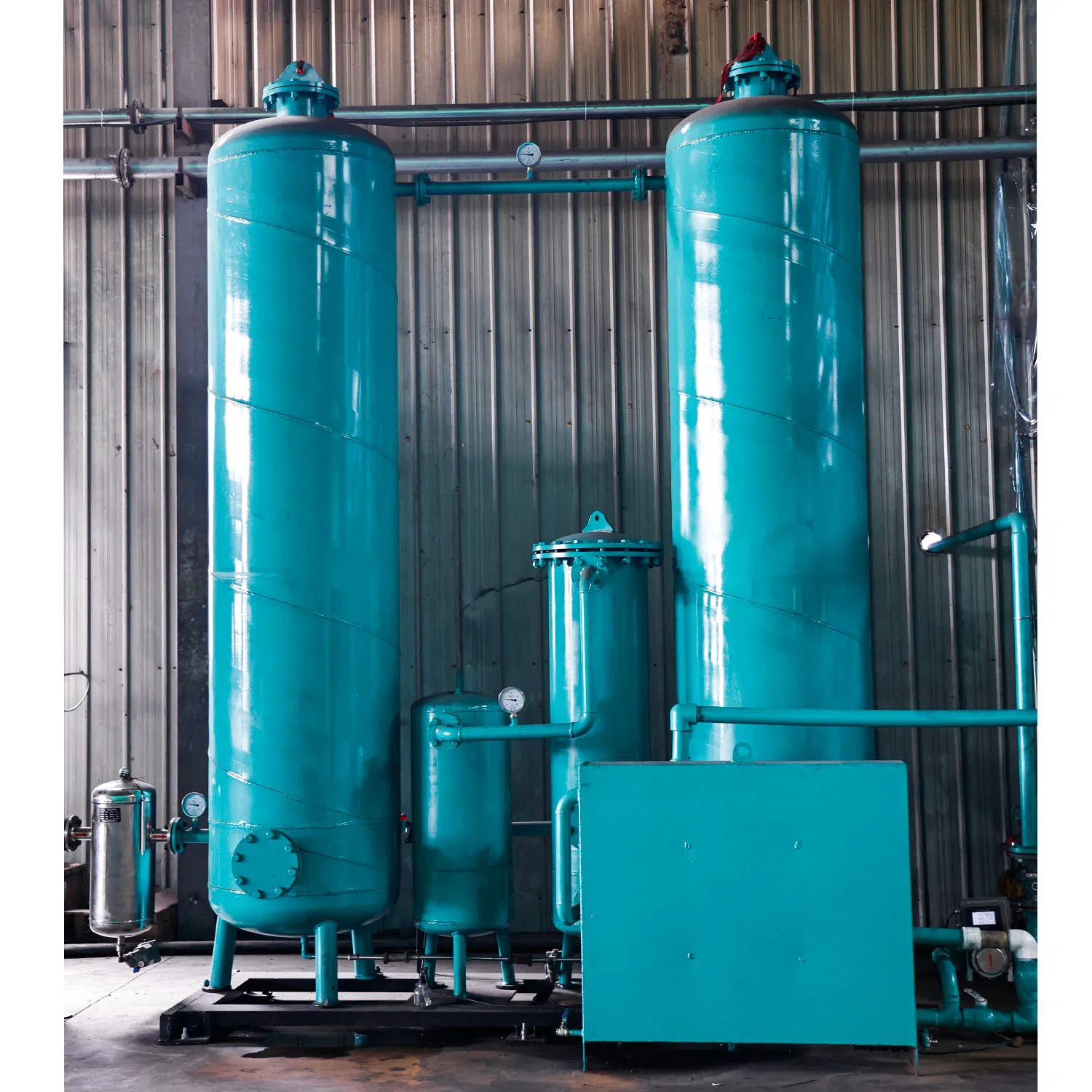

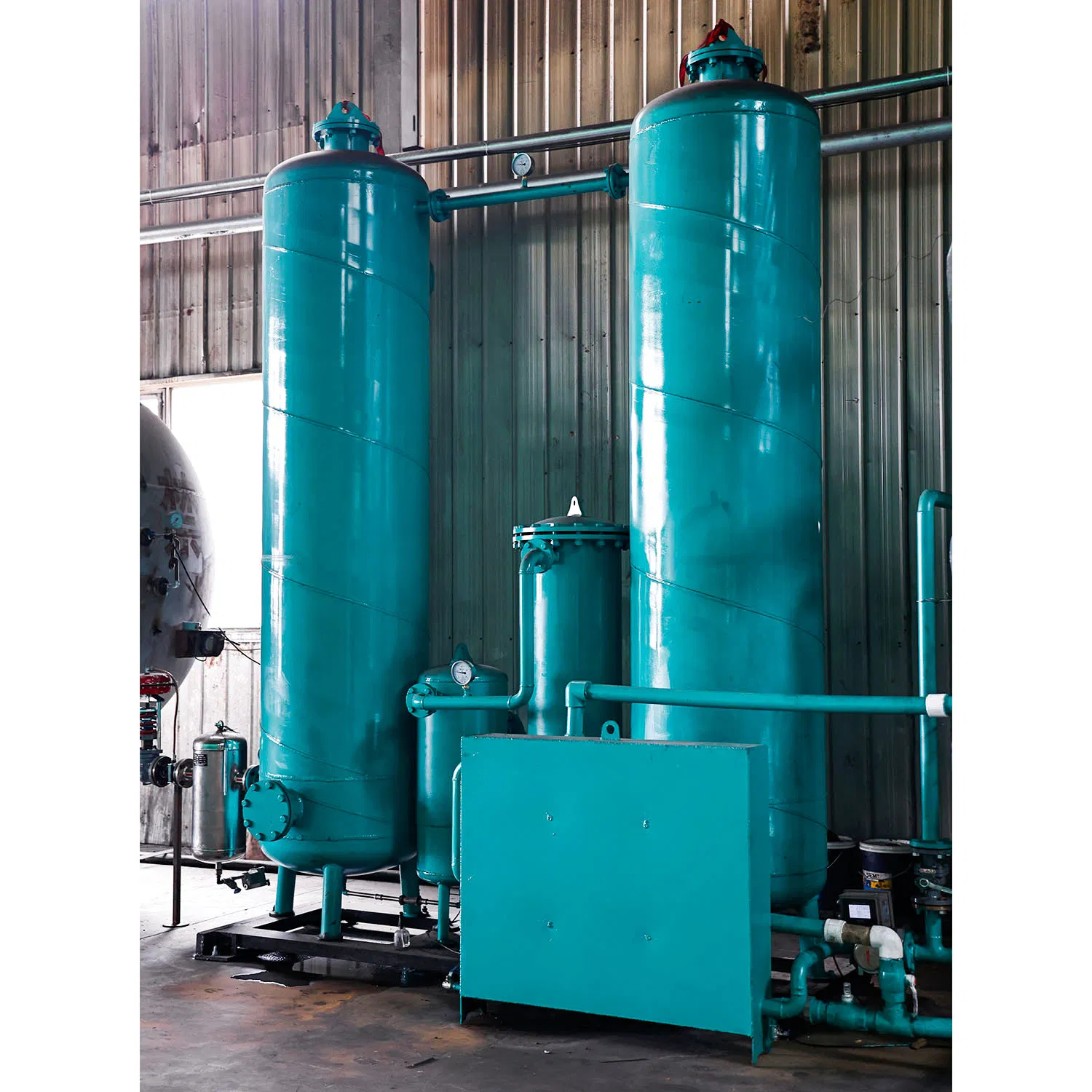

With a legacy spanning over 30 years, our team leads in the innovation and development of state-of-the-art Gas Generator Sets. These are perfectly complemented by advanced Purification Systems for tail gas. We craft tailor-made energy-saving and emissions reduction solutions for international clientele, ensuring efficiency and sustainability.
Designed with impeccable precision, these gas generator sets offer a broad power spectrum from 300kW to 5000kW. This low-speed technology guarantees remarkable durability with an overhaul period surpassing 60,000 hours. By employing sophisticated direct cylinder injection of pressurized gas, we ensure minimal fuel consumption and adaptability to varied gas qualities. The lean burn technology further ensures impressively low emissions, establishing it as the epitome of industrial efficiency.
| Parameter Item | Specification Details |
|---|---|
| Rated power (standard condition) | 1200 kW |

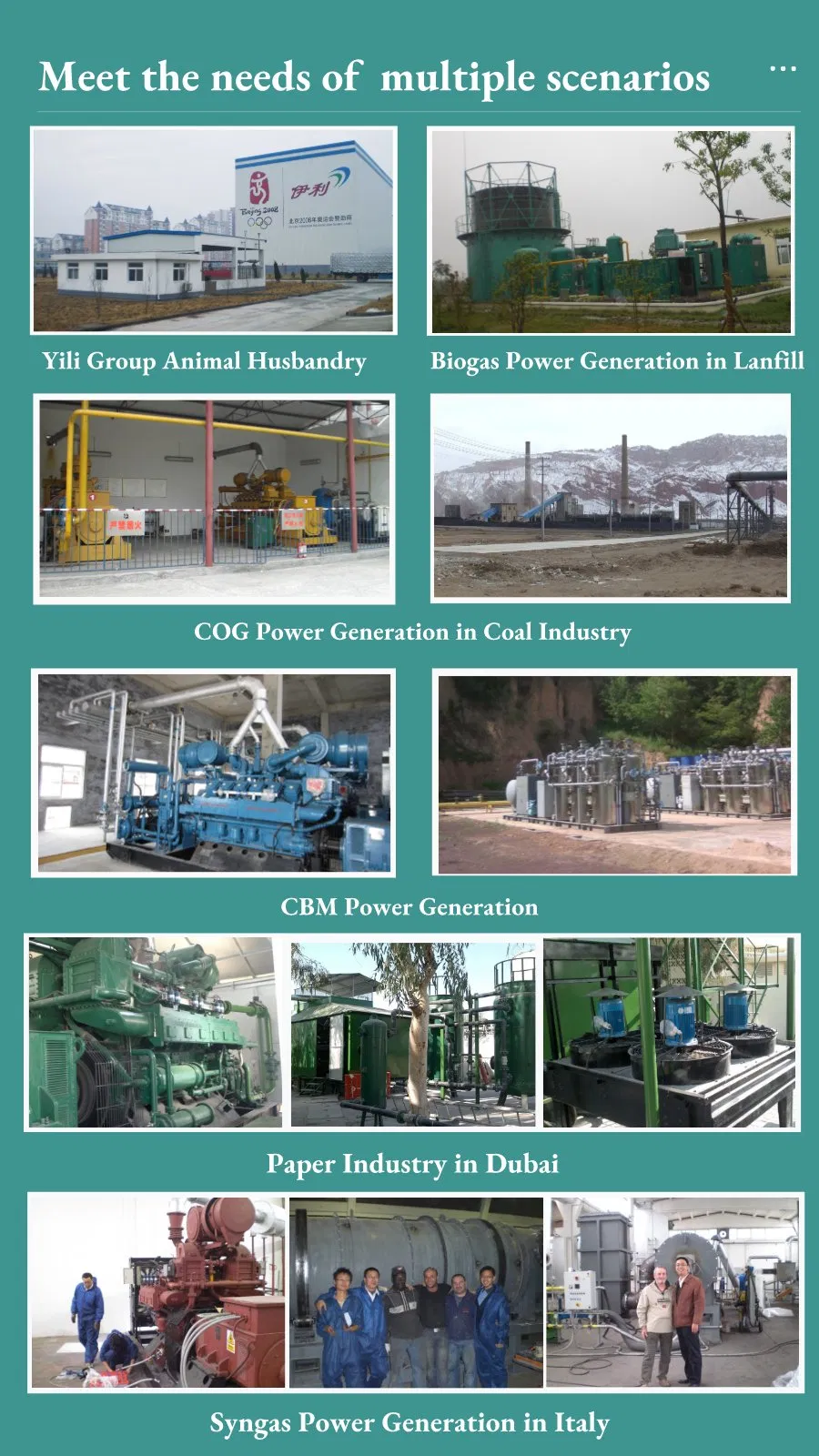

| Applicable fuel | Natural gas, coalbed methane, biogas, coal gas, synthetic gas, etc. |
| Rated speed | 1000 rpm |
| Rated voltage | 10500 V |
| Generation efficiency | Approximately 42% |
| Gas consumption rate | 8570 kJ/kW·h ± 5% |
| Flue gas NOx emissions | 250~500 mg/m³ |

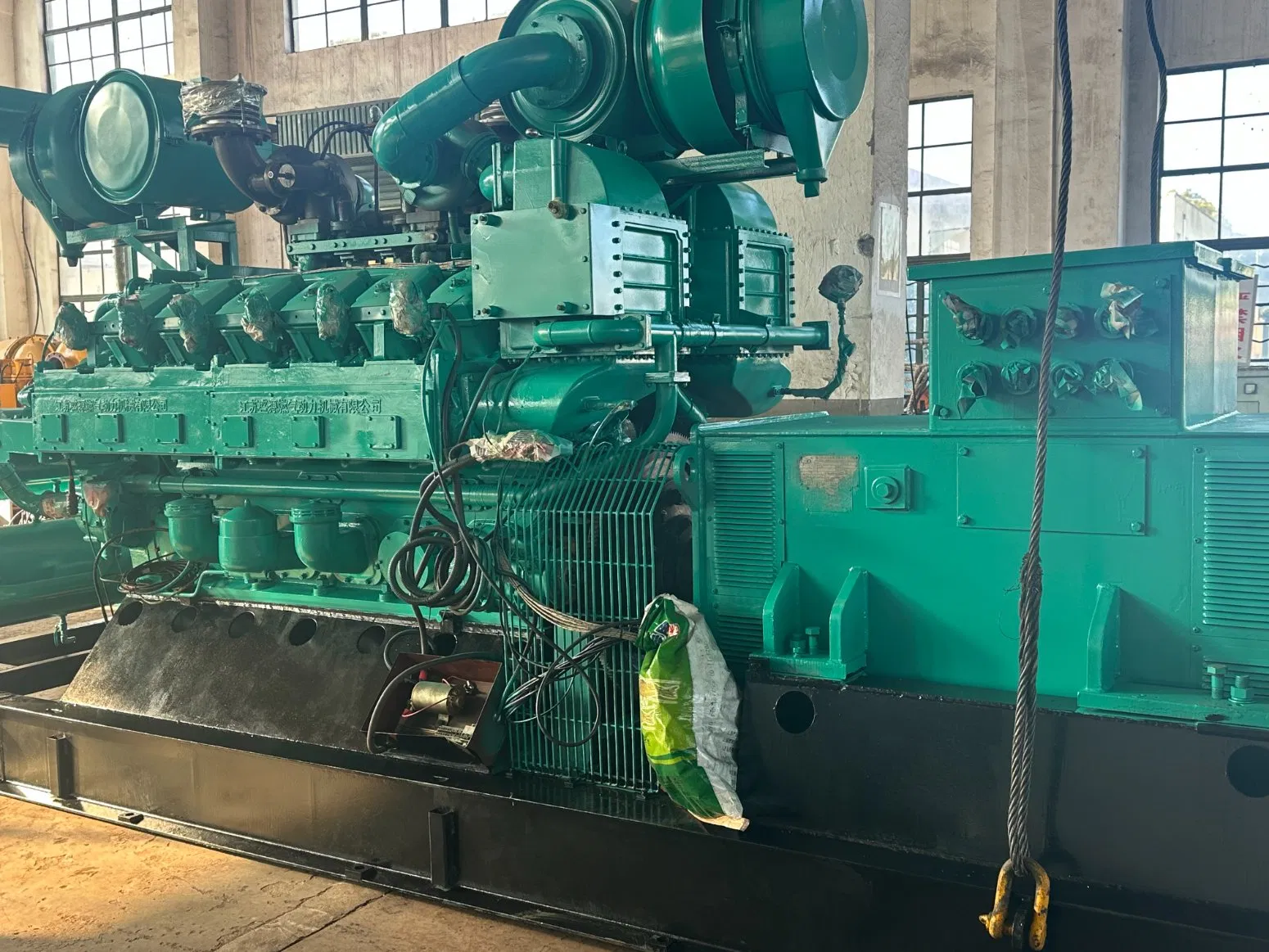

| Gas engine model | 20V190G |
| Configuration | Four-stroke, water-cooled, supercharged intercooled, electric start |
| Number of cylinders | 20-cylinder V-type |
| Total piston displacement | 130 L |
| Bore × stroke | 190 × 230 mm |
| Engine weight | 26 t |
| Engine dimensions (L×W×H) | 7.2 × 2.5 × 2.5 m |
