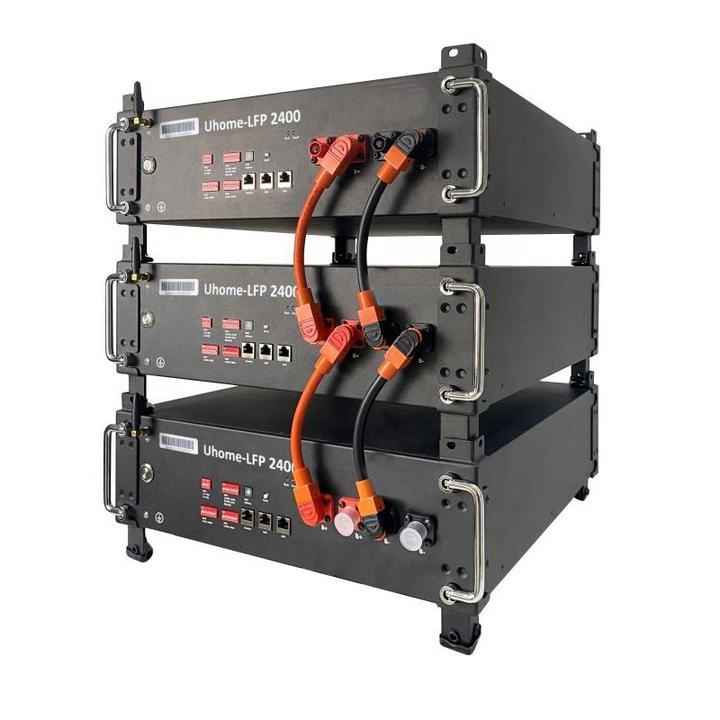

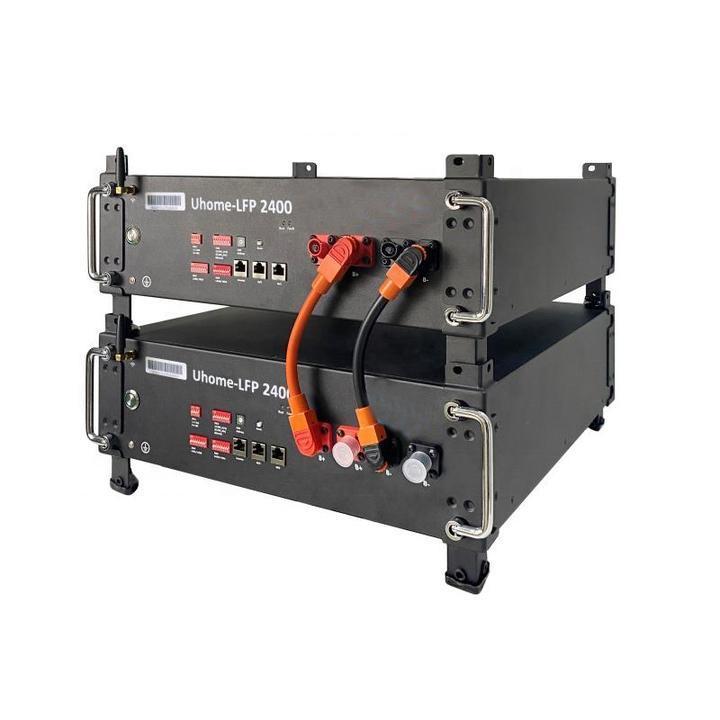

4.8kwh Renewable Energy Pure off-Grid Standard Ess for Household

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
UNIV4900
Total Energy
4.9kwh
Nominal Voltage
48vd.C
Voltage Range
48~56vd.C
Nominal Current
50A
Discharge Power
3.0kw
Peak Power
6.0kw for 3 Seconds
Recommended DOD
90%
Weight
41kg
Size
442*135*480mm
Warranty
10 Years
Origin
China

Wall-Mount LiFePO4 Battery 48V 5kwh

Solar Energy Storage

Key Features & Advantages

Intelligent Monitoring Digital Monitoring System with dedicated App for real-time status tracking.
Premium LFP Cells Utilizes high-reliability Lithium Iron Phosphate cells with over 8000 cycles life.
Scalable Design Supports free assembly in series or parallel up to 8S8P (448V 326.4kWh).
High Efficiency Energy efficiency (charge and discharge) exceeds 95%.

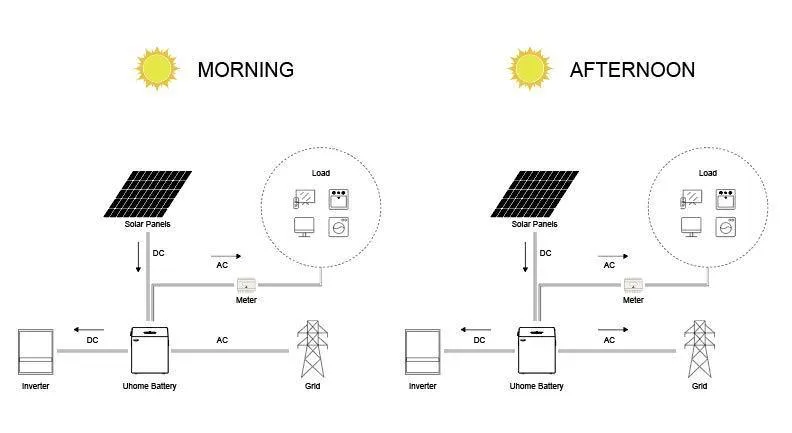

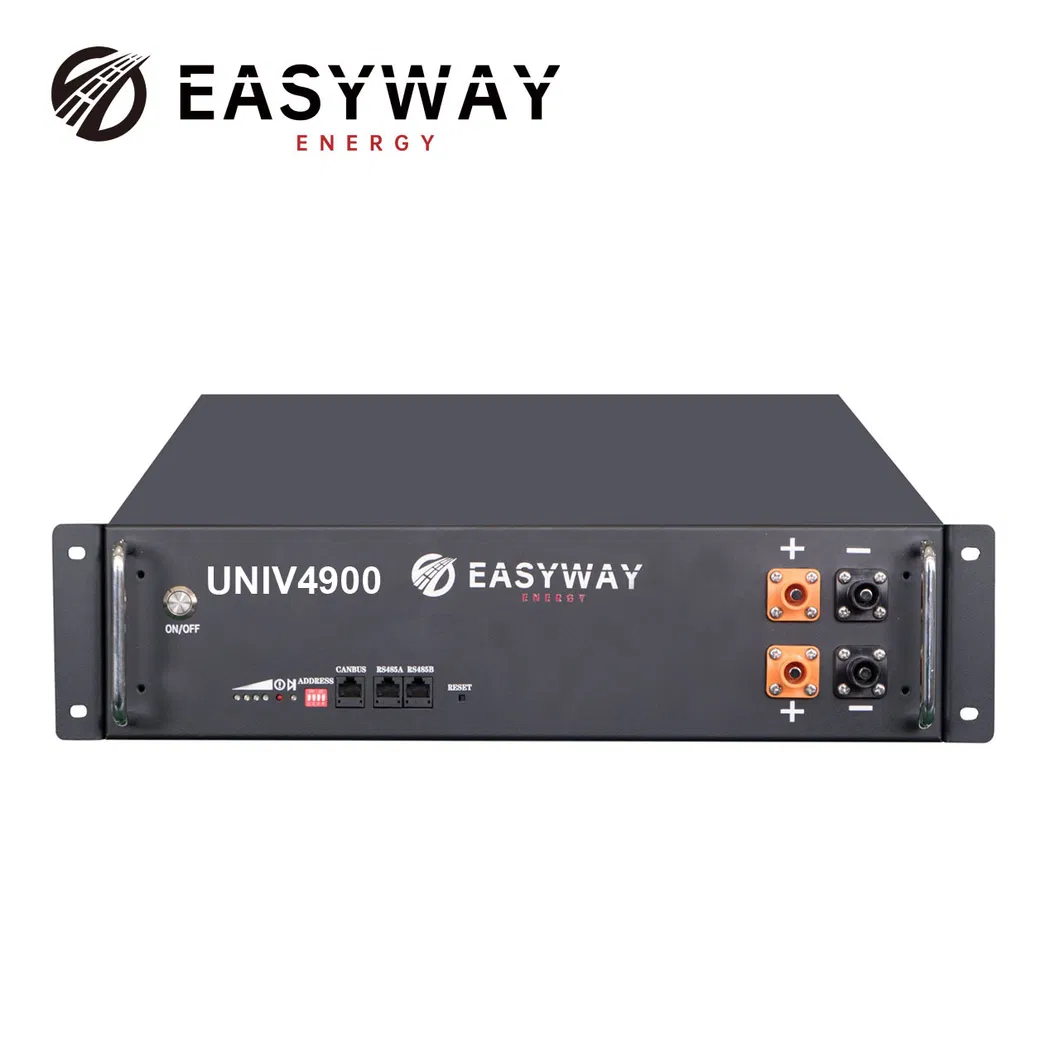

Feature Image 1 Feature Image 2
🛡

Safety & Design

  • Dual hardware & Triple software protection for maximum safety.
  • Reliable BMS: Relay design instead of MOSFET for enhanced durability.
  • Natural cooling system: Operates quietly without fan failure risks.
  • Key devices (Relay, Fuse) approved by CE and TUV.
  • Smart Design: Easy plug-and-play installation.

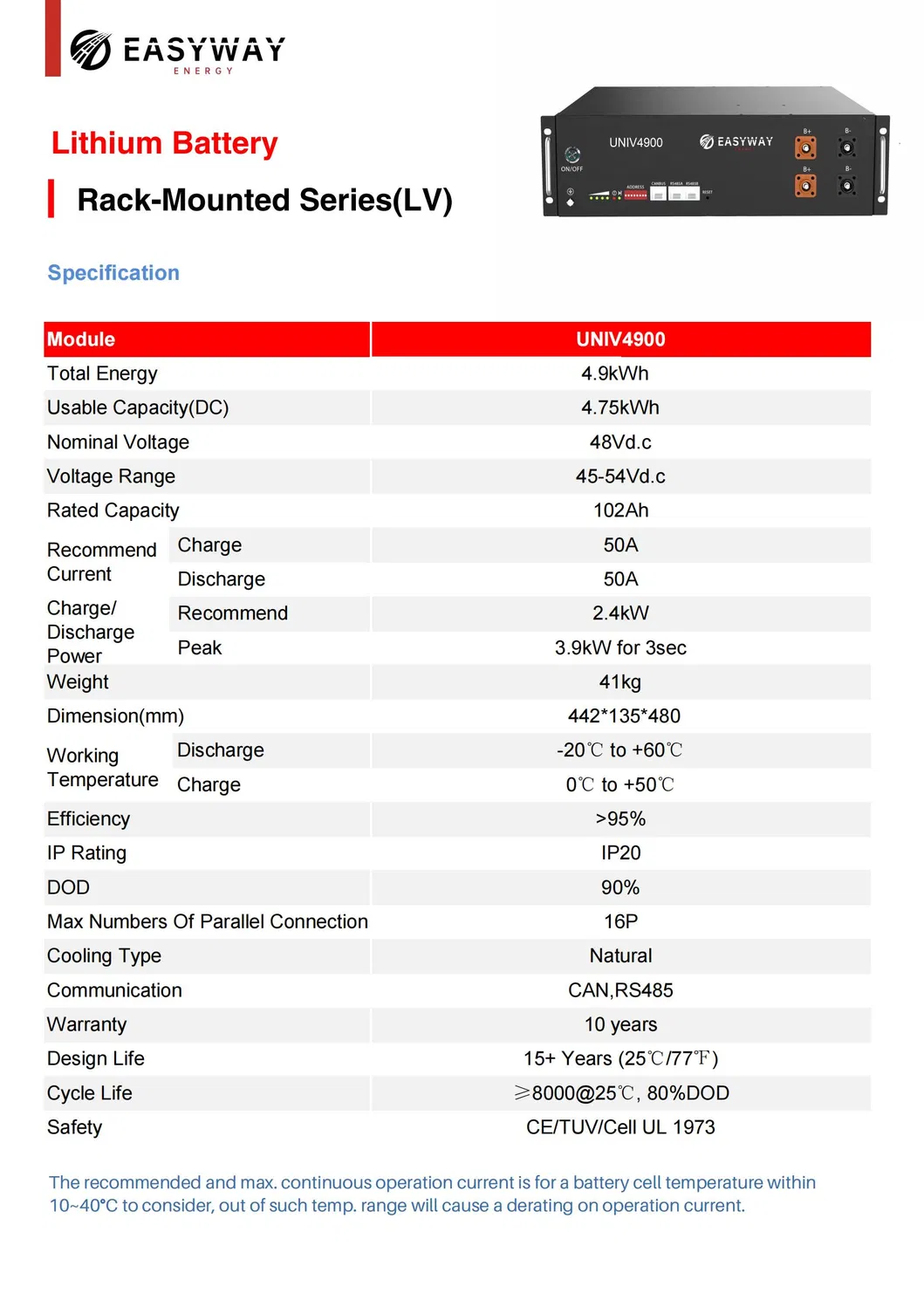

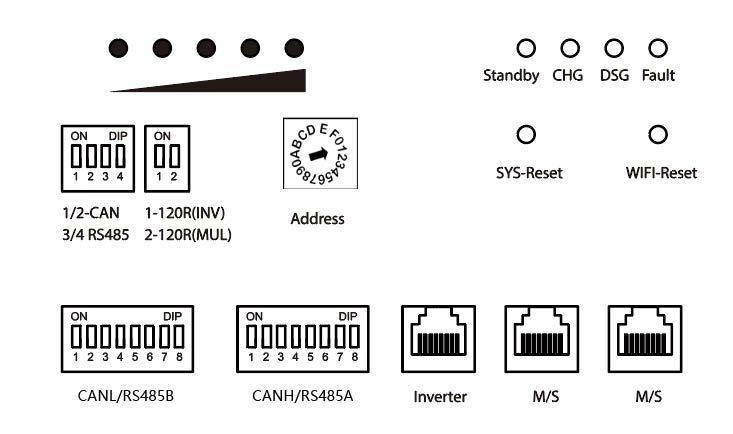

BMS Detail
🏭

Manufacturing & Packaging

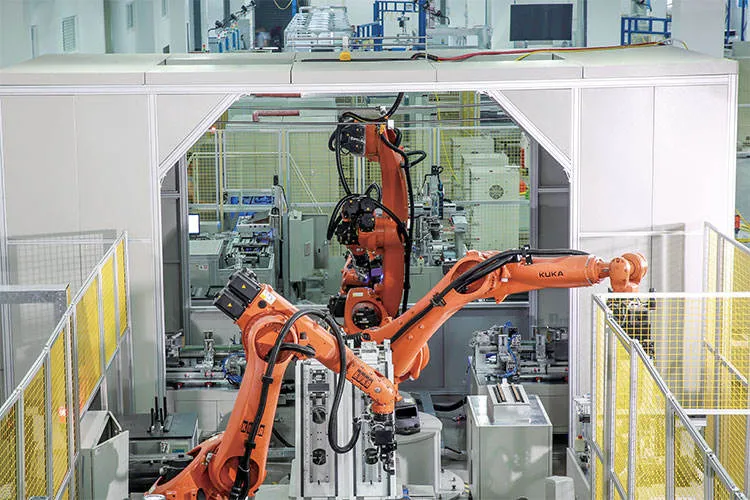

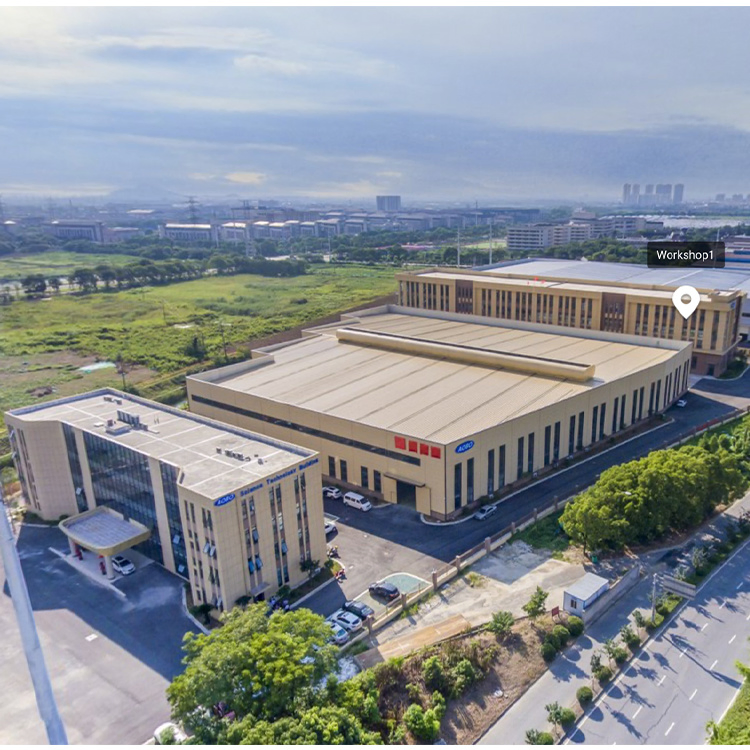

Factory 1 Factory 2 Production

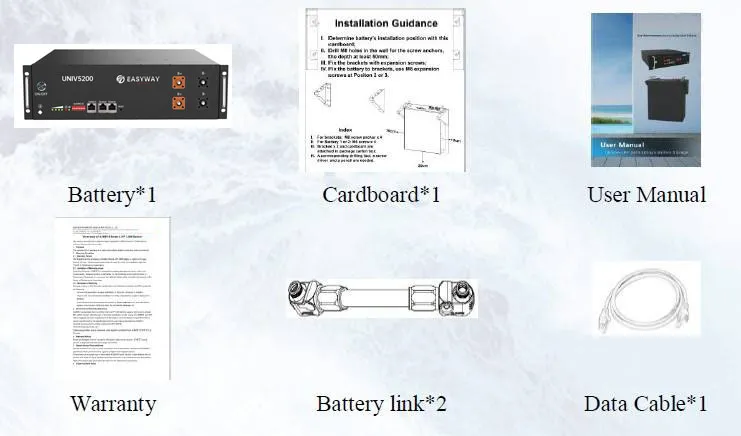

Packaging
📋

Global Project Cases

Project Case Certificates

Frequently Asked Questions

Q: What type of lithium battery do you offer?
A: We utilize lithium iron phosphate (LFP) battery chemistry. LFP offers high current rating, long cycle life, good thermal stability, and high safety compared to other lithium-ion batteries.
Q: Do you use brand new battery cells?
A: Yes, we utilize brand new battery cells from TOP 10 global cell manufacturers to ensure high cycle life and longevity of our batteries.
Q: How long will a fully charged 10kWh battery power a home?
A: On average, a 10kWh battery can provide 1-2 days of power for typical home usage. The actual duration depends on the home's energy consumption.
Q: What is the recommended depth of discharge (DOD%)?
A: We recommend not discharging the battery beyond 80% DOD for optimal battery life, although the system supports up to 90% in specific configurations.
Q: Can the battery data be monitored via mobile app?
A: Yes, we offer a mobile app for iOS and Android to monitor battery status, usage graphs, warnings, and errors via WiFi/Bluetooth.
Q: What is the maximum number of batteries that can be connected in parallel?
A: Up to 16 battery modules can be installed in parallel for expanded energy storage capacity.
