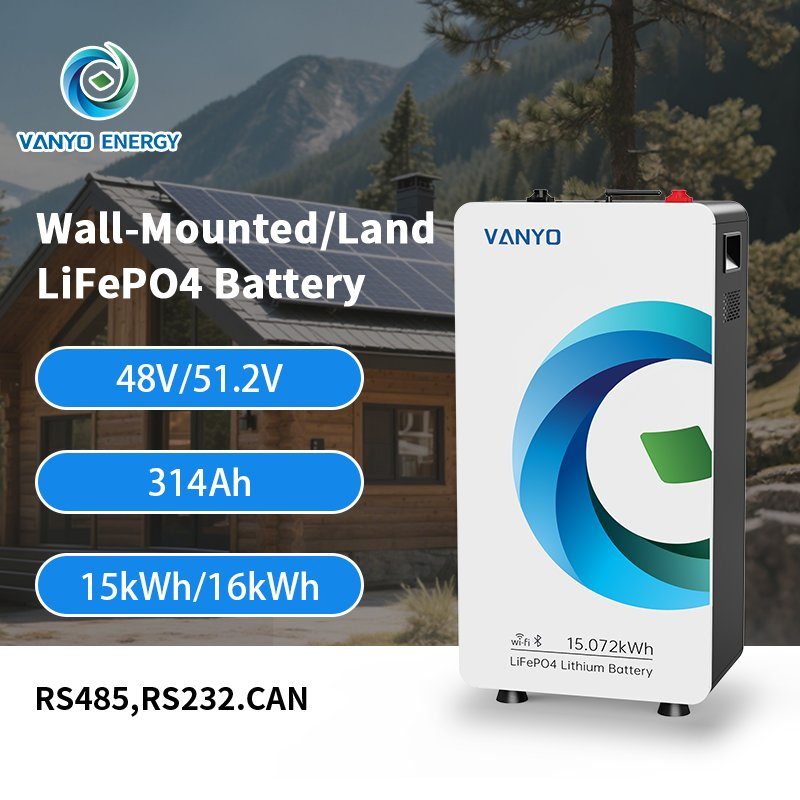

Factory Price 48V 314ah 15kwh Home Lithium Battery Energy Storage System 51.2V 314ah 16kwh LiFePO4 Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
48v-314ah
Cycle Life
6000 Cycles
Nominal Capacity
314ah
Nominal Voltage
48V
Life Expectancy
15 years
Battery Type
3.2V314
Cell Chemistry
Lithium Iron Phosphate
Parallel Support
Maximum 16 in Parallel
Charging Time
2 Hours
Installation
Ground Installation
Environment
Household Storage
Cooling
Air-Cool
Communication
Bluetooth, WiFi, RS485, CAN
Protection
Intelligent BMS

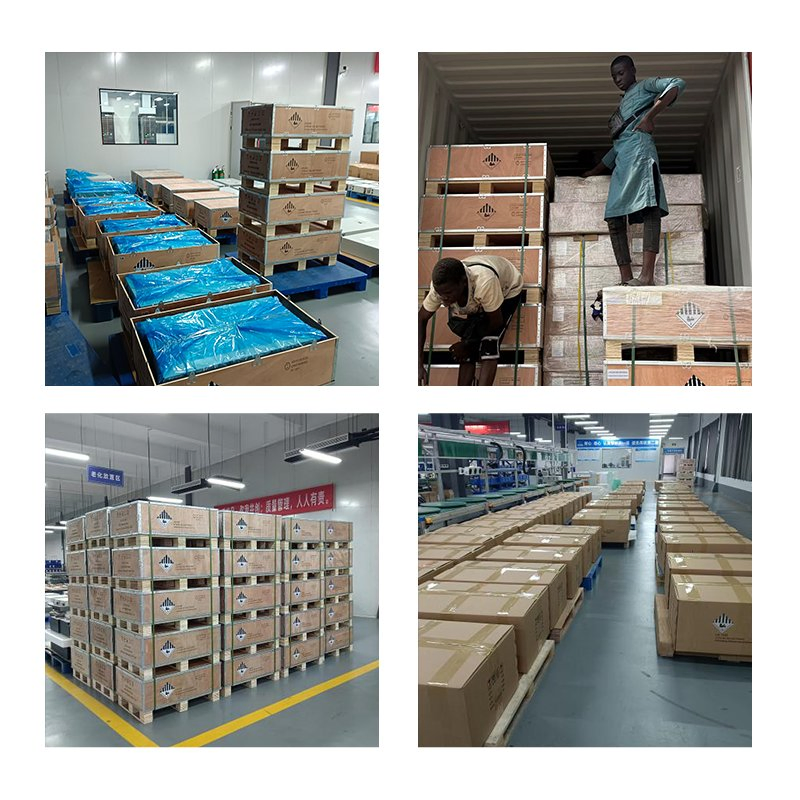

📦 Packaging & Delivery
Package Size
82.00cm * 44.50cm * 27.00cm
Gross Weight
114.000kg
Transport Package
Wooden Box
Origin
China
🌟 Product Introduction

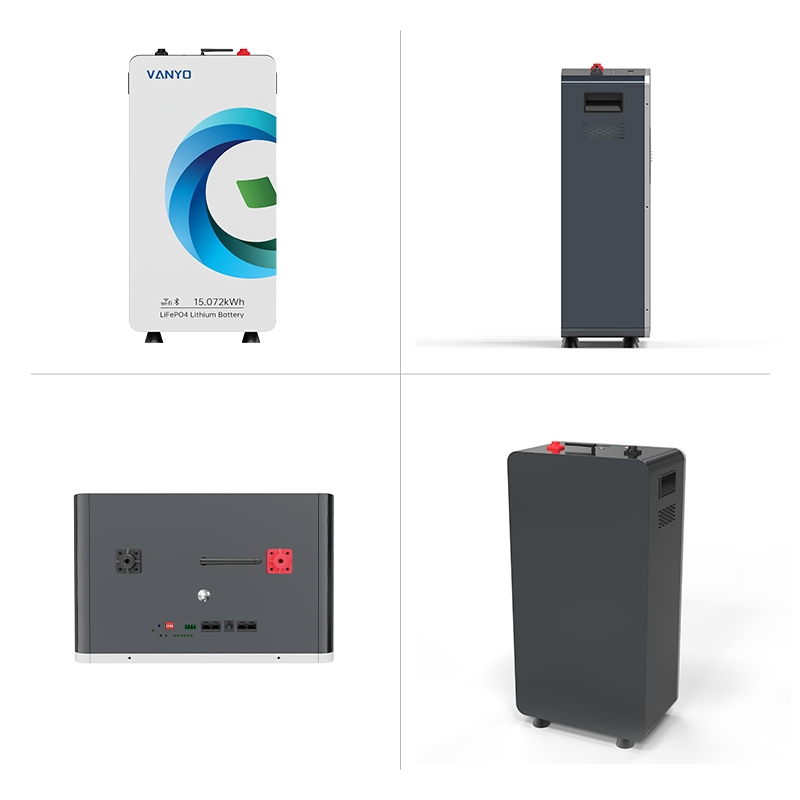

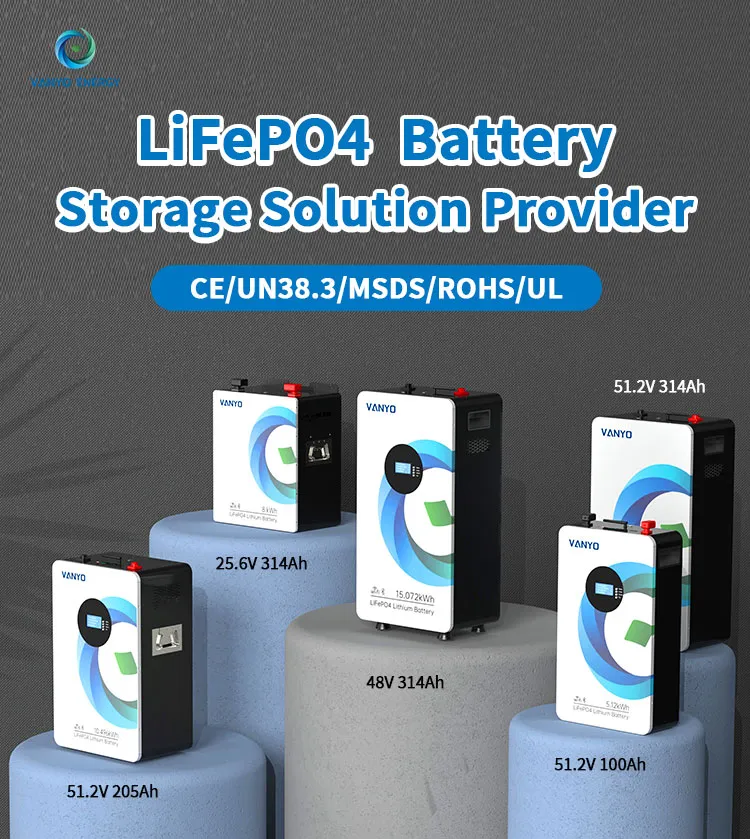

Home Lithium Battery Energy Storage System
This household lithium battery system delivers exceptional performance, comprehensively enhancing the home energy storage experience. It features an ultra-long cycle life of 6,000 cycles (at 25°C, 80% depth of discharge), significantly reducing total cost of ownership and offering extended service life. The battery employs low-maintenance chemistry and incorporates an intelligent Battery Management System (BMS) for comprehensive circuit protection, ensuring safe and stable operation.
In terms of practicality, the battery boasts an extremely low self-discharge rate, allowing for safe storage for up to 6 months with no risk of sulfation. Its high charge/discharge efficiency significantly reduces charging time and improves overall usability. The product also demonstrates excellent high-temperature tolerance, operating reliably in environments up to 60°C, broadening its application scope. The system supports various communication protocols such as RS485, RS232, and CAN, and is compatible with a wide range of inverters, offering high device compatibility and integration flexibility. It is a reliable and efficient energy storage solution for household use.
📐 Product Parameters
Battery Model WY25.6-314 WY48-314-1 WY48-314-2 WY51.2-100 WY51.2-200 WY51.2-314-1
Rated Voltage25.6V48V48V51.2V51.2V51.2V
Energy8.03KWH15.07KWH15.07KWH5.12KWH10.24KWH16.07KWH
Configuration8S-1P15S-1P15S-1P16S-1P16S-1P16S-1P
Cell Unit3.2V314AH3.2V314AH3.2V314AH3.2V100AH3.2V200AH3.2V314AH
C-rate0.5C
Cycles (80% DOD)6000 cycles
Service Life15 years
Net Weight (KG)571051053981.5112
📝 Product Description

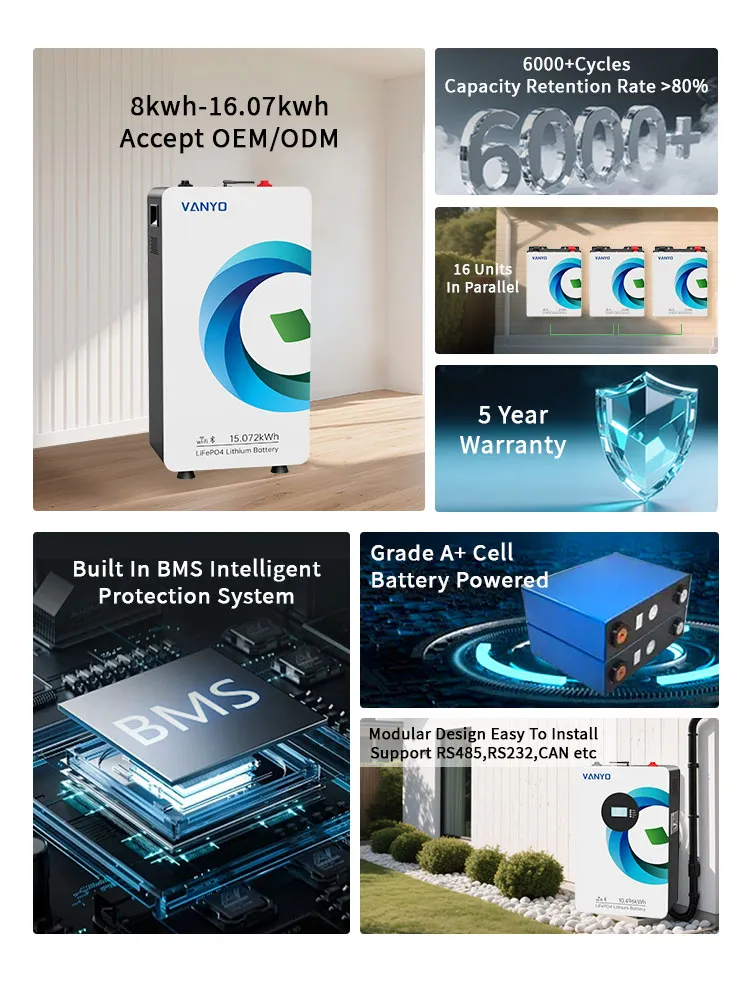

Product Description Details
🏢 Company Profile
We are a technology-based enterprise specializing in the research and development, production, sales and service of lithium battery energy storage products and core control systems. Self-developed products include energy storage systems, photovoltaic storage integrated inverters and battery management systems (BMS). At the same time, we build big data service platforms to provide customers with remote monitoring, online operations and asset management.
Our main products include industrial and commercial energy storage, household energy storage, portable energy storage, lead-to-lithium power supply, and photovoltaic storage equipment. Our products are widely used in industrial parks, finance, electricity, communications, smart cities, and the Internet of Things. We are committed to providing safe, lightweight and long-lasting green energy products with global certifications such as UL, CE, KC, IEC, UN38.3, and ROHS.
📜 Certifications

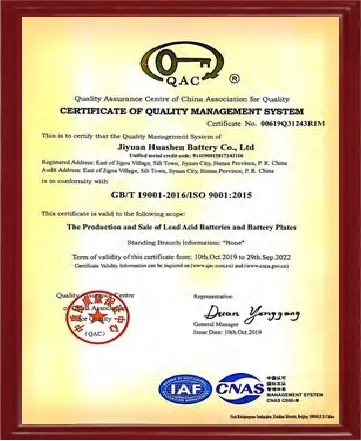

Certification 1

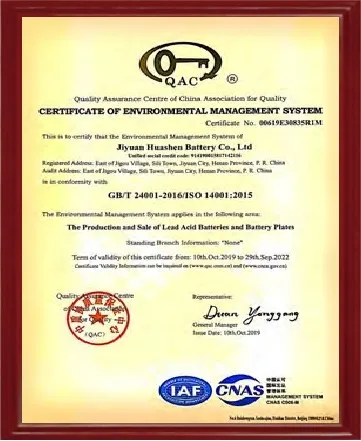

Certification 2

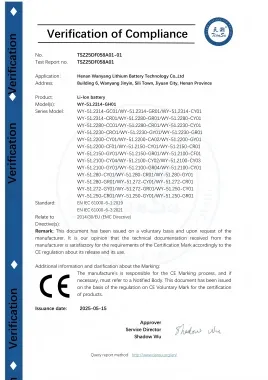

Certification 3

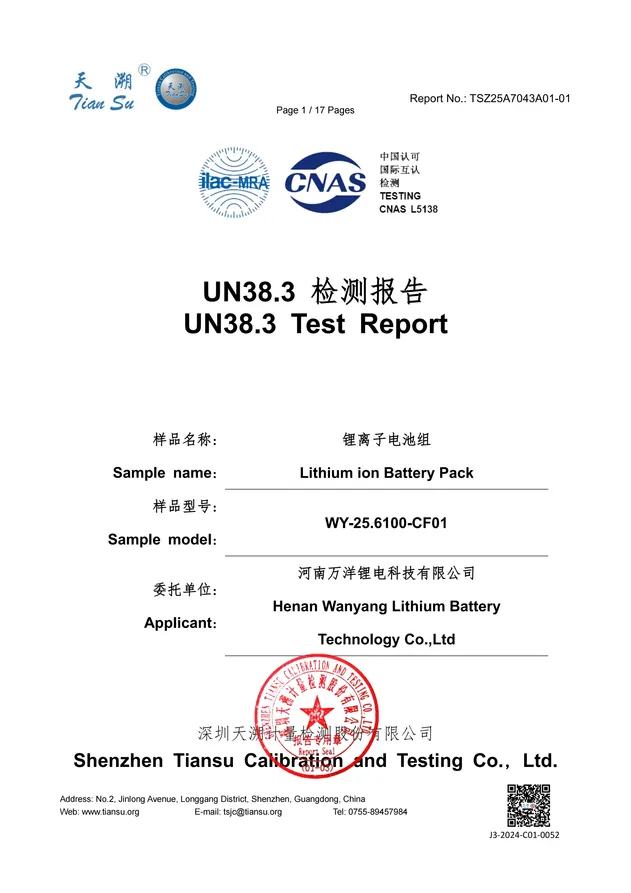

Certification 4

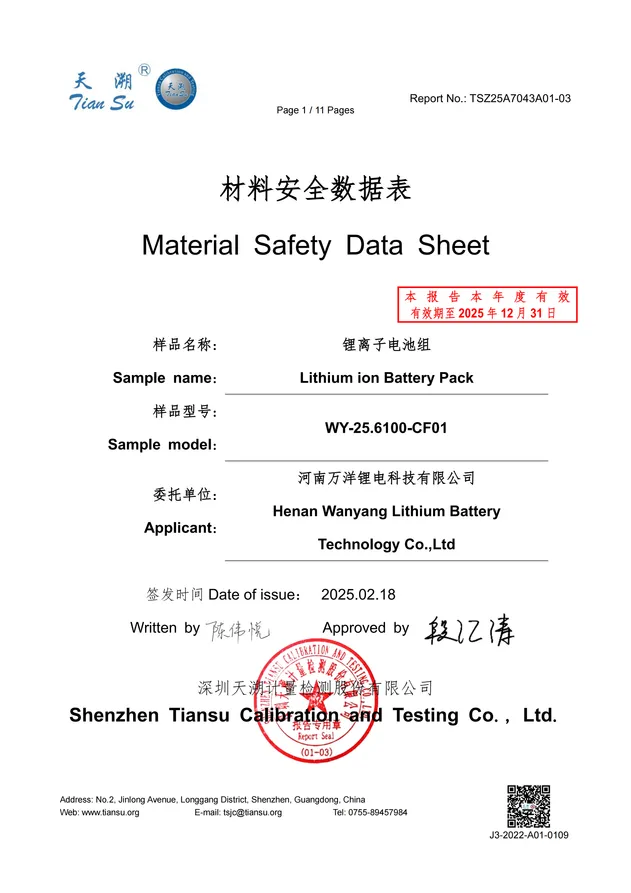

Certification 5

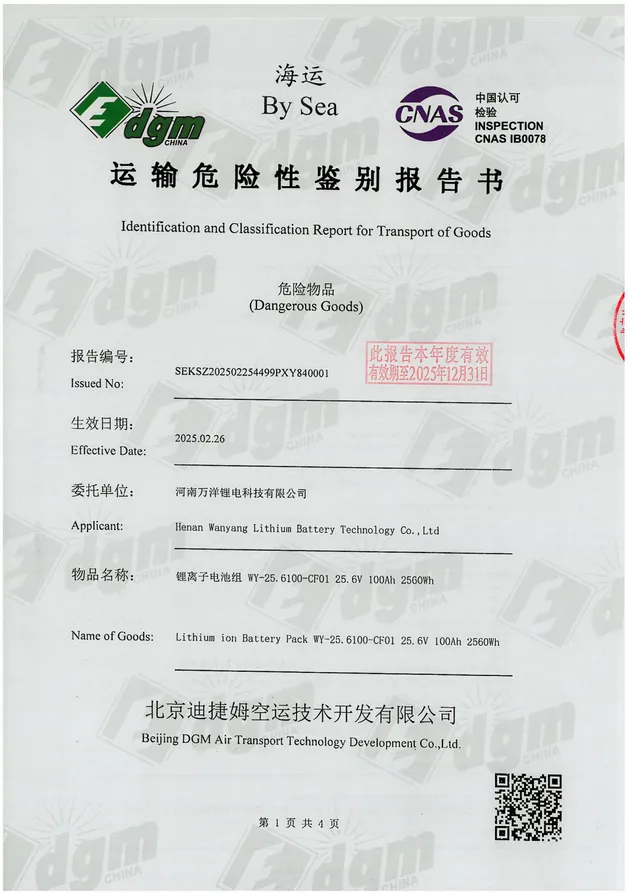

Certification 6
🏭 Production Line

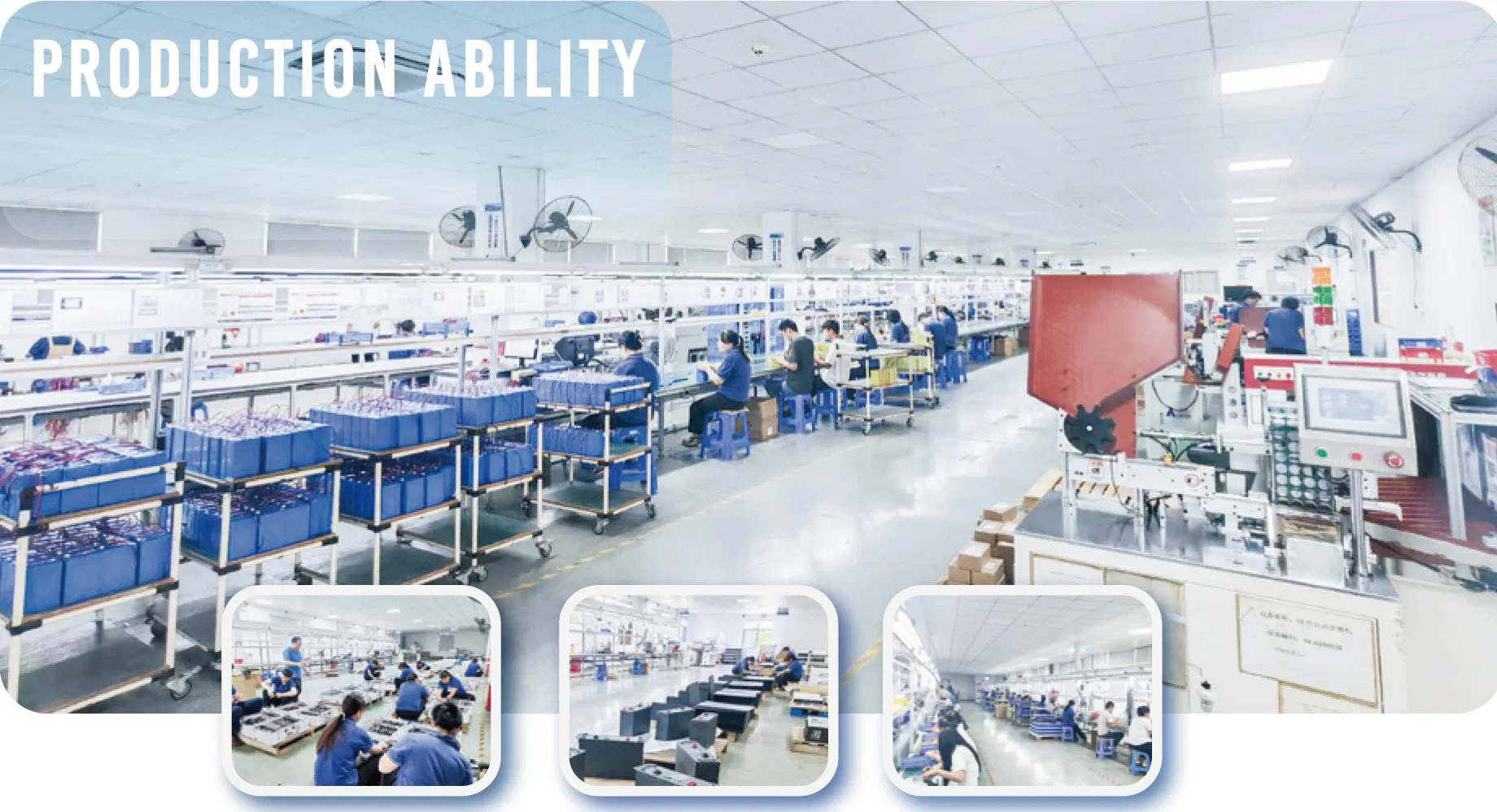

Production Line Overview

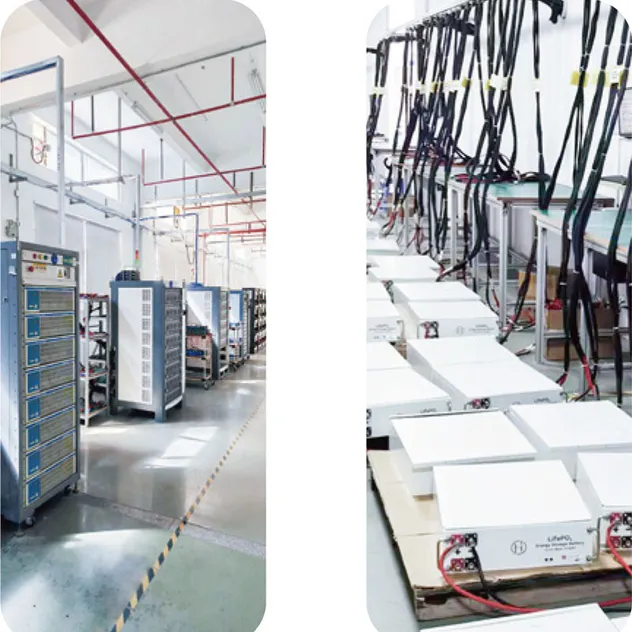

Production Process 1

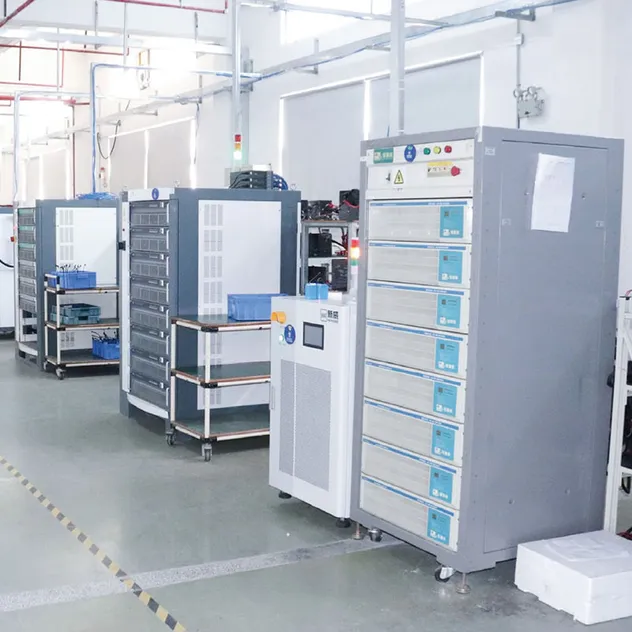

Production Process 2

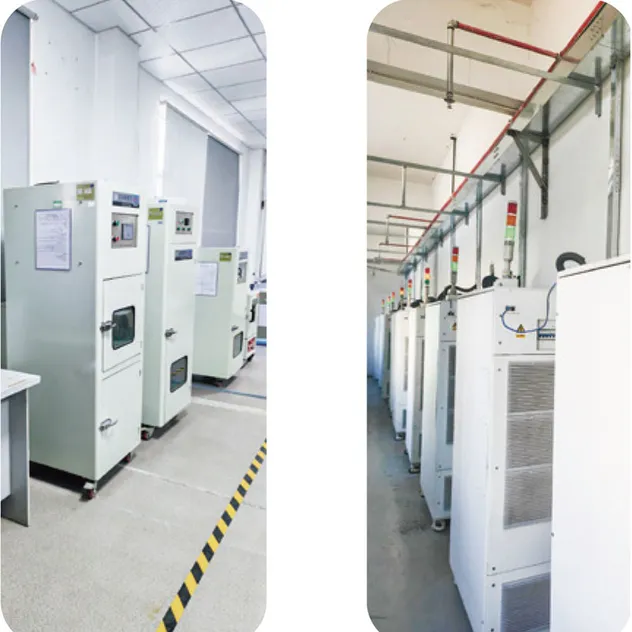

Production Process 3
Laboratory Testing Equipment

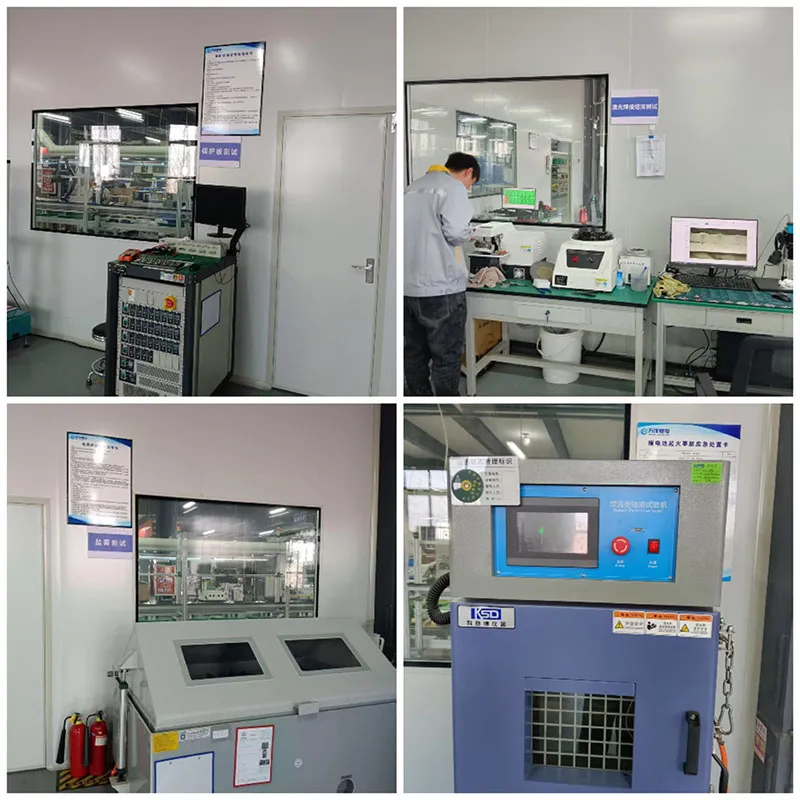

Testing Lab 1

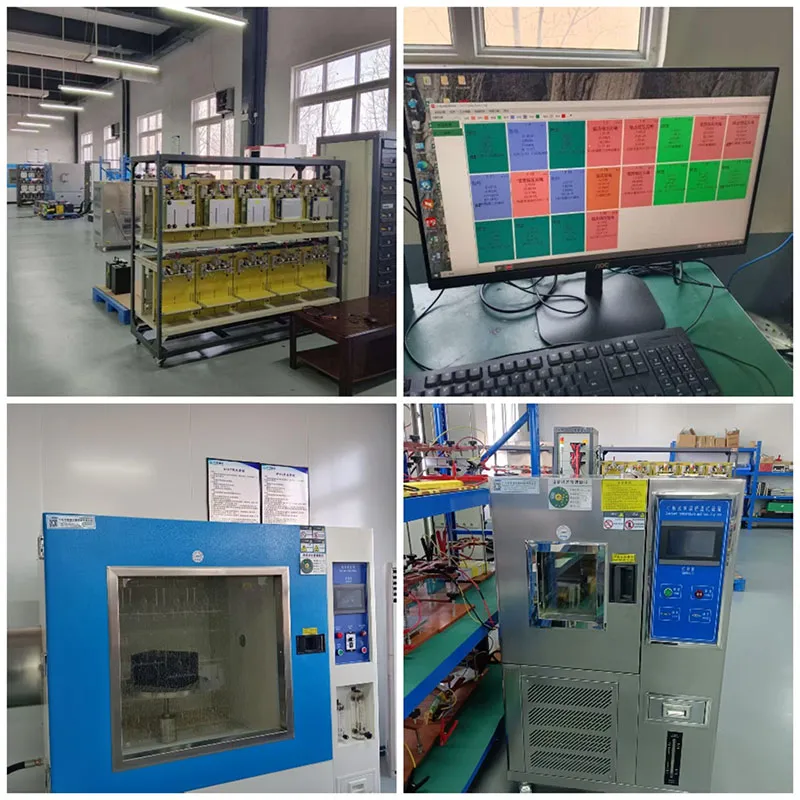

Testing Lab 2

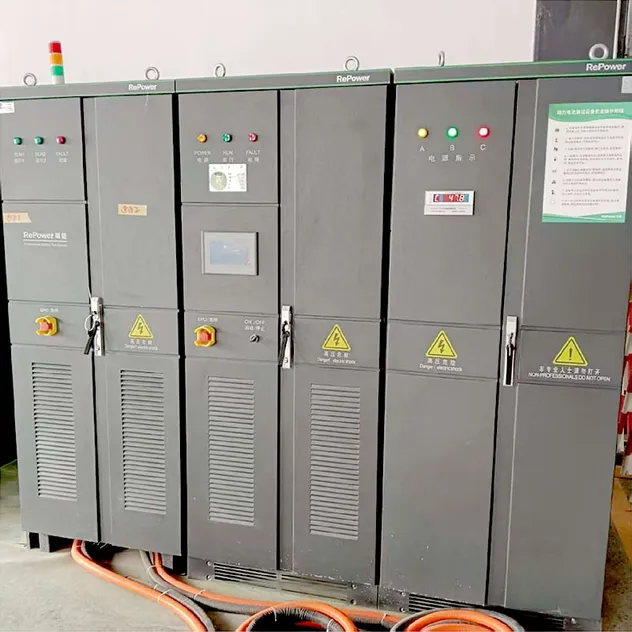

Testing Lab 3

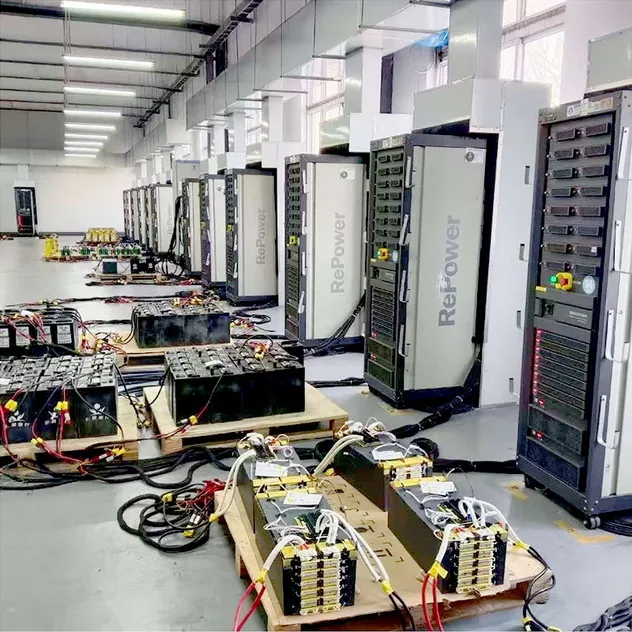

Testing Lab 4

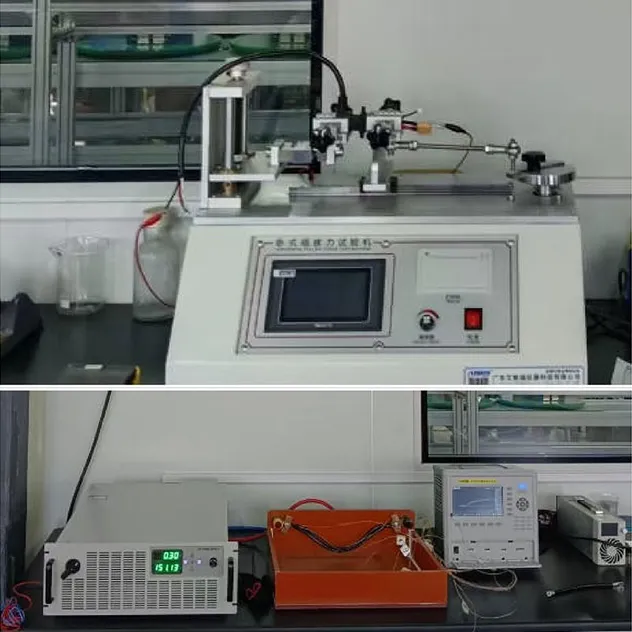

Testing Lab 5

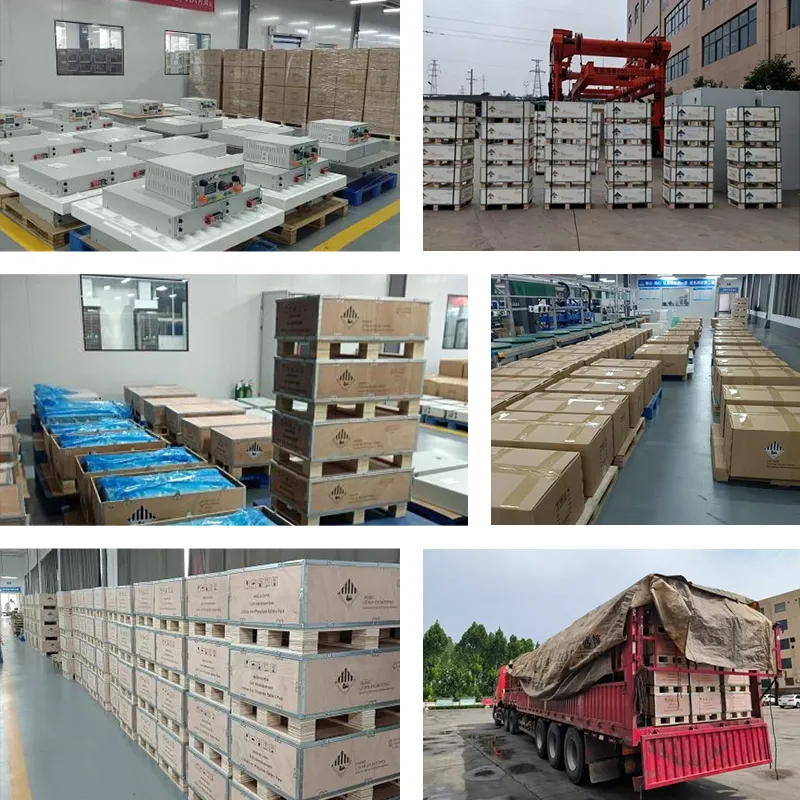

Final Product Inspection
Frequently Asked Questions
Q1: What is your minimum order quantity (MOQ)?
Our minimum order quantity is one set, which refers to the complete unit as defined in our specification sheet.
Q2: Are you a manufacturer or a trading company?
We are a specialized manufacturer located in China with our own dedicated production facility.
Q3: Can you provide samples for testing?
Yes, we can supply sample orders for technical testing and performance evaluation.
Q4: What is the typical delivery lead time?
Sample orders are typically delivered within 3–5 days. For mass production, the lead time ranges from 15–25 days depending on the order volume.
Q5: Is the installation of the energy storage system easy?
Yes, the installation is straightforward. We provide detailed installation drawings, a user manual, and offer video call guidance from our technical team.
Q6: Do you offer customization options?
Yes, we can customize the logo, color, size, and other technical specifications according to your specific requirements.
