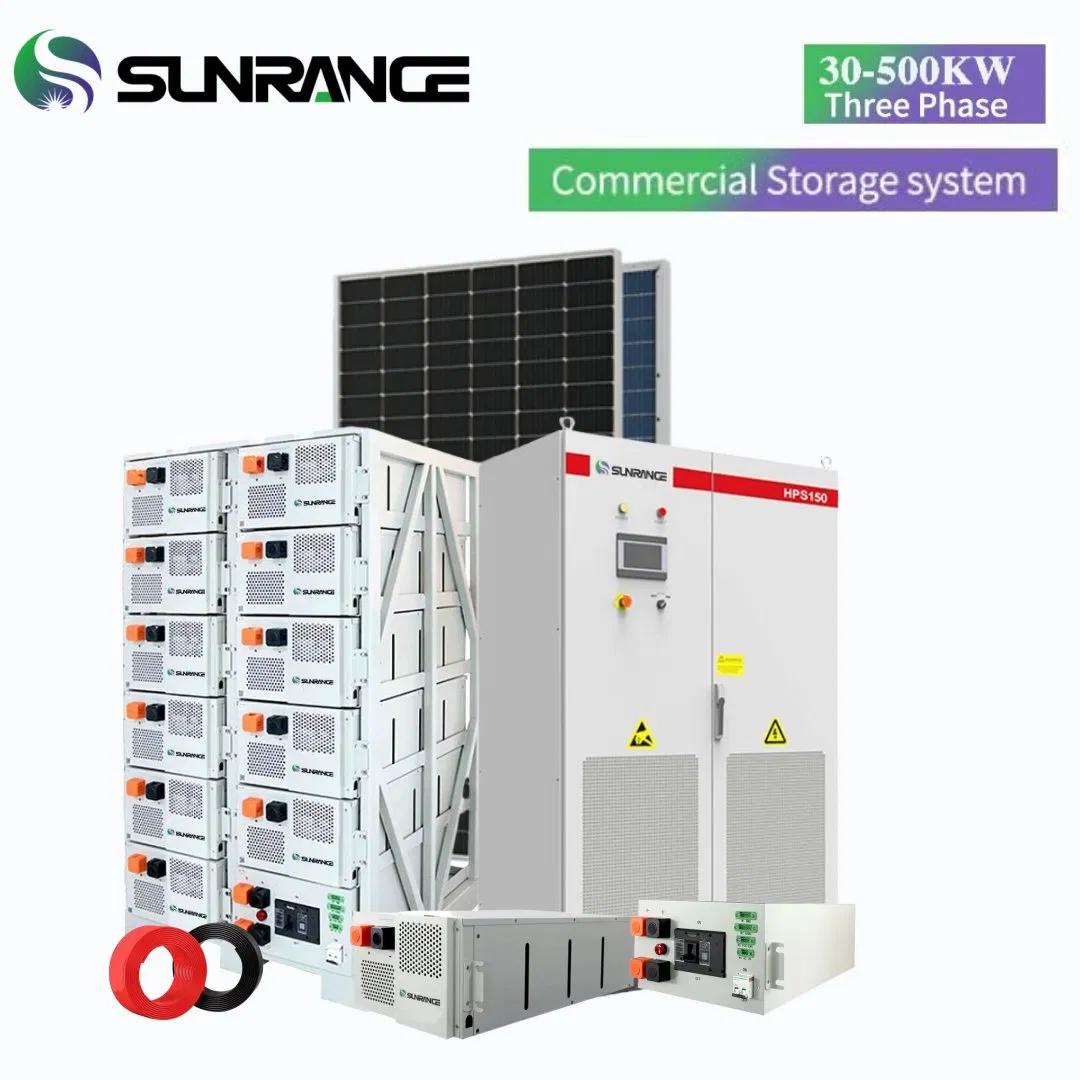

Commercial Industrial Solar Power Energy Storage System 50kw 100kw 150kw Lithium Battery Solar Generator 0.5C 1C Storage Solution

📊

Basic Specifications

Model NO.SR-30/50/100/150/250/500KW-HY

ConditionNew

CertificationISO, CB, CE

ApplicationCommercial

TypeSolar Energy Storage System

BatteryGel/ LiFePO4 Battery

System TypeHybrid Solar PV System

Solar PanelMonocrystalline 400-700W

Grid Type3W+N+PE

ControllerMPPT Types

Battery Capacity230kwh / Customized

OriginChina

⚡

Product Description

Higher Power Output In Off-Grid Model
Support Diesel Generator Access
Pre-Wired & Easy Installation
30KW To 500KW Scalable Solutions
Tested Under Multiple Operating Conditions

Parameter	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Solar Panel Qty	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Total PV Power	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Battery Bank Capacity	40.96KWH	100.35KWH	202.75KWH	304.12KWH	473.08KWH	946.17KWH

🛠️

Technical Modules

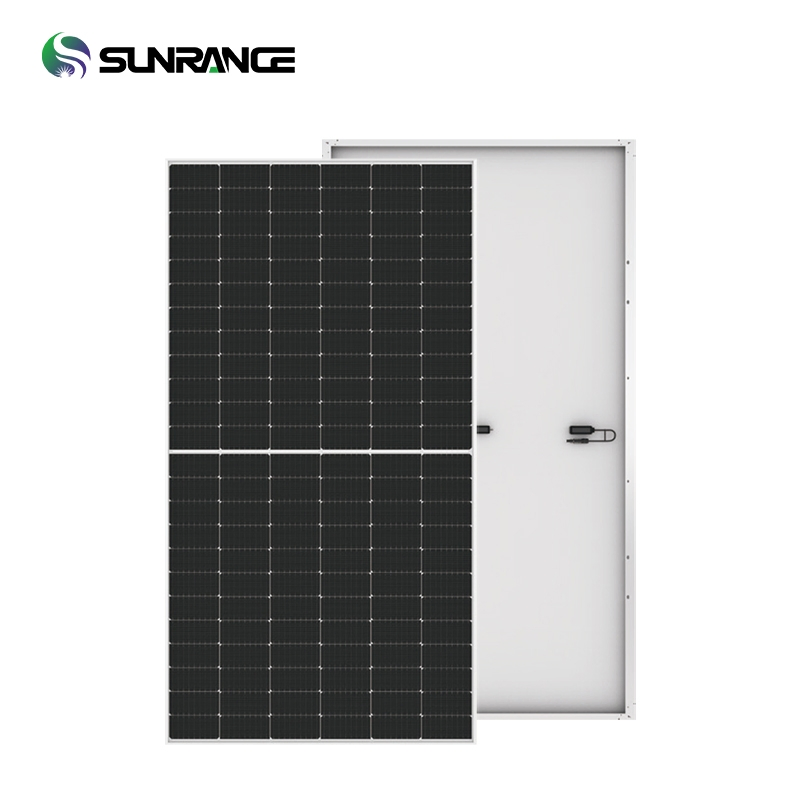

N-Type Topcon Solar Panel

Model: SR72P-580N
Max Power: 580W
Efficiency: 22.44%
Voc: 51.57V | Vmpp: 43.09V

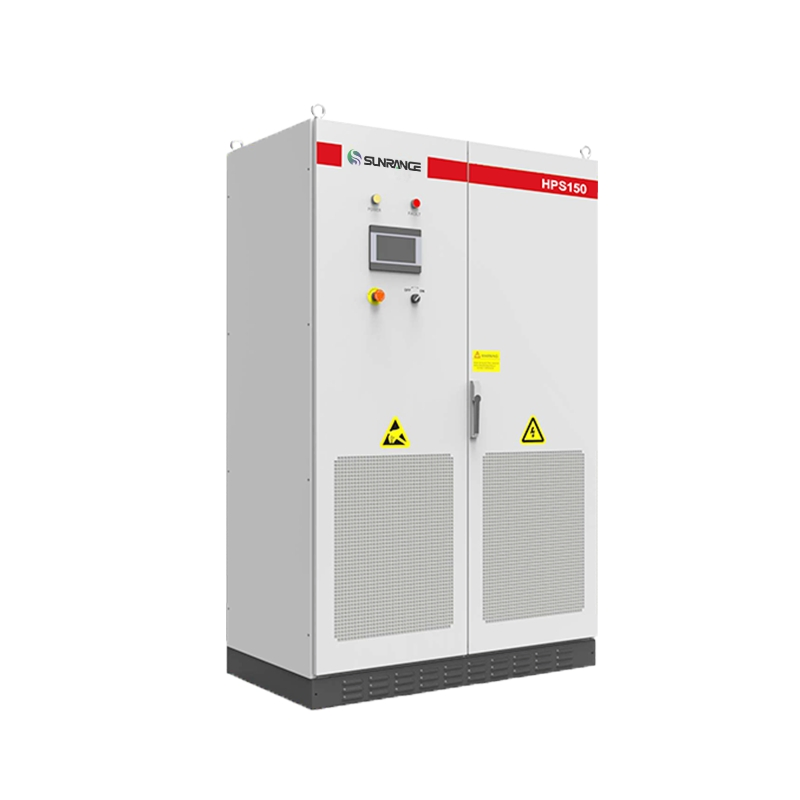

All-In-One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections.
System capacity easily expanded.
Seamless switching within 6ms via SCR.

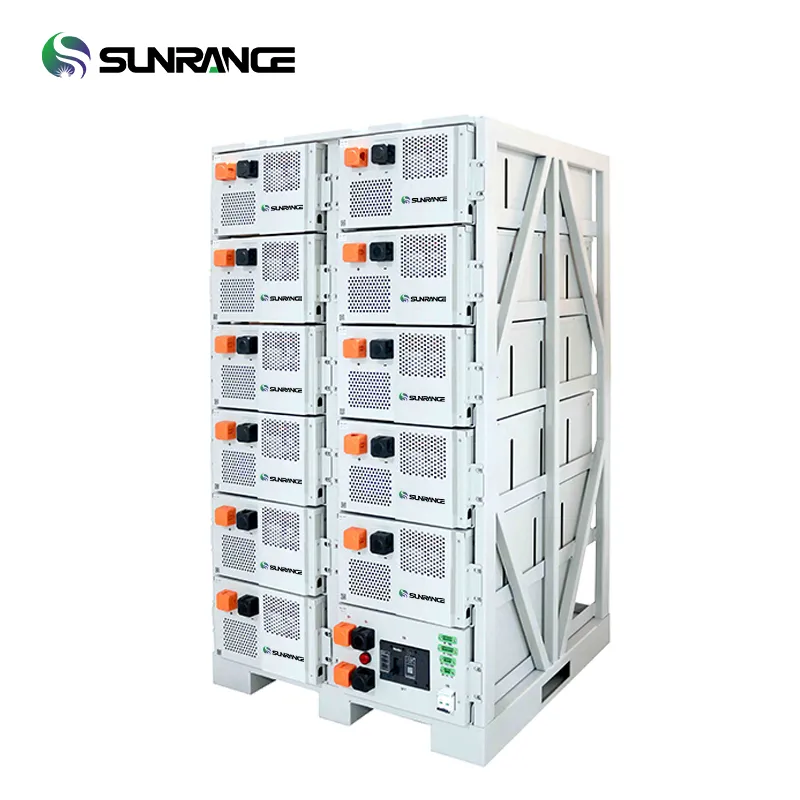

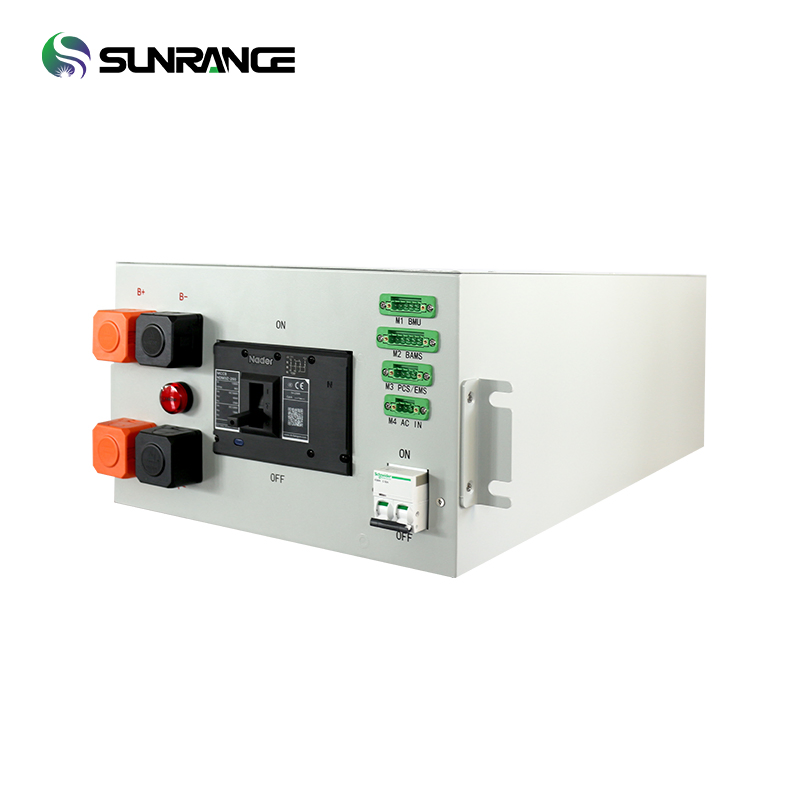

High-Voltage Battery Packs

Type: LiFePO4 Lithium Ion / GEL.
Cycle Life: >6000 times @ 90% DOD.
Rack-mounted design for easy maintenance.

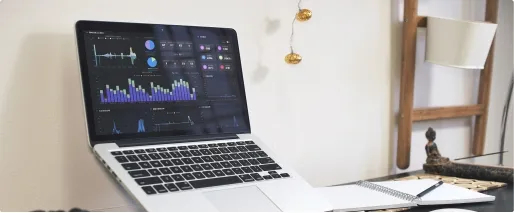

Monitoring System

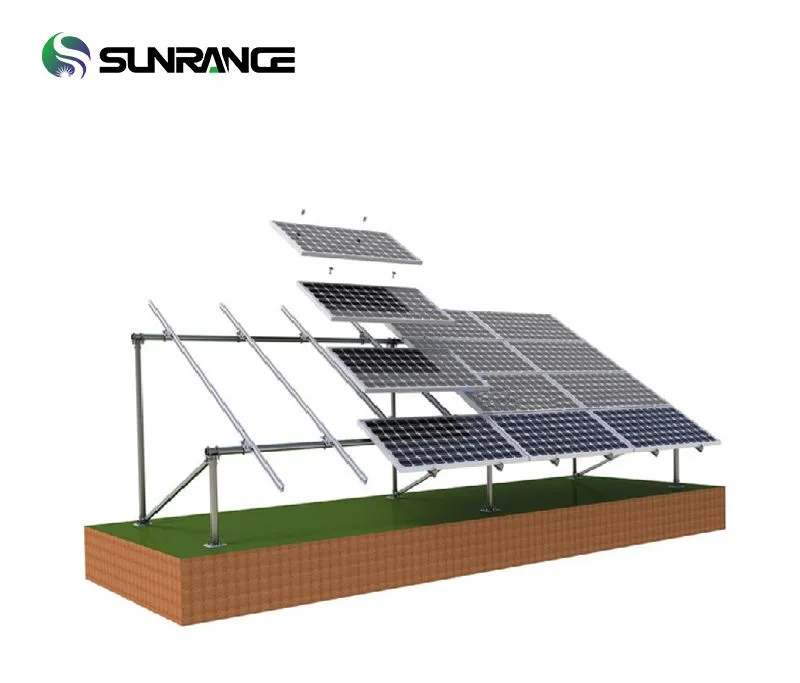

Mounting System

📋

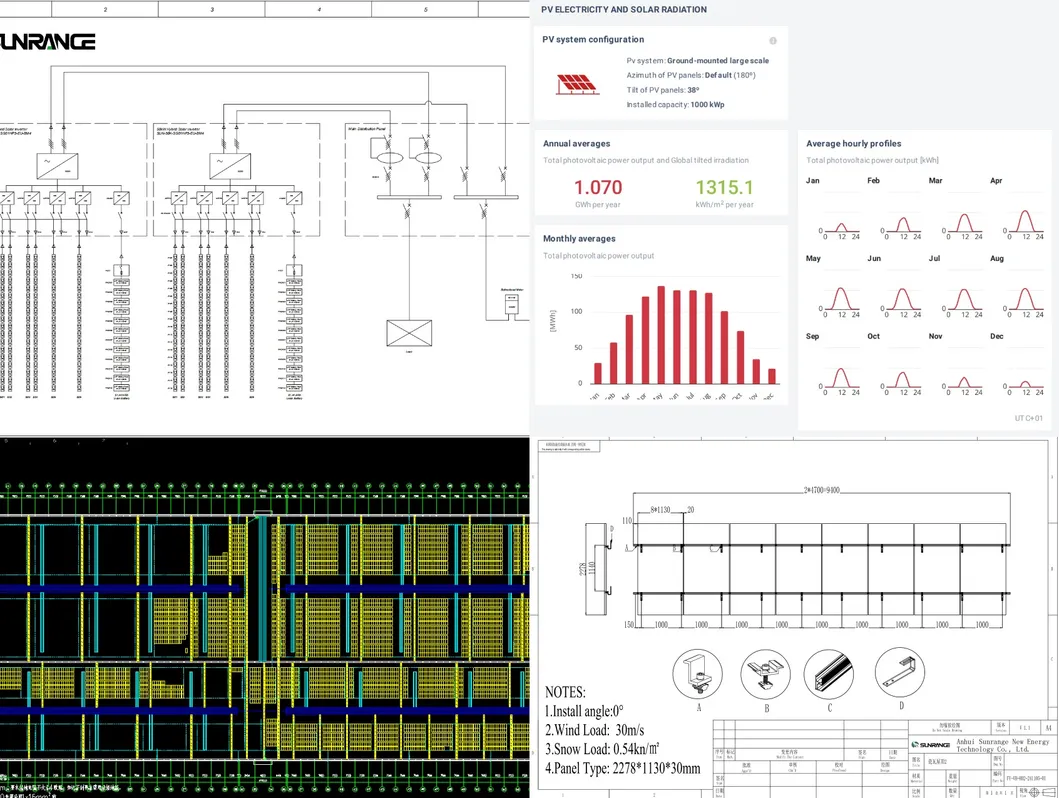

Technical Support & Shipping

🏗️

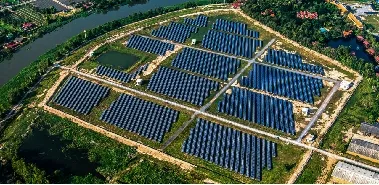

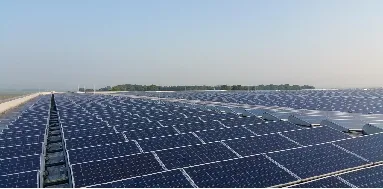

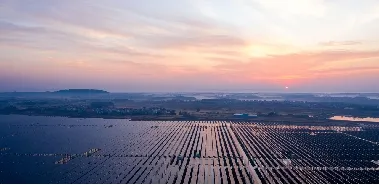

Project Cases

📜

Certifications

❓

Frequently Asked Questions

Q1: What is the maximum power capacity you provide for commercial use? A: We offer commercial and industrial solar power systems ranging from 30KW to over 1MW+. For residential use, we provide systems from 5-30KW.

Q2: Do these systems support off-grid operation? A: Yes, we provide On-Grid, Off-Grid, and Hybrid solar power systems to meet different grid stability requirements.

Q3: What type of batteries are used in your storage systems? A: Our systems primarily use high-performance LiFePO4 (Lithium Iron Phosphate) or GEL batteries, depending on the specific application and customer preference.

Q4: Can the system be integrated with a diesel generator? A: Yes, our hybrid inverters support diesel generator (DG) access as a backup power source for enhanced reliability.

Q5: What certifications do your solar products hold? A: Our products are certified by international standards including CE, IEC, CEC, ISO, INMETRO, and SGS.

Q6: What is the warranty period for the system and solar panels? A: The complete system order is guaranteed for 10 years, while the solar panels come with a performance warranty of 25-30 years.
