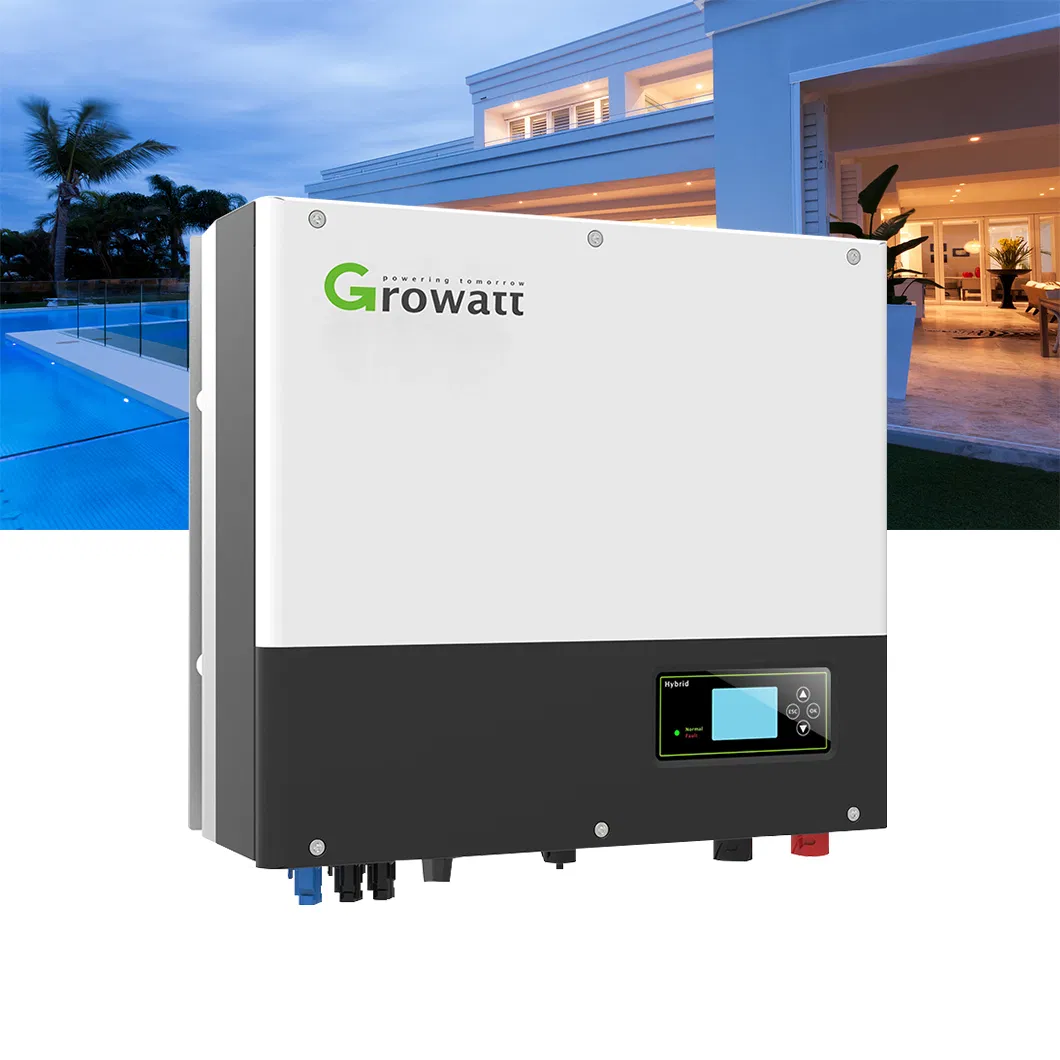

Factory Price 5kw 10kw On Grid Hybrid PV Solar Panel Power System for Home Power Energy with Akku battery

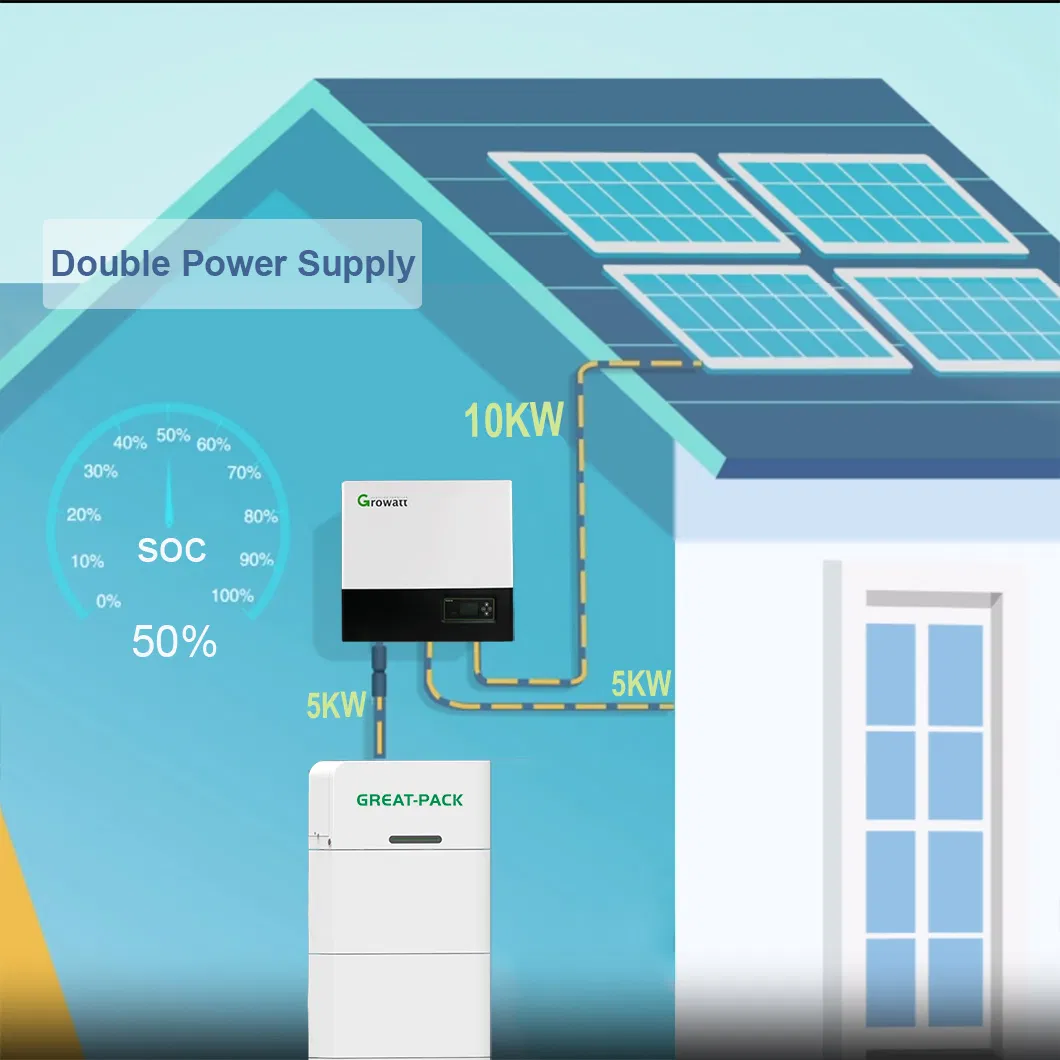

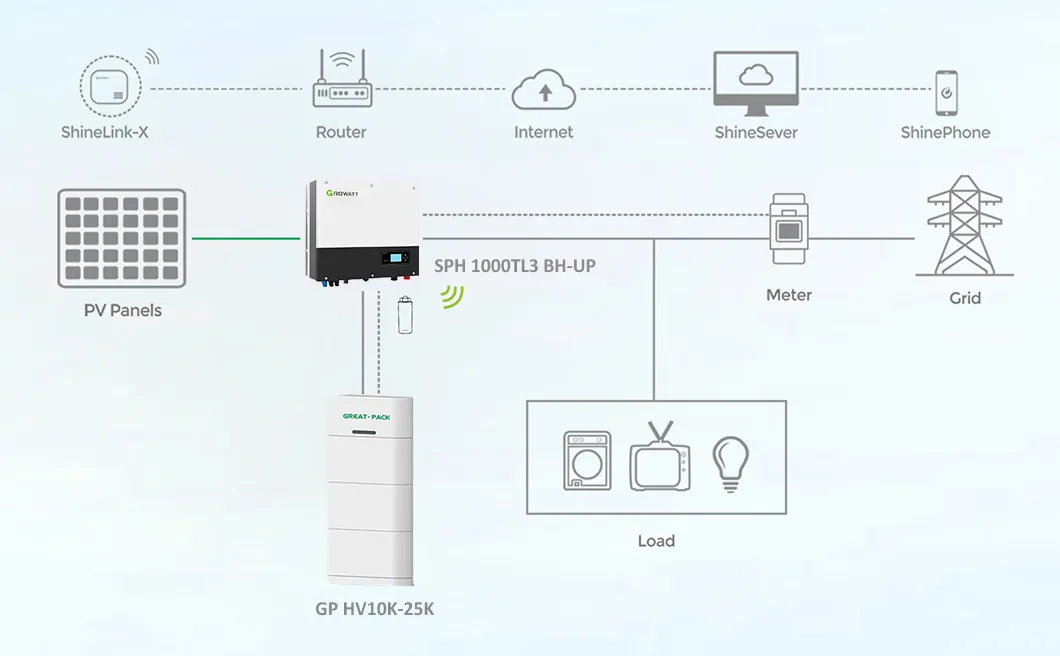

System Diagram

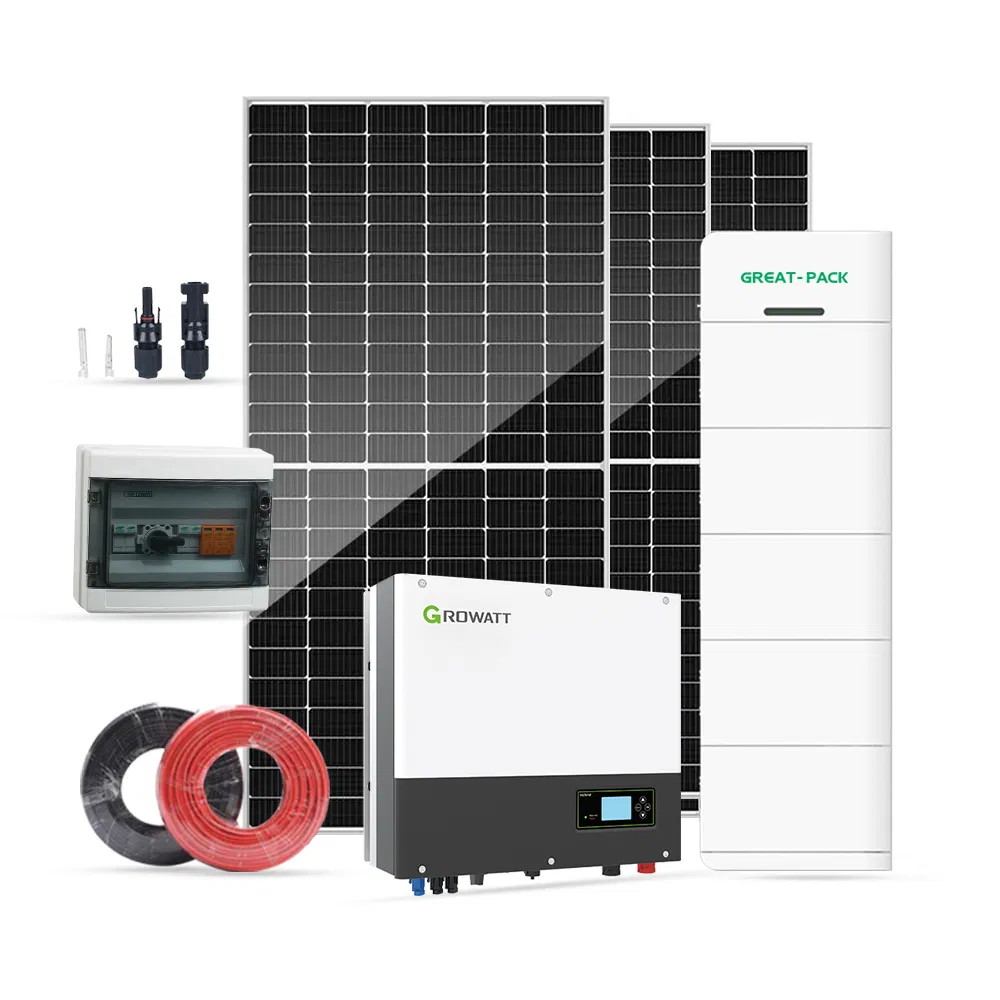

| 10KW Hybrid Solar System Configuration | |||
|---|---|---|---|
| Parts | Specification | Quantity | Warranty |

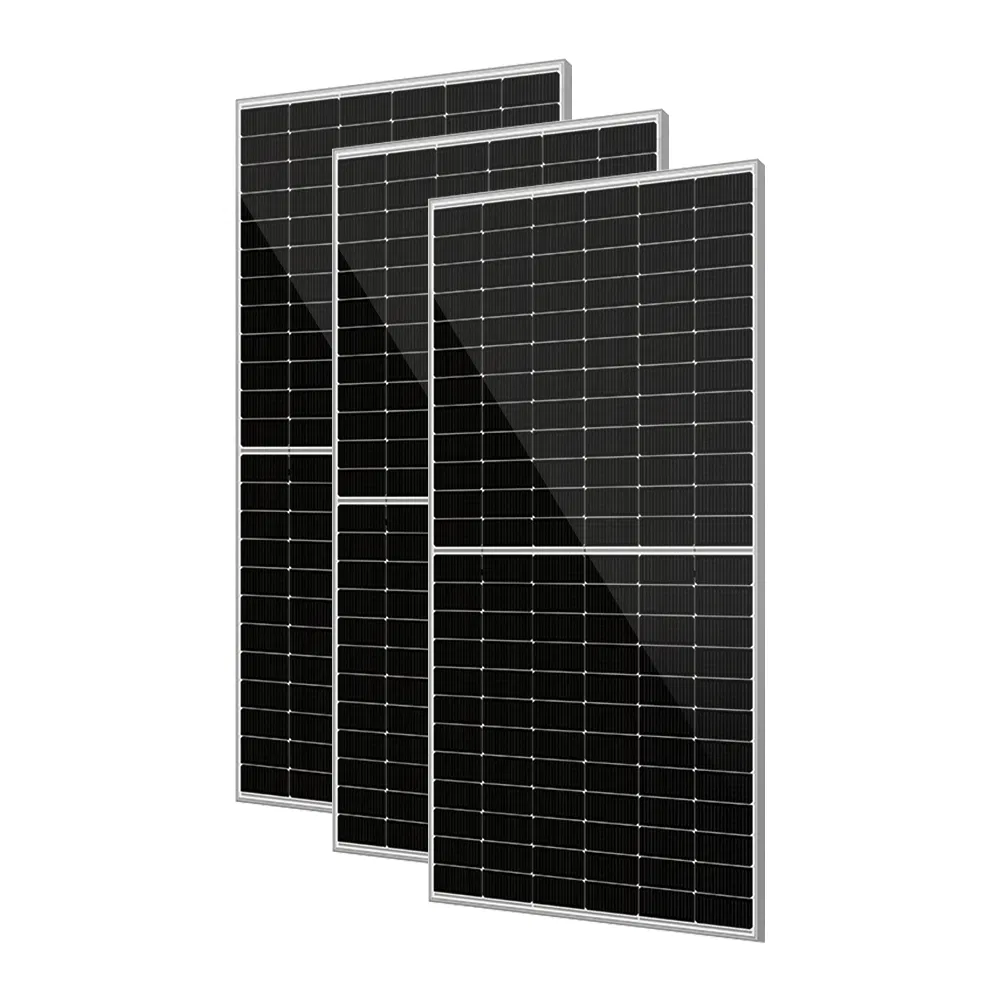

| Solar panel | 550W Mono 144 Half cells, or 580W TOPCon 144 Half cells | 20 pcs | 25 years |

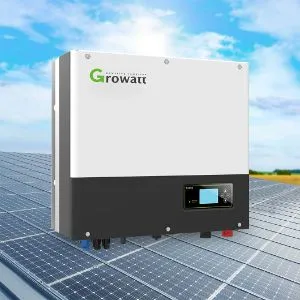

| Hybrid inverter | 3 Phase 230V/400V, 10KW, High voltage battery range | 1 pcs | 5 years |
| Wifi | Optional | 1 pcs | 1 year |

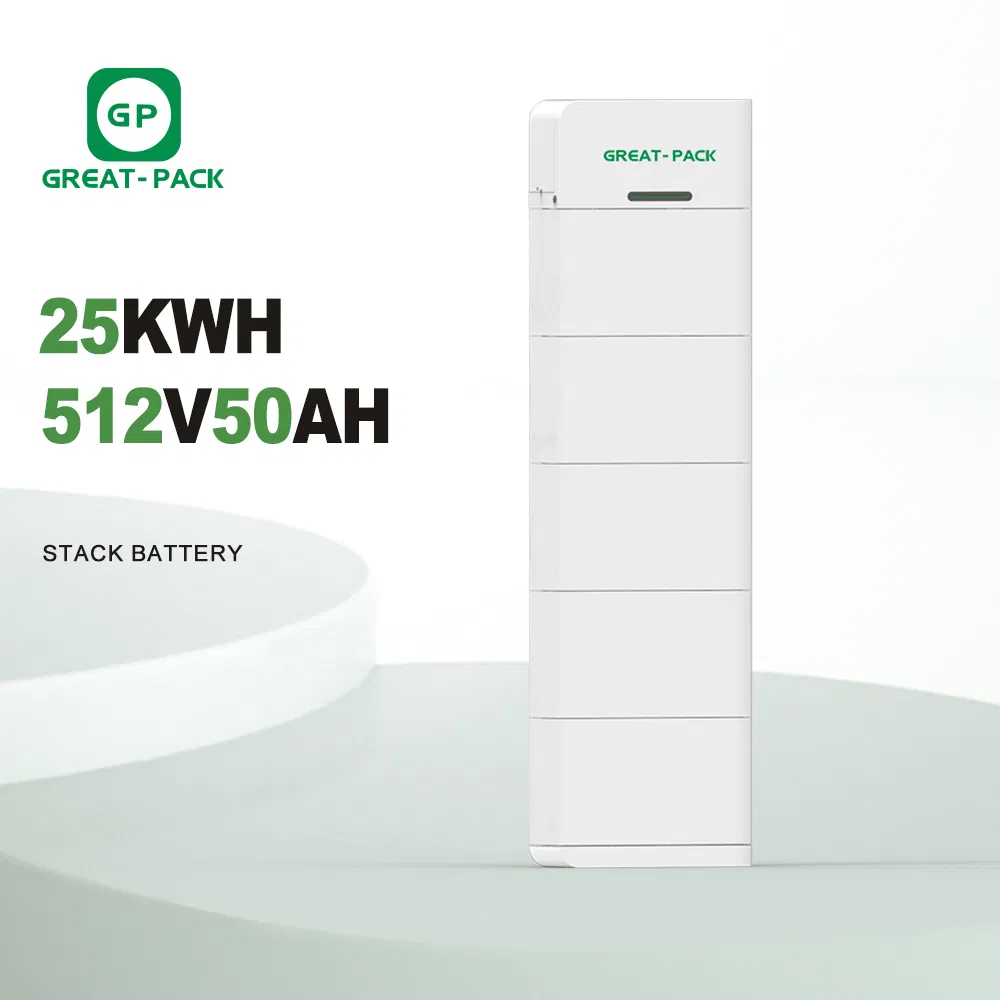

| LiFePO4 battery | High voltage stackable battery, 10KWH-25KWH optional | 1 pcs | 10 years |

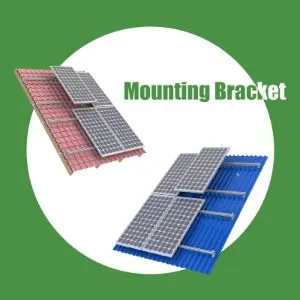

| Mounting Bracket | Roof or Ground Installation | 1 set | 10 years |
| PV cables | 4mm² or 6mm² optional | 200 meters | 10 years |

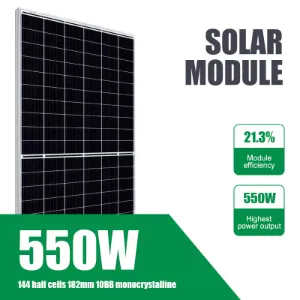

25 years warranty | High conversion efficiency > 21% | High-efficiency M10 solar cells | Half-cut cell technology

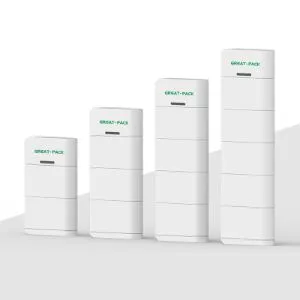

10 years warranty | 8000 cycles work life | 10kwh to 25kwh capacity optional | Built-in BMS | Wide compatibility
5 years warranty | 3Phase 230/400VAC | Integrated MPPT charge controller | WIFI/GPRS remote monitoring
15 years warranty | Aluminum alloy/Galvanized steel | 60m/s wind speed resistance | 1.4kN/m² snow pressure

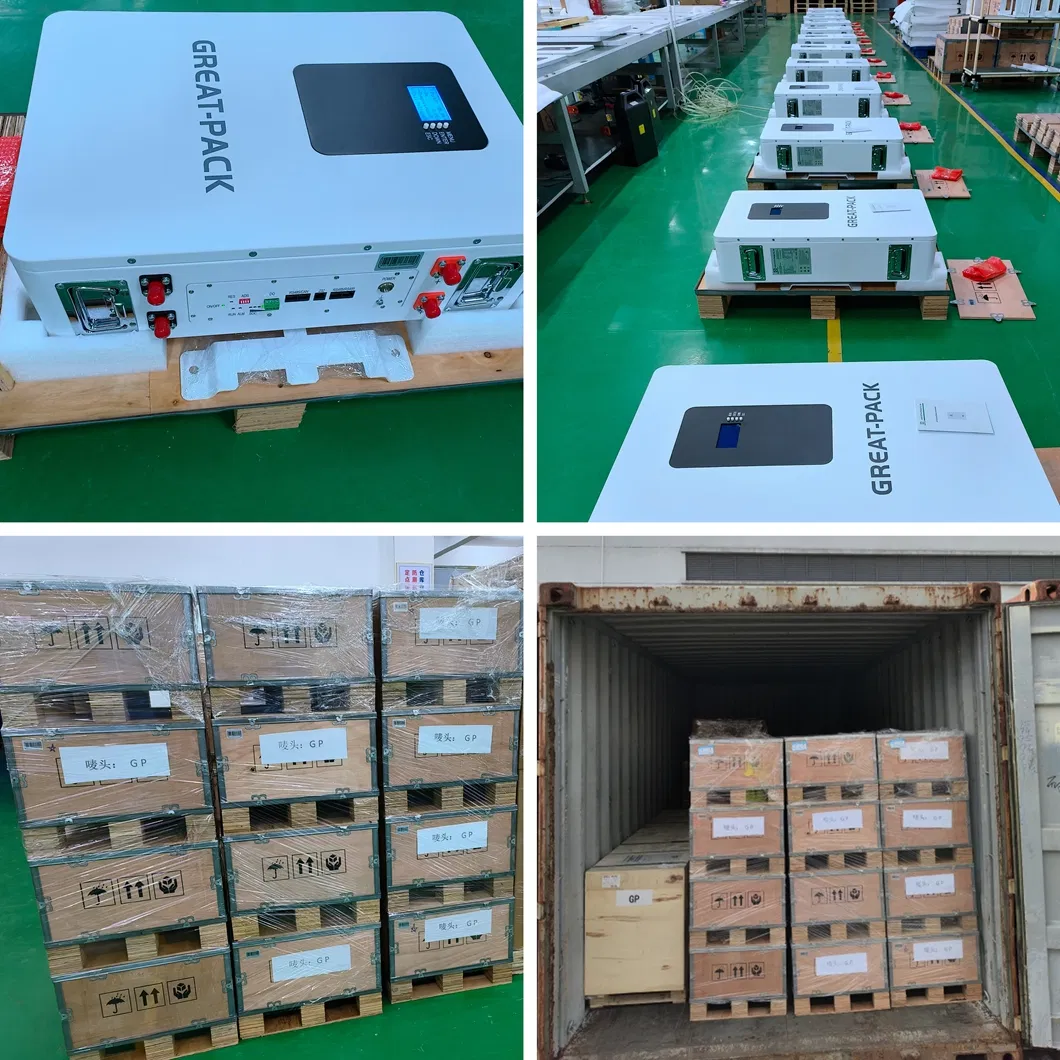

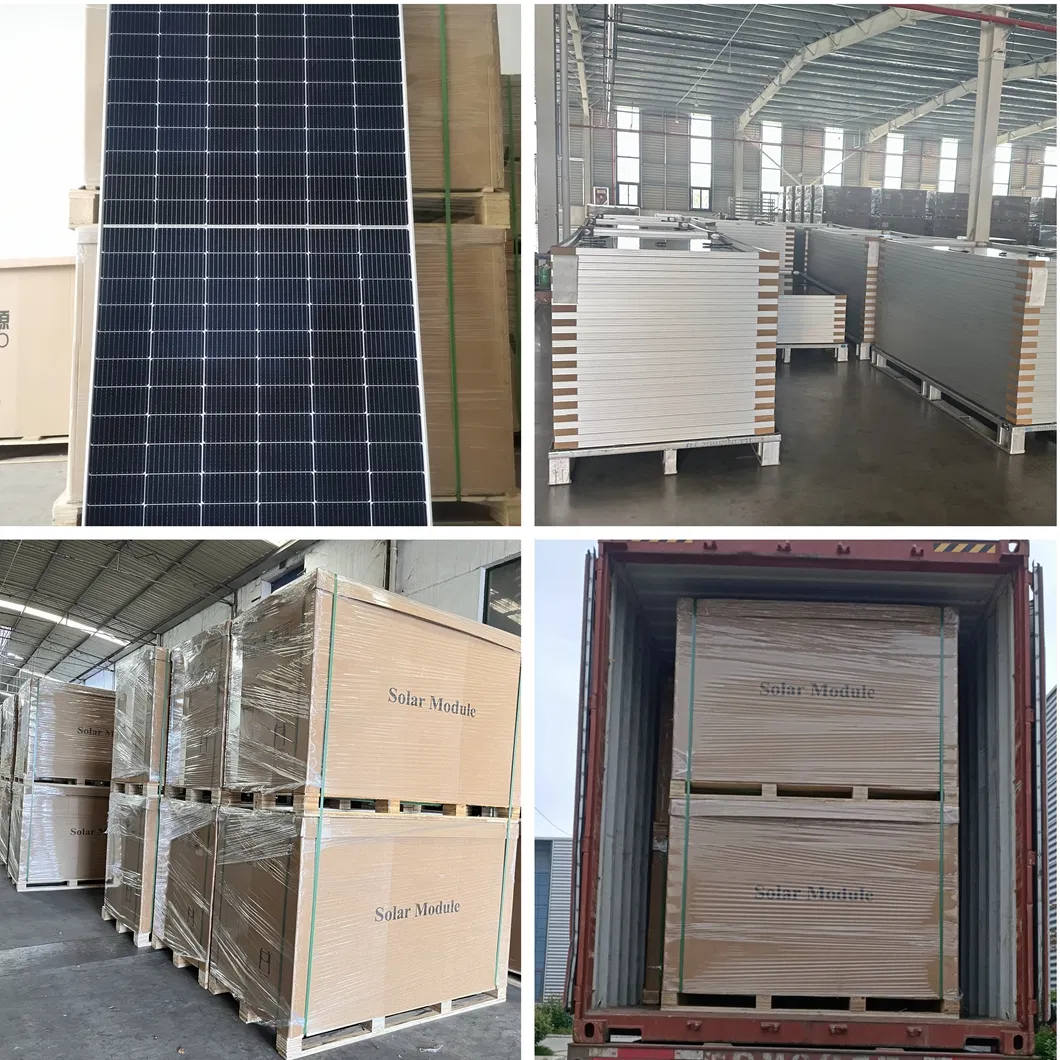

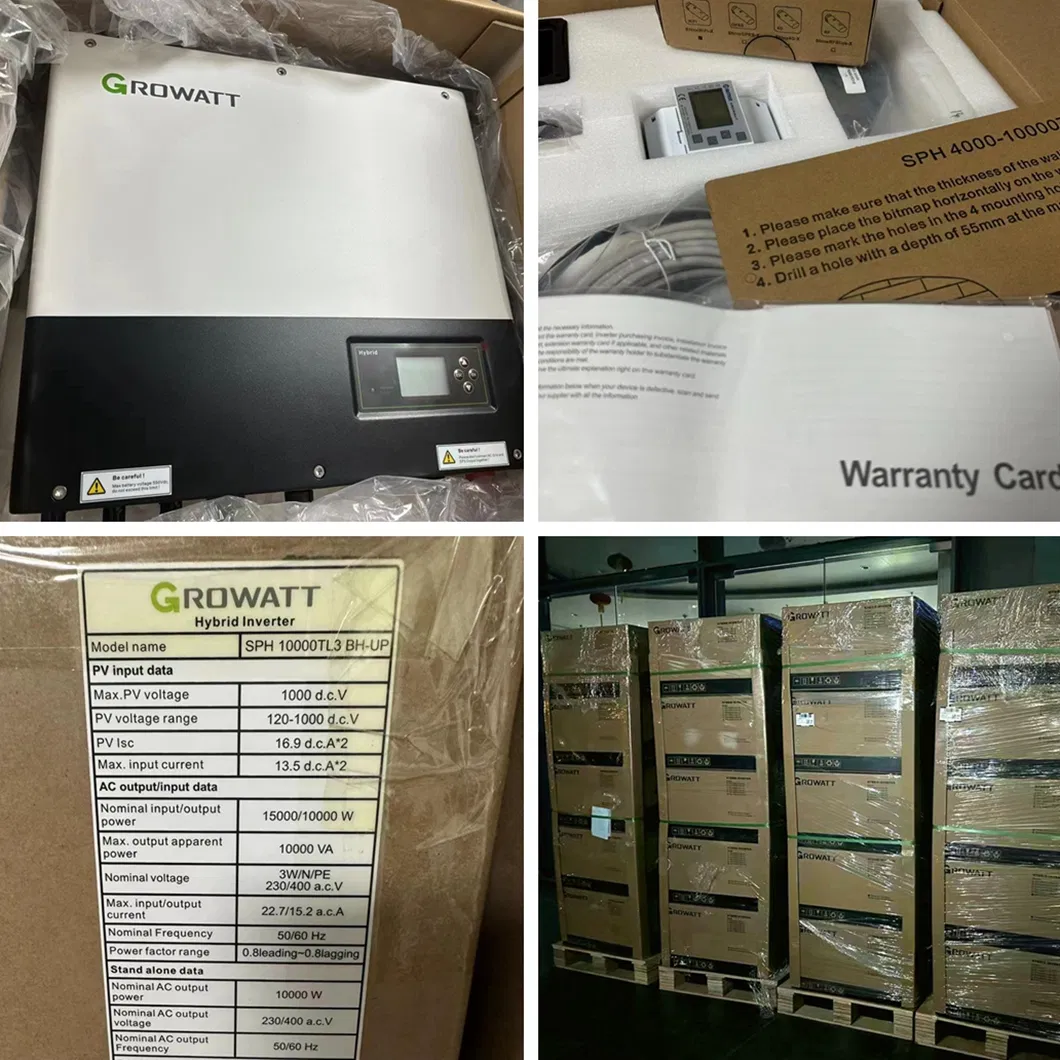

Packaging & Logistics

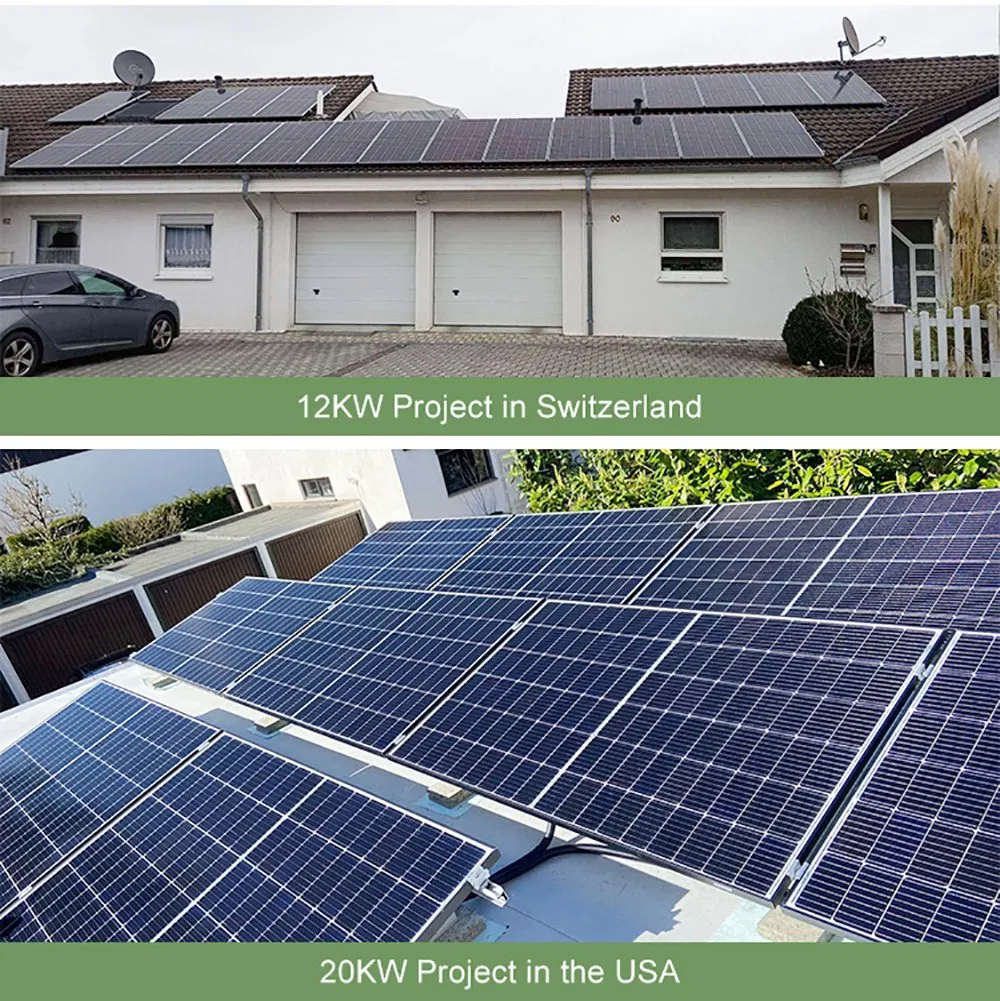

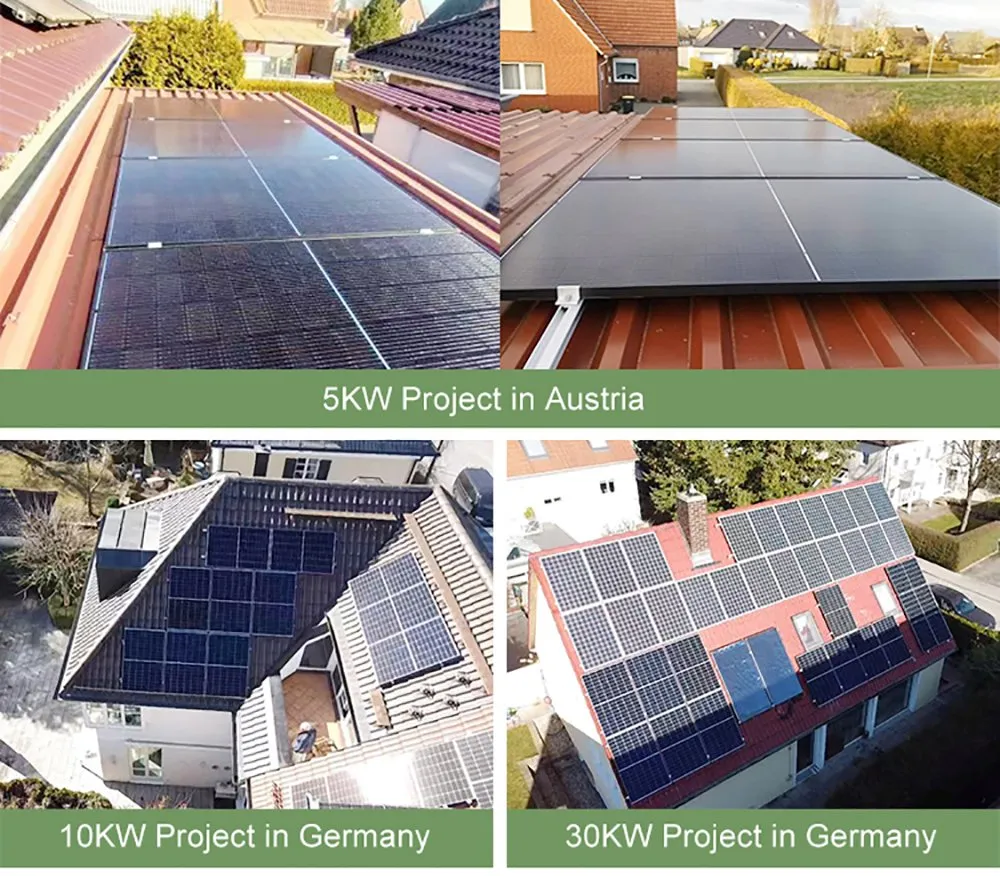

Project Cases

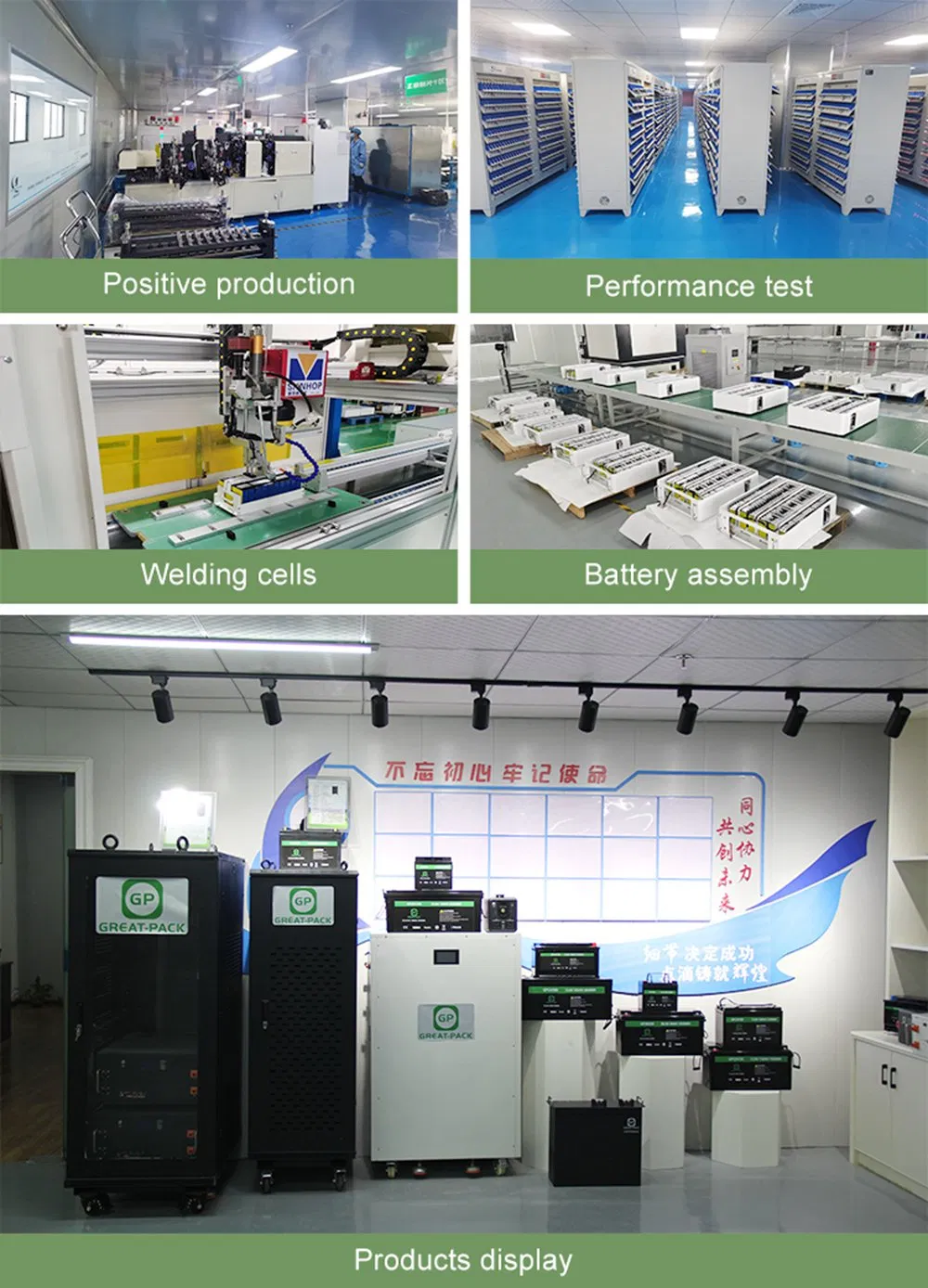

Specializing in LiFePO4, Li-polymer, and Li-ion rechargeable batteries along with solar energy solutions. We are committed to R&D, design, and innovation of lithium batteries to supply Green & Clean energy for modern life.

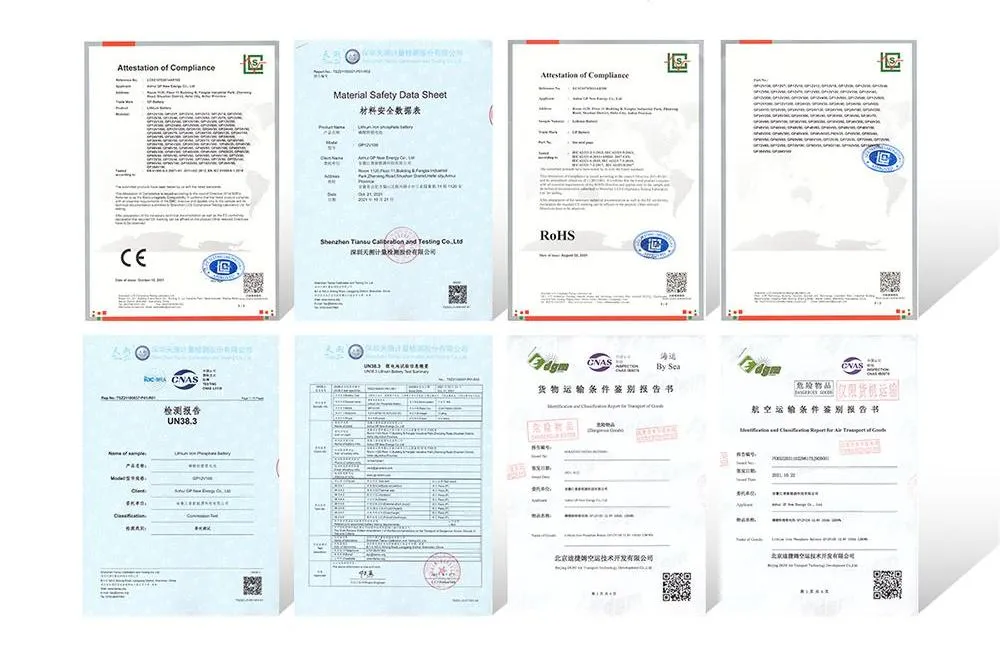

With over 8 years of experience in the lithium battery field, we provide One Stop Power Solutions to help save time and capital through advanced technologies and excellent service. Our products have passed CE, UN38.3, RoHS, and MSDS certifications, ensuring high-quality standards for global clients.
