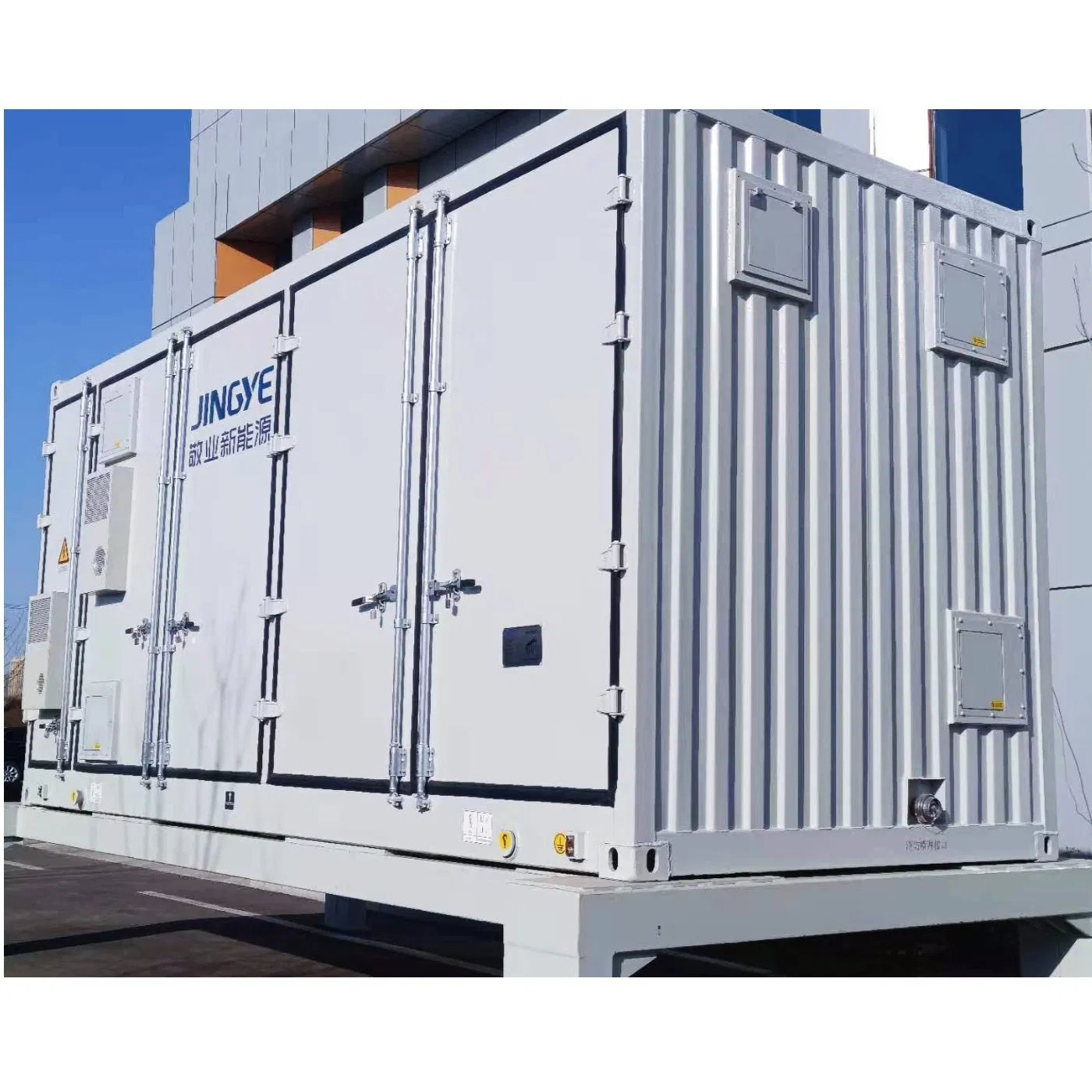

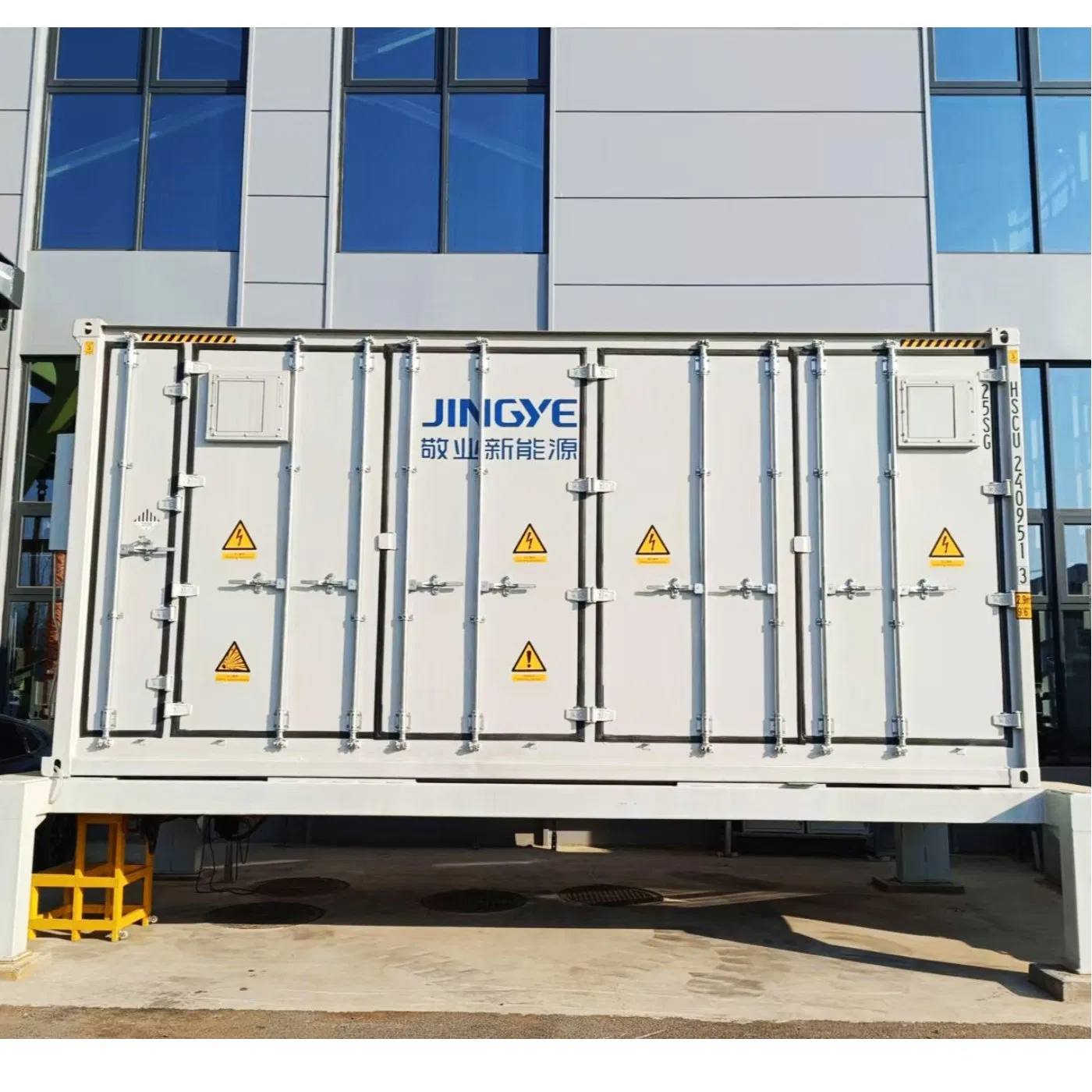

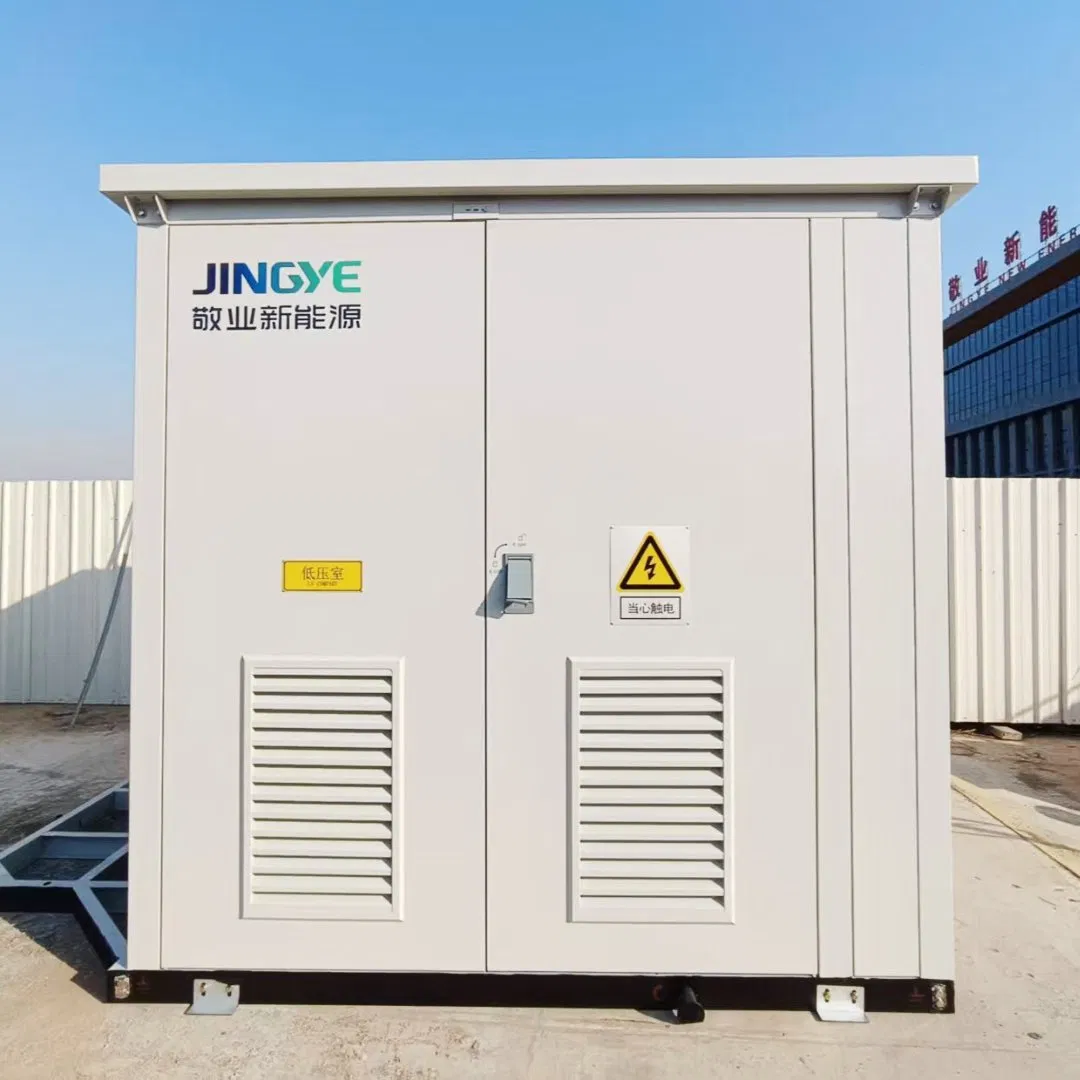

5mwh Integrated Containerized Lithium Battery Storage Solution

1 / 5

5mwh Integrated Containerized Lithium Battery Storage Solution

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Model NO.5.015MWh

Nominal Voltage1331.2V

Warranty3 Years

Nominal Capacity5015kWh

Cycle Life10 Years

Rated Power5MWh

IP RatingIP54

SpecificationLiquid Cooling

Product Description

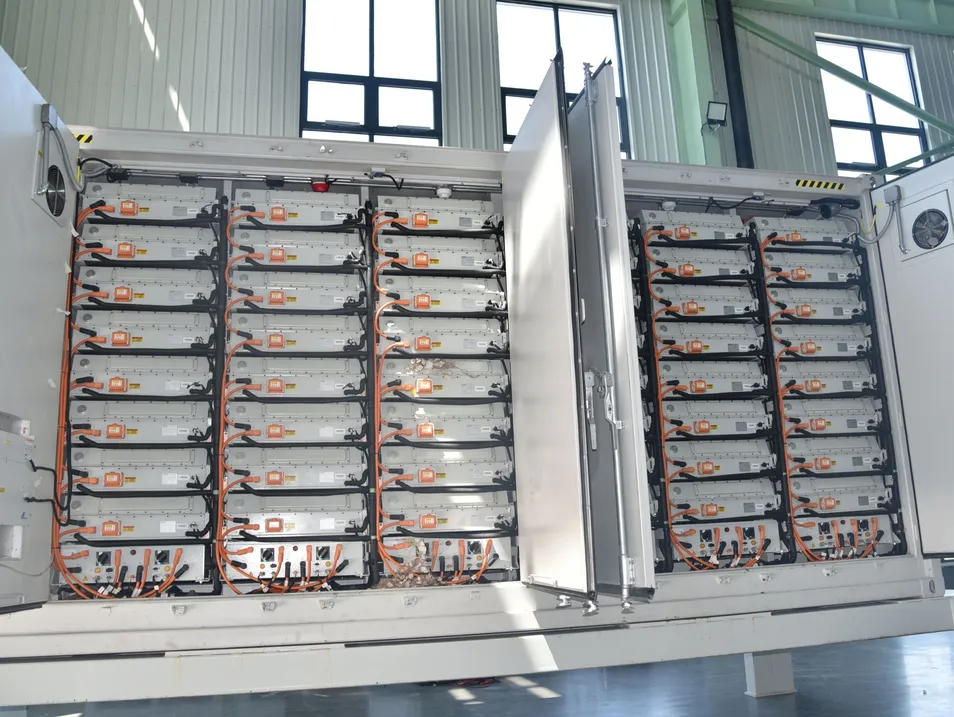

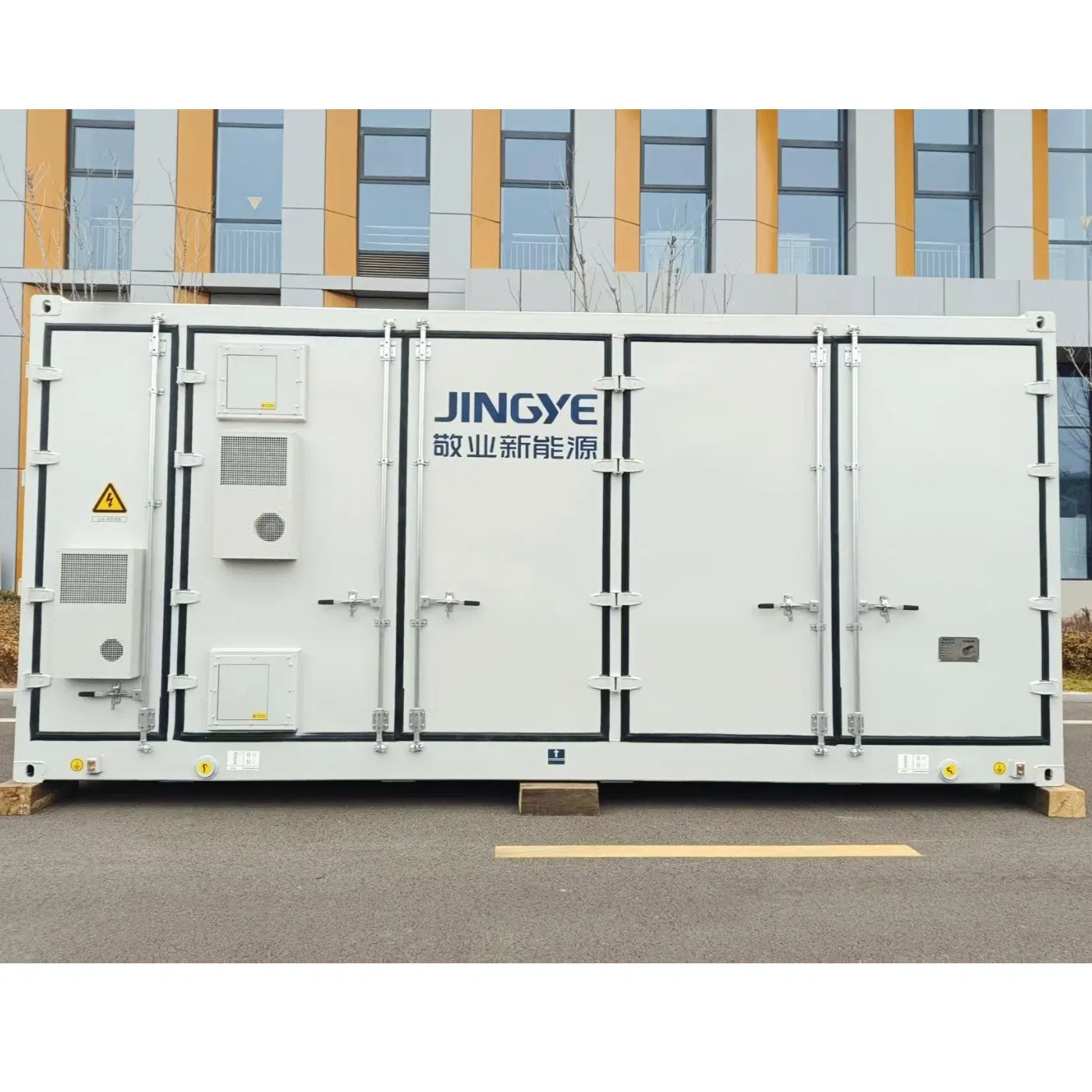

Energy Storage Container: The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

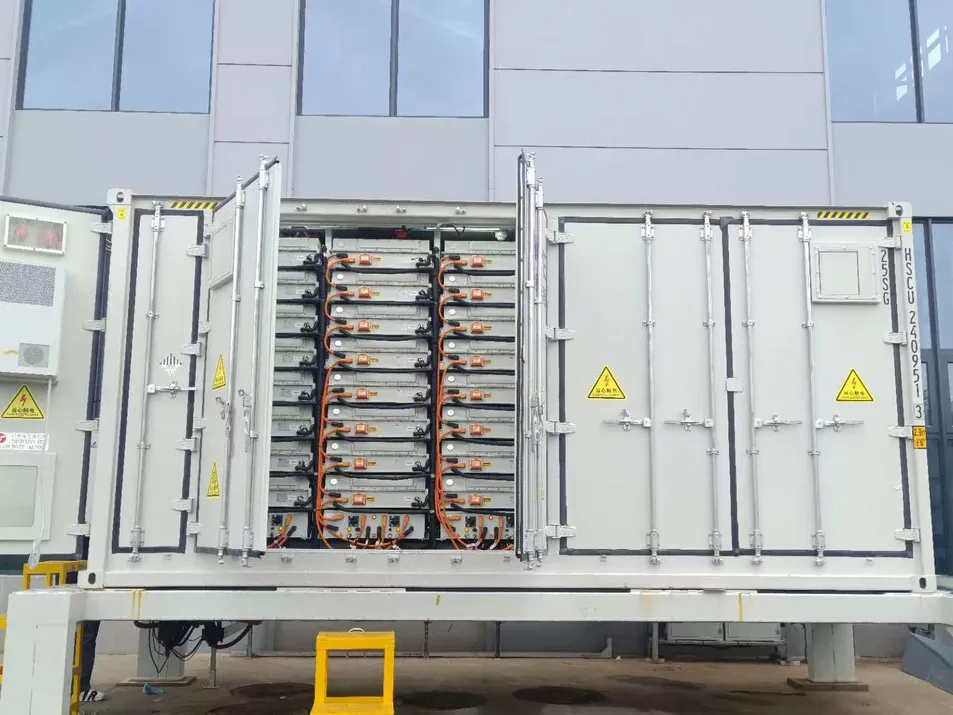

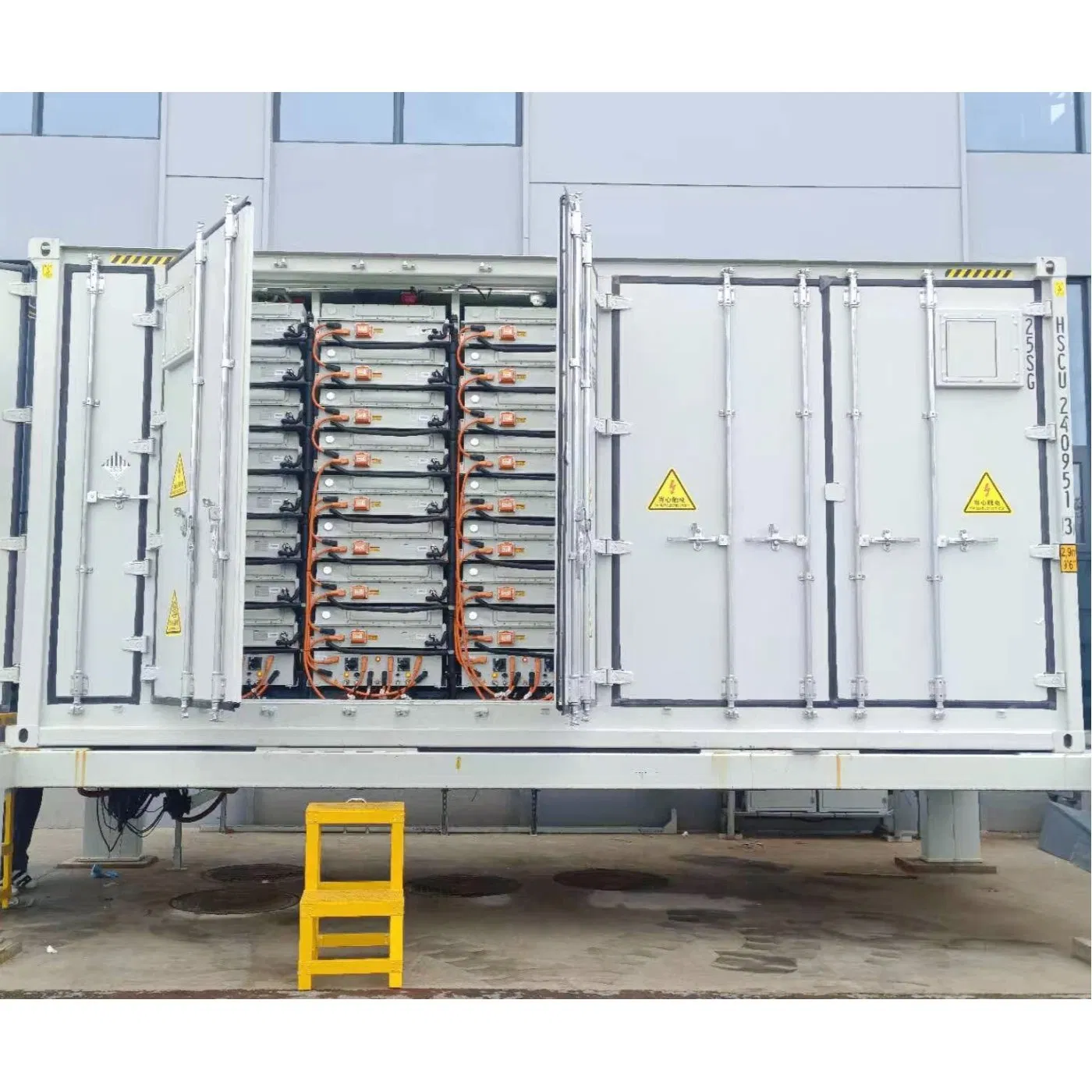

The system utilizes simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). Arranged in three compartments, it ensures safety control while being suitable for various transportation conditions and site designs.

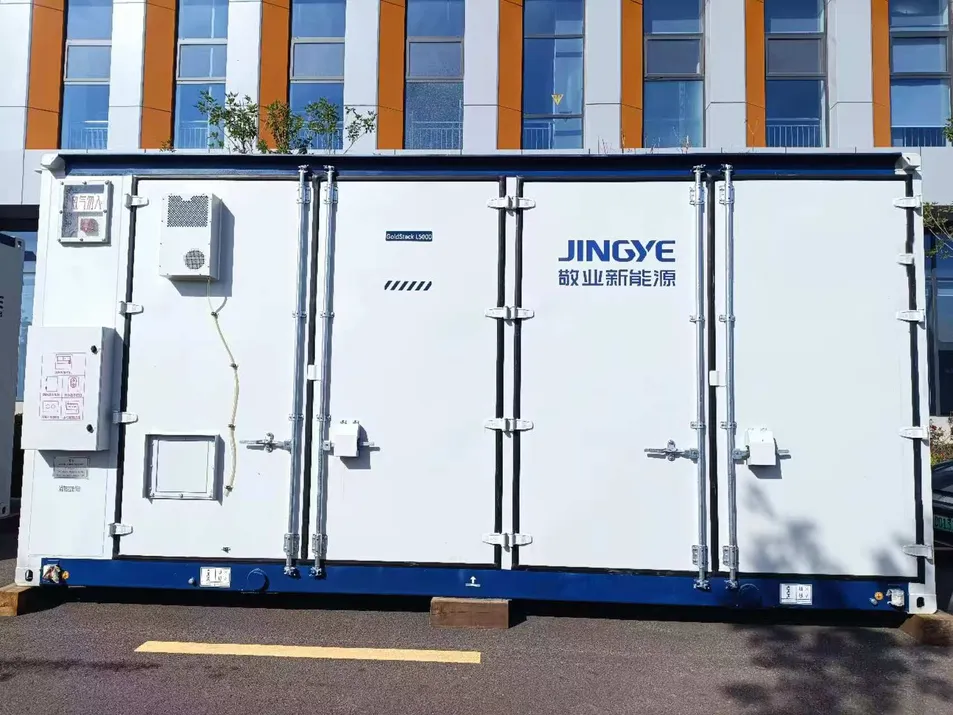

Integrated Containerized Storage Solution

Product Features

🔋

Battery Technology: Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.

⚙️

Battery Management: Equipped with advanced intelligent battery management products to ensure product safety.

🌡️

Thermal Management: Achieves high-precision intelligent operation environment control through industrial-grade air conditioning systems, ensuring a temperature difference of 3℃ inside the PACK and 5℃ in the cabinet.

🛡️

Safety Protection: Optional fire protection system using perfluorohexane or aerosol.

🚨

Automatic Alarm: Configured with a three-level automatic alarm fire extinguishing system for PACK, cluster, and compartment.

📹

Monitoring System: Installed with temperature and humidity, smoke, video monitoring, and access state monitoring equipment.

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V -1497.6VDC
5	Rated Charging/Discharge Power	≤ 2.5MW
6	Auxiliary Power Supply	400VAC±5% 50Hz/ 220VAC
7	Working Temp (Charging)	0℃ < T ≤ 60℃
8	Working Temp (Discharging)	-30℃ < T ≤ 60℃
9	Altitude	≤ 4000m
10	Dimensions	L6058 x W2438 x H2896mm
11	Weight	About 43t
12	Refrigeration method	Liquid Cooling
13	Communication	Ethernet, CAN, ModbusRTU

Main Products

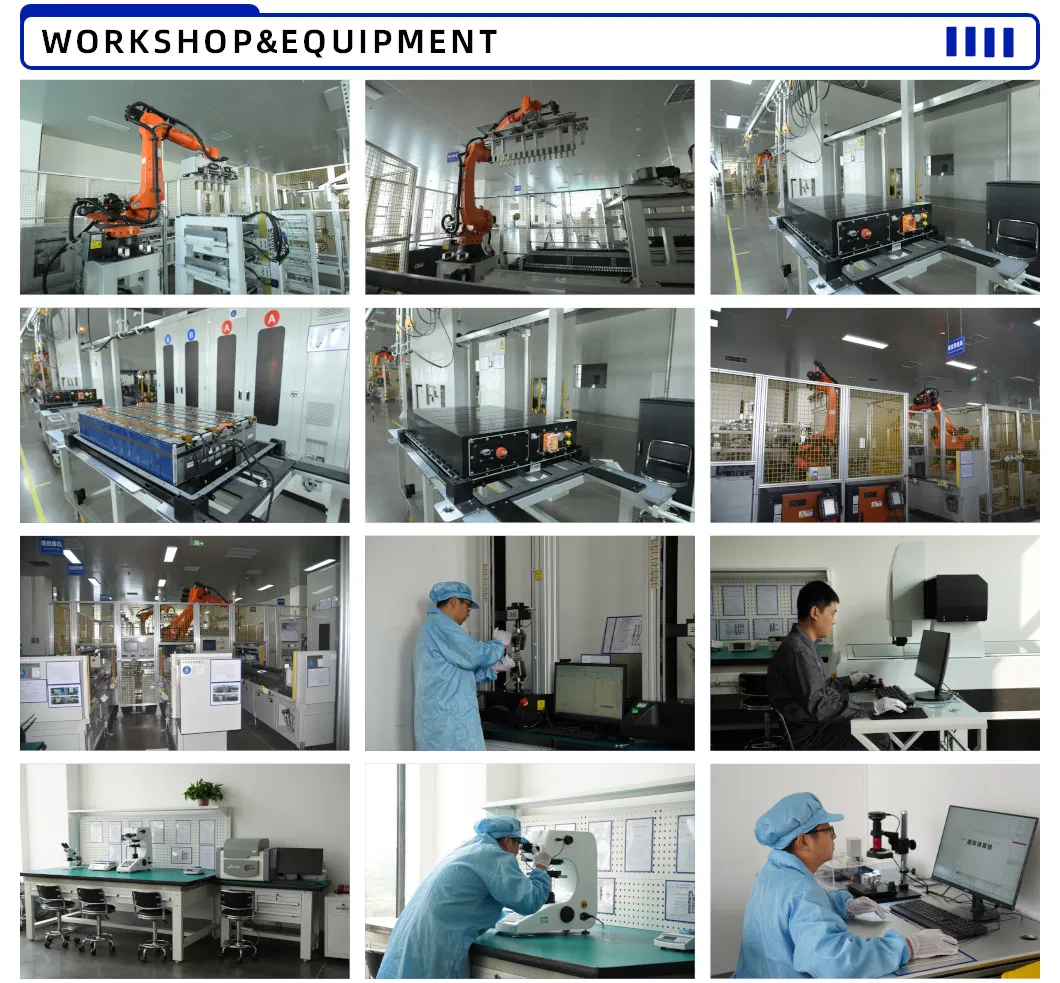

Company Profile & Workshop

The company operates advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely implemented in smart grids, renewable energy distribution, industrial and commercial storage, and green transportation.

Certifications & Exhibition

Frequently Asked Questions

What are the primary products available?

We specialize in 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and high-performance Battery Packs.

Is customization available for these systems?

Yes, we provide flexible customization services tailored to diverse process types and specific industrial requirements.

How is production and delivery timeline managed?

With a comprehensive automated production line and a team of proficient technical personnel, we ensure stable production and consistent on-time delivery.

Are you a manufacturer or a trading company?

We are a formal source factory with standardized production processes, allowing us to offer competitive pricing alongside high-quality products.

How can I obtain a detailed quotation?

You can contact our staff directly through the website interface, and we will provide a comprehensive quotation promptly.

What thermal management technology is used?

Our systems utilize advanced liquid cooling technology with industrial-grade control, maintaining a precise temperature difference of ≤3℃ inside the battery packs.
