From process design to equipment selection, tailor-made welding solutions are available.
Customized technology for precision, heavy duty, and special material welding.
Strong R&D team solving customer pain points with certified core technologies.

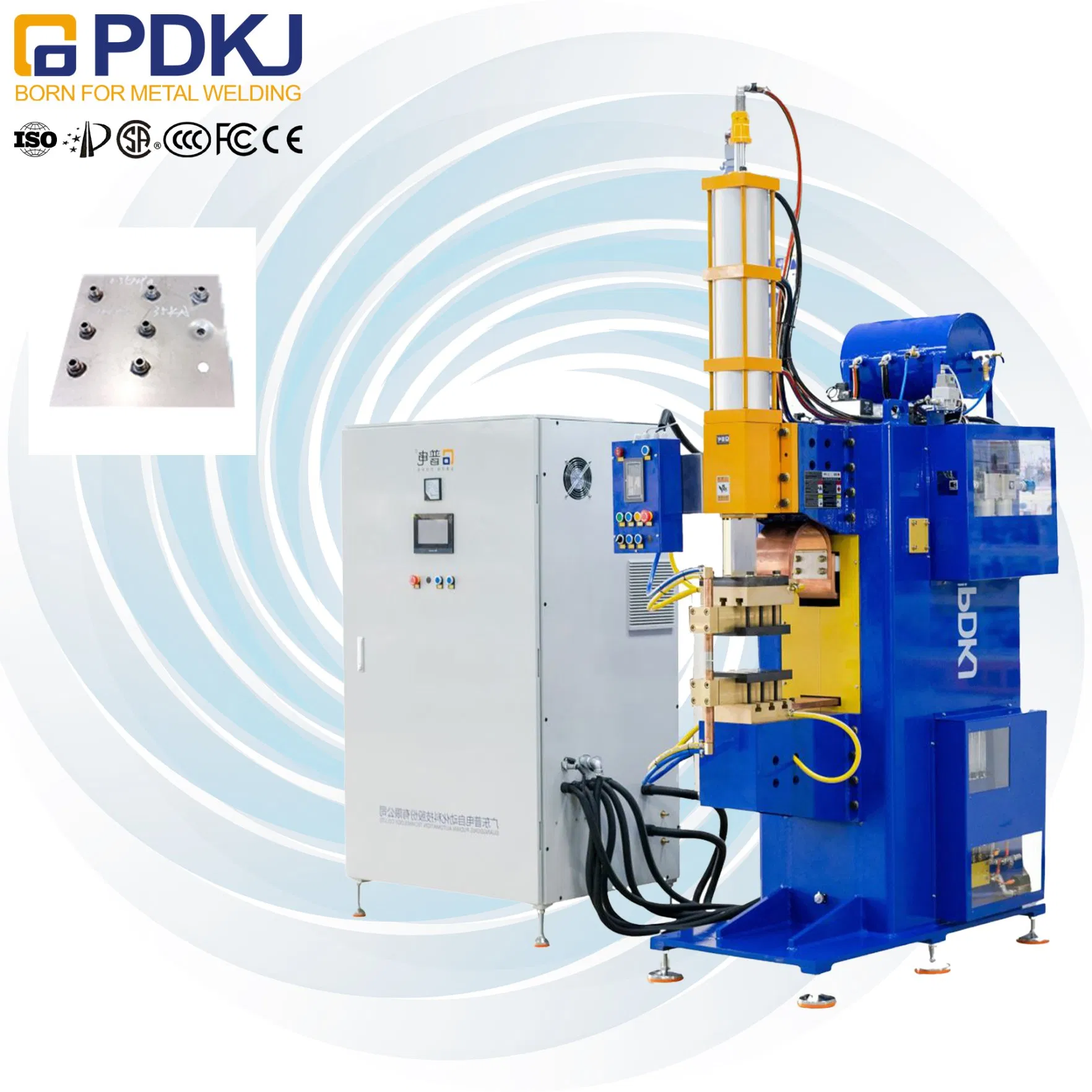

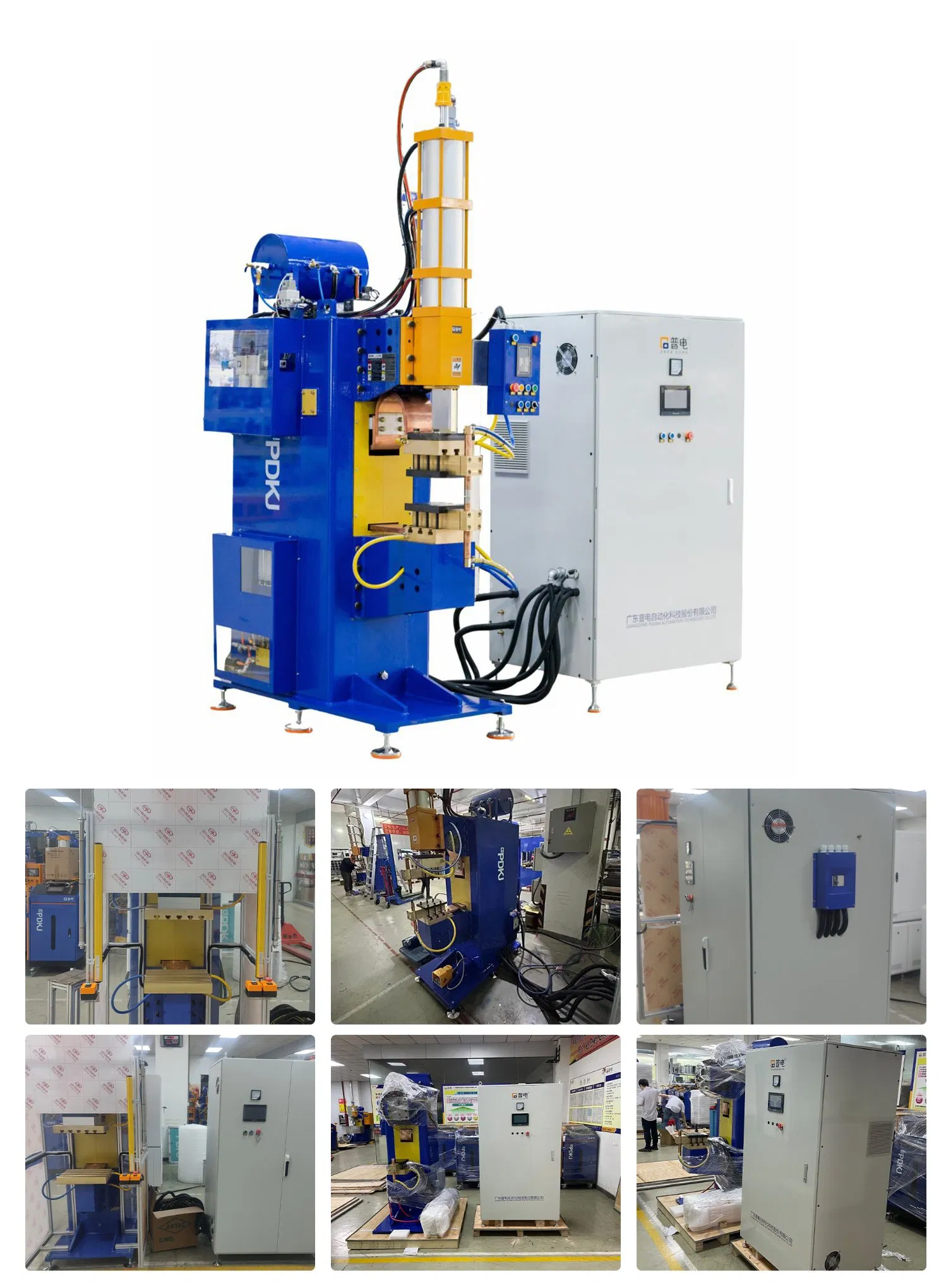

The capacitor energy storage spot welding machine utilizes advanced technology, operating by charging first and then discharging. Compared to traditional frequency machines, it features lower instantaneous power, faster charging speed, and shorter connection time. This ensures stronger welds with superior surface quality, eliminating post-weld blackening, discoloration, and deformation.
| Argument | DKR-6000 | DKR-15000 | DKR-30000 |
|---|---|---|---|
| Capacity value | 12000μF | 30000μF | 60000μF |
| Rated power | 15KVA | 60KVA | 100KVA |
| Power source | 380V/3φ/50HZ | 380V/3φ/50HZ | 380V/3φ/50HZ |
| Max. Short-Circuit Current | 60KA | 100KA | 140KA |
| Maximum pressure | 10000N | 15000N | 35000N |
| Deep throat | 500mm | 500mm | 500mm |

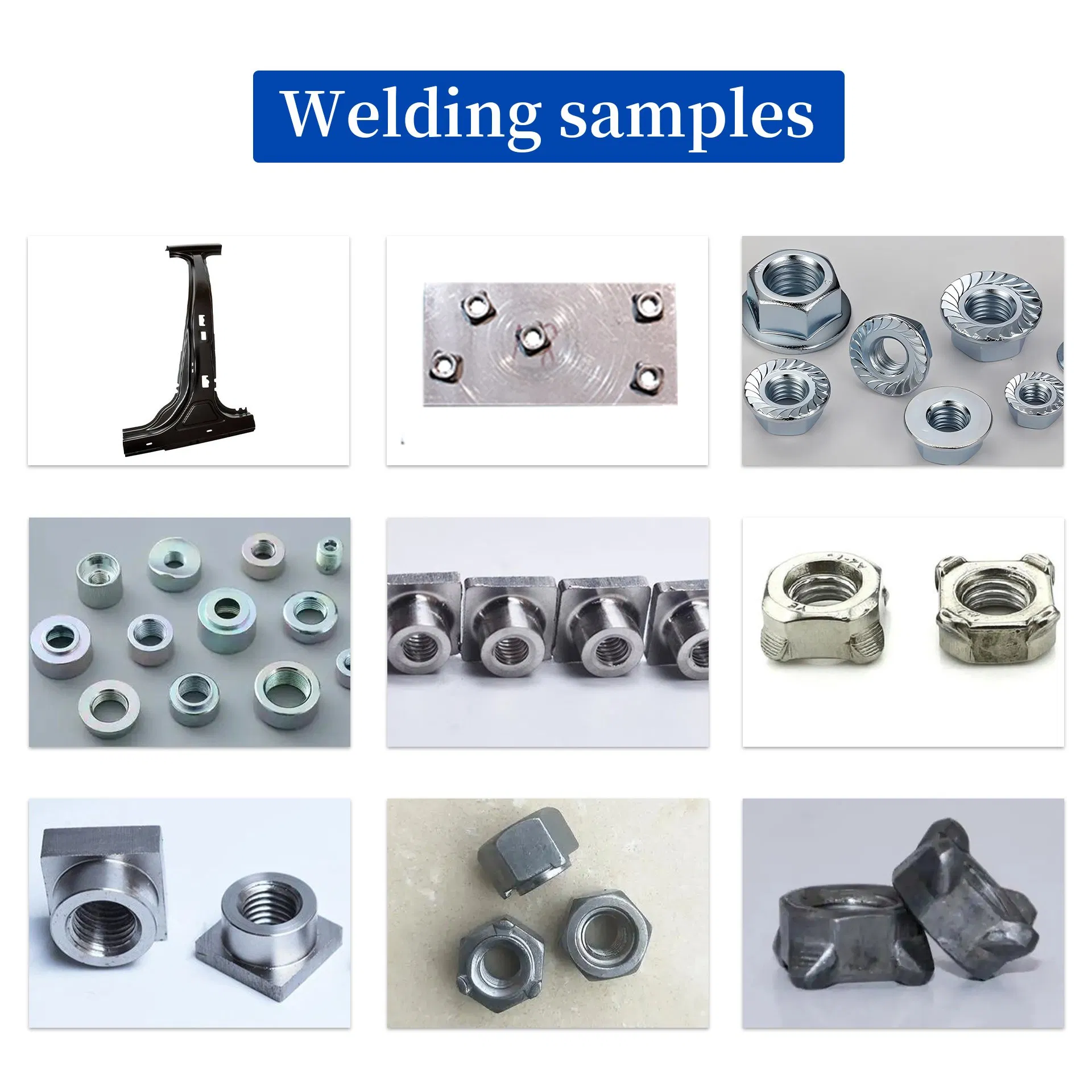

Mainly suitable for nuts, bolts, stainless steel, carbon steel, and other conductive metal materials. Widely used in aerospace, automotive manufacturing, new energy, hardware, home appliances, and electrical manufacturing.
With 18 years of experience, our professional R&D team has provided welding solutions for over 9000 users globally. We provide free welding process consultation and sampling tracking services for the entire machine life cycle.
