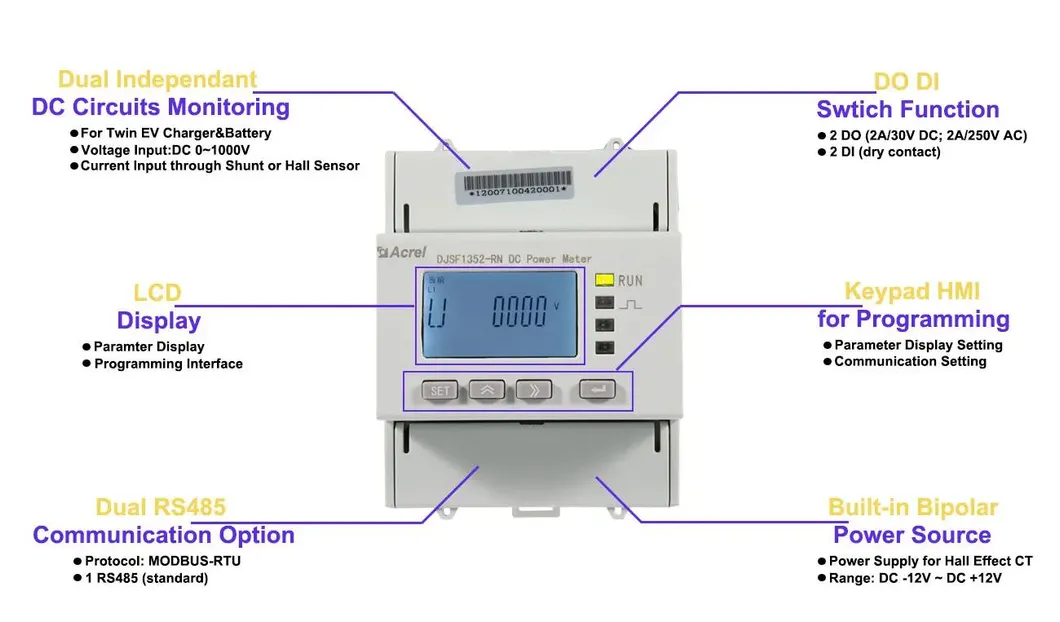

Ideal for twin EV chargers and battery storage systems. Supports voltage input up to 1000V and various current inputs.

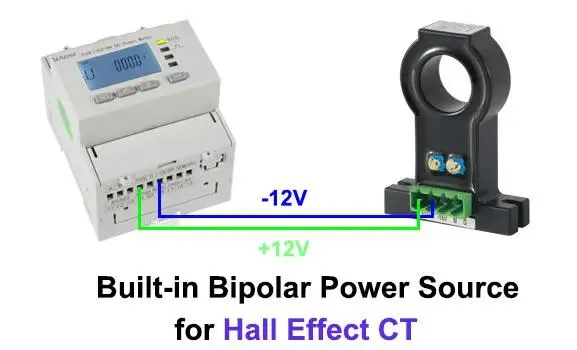

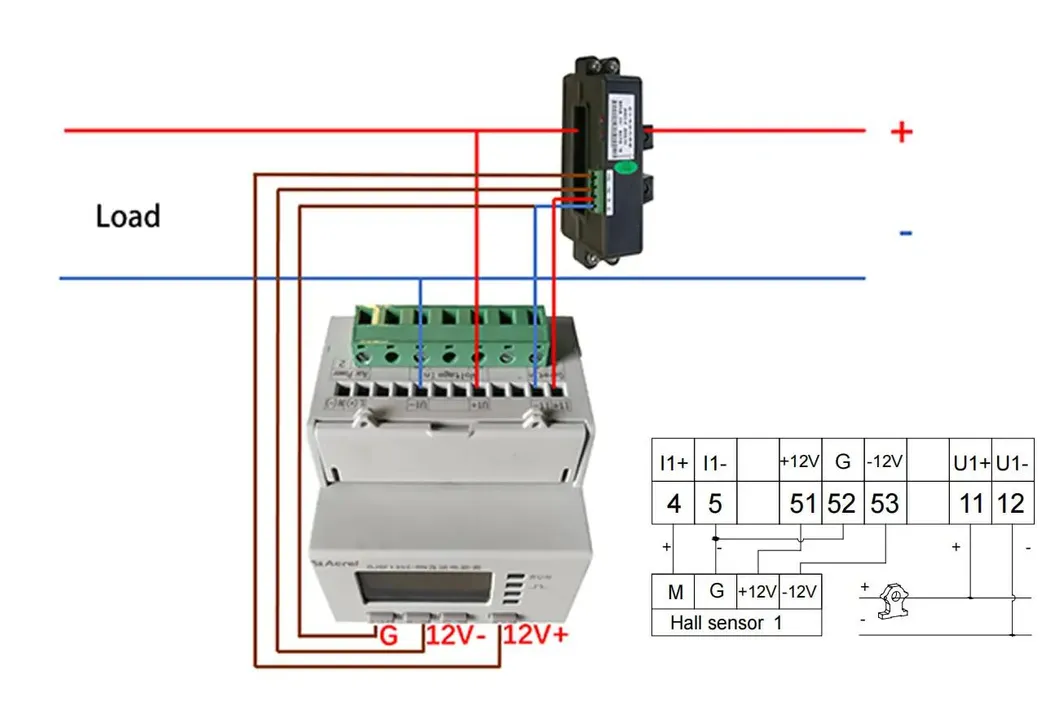

Provides power supply for Hall Effect CTs with a range of DC -12V to +12V.

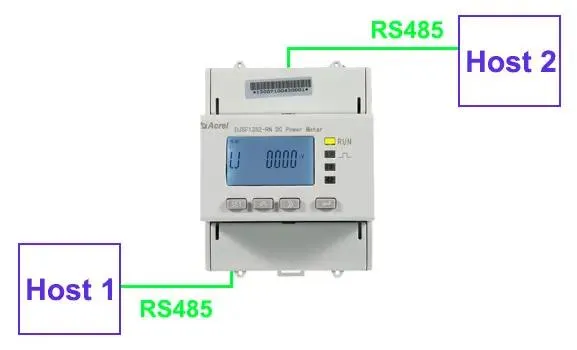

Standard RS485 interface using Modbus-RTU protocol for seamless integration into control systems.
| Parameter | Index | |
|---|---|---|
| Input | Voltage Range | DC 0-1000V |
| Current Input | Shunt: 0-75mV; Hall: 0-20mA, 4-20mA, 0-5V, 0-10V | |
| Accuracy Class | Class 1 | |

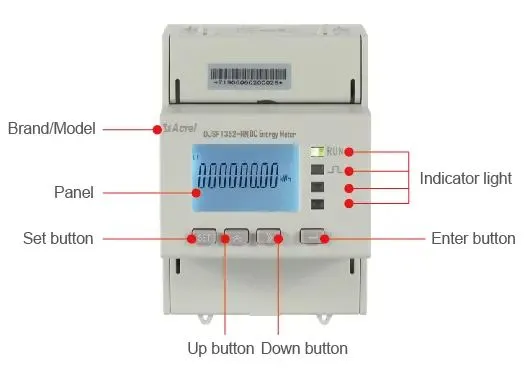

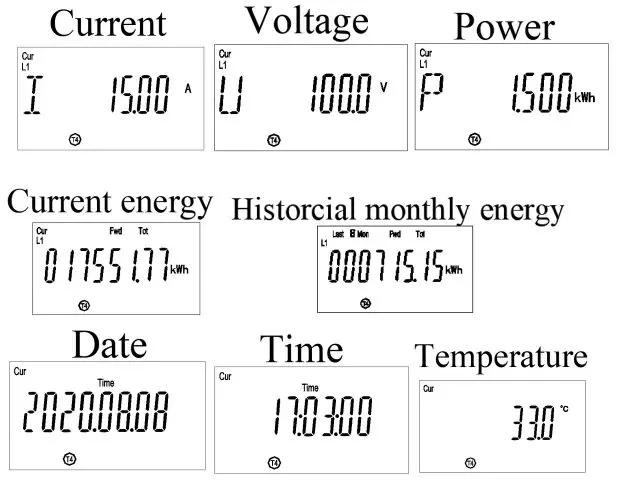

| Function | Display | 8-bit segment LCD screen |
| Communication | RS485, Infrared (Modbus-RTU, DL/T 645) | |
| Power Supply | AC/DC 85-265V or DC24V/48V(±10%) | |
| Environment | Operating: -25°C ~ +55°C; Humidity: ≤93%RH | |

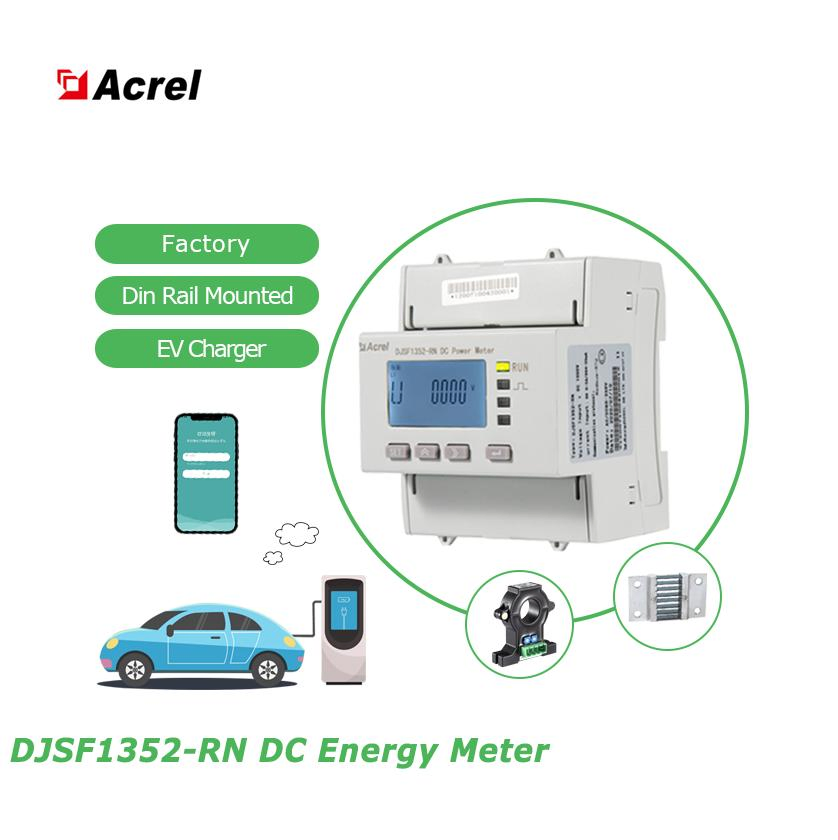

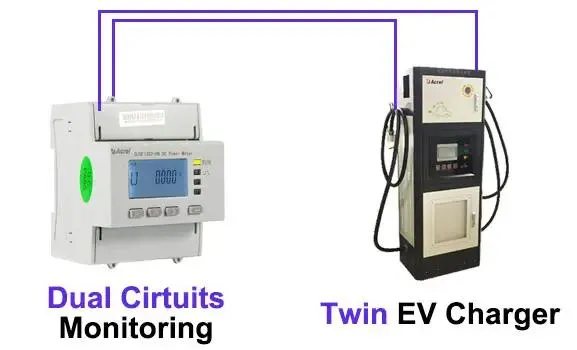

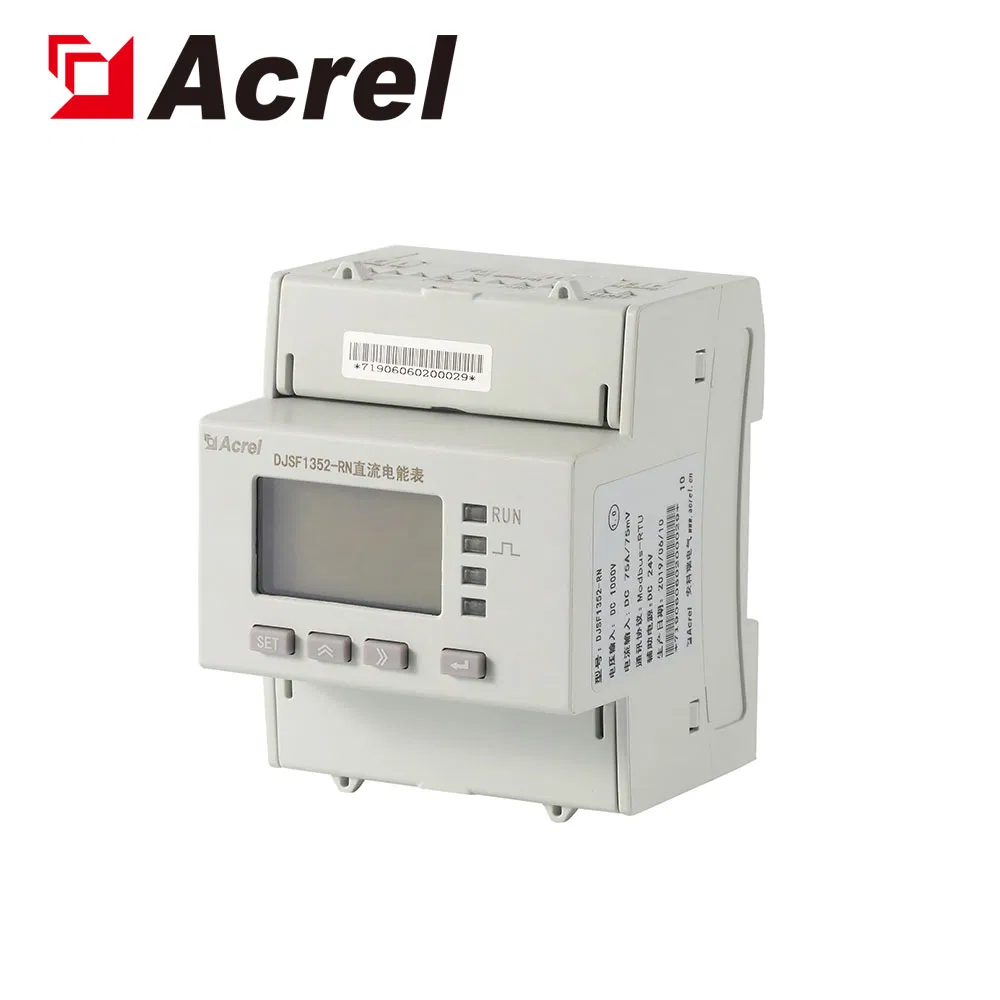

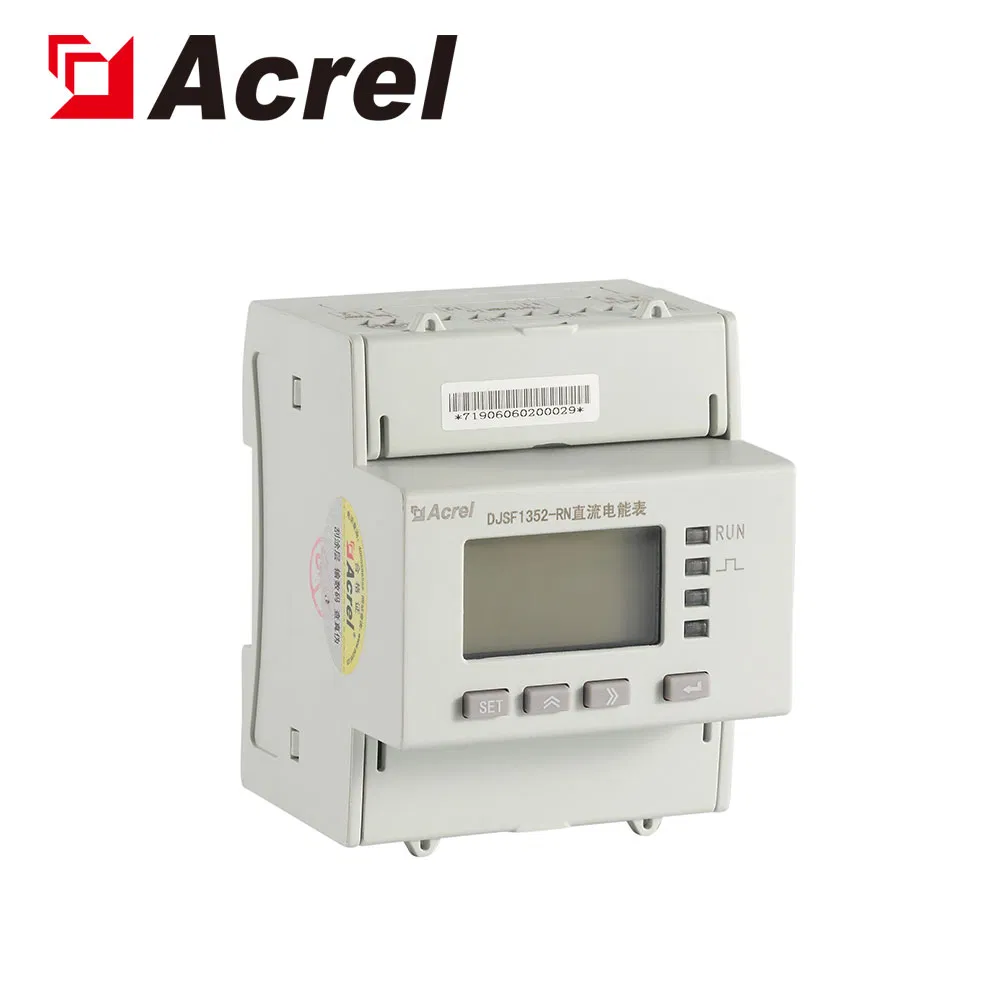

Yes, the DJSF1352-RN is specifically designed with dual independent DC input channels, making it perfect for twin EV chargers or monitoring two separate battery strings.
The meter supports a wide DC voltage input range from 0V up to 1000V DC.

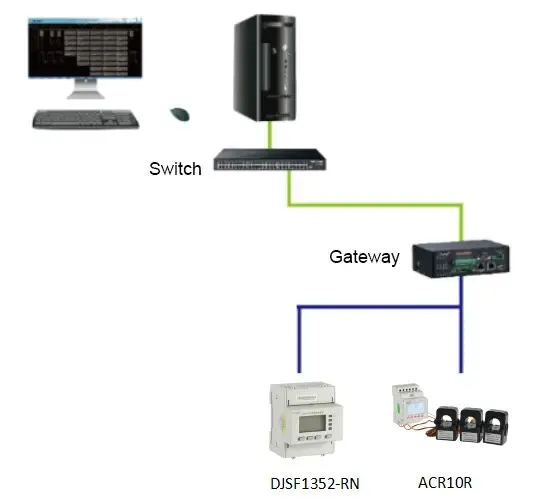

It supports both the Modbus-RTU protocol and the DL/T 645-2007 protocol, allowing for easy integration with industrial PCs and PLC systems.

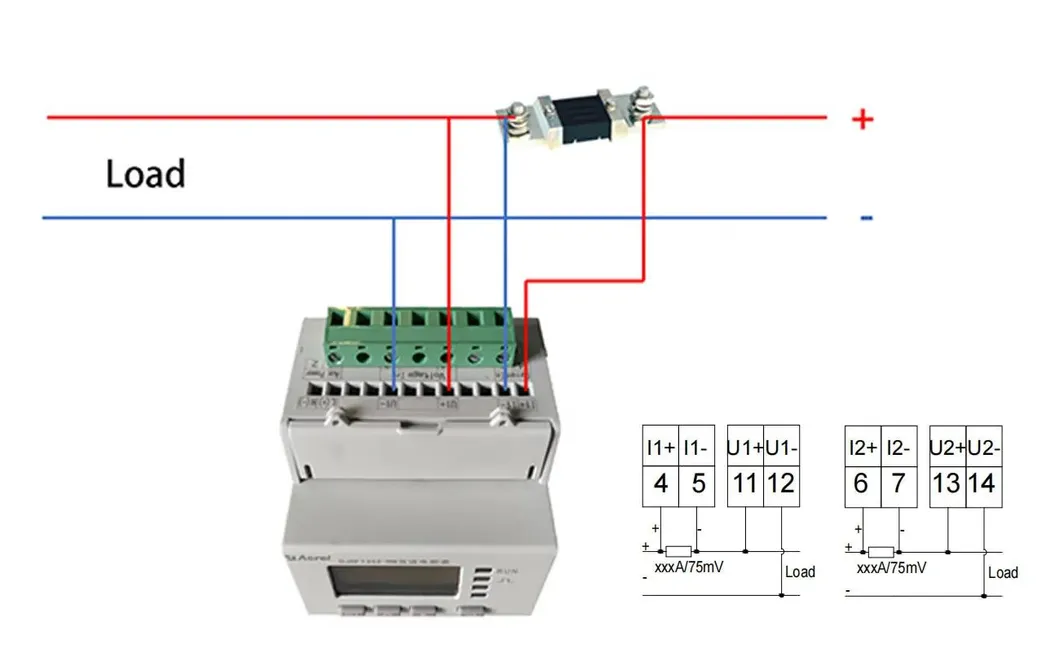

The meter is highly flexible; it can work with a 75mV Shunt or various Hall Effect sensors (0-5V, 0-10V, 4-20mA).
Absolutely. It is widely used in solar PV systems, EV charging infrastructure, and telecommunications base stations for precise DC energy metering.

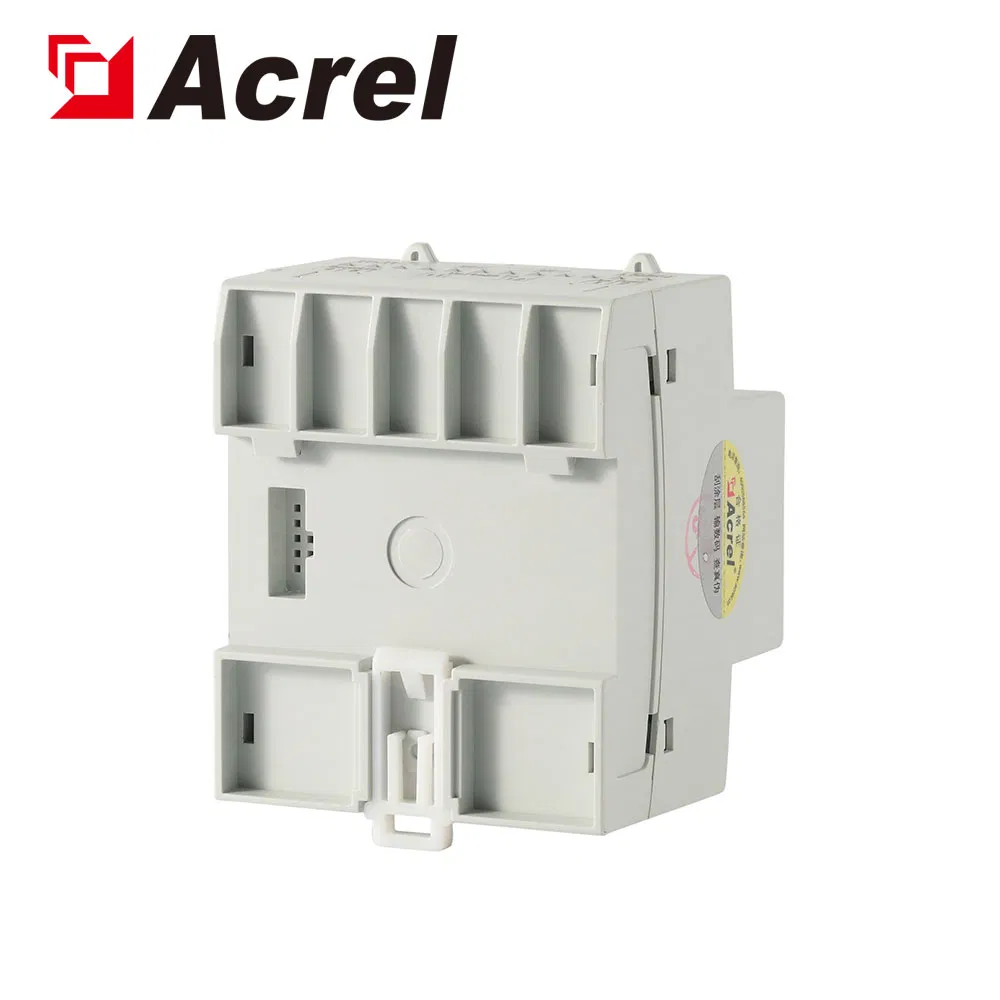

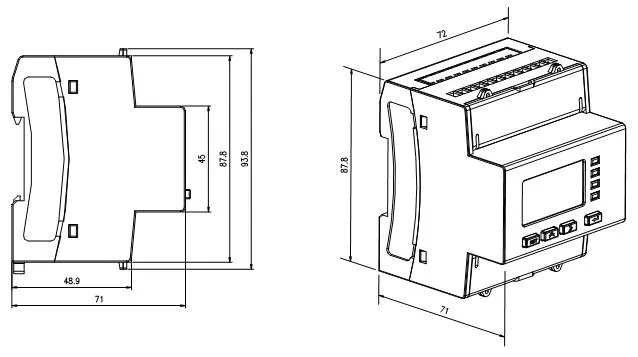

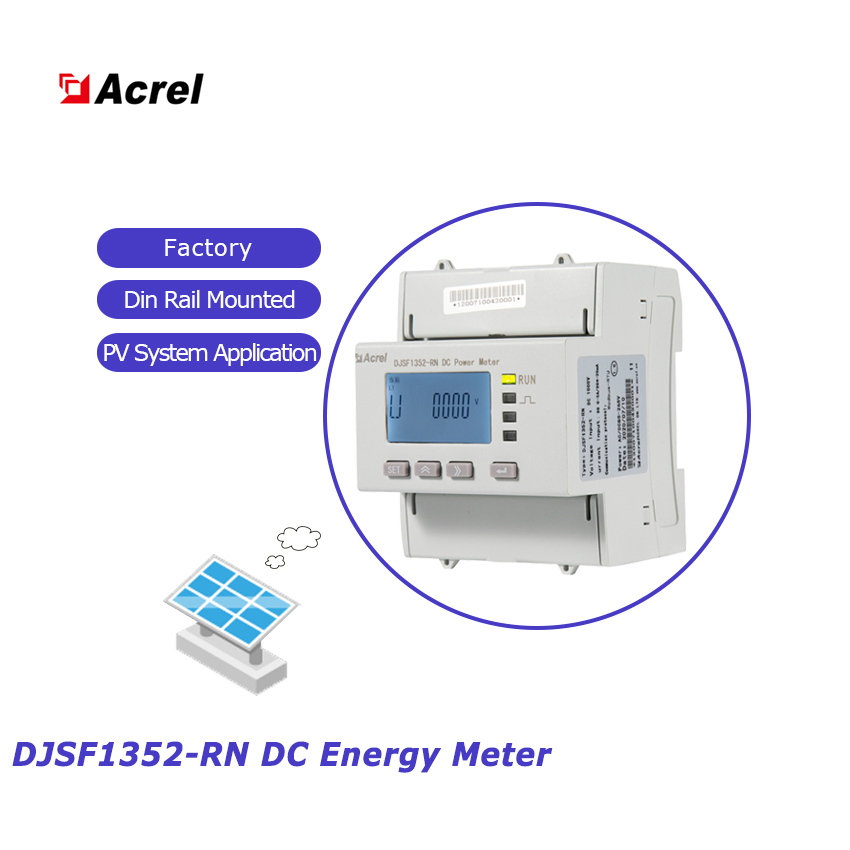

It is designed for standard 35mm DIN rail installation, ensuring a quick and工整 setup in power distribution cabinets.
