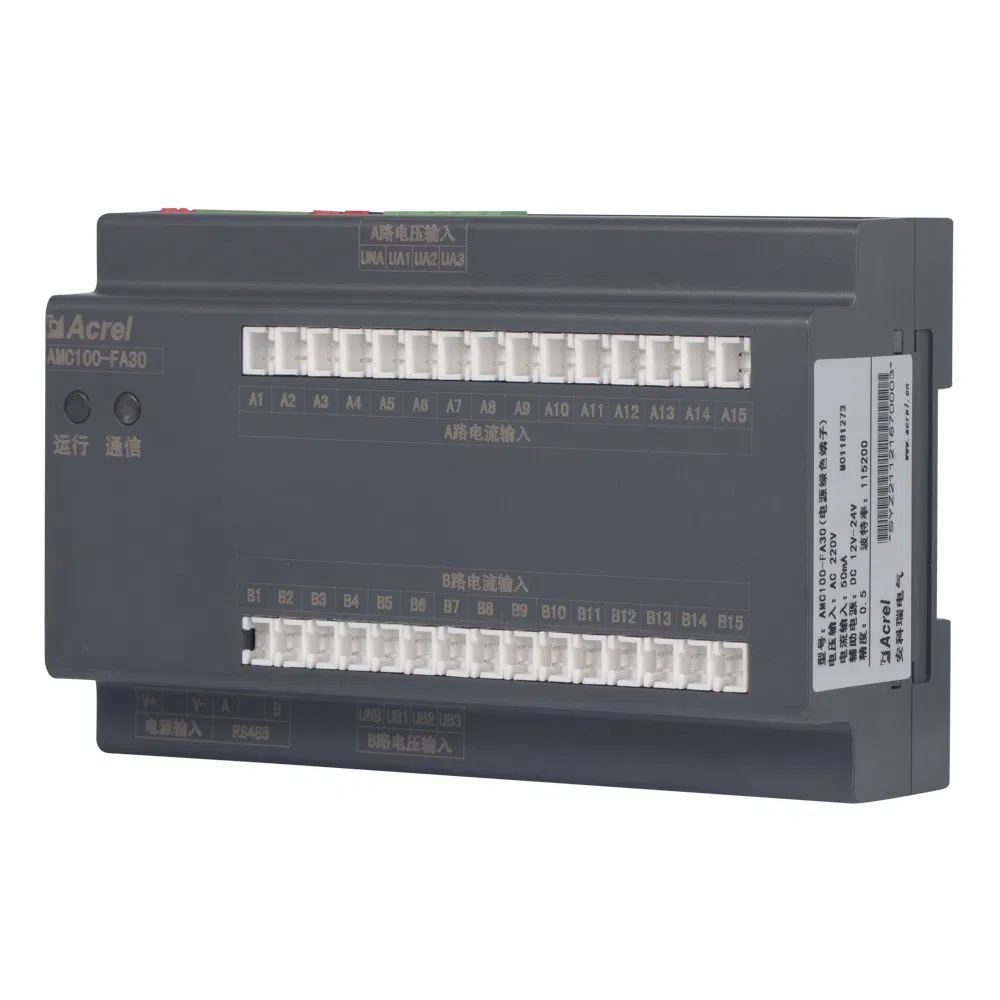

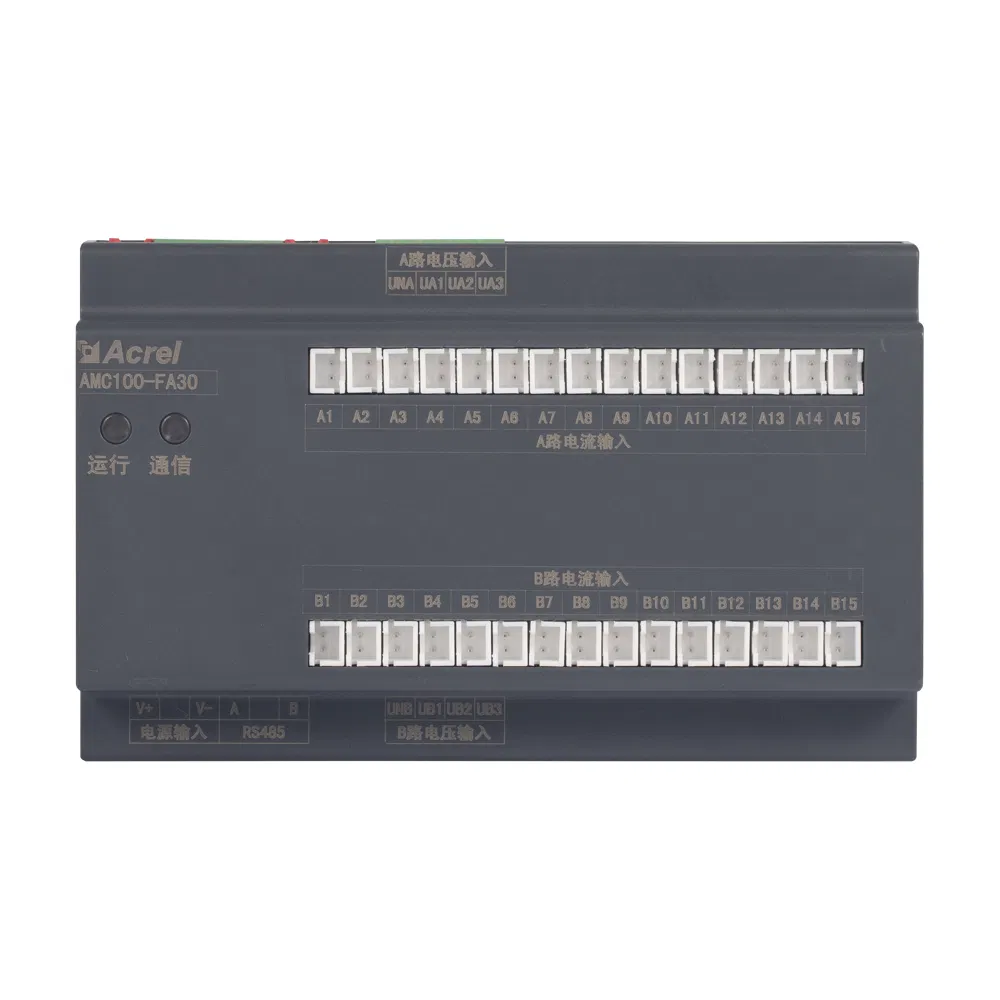

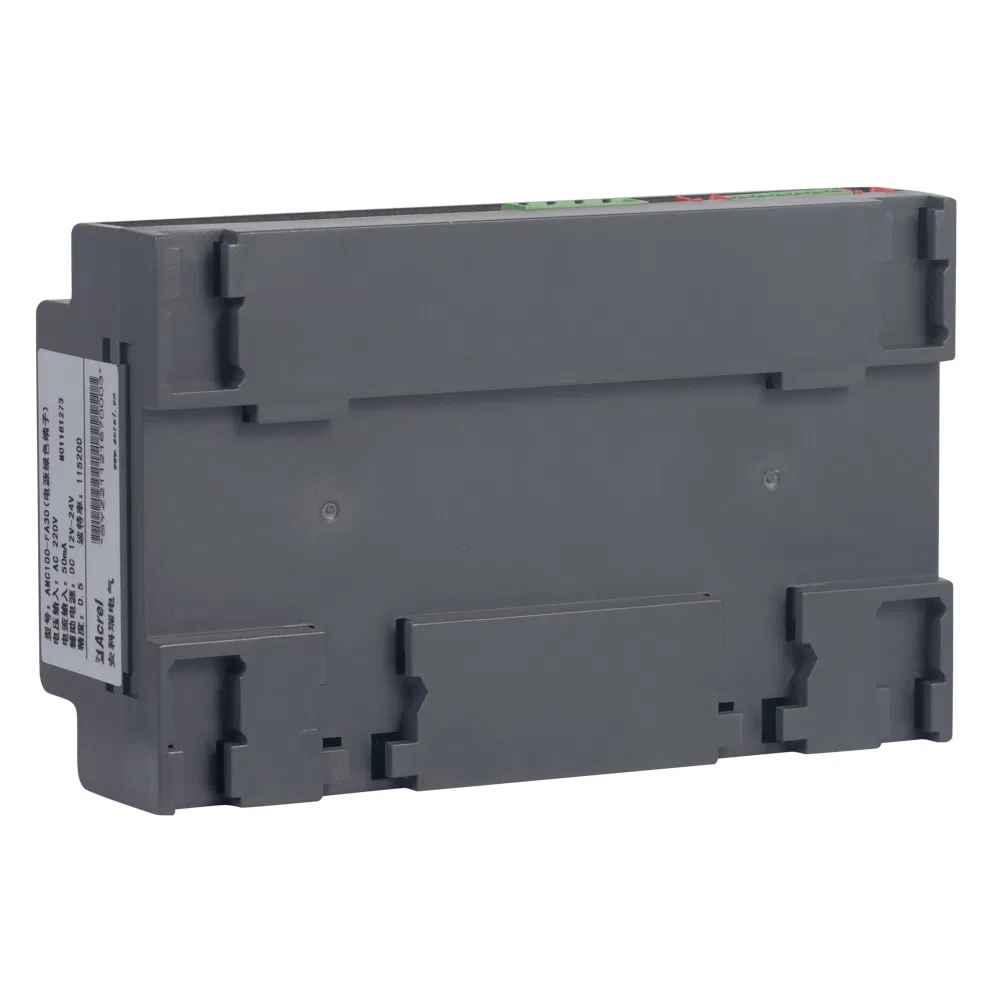

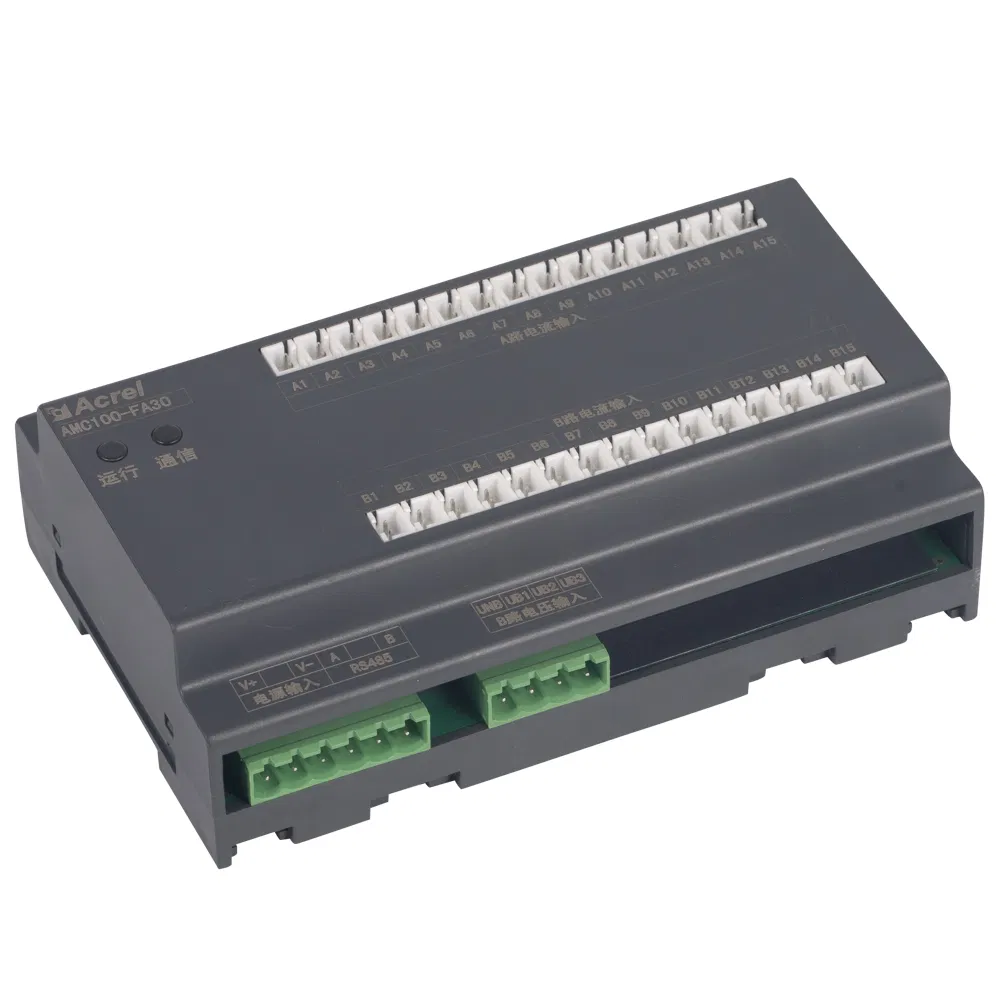

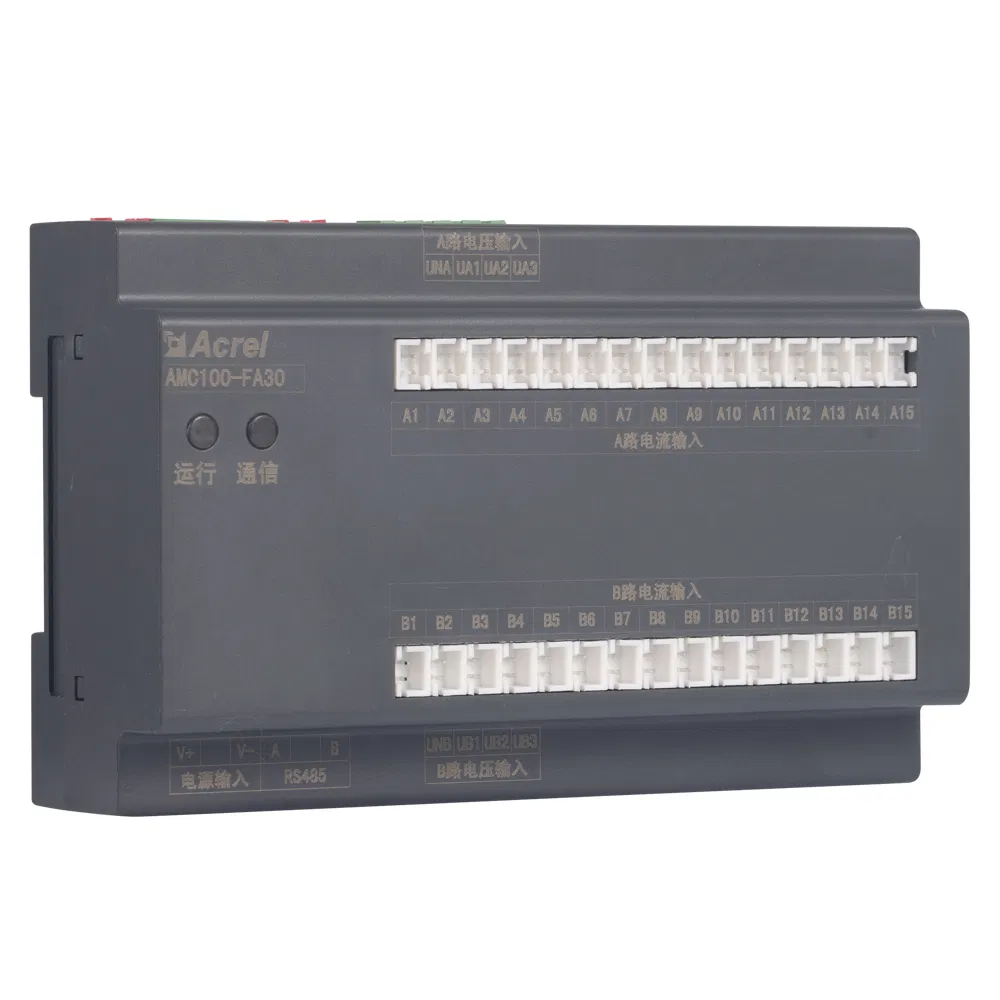

AMC100 AC Precision Power Distribution Monitoring Device
With the rapid development of data centers, energy consumption has become a critical issue. Efficient and reliable power distribution is essential for improving power efficiency and reducing equipment energy consumption. AMC100 series is designed specifically for power management of data center servers, offering high-precision monitoring for multi-loop requirements.
The device is exquisitely designed to monitor electrical parameters, switch states, and lightning protection devices in real-time. It supports alarm threshold settings for separate channels, integrating sound and light alarms to ensure operational safety within a compact monitoring circuit integration.
| Measurement parameters | Voltage, current, power, energy, switching status |
| Bus voltage rated | 48VDC, 240VDC, 336VDC |
| Current outgoing loop | 5V (Hall sensor, external supply required ±12V) |
| Measurement accuracy | Voltage/current 0.5 level, power/energy level 1 |
| Communication | RS485/Modbus-RTU |
| Working temperature | -15°C ~ 55°C |
| Protection level | IP20 |
| Security Insulation | Insulation resistance not less than 100MΩ |
