HYBO Energy
HYBO Energy

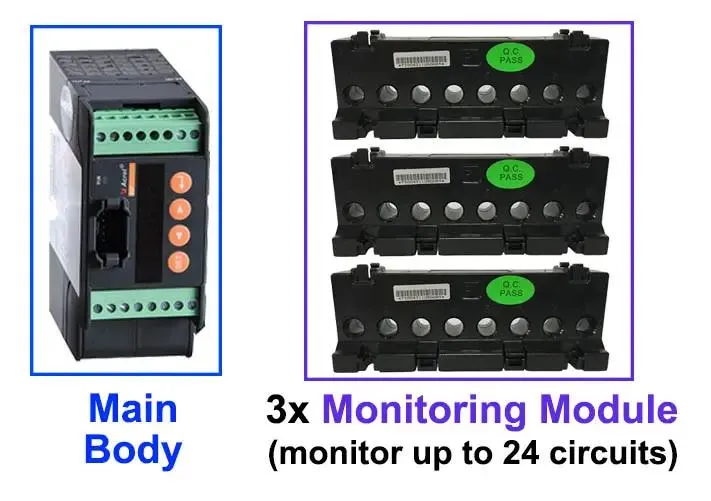

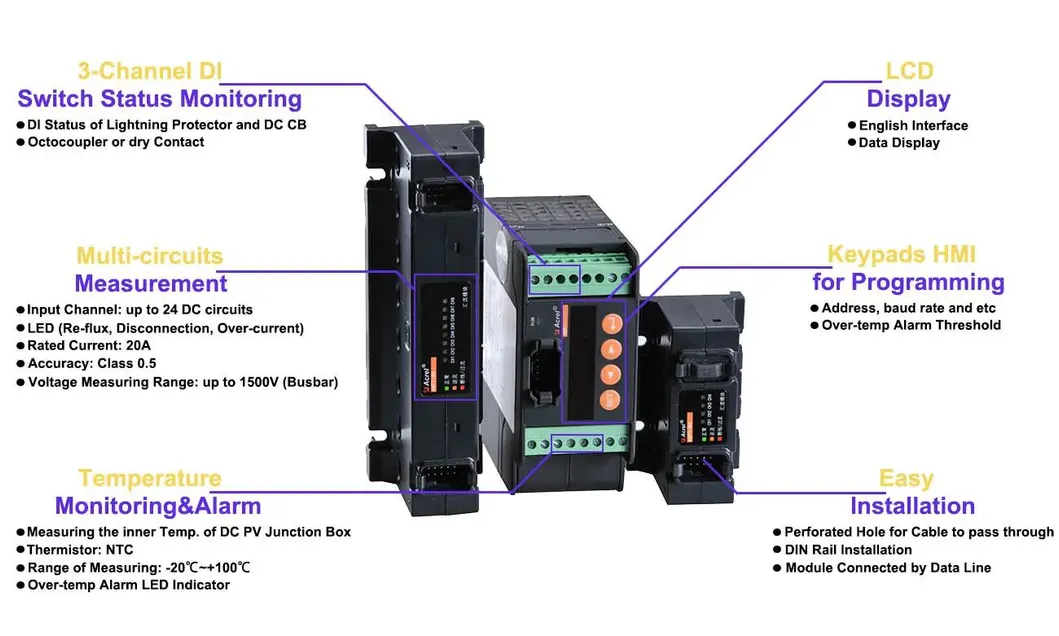

Multi-circuits Measurement
Up to 24 DC Circuits, 0.5 Class Accuracy

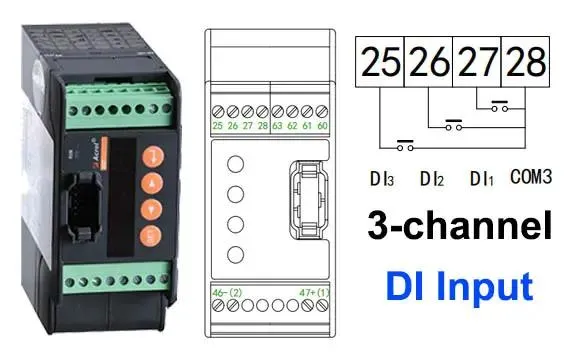

Switch Status Monitoring
3-Channel DI for Lightning Protector and DC CB

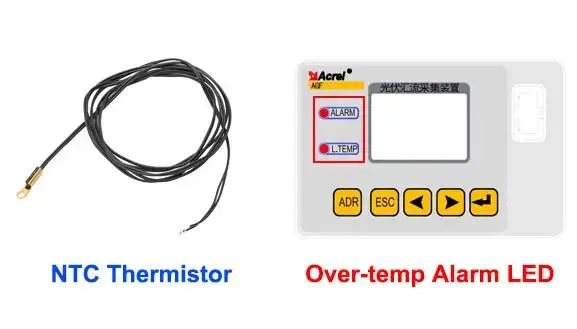

Temperature Monitoring
Real-time Over-temperature Alarm (-20ºC~+100ºC)
| Item | AGF-M4T | AGF-M8T | AGF-M12T | AGF-M16T | AGF-M20T | AGF-M24T |
|---|---|---|---|---|---|---|
| Input channels | 4 | 8 | 12 | 16 | 20 | 24 |
| Rated current | DC 0~20A | |||||
| Accuracy | 0.5 class | |||||
| Communication | RS485/Modbus-RTU, 4800-38400bps | |||||
| Switch Input | 3-way input (optocoupler or dry contact mode) | |||||

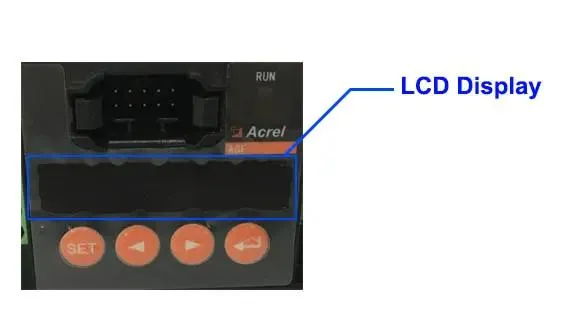

| Working Temp | -35~+65ºC (Display module: -20~+70ºC) | |||||
| Altitude | ≤3000m | |||||

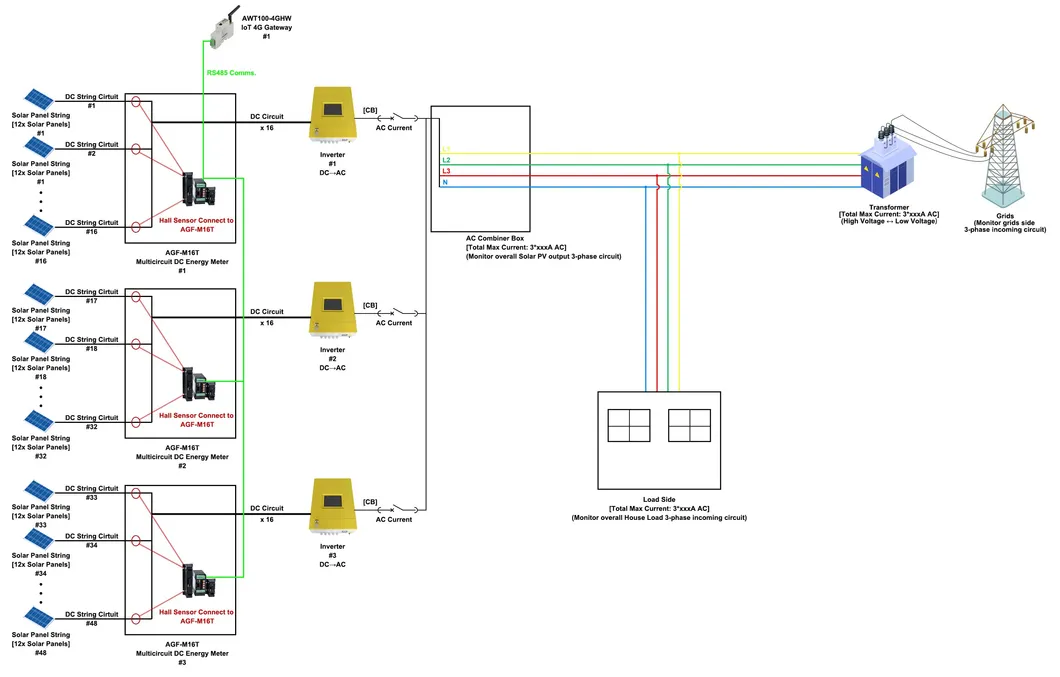

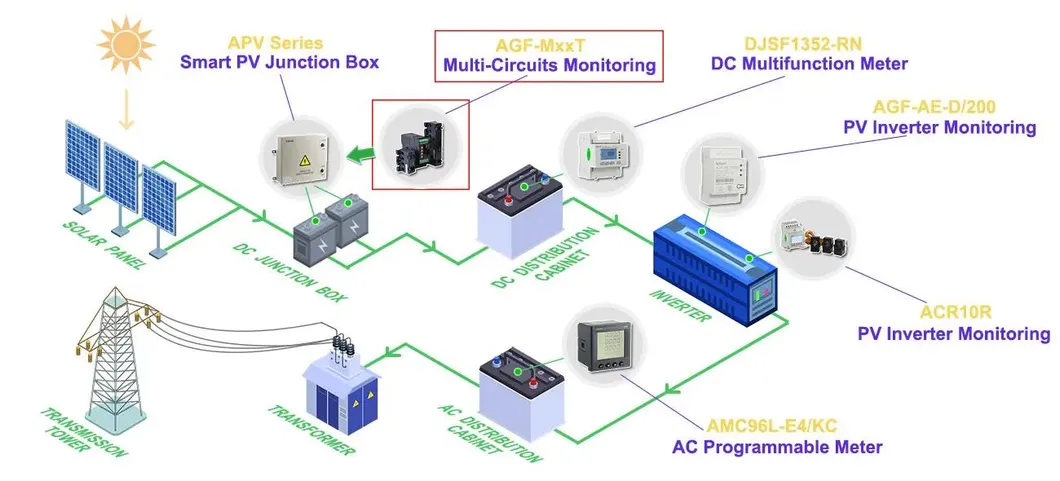

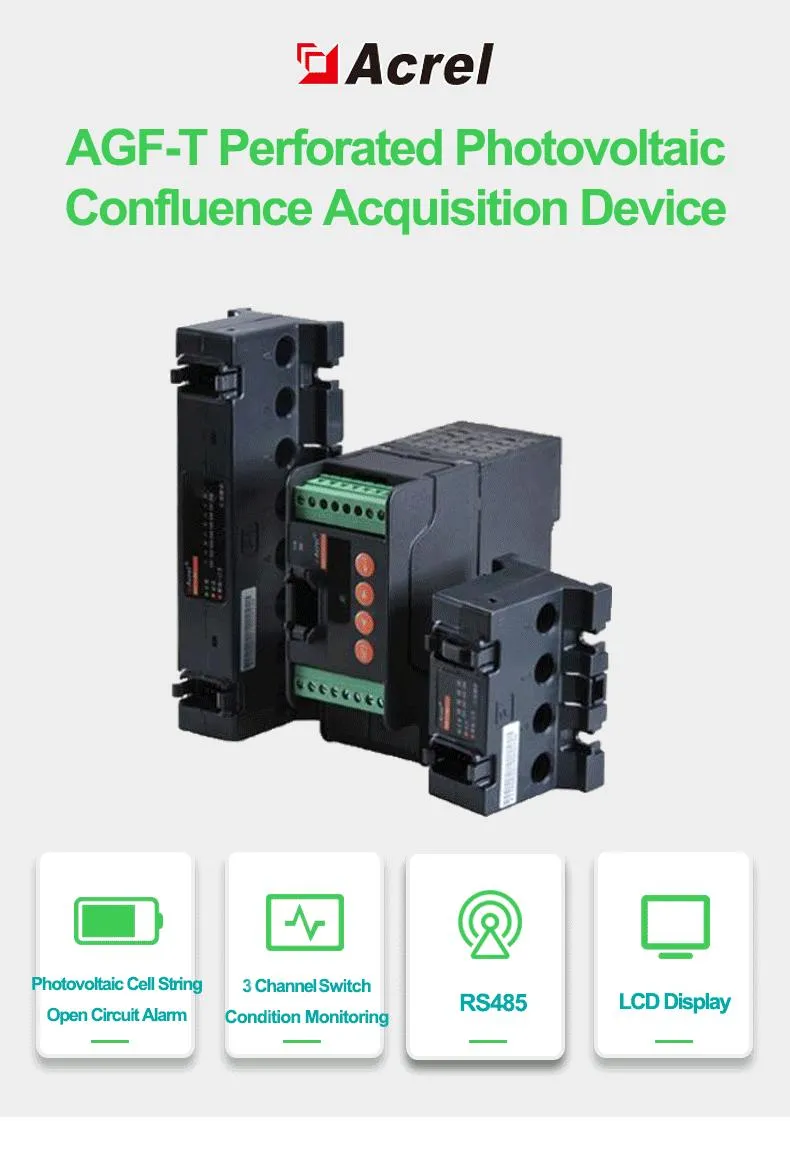

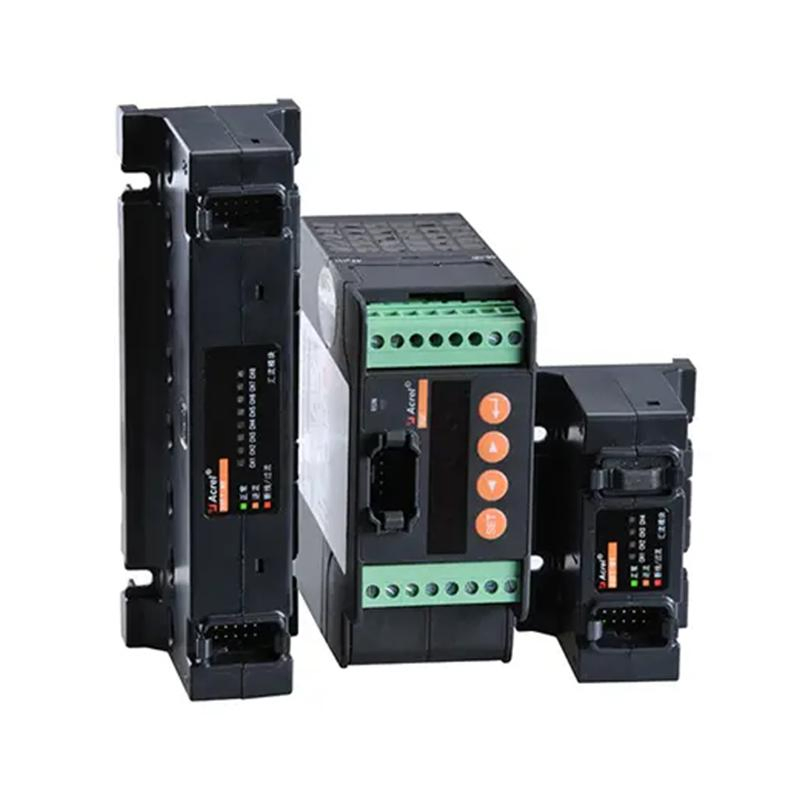

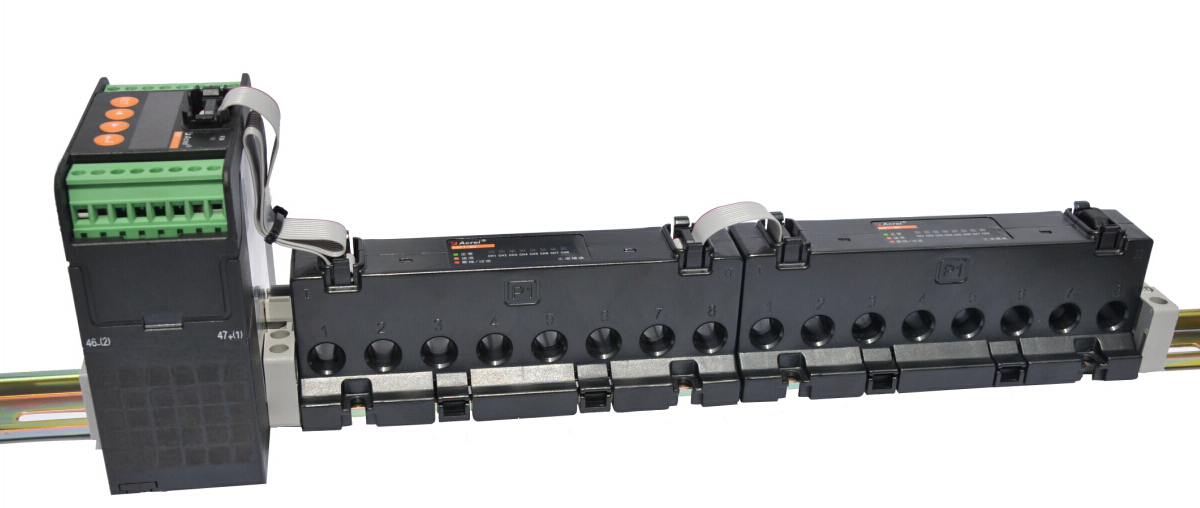

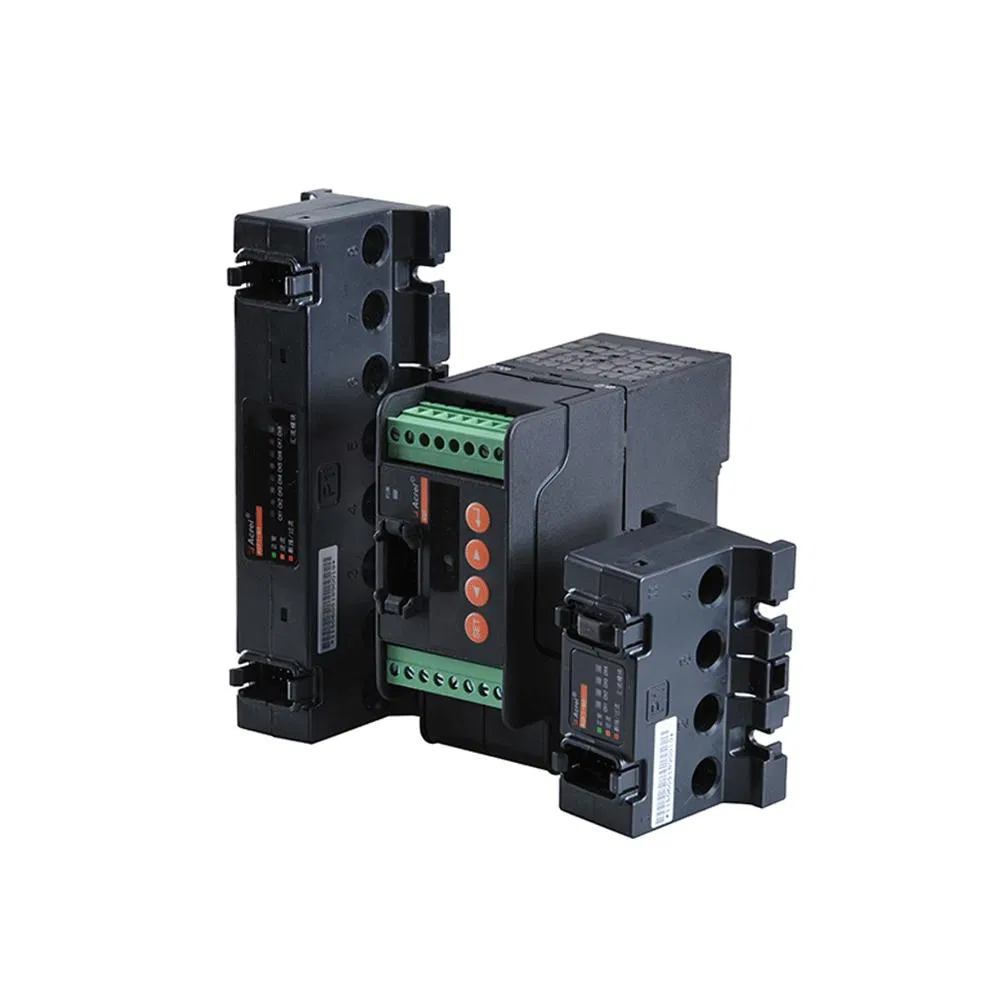

The AGF-M series is highly flexible, offering models that can monitor 4, 8, 12, 16, 20, or up to 24 DC circuits in a PV combiner box.
The device is designed for high-voltage solar cell arrays and can measure bus voltages up to DC 1500V.

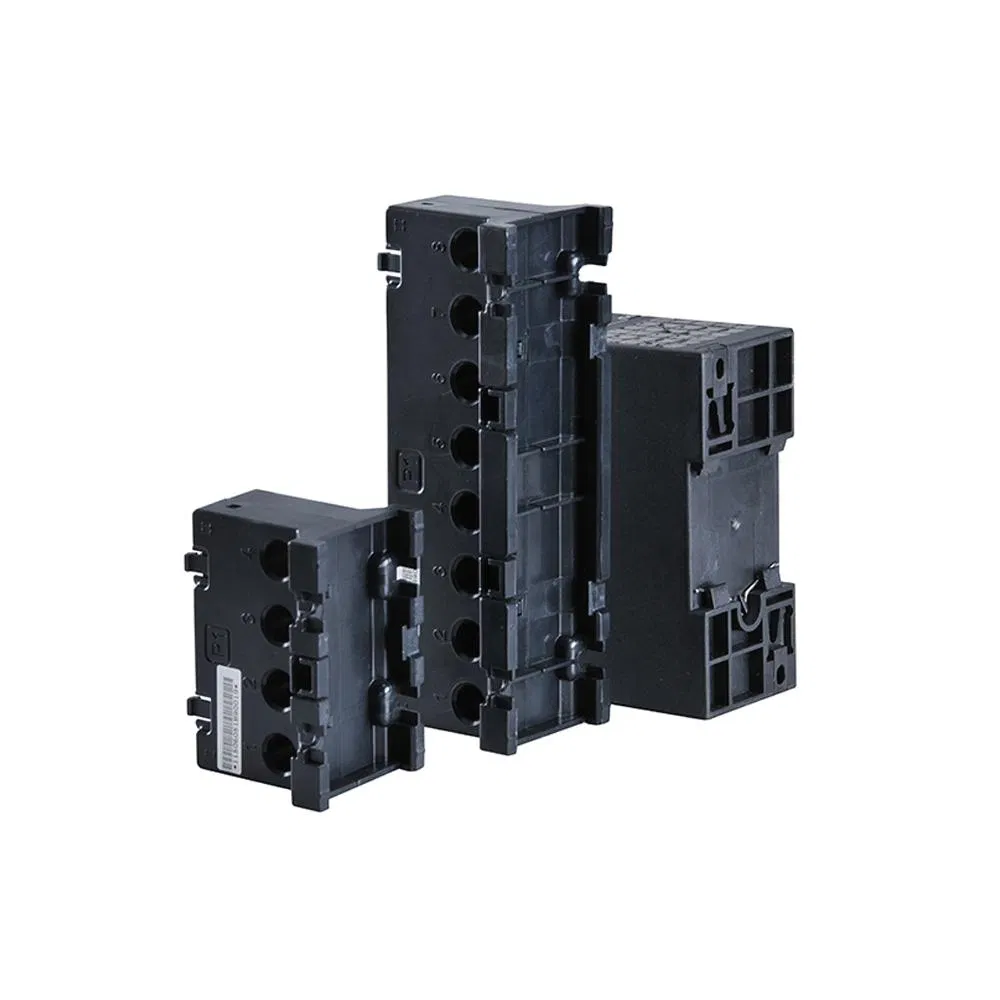

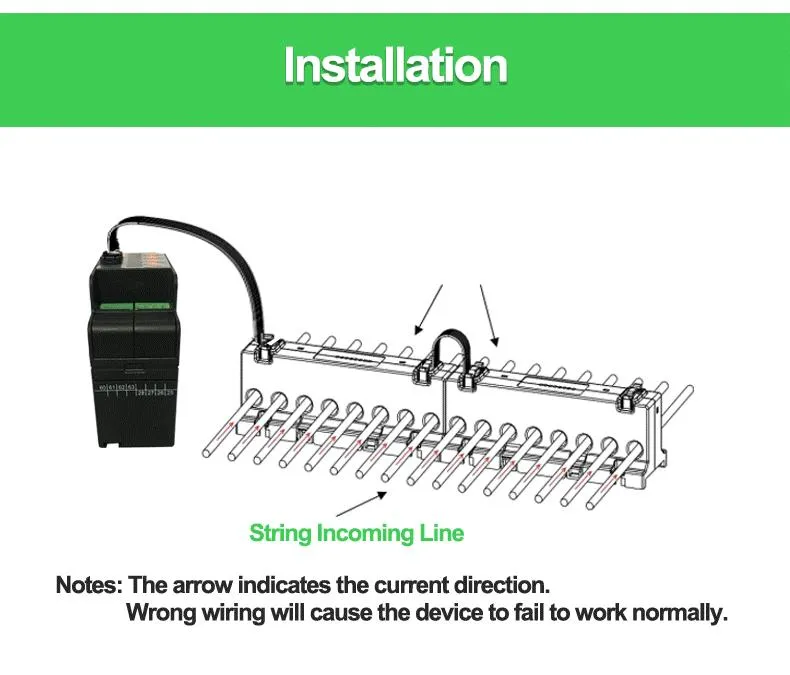

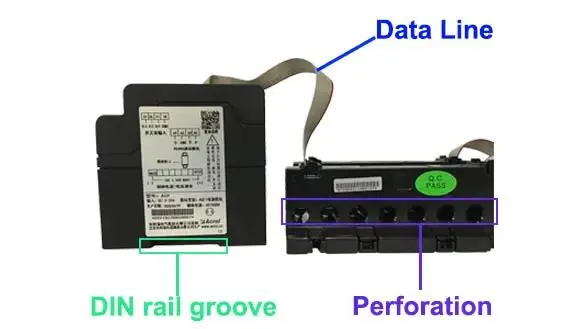

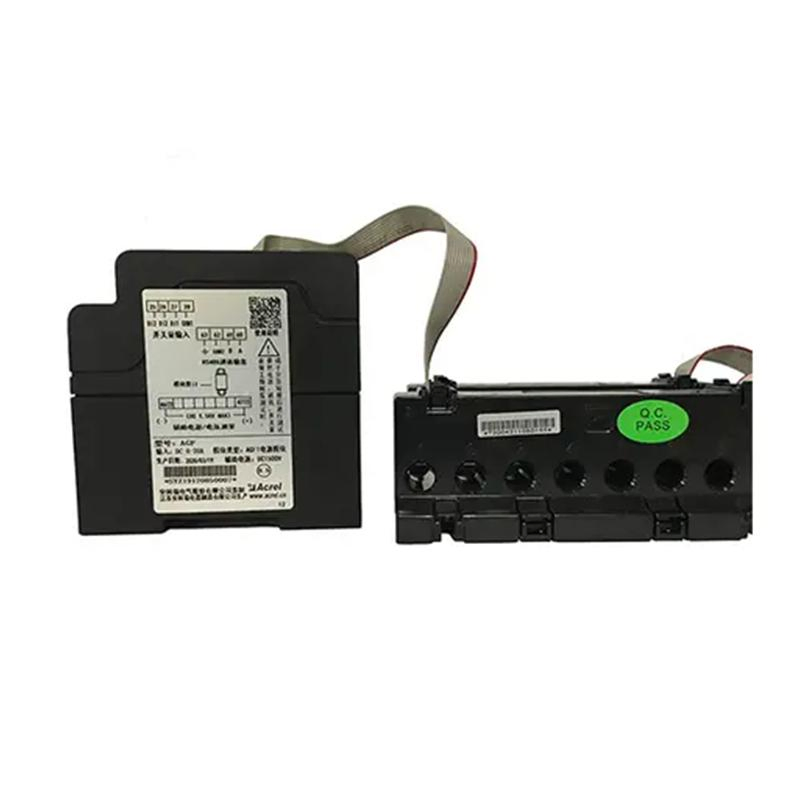

It utilizes Hall sensors for isolated current measurement. Cables pass through perforated holes in the device, ensuring easy installation and high safety without direct electrical contact.
Yes, it features an RS485 communication port using the Modbus-RTU protocol, allowing it to transmit real-time data to a master controller or SCADA system.
Yes, it includes 3-way digital inputs (DI) to monitor the status of lightning protectors (surge protection devices) and DC circuit breakers within the combiner box.
The device is built for wide temperature ranges, operating effectively between -35ºC and +65ºC, making it ideal for outdoor PV installations.
