| Type | Description | Standard Function | Optional Function |
|---|---|---|---|
| AGF-M4T to M24T | 4 to 24 circuits DC0-20A PV confluence detection | 1. 3.5KV hall isolation 2. RS485 Modbus-RTU 3. Accuracy 0.5 class 4. 0-1000V voltage measurement 5. 3 sets of status inputs |
1. PT100/DC 4-20mA Analog input 2. Power filter module 3. LCD Display 4. DC1000V/DC1500V Aux Power |

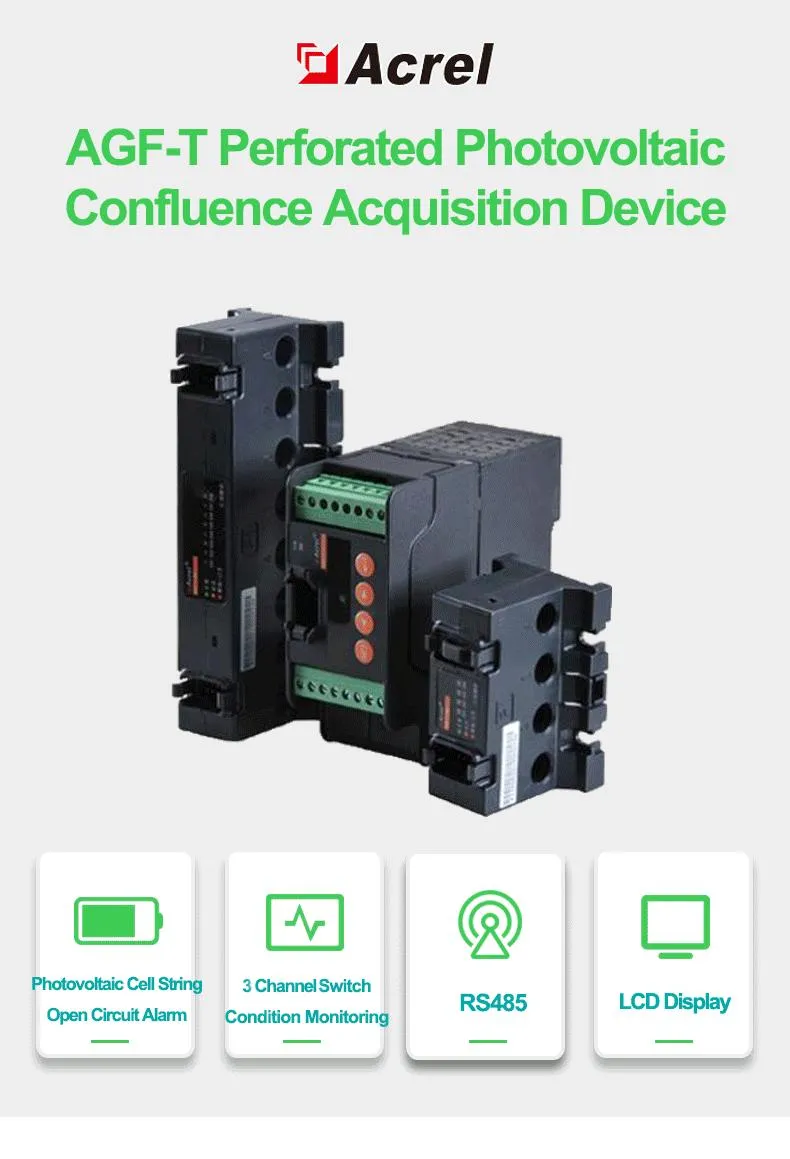

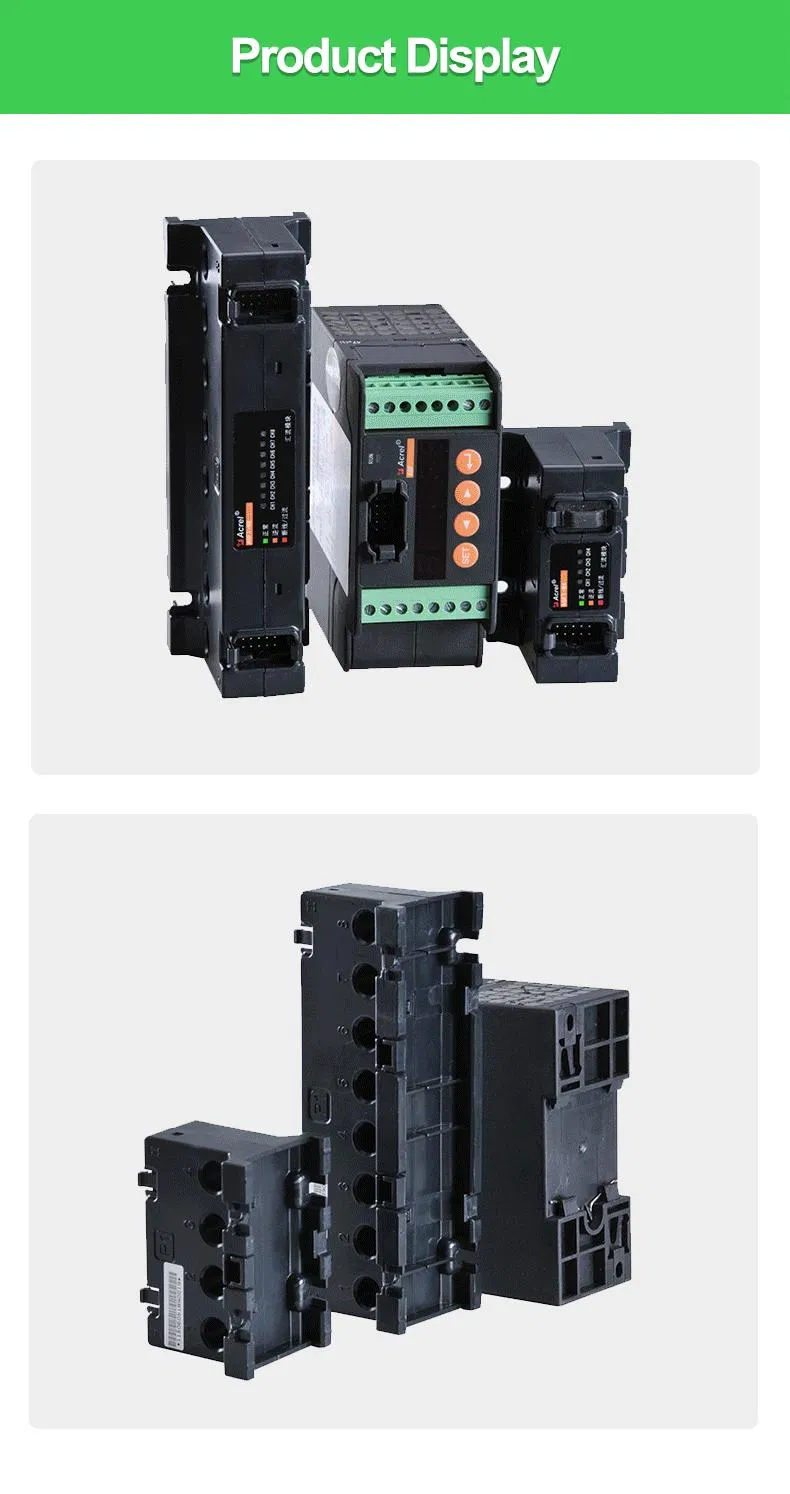

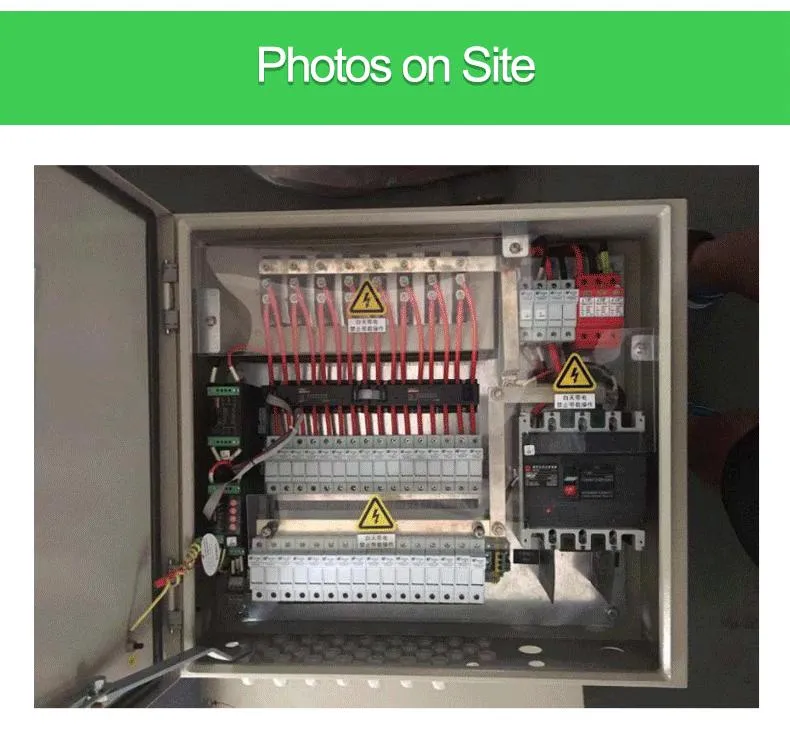

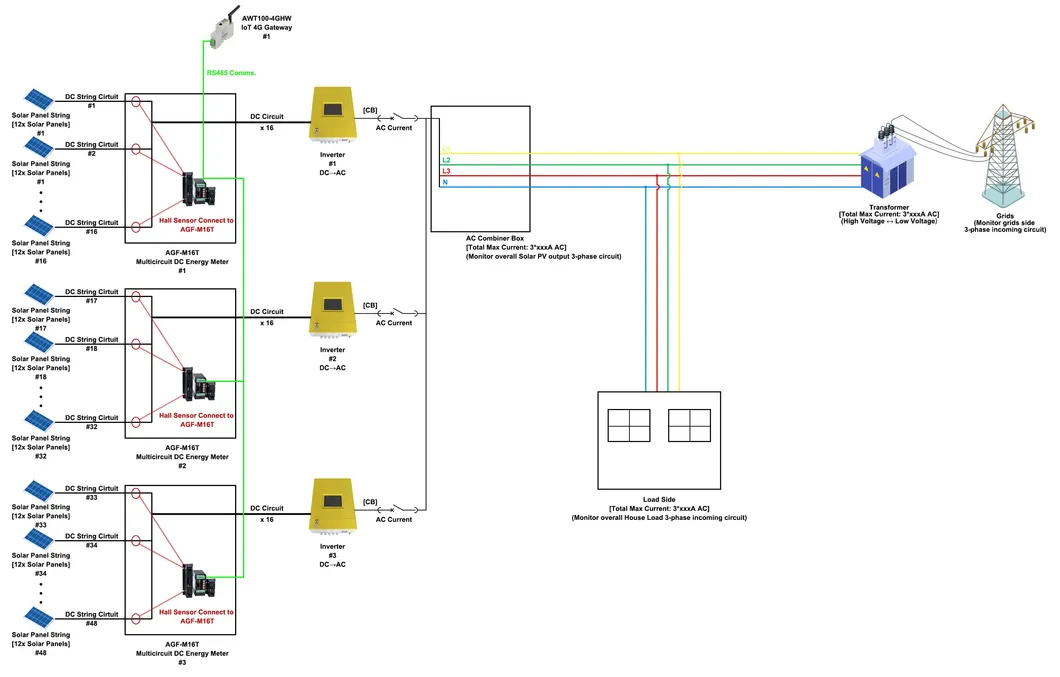

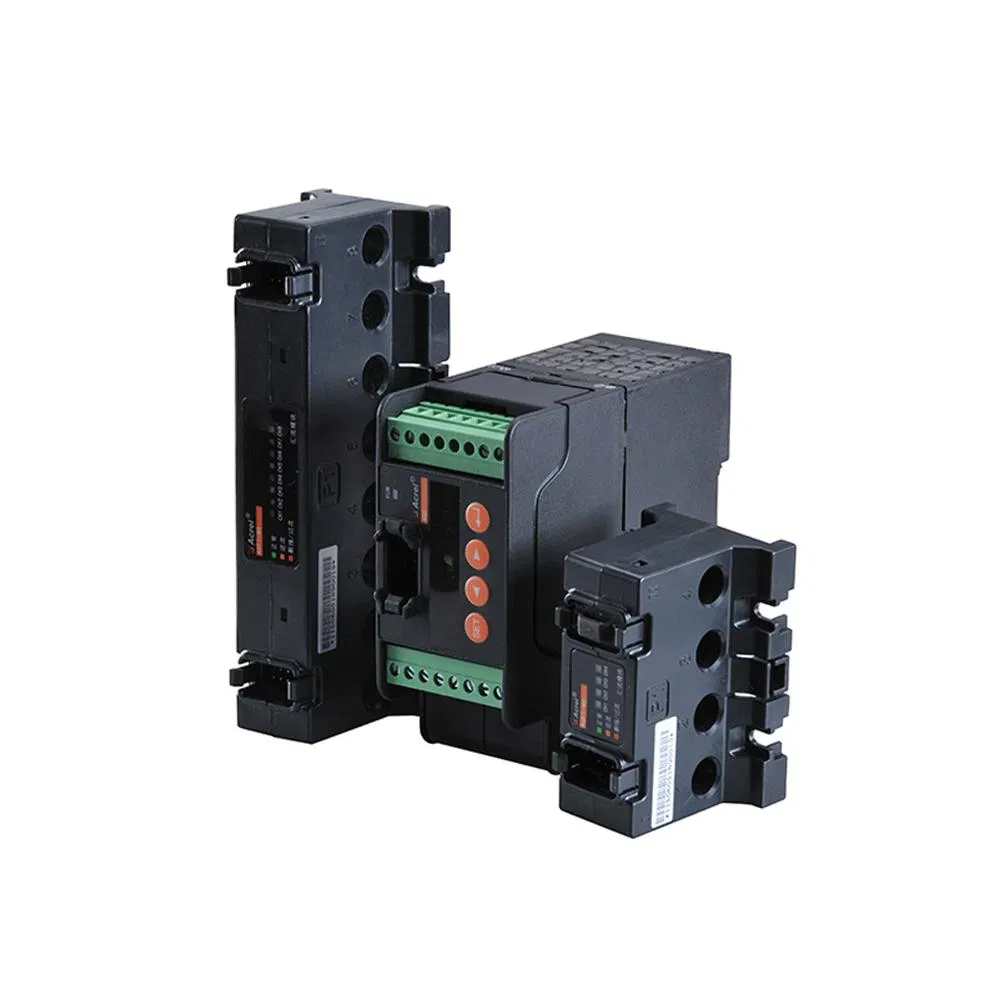

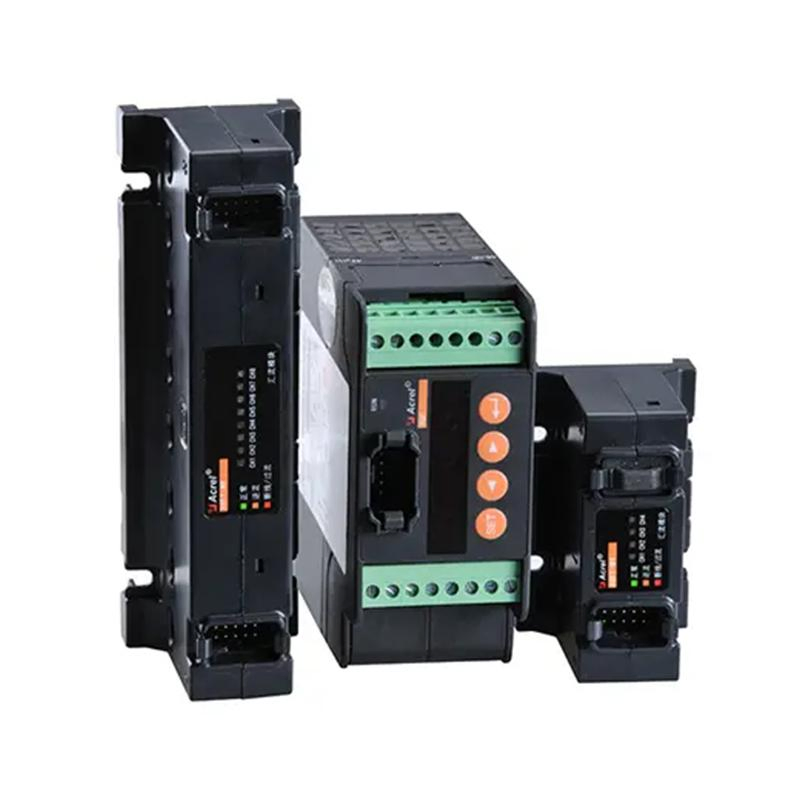

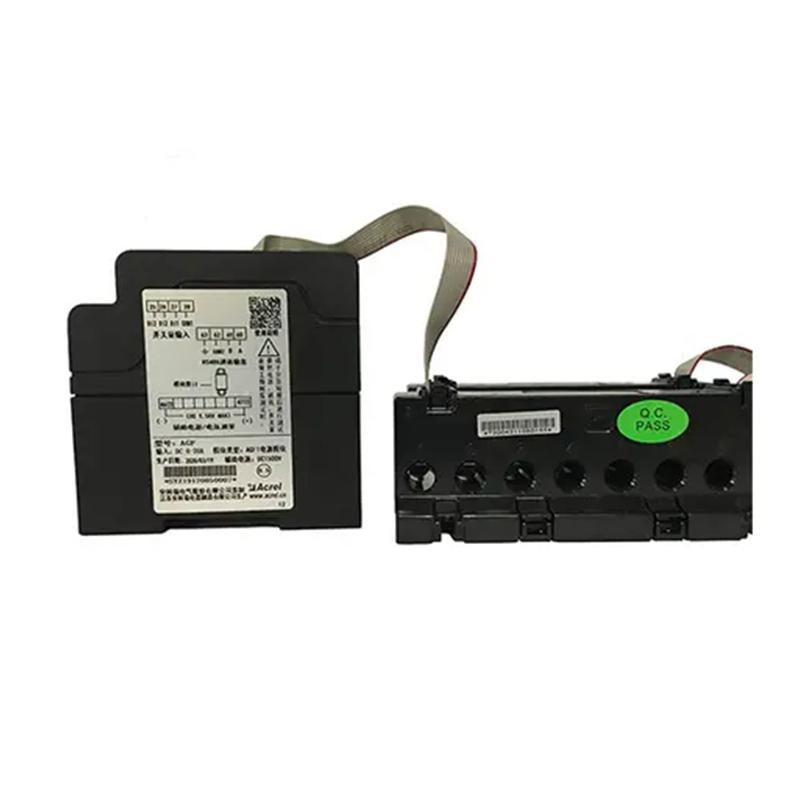

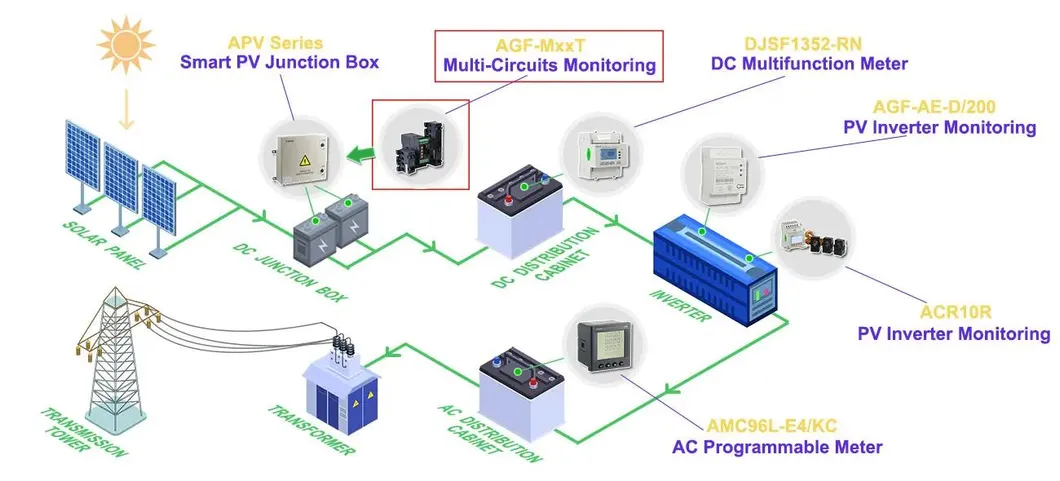

AGF-T Perforation types PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of the solar cells, and detecting the state of surge protection devices and DC breakers.

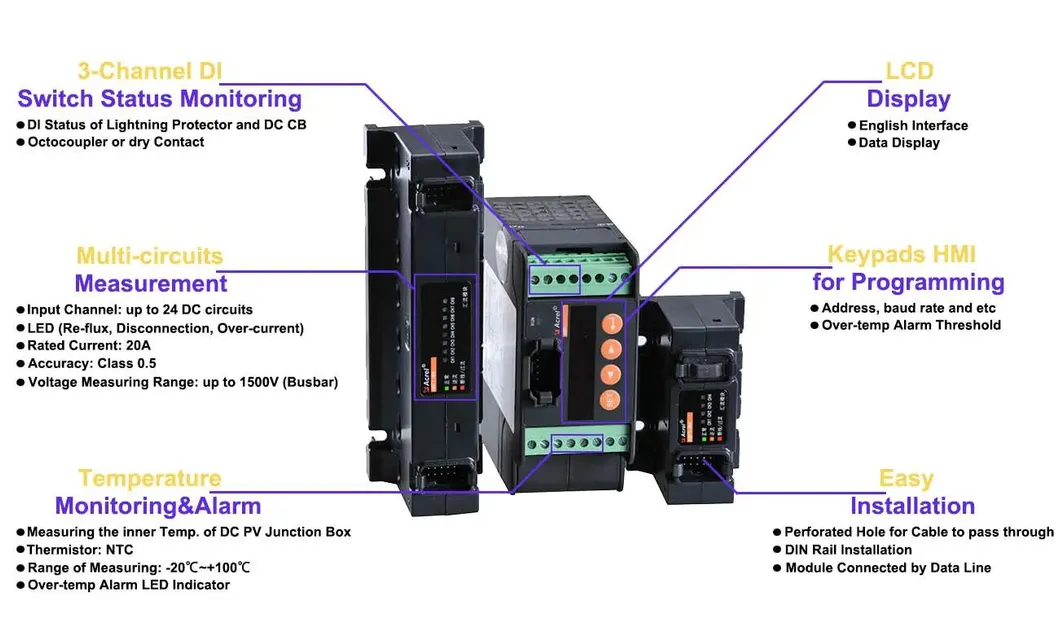

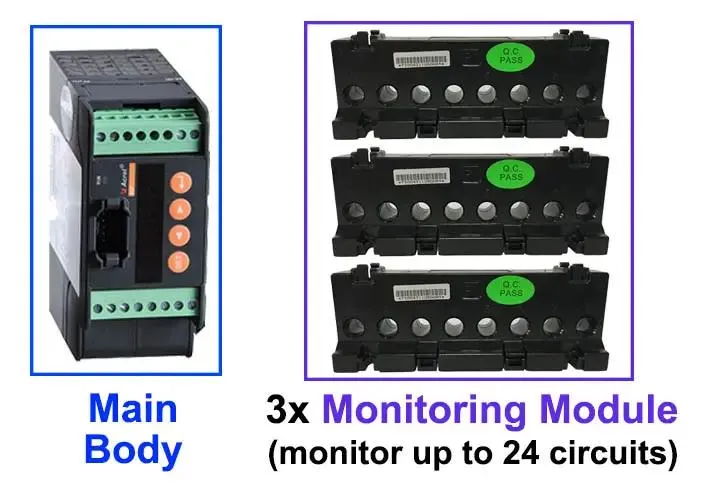

Multi-circuits Measurement
Up to 24 DC circuits, 20A rated current, 0.5 Class accuracy.

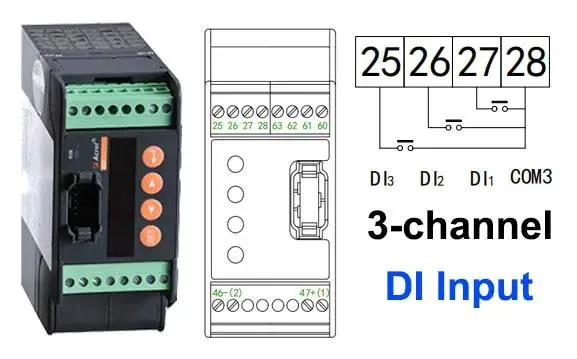

3-Channel DI Monitoring
Status monitoring for Lightning Protectors and DC Circuit Breakers.

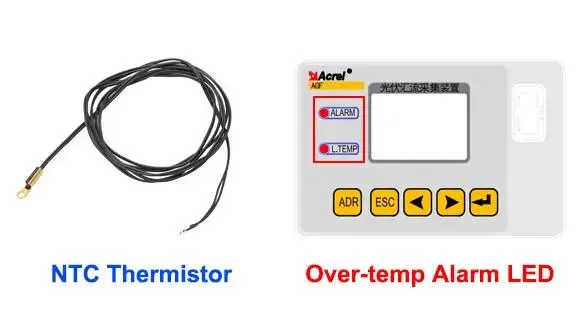

Temperature Function
Inner box temperature measuring with over-temperature alarm.

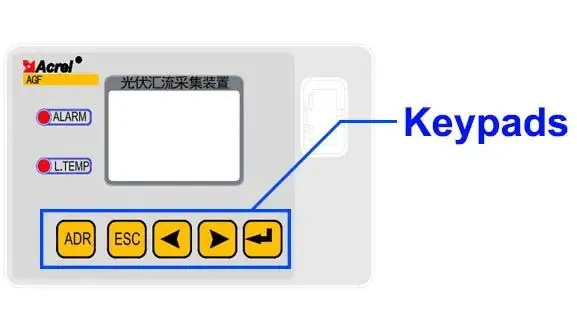

HMI Interface
Keypads for programming address, baud rate, and alarm thresholds.

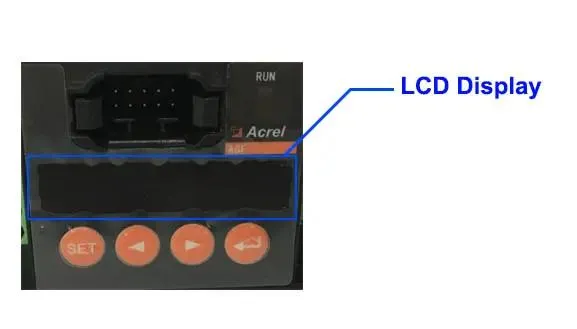

English LCD
Clear data display with English interface for ease of use.

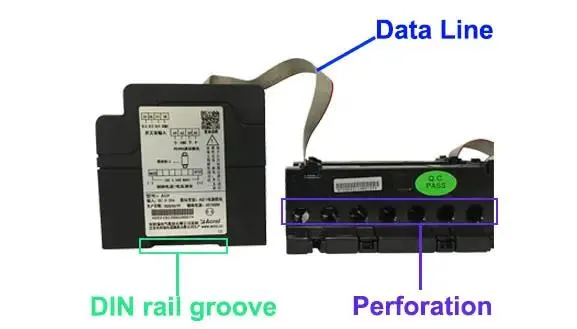

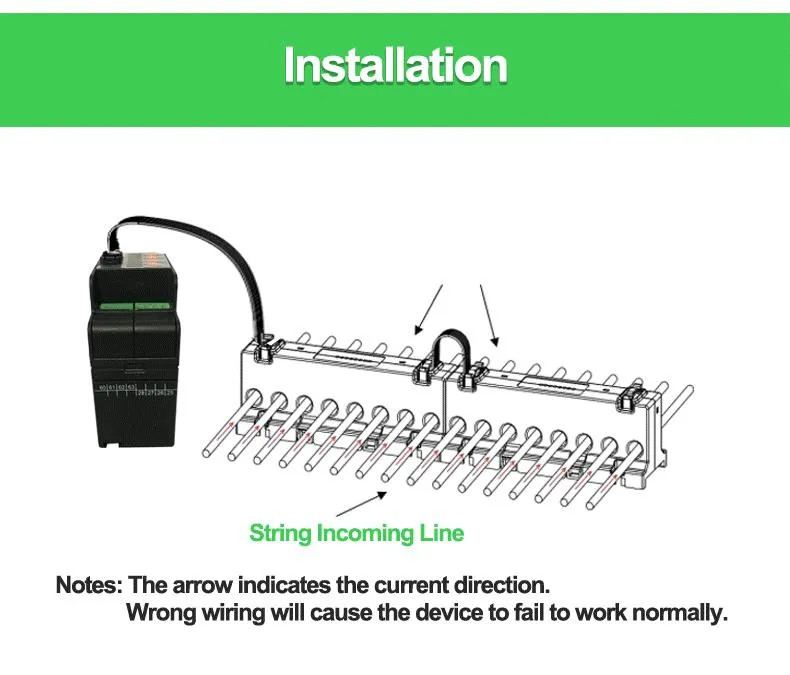

Easy Installation

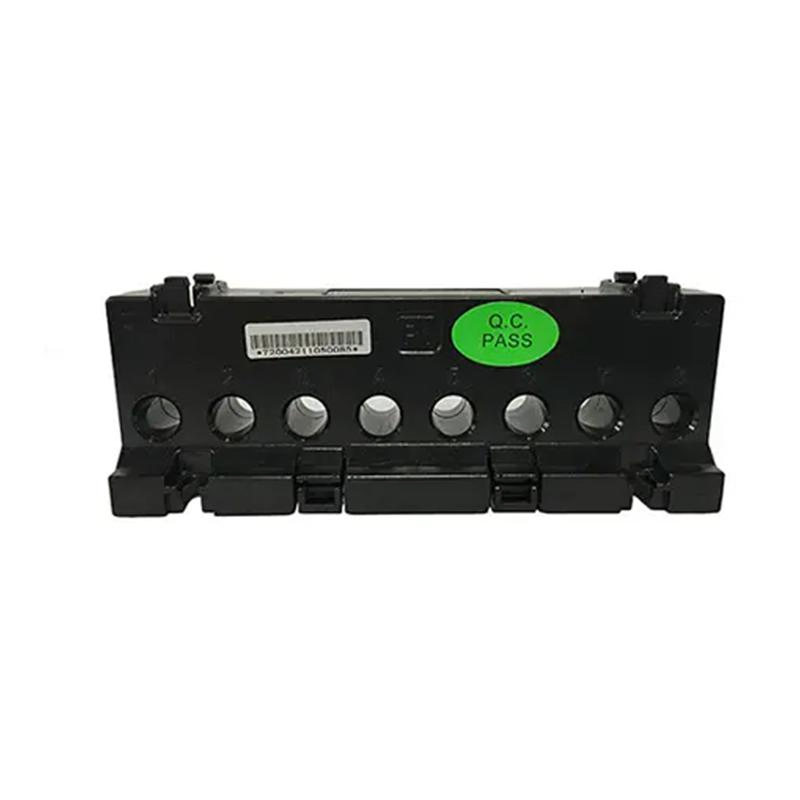

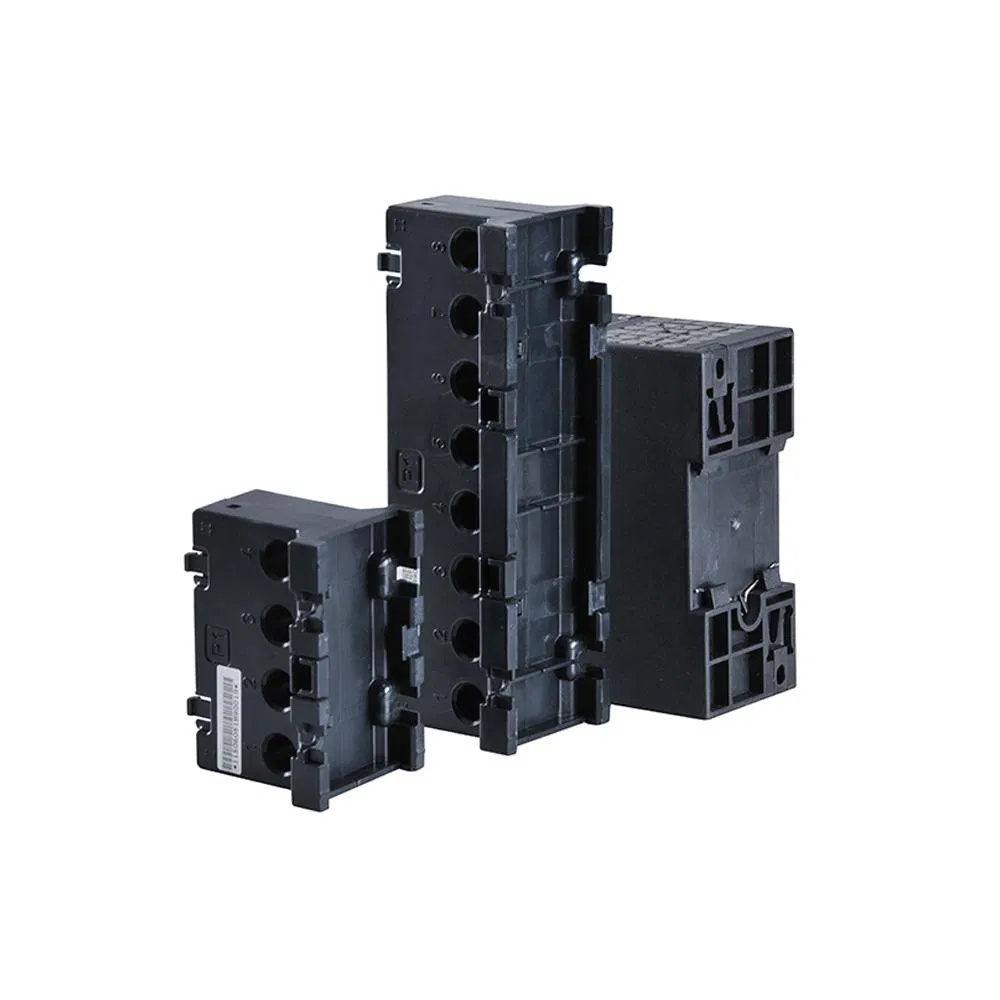

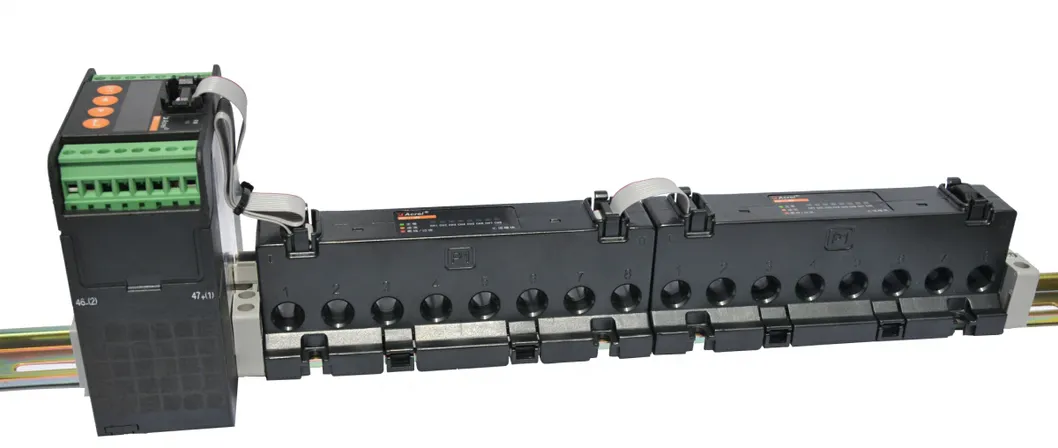

Perforated holes for cables and standard DIN Rail mounting.
| Item | Rated current | Accuracy | Communication | Temperature Range |
|---|---|---|---|---|
| Value | DC 0~20A | 0.5 class | RS485/Modbus-RTU | -35~+65ºC (Display: -20~+70ºC) |
| Response Time | 1s | Altitude | ≤3000m | Humidity: 95% No condensation |
