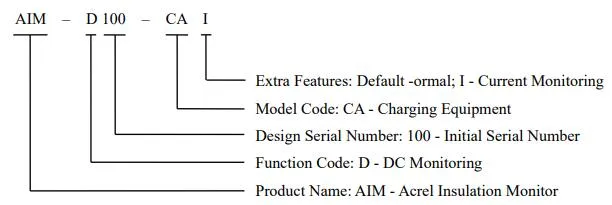

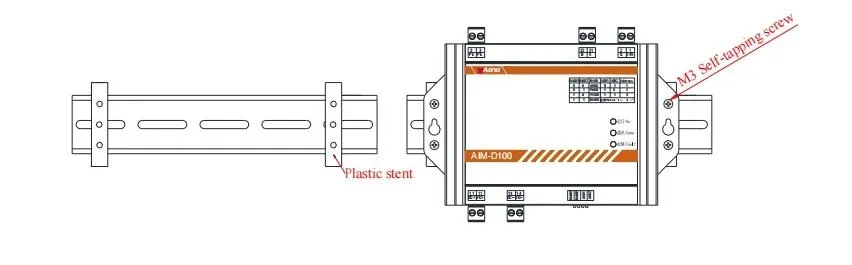

| Model NO. | AIM-D100-CA | Display | Digital |
| Installation | DIN Rail / Wall-Mounted | Theory | Electronic Meter |
| Voltage Range | DC 0~1000V | Accuracy | 0.5 Grade |
| Auxiliary Power | DC 9~36V | Power Consumption | Less Than 6W |
| Communication | RS485 Interface, Modbus-RTU | Operating Temp. | -40 to +75°C |
| Usage | Multi-Functional Energy Meter, Industry and Home Use, Photovoltaic and EV Charging Systems | ||

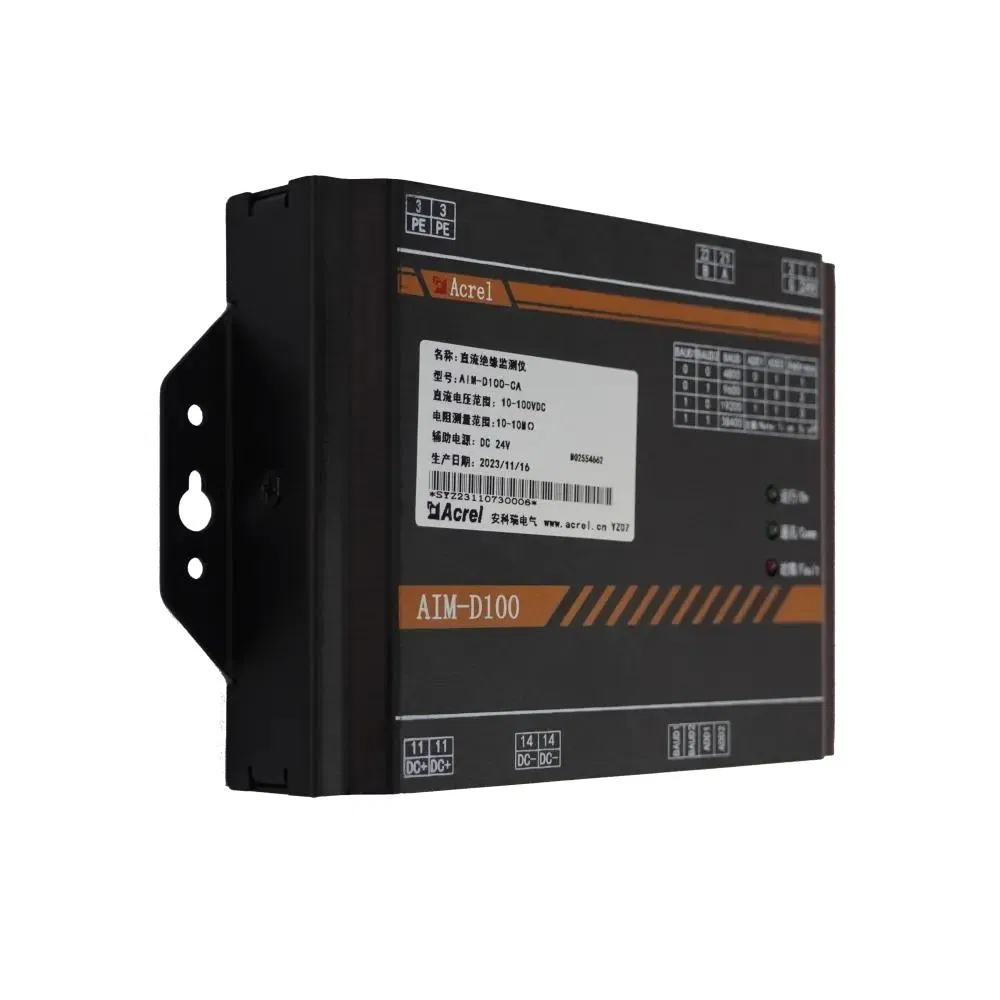

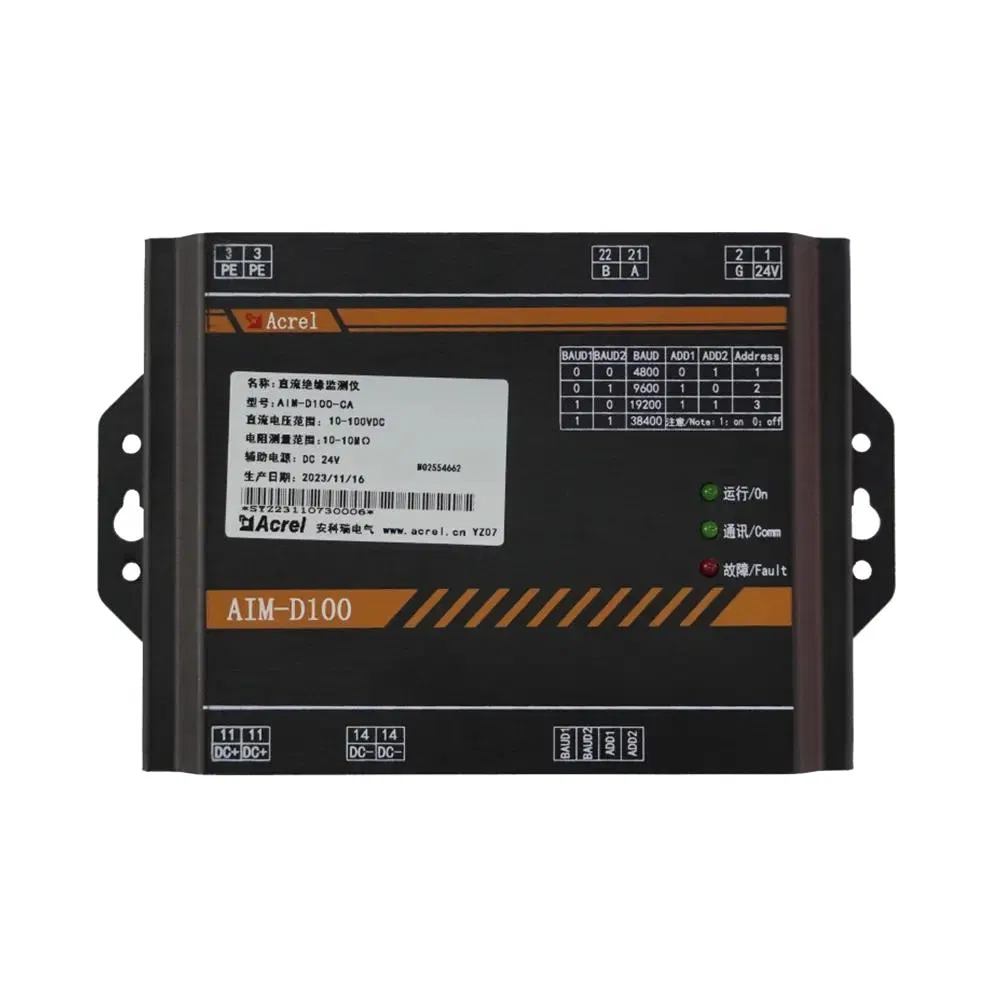

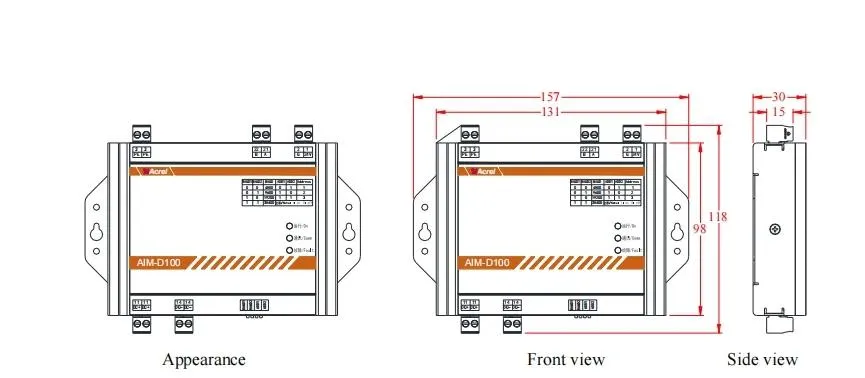

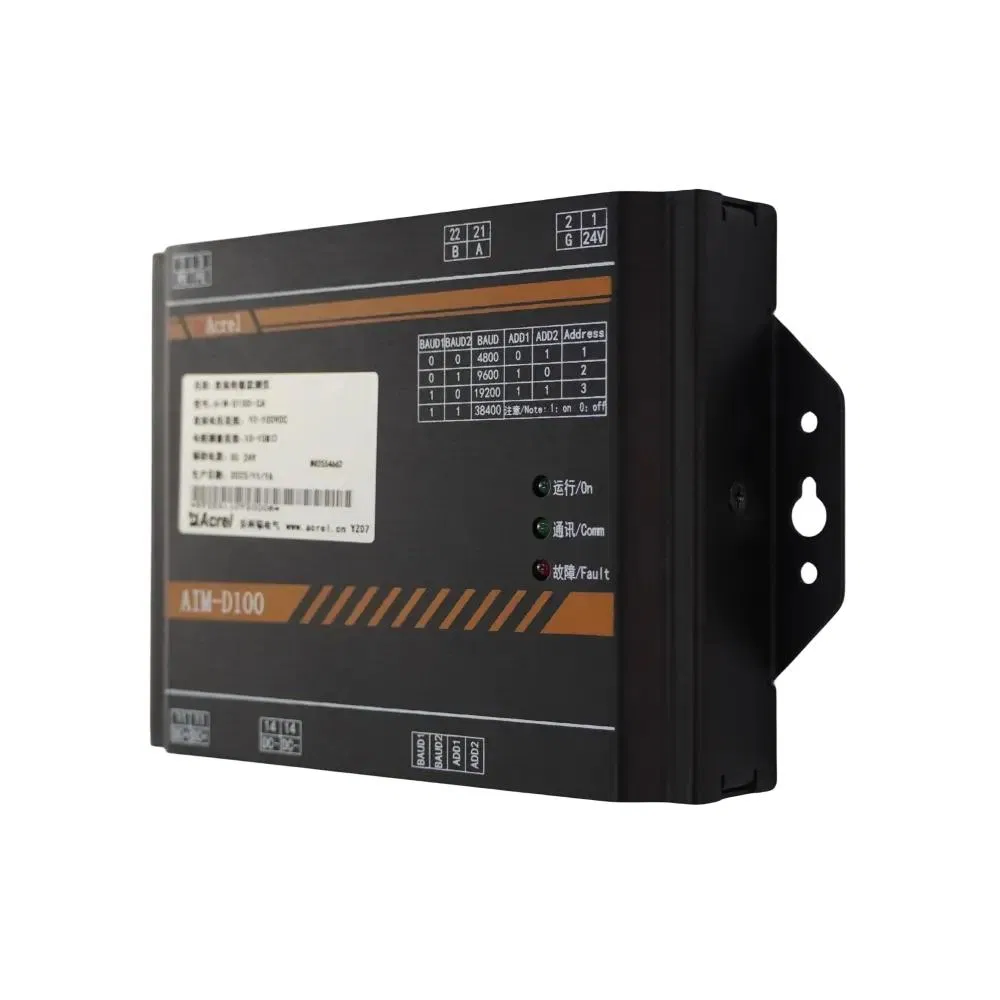

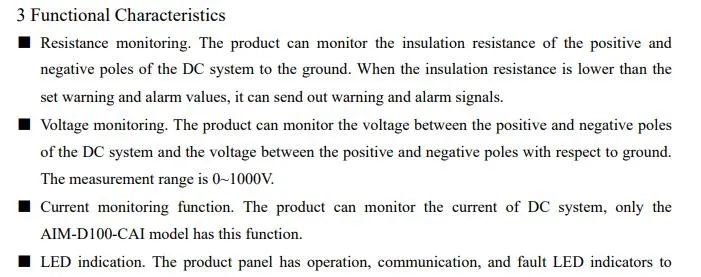

The AIM-D100-CA series DC insulation monitor is designed for DC systems ranging from 0 to 1000V. It provides continuous online monitoring of insulation resistance between the positive/negative poles and the ground in ungrounded (IT) power distribution systems. When insulation resistance falls below the user-defined threshold, the device triggers a warning or alarm signal to ensure operational safety.
This monitor is primarily engineered for electric vehicle (EV) charging devices but is also highly suitable for energy storage systems, substation DC screens, UPS power supplies, and photovoltaic DC grids.
| Parameter Category | Feature | Technical Specifications |
|---|---|---|
| Power Supply | Auxiliary power | DC 9~36V, ≤6W |
| Voltage Monitoring | Voltage range | DC 0~1000V |
| Accuracy | 0.5 grade | |
| Current Monitoring | Connection | Current shunt based on rated current |
| Accuracy | 5% | |
| Insulation Monitoring | Resistance range | 1kΩ ~ 10MΩ |
| Alarm range | 10kΩ ~ 10MΩ | |
| Accuracy | 1-10kΩ: ±1k; 10k-500k: ≤3% | |
| Monitoring speed | 500ms/cycle or 1000ms/cycle | |
| Environment | Temperature | Operating: -40~+75ºC; Storage: -40~+125ºC |
