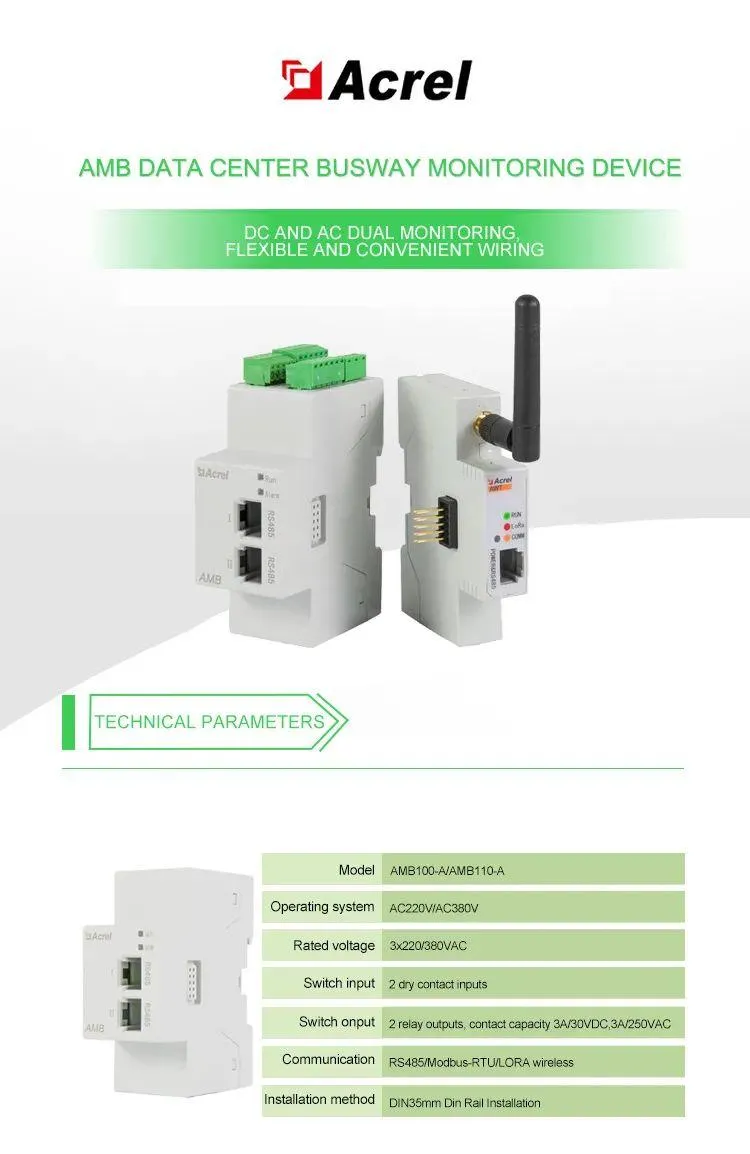

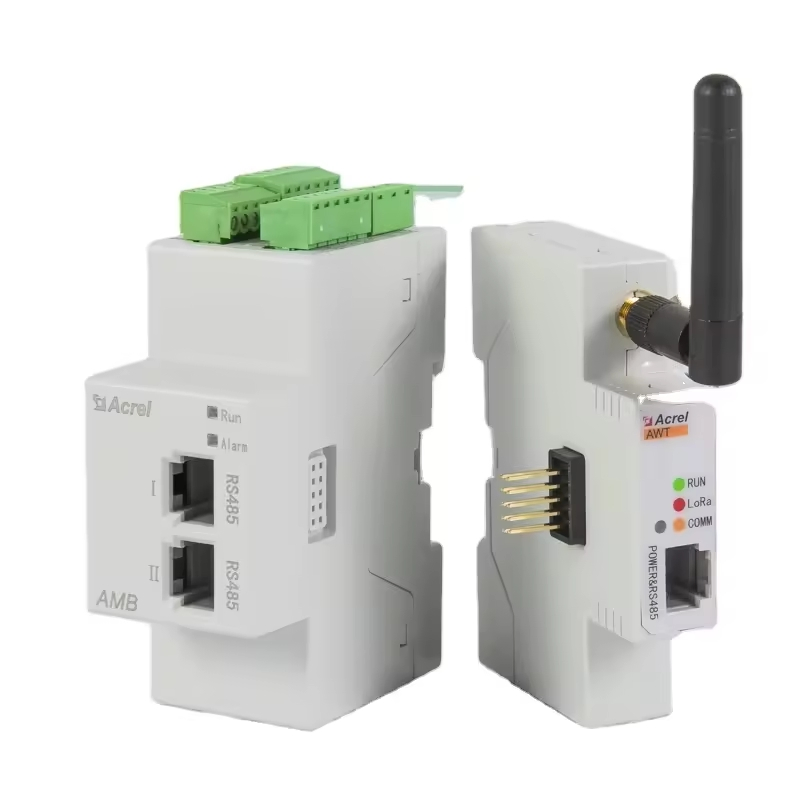

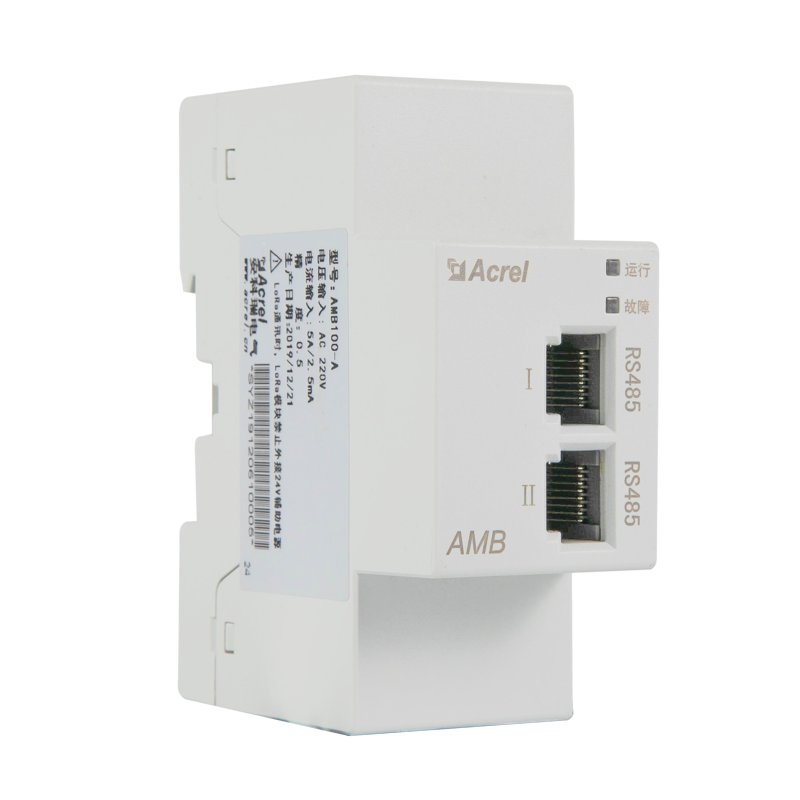

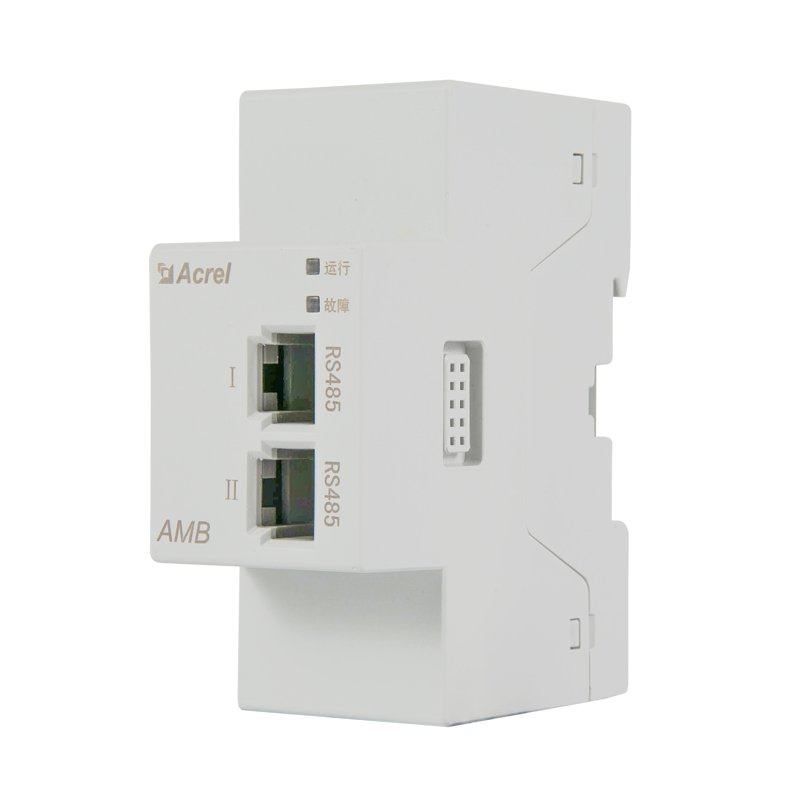

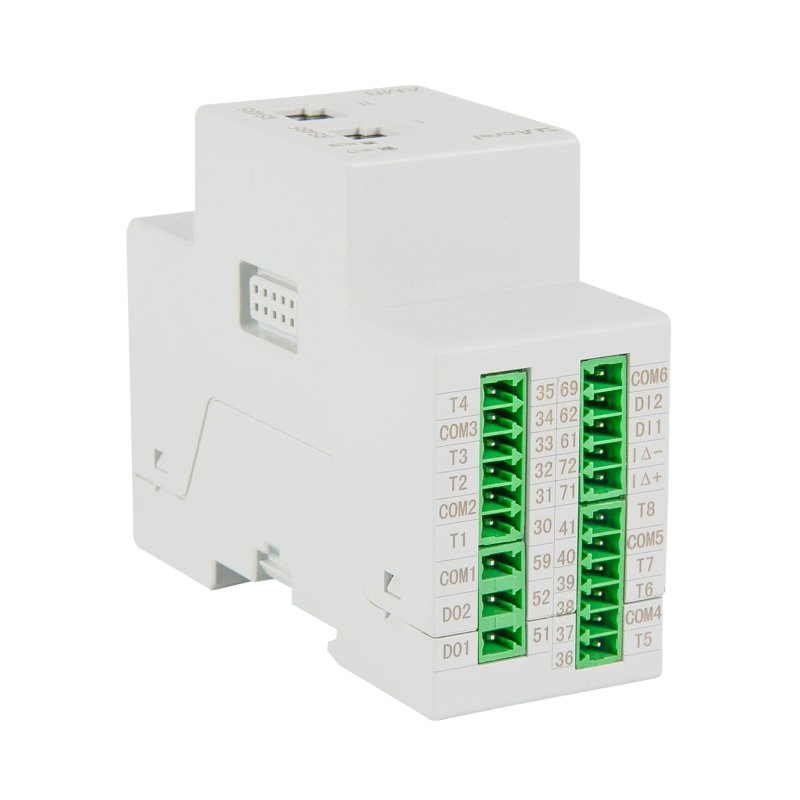

The AMB intelligent bus AC monitoring device is a new development designed for smart power bus bars. It consists of a feeding detection module and a tapping detection module, integrating conventional power measurements, electricity monitoring, consumption assessment, and control.

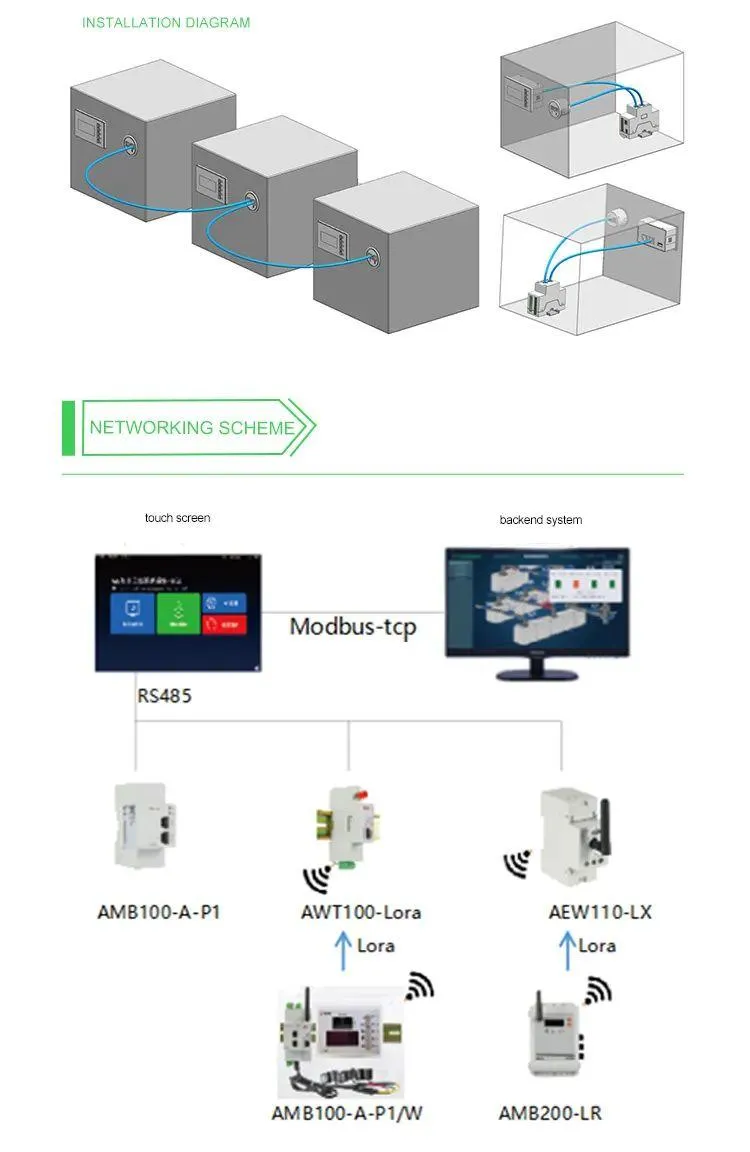

It features an online alarm function and independent off-line operation. The device monitors bus bar interface temperature in real-time. Equipped with 2 RJ45 communication ports (1 in and 1 out) and utilizing the MODBUS-RTU protocol, it ensures reliable data transmission for centralized monitoring, ensuring safe system operation.

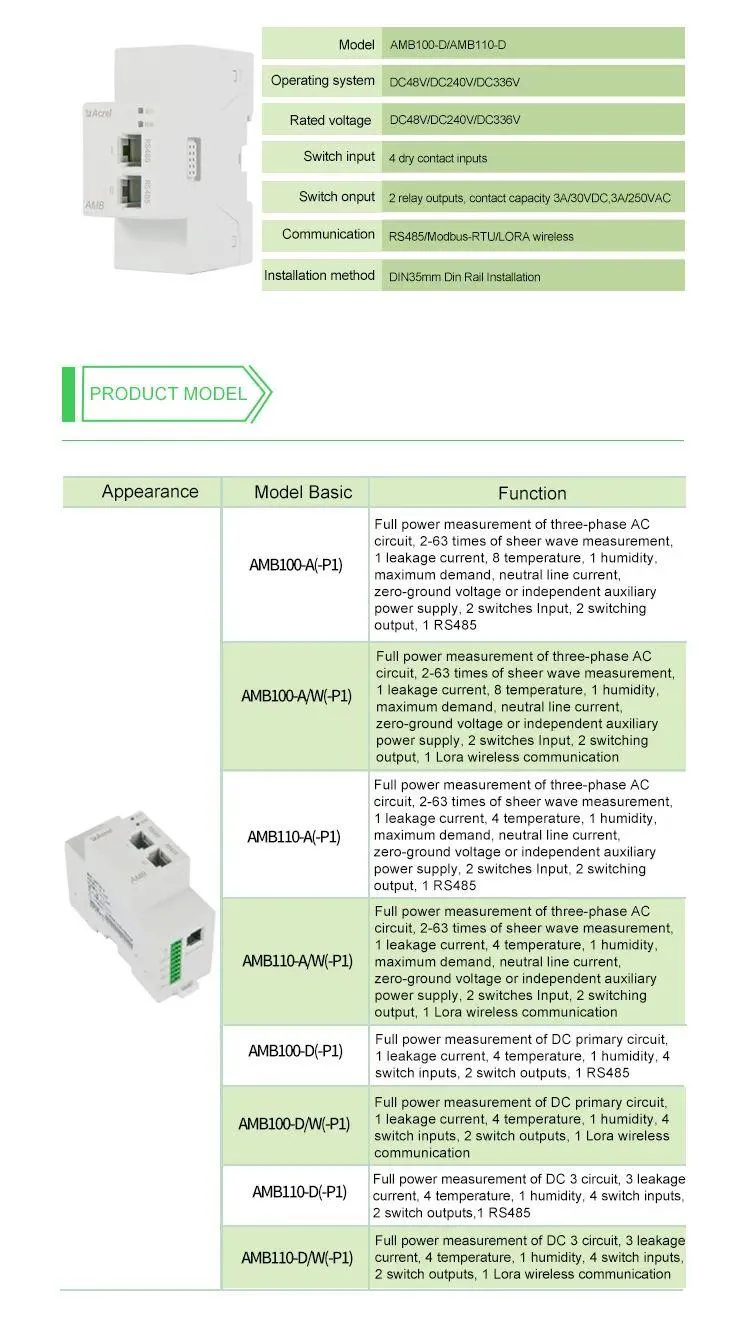

| Measured Parameters | Voltage, current, frequency, active power, inactive power, power factor, energy, harmonics (2nd-63rd), temperature, leakage |
| Voltage Input | Rated: 3x220/380VAC; Range: ±20%; Overload: 1.2x continuous |
| Current Input (CT) | 5A/2.5mA, 100A/20mA, 400A/100mA, 600A/100mA; Range: 1%-120% |
| Measurement Accuracy | Voltage/Current: 0.2; Active Power: 0.5; Temperature: ±1ºC |
| Functions | Temperature detection (-20-150ºC), Leakage (0-1A), 2 Digital inputs, 2 Relay outputs |
| Environment | Working: -20 to 60ºC; Humidity: ≤93%; Altitude: ≤2500m |
| Communication | RS485/Modbus-RTU or LORA antenna |

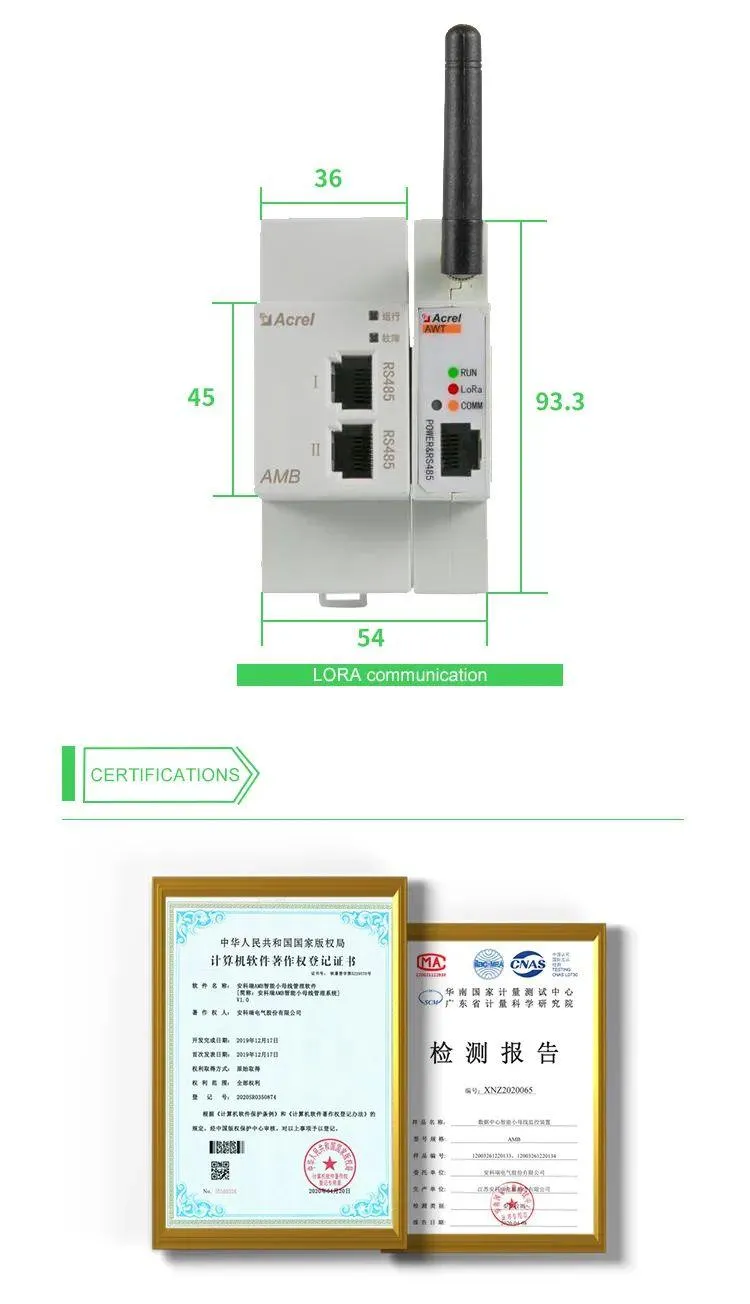

The device is designed for DIN35mm rail installation, making it flexible for various power bus bar configurations.
