With the rapid development of data centers, energy consumption has become increasingly prominent. Efficient and reliable power distribution systems are essential to improve power efficiency and reduce operational costs. To achieve energy savings, monitoring each power load is necessary. However, traditional measuring instruments often fail to meet requirements for cost, volume, and installation in high-density data centers.

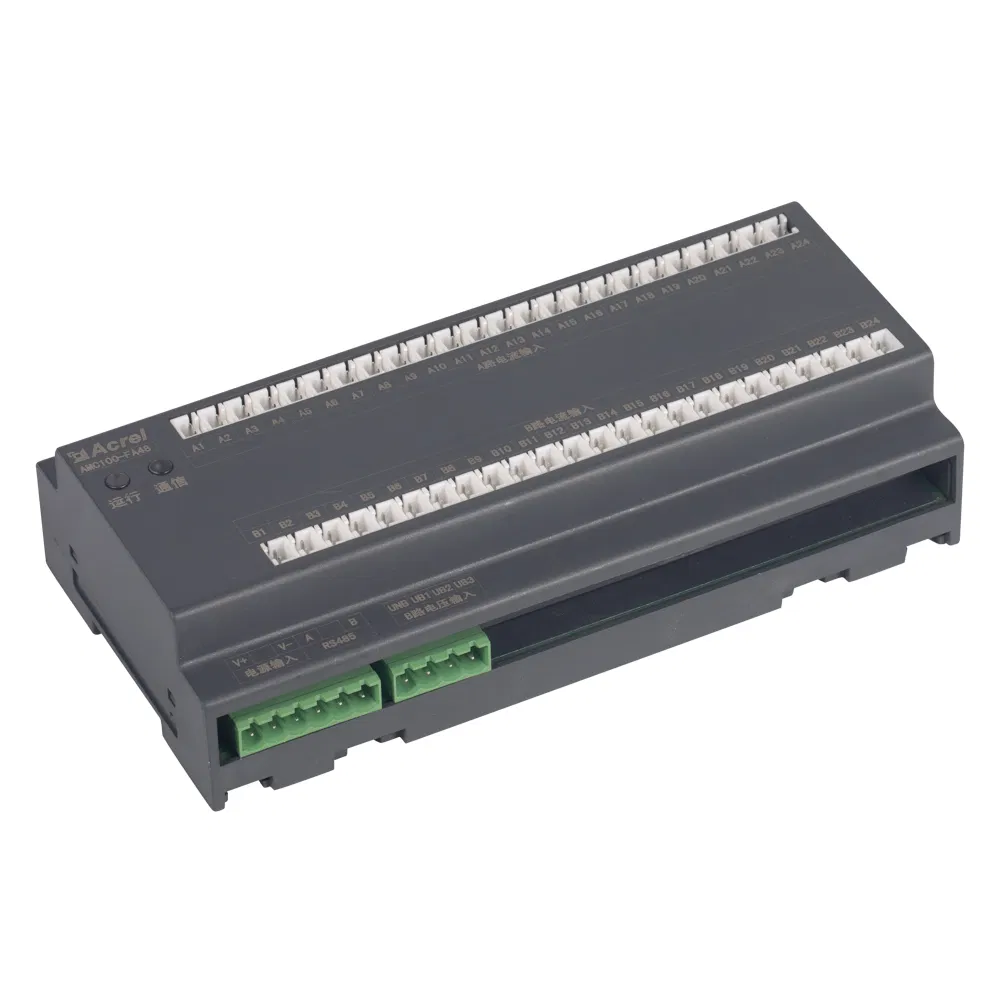

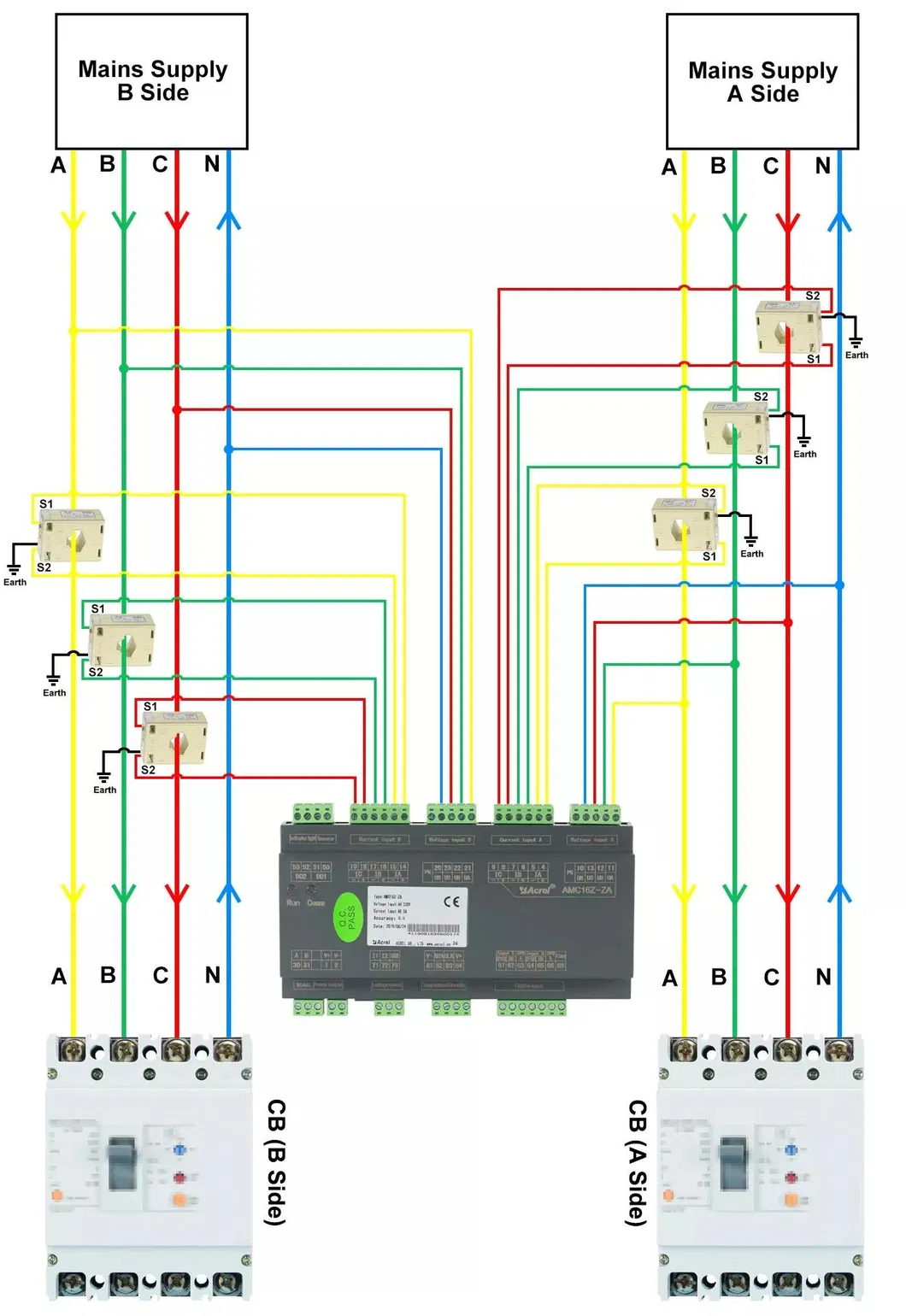

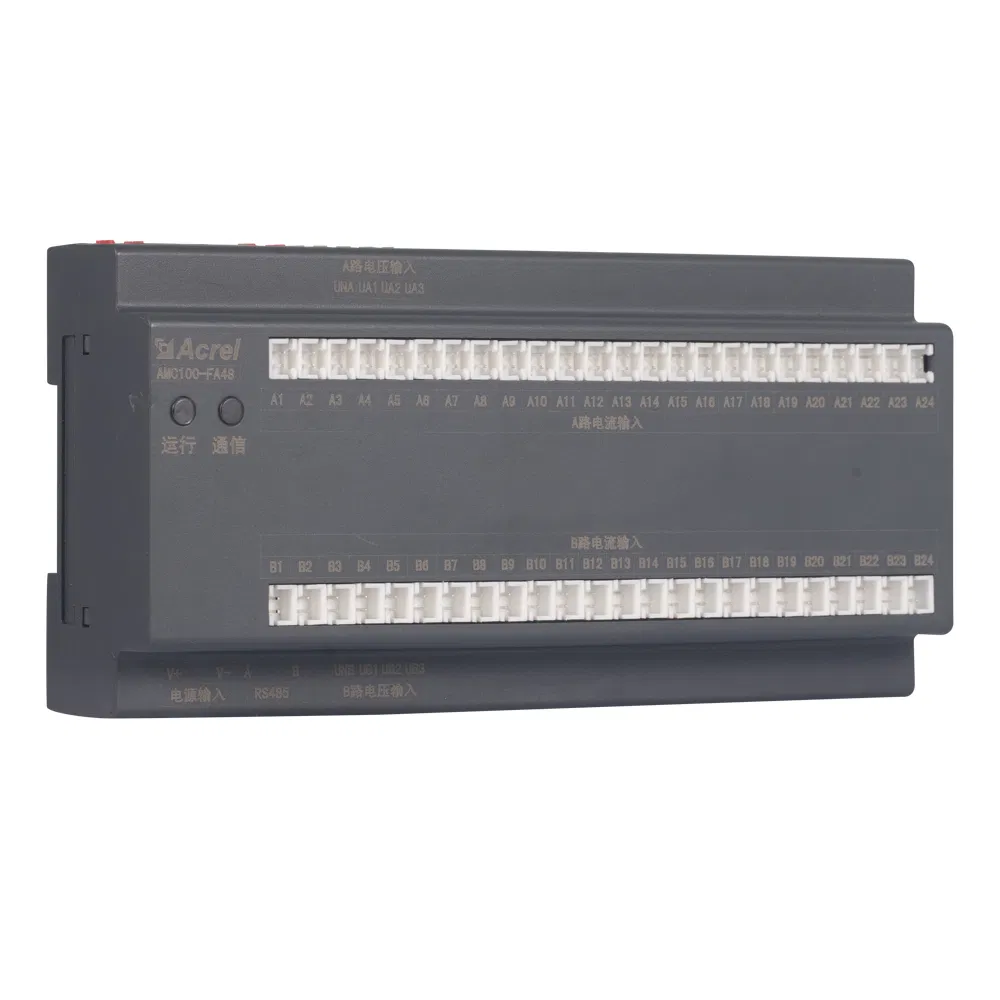

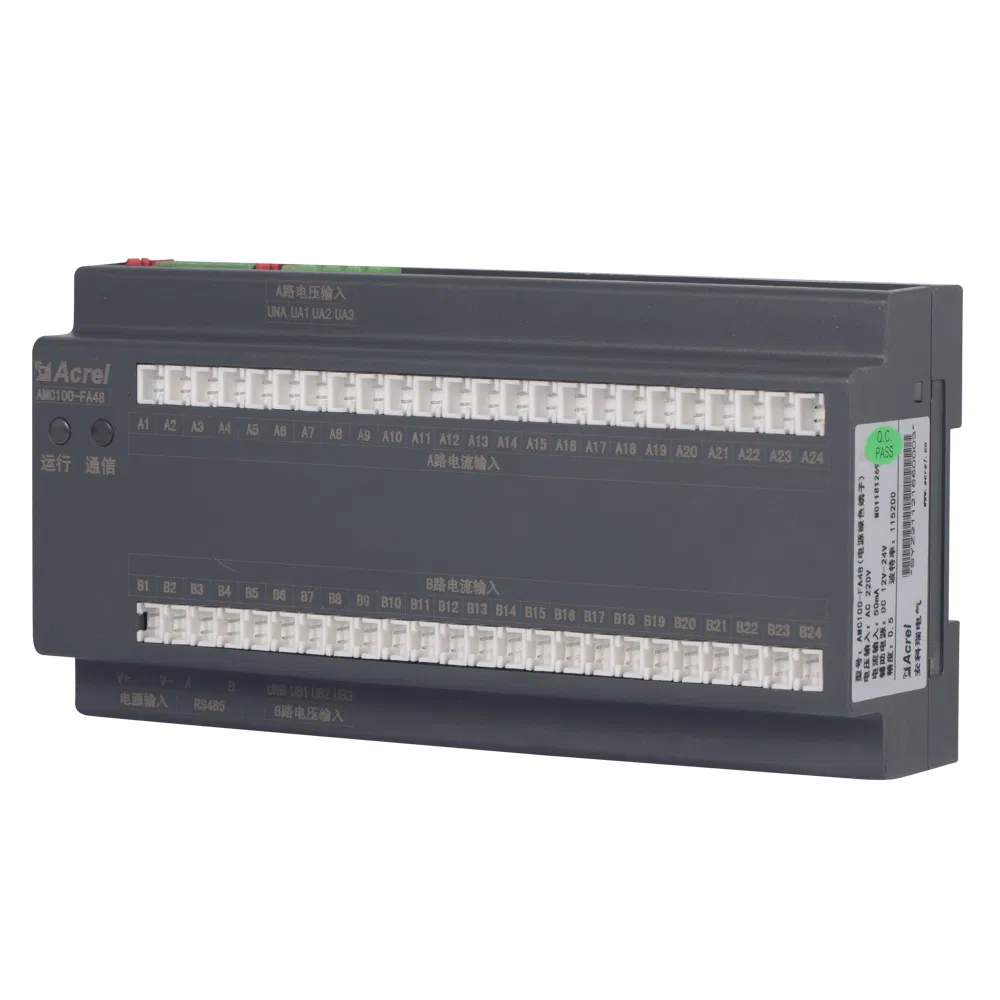

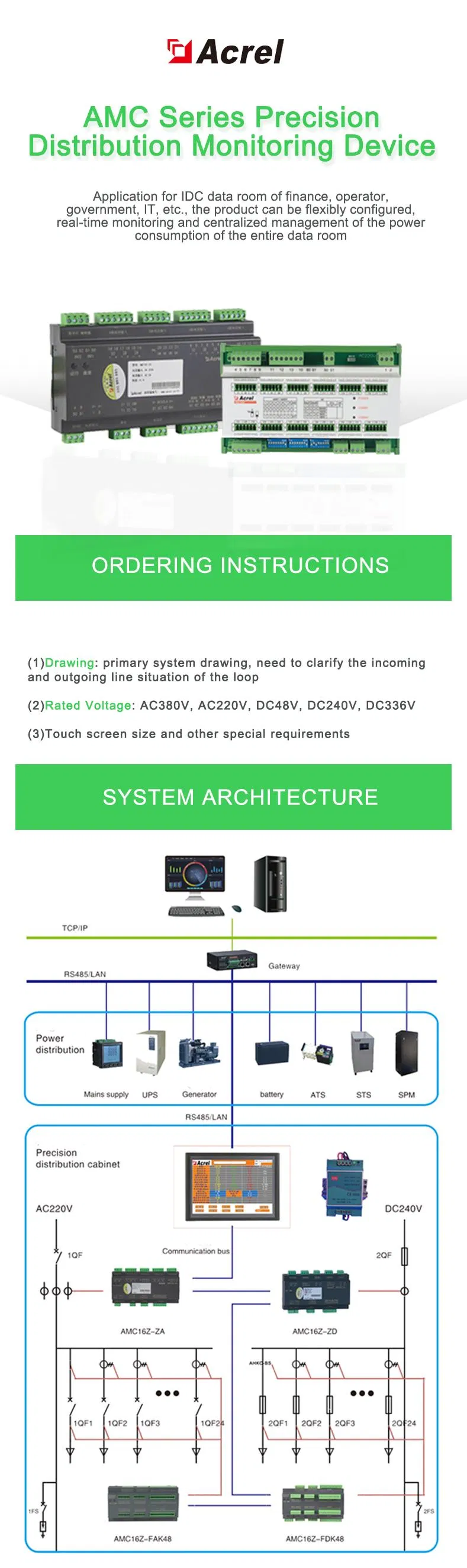

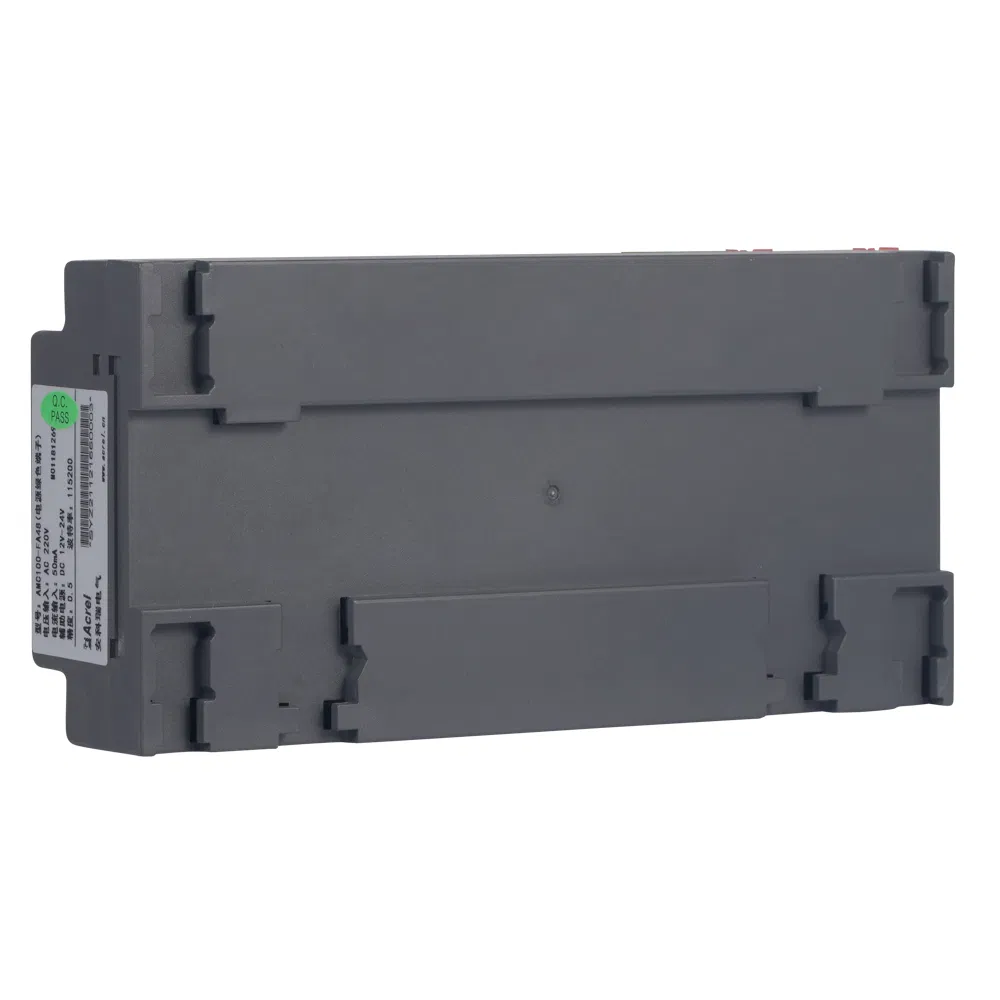

The AMC100 series precision power distribution monitor is designed specifically for power management in data center servers. Its exquisite design allows for monitoring of A + B incoming lines and up to 192 circuit electrical parameters. It tracks input/output states and lightning protection device status in real-time. All alarm thresholds can be set independently to trigger sound and light alerts, integrating high-level monitoring into a compact volume.
| Item | Data Specifications |
|---|---|
| Measurement parameters | Voltage, current, power, energy, switching status |
| Bus voltage rated | 48VDC, 240VDC, 336VDC |
| Current outgoing loop | 5V (Hall sensor, external supply required ±12V) |
| Measurement accuracy | Voltage/current 0.5 level, power/energy level 1 |
| Auxiliary power supply | Powered by AMC100-ZD, DC 12-24V when used alone |

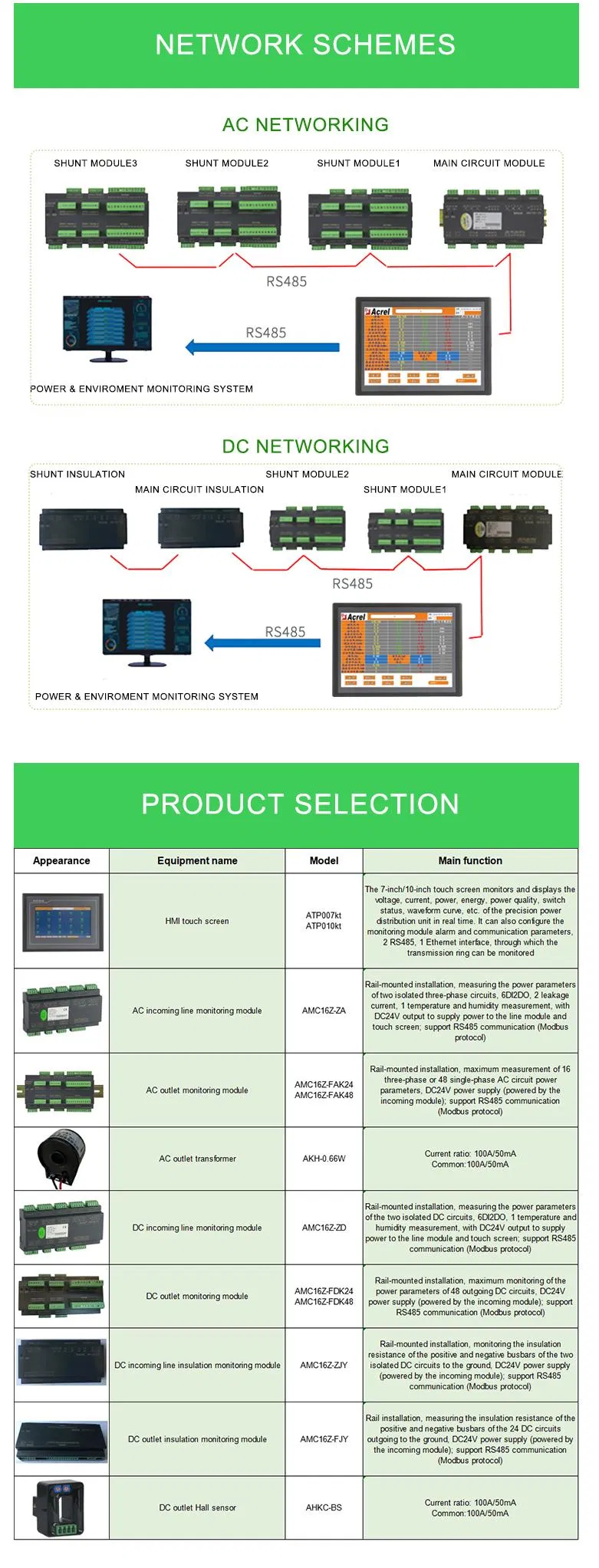

| Communication | RS485/Modbus-RTU |

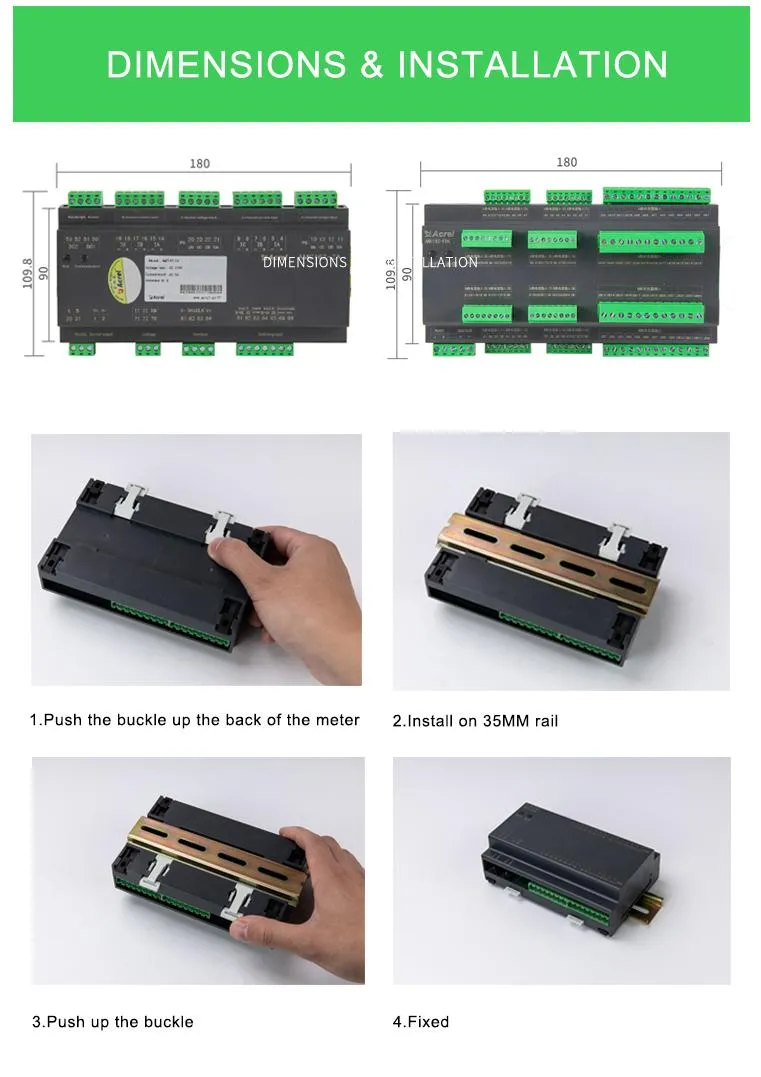

| Installation method | DIN35mm rail or baseplate mounting |
| Protection level | IP20 |
| Security Insulation | Insulation resistance not less than 100MΩ |
| EMC Interference | Antistatic Level 4, RF Radiation Level 3 |
