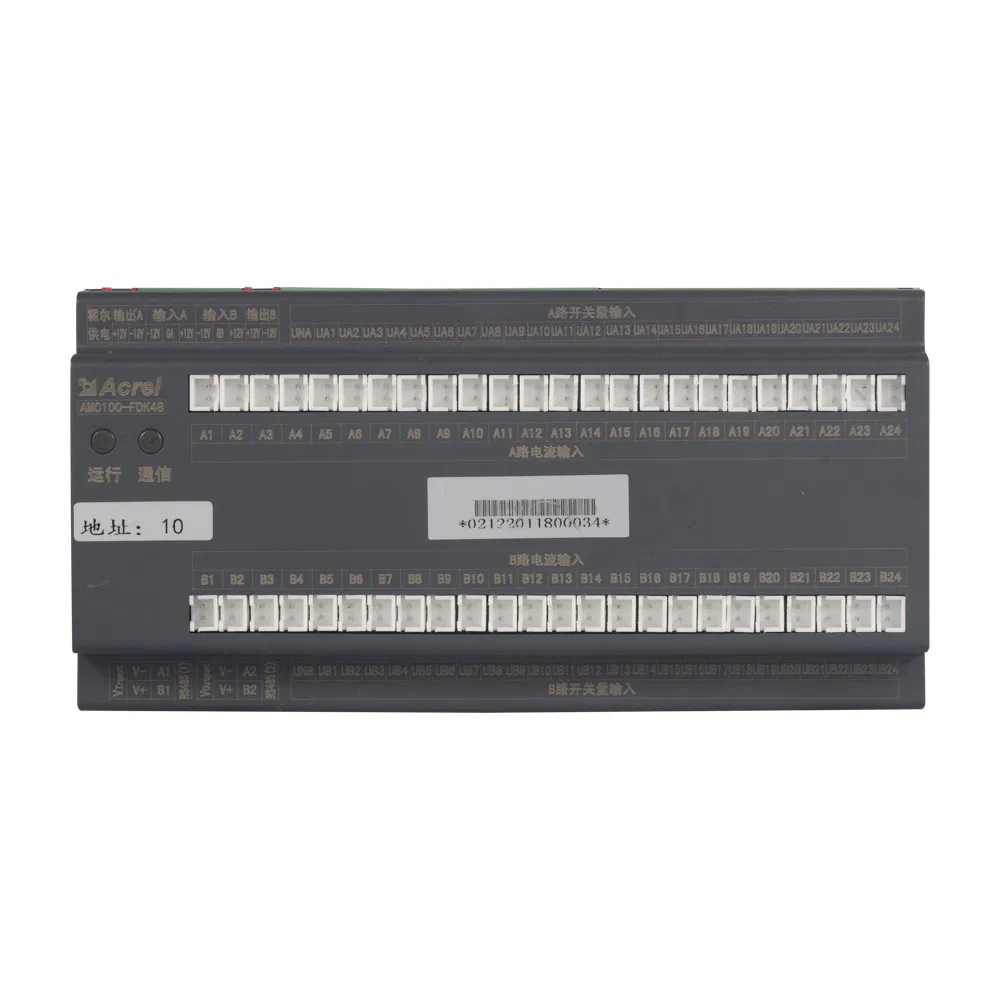

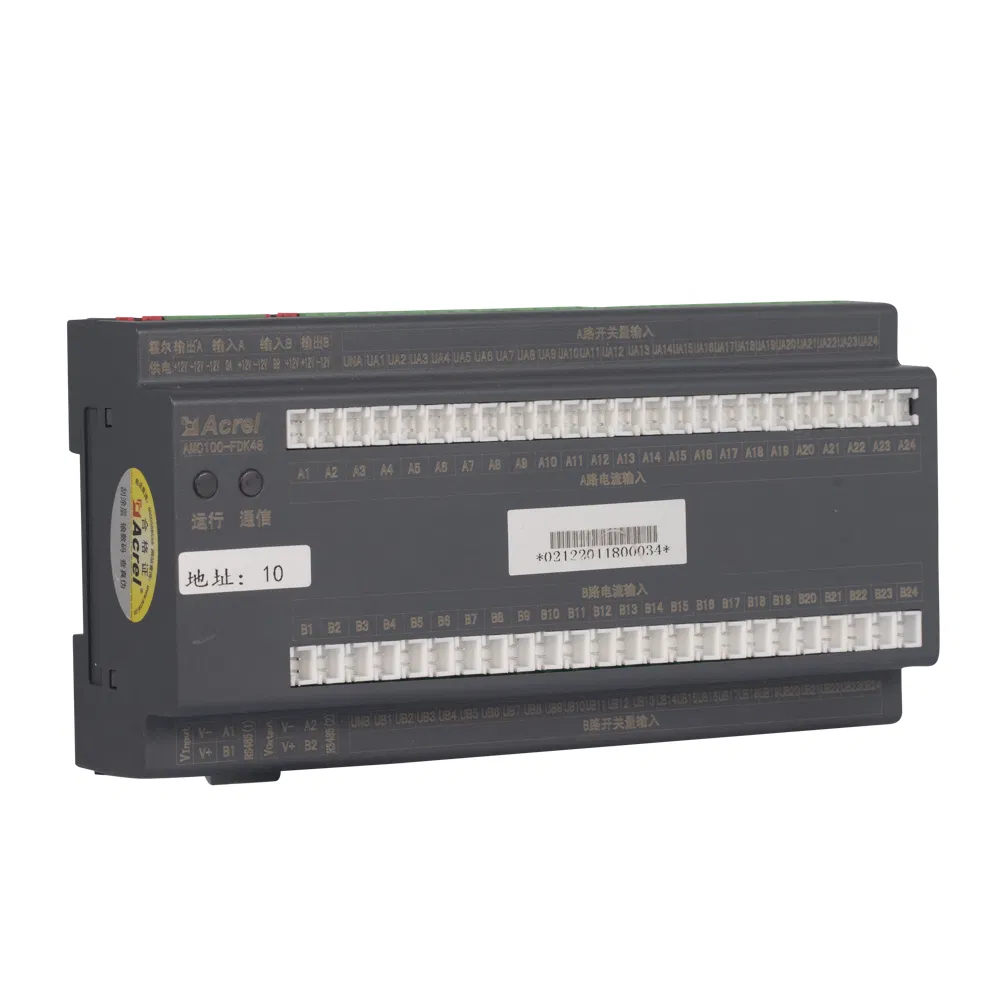

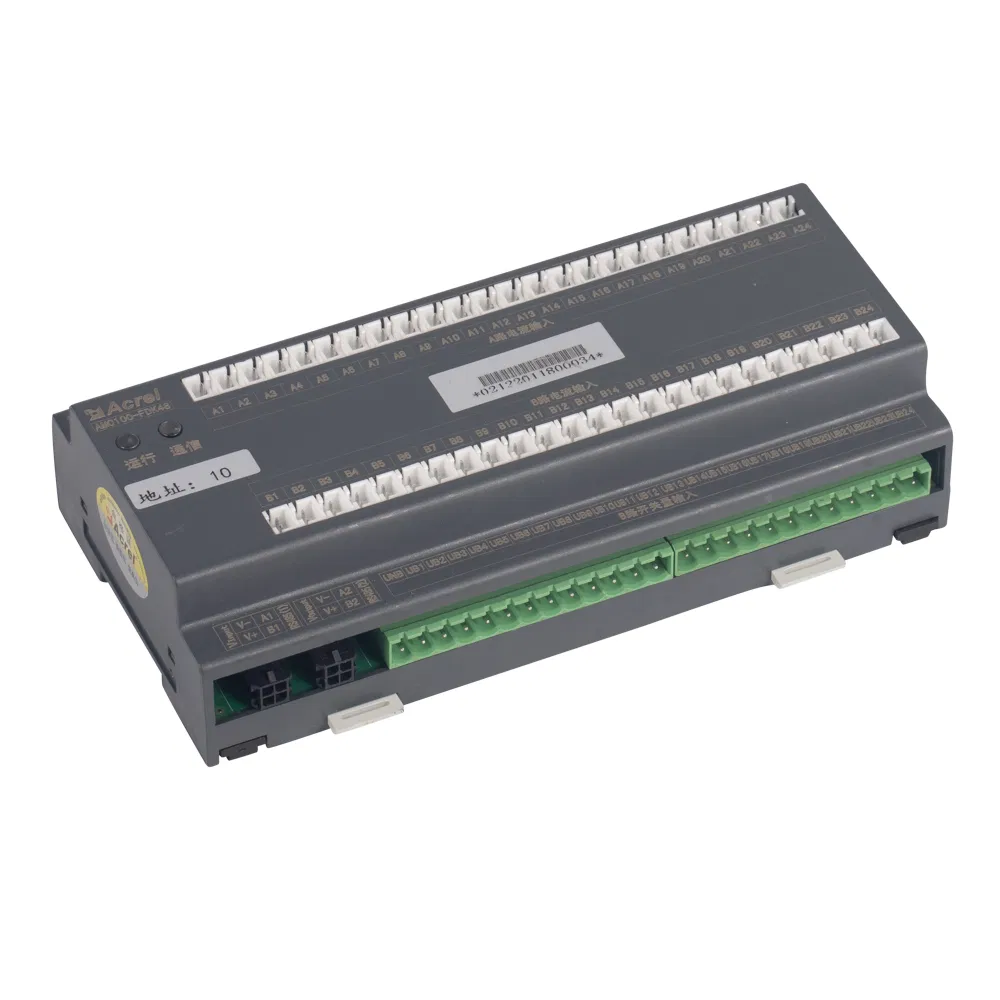

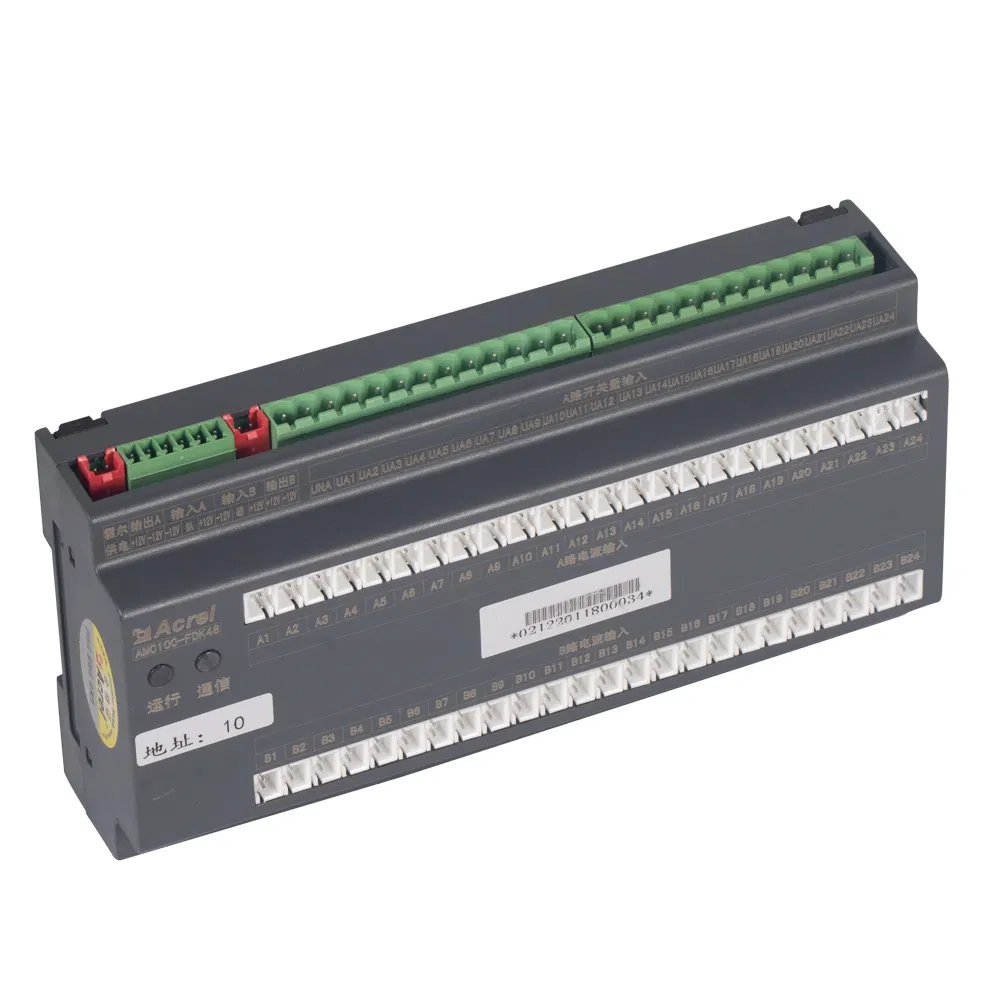

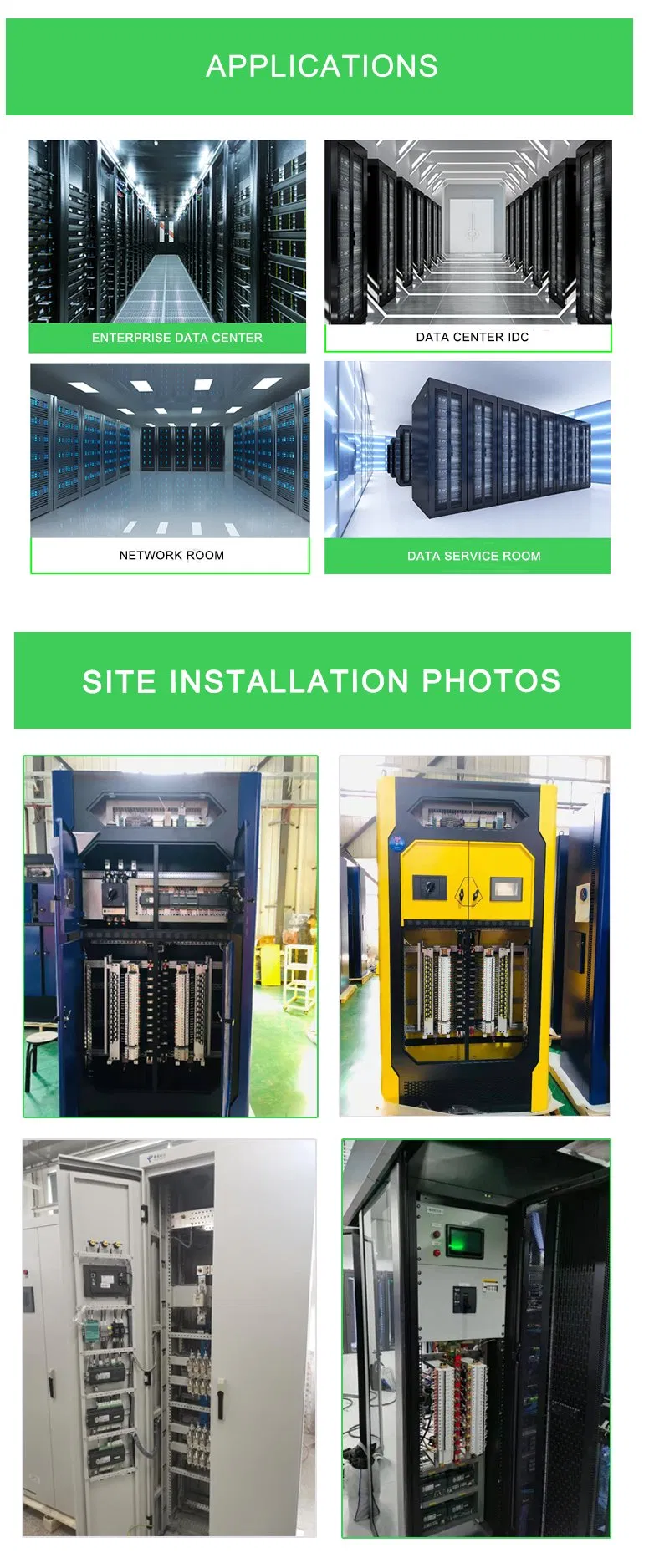

AMC100 DC Precision Power Distribution Monitoring Device is designed specifically for the energy management of data center servers. As data centers evolve rapidly, energy consumption has become a critical issue. Efficient and reliable power distribution schemes are essential for improving power efficiency and reducing equipment energy consumption.
Traditional measuring instruments often fail to meet the strict requirements for cost, volume, and centralized installation in modern data centers. The AMC100 series offers an exquisite design capable of real-time monitoring for electrical parameters across multiple circuits, including input and output switch states and lightning protection devices.
| Item | Data |
|---|---|
| Measurement parameters | Voltage, current, power, energy, switching status |
| Bus voltage rated | 48VDC, 240VDC, 336VDC |
| Current outgoing loop rated | 5V (Hall sensor, external supply required ±12V) |
| Measurement accuracy | Voltage/current 0.5 level, power/energy level 1 |
| Auxiliary power supply | Powered by AMC100-ZD, DC 12-24V when used alone |
| Communication | RS485/Modbus-RTU |
| Installation method | DIN35mm rail or baseplate mounting |
| Storage temperature | -25°C ~ 70°C |
| Working temperature | -15°C ~ 55°C |
| Protection level | IP20 |
