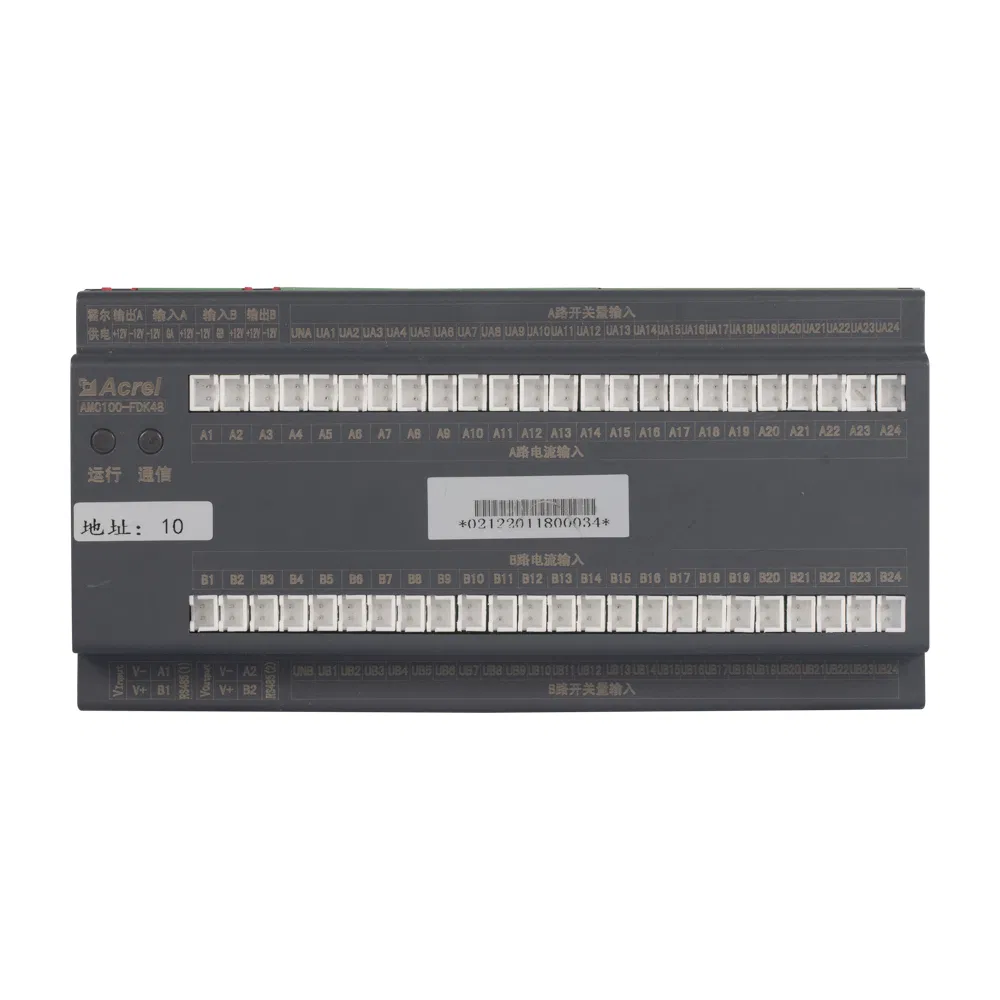

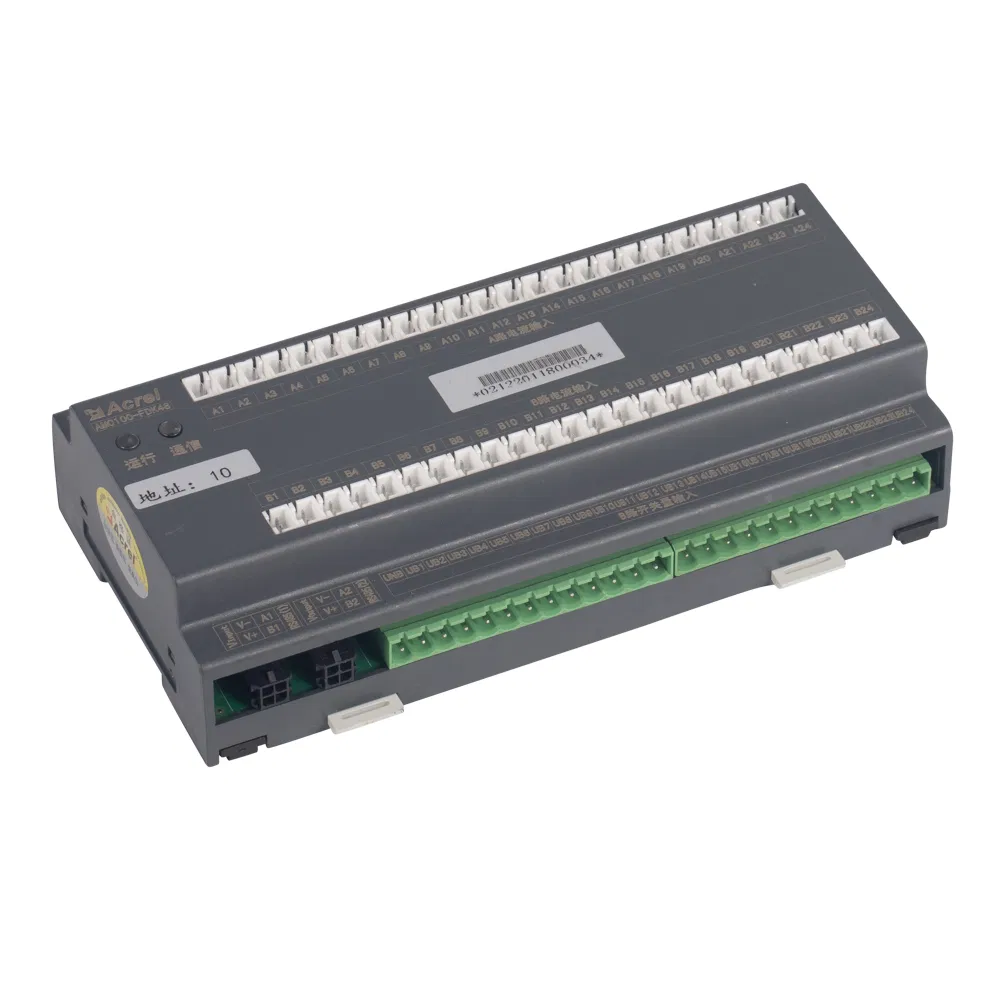

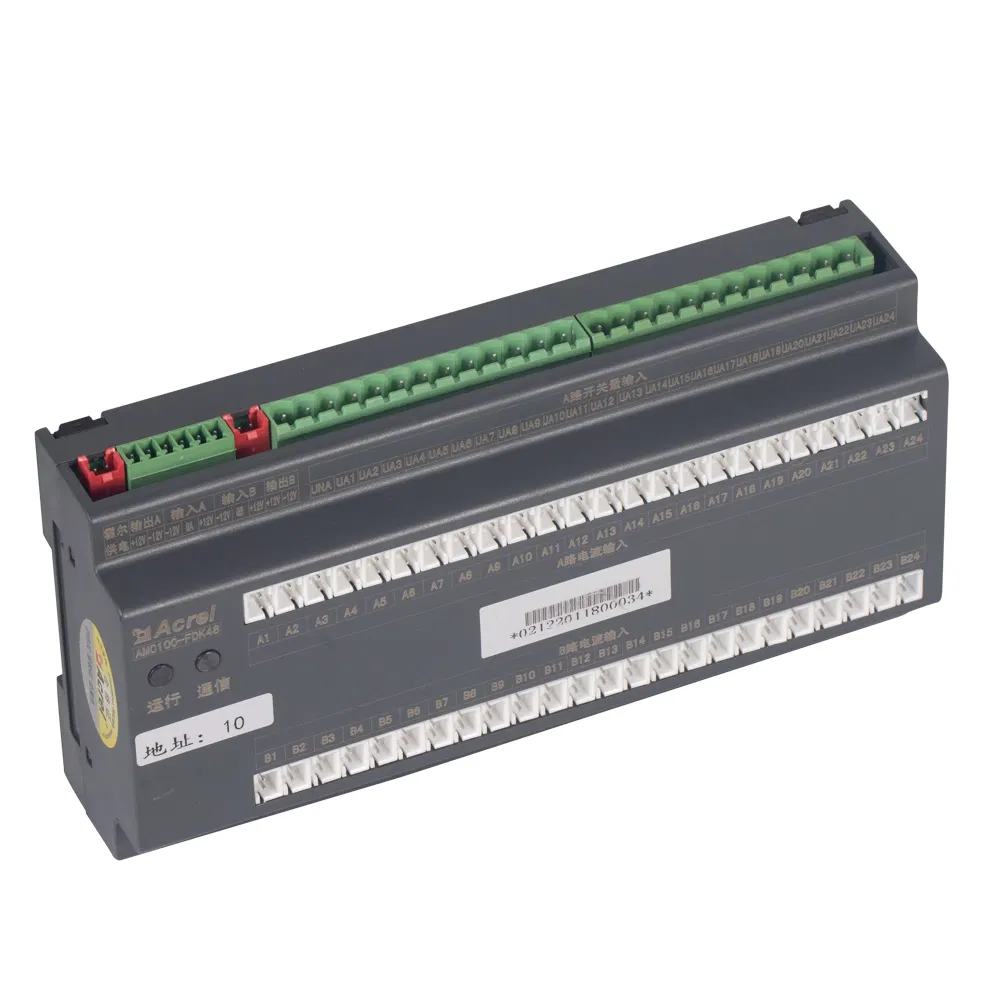

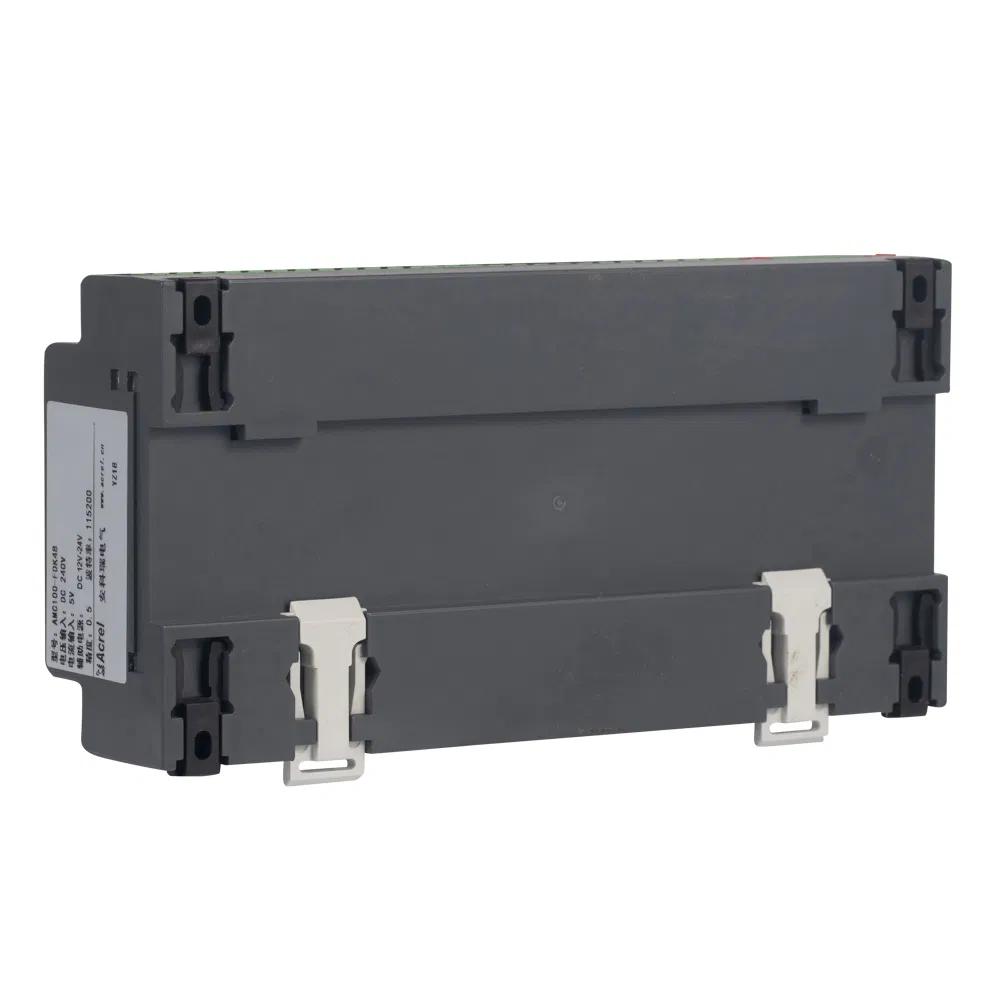

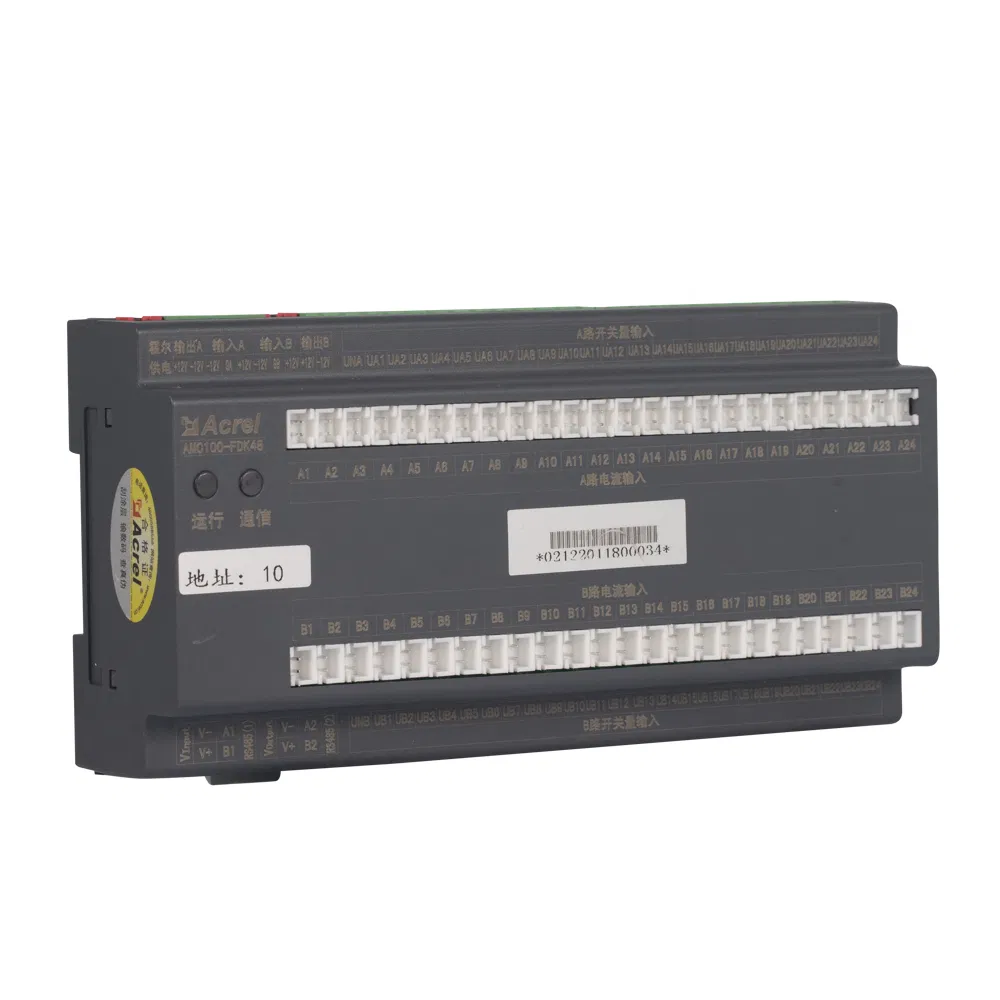

Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
1 / 5
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center
Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center

Acrel Amc16z-Fdk48 DC Multi-Circuit DIN Rail Monitoring Device with 48 Branch Full Electric Parameter and 1RS485 for Data Center

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
AMC16Z-FDK48
Display
Digital
Installation
DIN Rail
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use
Electric Equipment
Three Phase
Type
Energy Meter
Bus Voltage
48VDC, 240VDC, 336VDC
Communication
RS485/Modbus-RTU

Product Description

!
AMC100 DC Precision Power Distribution Monitoring Device
With the rapid development of data centers, energy management and power distribution design have become critical issues. Efficient and reliable power distribution is an effective way to improve power efficiency and reduce energy consumption.
The AMC100 series DC precision power distribution monitor is a measurement device designed specifically for power management of data center servers. The exquisite design allows for real-time monitoring of electrical parameters for multiple lines, including switch states and lightning protection. All alarm thresholds can be set separately to trigger system alarms when limits are exceeded.

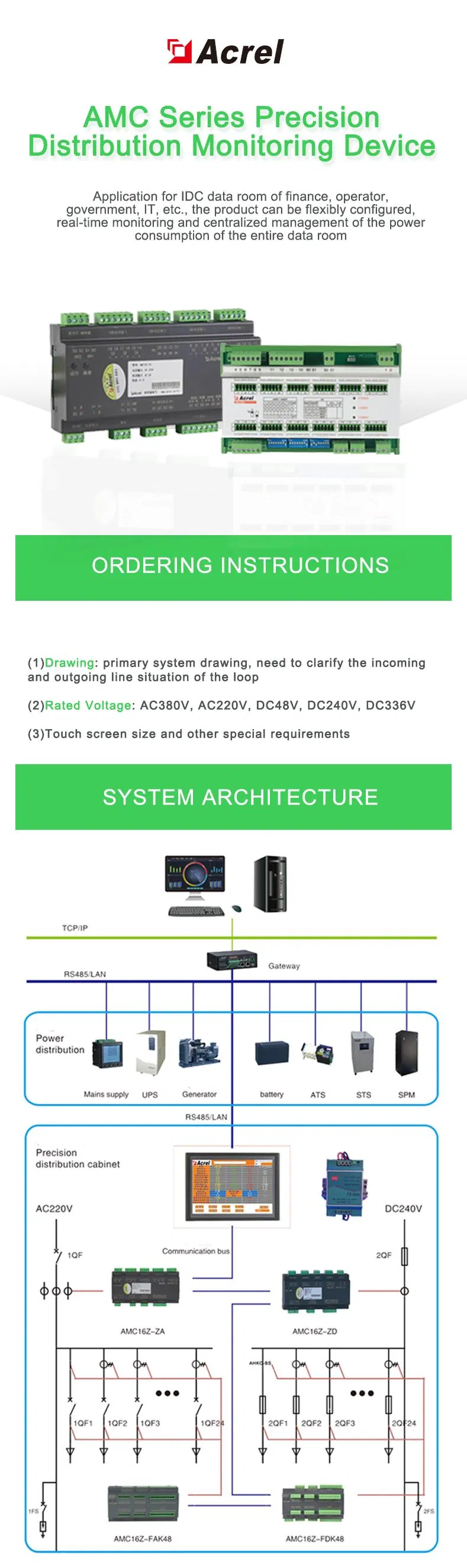

DC Monitoring Device

Technical Data

Item Data
Measurement parametersVoltage, current, power, energy, switching status
Bus voltage rated48VDC, 240VDC, 336VDC
Current outgoing loop rated5V (Hall sensor required)
Measurement accuracyVoltage/current 0.5 level, power/energy level 1
Auxiliary power supplyDC 12-24V
CommunicationRS485/Modbus-RTU
Installation methodDIN35mm rail or baseplate mounting
Working temperature-15°C ~ 55°C
Protection levelIP20

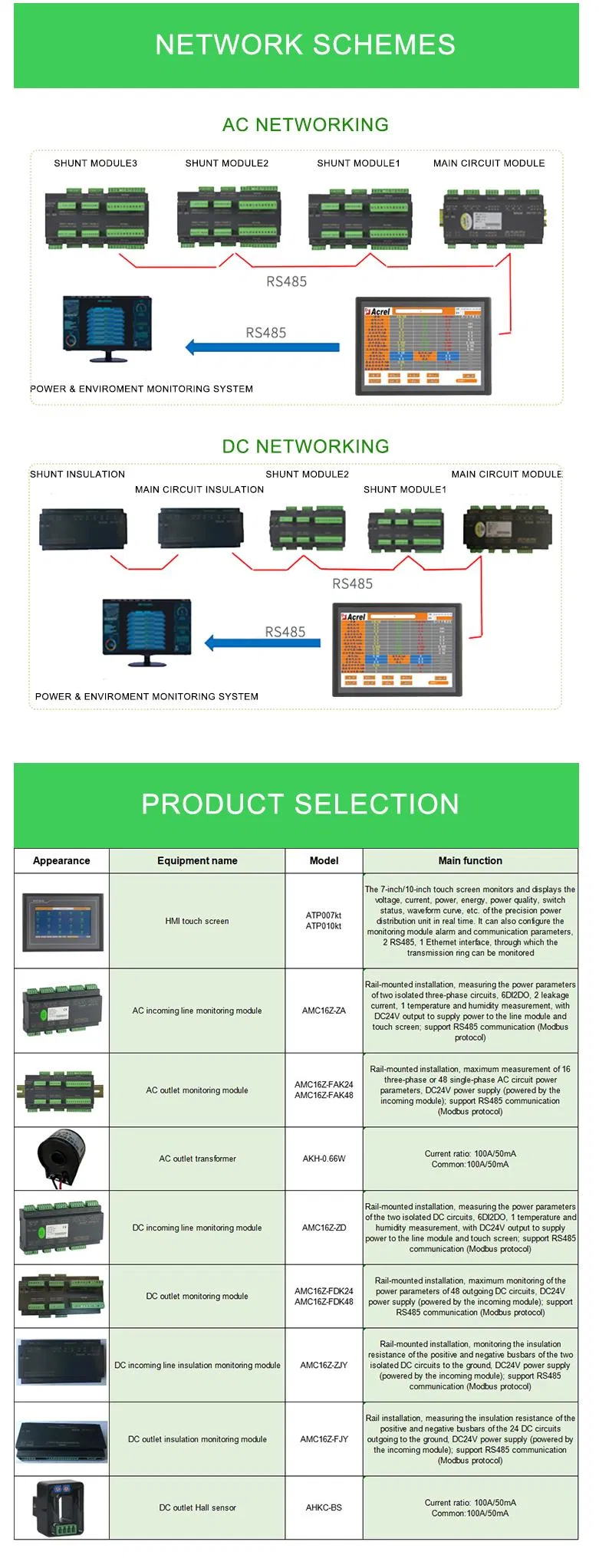

Technical Specifications

Installation Instructions

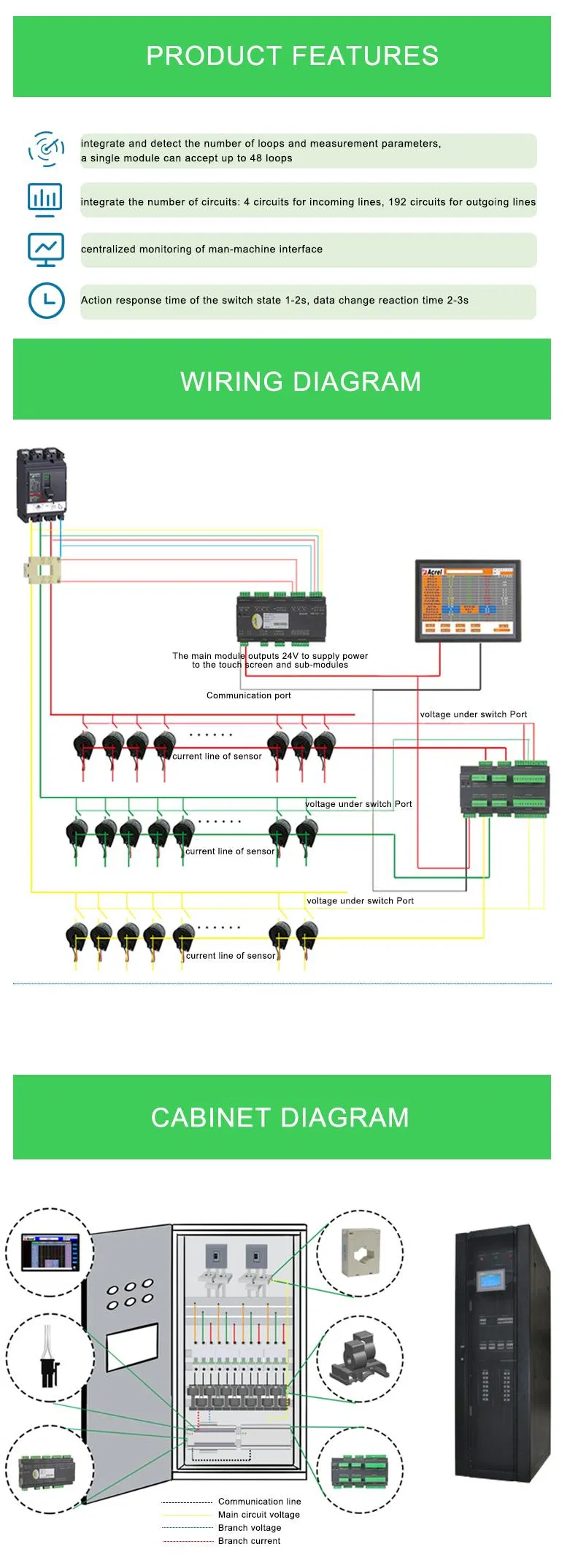

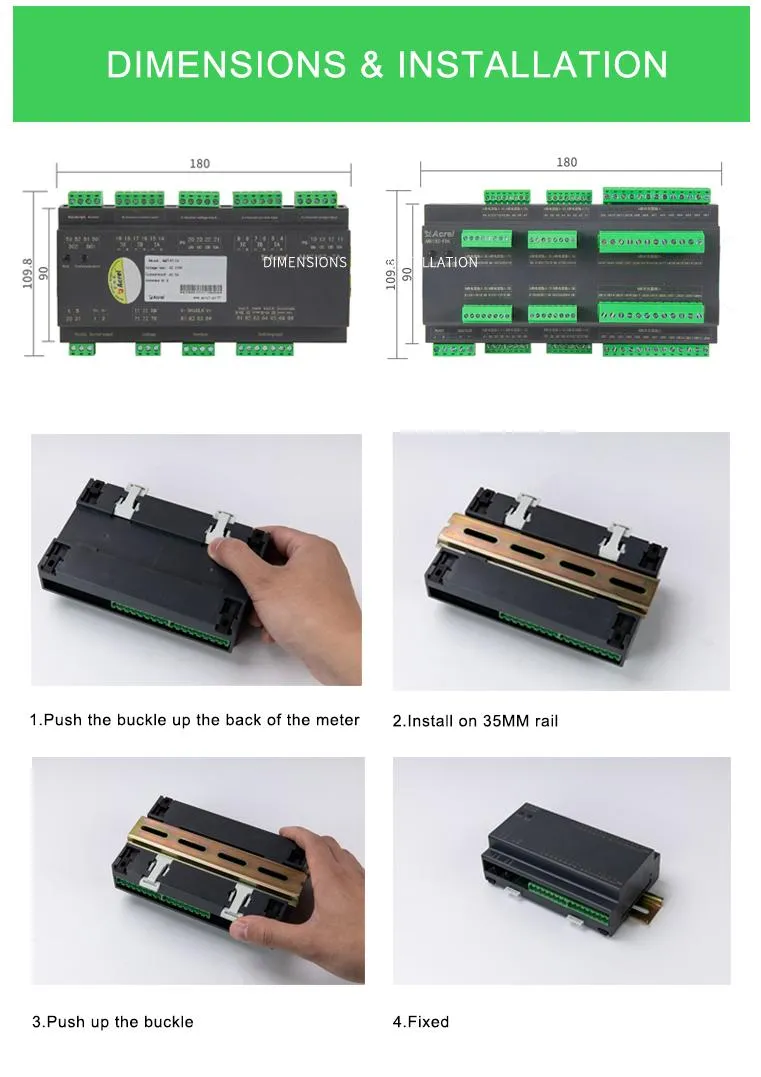

Installation 1 Installation 2

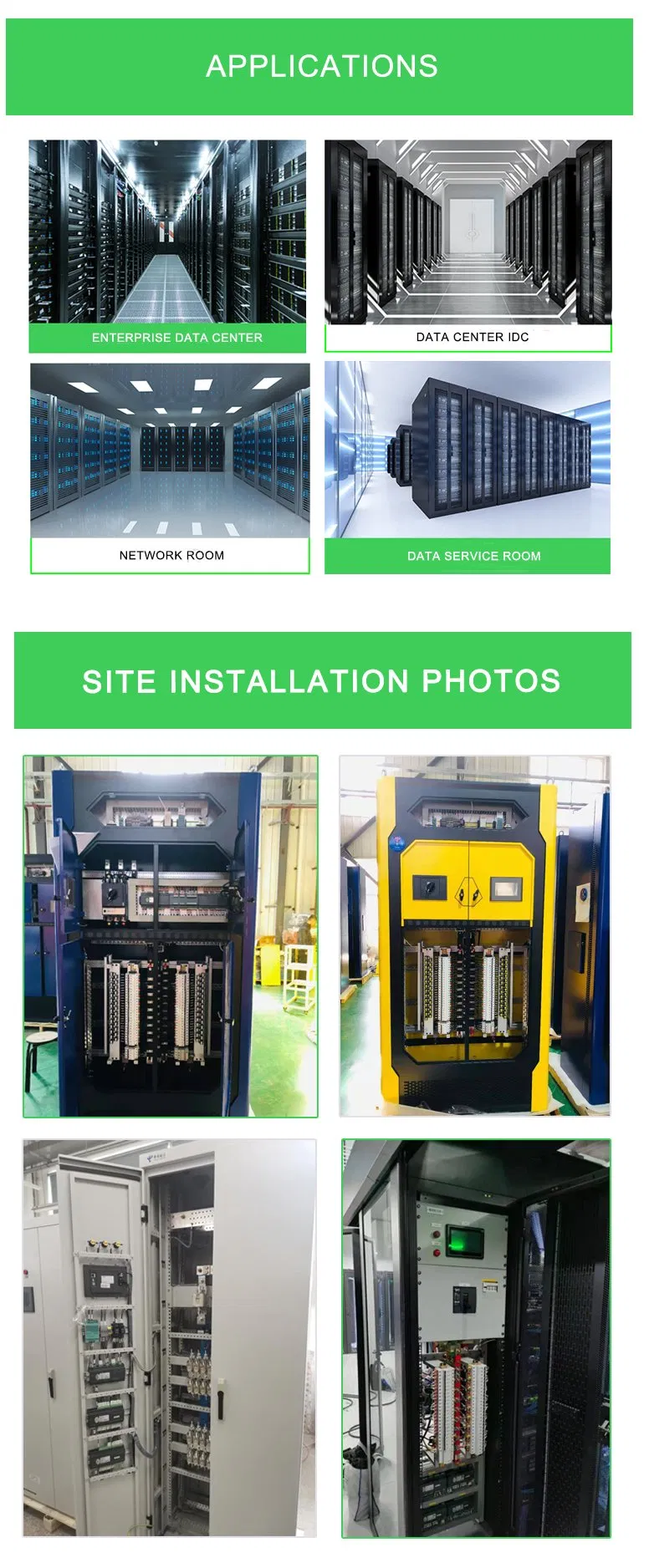

Real Site Application & Certifications

Real Site Application Certifications

Product Visualization

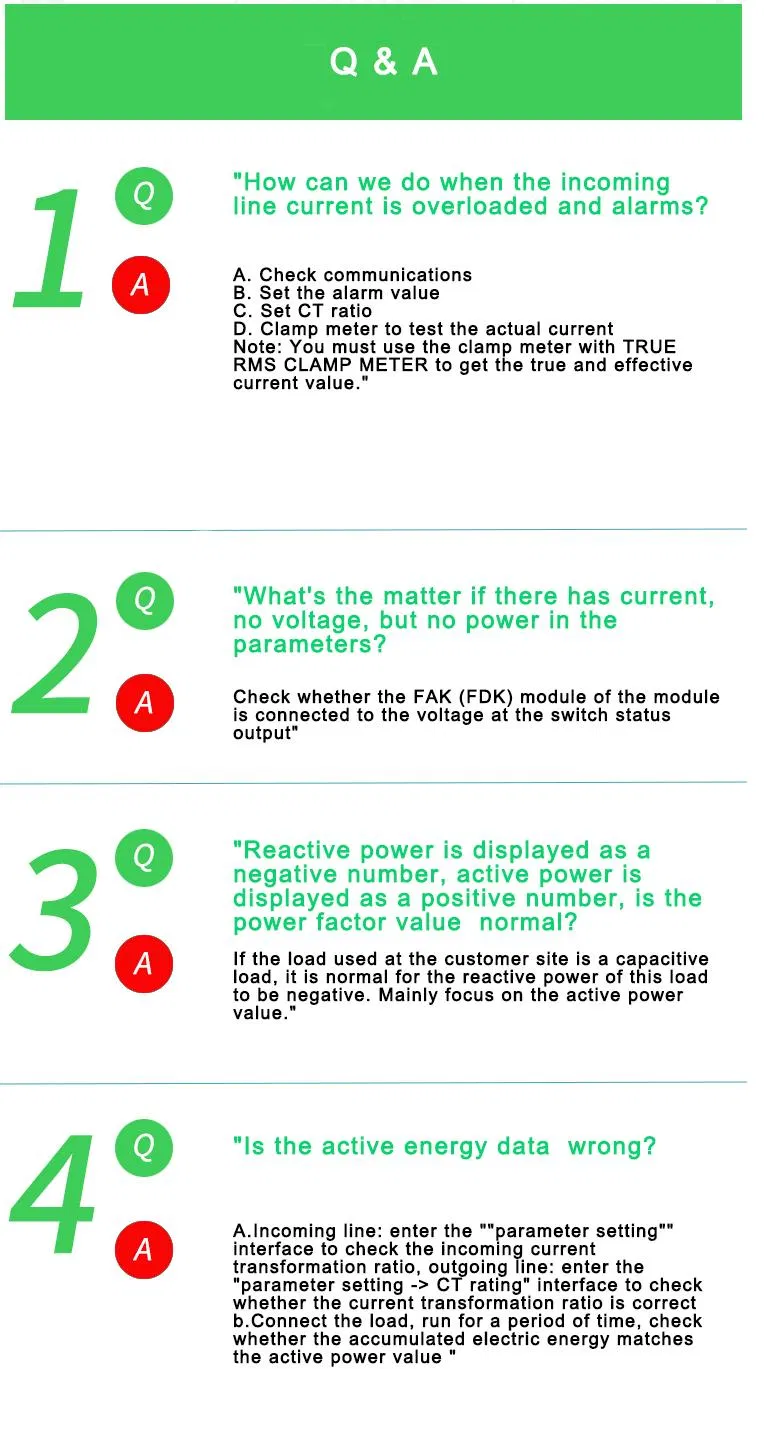

Product FAQ Details Product Overview

Frequently Asked Questions

1. What is the primary use of the AMC16Z-FDK48?
It is designed specifically for power management and centralized monitoring of multiple loop loads in data center server environments.
2. Which electrical parameters can the device monitor?
The device can monitor voltage, current, power, energy, and switching status for both input lines and branch circuits.
3. What are the installation requirements?
The device supports standard DIN 35mm rail installation or bottom plate mounting, making it highly flexible for different cabinet layouts.
4. Does the device support remote communication?
Yes, it features RS485 communication using the Modbus-RTU protocol for seamless integration into monitoring systems.
5. What is the measurement accuracy of the unit?
It provides high-precision monitoring with a 0.5 level accuracy for voltage and current, and a level 1 accuracy for power and energy.
6. Can it handle different DC voltage systems?
Yes, it is compatible with various bus voltages including 48VDC, 240VDC, and 336VDC systems.
