Acrel Amc200L-8e3 Connect to 8 Three-Phase AC Circuits at The Same Time Power Monitoring Device LCD Display

1 / 5

Acrel Amc200L-8e3 Connect to 8 Three-Phase AC Circuits at The Same Time Power Monitoring Device LCD Display

Customization:	Available
After-sales Service:	Yes
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

AMC200L-8e3

Display

Digital / LCD

Usage

Multi-Functional Energy Meter

Electric Equipment

Three Phase

Theory

Electronic Meter

Type

Energy Meter

Accuracy Class

0.5

Max. Current

50mA CT

Measuring Energy

0-999999.9 Kwh

Application

Electric Power, Industrial, Household

Operating Temp.

-20°C to 55°C

Origin

China

Product Description

AMC200(L) DC multi-circuit intelligent power acquisition and monitoring device is designed for full electrical parameter measurement of multiple circuits.

It supports concurrent connection of up to 12 single-phase DC circuits for direct measurement of voltage, current, and power.

Technical Parameter		Technical Indicator
Input	DC Voltage	One channel: DC -48V
	DC Current	12 Channels Hall Current Sensor: 5V access
	State Monitoring	One channel: DC 0-5V
	Overload	Voltage: 1.2x continuous; Current: 10x for 1s
Accuracy		Voltage/Current Class 0.5, Power Class 1.0
Resolution		Voltage: 0.01V, Current: 0.01A, Energy: 0.01kWh
Function	Monitoring	Total voltage, current, power, energy, and sub-channel data
	Alarm	Low/High voltage, power-off, memory failure, AC failure
	Communication	RS485, Modbus RTU or YD/T1363 protocol (1200-9600bps)
Power Consumption		Main unit ≤ 2W

Wiring & Installation

Application Scenarios

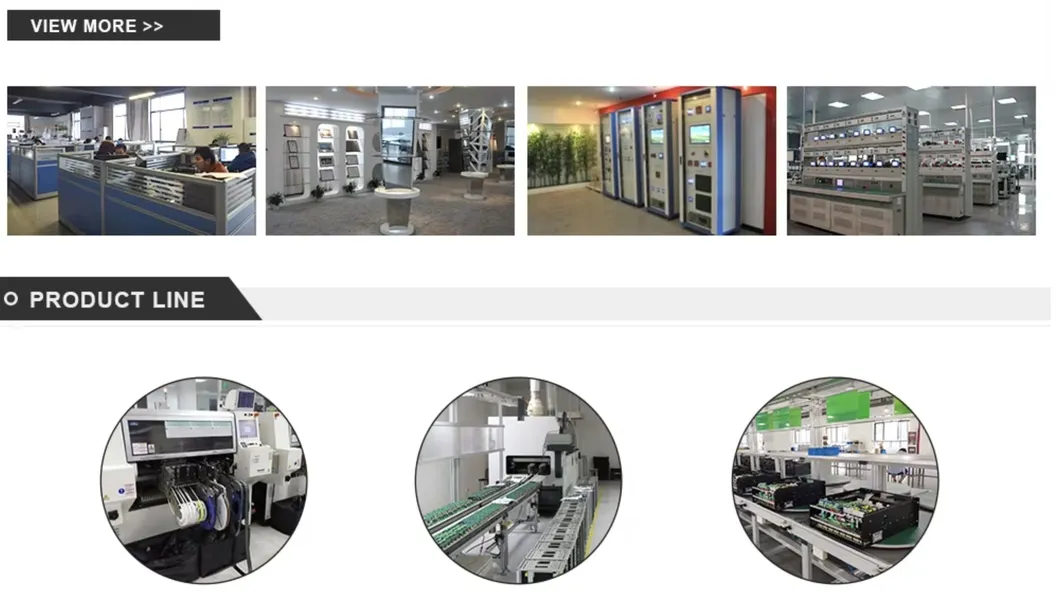

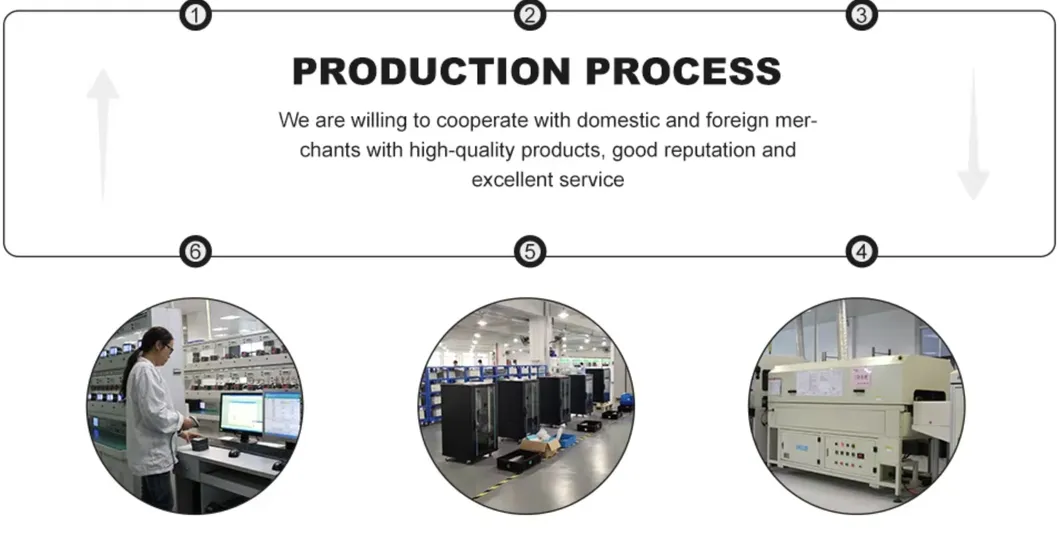

Production & Quality Control

Frequently Asked Questions (FAQ)

1. What is the primary function of the AMC200L-8e3?

It is a DC multi-circuit intelligent power acquisition device used to monitor electrical parameters like voltage, current, and energy for up to 12 channels simultaneously.

2. How many DC circuits can this device measure at once?

The device can connect to the current input of up to 12 single-phase DC circuits at the same time using Hall current sensors.

3. What communication protocols are supported?

The device supports RS485 communication with Modbus RTU or YD/T1363 protocols, with baud rates ranging from 1200 to 9600bps.

4. What is the measurement accuracy of this energy meter?

The device provides an accuracy of Class 0.5 for voltage and current measurements, and Class 1.0 for power measurements.

5. Can the device handle temperature and humidity monitoring?

Yes, it features 4 channels for NTC temperature monitoring (-20 to 100ºC) and humidity monitoring (20-90%RH).

6. Does it store historical data in case of power loss?

Yes, the unit has a storage function for historical energy data and alarm information to ensure data integrity.
