Product Description

Overview & Basic Specifications
Model NO.
ACREL-2000
Installation
Indirect Connected
Usage
Multi-Functional Energy Meter, Industrial & Home Use
Electric Equipment
Single-phase
Theory
Static Meter
Power Connection
Terminal
Measured Signal
Continuous Wave
Type
Energy Meter
Certification
ISO, CE
Customized
Available
Specification
Single phase solar energy meter
📋 Product Description

Solar PV--Energy Storage Micro-grid Energy Management System Software

Solar Storage Management Solution

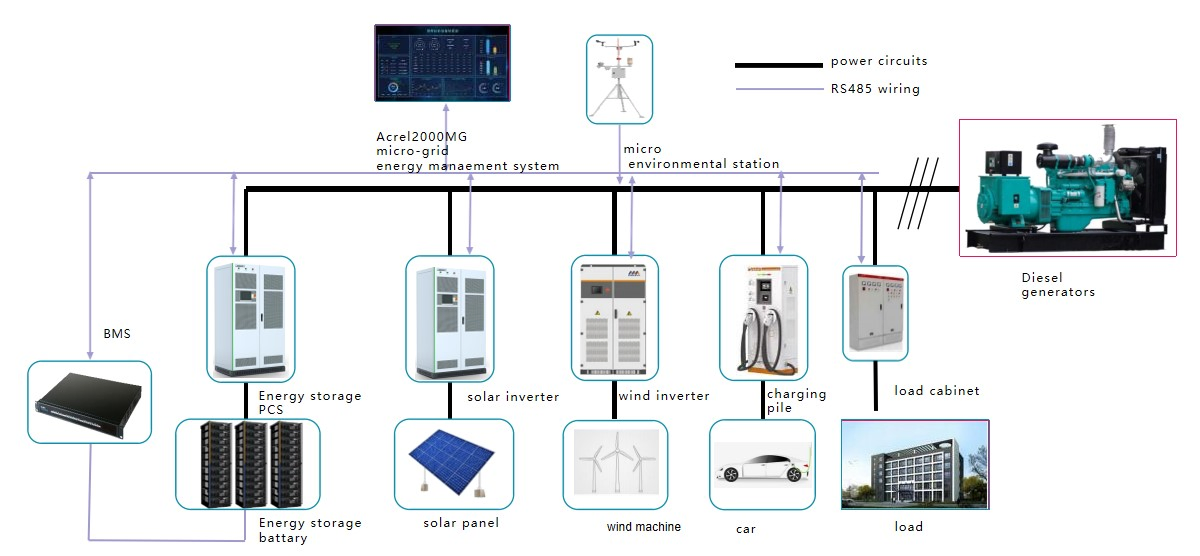

Micro-grid system: A small power generation and distribution system composed of solar photovoltaic power generation, wind power generation, energy storage, power grids, car charging piles, and other related load devices. It is an autonomous system capable of self-control, protection, and management.
Grid-connected type Capable of connecting to the power grid for operation while supporting independent off-grid operation.
Off-grid type Operates independently from the external power grid, ensuring self-use of electric energy and a balanced microgrid.
⚙️ System Features & Capabilities
AC bus microgrid off-grid

AC bus microgrid - Off-grid type

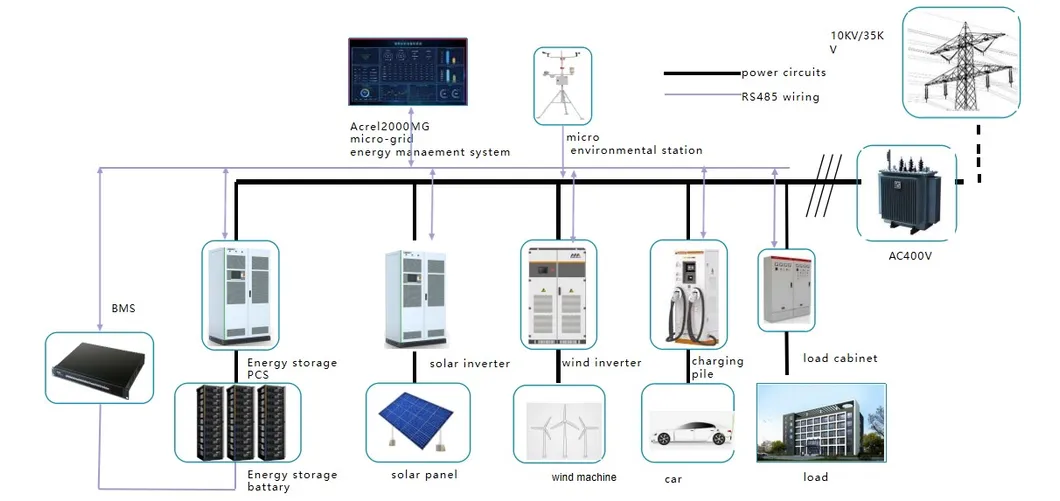

AC bus microgrid grid-connected

AC bus microgrid - Grid-connected type

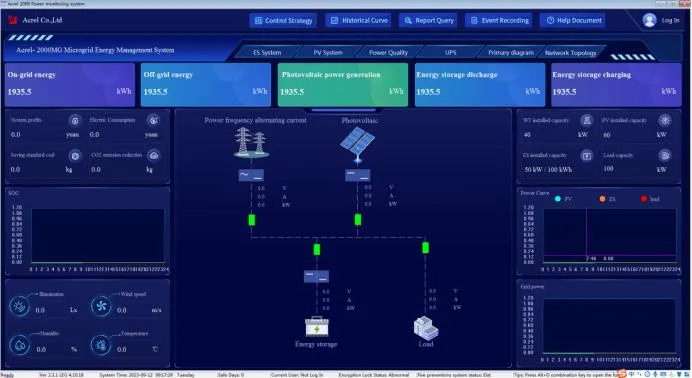

The main interface includes photovoltaic, wind power, energy storage, charging piles, and overall load conditions. It reflects the wiring diagram, alarm information, income, and environmental data.
Microgrid Interface
>
Comprehensive Data: Monitoring electrical parameters, charge/discharge capacity, and energy-saving statistics.
>
Operation Modes: Peak and valley modes, planning curves, and demand control.
>
Inverter Monitoring: Real-time AC/DC side status monitoring and station generation analysis.
>
Environmental Monitoring: Real-time tracking of irradiance, wind, temperature, and humidity.
Energy Storage Curve

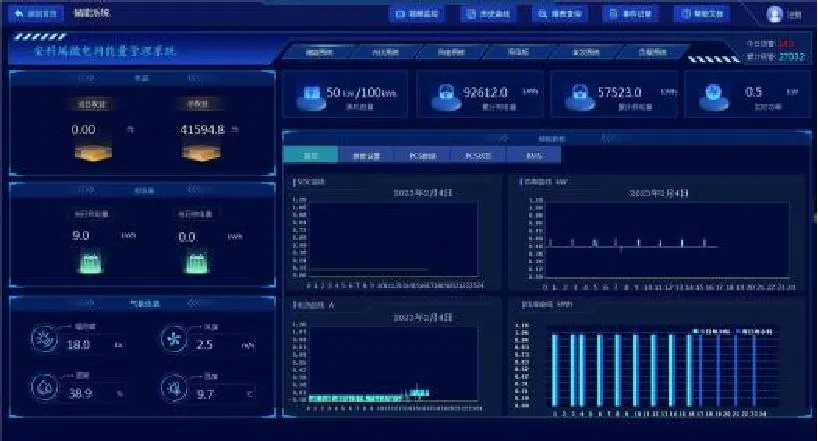

Photovoltaic Monitoring
🏭 System Integration & Certification

Frequently Asked Questions

1. What are the core components of this Micro-grid system?
The system integrates solar photovoltaic generation, wind power, energy storage units, power grids, and charging piles for electric vehicles, all managed by an autonomous control software.
2. Does the system support both Grid-connected and Off-grid modes?
Yes. It supports Grid-connected operation for supplementary power and Off-grid operation for self-sufficiency and independent energy management.
3. What kind of data analysis does the management software provide?
It provides comprehensive data on electrical parameters, charge/discharge capacity, energy saving, revenue statistics, and real-time operating power curves for energy storage.
4. Can I monitor the performance of individual inverters?
Absolutely. The software monitors both the DC and AC side of inverters, providing generation statistics and alarm notifications for any faults.
5. Is the system customizable for specific industrial needs?
Yes, the ACREL-2000 system is highly customizable to fit various industrial or domestic micro-grid requirements, including specific demand control and planning curves.
6. How does the system handle alarm notifications?
The system tracks operation status in real-time and provides instant alarm information for inverters, charging piles, and overall grid status to ensure immediate fault diagnosis.
