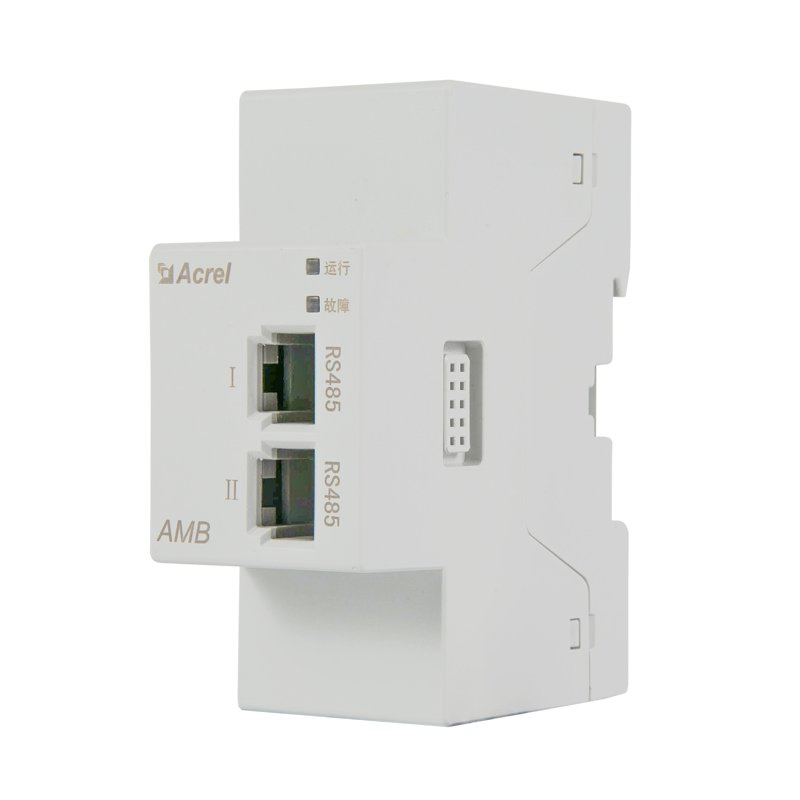

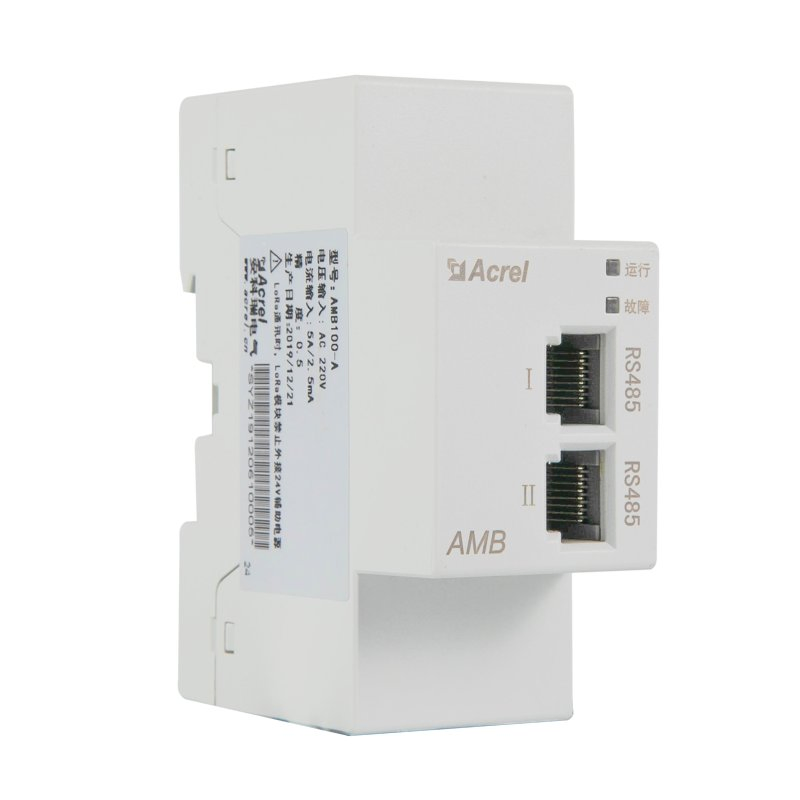

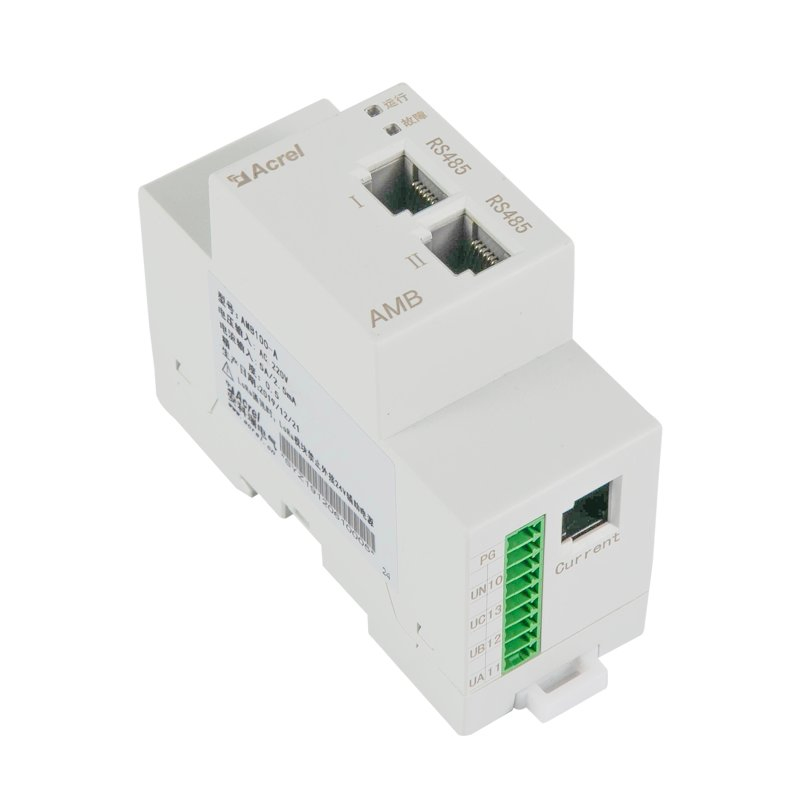

The AMB intelligent bus AC monitoring device is a sophisticated development designed for modern smart power bus bars. It integrates a feeding detection module and a tapping detection module, offering comprehensive functions including conventional power measurements, electricity monitoring, consumption assessment, and control.

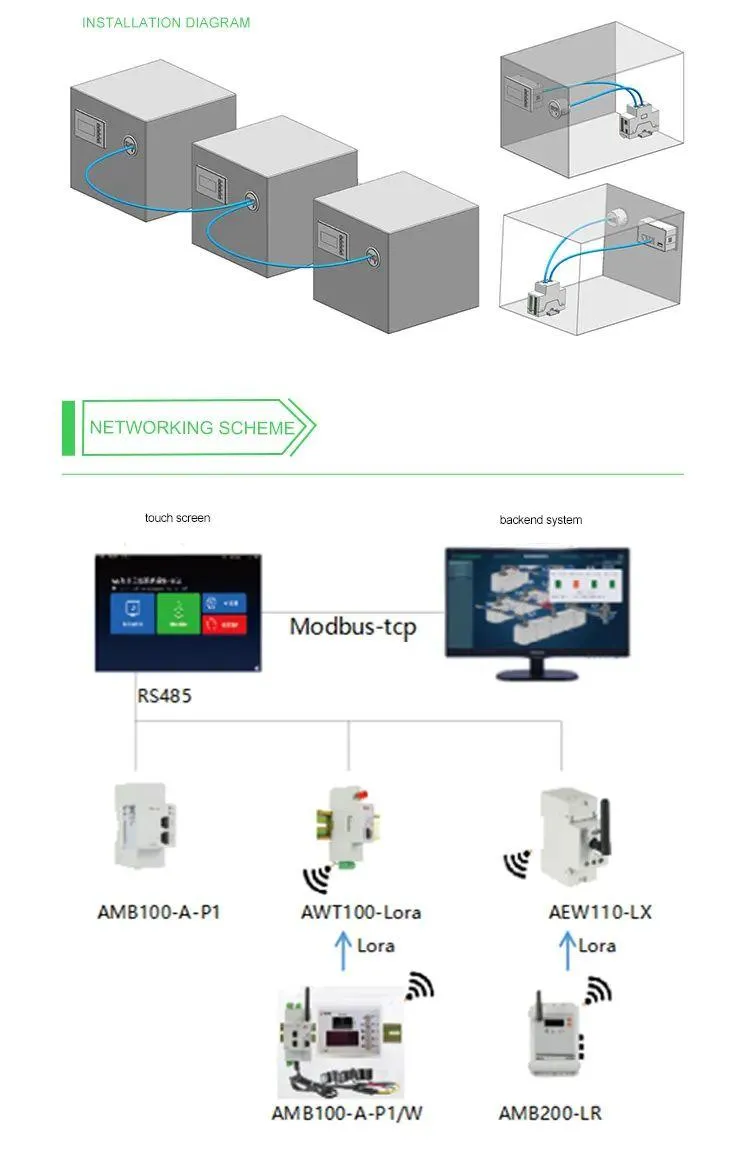

Equipped with an online alarm function and capable of independent off-line operation, it monitors bus bar interface temperatures in real-time. With 2 RJ45 communication ports and MODBUS-RTU protocol support, data transmission to main controller touch screens is seamless, ensuring safe and reliable system operations.

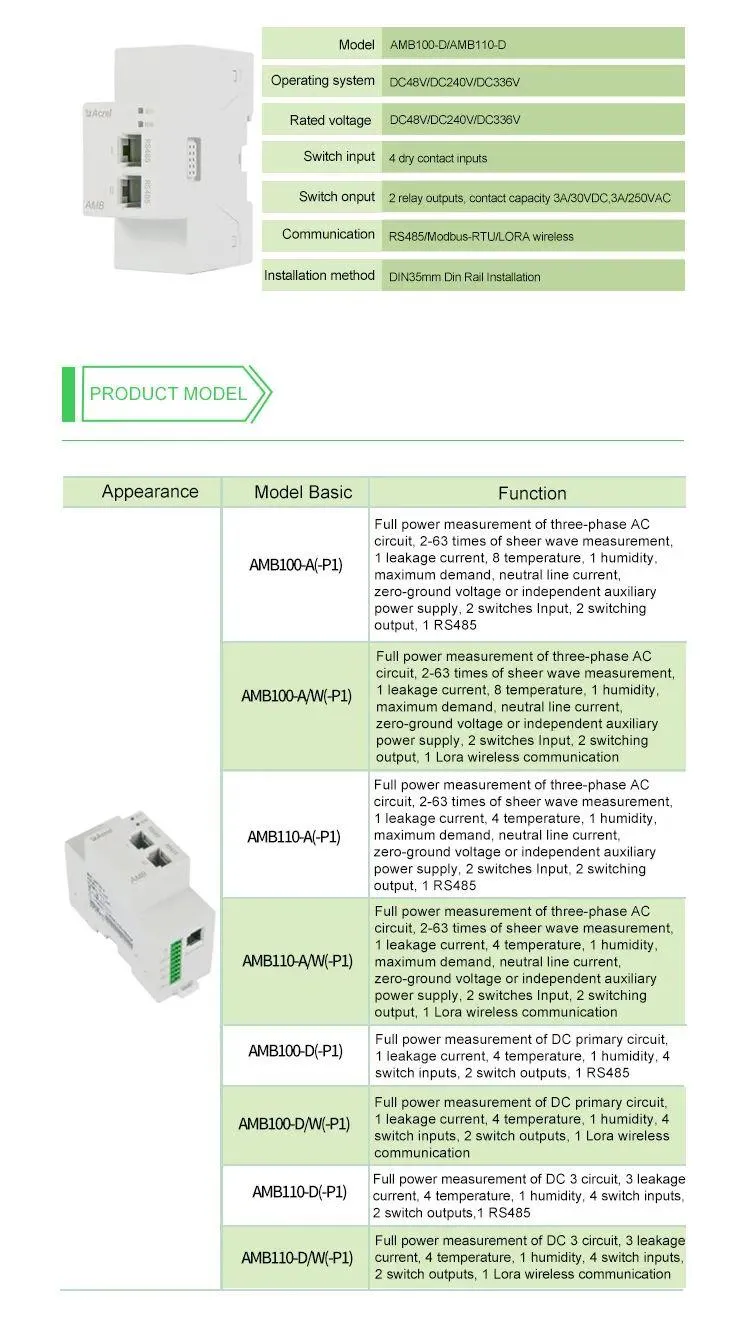

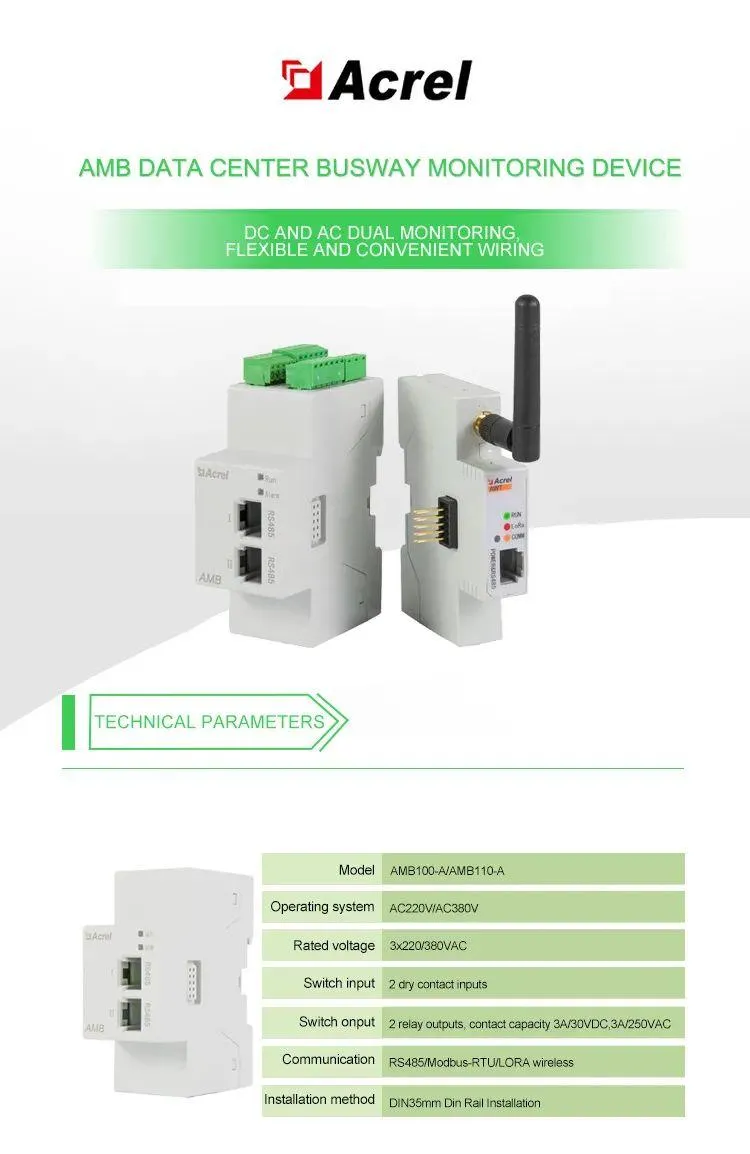

| Parameter Item | Specifications & Details | |
|---|---|---|
| Measured Parameters | Voltage, current, frequency, active/inactive power, power factor, energy, 2nd-63rd harmonic, temperature, leakage | |
| Voltage | Rated Value | 3x220/380VAC (±20%) |
| Overloading | 1.2x continuous, 2x instantaneous (1s) | |
| Current | CT Range | AMB100-A: 5A to 600A options; AMB110-A: 100A/20mA |
| Accuracy | Voltage/Current: Class 0.2; Active Power: Class 0.5 | |
| Temperature Detection | Range: -20 to 150ºC | |

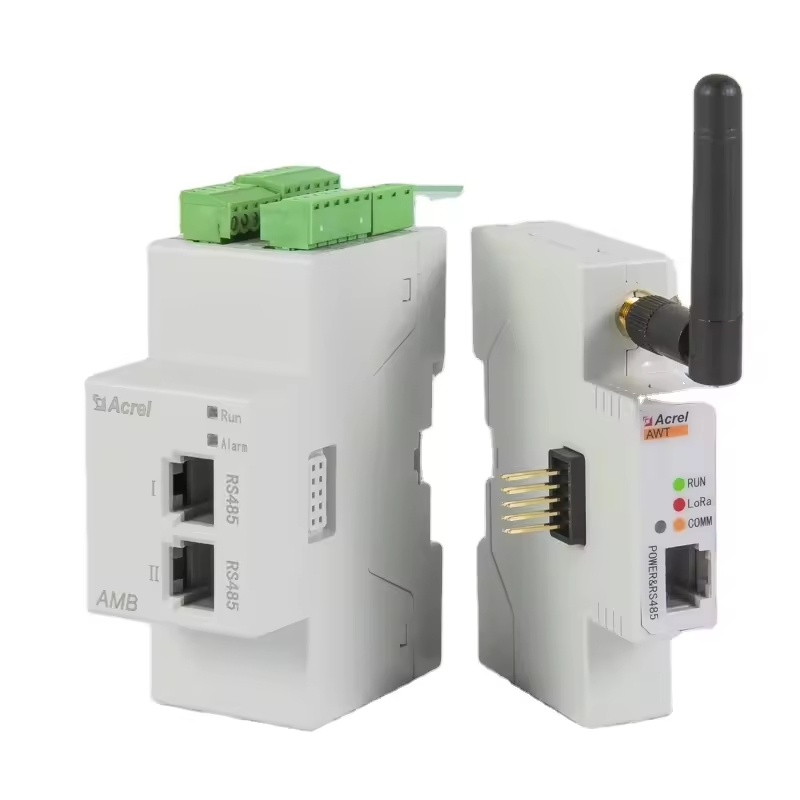

| Communication | Via RS485/Modbus-RTU or LORA antenna | |
| Environment | Working Temp: -20 to 60ºC; Altitude: ≤ 2500m | |
