Advanced Energy Storage Technology

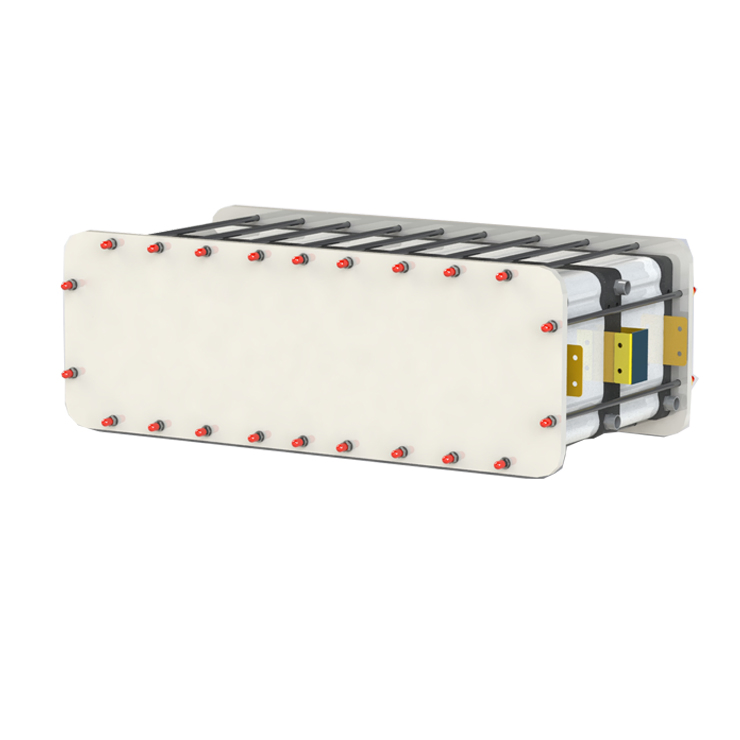

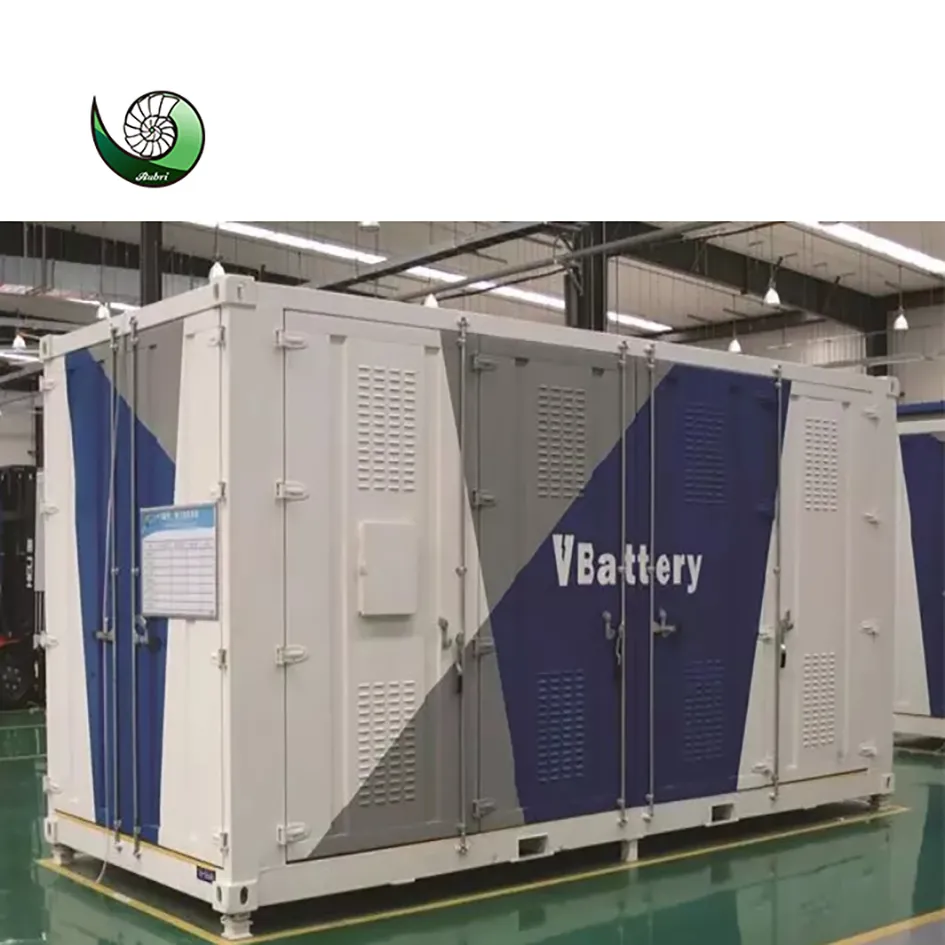

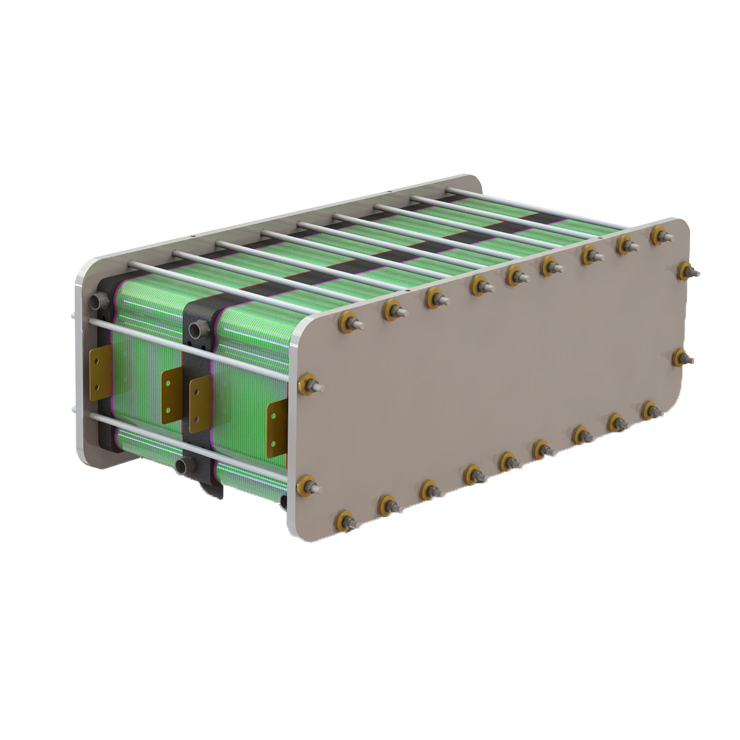

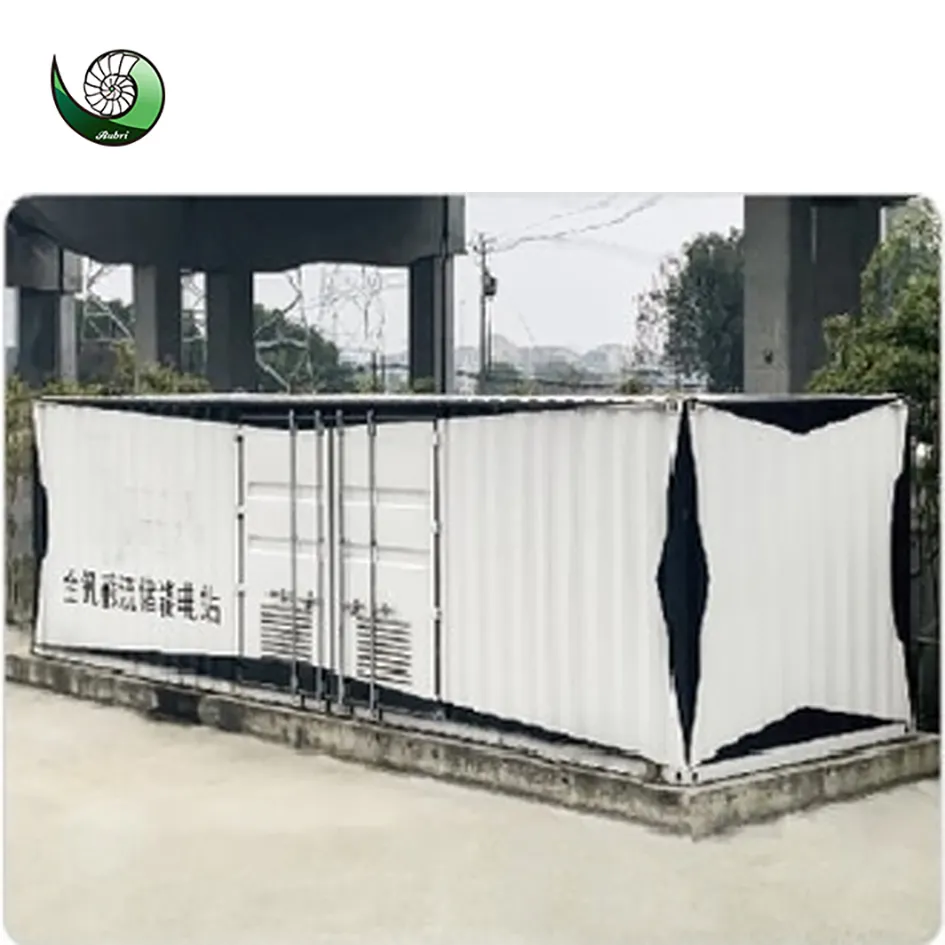

The all vanadium flow battery energy storage power station is a comprehensive energy storage system that integrates stack, electrolyte, pumping system, battery management system (BMS), energy management system (EMS), temperature control system, and other auxiliary systems. This system provides a robust and complete set of functions for large-scale energy needs.
The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power. The discharge duration is highly flexible and can be customized by adjusting the amount of electrolyte within the station. Furthermore, the system is capable of charging and discharging beyond rated power, enabling high-power operation when required.
| No. | Parameter Type | Unit | Data |
|---|---|---|---|
| 1 | Rated power | KW | 125 |
| 2 | Rated capacity | KWh | 500 |
| 3 | Maximum power | KW | 500 |
| 4 | Energy efficiency | / | >75% |
| 5 | System weight | T | 58.75 |
| 6 | System size (L*W*H) | m | 10.5 * 2.8 * 2.8 |

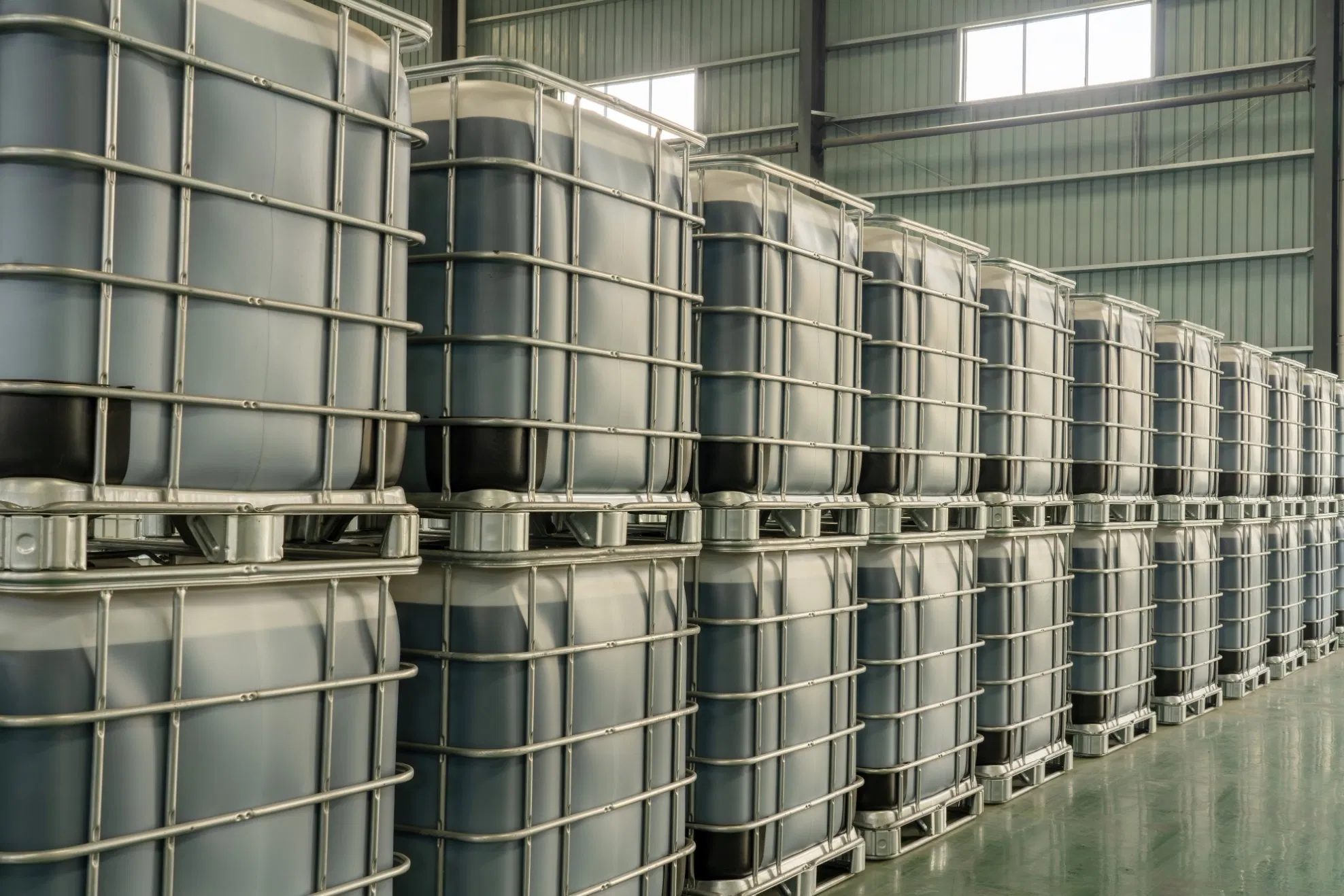

| 7 | Electrolyte weight | T | 40 |
| 8 | Electrolyte volume | m³ | 30 |
| 9 | Charge voltage limiting | VDC | 219 |
| 10 | Discharge voltage limiting | VDC | 232 |
| 11 | Cycle Life | cycles | ≥15,000 |
| 12 | Service life | years | ≥20 |
Established with a focus on sustainable energy, we provide high-quality products across the entire hydrogen and redox energy chain. Our offerings include hydrogen production, storage, supply systems, fuel cell assemblies, and advanced battery solutions.
With an experienced professional technology research and development team, we offer end-to-end services from product selection and matching to system design and technical support. We collaborate with prestigious universities and scientific research institutions worldwide to pioneer new technologies, including fuel cell applications for leading industrial enterprises.
Our advanced systems, including fuel cell stacks, hydrogen bicycles, and large-scale production equipment, are exported to dozens of countries across North America, Europe, and Asia.
