All-in-One Home Energy Storage Solution with Hybrid Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Product Information

Model NO.	QSHY
System Type	Residential / Commercial / Industrial
Cell Brand	Catl / Byd / Customized
Cycle Life	≥6000 Cycles @ 80% Dod
Operating Temp	-20℃ ~ +60℃
System Capacity	5kwh / 10kwh / 20kwh / 50kwh / 100kwh+
Protection Rating	IP20 / IP54 / IP65
Cooling Method	Air Cooling / Liquid Cooling

Product Description

6k+

Long Cycle Life

≥6000 Cycles

15Y

Warranty

Product Quality Support

APP

Smart Monitor

WiFi & Bluetooth Enabled

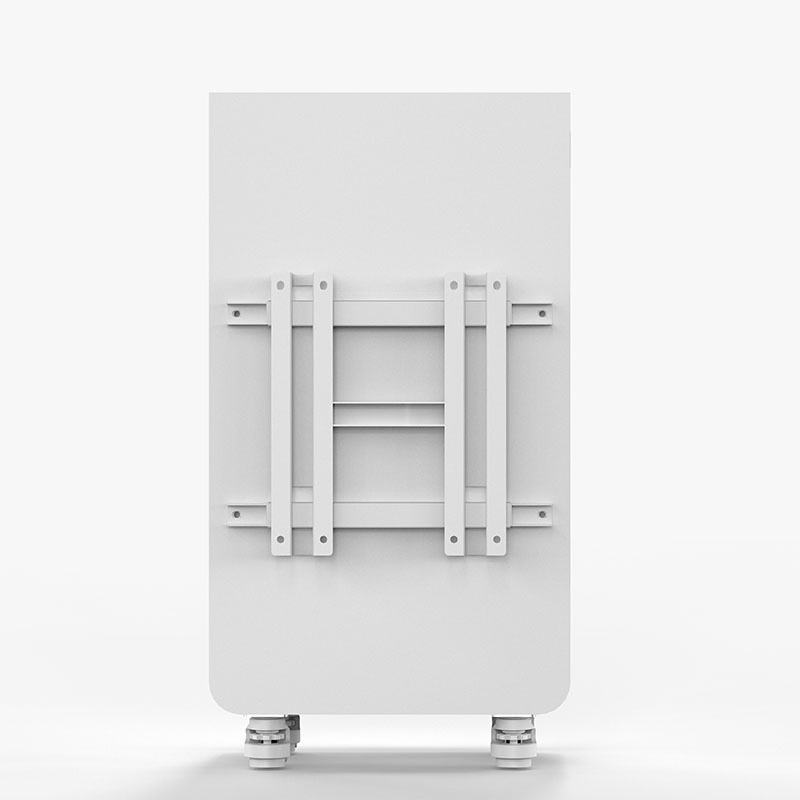

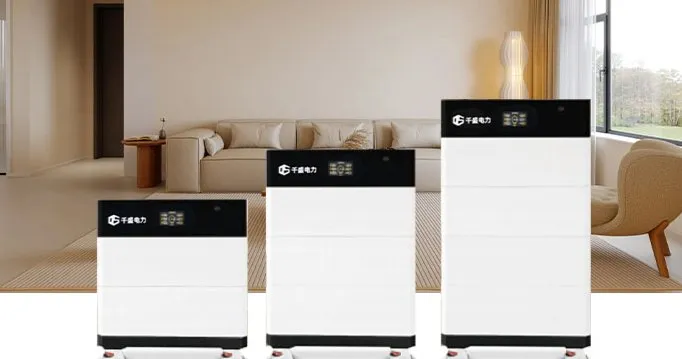

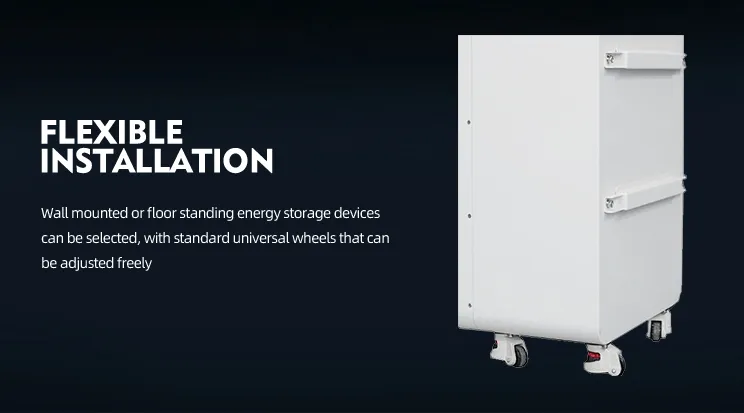

Our energy storage system supports wall-mounting and vertical stacking to adapt to diverse installation scenarios, allows parallel connection of up to 15 units for flexible capacity expansion, and is equipped with a dual-mode Bluetooth and WiFi APP that enables real-time battery status tracking—delivering comprehensive convenience from installation to usage.

Product Variations & Capacity

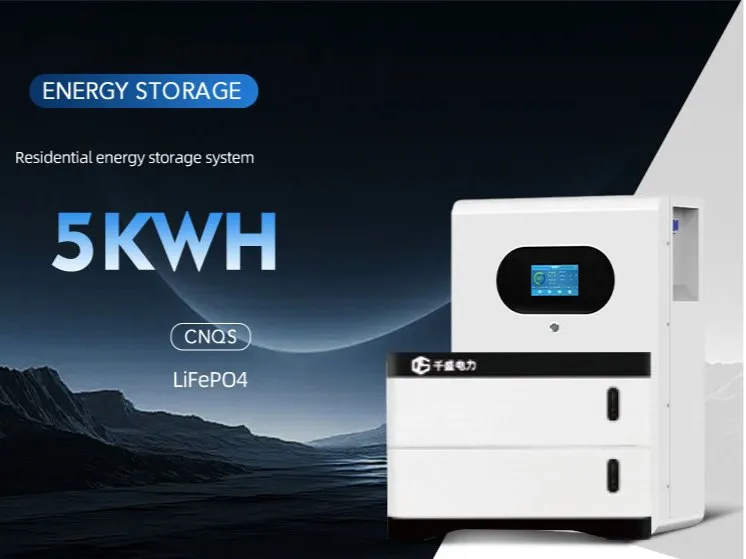

5kWh System

Certified to IEC 62619 standard
Compatible with 20+ mainstream inverters
System round-trip efficiency up to 95%
Flexible power expansion

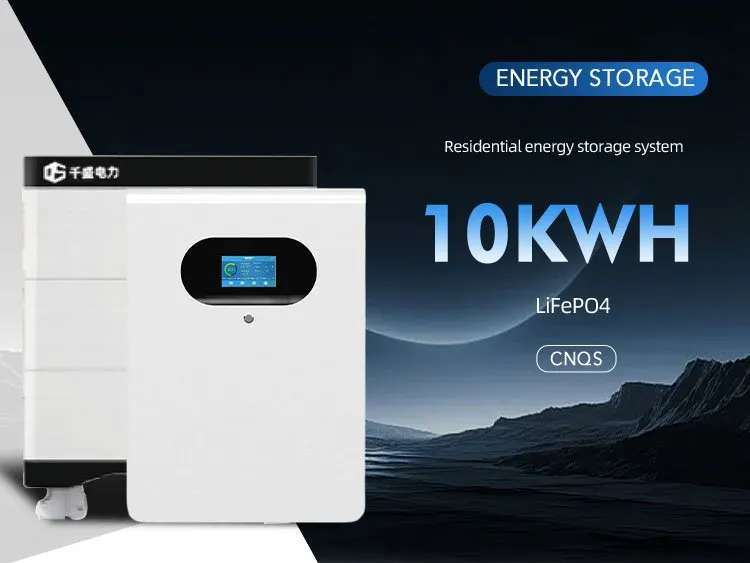

10kWh System

All-In-One Design (Battery & Inverter)
AC + PV Dual Charging
Usable energy ratio ≥90%
Modular expansion from 5kWh to 100kWh+

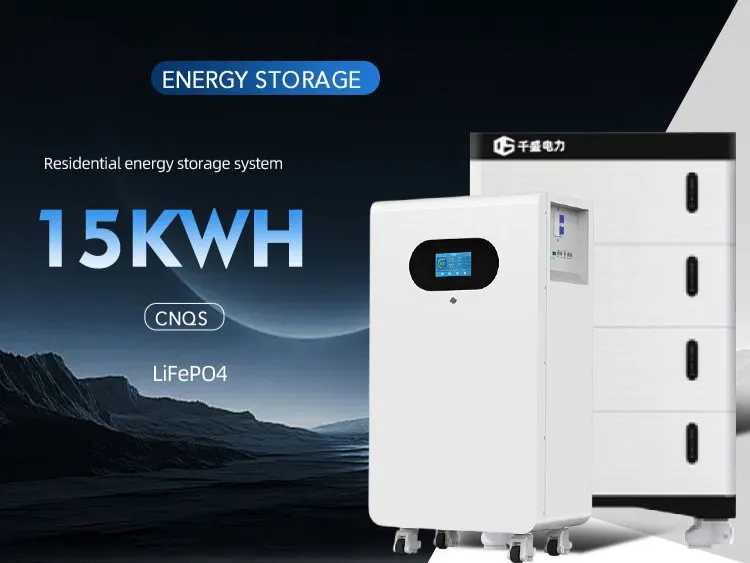

15kWh System

Intelligent BMS monitoring (Voltage/Current/Temp)
Plug-and-play operation
IP54/IP65 protection for indoor/outdoor
High integration and easy installation

Technical Specifications

Parameter	10KWH	15KWH	20KWH (50AH)	20KWH (100AH)	30KWH (100AH)	40KWH (100AH)
Nominal Voltage	204V	307V	409V	204V	307V	409V
Rated Capacity	50AH	50AH	50AH	100AH	100AH	100AH
Max Charge Current	25A	25A	25A	50A	50A	50A
Max Discharge Current	50A	50A	50A	100A	100A	100A
Communication	RS485 / CAN
Weight (Approx)	100kg	140kg	182kg	182kg	224kg	266kg

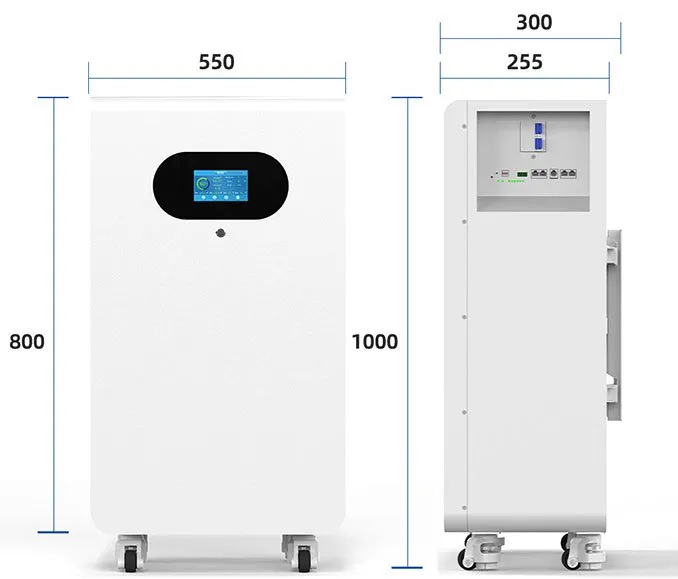

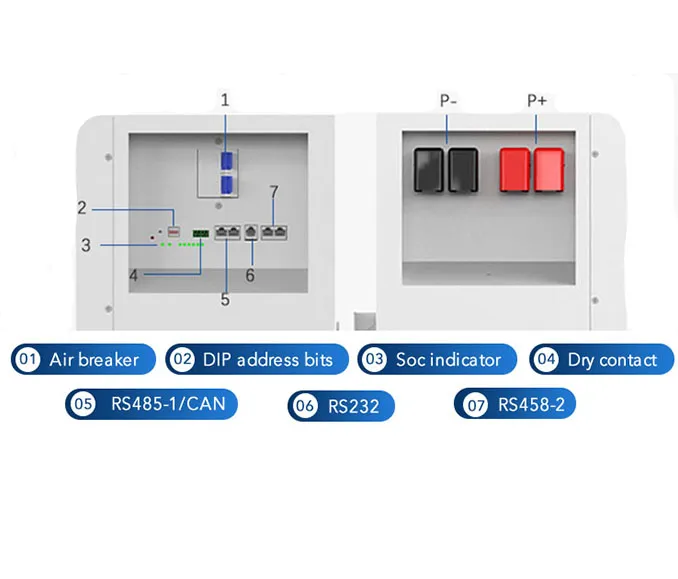

Internal & Component Details

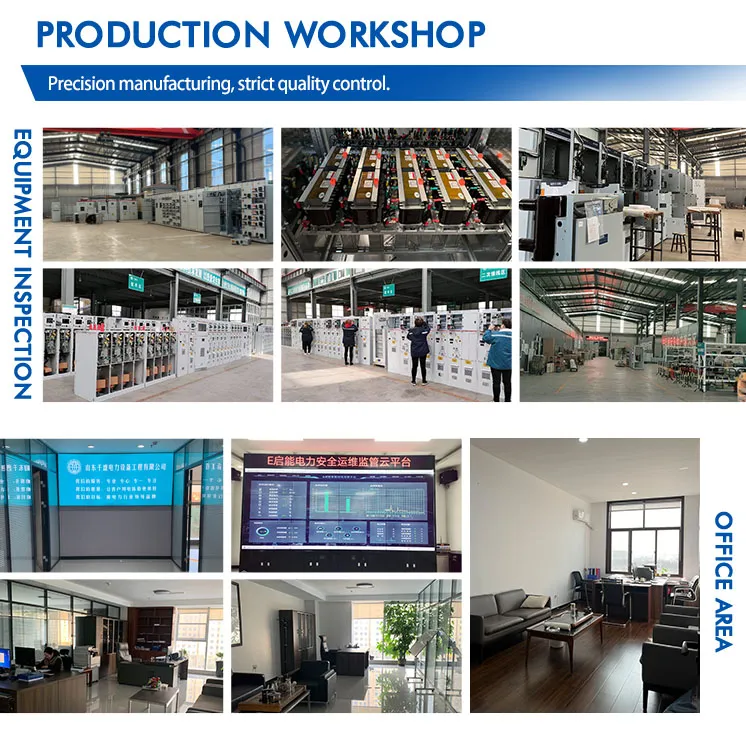

Production & Quality Control

The full process automation, refined production control, and multi-dimensional rigorous quality inspection system have laid a solid foundation for stable and sustainable power generation performance.

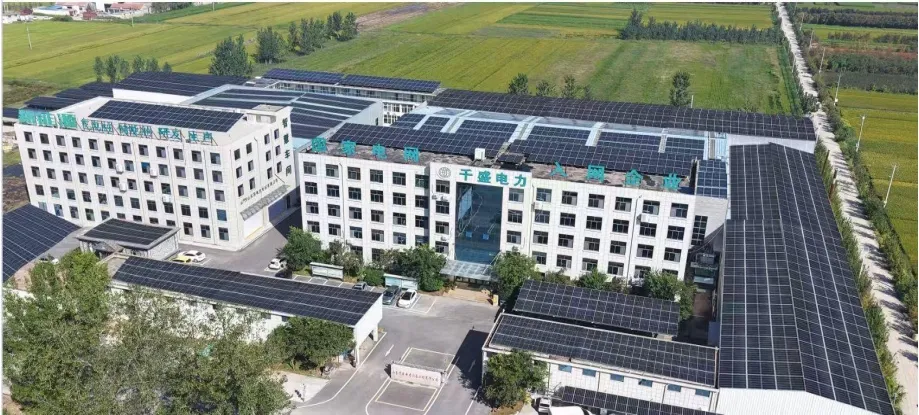

Professional Expertise

We are an experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.

Core Capabilities:

ISO9001:2000 Quality Management Certified
Environmental & Occupational Health Certifications
CCC and CQC product certifications
Class II Qualification for Power Equipment Installation

Packaging & Shipping

Package Size	68.00cm * 55.00cm * 26.50cm
Package Gross Weight	124.000kg
Transport Package	Sturdy Wooden Box

Frequently Asked Questions

Q: What is the expected cycle life of the battery?

A: Our LFP (Lithium Iron Phosphate) batteries are designed for 6000+ cycles under standard operating conditions before reaching 80% of their original capacity.

Q: Can the system be expanded if my energy needs increase?

A: Yes, the system features a modular design that supports parallel connection of up to 15 units, allowing you to scale from 5kWh to over 100kWh.

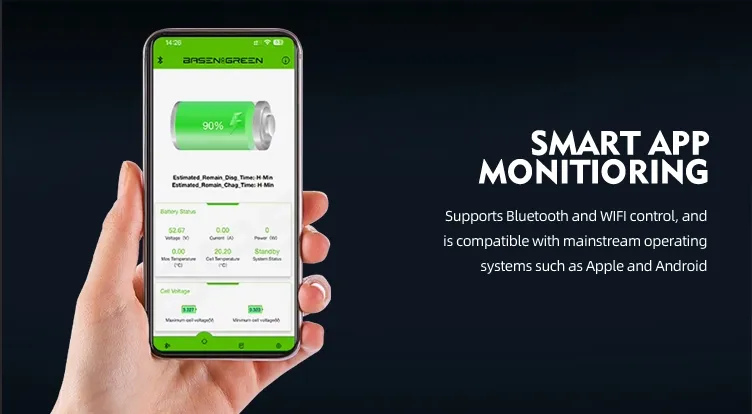

Q: How do I monitor the battery status?

A: The system comes with built-in WiFi and Bluetooth connectivity. You can track real-time voltage, current, temperature, and SOC through a dedicated mobile app.

Q: Is the installation suitable for outdoor environments?

A: Yes, we offer models with IP54 or IP65 ratings, making them resistant to dust and water, suitable for both indoor and outdoor installations.

Q: What kind of warranty is provided?

A: We provide a 15-year product quality warranty. During this period, any non-human damage is covered under our standard support terms.

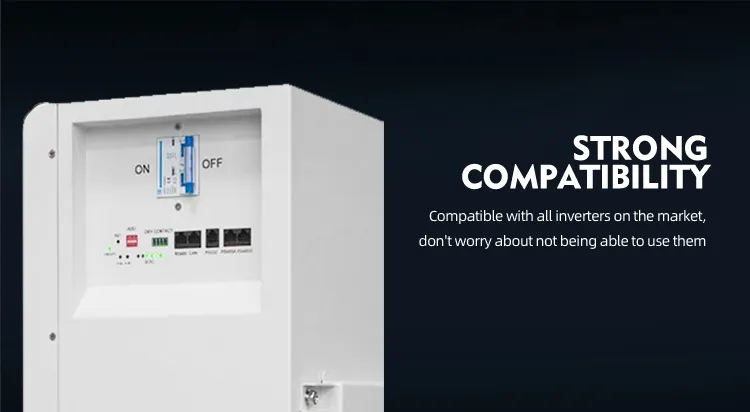

Q: Is the system compatible with my existing solar inverter?

A: Our energy storage solutions are compatible with over 20 mainstream hybrid and off-grid inverters globally via RS485 and CAN communication.
