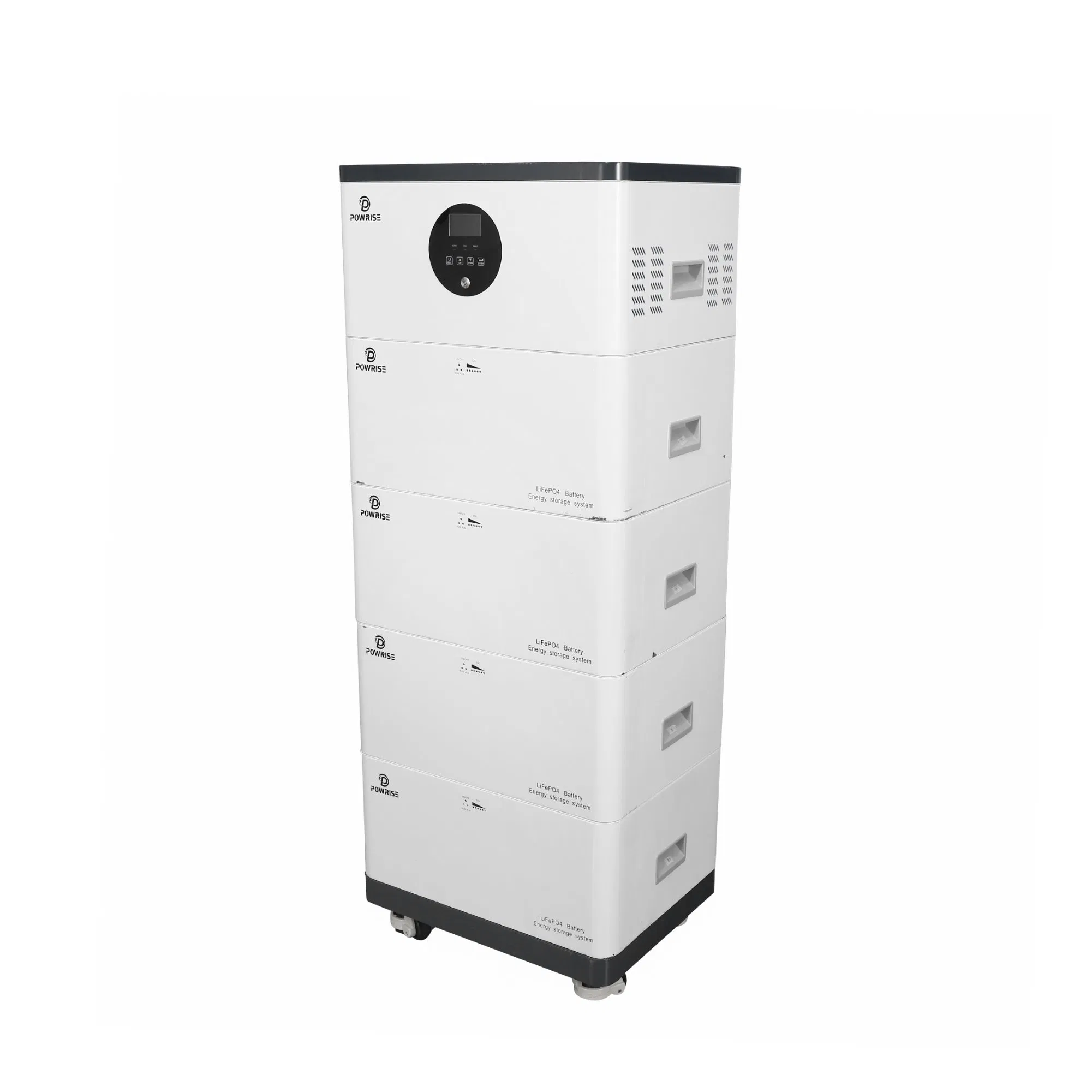

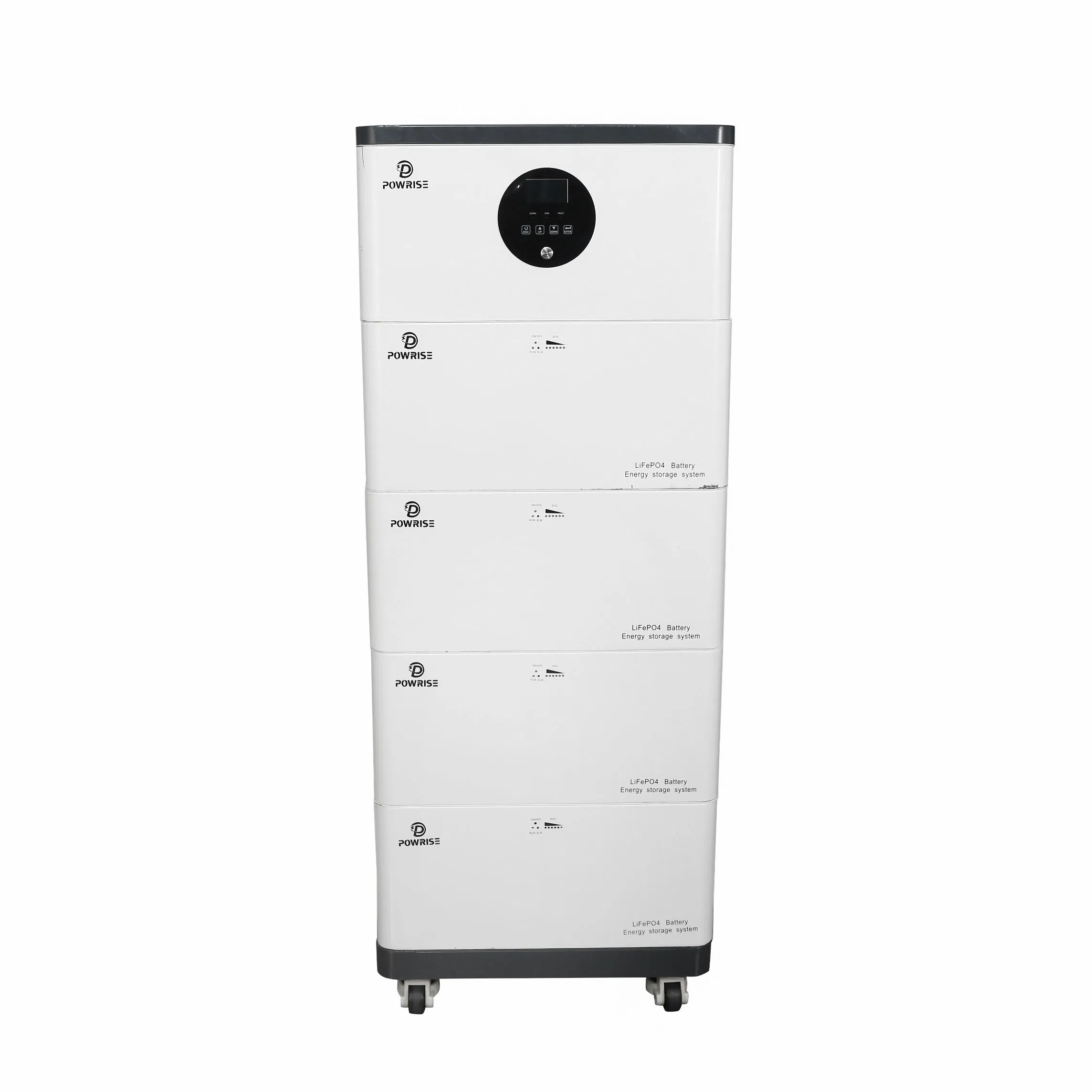

New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
1 / 5
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System
New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System

New Design All-in-One Power Storage Power System 3.5kw 5.5kw 10kw 15kw Max. 15PCS Parallel Power Supply Simultaneously Battery Management System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.: PIAO3500
Trademark: Powrise/OEM
Origin: China
HS Code: 8504402000
Production Cap.: 100PCS/Day
📦

Packaging & Delivery

Package Size: 56.50cm * 43.50cm * 29.50cm
Gross Weight: 40.000kg
Lead Time: 20 days (1 - 10 Pieces); To be negotiated (> 10 Pieces)
⚡

Product Specifications

All-in-one Power Storage Power System 3.5Kw 5.5Kw 10Kw 15Kw Max.15pcs Parallel Power Supply Simultaneously Battery management system

Inverter Module
Inverter Input and Output 220VAC 50HZ & 110VAC 60HZ
Input Voltage 3500W
Peak Power 7000W
Charging current Max.100A (Solar+AC)
Solar panel power 4500W
Solar charging current Max.18A
Open circuit voltage Max.500V DC (Solar)
Dimension 545*415*275mm
Weight 27kg
Battery Module
Energy power 3840Wh
Charge volt 29.2V
Discharge cut-off volt 20V
Charge mode CC/CA
Max Charge current 200A
Max Discharge current 200A
Cycle life ≥2000 Cycle / 0.5C
Dimension 545*415*275mm
Weight 40kg
Shell material SPCC
Working temperature Charge: 0~55ºC; Discharge: -20~60ºC; Storage: 0~45ºC
Communication RS485/CAN/RS232
🖼️

Product Display

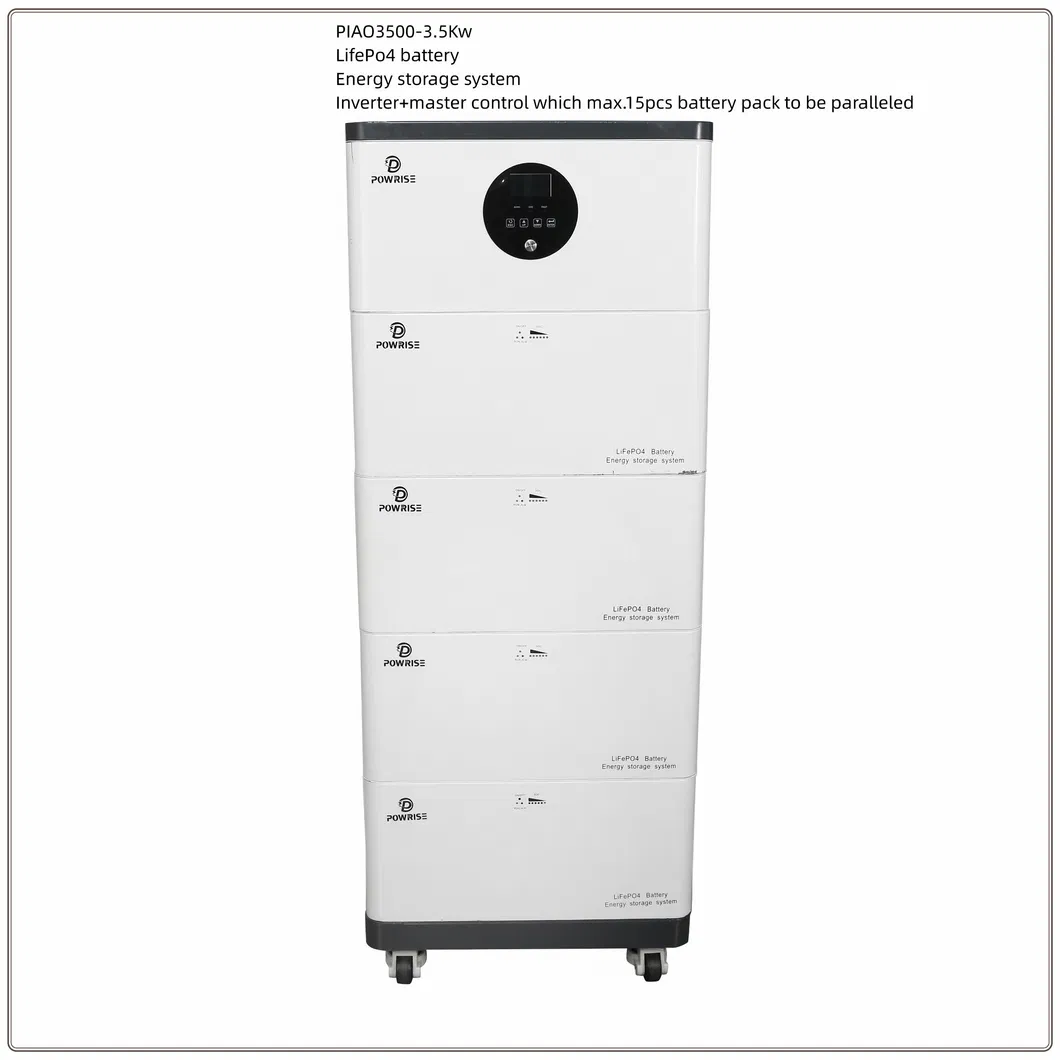

Power Storage System 1

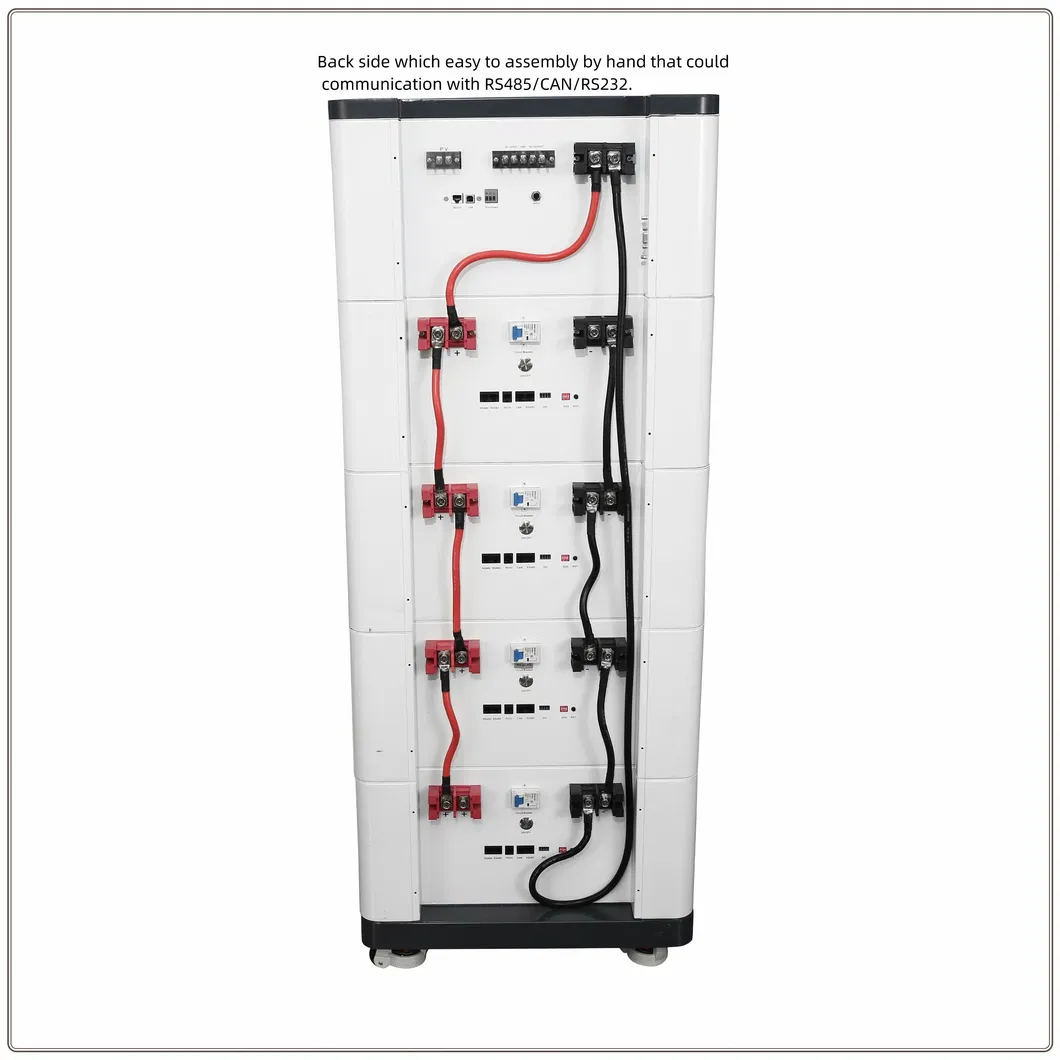

Power Storage System 2

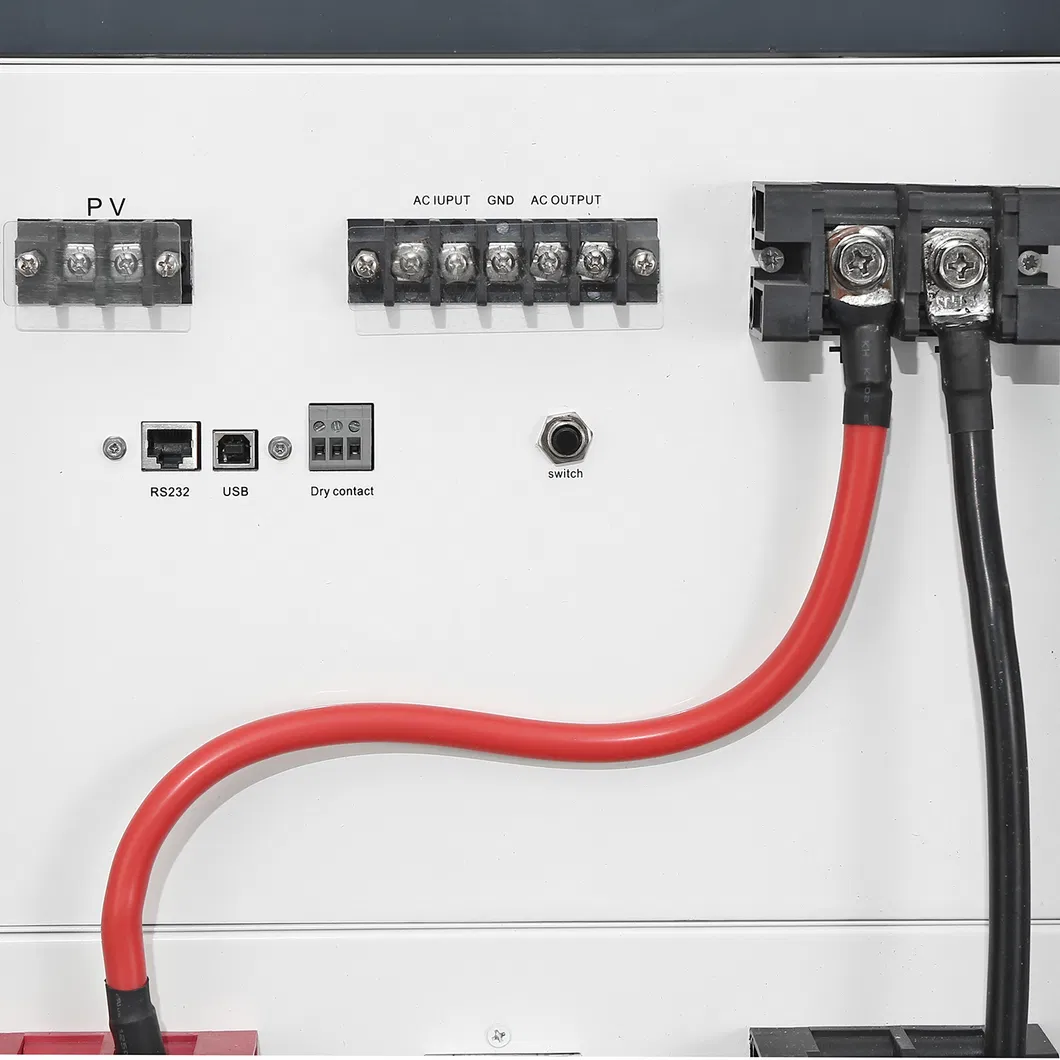

Power Storage System 3

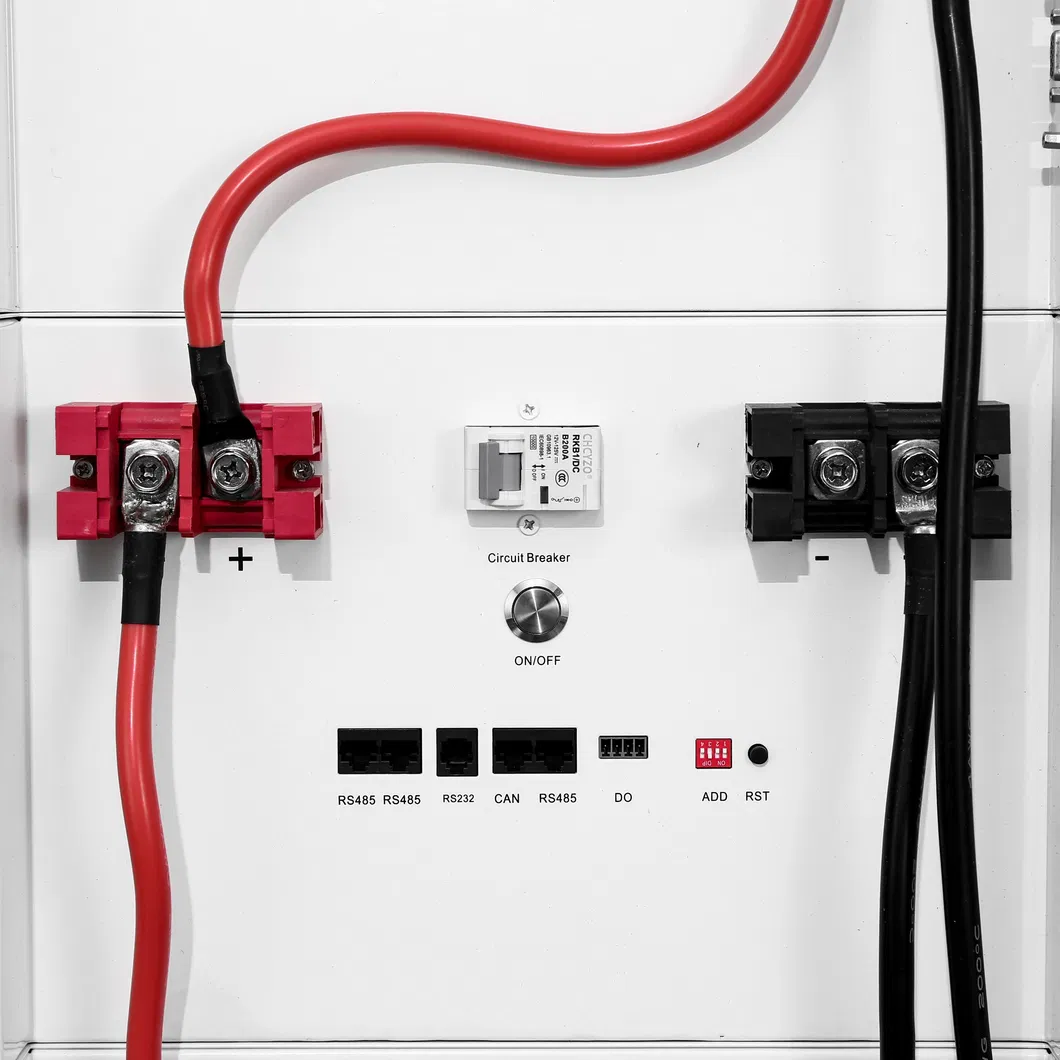

Power Storage System 4

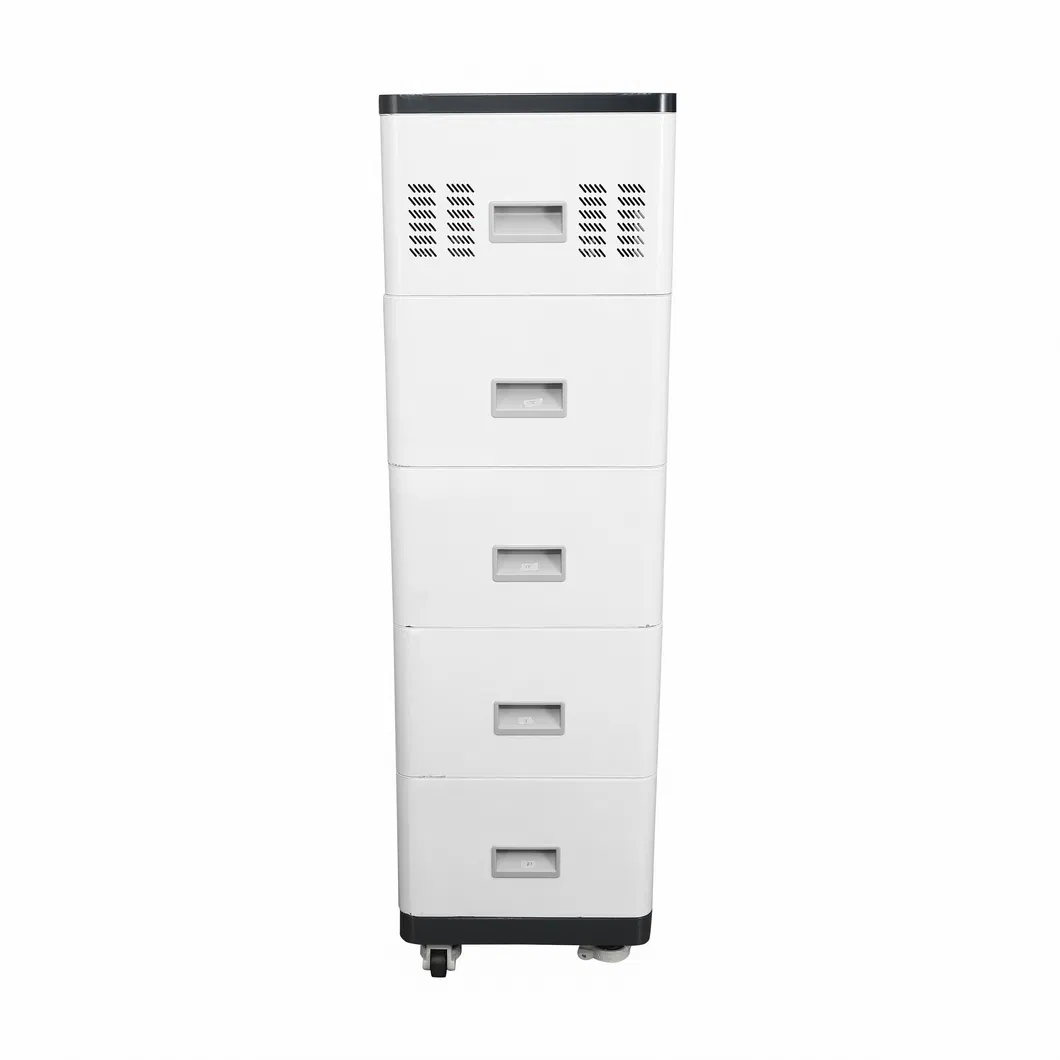

Power Storage System 5

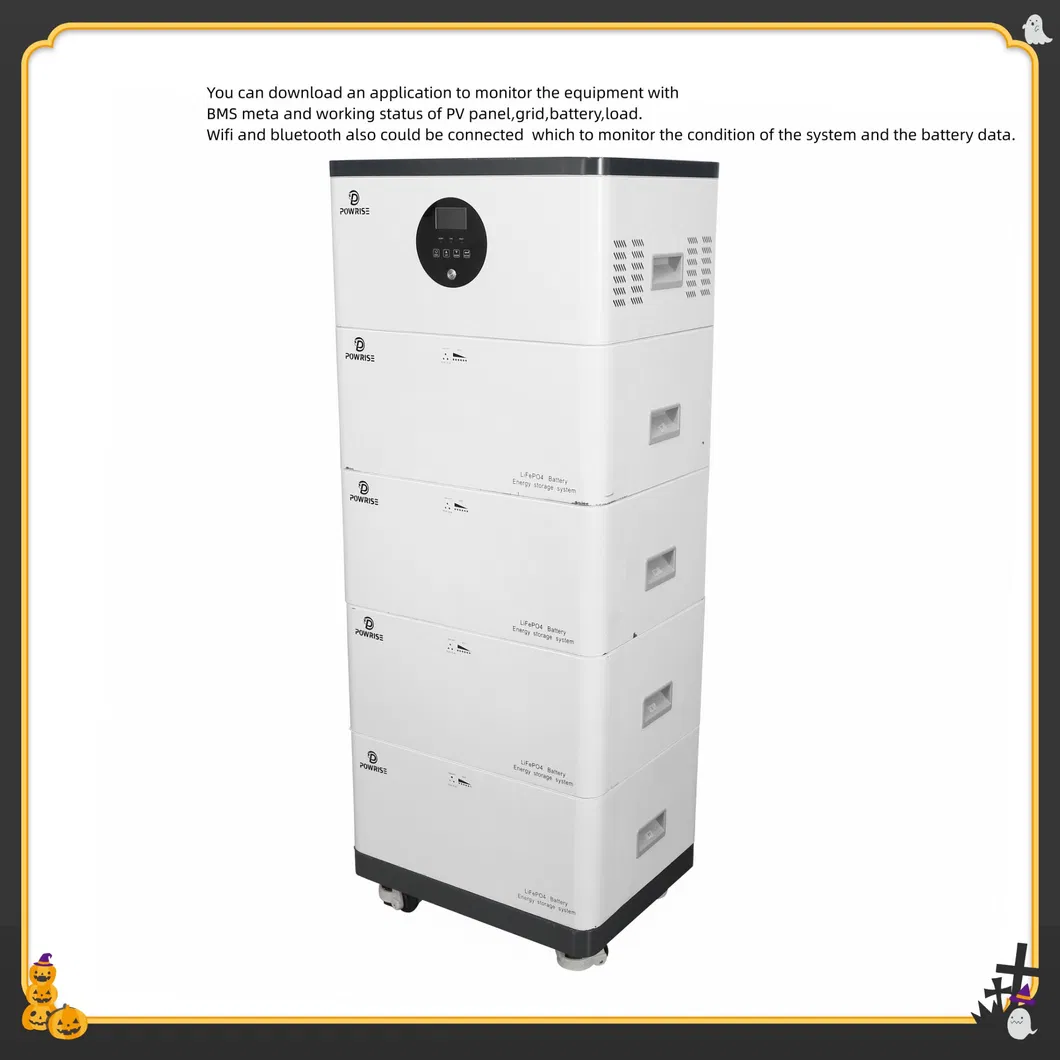

Power Storage System 6

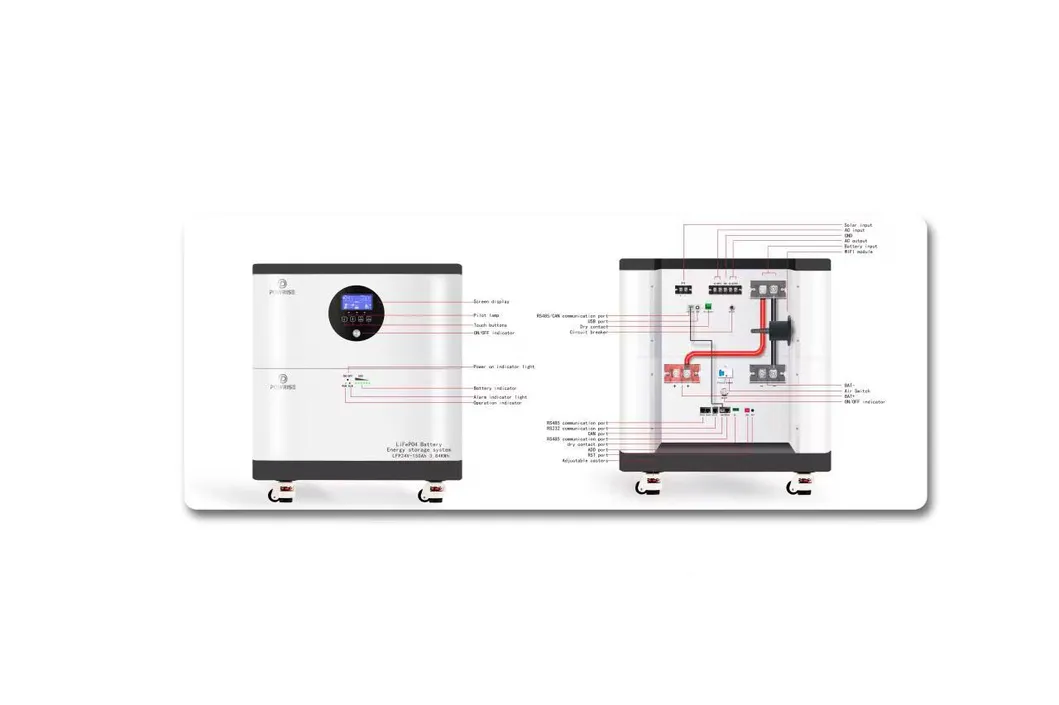

Power Storage System 7

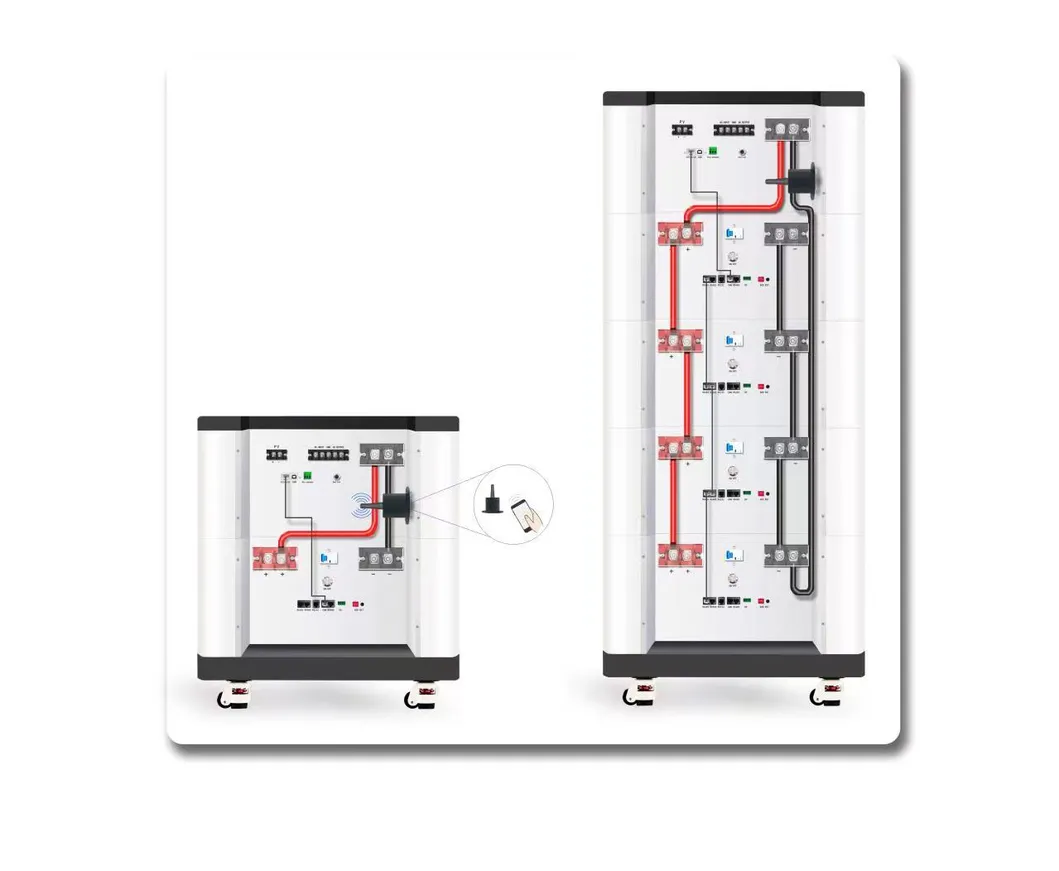

Power Storage System 8

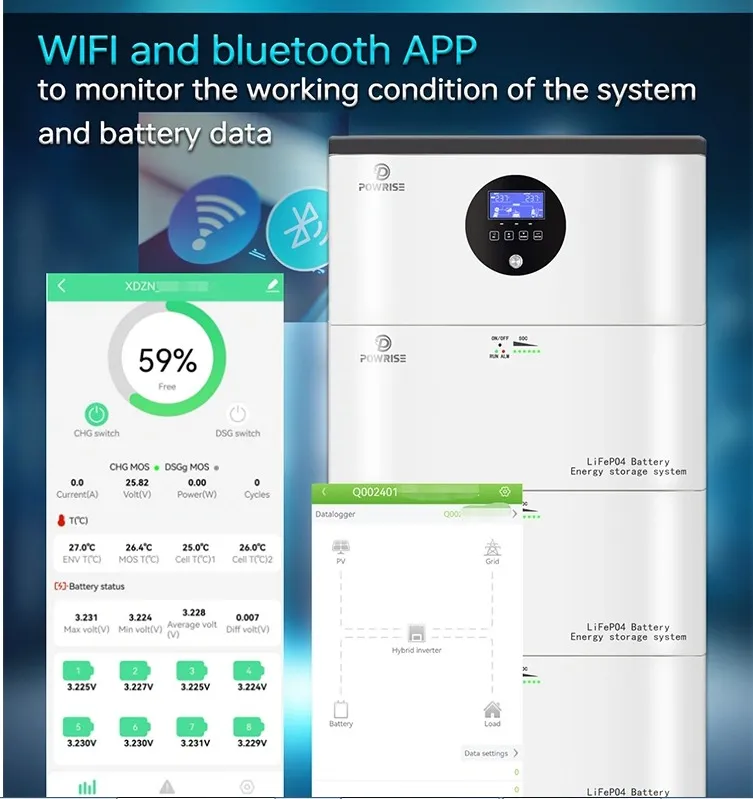

Power Storage System 9

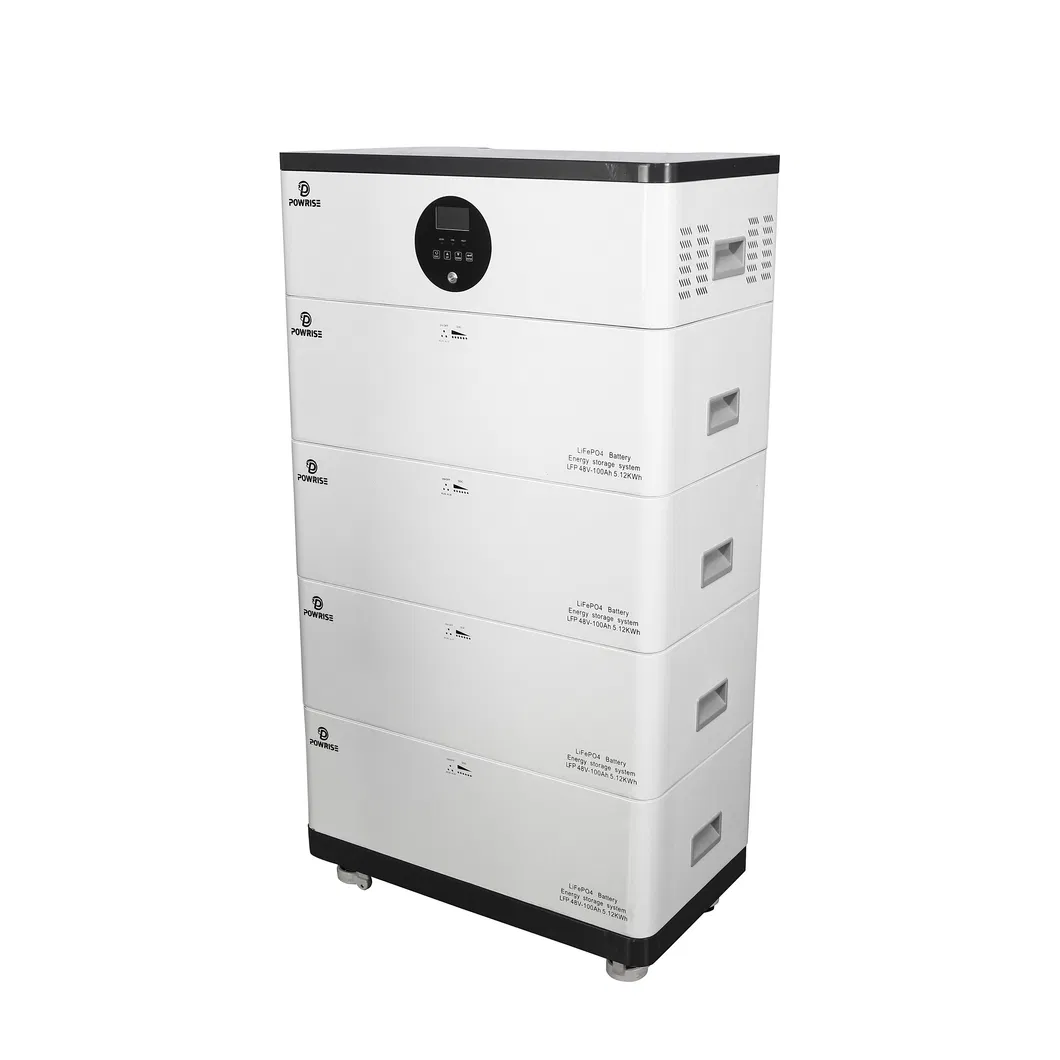

Power Storage System 10
Power Storage System 11
Power Storage System 12
?

Frequently Asked Questions

What is the maximum parallel capacity of this system?
This power storage system supports up to 15 units in parallel, allowing for scalable power supply solutions ranging from 3.5Kw up to 15Kw systems.
What are the charging options for the PIAO3500?
The system features a hybrid charging management system that supports both Solar and AC input, with a maximum combined charging current of 100A.
What is the expected lifespan of the battery module?
The battery module is designed for durability, offering a cycle life of ≥2000 cycles at a 0.5C discharge rate.
Can this system handle high peak power demands?
Yes, while the rated input voltage is 3500W, the system is capable of handling peak power demands up to 7000W.
What communication protocols are supported?
The system includes integrated communication ports supporting RS485, CAN, and RS232 protocols for efficient battery management and monitoring.
What is the standard lead time for small orders?
For orders between 1 to 10 pieces, the standard lead time is approximately 20 days. Larger quantities are subject to negotiation.
