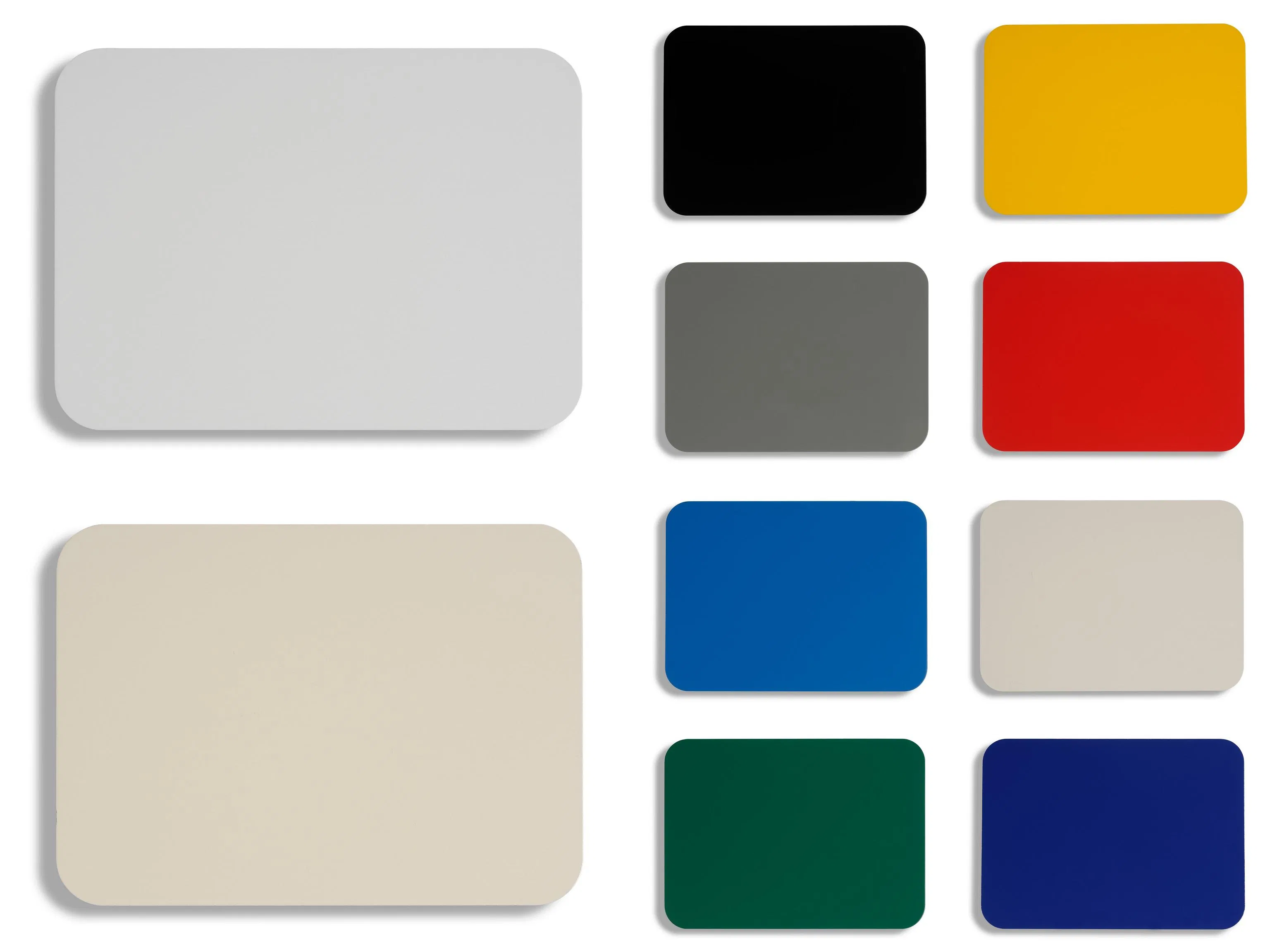

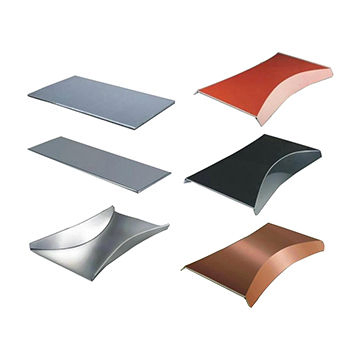

Aluminum composite panel is made of aluminum alloy and plastic material to feature great hardness, light weight and smooth service, provided with wide range of sizes, shapes, colors, and styles to offer broader options for construction design, in a bid to better meet the requirements of contemporary construction on lightweight, elegant decoration and high hardness.

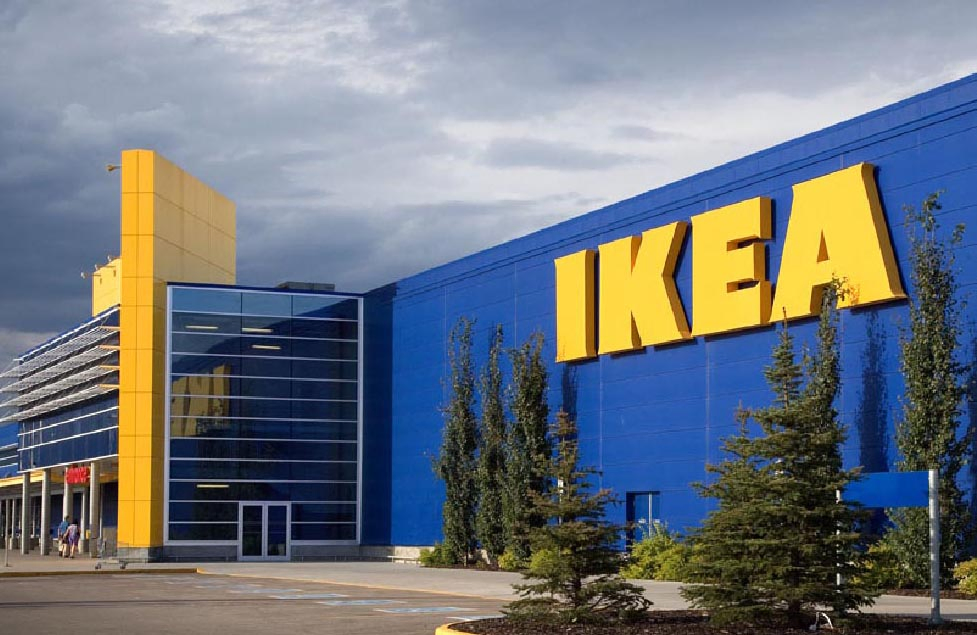

Aluminum composite panel is widely used in all kinds of architectural decorations for its excellent properties, such as cladding, shops front, ceiling, counters, furniture, road signs, billboards, kiosks, elevators, and stores.
| Feature | Specification |
|---|---|
| Surface Coating | Polyester Coating |
| Aluminum Alloy | AA1100, AA3003 |
| Aluminum Skin | 0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.30mm |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm |

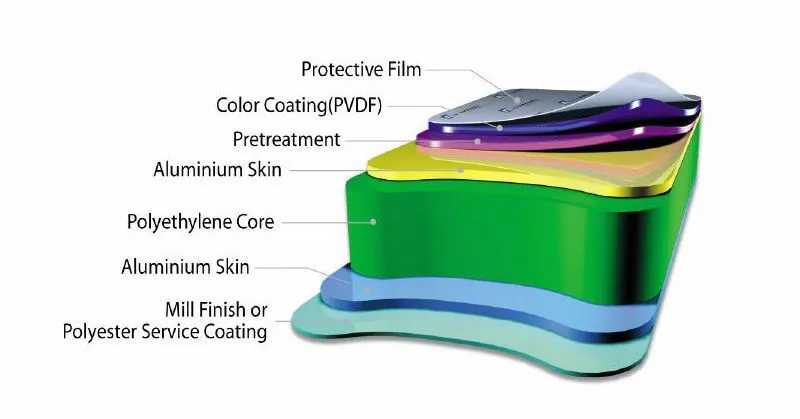

| Core Material | Non-toxic low density polyethylene |
| Panel Width | 1000mm, 1220mm, 1250mm, 1500mm |
| Panel Length | 2440mm, 3050mm, 4000mm, 5000mm |
| Back Coat | PE coating, Primer Coating, Mill finish |
| Item | Tolerance |
|---|---|
| Panel Width | ±2mm |
| Panel Length | ±3mm |
| Panel Thickness | ±0.2mm |
| Panel Diagonal | ≤ 5mm |
| Aluminum layer thickness | ±0.02mm |
| Description | Test Standard | Result (Polyester) |
|---|---|---|
| Coating Thickness (μm) | Polyester paint >=16μm | 16μm to 18μm |
| Coating flexibility (T-bend) | Polyester paint ≤ 3T | ≤ 3T |
| Color difference | ΔE<=2.0 | ΔE<=2.0 |
| Pencil hardness | >=HB | >=2H |
| Chemical resistance | 2%HCI or 2%NaOH test in 24 hours | No change |
| Coating adhesion | >=1grade for 10*10mm2 gridding | 1grade |
| Boiling water resistance | 2 hours without change | No change |
| Peeling strength | Average >=5N/mm (0.21mm skin) | 5N/mm |
Our products are accepted by markets widely with good performances and brand image, which are sold around the globe in more than 20 countries and regions, including Southeast Asia, Africa, Australia, America, and Brazil.
