Roof Sarking Aluminum Foil Woven Fabric Heat Thermal Insulation Building Material

1 / 5

Roof Sarking Aluminum Foil Woven Fabric Heat Thermal Insulation Building Material

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Product Overview

The Aluminum Foil Woven Fabric Radiant Barrier is a high-performance insulation material designed to significantly reduce heat transmission. Composed of double-sided metallized aluminum laminated with a high-strength woven fabric, this material is engineered for durability and thermal efficiency.

With an emissivity rating of approximately 0.1 and a reflectivity of 97%, it effectively blocks up to 90% of radiant energy. When installed in residential attic roofs, it maintains a cooler interior temperature, reducing the reliance on air conditioning and enhancing overall energy savings.

⚙

Basic Info & Parameters

Material Feature	Metallized Woven Fabric
Highest Working Temp	800℃
Reflectivity	97%
Emissivity	0.1
Standard Width	≤2000mm (Customizable 1m, 1.2m, 1.5m)
Length	1000m - 6000m
Available Colors	Blue, Green, Silver
Aluminum Thickness	7um, 10um, 12um or customized
Water Vapor Performance	Waterproof (0.013 g/m2kpa)
Fire Proof Rating	Class A
Application Range	-50ºC ~ 80ºC

📷

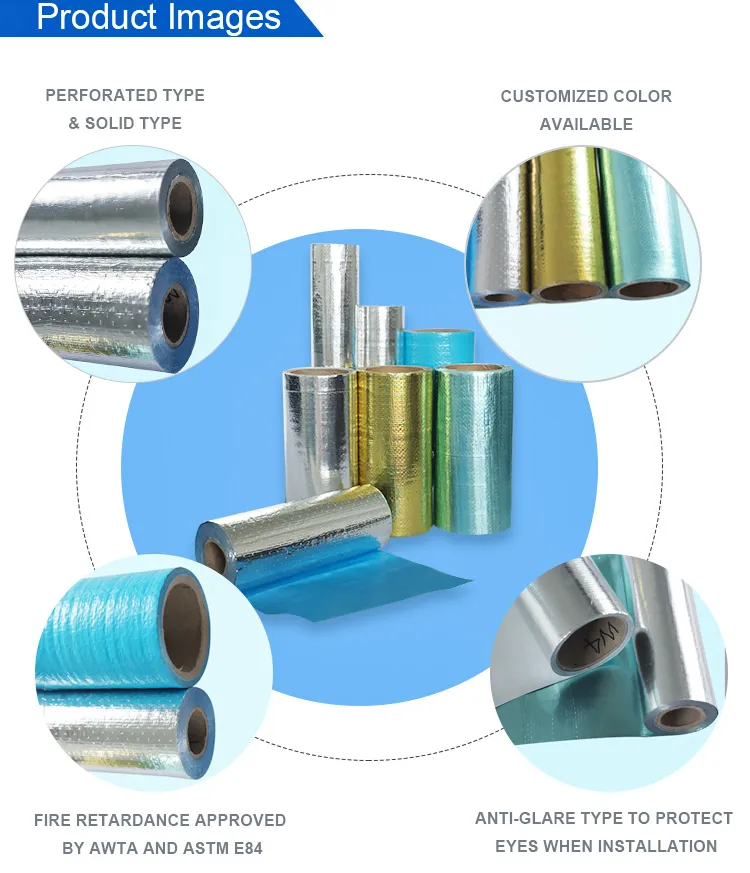

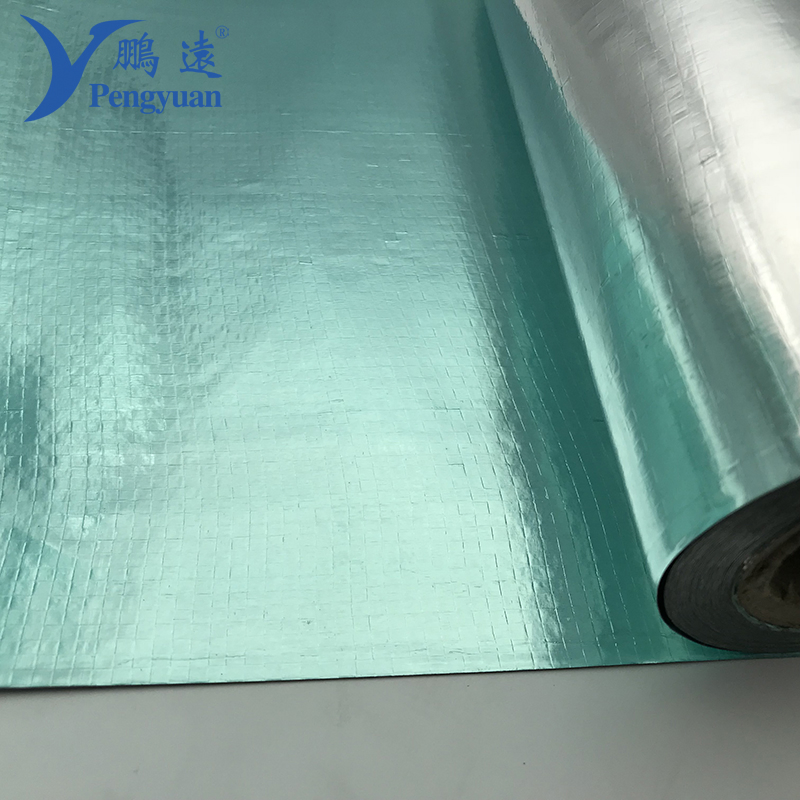

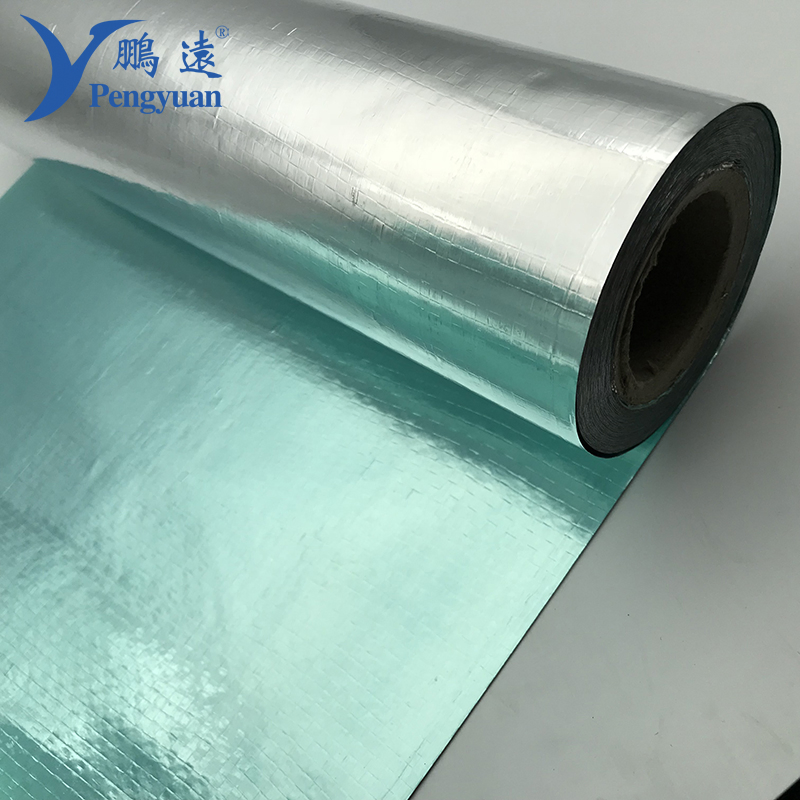

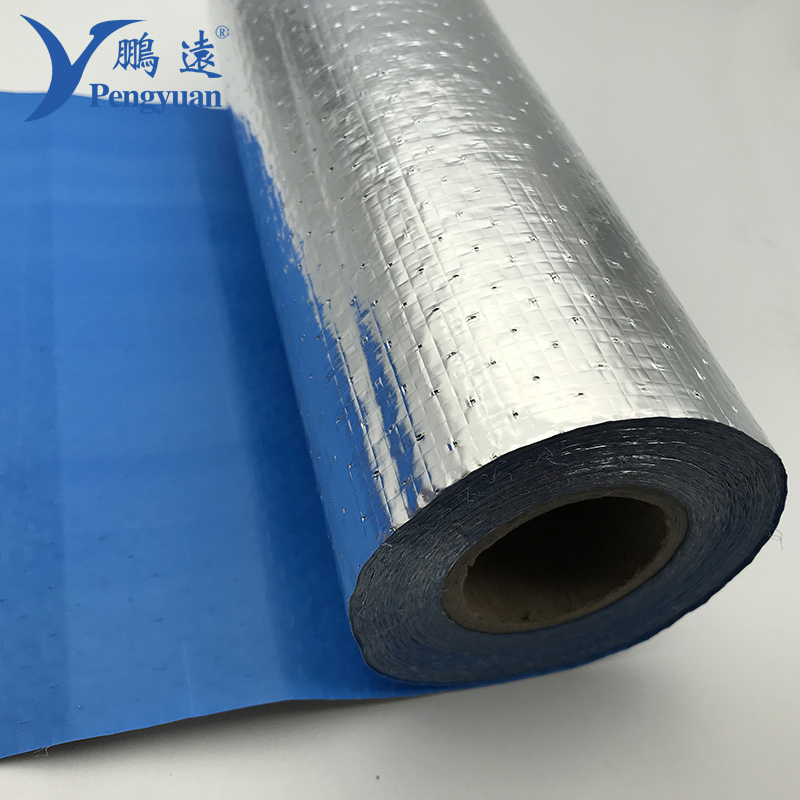

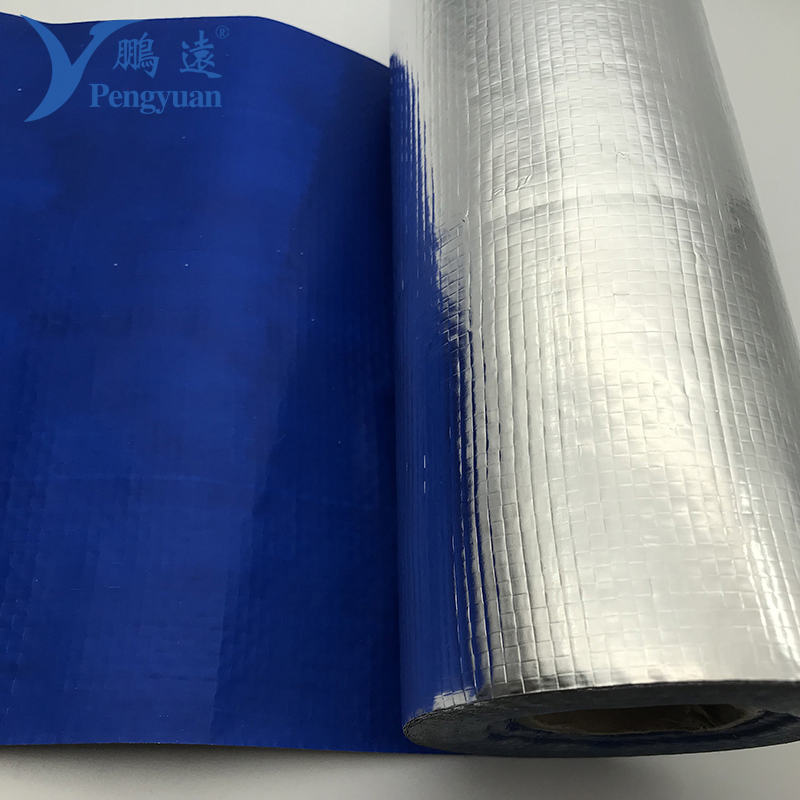

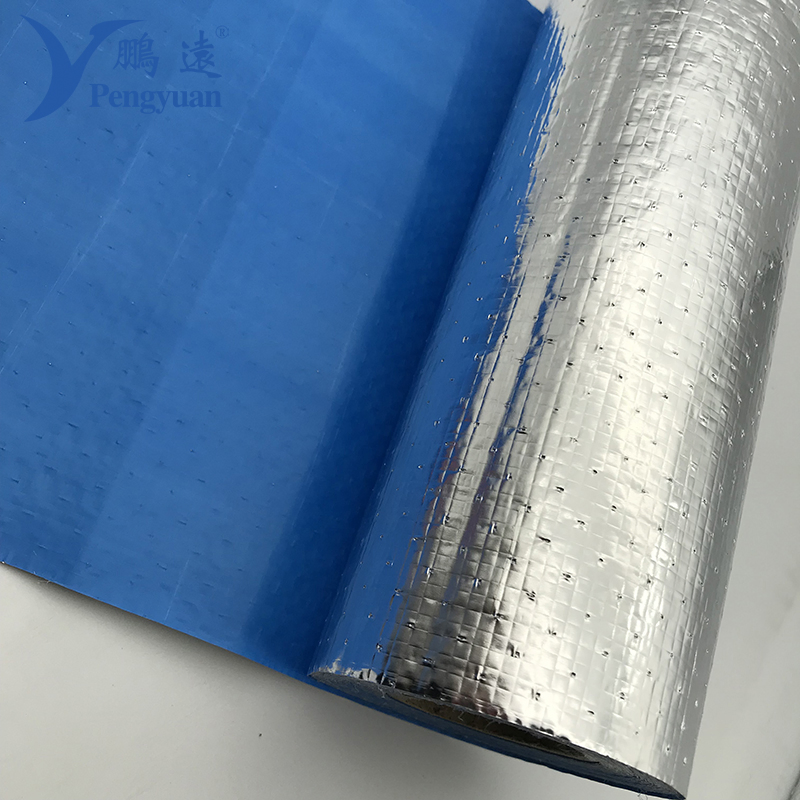

Detailed Photos

✨

Key Features

🔥 Heat Resistance

Capable of withstanding temperatures up to 800℃, making it suitable for demanding building environments.

🛑 Radiant Barrier

97% reflectivity ensures that most solar heat is reflected away from the structure, keeping interiors cool.

💧 Moisture Control

Excellent water vapor performance prevents moisture penetration, protecting the building sarking.

💪 High Strength

The woven fabric base provides superior tear resistance and durability during installation.

📦

Packaging & Application

❓

Frequently Asked Questions

Q1: What is Aluminum Foil Woven Fabric insulation used for?

It is primarily used as roof sarking and building wrap to provide thermal insulation and moisture protection in residential and commercial buildings.

Q2: How does the radiant barrier save energy?

By reflecting up to 97% of radiant heat away from the attic, it reduces the heat gain of the house, significantly lowering the energy needed for air conditioning.

Q3: Is this material fireproof?

Yes, our material has a Class A fireproof rating, ensuring high safety standards for building construction.

Q4: Can the width and length be customized?

Absolutely. While standard widths are up to 2000mm, we can provide custom widths like 1.2m or 1.5m and lengths tailored to your project requirements.

Q5: What is the benefit of the woven fabric layer?

The woven fabric provides structural reinforcement, making the foil highly resistant to tearing, puncturing, and mechanical stress during and after installation.

Q6: What colors are available for the fabric?

Common colors include Blue, Green, and Silver, which help in identifying different specifications or meeting aesthetic requirements for exposed installations.
