Product Description

Basic Information

Model NO.WD-1001M-BPL

Support NetworkEthernet

CertificationCE, ISO, RoHS, FCC Class B

Security128-AES

ModulationOFDM

Transfer Rate200Mbps (Phy)

BPL Smart Powerline Ethernet Bridge

Broadband data communication in the low-voltage grid

Brief Introduction

The BPL Smart Powerline Ethernet Bridge is an industrial powerline communication product. It adopts the ITU-T G.9960 G.hn communication protocol standard and is widely used in intelligent manufacturing, smart buildings, smart city street light monitoring, smart meters, solar panels, and communications in hazardous environments, marine, aerospace, and railway applications.

With state-of-the-art broadband powerline (BPL) technology, the power grid becomes an omnipresent data network for smart metering. Compared to other BPL technologies, G.hn ensures a much more stable PLC network, utilizing two channels for more robust and high-performance data communication.

Technical Highlights

Technical Parameters

Support G.hn Protocol
Industrial DIN rail style installation
Up to 6 levels of relay
Self-adaptive rate adjustment

Manageability

Remote Firmware update (TR069)
802.3D Ethernet Bridge
802.1Q VLAN & QoS
IPv4/IPv6 Snooping

Technical Specifications

Parameter	Details
Interface	1*LAN 10/100Base-TX self-adaption RJ45 port
LED Display	PWR (Power), PLC (Signal), ETH (Ethernet)
Transfer Band	2-50MHz and MIMO
Protocol	ITU-T G.9960 (G.hn), IEEE802.3/x/u
Security	128-AES Encryption
Transfer Rate	PHY: 200Mbps / TCP/IP: 100Mbps
Operating Temp	-40ºC to +85ºC
Size & Weight	1209045mm / Approx. 0.30kg
Transmission Distance	Up to 5000m
Relay Level	Maximum 10 level relay

Core Features

Packet loss: ≤0.1% (100M, load 70%)
7*24 hours all-weather stable operation
Hardware watchdog function
Low latency: PING < 20ms

Industrial Immunity Standards

ESD Immunity±6kV Direct, ±8kV Air

Surge Impact±2kV (GB/T 17626.5)

EFT ImmunityPower port ±2.0kV / Signal ±1.0kV

Anti-vibrationTB1433 MX3 (0-200Hz, 2g)

Product Model Selection

Model	Ethernet Port	Line Environment	Voltage Range
WD-1001M-BPL-AM	1	AC Master	AC 85-520V
WD-1001M-BPL-AS	1	AC Slave	AC 85-520V
WD-1001M-BPL-DM	1	DC Master	DC 10-80V
WD-1001M-BPL-DS	1	DC Slave	DC 10-80V

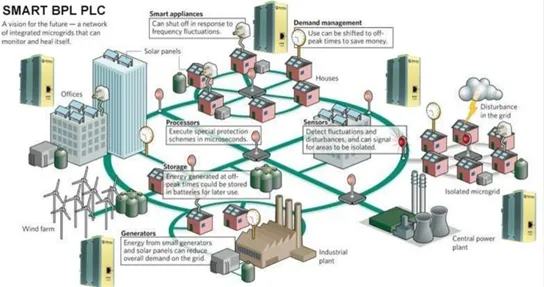

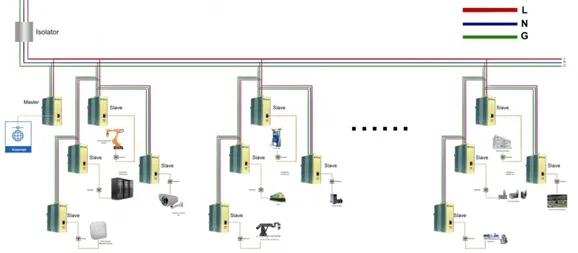

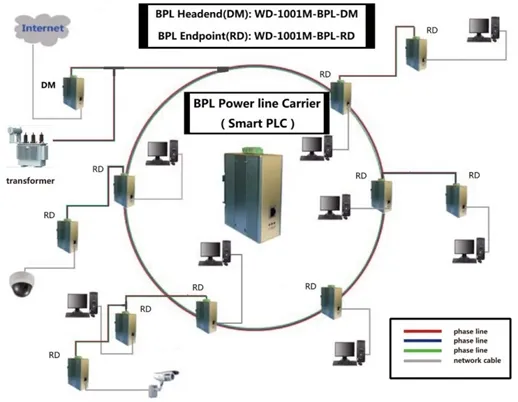

Network Topology

Terms & Conditions

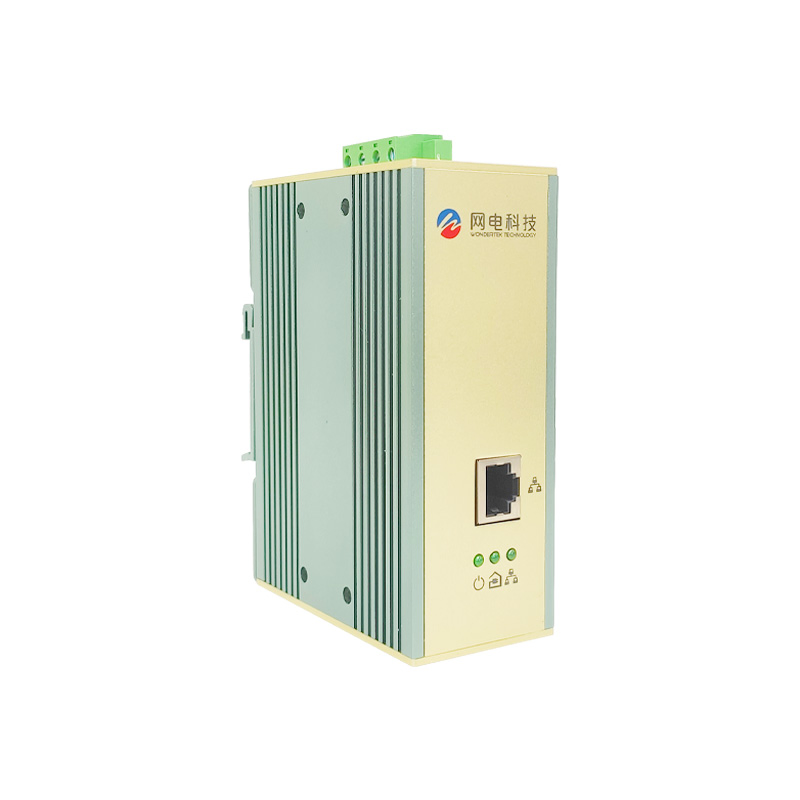

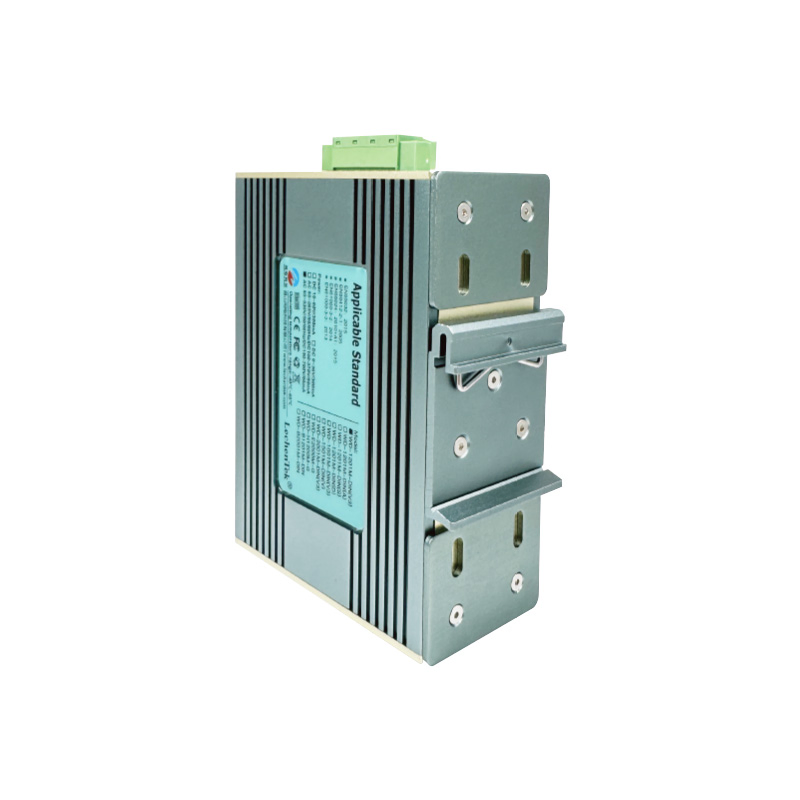

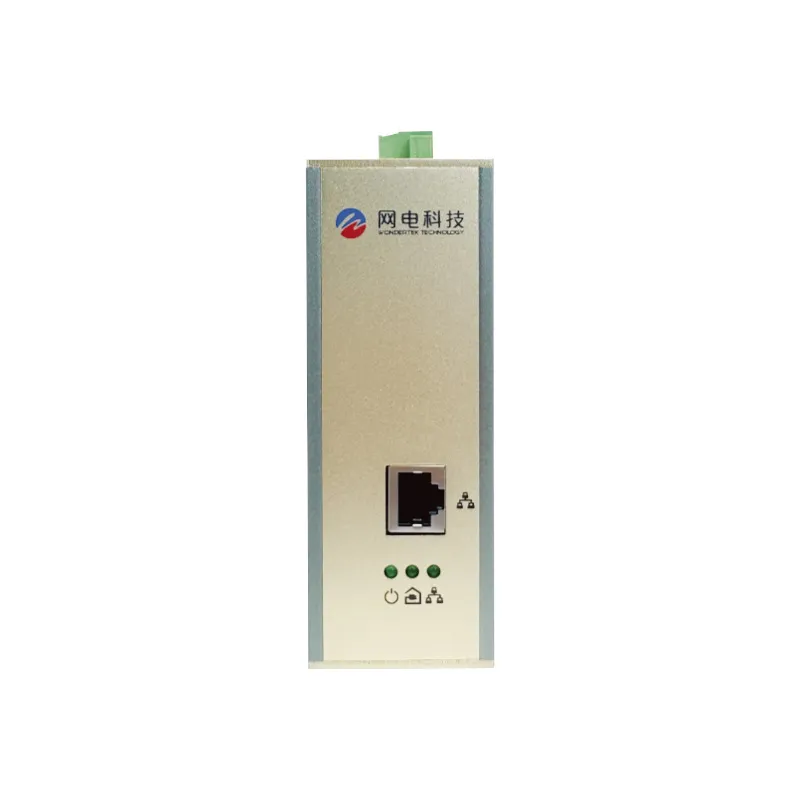

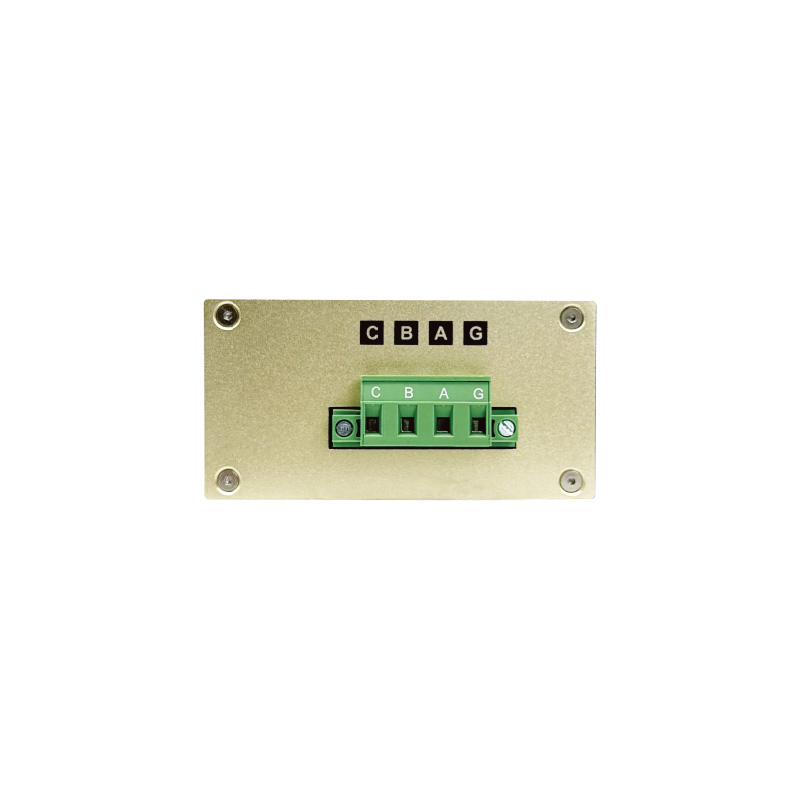

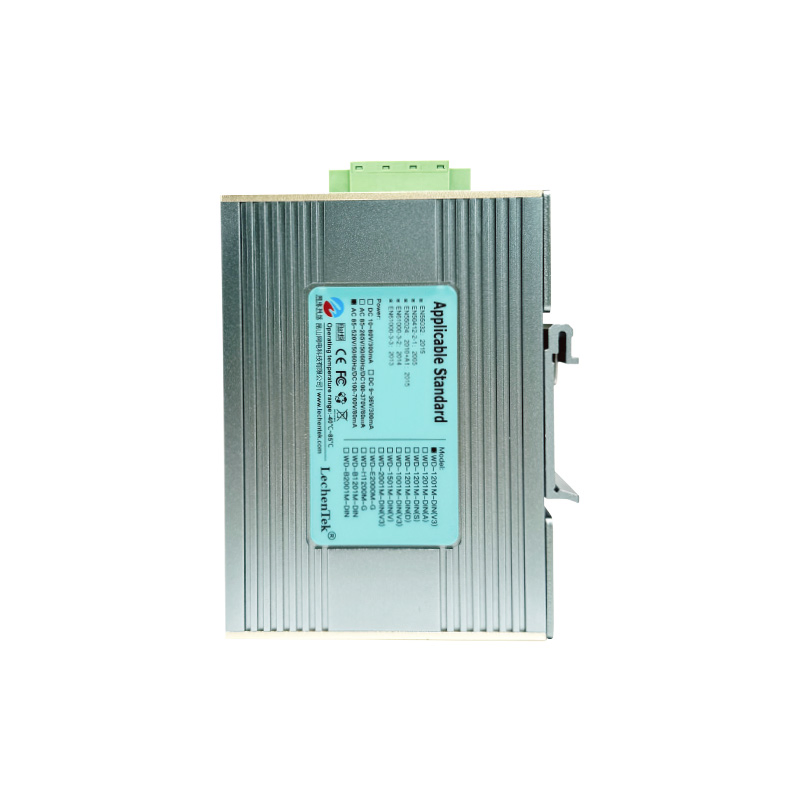

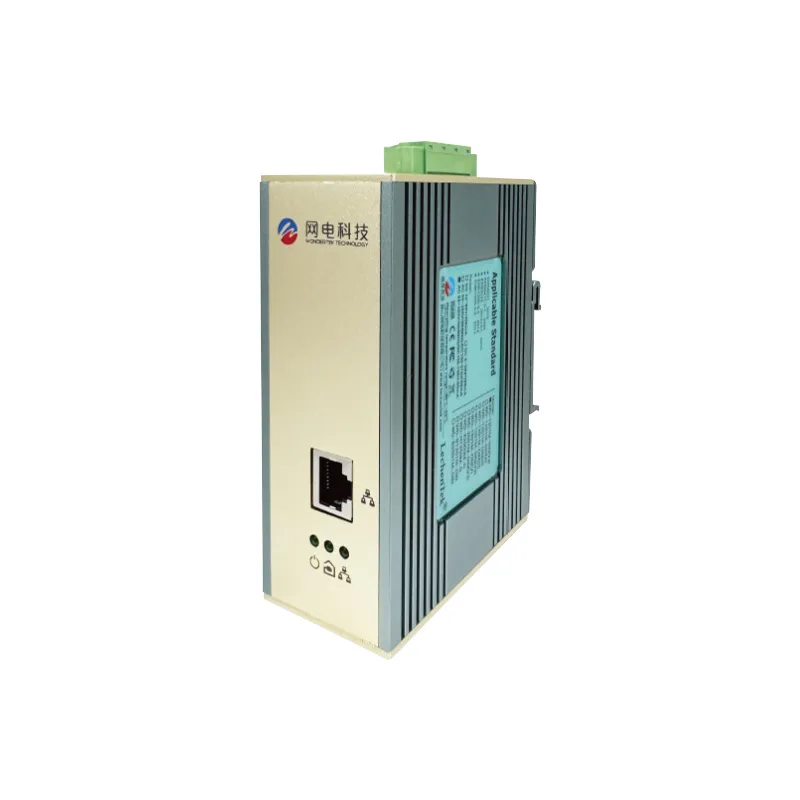

Product Photos

Frequently Asked Questions

Q: What communication protocol does the WD-1001M-BPL use? A: It adopts the ITU-T G.9960 G.hn communication protocol standard, which provides stable and robust broadband powerline communication.

Q: What is the maximum transmission distance for this BPL bridge? A: The device supports a transmission distance of approximately 5000 meters, making it suitable for large-scale industrial and utility grids.

Q: Can this device operate in extreme temperature environments? A: Yes, it is designed for industrial use with an operating temperature range of -40ºC to +85ºC.

Q: Does the bridge support remote management? A: Yes, it supports remote firmware updates via the TR-069 protocol (optional), allowing for efficient centralized management.

Q: How many relay levels can be achieved with this system? A: The system can achieve up to 10 levels of relay, ensuring extended coverage across complex power grid topologies.

Q: What is the actual data transfer rate of the bridge? A: The physical layer (PHY) rate is up to 200Mbps, while the effective TCP/IP data transfer rate is approximately 100Mbps.
