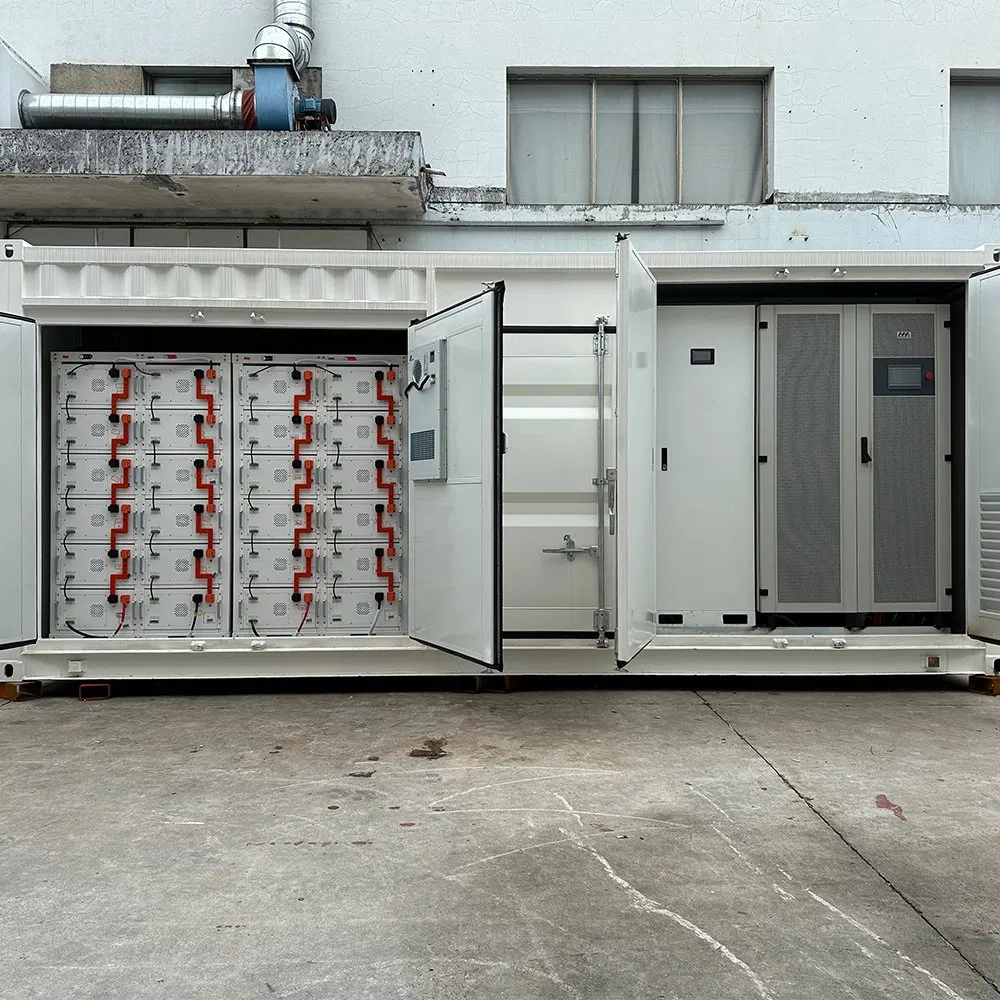

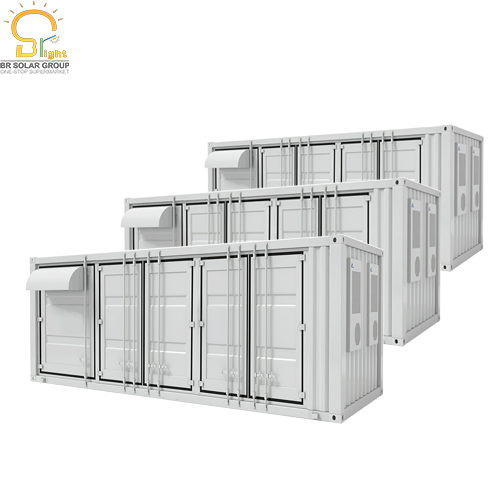

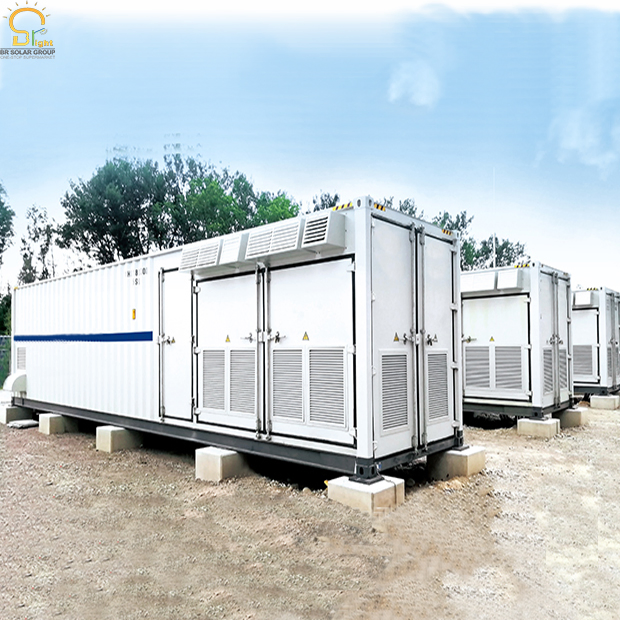

Modular Battery Energy Storage System (BESS) Containers

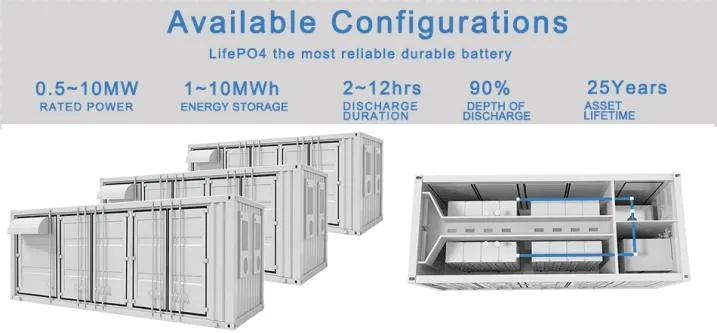

The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client's application.
| NO. | Name | 1000V (0.5C) | 1000V (1C) |
|---|---|---|---|

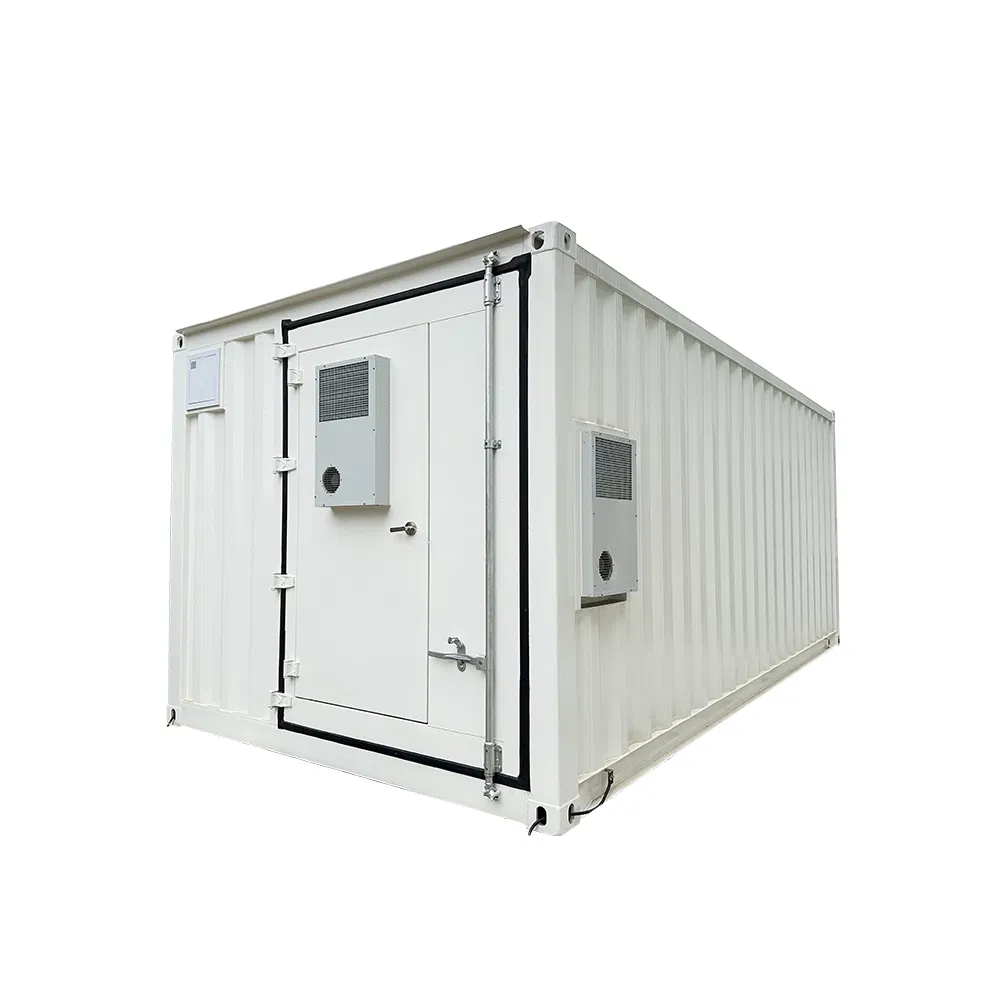

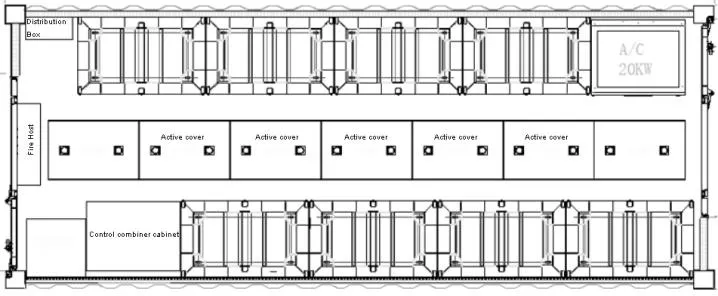

| 1 | Container Size | 6058mm(L)×2438mm(W)×2896mm(H) | |

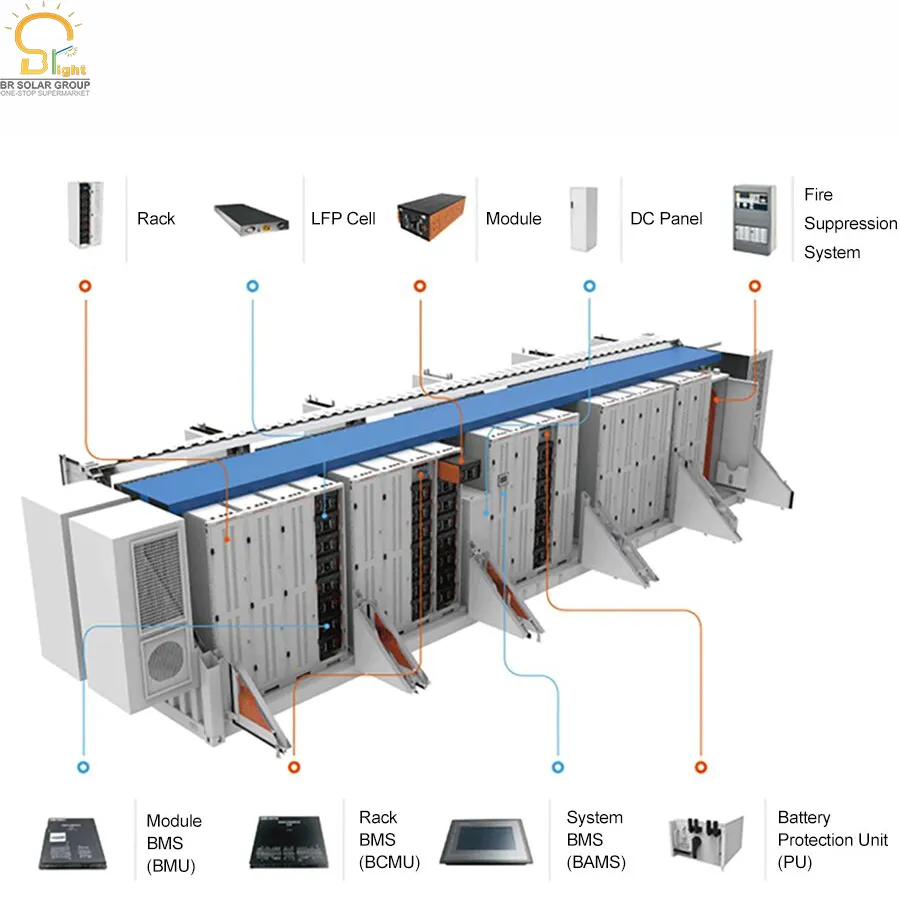

| 2 | Battery Cluster | 38240 Cluster*8 | 76120 Cluster*14 |
| 3 | Nominal Voltage | 729.6V | 691.2V |
| 4 | Rated Power | 630kW*1 | 500kW*2 |
| 5 | Max Stored Power | 1400kWh | 1161kWh |
| NO. | Name | 1000V (0.5C/1C) | 1500V (0.5C/1C) |
|---|---|---|---|

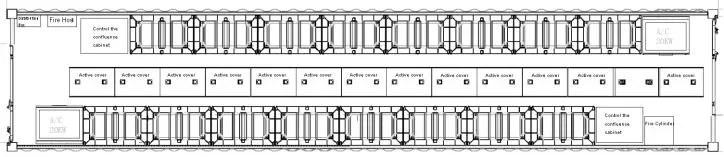

| 1 | Container Size | 12192mm(L)×2438mm(W)×2896mm(H) | |
| 2 | Rated Power | 630kW*2 / 500kW*4 | 1250kW*1 / 1250kW*2 |
| 3 | Max Stored Power | 2800kWh / 2322kWh | 2506kWH / 2506kWH |
| Rated output power | 1000KW |
| Rated capacity | 2500KWH |
| AC Phases | Three-phase Four-wire |
| Grid Voltage | 380V (±15%V) |
| Frequency | 50Hz (47.5~51.5Hz) |
| Noise Level | <70dB |
| Dimensions | 12192mm(L)*2438mm(W)*2591mm(H) |
| Weight | 22 Ton |
