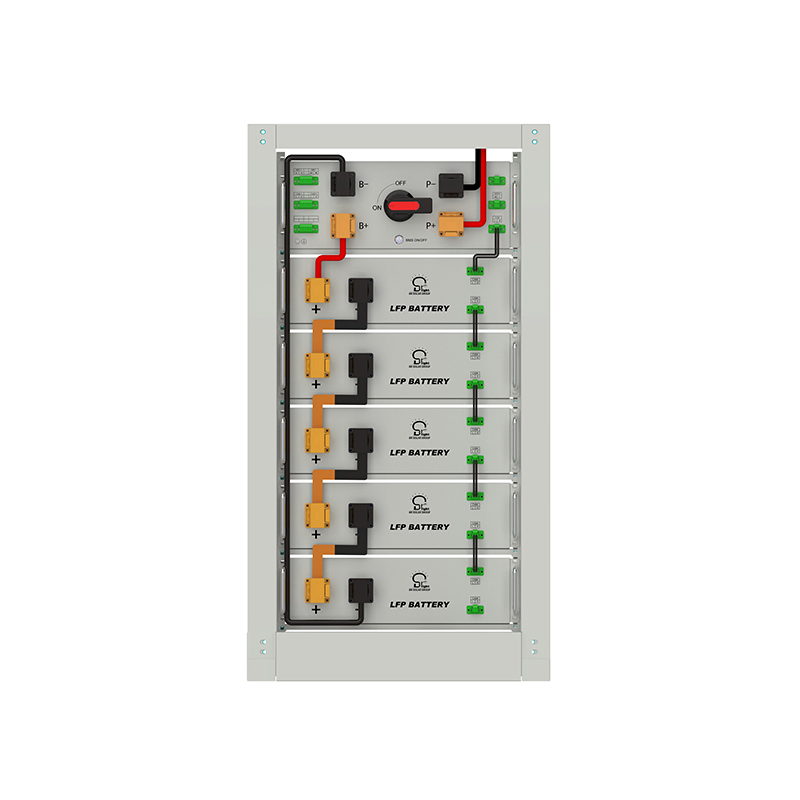

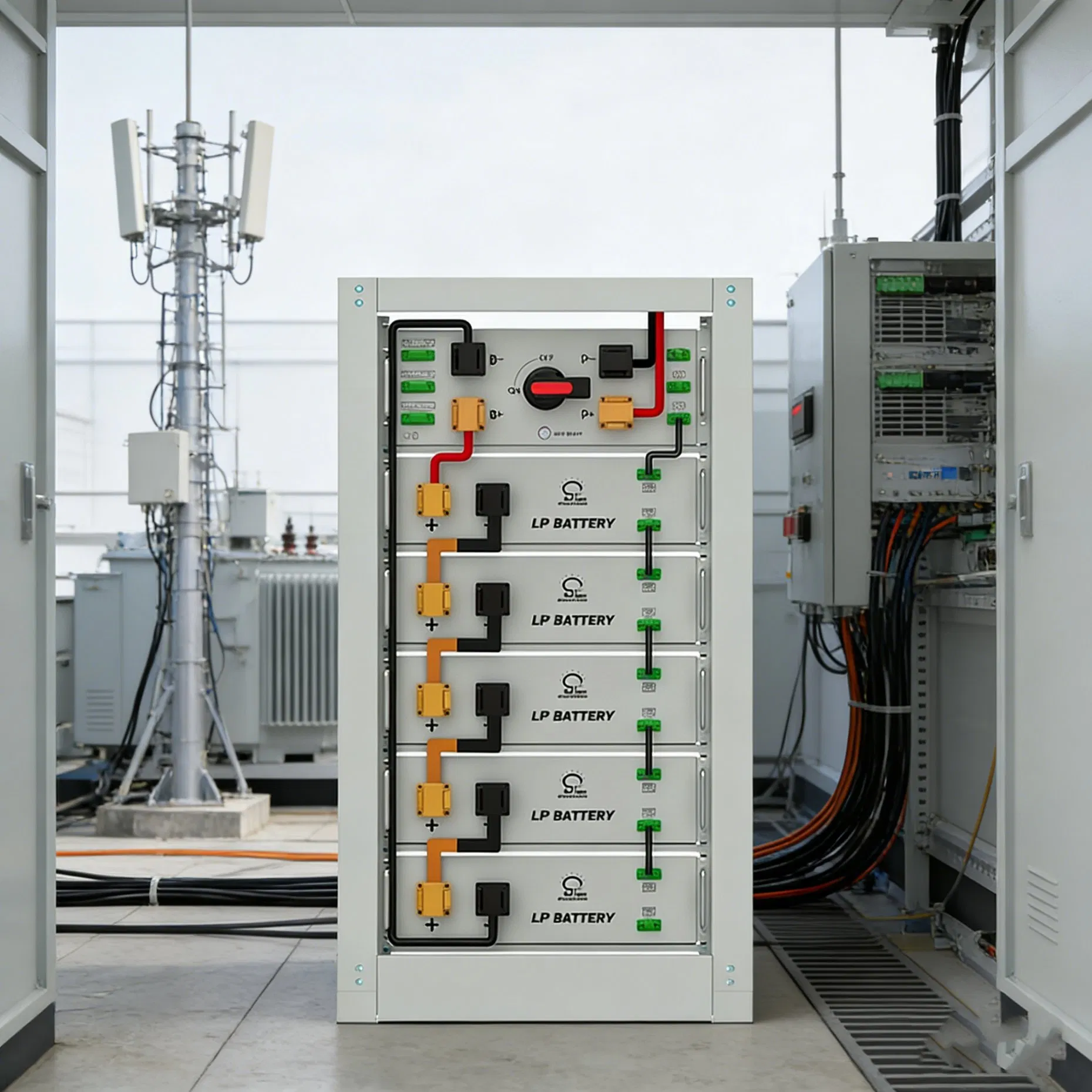

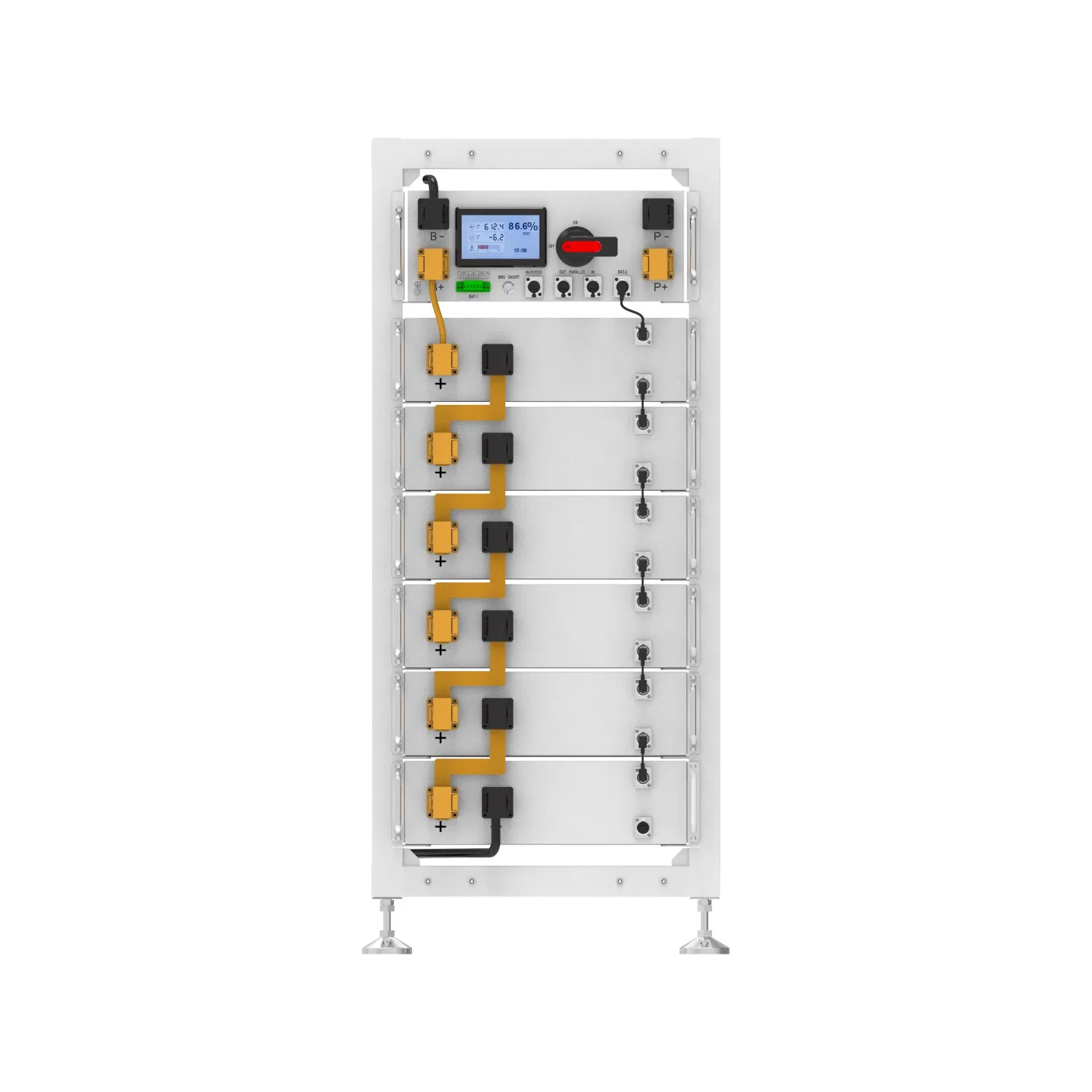

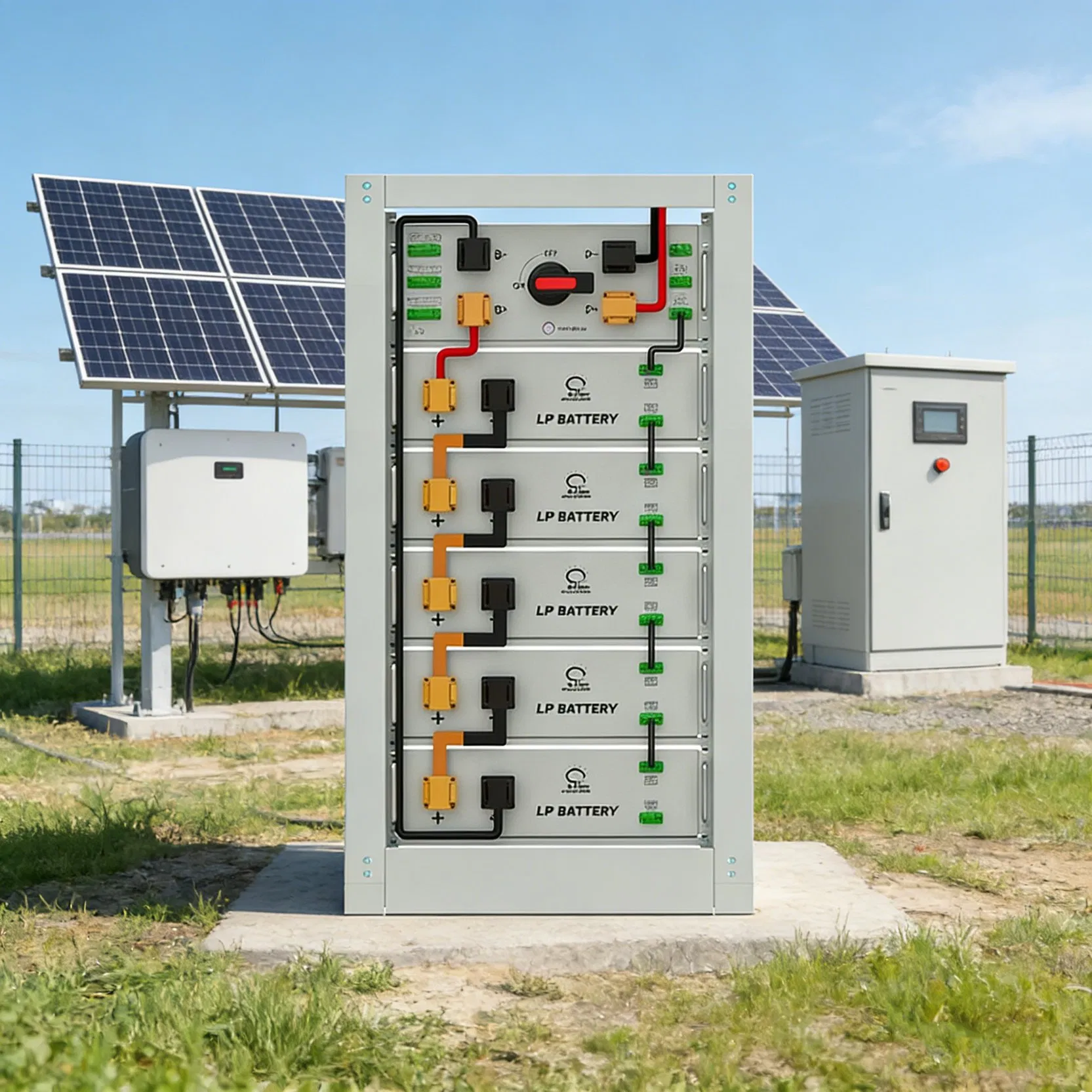

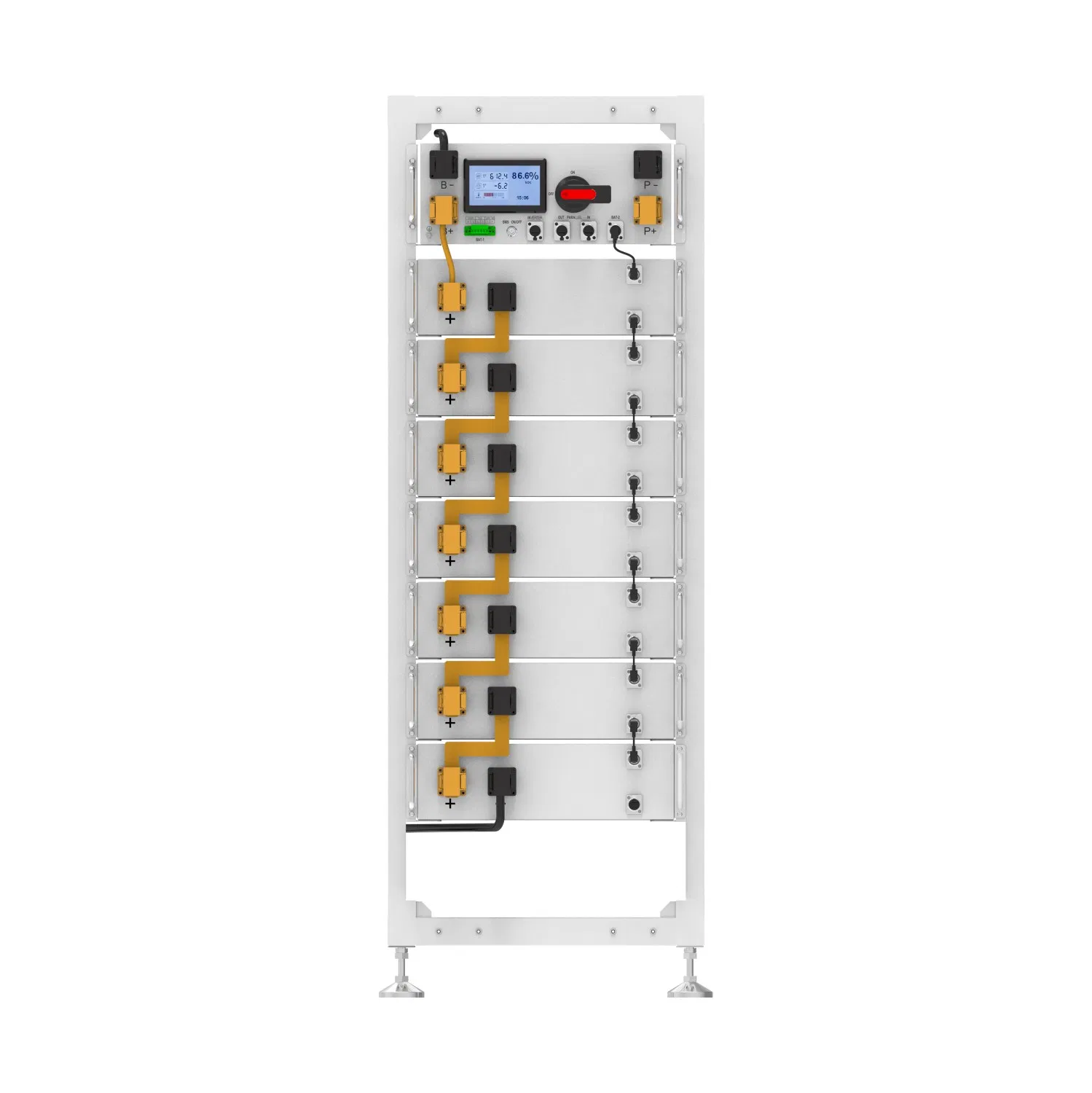

Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
1 / 5
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery
Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery

Good Price Yes Li-ion Br Solar Br-LFP-51.2/100 China High Voltage LiFePO4 Energy Storage Battery

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

i

Basic Information

Rechargeable
Yes
Size
Medium
Grid Connection
Off Grid, Hybrid Grid
System Type
Stackable, Rack-Mounted
Voltage
240V
Cycle Life
>6000 Cycles
Capacity
106Ah
Specification
BR-LFP-51.2/100
Origin
China
Production Capacity
10000 pieces/Year
📦

Packaging & Delivery

Package Size
80.00cm * 50.00cm * 30.00cm
Gross Weight
9.100kg
📋

Product Description

High Voltage LiFePO4 Energy Storage Battery
MODEL BRLF-HV15K15SN BRLF-HV20K15SN BRLF-HV25K15SN BRLF-HV30K15SN BRLF-HV35K15SN BRLF-HV40K15SN
Model No 144V106AH 192V 106AH 240V106AH 288V106AH 336V106AH 384V106AH
Nominal Voltage 144V 192V 240V 288V 336V 384V
Capacity (KWH) 15.26KWH 20.35KWH 25.44KWH 30.52KWH 35.61KWh 40.7KWH
Weight (kg) 165KG 210KG 258KG 305KG 352KG 406KG
Cycle Life >6000 times (0.5C/0.5C-80% DOD)
Design Life 15 years+
Communication RS485/RS232/CAN
🖼️

Product Showcase

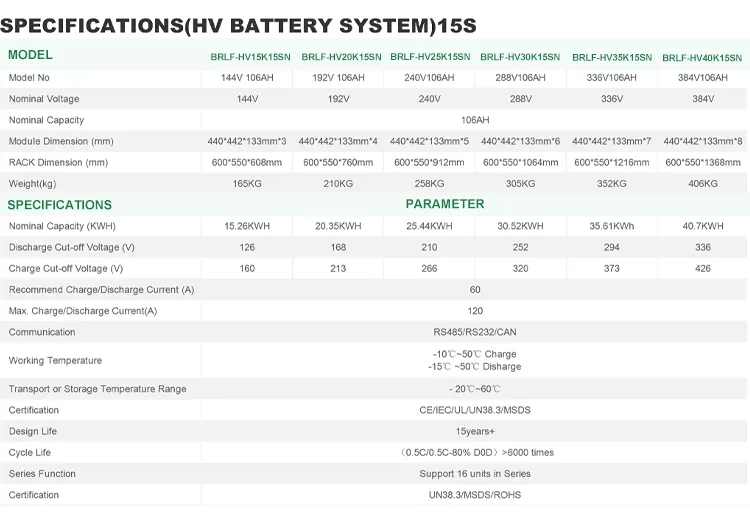

Feature 1
Feature 2
Feature 3
Feature 4

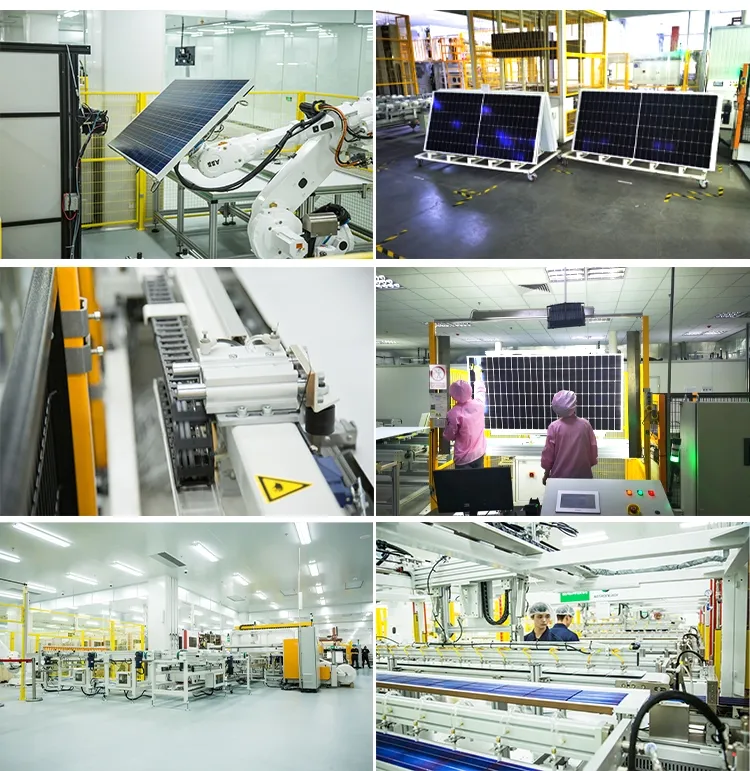

Feature 5
Feature 6

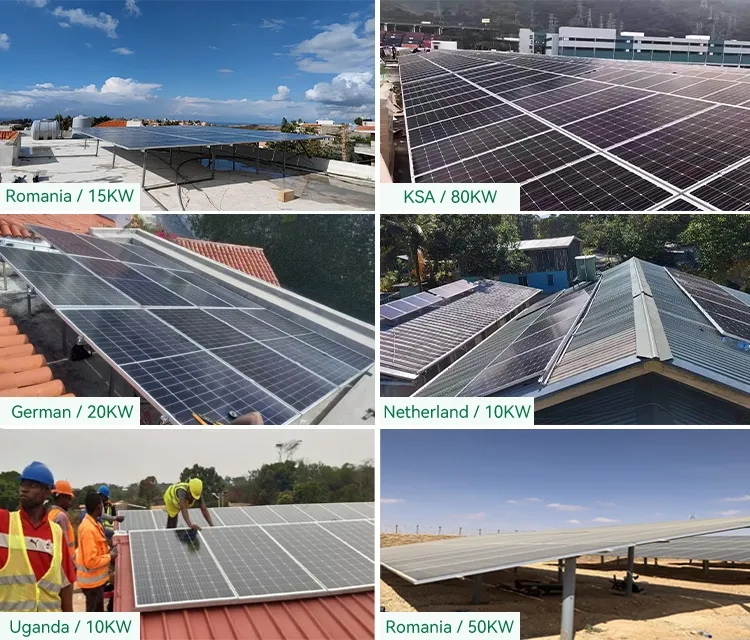

Feature 7
Feature 8

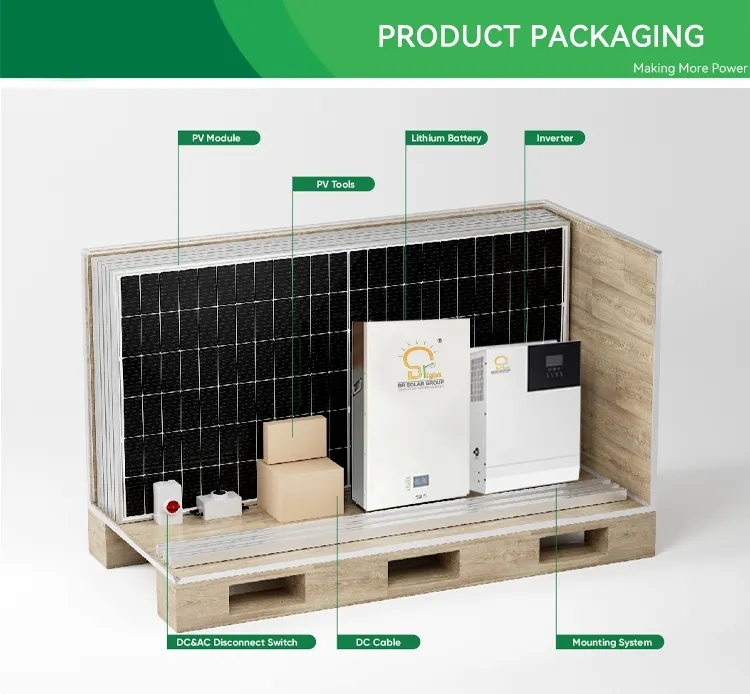

Feature 9
?

Frequently Asked Questions

What is the expected cycle life of this battery system?
The system provides a long cycle life of over 6,000 cycles at 80% Depth of Discharge (DOD).
Which communication interfaces are supported?
It supports RS485, RS232, and CAN communication protocols for seamless integration.
What is the operating temperature range for charging and discharging?
Charging works between -10ºC to 50ºC, while discharging is supported from -15ºC to 50ºC.
How many units can be connected in series?
The system supports the connection of up to 16 units in series to meet high voltage requirements.
What certifications does this energy storage battery hold?
The product is fully certified with CE, IEC, UL, UN38.3, MSDS, and ROHS standards.
What is the design life of the battery?
The battery is engineered with a professional design life of 15 years or more.
