C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
1 / 5
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure
C Pile Ground Solar Mount Installation Structure

C Pile Ground Solar Mount Installation Structure

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
Ground Installation System 2
Certification
ISO, CE
Application
Commercial & Utility
Material
Aluminum Alloy (AL6005-T5)
Type
Ground Bracket
Install Site
Open Terrain
Module Orientation
Landscape, Portrait
Anti-Corrosive
Anodized
Max Wind Speed
60m/S
Max Snow Load
1.6kn/M²
Duration
More Than 20 Years
Production Capacity
1GW/Year
Packaging & Delivery
Package Size
376.00cm * 366.00cm * 248.00cm
Package Gross Weight
500.000kg
Product Description

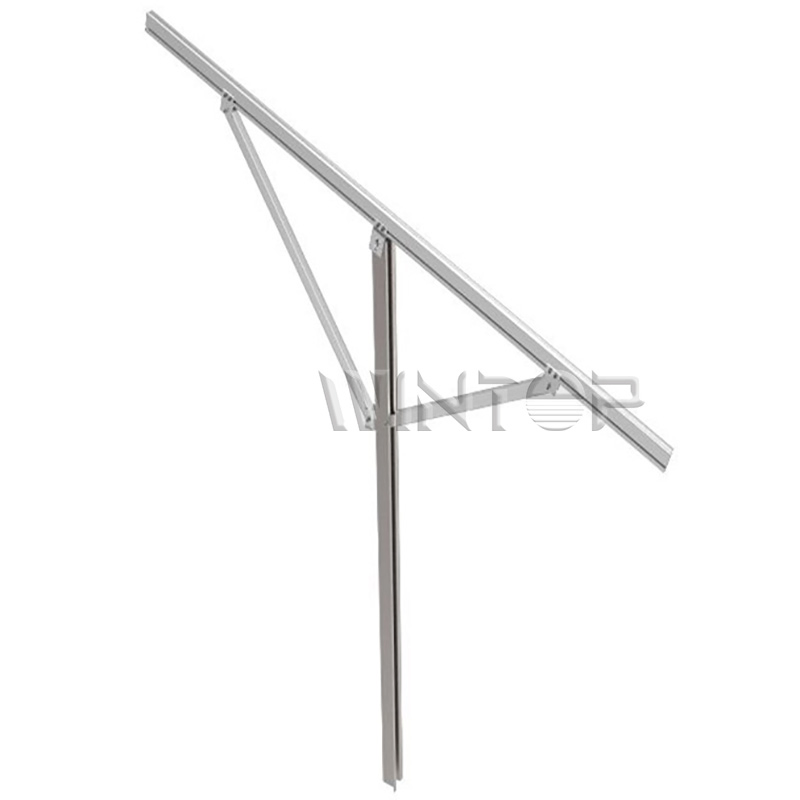

C Pile Ground Solar Mount Installation Structure
Solar ground piling foundation mounting system is suitable for framed or frameless solar panel installation, especially on uneven terrain. It is also suitable for flat ground. For solar ground pile mounting system, the unique post can be easily driven into the ground 1~2 meters by pile machine, then you can mount the pre-assembled beam structure and other mounts easily.
Product Parameters
Installation locationGround
Installation foundationC-shape pilling, U-shape pilling
Installation angleUp to request
Wind load60m/s (216kmh/133mph)
Snow load1.4KN/m²
Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
Module OrientationHorizontal, Vertical
Design standardAS/NZS1170, JIS C 8955-2017
Bracket materialAL6005-T5 (Anodized Oxidation)
Fastener MaterialStainless steel SUS304
Warranty & Duration10 years & More than 20 years
Features & Benefits
1 Light weight, easy transportation & installation and safe construction.
2 The surface is treated by oxidation, high corrosion resistance & good stability.
3 Suitable for various designs and solutions.
4 The maximum pre-assembly, save construction time and labor cost.
5 Environmental protection, suitable for variety of geological conditions. It is durable and recyclable.

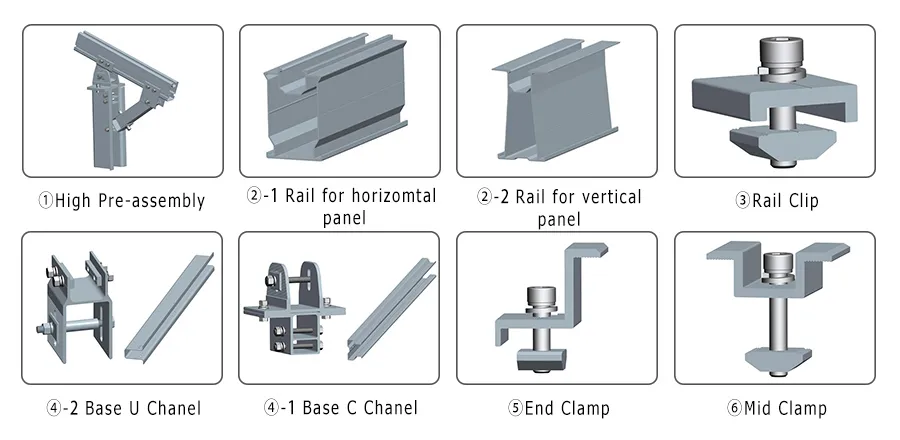

Product Components

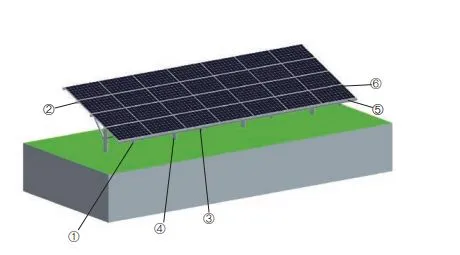

Component 1
Component 2

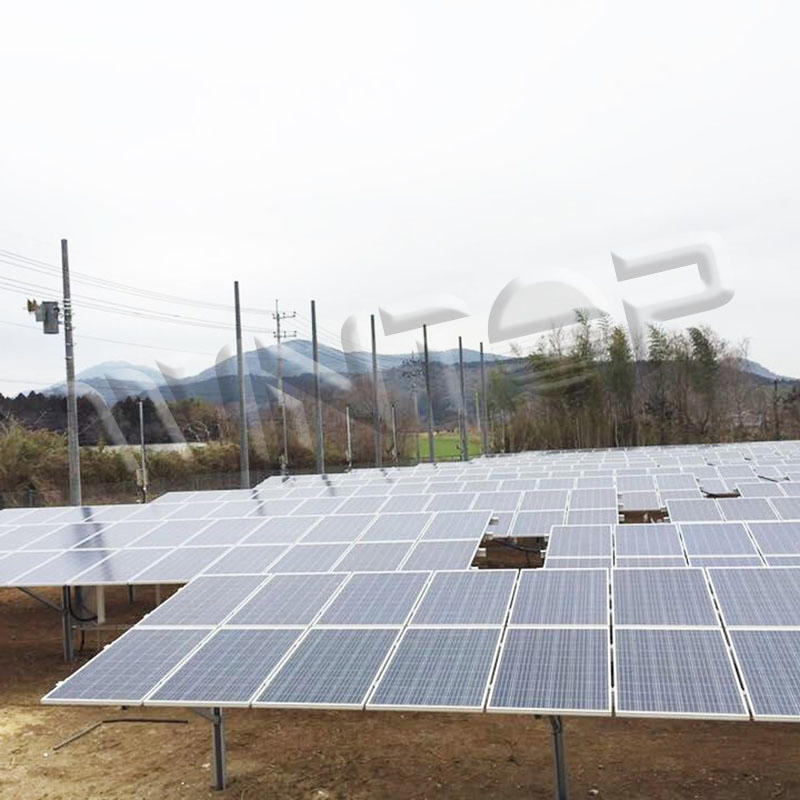

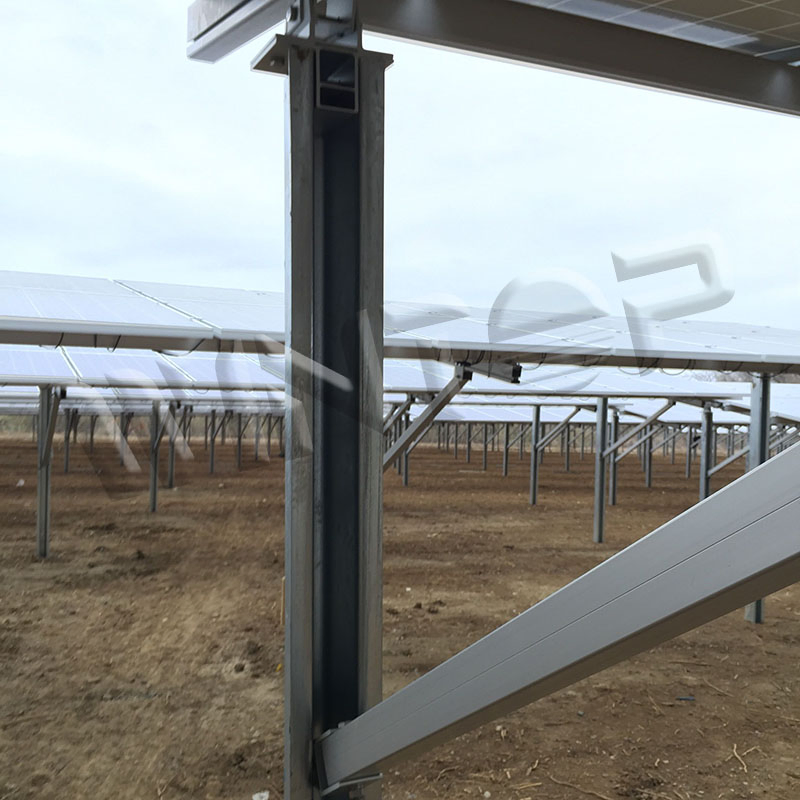

Project Showcase

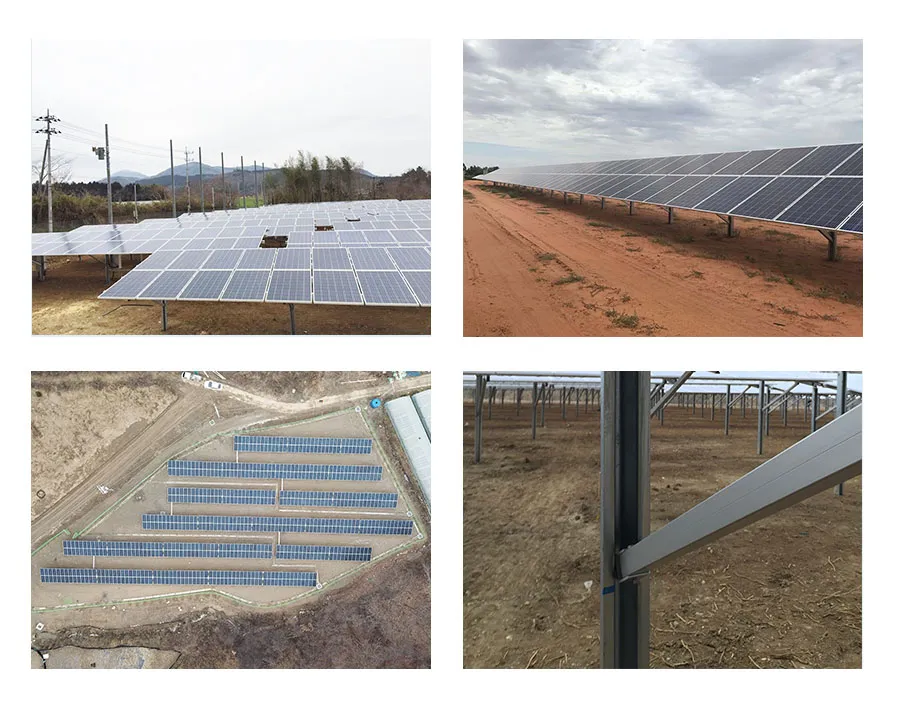

Project Case

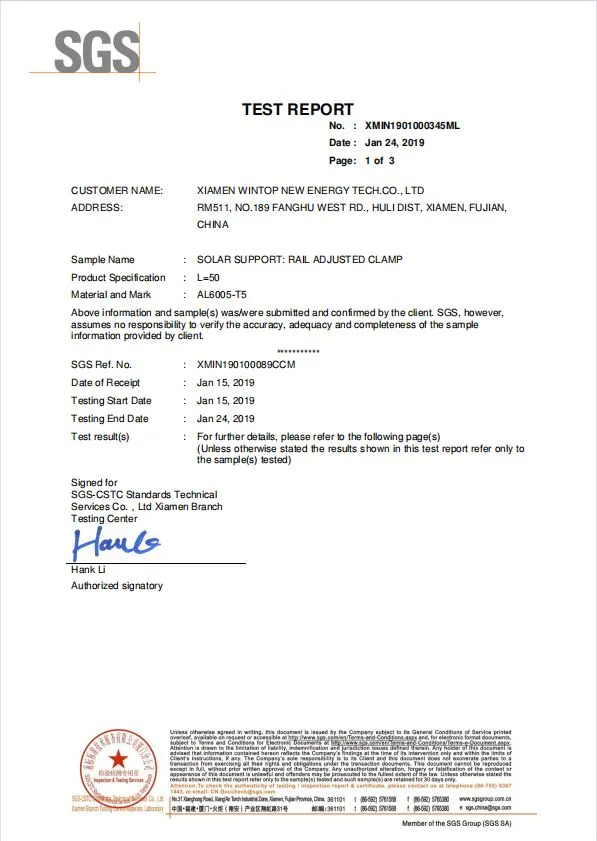

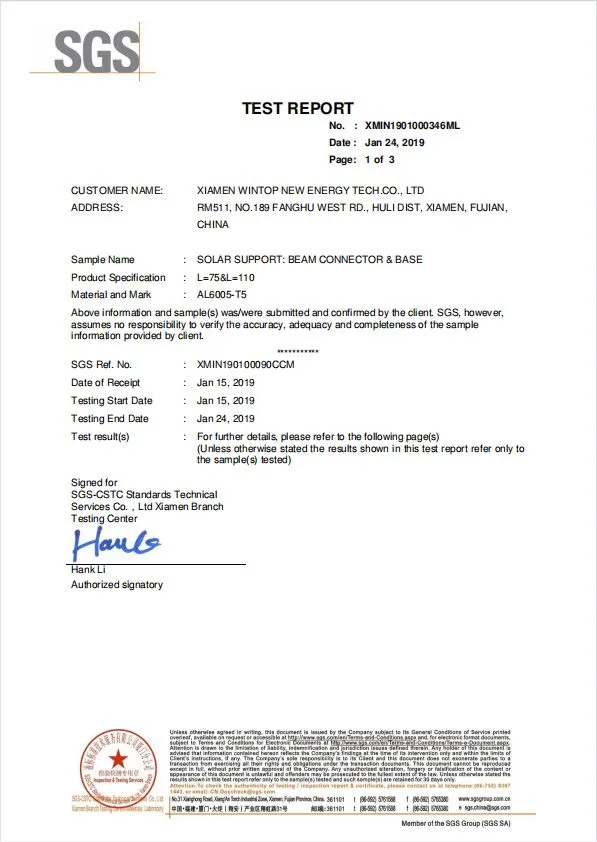

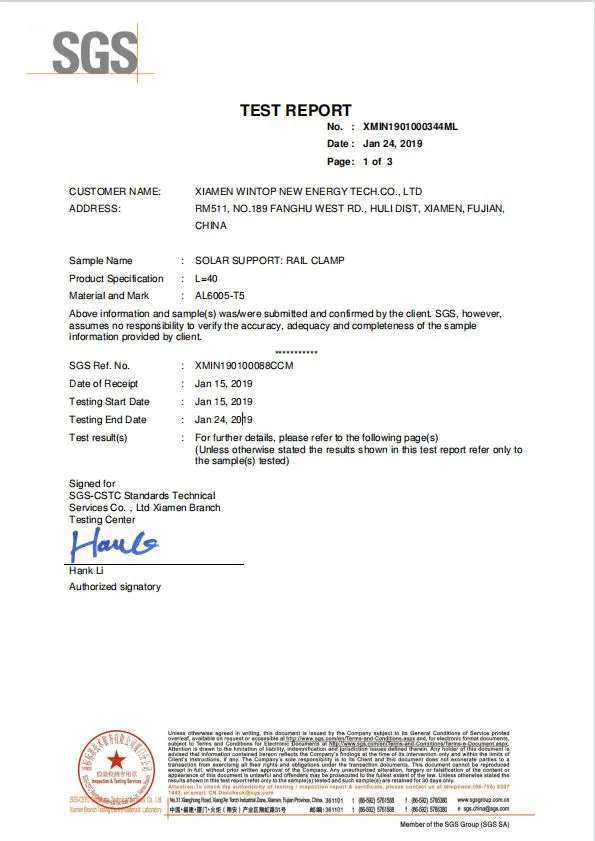

Certifications
Cert 1
Cert 2
Cert 3
Cert 4
Cert 5
Cert 6
Profile
Production Facility
Established in 2016, the enterprise integrates R&D, production and marketing of Solar Mounting Systems for residential, commercial and utility scale customers.
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a specialized manufacturer of solar mounting systems, established since 2016.
2. What are the main benefits of the C Pile ground mounting system?
The system is lightweight, highly corrosion-resistant due to anodized aluminum alloy, and features a high degree of pre-assembly to save on labor costs and construction time.
3. Can this system be used on uneven terrain?
Yes, the solar ground piling foundation is specifically designed for versatility and is ideal for both flat ground and uneven geological conditions.
4. What is the minimum order quantity (MOQ)?
Our minimum order quantity is 1 set. We also provide samples upon request for quality evaluation.
5. How durable is the structure against extreme weather?
The structure is engineered to withstand wind speeds up to 60m/s and snow loads up to 1.6kn/m², with a design life of over 20 years.
6. Do you offer hotel booking if I visit the facility?
Yes, we provide full support for visiting clients, including hotel booking services and airport pickup for a seamless inspection visit.
