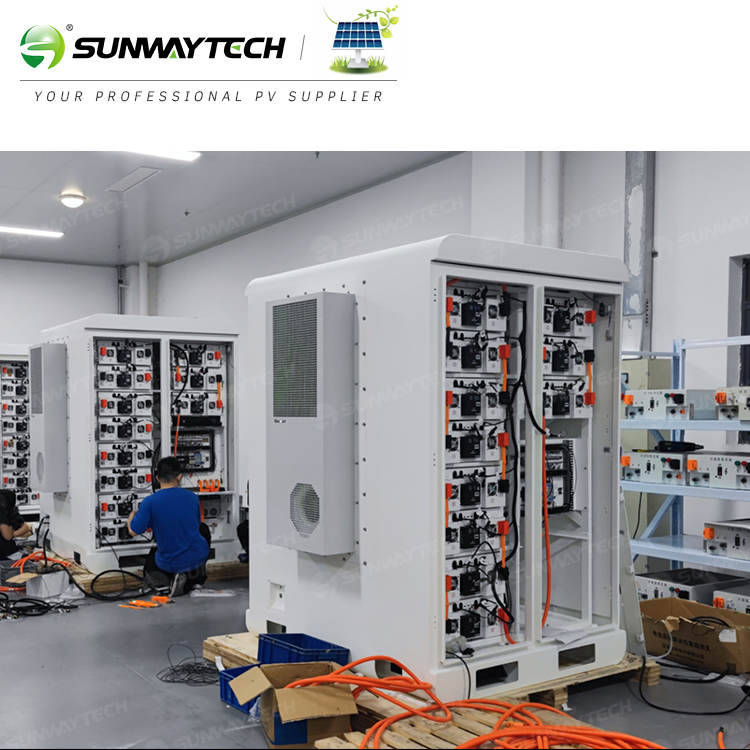

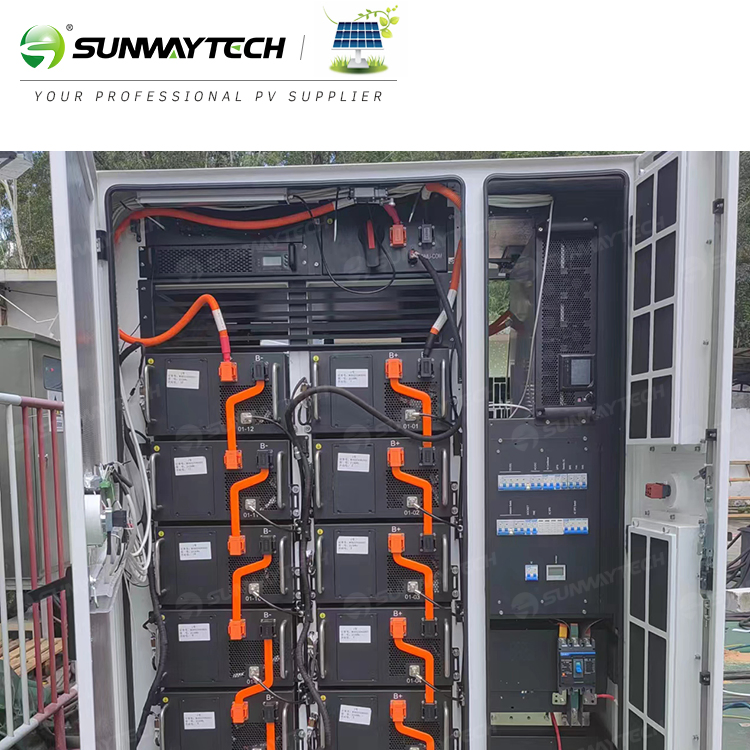

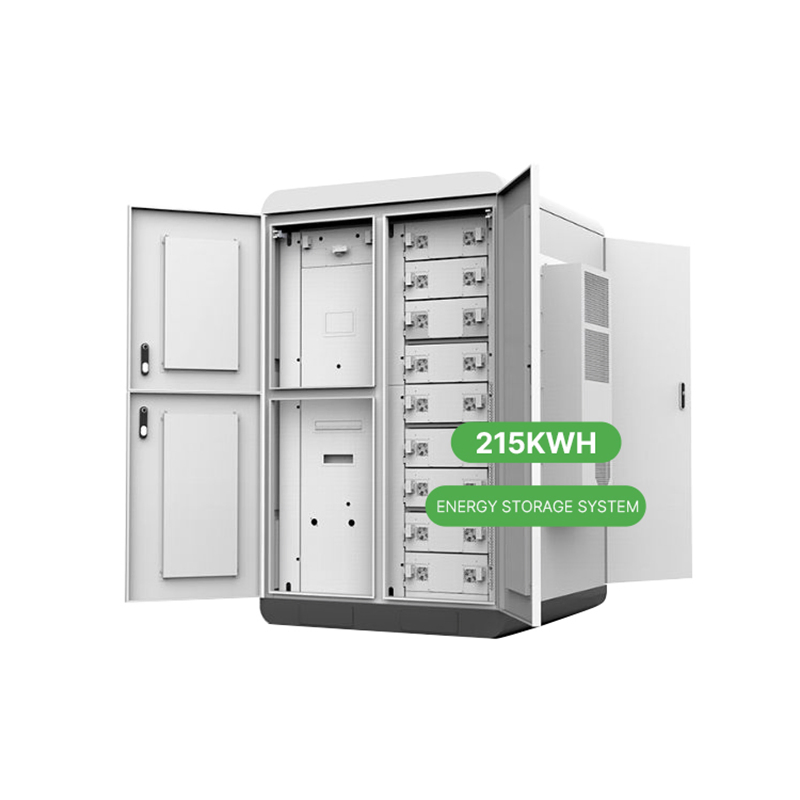

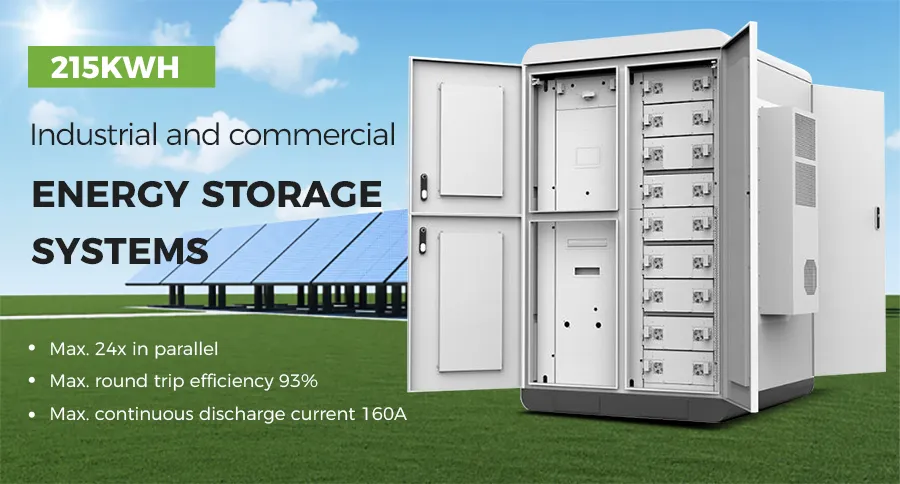

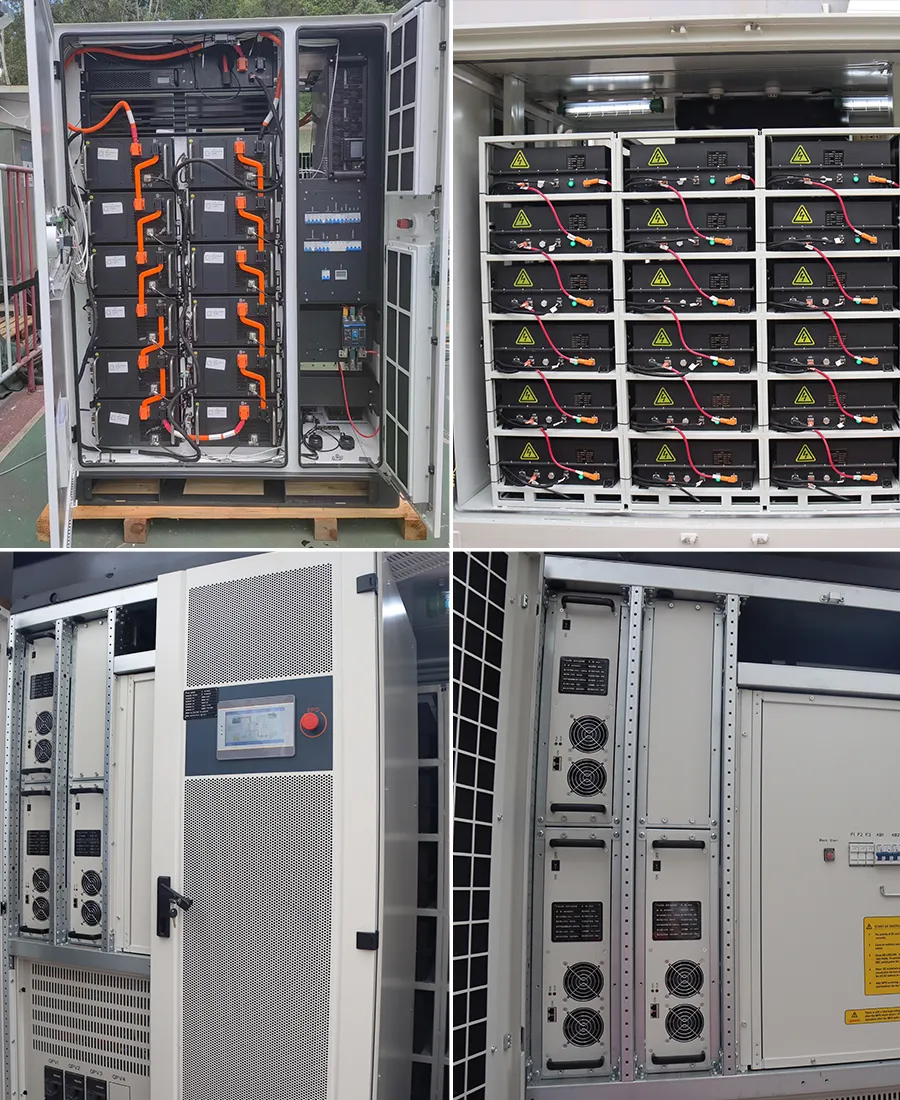

The 215 commercial & industrial energy storage system adopts the all-in-one design concept. The cabinet is integrated with a battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start (the ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).
| Rated Battery Capacity (kWh) | 215kWh |
| Rated Voltage (V) | 768V |
| Voltage Range (Vdc) | 720-840V |
| Charge and Discharge Rate (P) | ≤0.5 |
| Max. Round Trip Efficiency | 93% |
| DOD | 95% |
| Cooling Strategy | Industrial Air Conditioning |
| Cycle Lifetime at EOL 80% | ≥8000 cycles |
| Fire Fighting System | Perfluorohexanone |
| Rated Power (kW) | 100 |
| Rated AC Voltage (Vac) | 380/400 |
| Size (W*D*H mm) | 1520*1270*2117 |
| Weight (T) | 2.6 |
| Enclosure Protection Rating | IP55 |
| Operating Temperature Range | -20 to +55°C (>45 drop) |
| Communication Interface | RS485, Ethernet |
| Protocol | Modbus RTU, Modbus TCP, IEC 104 |

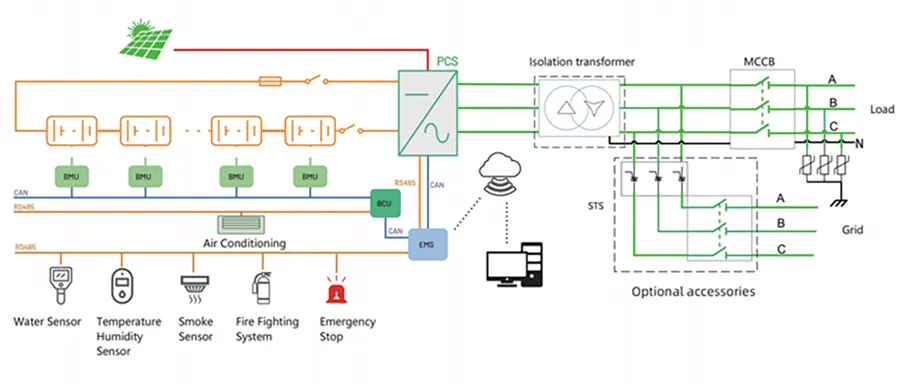

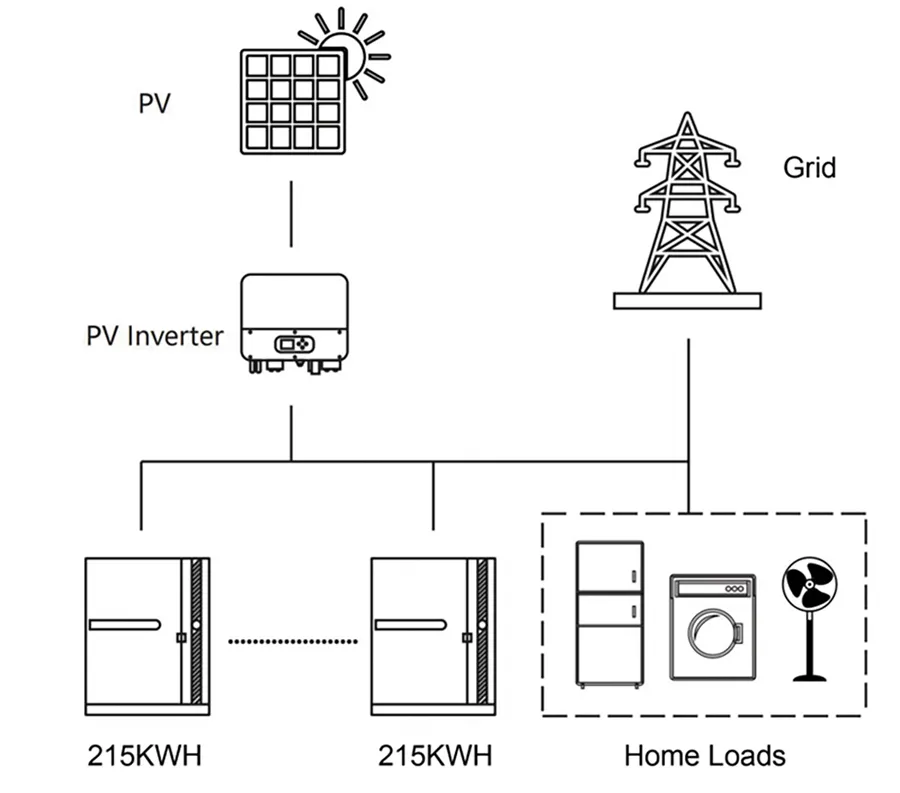

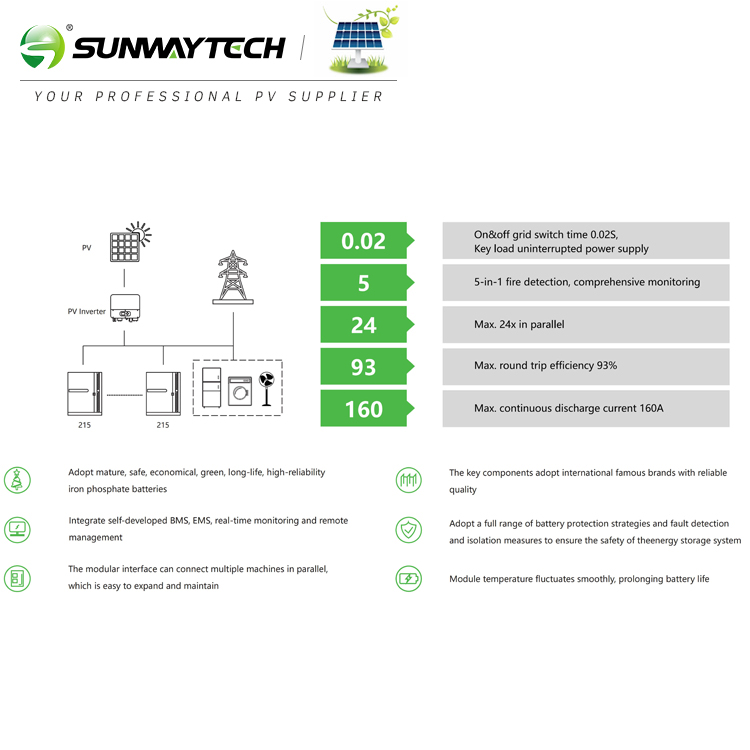

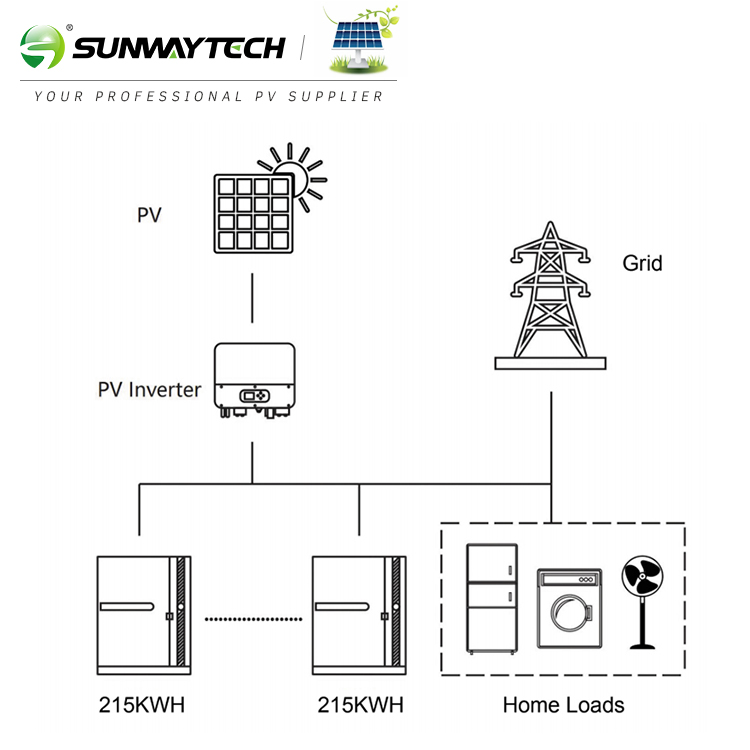

A commercial energy storage system works by storing excess energy generated by solar panels during the day. This stored energy is utilized during periods when solar generation is unavailable, such as night or cloudy weather. The Power Conditioning System (PCS) converts DC electricity from solar panels into usable AC electricity for appliances. An isolation transformer ensures safety and grid compliance by isolating the AC output, while the MCB manages connections to the grid and load.
