HYBO Energy
HYBO Energy

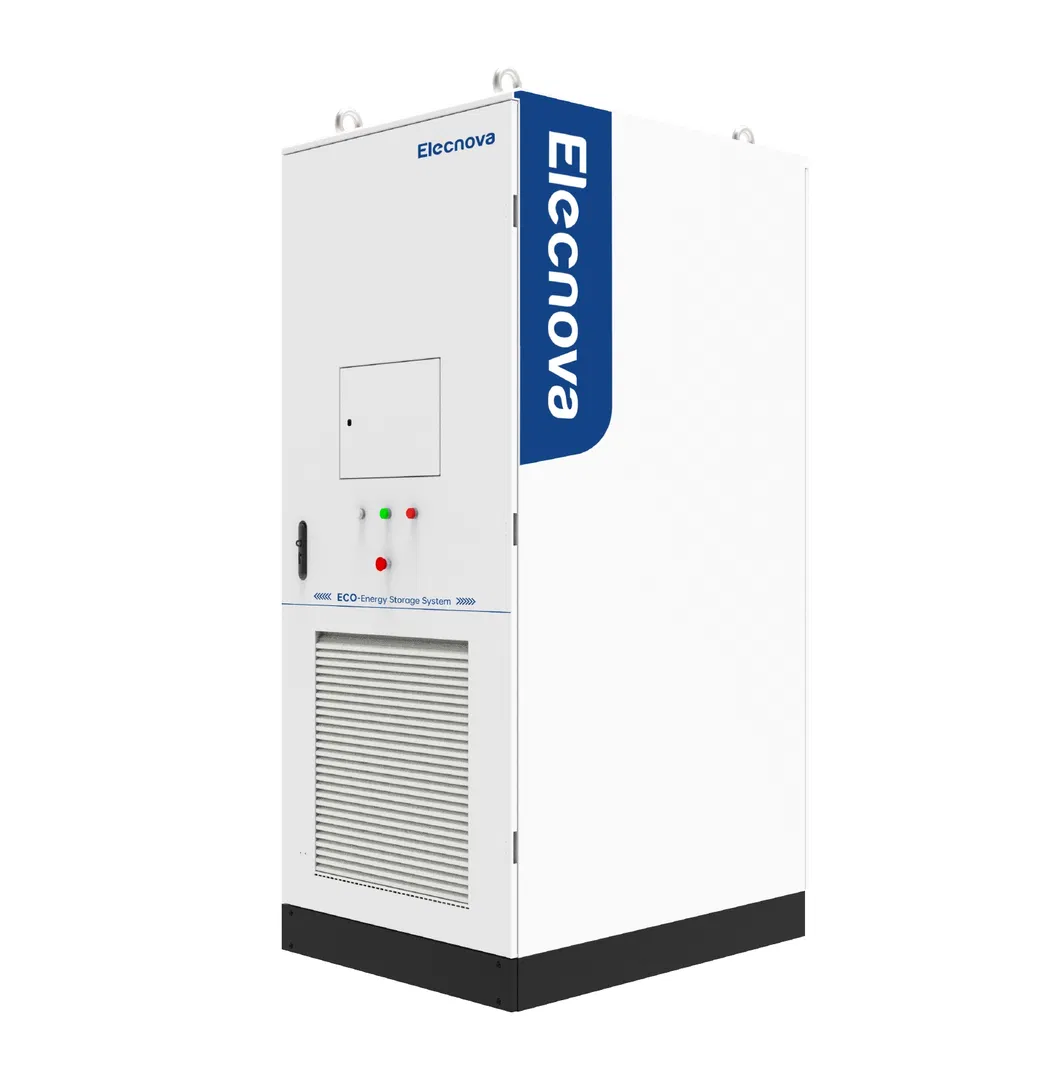

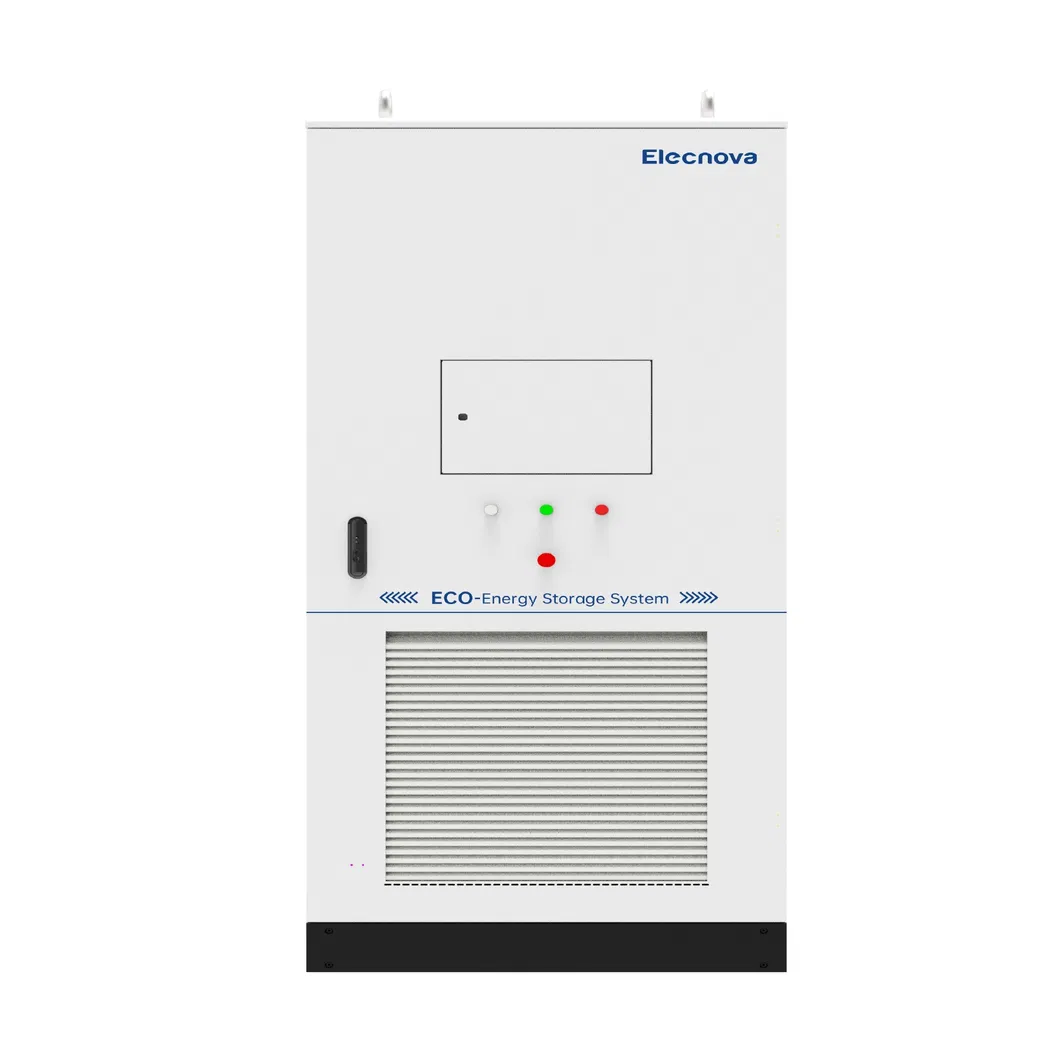

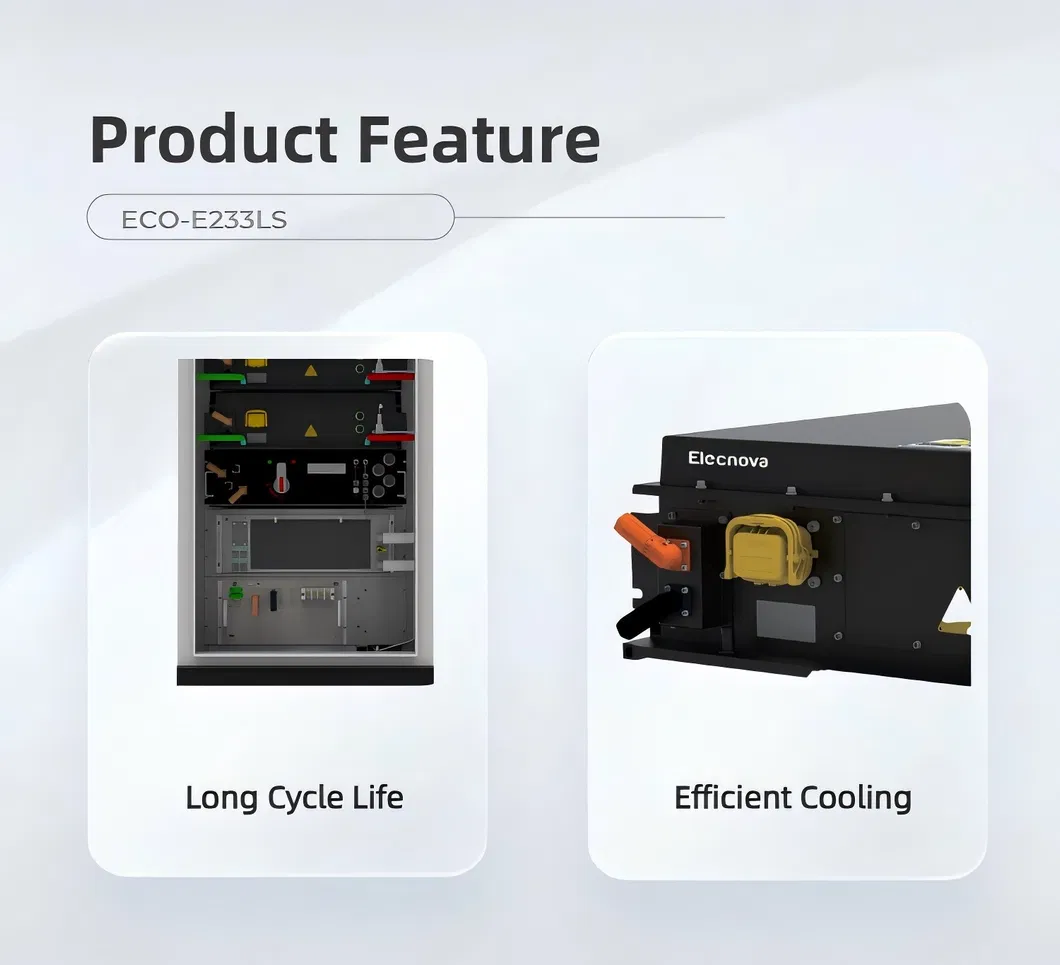

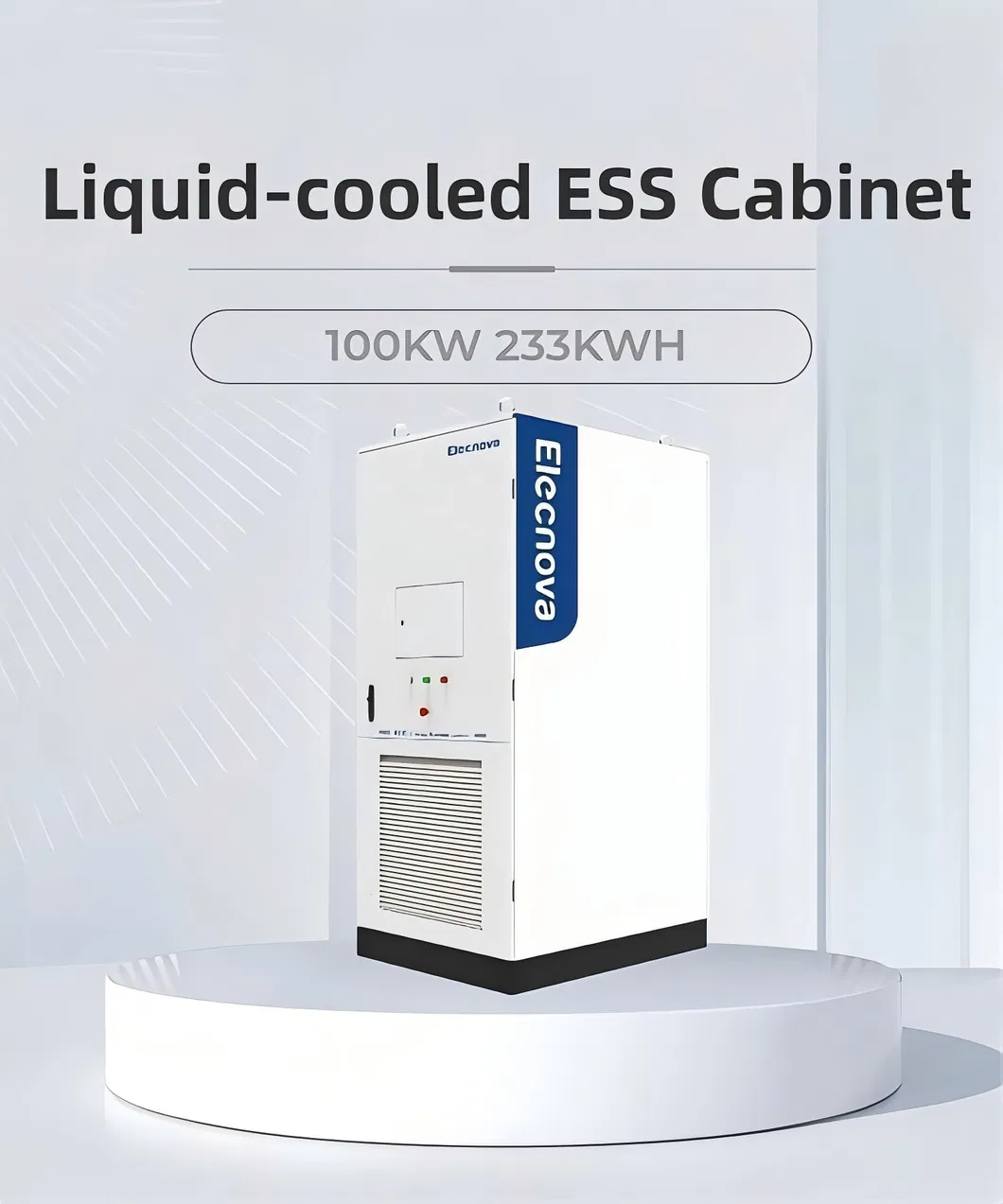

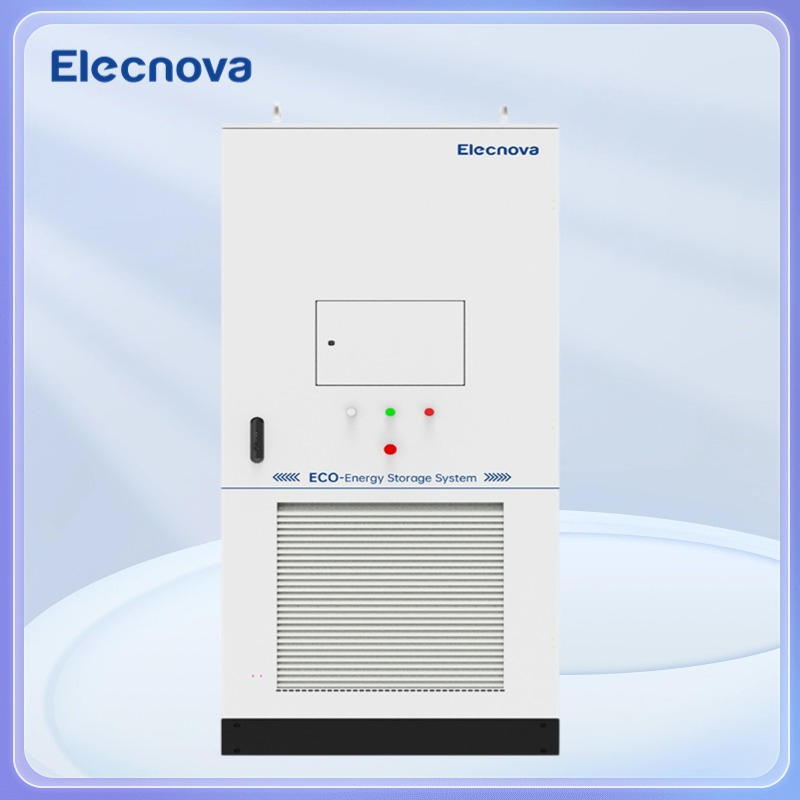

This commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

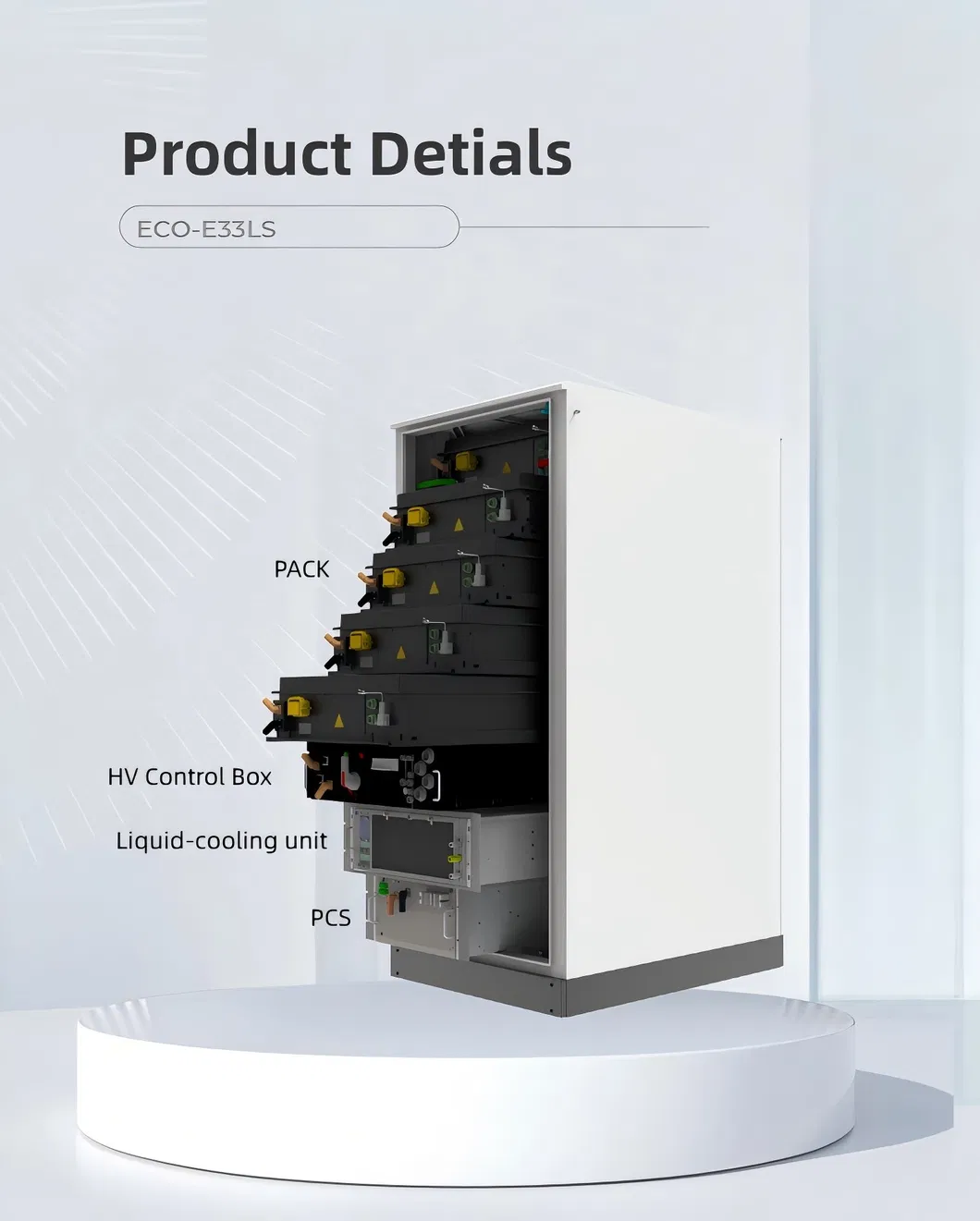

Easy integration design

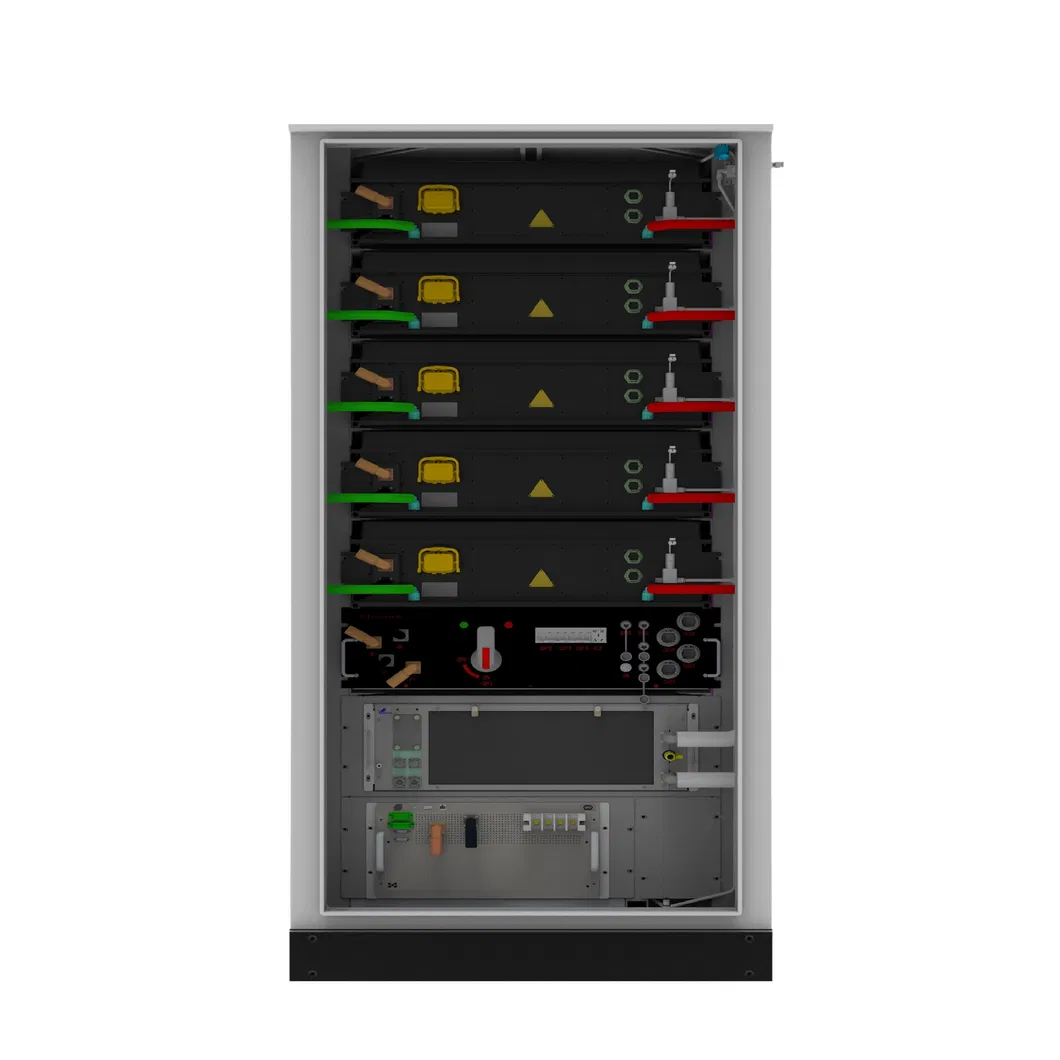

Flexible expansion
Up to 233kWh / 100kW
Black start capability

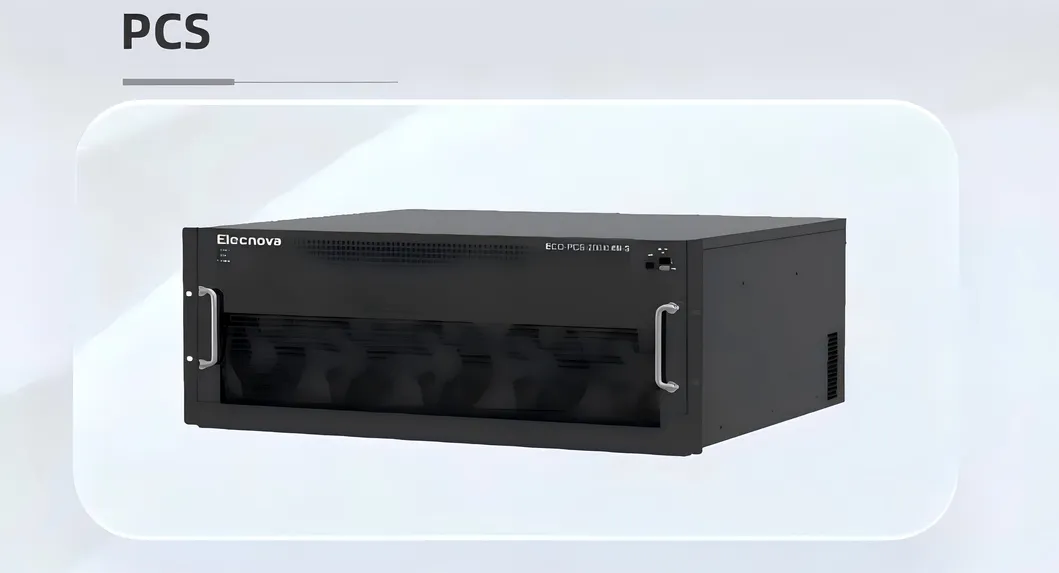

Conversion efficiency: 99%. IP65, ms-level on-/off-grid switching. Suitable for C&I ESS, microgrid, and PV-plus ESS.
Active thermal management system. Over 8,000 times cycle life. 10 years designated lifespan.

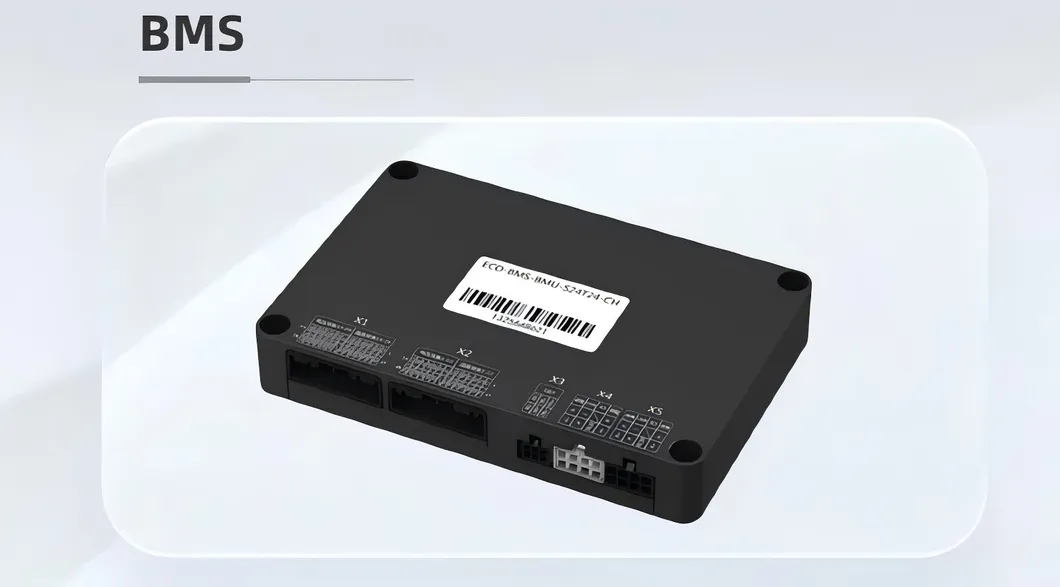

SOC Estimation Accuracy Error < 5%. 100ms sampling interval to ensure timeliness of data.

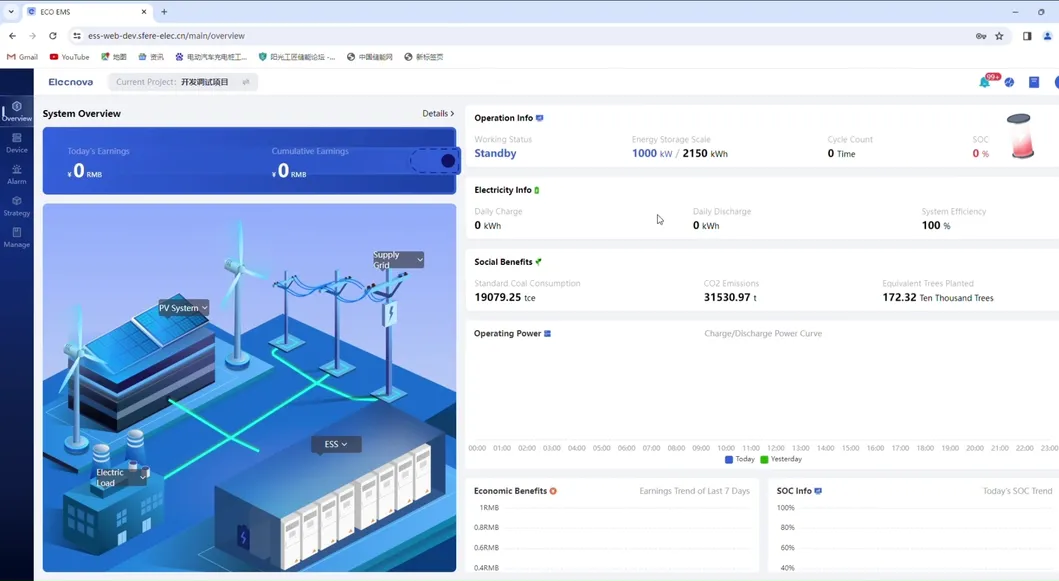

Monitoring of PCS, BMS, and air conditioning. Smart strategies for energy arbitrage and cost reduction.
| DC Side | |
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| AC Side | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General | |

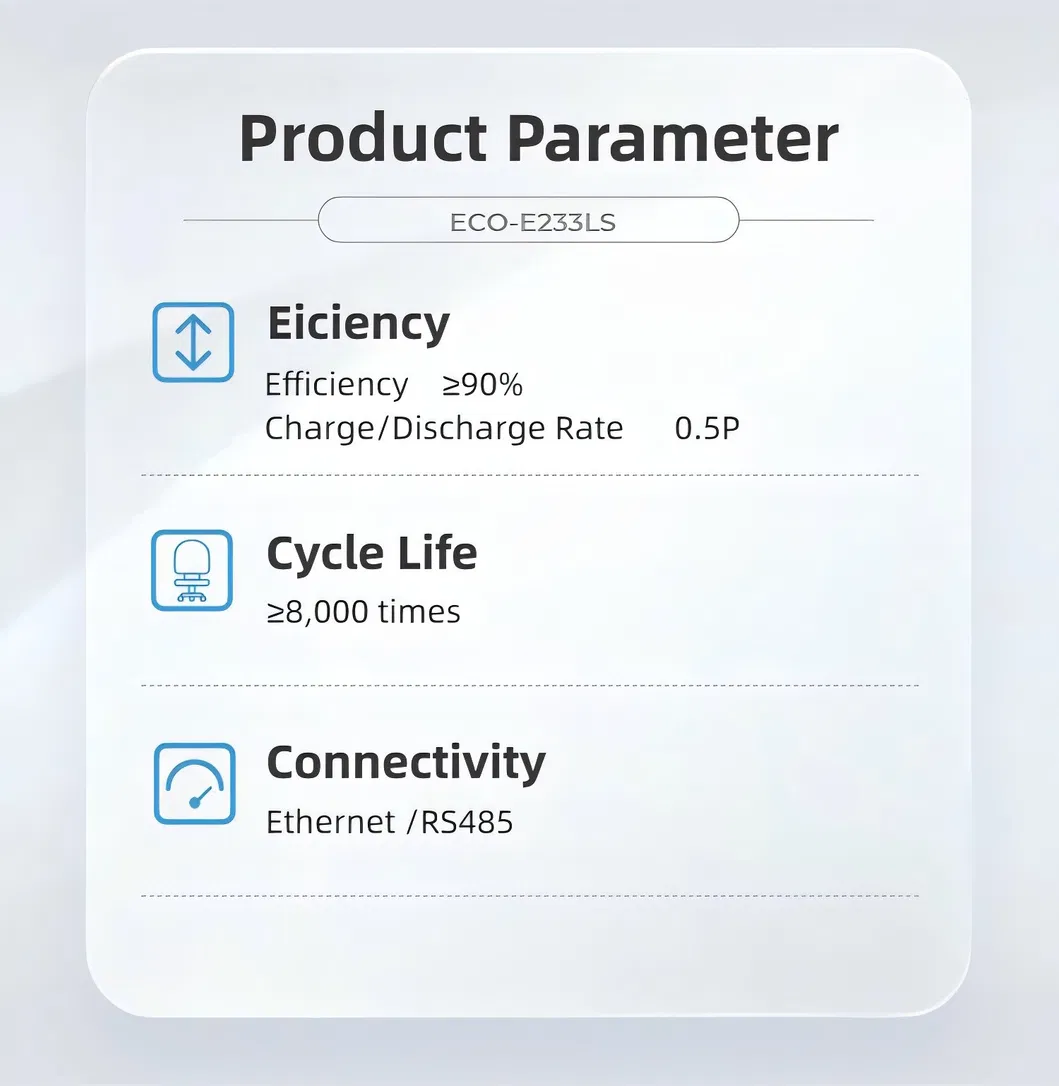

| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Operating Temp | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

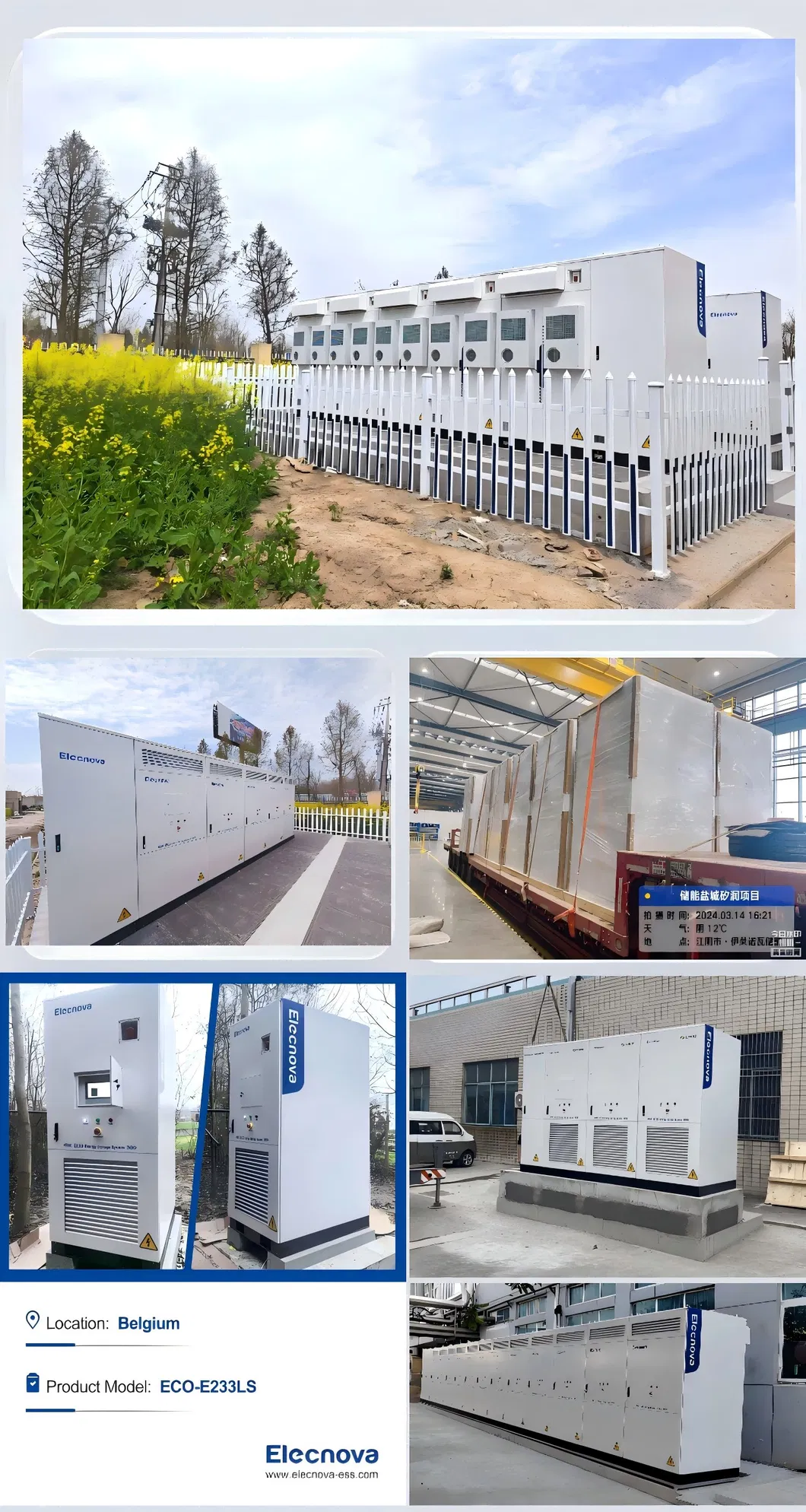

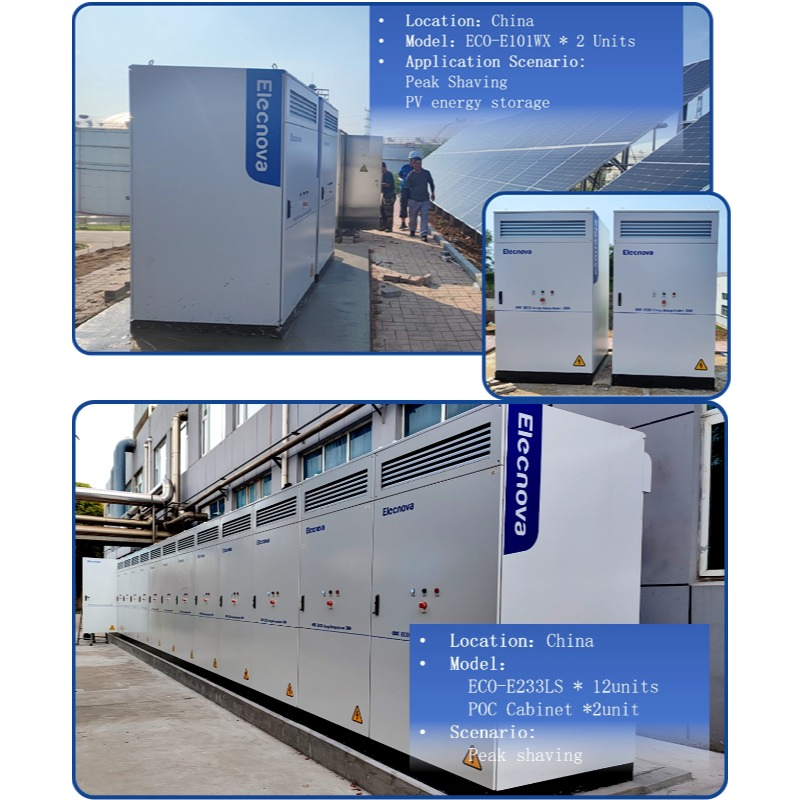

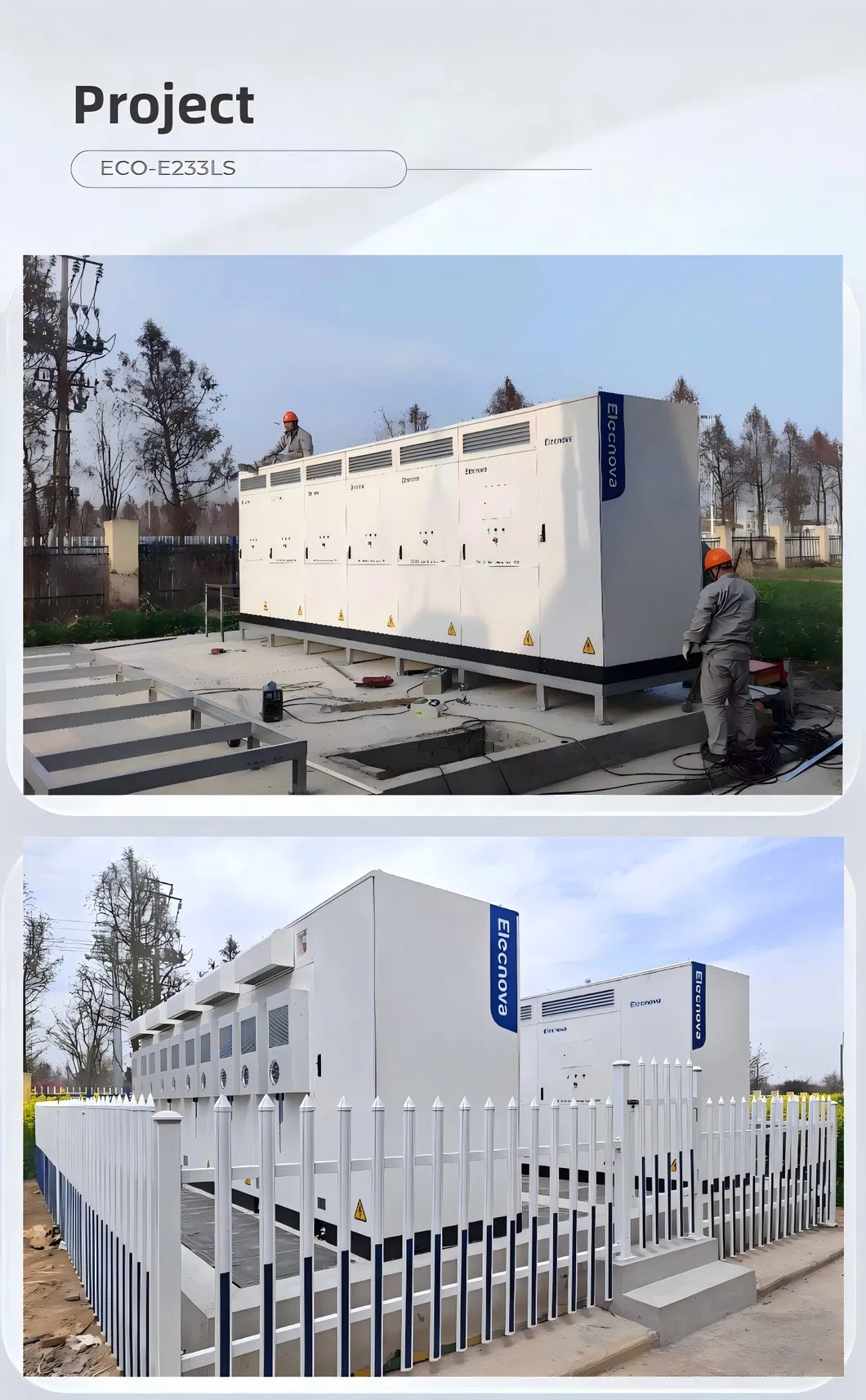

Our energy storage projects are successfully connected to the grid globally, providing high efficiency, stability, and safety for industrial and commercial users.
We are a technology-based enterprise focusing on overall solutions for energy storage systems, with comprehensive supporting capabilities for PACK, PCS, and BMS integration.

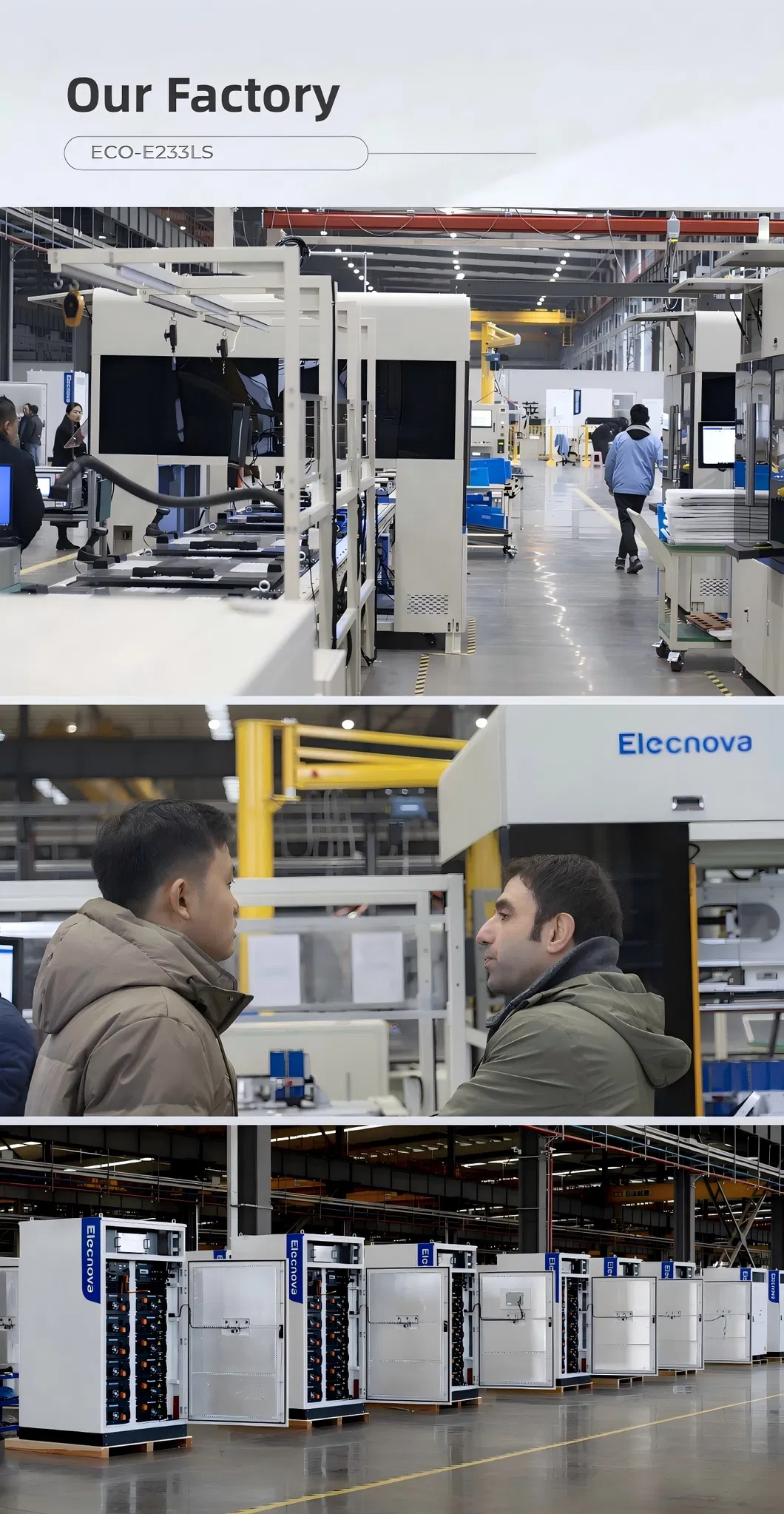

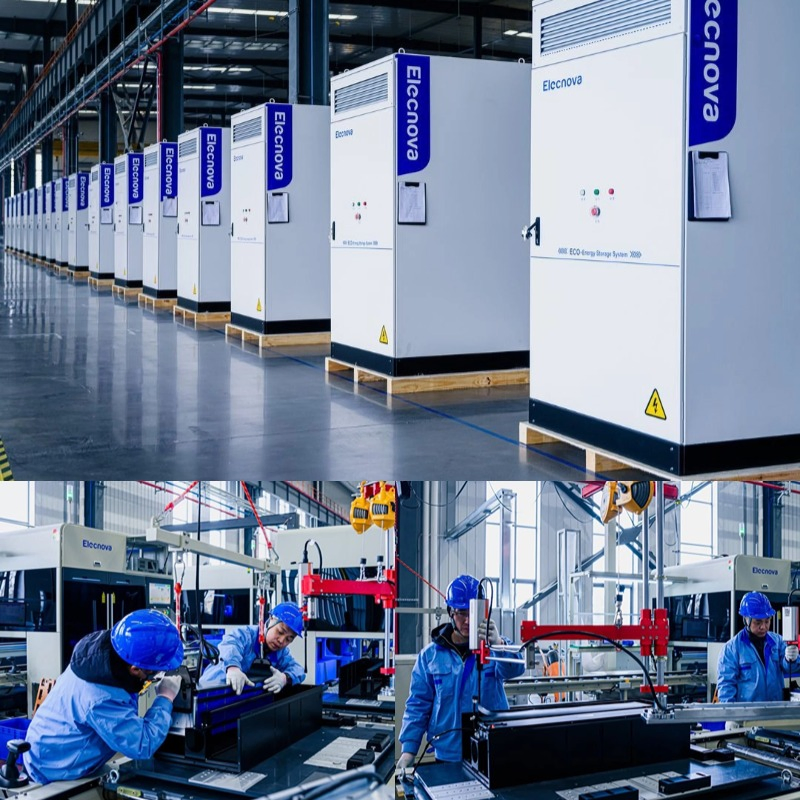

We are a professional manufacturer specializing in the production of energy storage systems, including PCS, Battery PACK, BMS, and EMS.
Yes, we provide both OEM and ODM services based on specific minimum order quantities.
Our standard warranty ranges from 5 to 10 years depending on the specific product configuration.
We have overseas support capabilities to provide repair and replacement services to ensure system longevity.

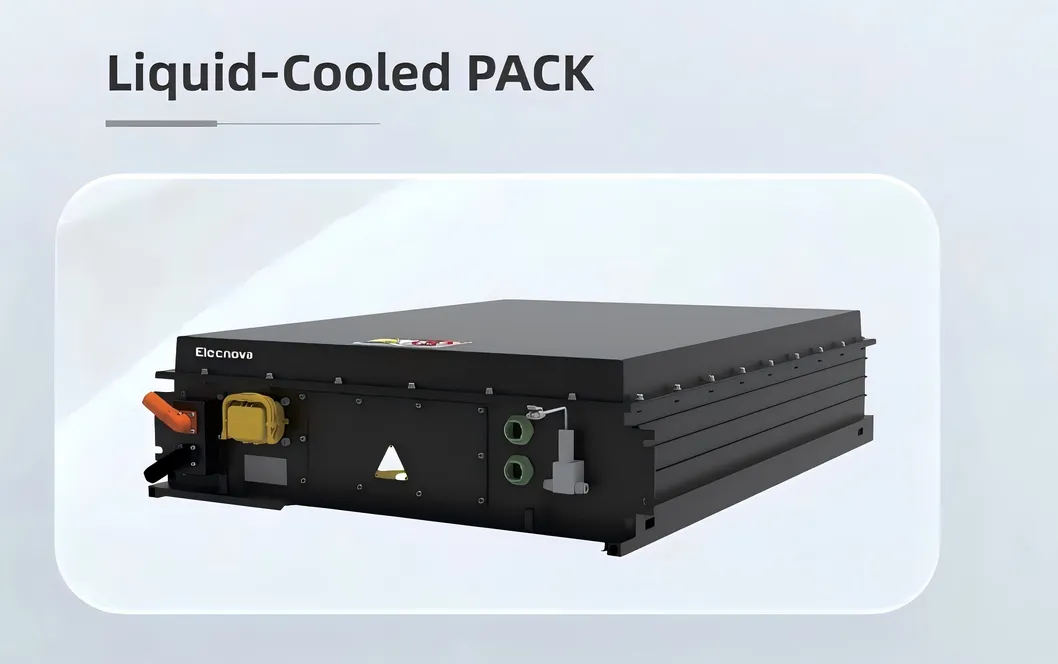

The system utilizes advanced active liquid cooling technology to maintain a cell temperature difference of less than 3°C.
Yes, we work with professional forwarders who specialize in battery shipments by sea or air to ensure safe delivery.
