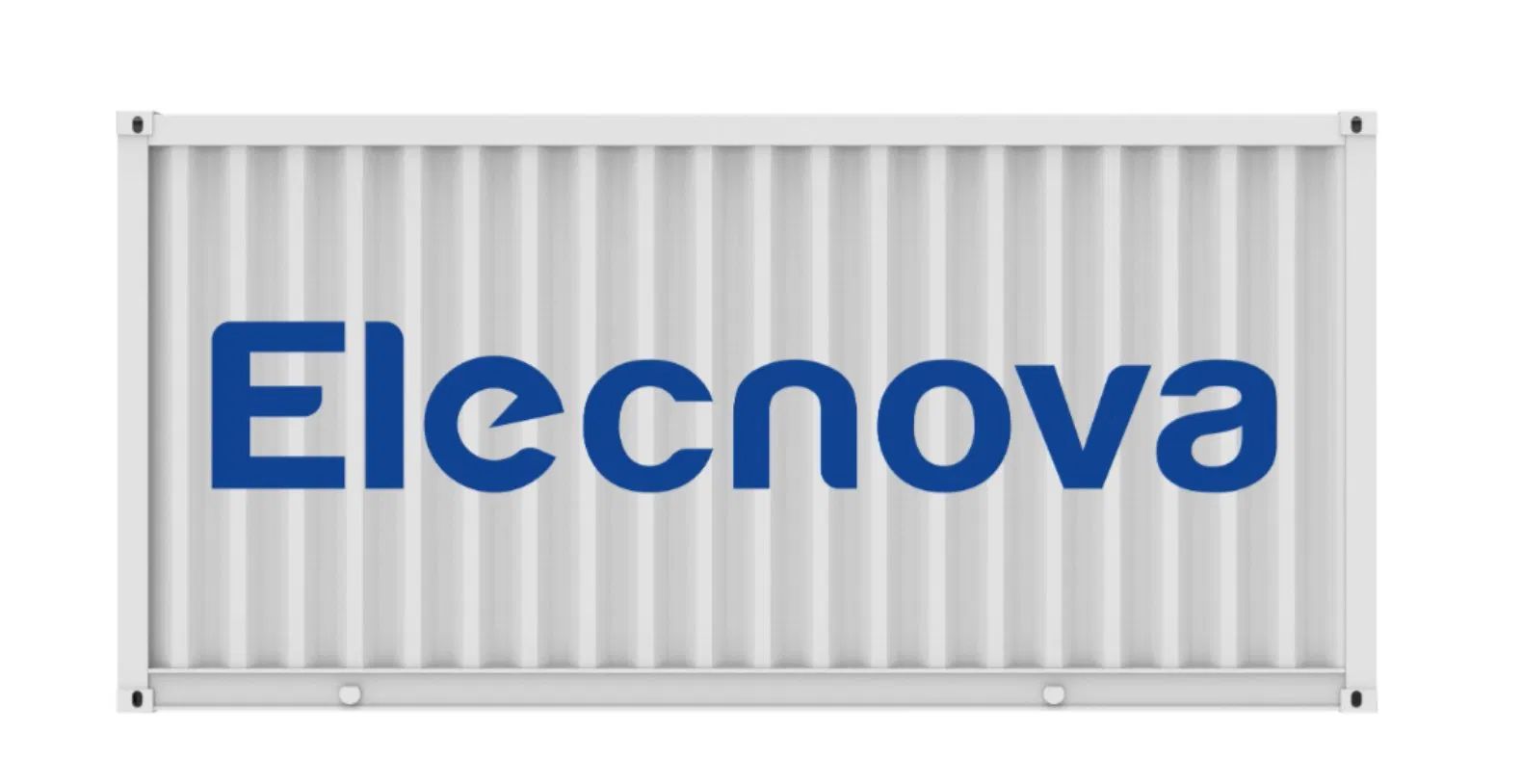

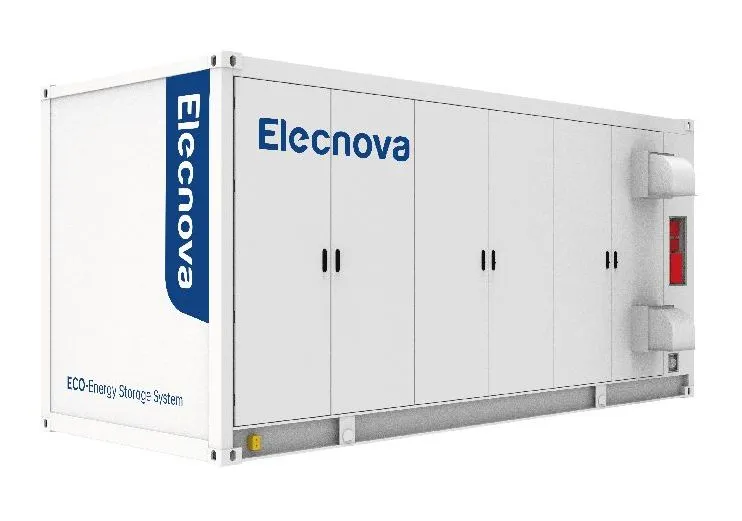

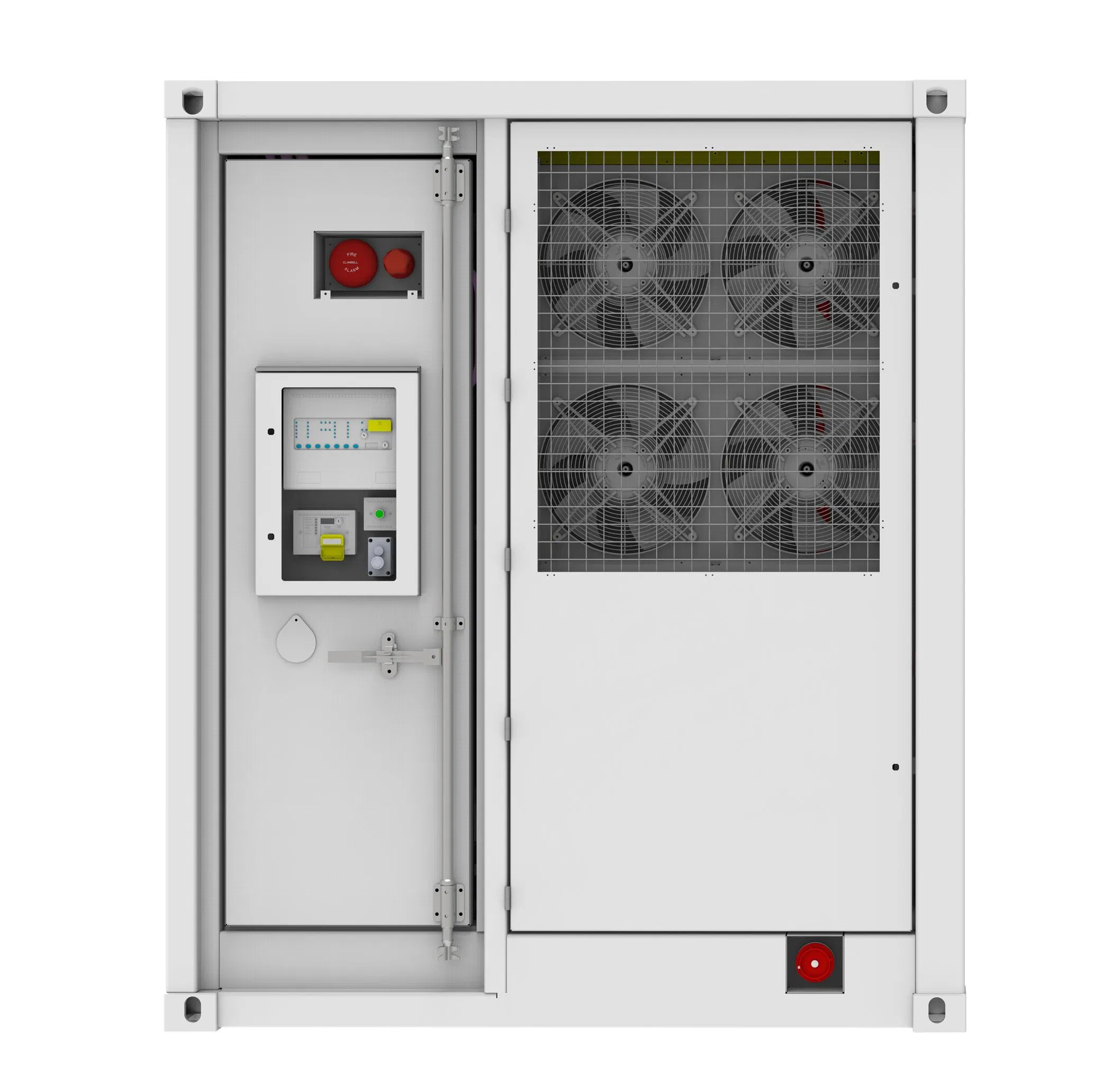

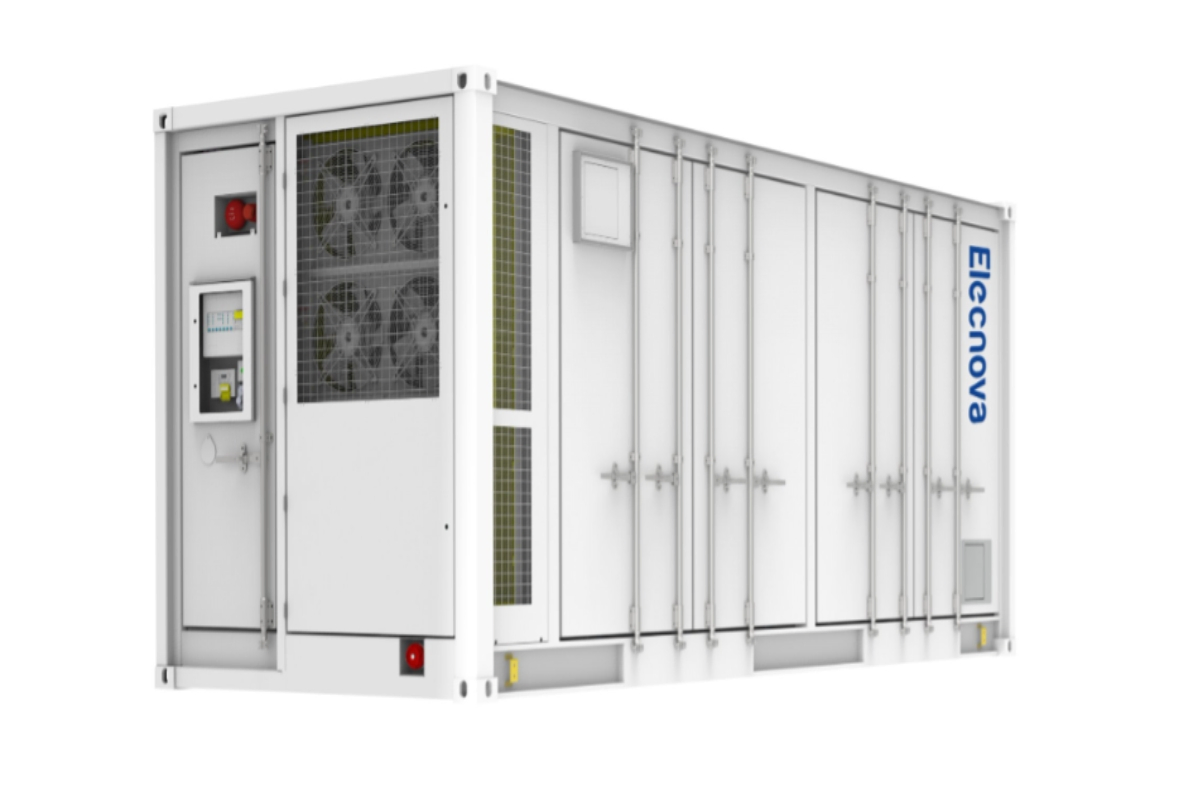

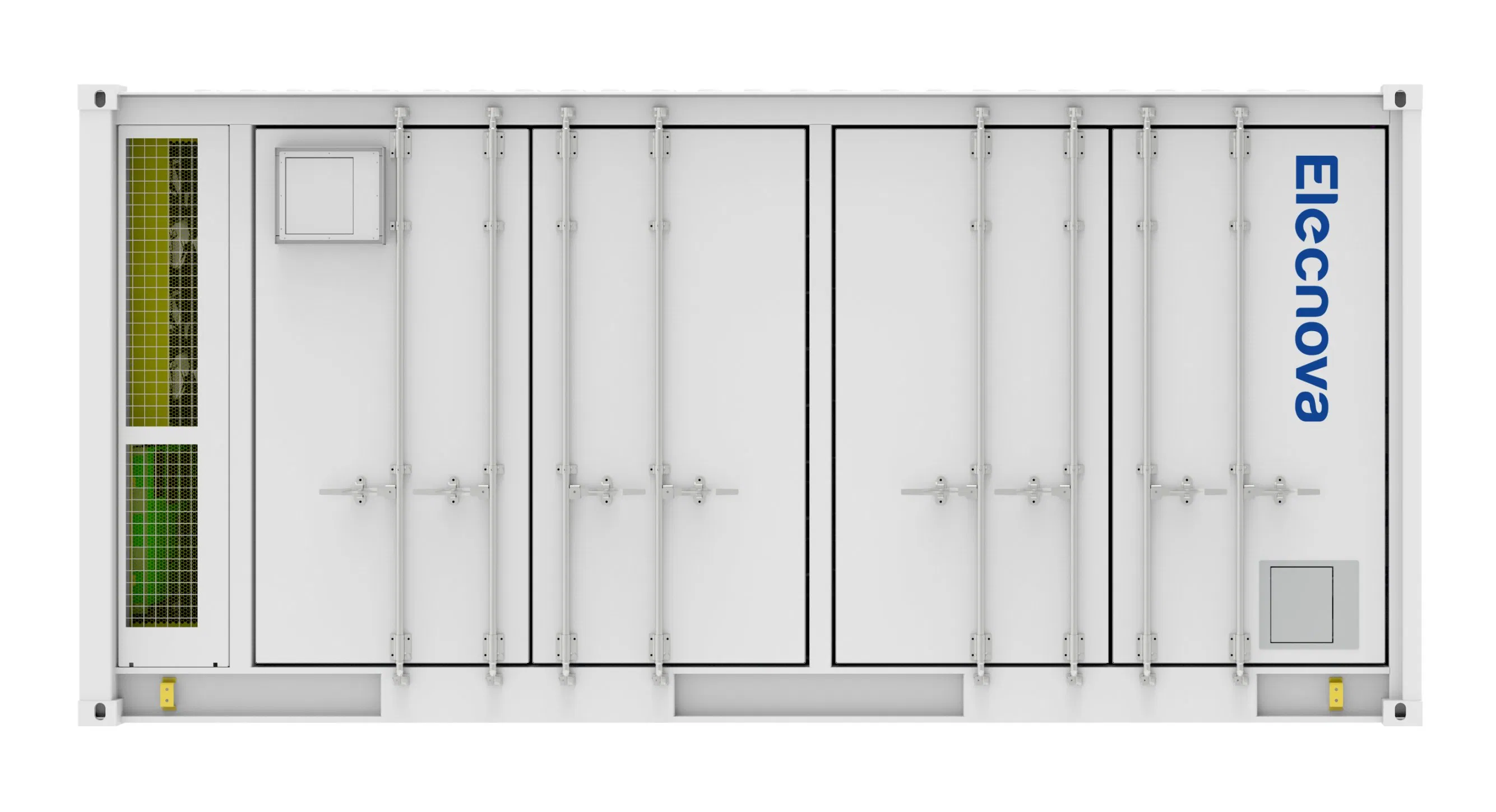

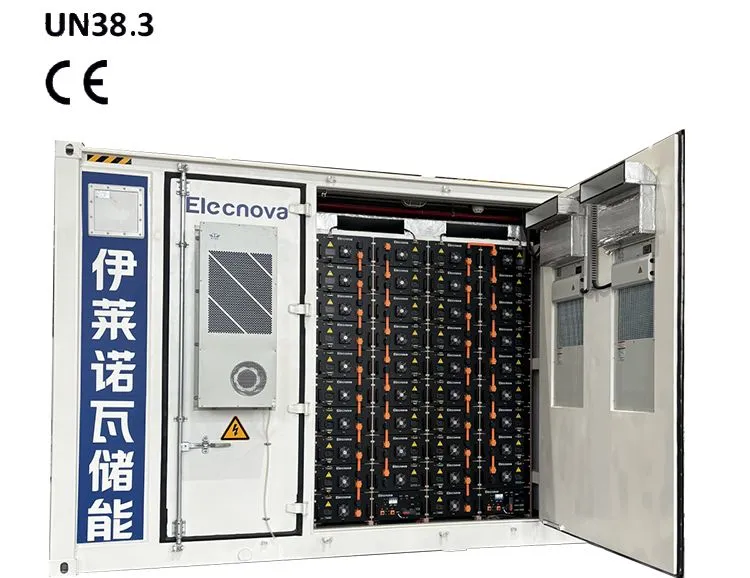

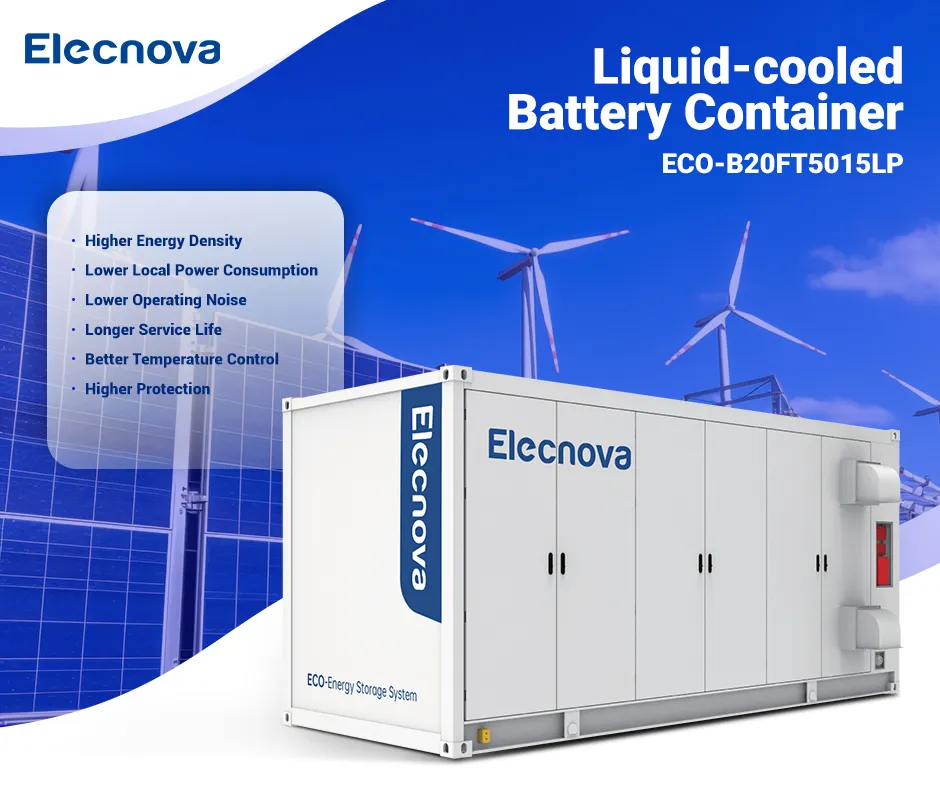

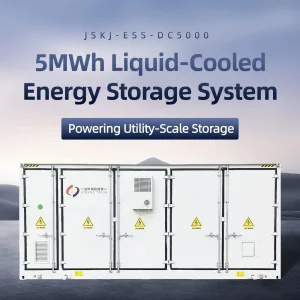

The 20-ft liquid-cooled ESS container product integrates PACK, EMS, BMS, HVAC, and fire safety systems into one unified structure. Compared with traditional air cooling, liquid cooling empowers the ESS product with higher power density and ensures a temperature difference between cells within 3ºC, which effectively extends battery service life and improves energy efficiency.
| Item | Specification |
|---|---|
| Cell type | LFP314Ah |
| Configuration | 12P416S |
| Rated Energy | 5.015MWh |
| Rated Voltage | 1331.2Vdc |
| Voltage Range | 1165-1498Vdc |
| Rated Charge/Discharge | 0.5P |
| Fire Safety | Aerosol + Water |
| Cooling | Chiller + Liquid Cooling |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A |

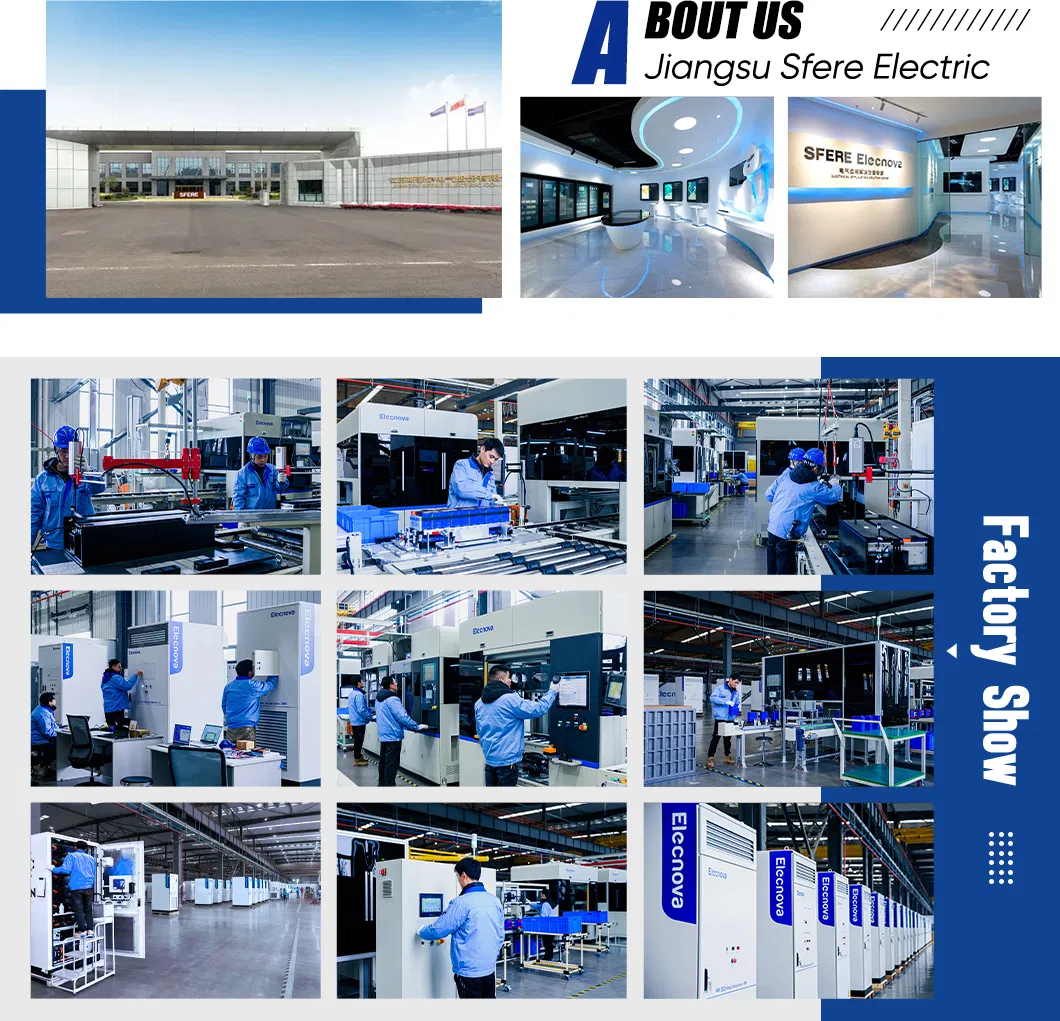

We integrate R&D, manufacturing, sales, and service with a complete product ecosystem from smart terminal components to IoT platforms. Our solutions empower users with intelligent digital energy management and provide reliable data services for energy safety and refined management.
