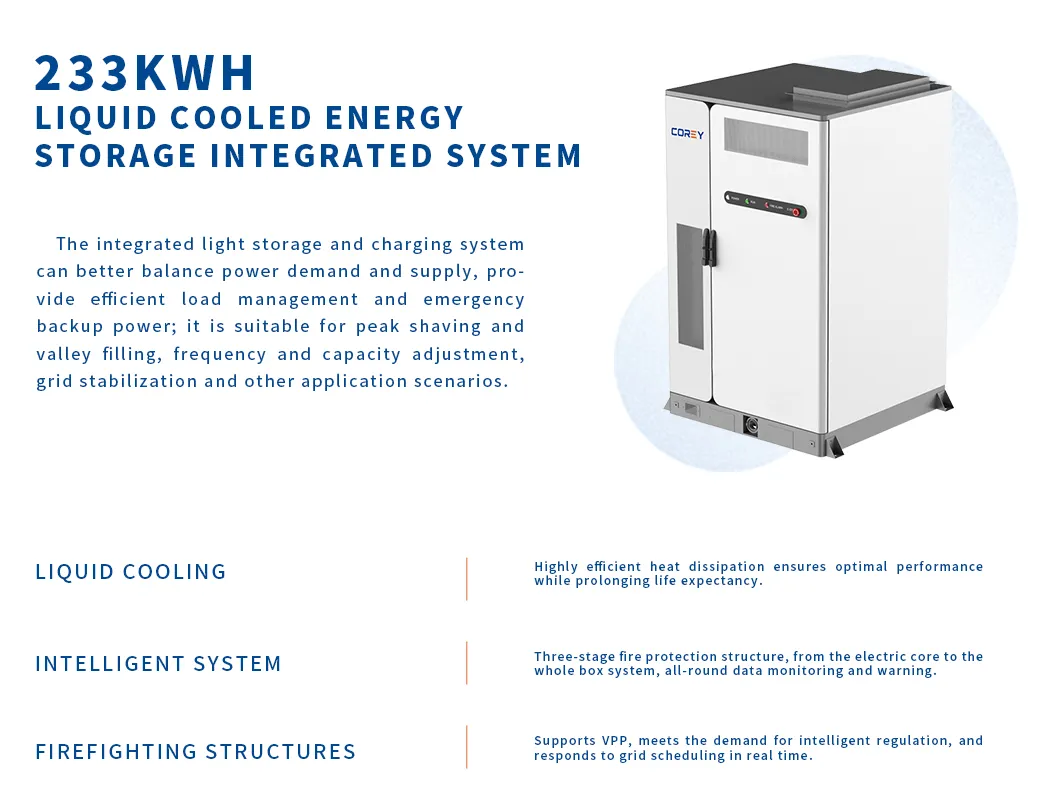

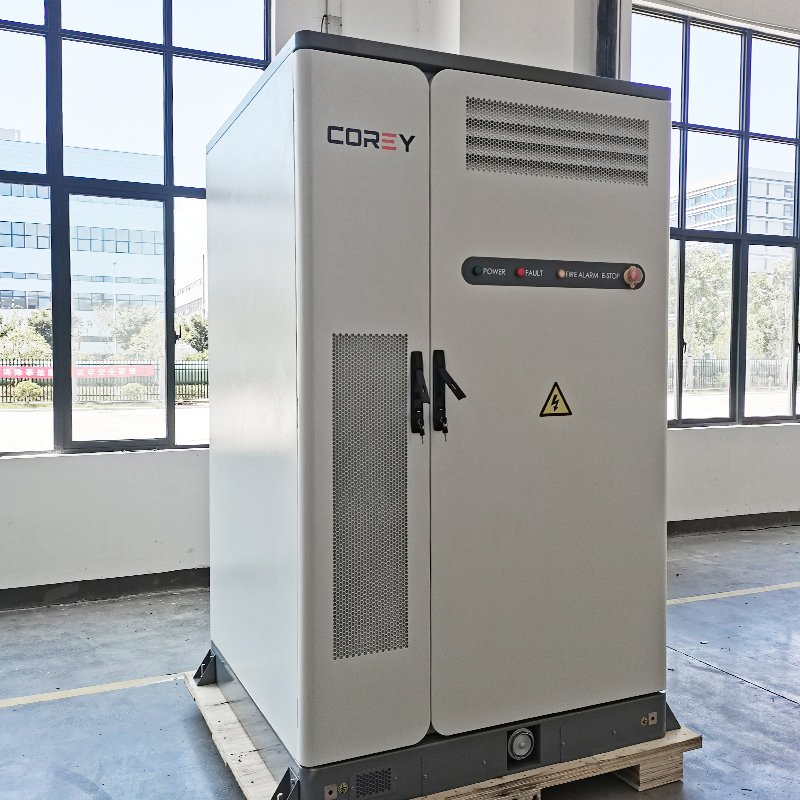

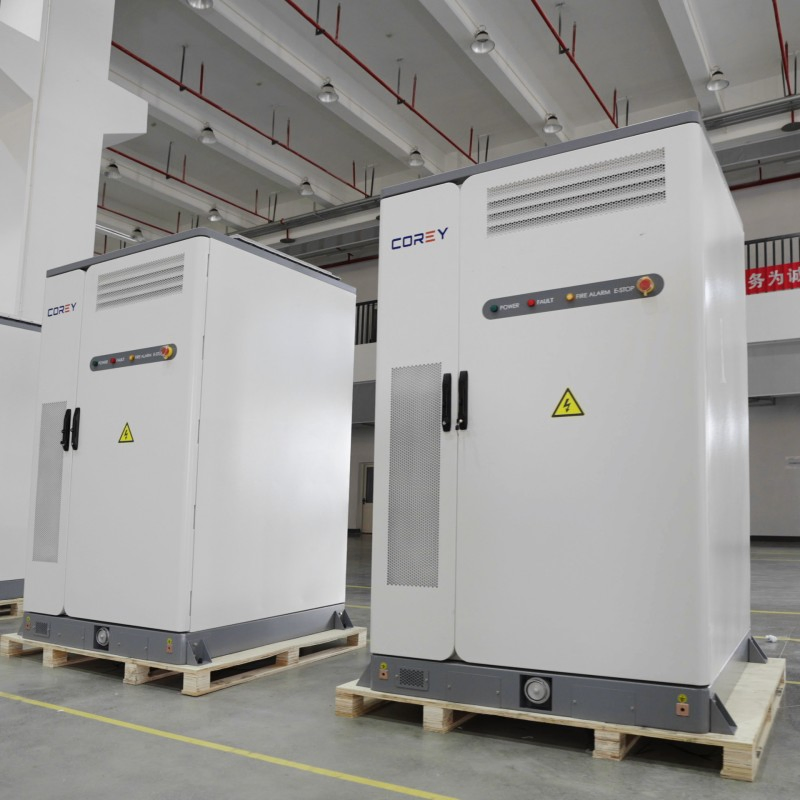

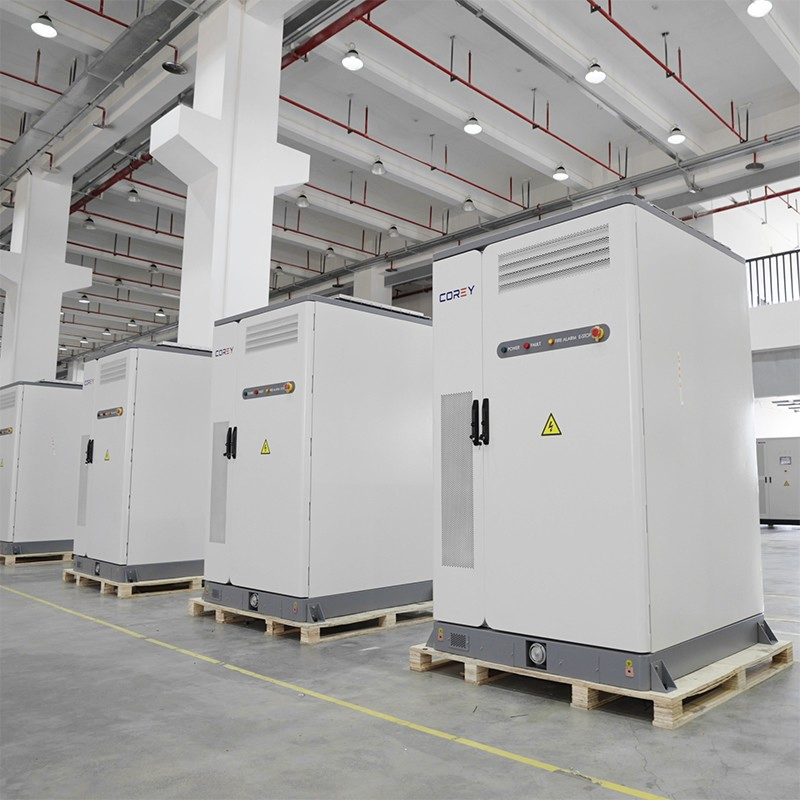

The industrial and commercial energy storage cabinets use an integrated design with good flexibility. This design ensures that companies can easily expand their storage capacity to meet growing demand for electricity or adapt to changes in operational needs.
Safe and reliable, C4 anti-corrosion, IP54 protection, and multiple fire protection systems.

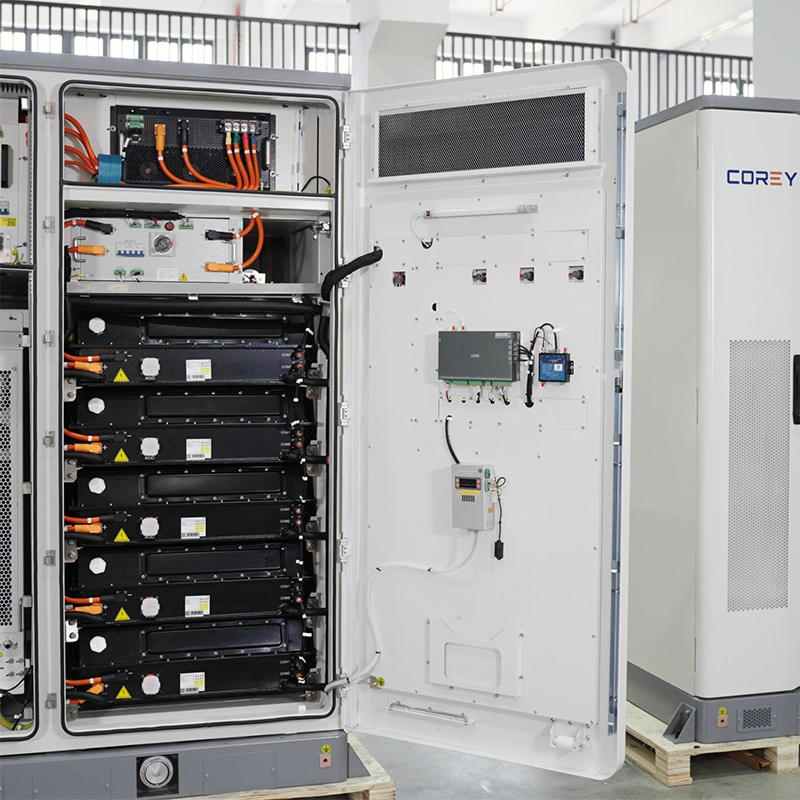

Advanced battery management system to extend battery life and monitor health status.
Intelligent operation and maintenance to significantly reduce long-term operational costs.
Grid-friendly design with seamless grid-connected/off-grid switching and multiple protection layers.
| System Parameter | COREY 233CE | |
|---|---|---|
| Battery Cell | LFP(LiFePO4) 3.2V 280Ah | |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (pack + cluster level) + Water (cabinet level) | |
| Protection / Anti-corrosion | IP54 / C4 | |

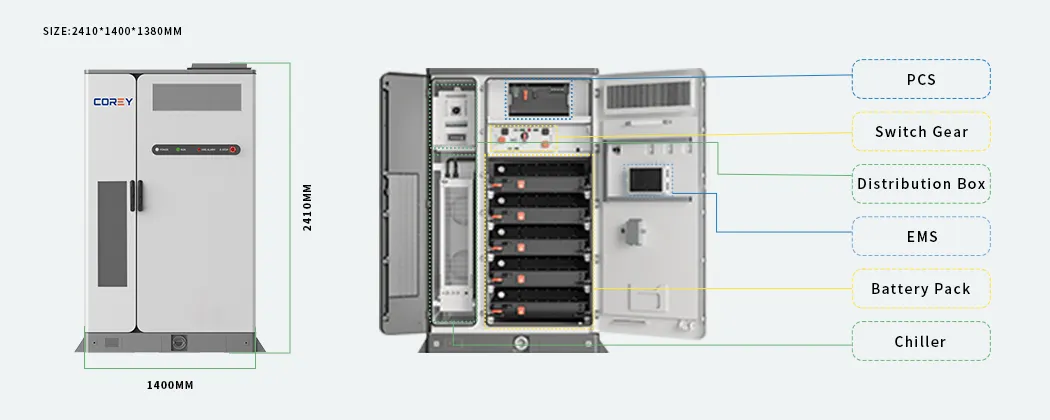

| Weight / Size | 2800kg±50kg / L1560*D1380*H2385mm | |
| AC Side | ||
| Rated Voltage | 230V/400V(±15%) | |
| Maximum Current | 167A | |
| Switching Time | 20ms (optional) | |
| DC Side | ||
| Rated Voltage | 832V | |
| Voltage Range | 728~936V | |
| Discharge Depth | 95% DOD | |

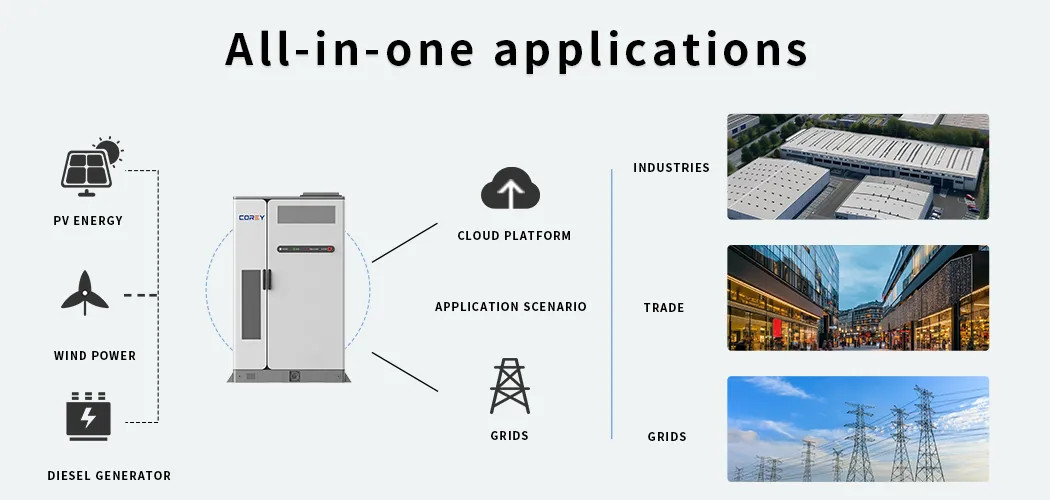

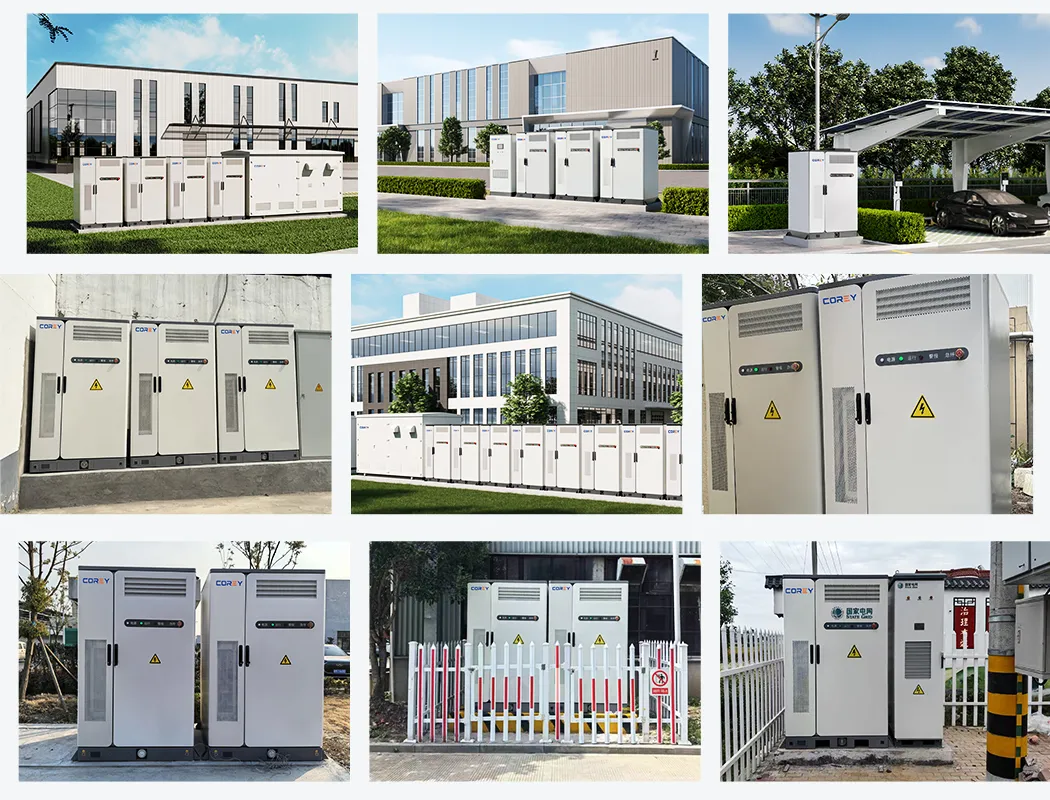

Highly suitable for Factory buildings, commercial buildings, areas with power shortages, and remote areas.

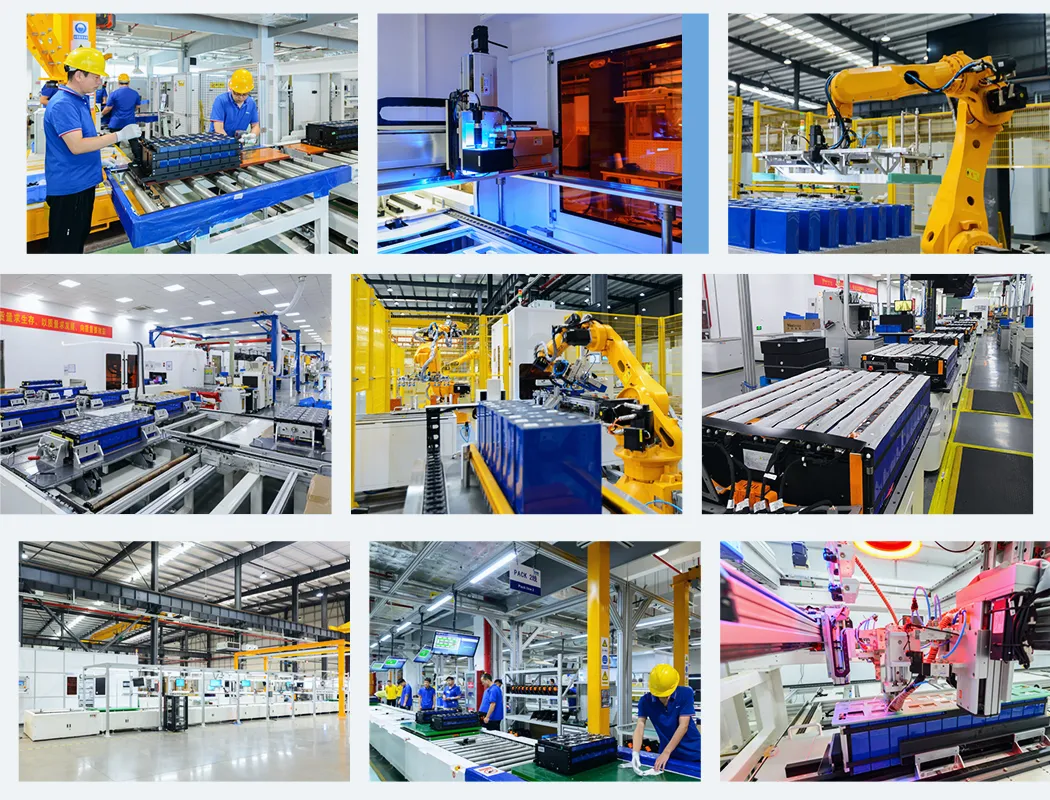

Established in 2014, the group started in the business of automated intelligent equipment with laser welding technologies for new energy lithium battery modules, providing "high intelligence manufacturing solutions" for top energy storage system integration manufacturers.
The company provides one-stop green power station solutions including Turnkey Service, Microgrid Solutions, Photovoltaic Projects, and Energy Storage Projects. We are committed to becoming a leading provider of energy transformation, helping to build zero-carbon power systems for stable and clean power.
