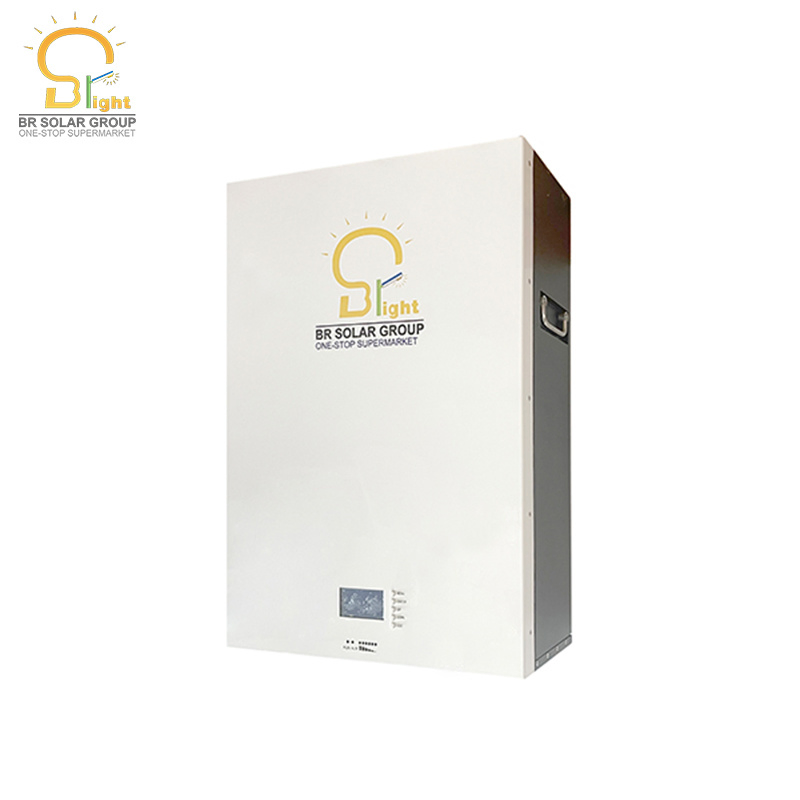

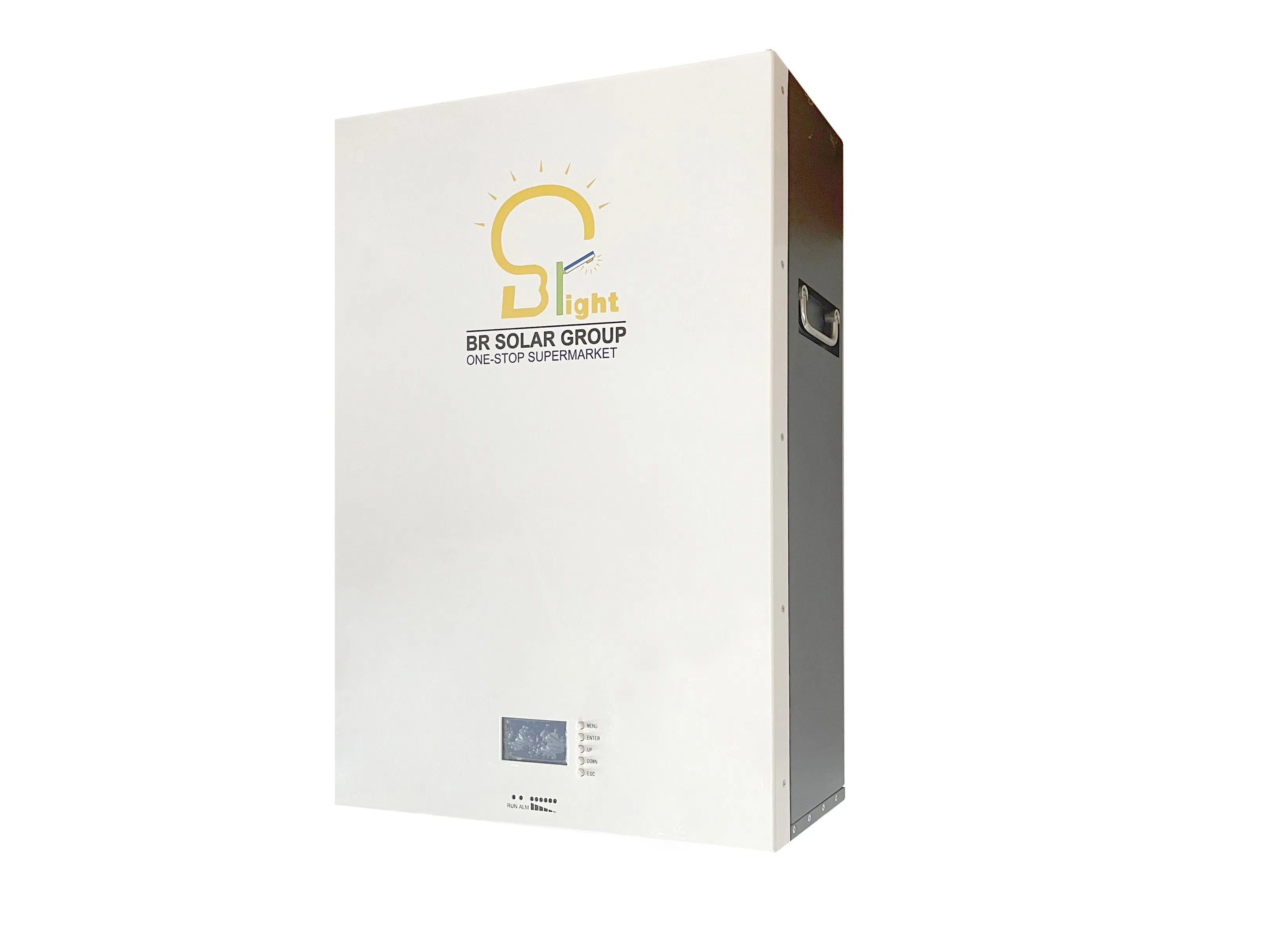

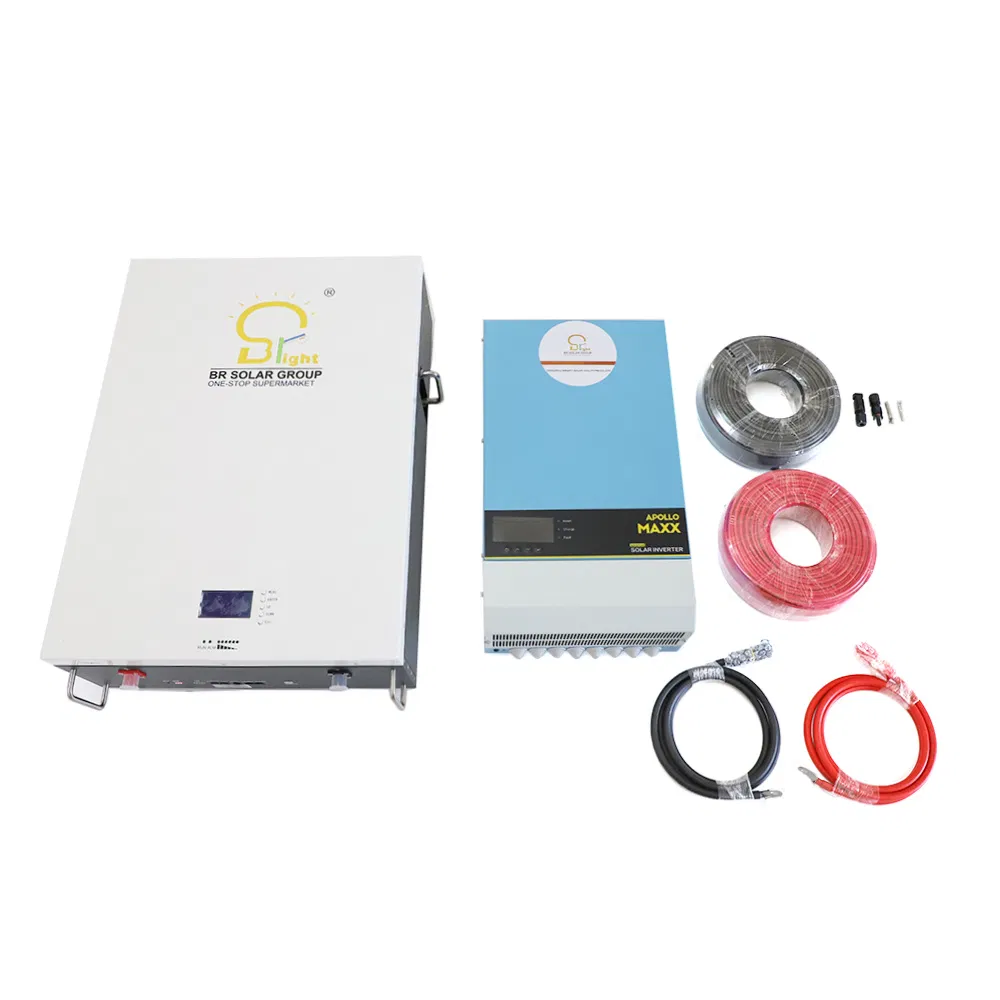

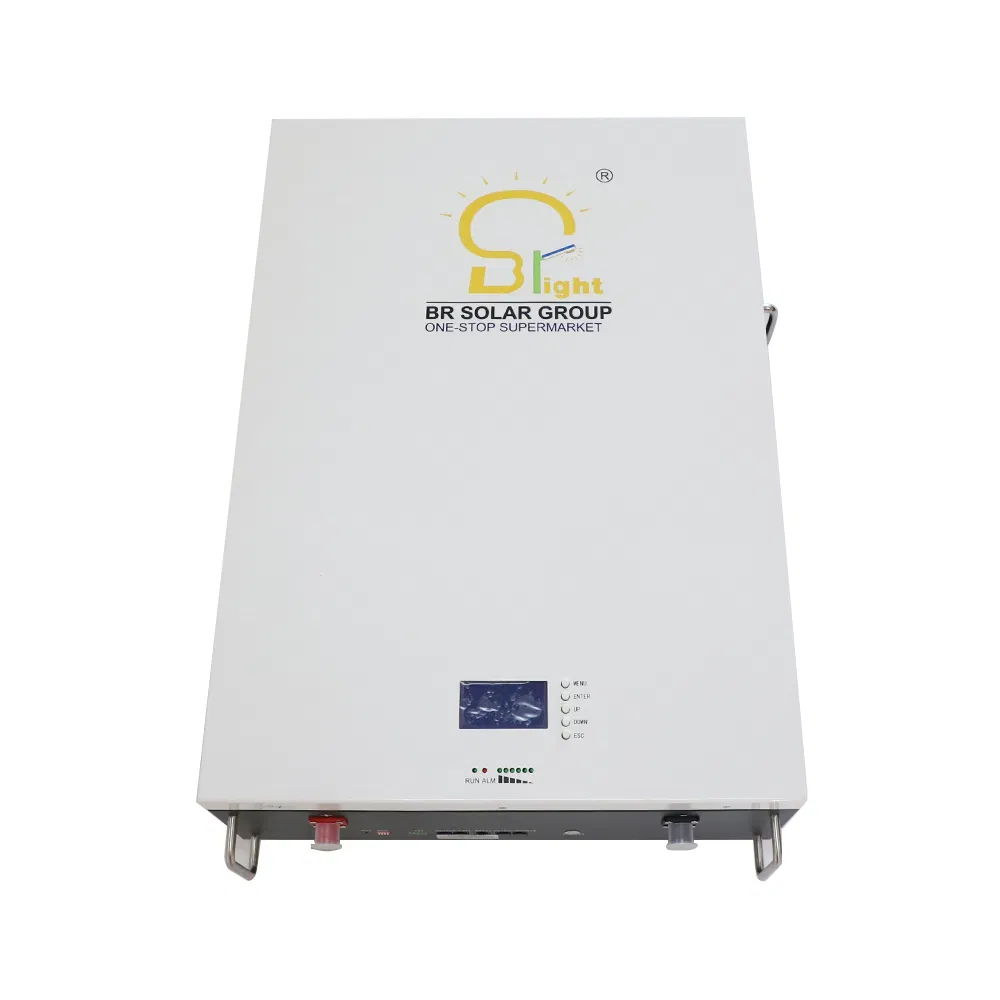

Customized Storage LFP Hybrid Solar System Generator Energy Lithium Titanate LiFePO4 200ah Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
BR-BLH Lithium Battery
Model No.
RS-LFP48V100ah
Battery Size
680*485*180mm
Material
LiFePO4 Battery
Display
LCD Indicator
Battery Cell
3.2V 50ah Prismatic Cell
Inverter Matched
Solax, Deye, Goodwe, Growatt, Victron, Sofar, Gmde
Type
Li-ion Battery
Cycle Life
≥6000 cycles @ 80% DOD
Production Capacity
100000PCS/Month

Product Description

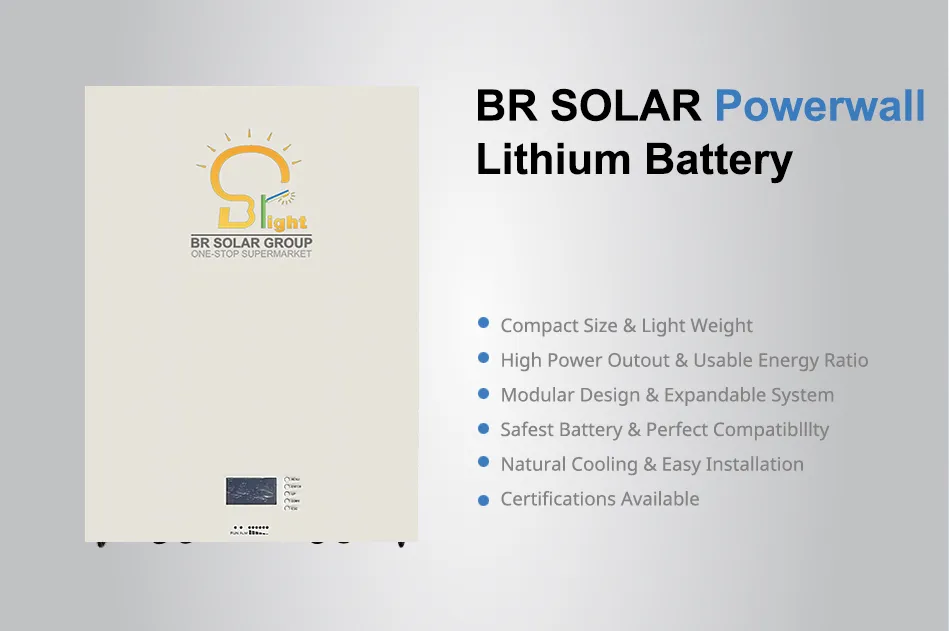

LFP Hybrid Solar System Battery
Energy Lithium LiFePO4 Battery

Key Features

  • Eco-Friendly: The whole module is non-toxic, non-polluting, and environmentally friendly.
  • Advanced Material: Cathode material is made from LiFePO4 with high safety performance and long cycle life.
  • Smart BMS: Battery management system (BMS) has protection functions including over-discharge, over-charge, over-current, and high/low temperature.
  • Compact Design: Small size and light weight, comfortable for installation and maintenance.
📋

Technical Parameters

Model BLH-4800W BLH-7200W BLH-9600W
Nominal Voltage 48V (15 series)
Capacity 100Ah 150Ah 200Ah
Energy 4800Wh 7200Wh 9600Wh
Cycle Life ≥6000 cycles @ 80% DOD, 25ºC, 0.5C
Design Life ≥10 years
Charge Temp. 0°C ~ 60°C (Under 0°C extra heating mechanism)
Dimensions 680 x 485 x 180(220)mm
Weight Approx: 50kg Approx: 82.5kg Approx: 110kg
Certification UN 38.3, MSDS, UL1973 (Cell), IEC62619 (Cell)
📸

Product Gallery

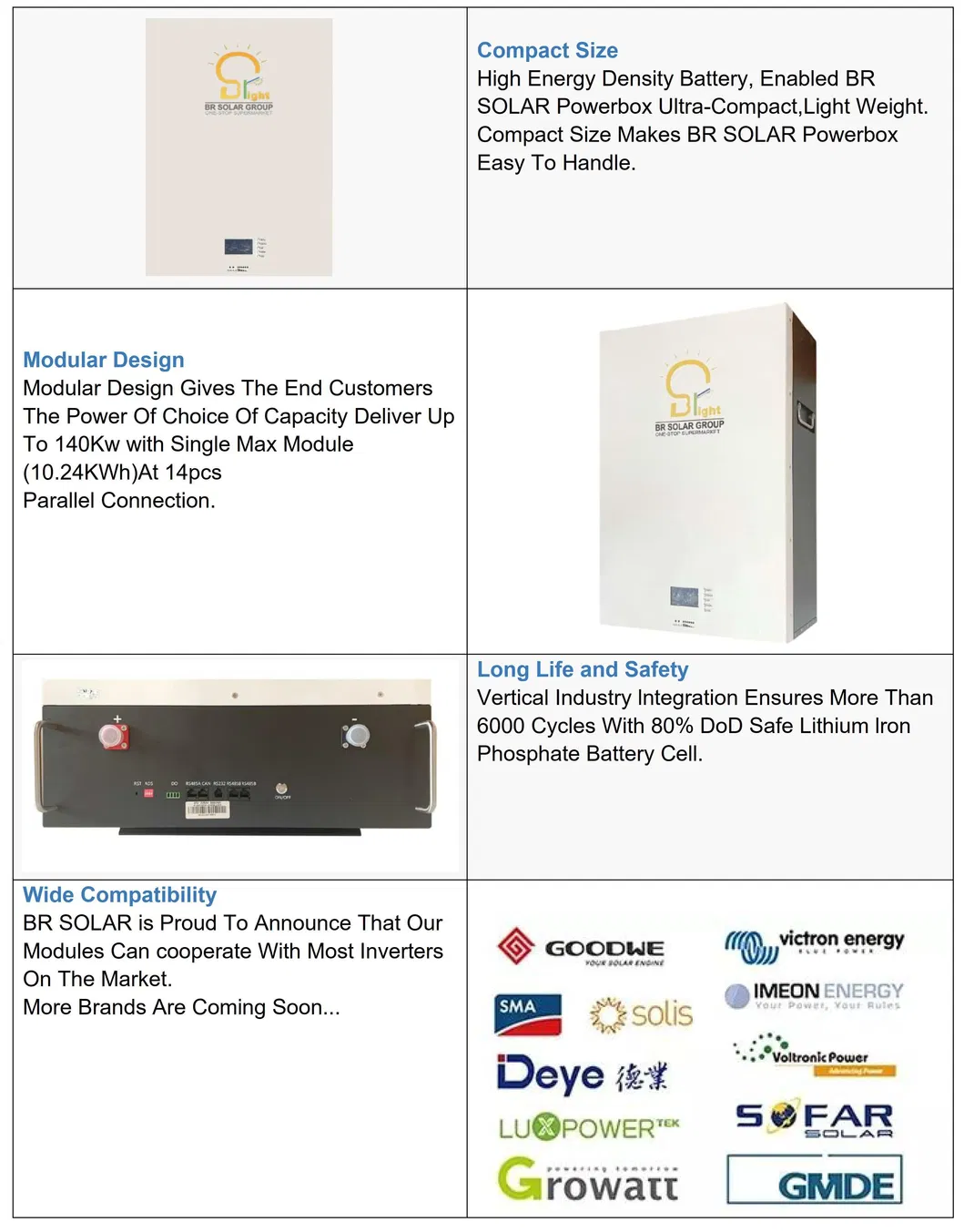

Technical Drawing

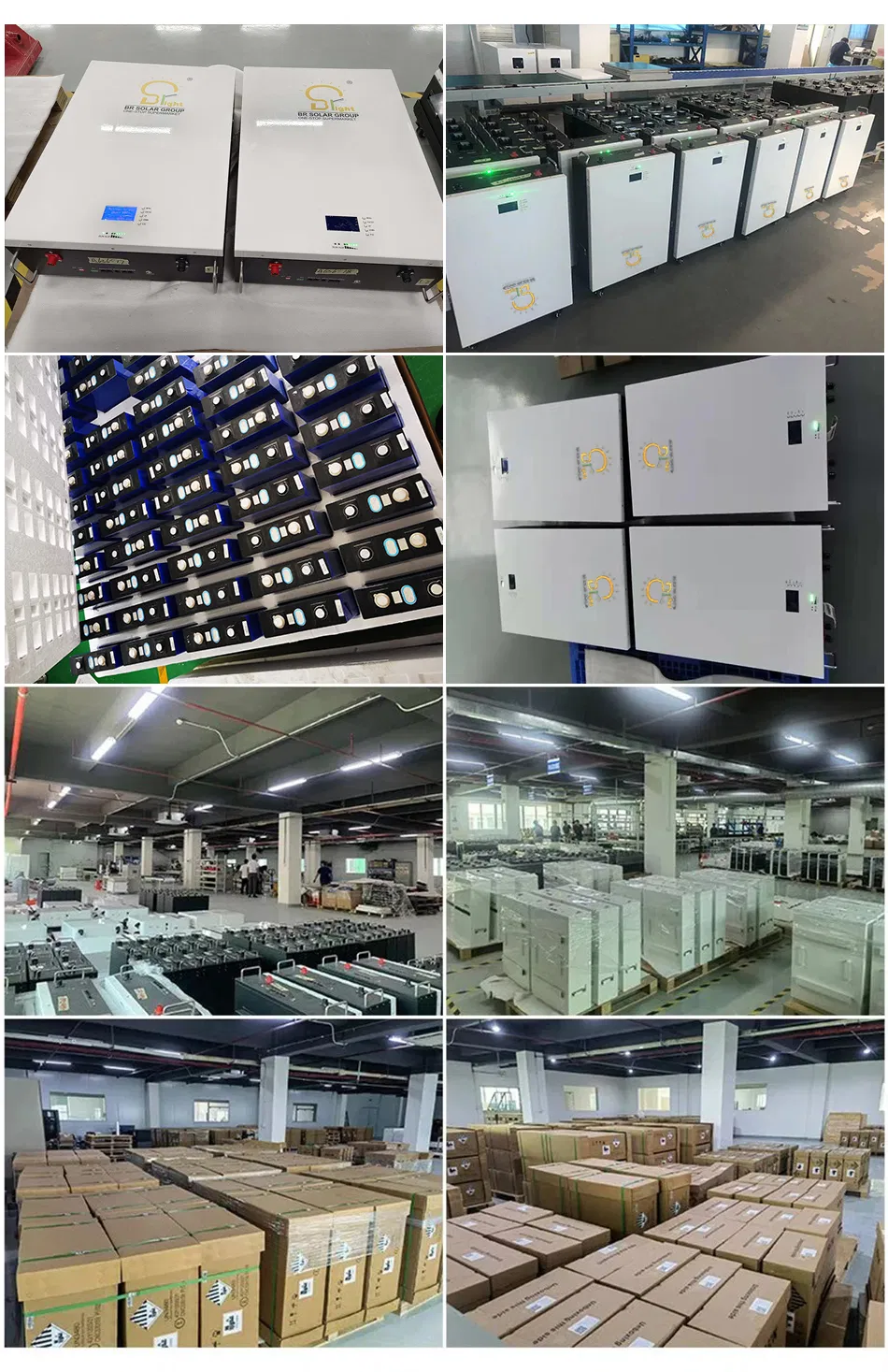

Packing

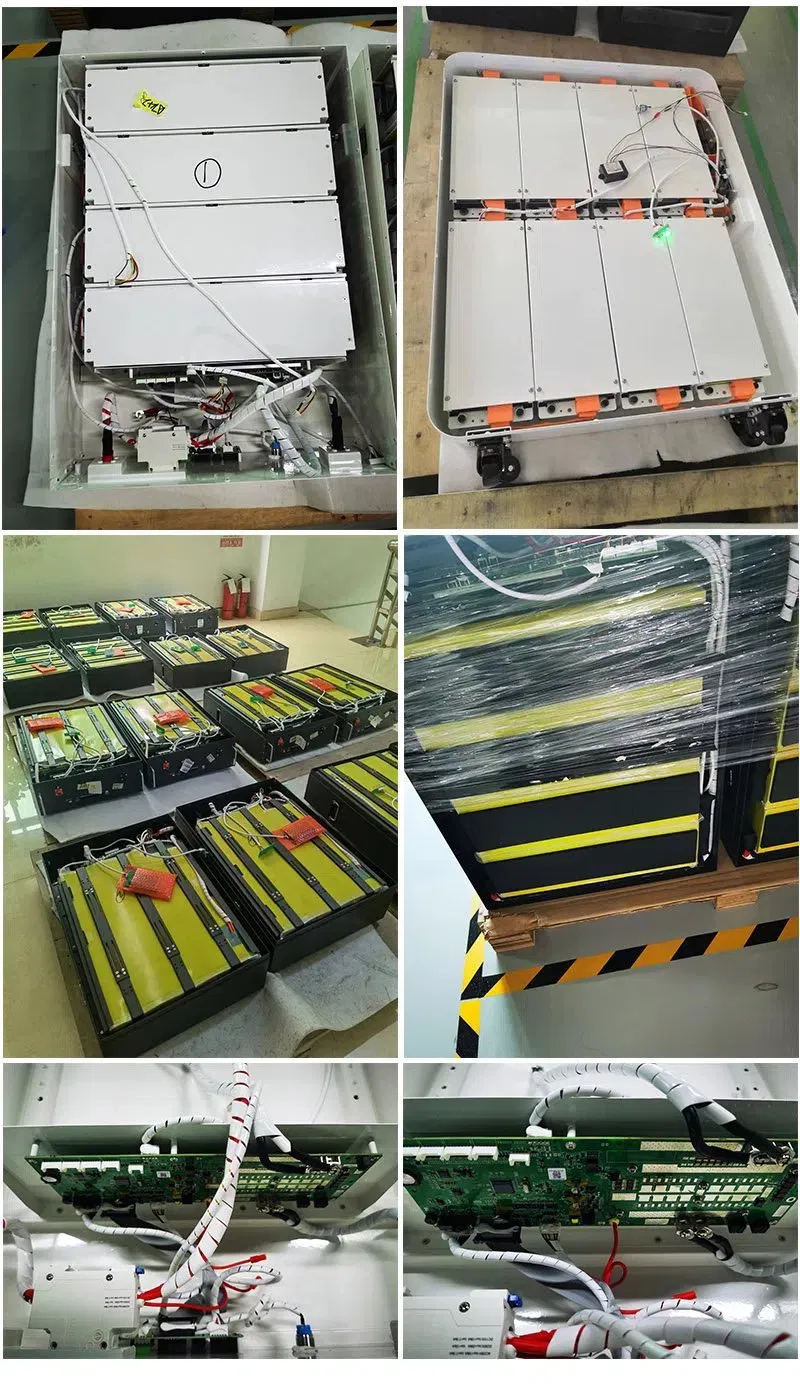

Shipping
Warehouse
🌍

Global Projects & Quality

Our projects are applied all around the world. We choose quality materials as quality is our core culture. Our solar products have been successfully applied in more than 110 countries, including UN projects and NGO projects.

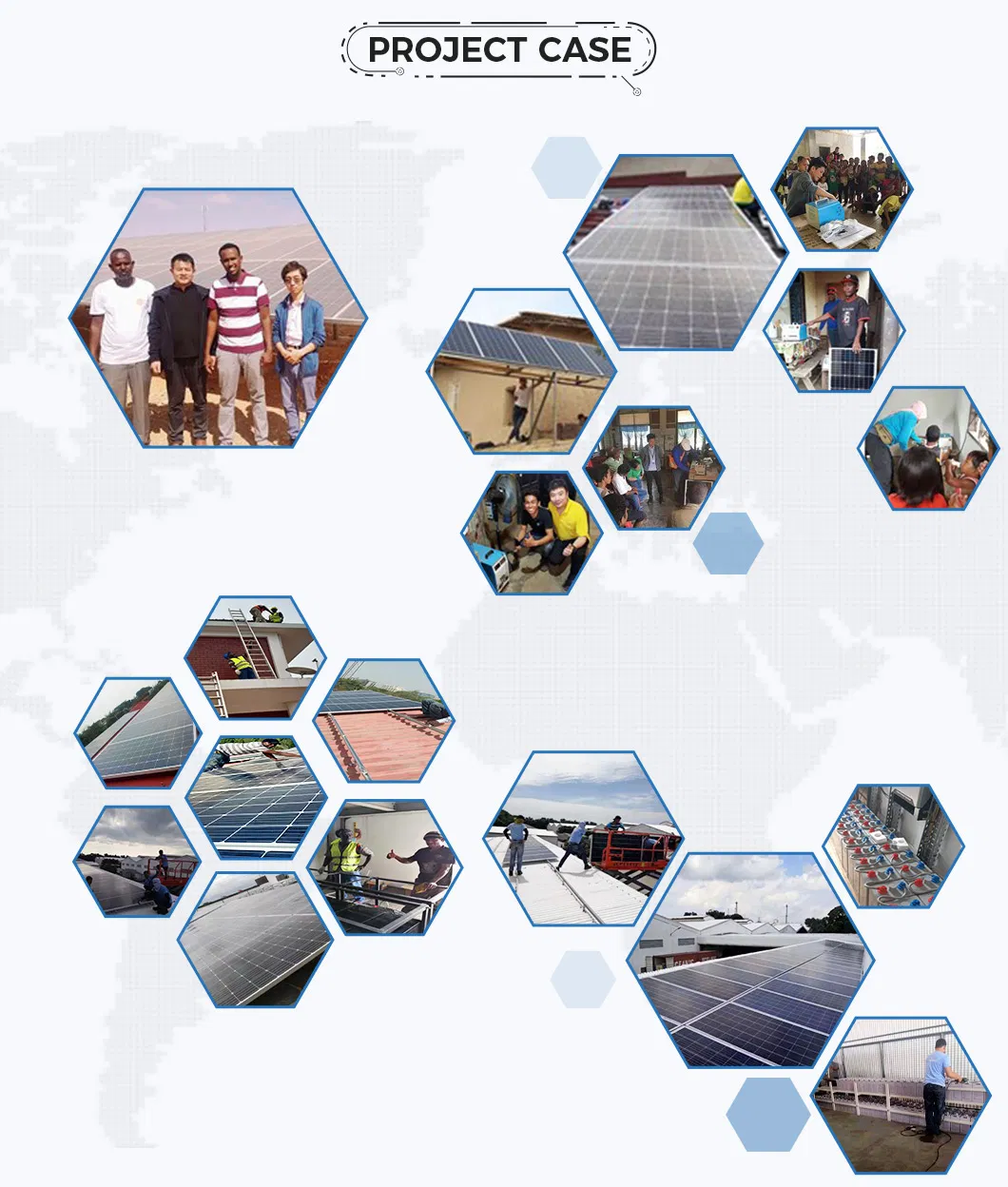

Global Projects
Certificates
💳

Payment & Delivery

Payment Terms T/T 30% In Advance, 70% Balance Paid Before Delivery / Against Copy of B/L
L/C Accept L/C at sight for amounts above USD 100,000
PayPal / Western Union For total amount less than USD 1,000
Delivery Time 15-20 Working Days After Receiving Down Payment

Frequently Asked Questions

What is the lifespan of this lithium battery?
The battery is designed for long-term use with a cycle life of ≥6000 cycles at 80% Depth of Discharge (DOD) and a total design life of over 10 years.
Which inverters are compatible with the RS-LFP48V100ah?
This battery is compatible with several major inverter brands, including Solax, Deye, Goodwe, Growatt, Victron, Sofar, and Gmde.
What safety features does the built-in BMS provide?
The integrated Battery Management System (BMS) provides comprehensive protection against over-charging, over-discharging, over-current, and extreme high or low temperatures.
Can multiple batteries be connected for larger storage?
Yes, the system supports parallel connection of up to 15 units to increase your total energy storage capacity.
What is the operating temperature range?
The battery can be charged between 0°C and 60°C (with an extra heating mechanism for sub-zero charging) and discharged between -20°C and 60°C.
What certifications does this product hold?
The product and its cells are certified with UN 38.3, MSDS, UL1973, and IEC62619, ensuring high safety and international shipping compliance.
