| Model NO. | ECO-E233LS | Nominal Capacity | 233kwh |
| Cycle Life | 8000 Cycles | Application | Industrial Commercial Factory |
| Cooling | Liquid-Cooled | Communication | RS485 |

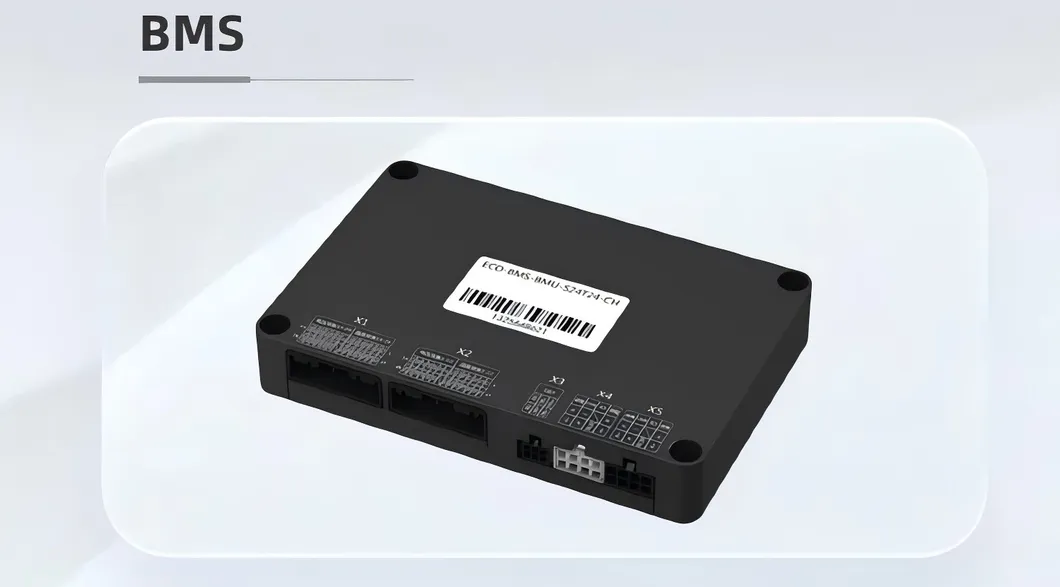

| Grid Type | On Grid / Off Grid | BMS | Built-in Protection |
| Specification | 1250*1300*2400mm | HS Code | 85065000 |

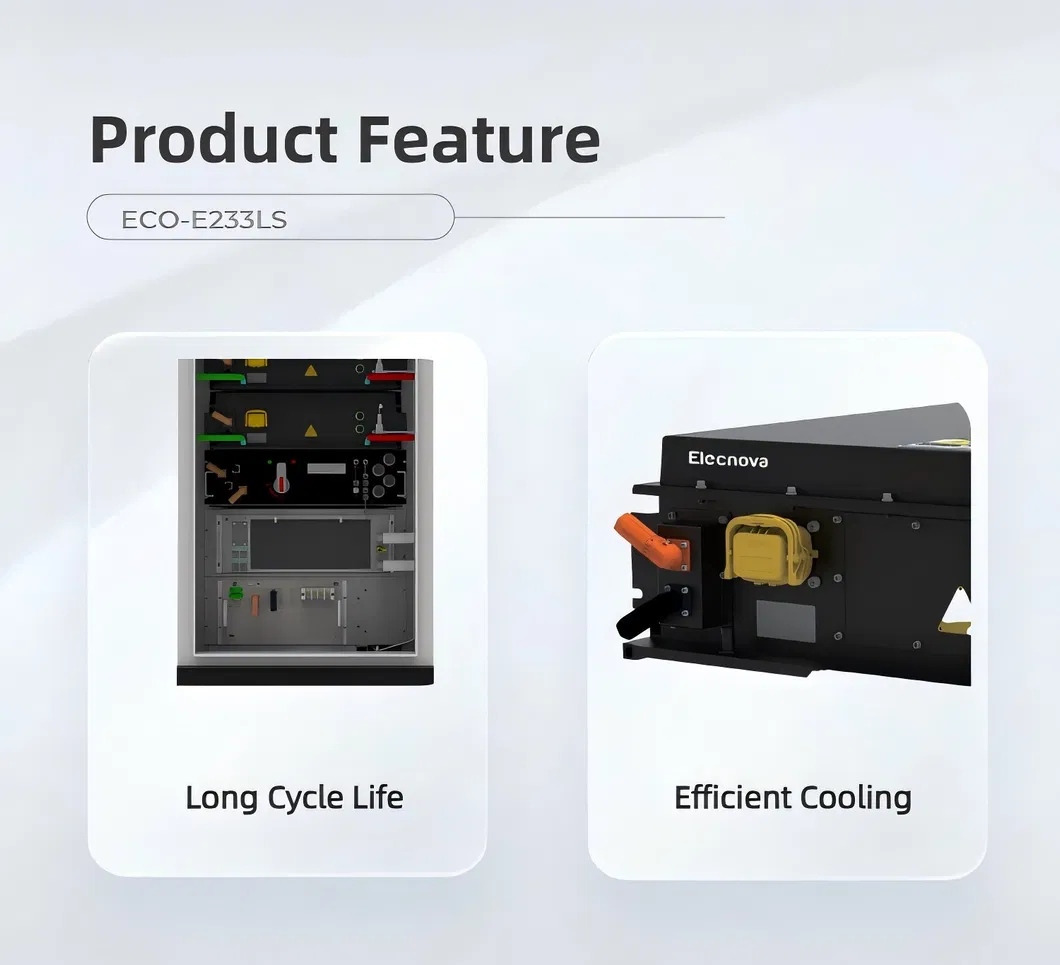

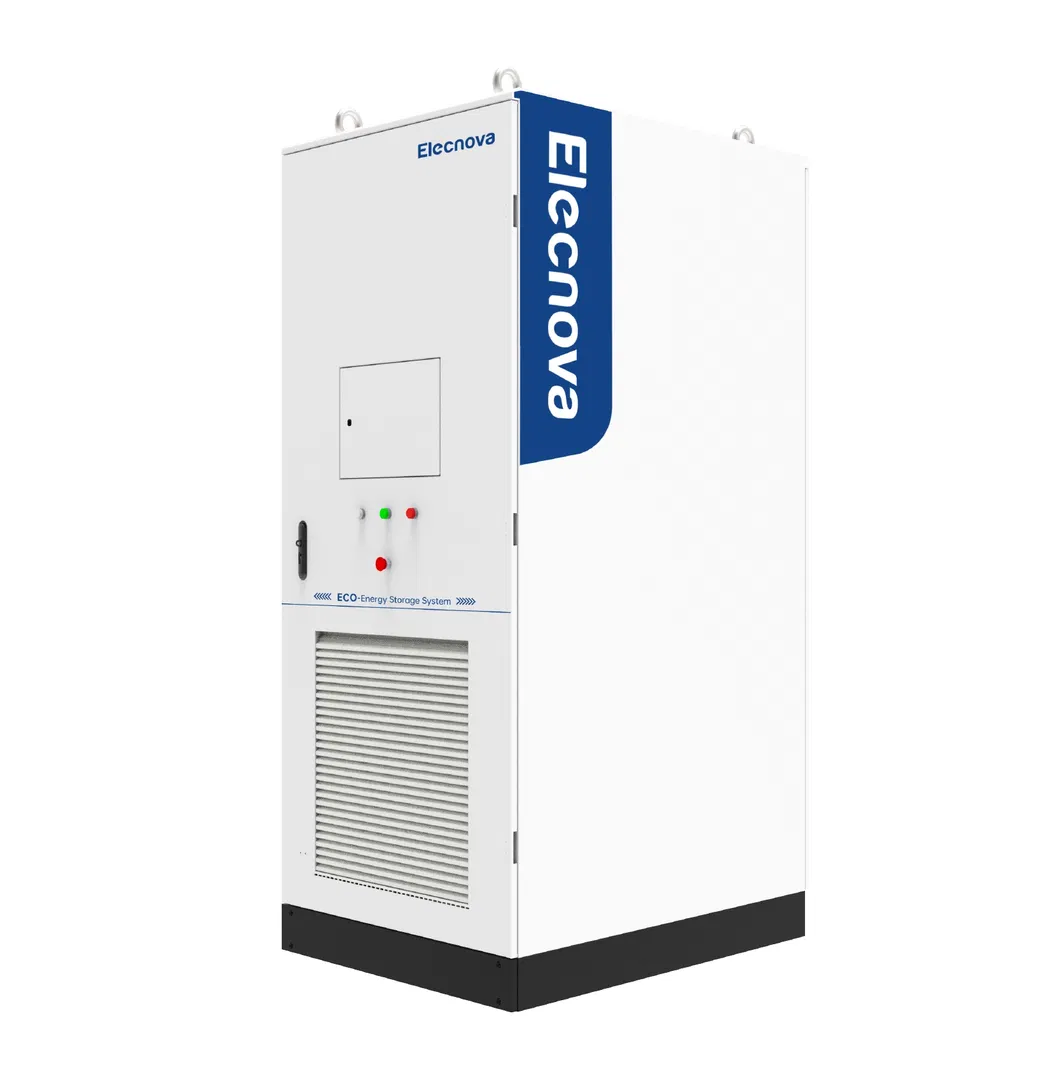

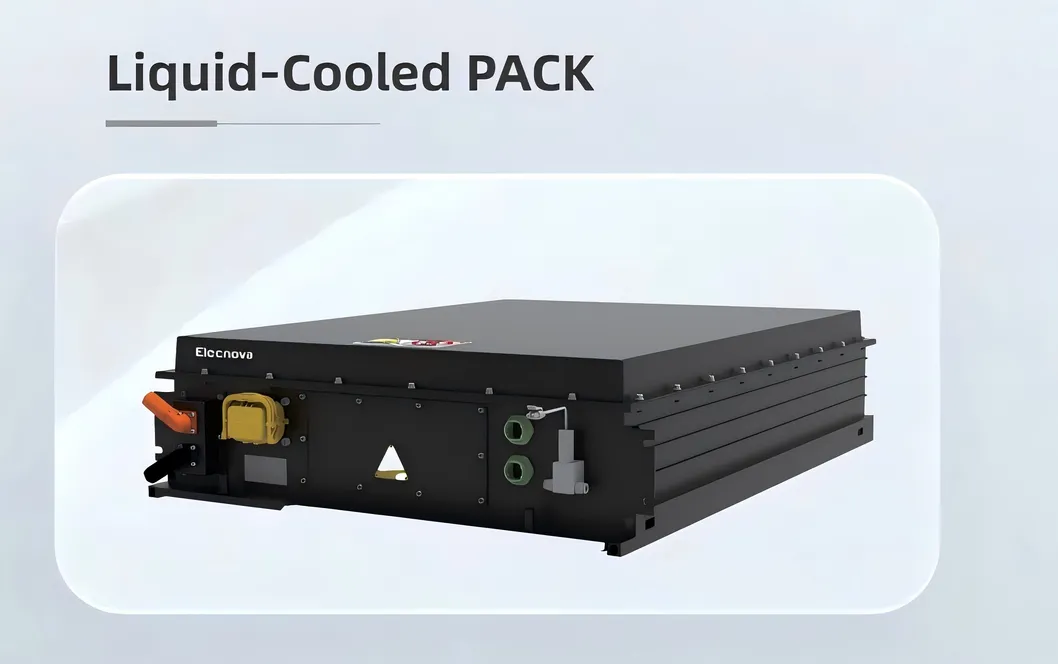

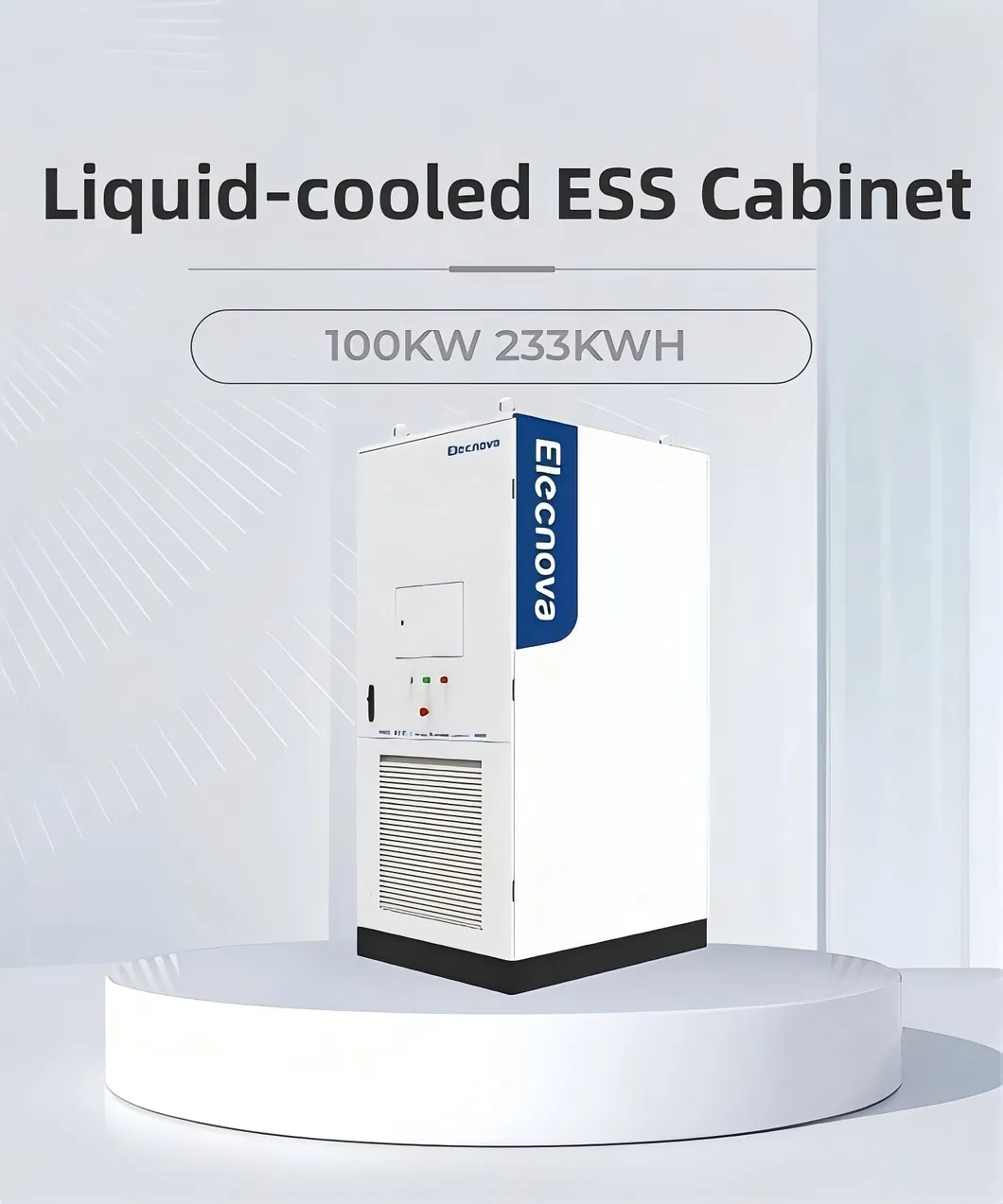

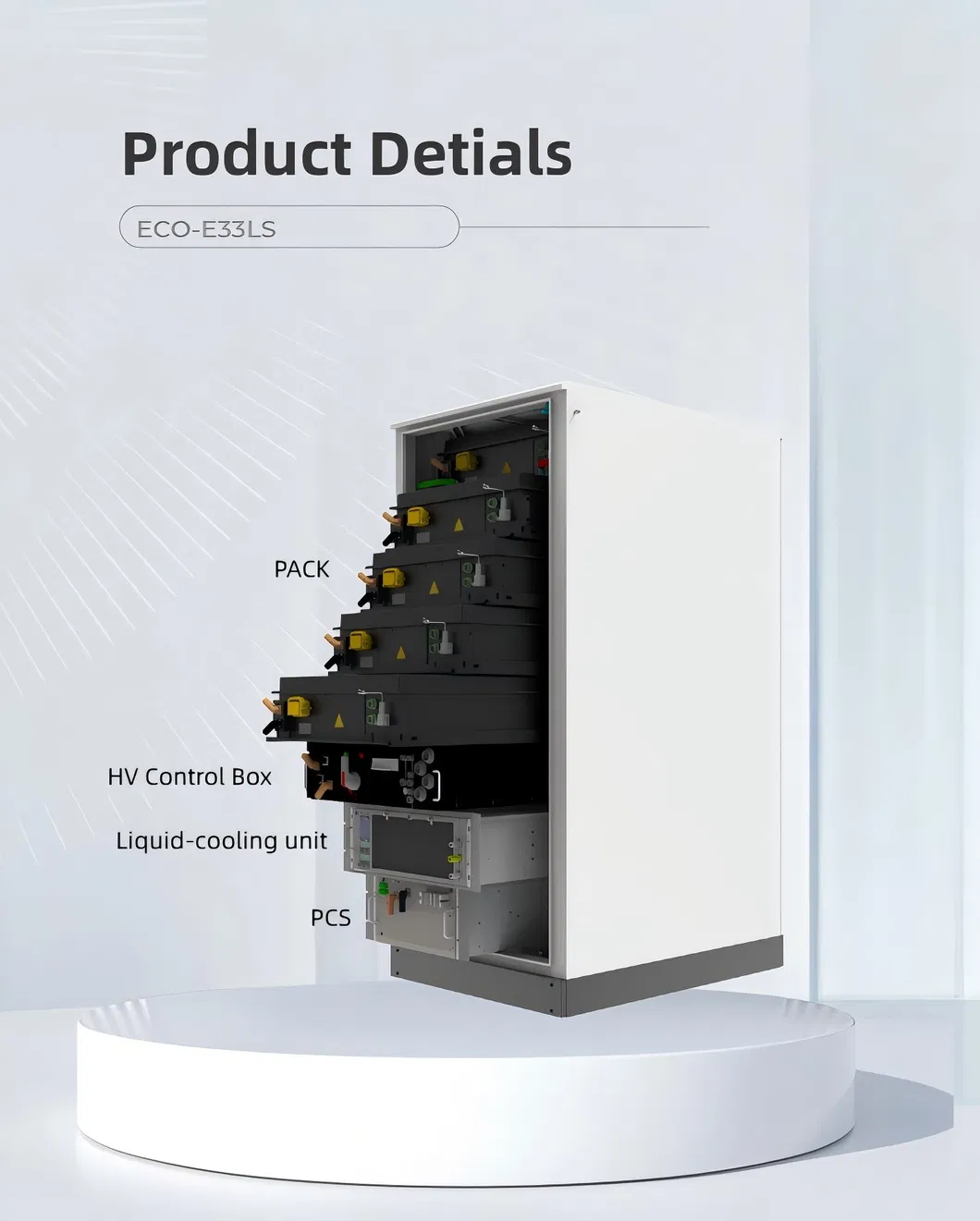

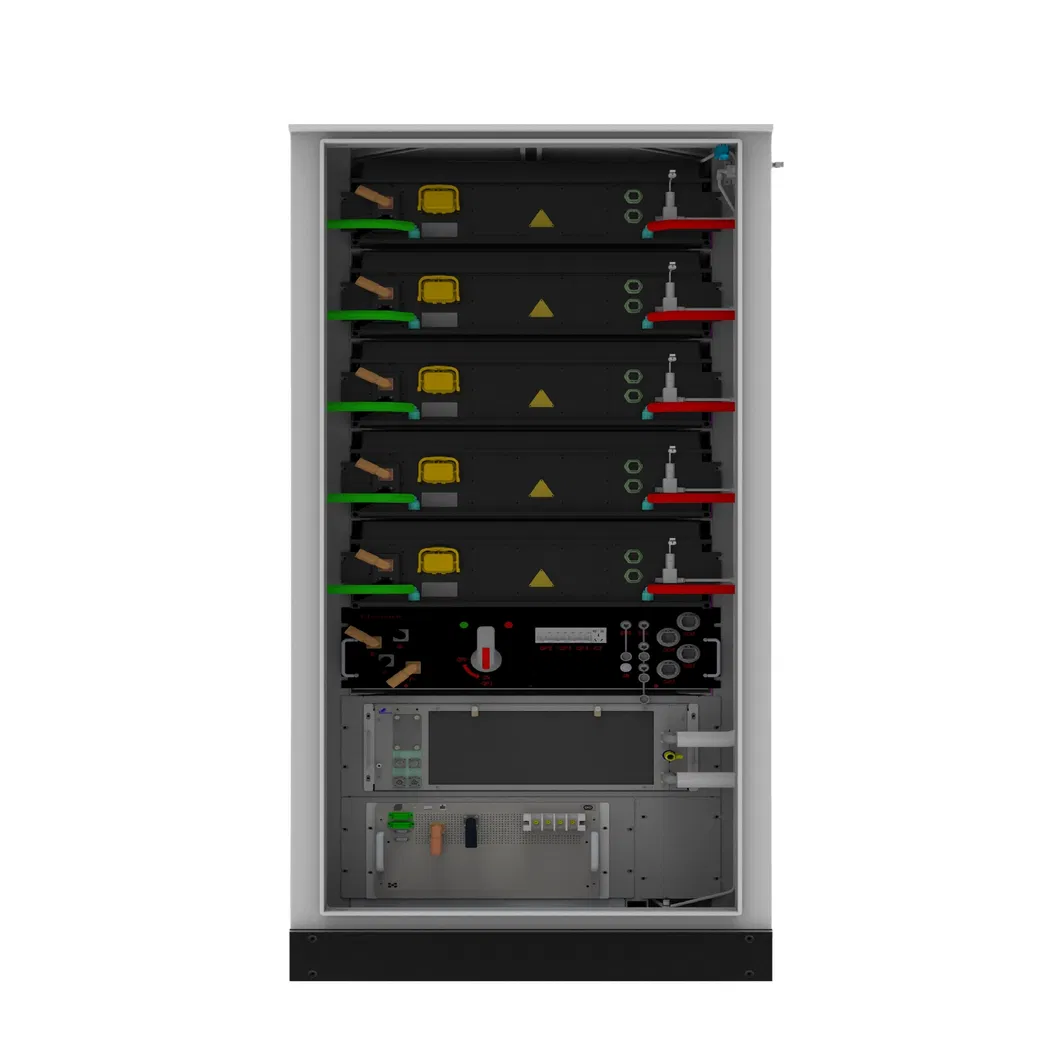

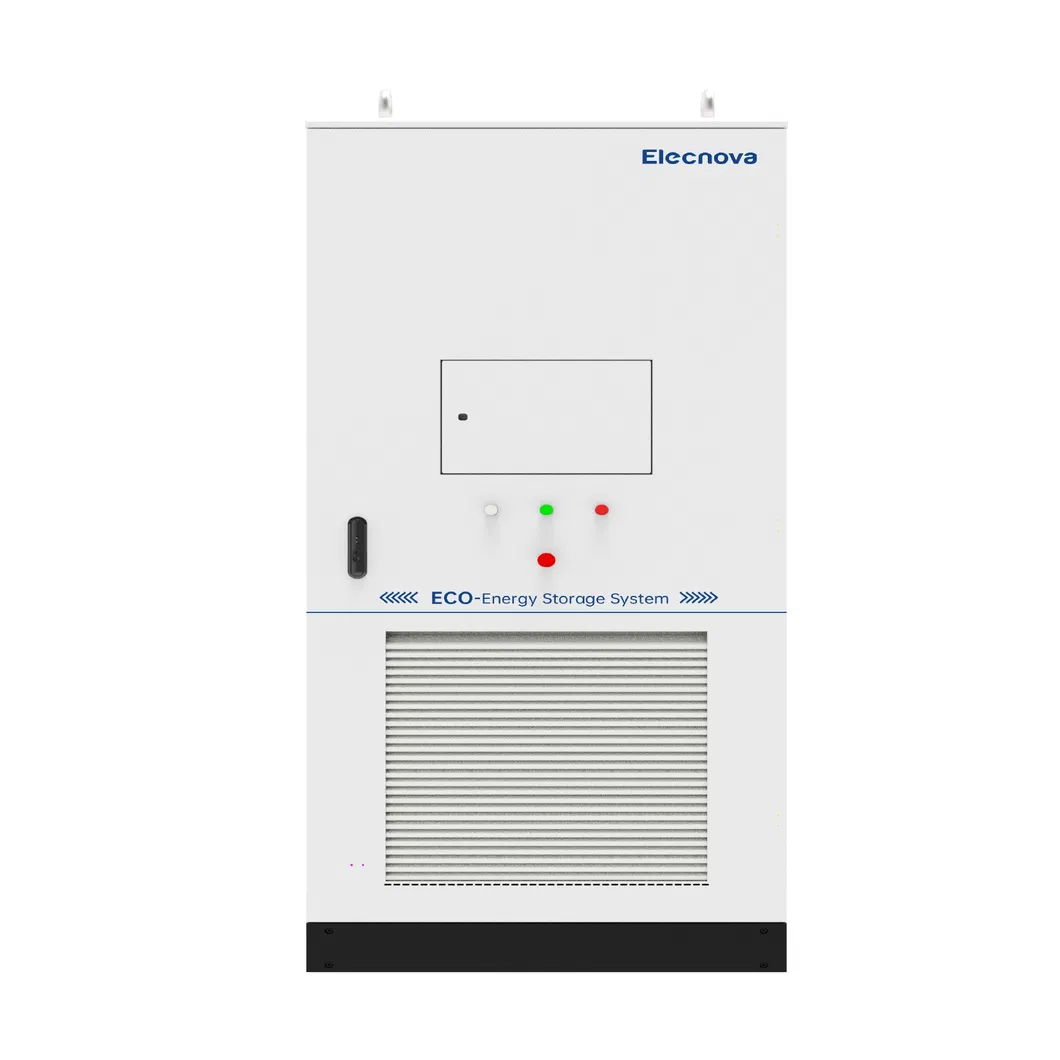

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
| DC Side | |
|---|---|
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| AC Side | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| THDi | <3% |
| General Data | |

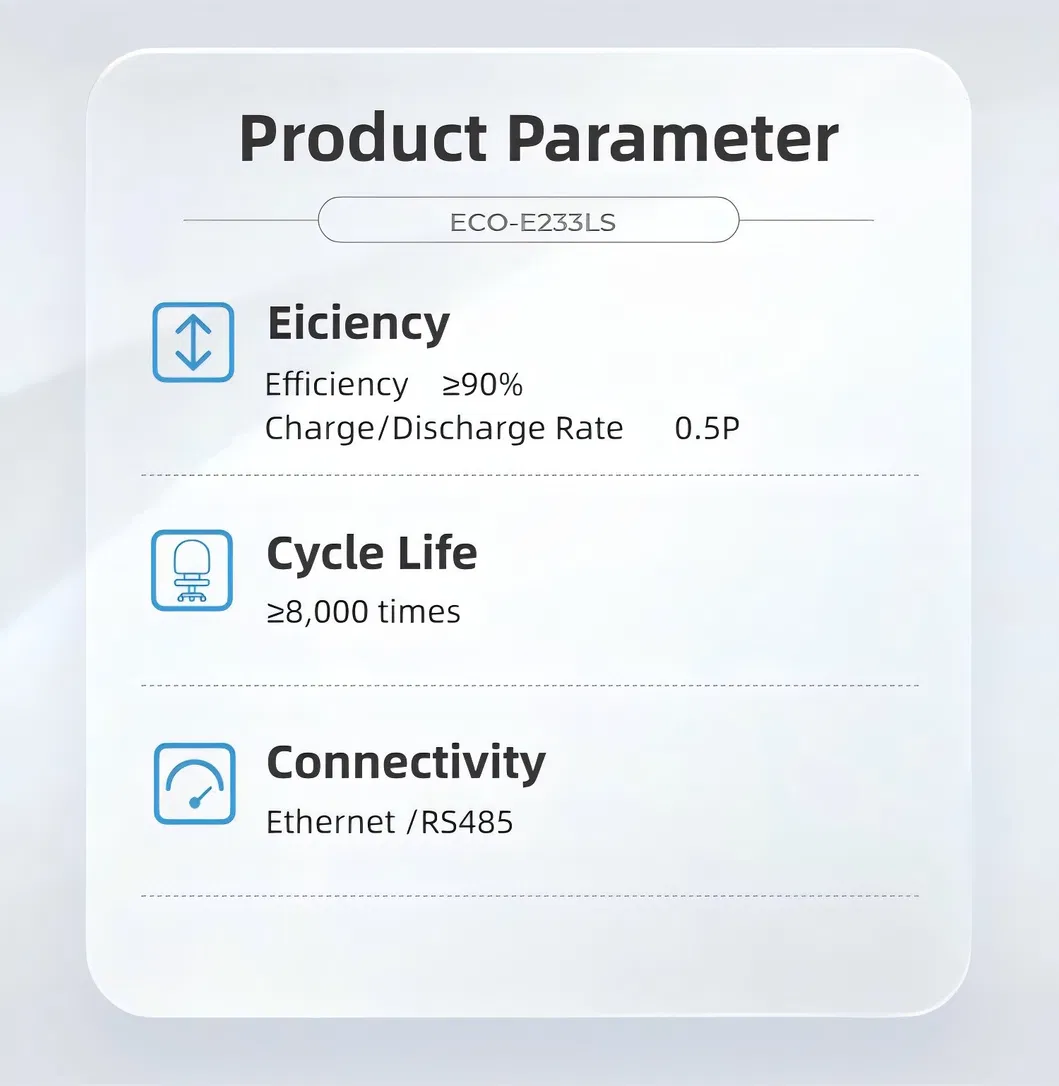

| System Efficiency | ≥90% |
| Switching Time | <100ms |
| Ingress Rating | IP55 |
| Operating Temp. | -25ºC~55ºC |

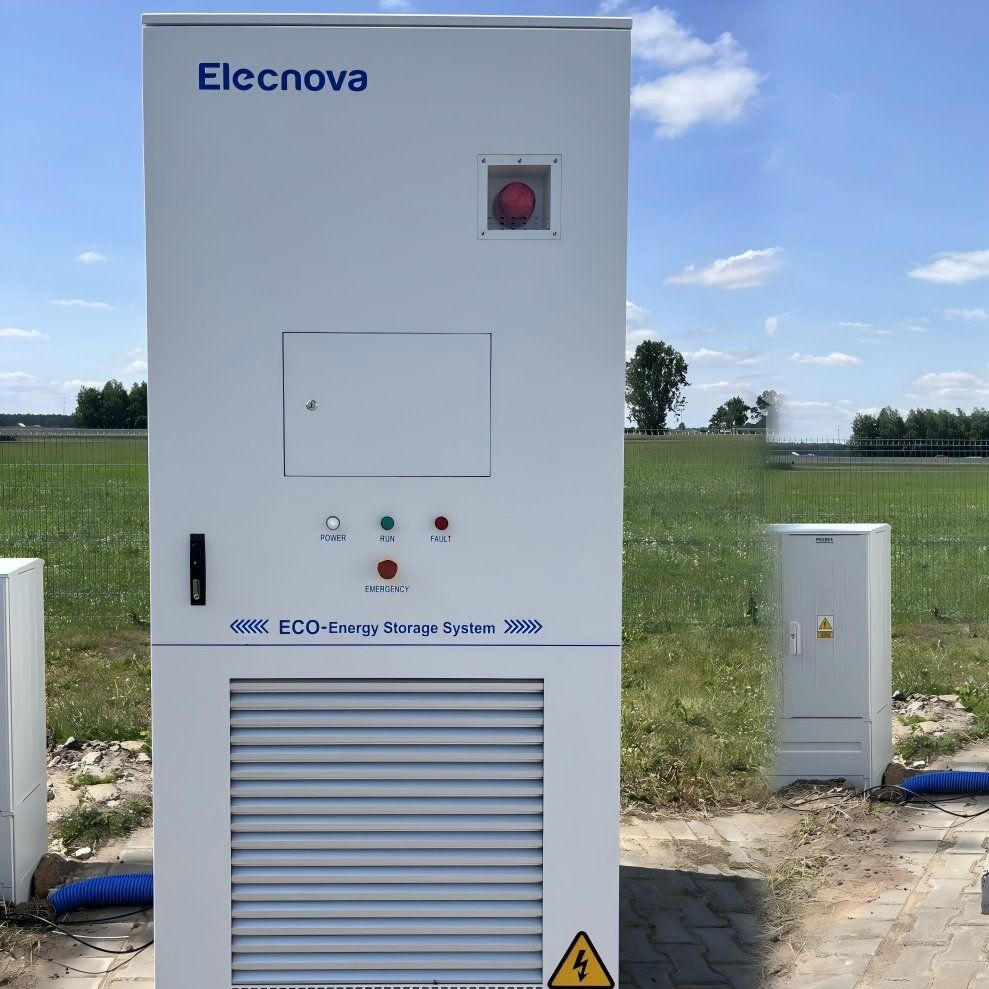

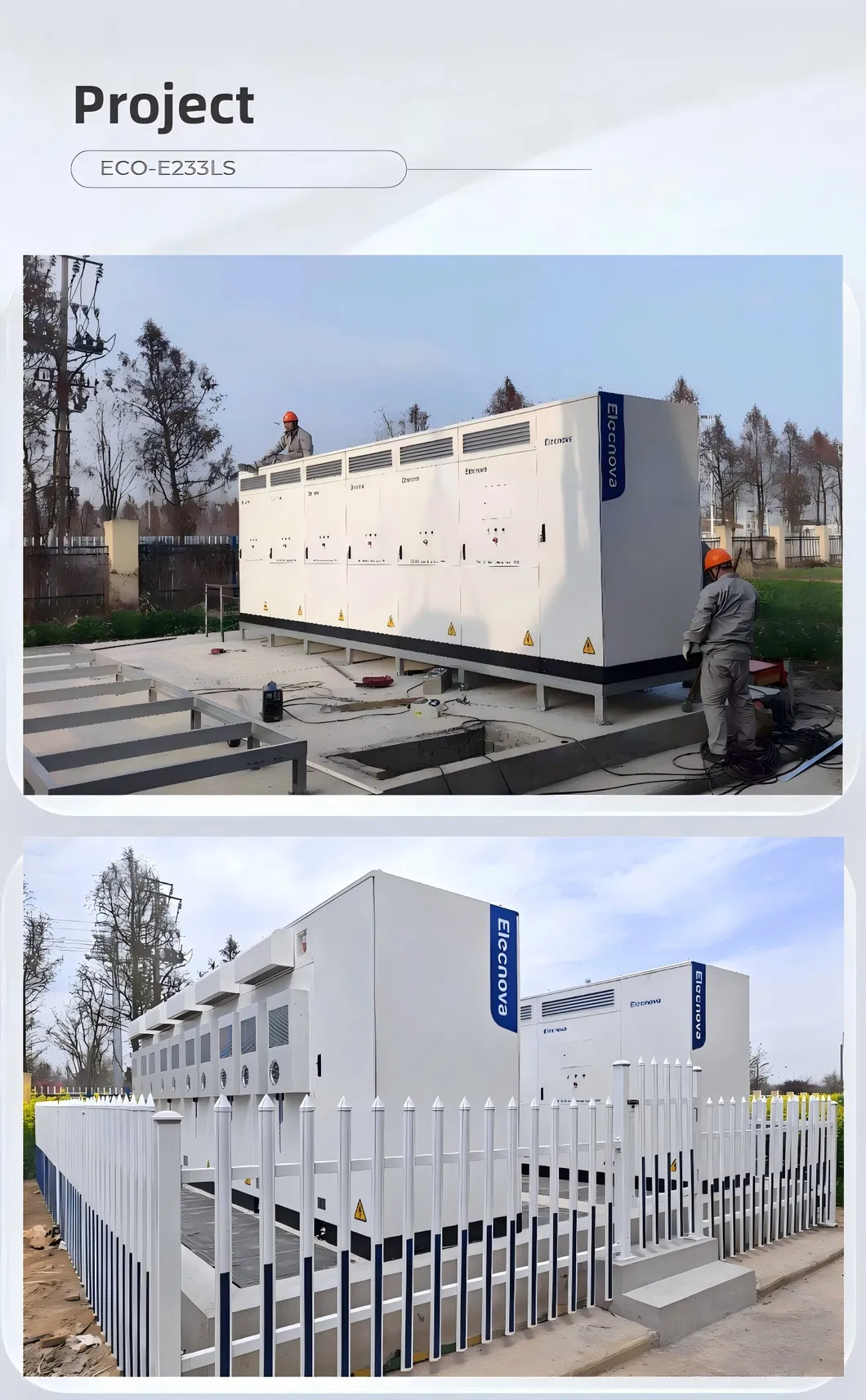

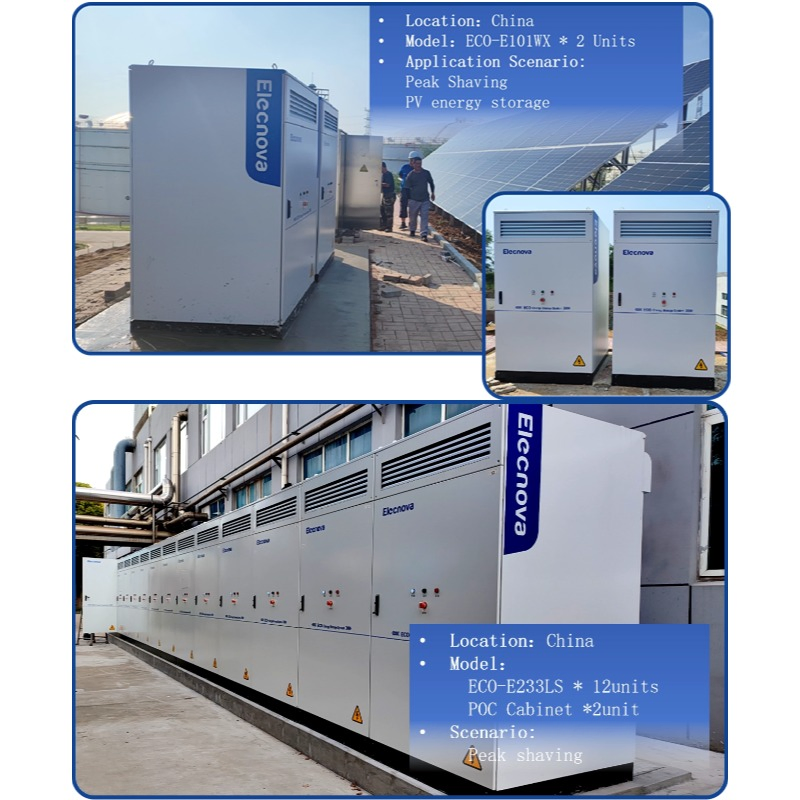

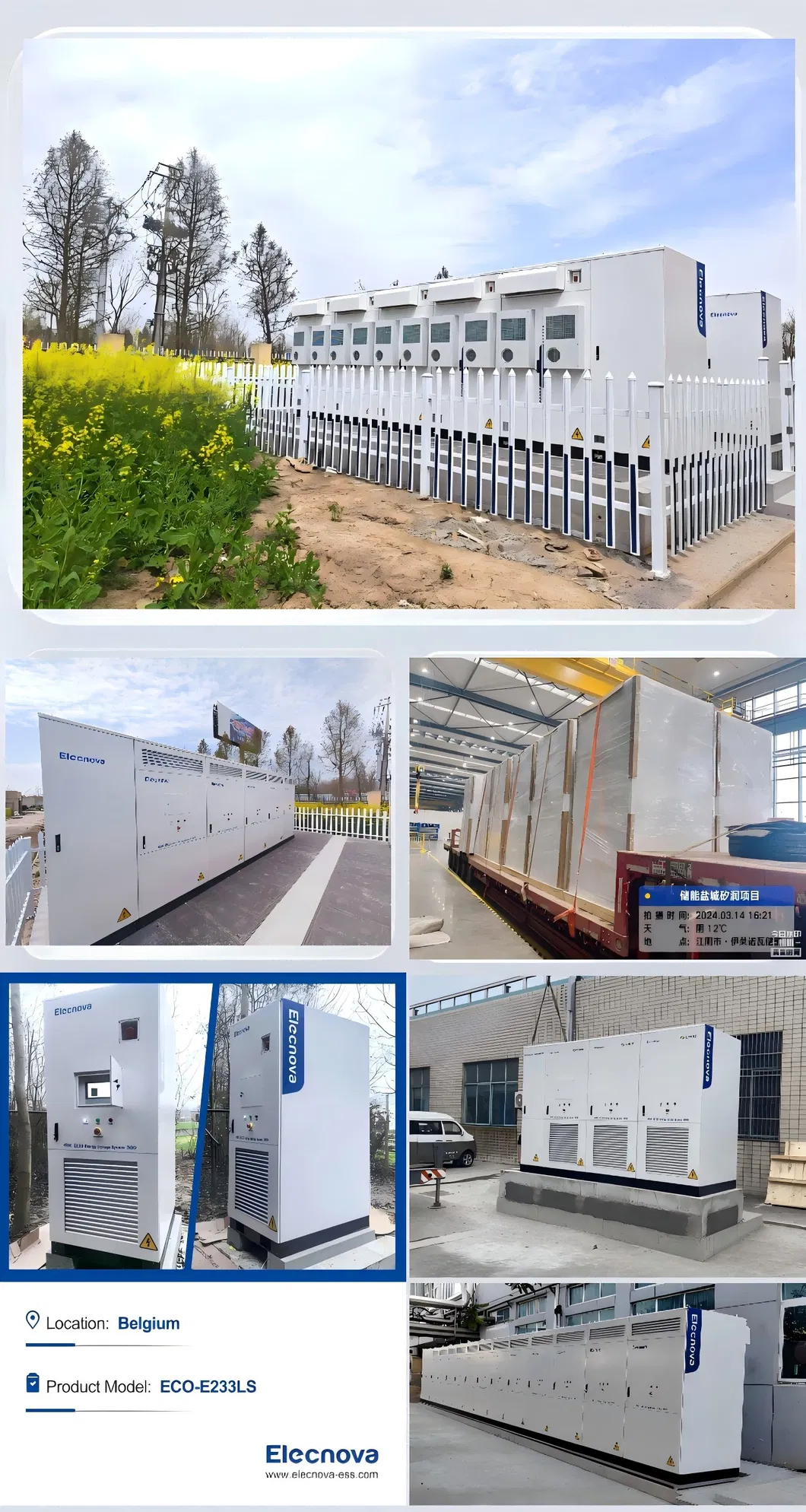

Energy storage projects successfully connected to the grid! Our solutions adopt advanced technology and equipment, ensuring high efficiency, stability, and safety for various scenarios such as C&I ESS and microgrid storage.

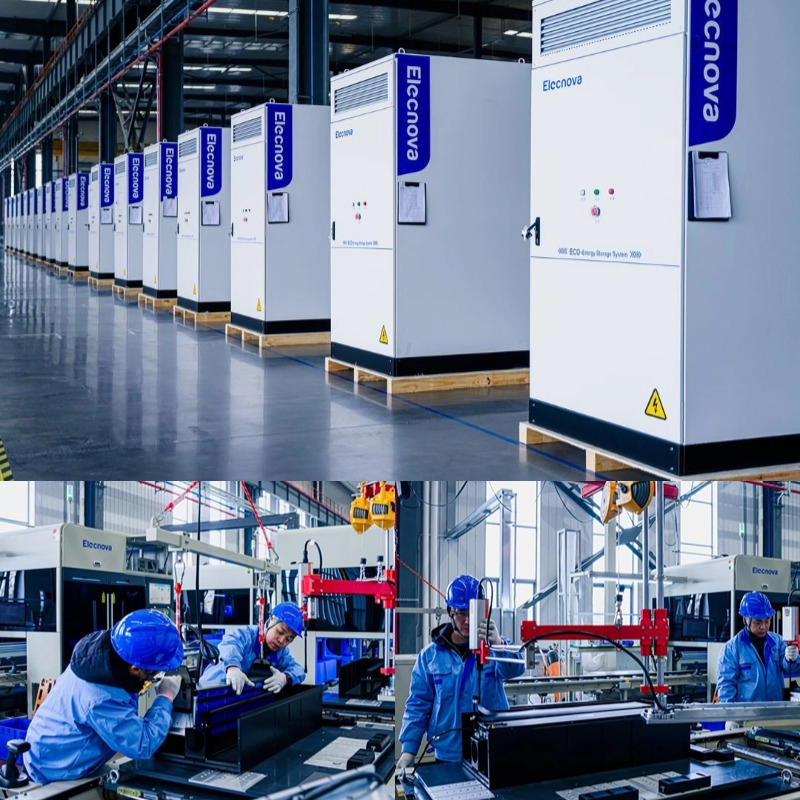

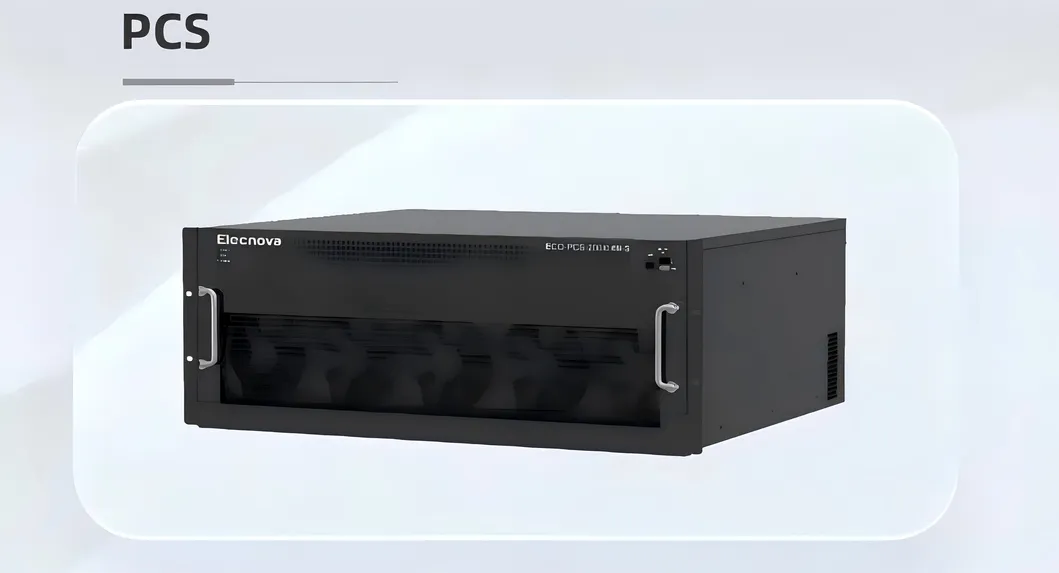

As a technology-based enterprise focusing on overall solutions for energy storage systems, we maintain supporting capabilities for system integration of PACK, PCS, and BMS. We are committed to providing high-quality customized products for power generation, grid side, and user side applications.
