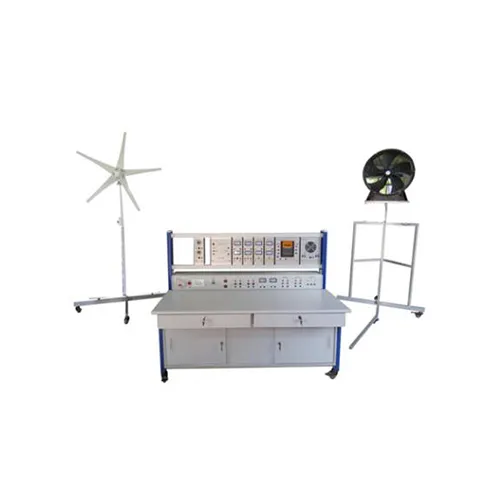

Educational Equipment Teaching Equipment Wind Energy Trainer with Wind Turbine

Basic Specifications

1.1 Overview

This training device includes modules such as solar power generation devices, photovoltaic panel power generation devices, inverters, and light-emitting controllers. Through related experiments, you can study the principles of solar and wind power generation, and cultivate students' corresponding knowledge and skills. It is suitable for vocational colleges, secondary vocational schools, and technical school related professional teaching and skills assessment.

1.2 Key Features

• The training device adopts an aluminum column frame structure with integrated power supply installation.
• Fully configured unit circuit hanging boxes that can be used in combination for various training contents.
• Flexible addition or deletion of experimental subjects to meet diverse user needs.
• Equipped with a comprehensive safety protection system.

2 Performance Parameters

• Input power: single-phase AC230V ± 10% 60Hz
• Wind power device dimensions: 1210mm × 1210mm × 2440mm
• Solar power generation device: 1500mm × 1500mm × 2750mm
• Training platform size: 1610mm × 800mm × 1350mm
• Overall capacity: 100VA
• Weight: <100kg
• Working conditions: Ambient temperature -10 ºC ~ +40 ºC; Humidity < 85%

3 Product Composition

3.1 Platform: Power box contains battery box, AC output, measuring instruments, AC power distribution panel, circuit breaker, and emergency stop switch.

3.2 Wind Turbines & PV Panels: Wind turbines follow wind direction with free vertical movement, speed sensors, and microprocessor regulator. Features 12Vcc output tension and torque electronic control.

3.3 Blower & Solar Simulator: Includes a 600W simulator and blower system to replicate environmental conditions.

3.4 Experimental Hanging Boxes: Includes sine wave inverter (600W continuous / 1200W peak), instrument boxes, and load box with five 30W lamps.

4 Training Projects

• Fundamental understanding of solar and wind energy principles.
• Wind power generation practical training.
• Solar power generation practical training.
• Collection and analysis of data for wind and solar power systems.

Workshop & Testing
