Efficient off-Grid Home Energy Storage Solution for Sustainable Living

1 / 5

Efficient off-Grid Home Energy Storage Solution for Sustainable Living

Customization:	Available
Cycle Life:	15+Years(25℃/77°F)
Nominal Capacity:	270 Ah

Send Inquiry

Product Description

Technical Overview

Model: WRES-L-25-014

Product Name: Home Energy Storage System

Total Energy: 13.82 Kwh

Usable Energy: 12.99 Kwh

Nominal Voltage: 51.2 Vd.C

Max. Current: 200A (Charge/Discharge)

IP Rating: IP20

Installation: Wall-Mounted & Stackable

Product Description

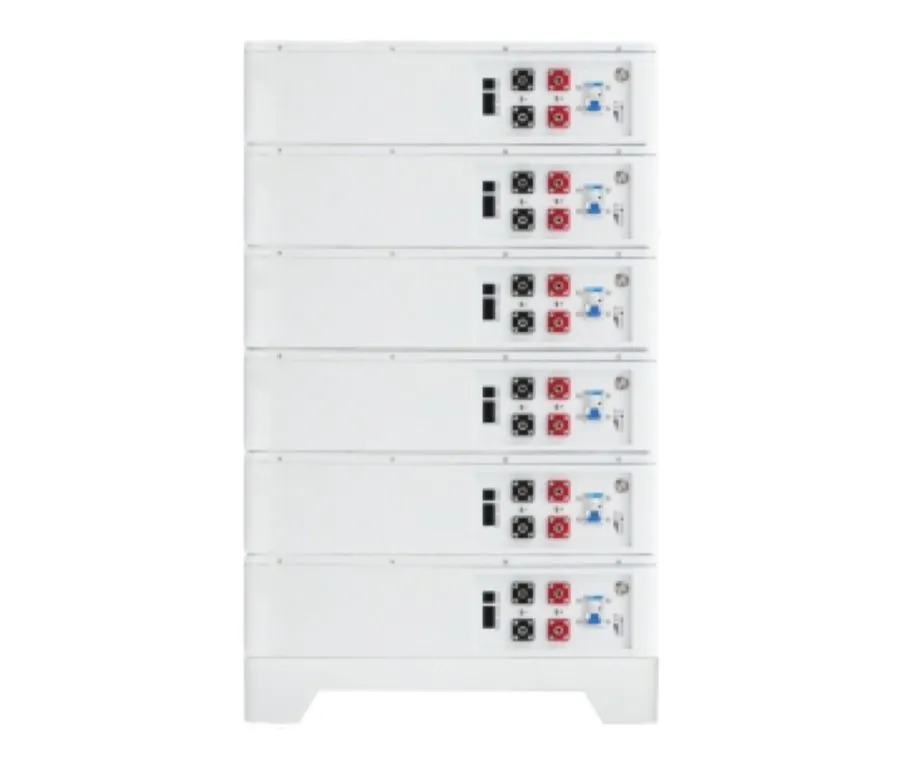

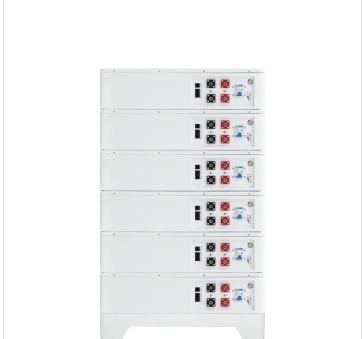

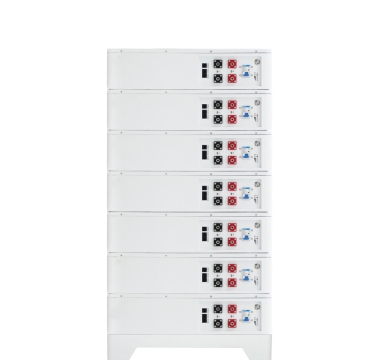

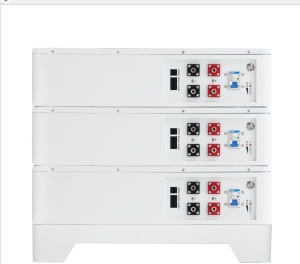

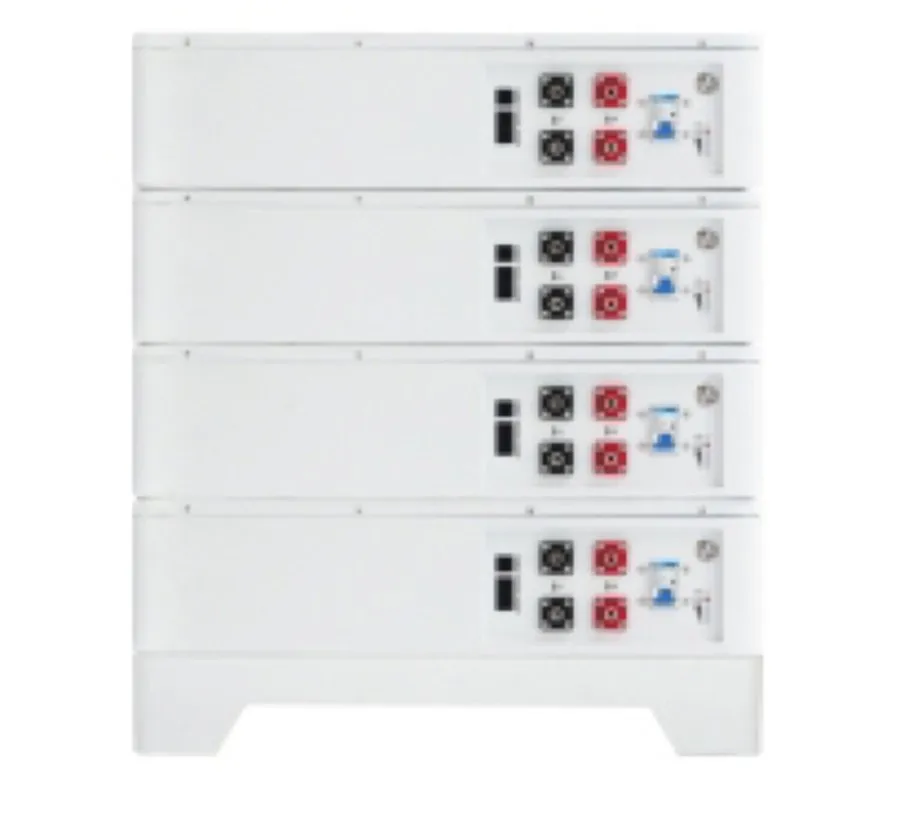

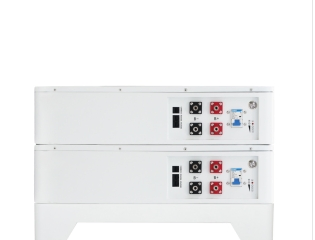

STACKABLE & HIGH-CAPACITY MODULAR BATTERY
Our residential energy storage system is a flexible and efficient solution designed for managing household renewable energy across varied home types and power requirements. Featuring a modular design, the system allows easy capacity expansion from 5 kWh to over 30 kWh by adding battery units. Supporting solar, grid-tie, and backup operation modes, it achieves over 95% round-trip efficiency and uses long-life LFP batteries with 8,000+ cycles.

☀️

Self-Consumption

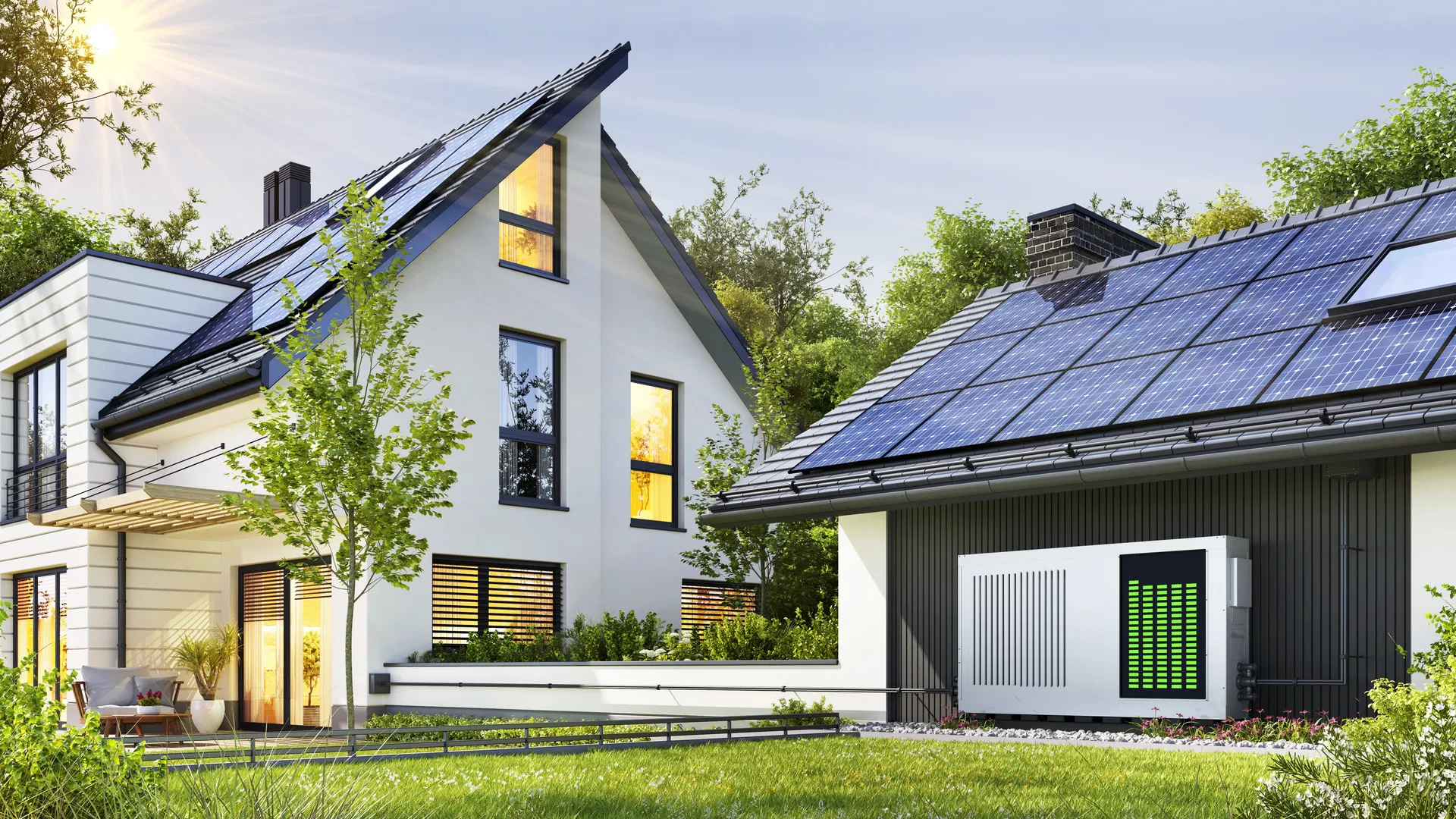

Seamlessly stores surplus electricity generated by rooftop solar panels, reducing grid dependence.

📉

Peak-Valley Arbitrage

Charges during low-tariff hours and discharges during peak periods to lower expenses.

🔋

Backup Power

Provides emergency power to essential appliances during grid failures.

📱

Smart Monitoring

Real-time tracking of energy flow via mobile app for personalized management.

Detailed Specification

Parameter	WRES-L-25-014	WRES-L-25-021
Total Energy (kWh)	13.82	20.73
Usable Energy (kWh)	12.99	19.48
Nominal Voltage (Vdc)	51.2	51.2
Rated Capacity (Ah)	270	405
Max. Current (A)	200	300
Dimensions (WHD mm)	660404450	660556450
Weight (KG)	138	202
Operation Life	15+ Years	15+ Years

Functional Advantages

By integrating with solar panels, our systems enable self-consumption of renewable energy, reducing reliance on utility grids and lowering electricity bills. In regions prone to blackouts, it serves as a reliable backup power source, ensuring uninterrupted operation of medical devices and refrigerators.

Environmentally, these solutions promote the adoption of clean energy by storing excess solar power, reducing carbon emissions. Modern designs feature compact footprints and intelligent monitoring via mobile apps for user-friendly operation.

Core Applications

🏠

Residential solar-storage-charging integration for modern households.

🏢

Commercial peak-shaving to optimize operational electricity costs.

❄️

Emergency support in low-temperature and harsh environments.

Secure Transportation

We provide reliable, transparent, and secure transportation services. From dispatch to delivery, we ensure professional handling:

Full-Process Tracking: Real-time updates and location milestones.
Custom Protective Packaging: Reinforced, shockproof, and moisture-resistant materials.
Sturdy Crating: Units are secured in wooden crates or steel frames for transit protection.

Product Gallery

Frequently Asked Questions

Is the system compatible with my existing solar inverter?

Our batteries offer high compatibility with various solar inverters using RS485, CAN, or RS232 protocols, supported by most major brands like SMA, Growatt, Deye, and Victron.

What is the expected lifespan of these batteries?

Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to 10-15 years of daily use depending on maintenance and temperature.

What safety features are included?

The system includes a comprehensive Battery Management System (BMS) with overcharge, over-discharge, short-circuit, overcurrent protection, and continuous temperature monitoring.

How can I monitor the performance of my battery?

We provide a cloud-based monitoring platform via mobile app and web. You can track real-time performance, charging status, and overall battery health.

What are the main application scenarios?

Ideal for integrated solar-storage-charging systems, peak-valley electricity arbitrage, emergency backup power, and usage in low-temperature environments.

Does installation require professional expertise?

Yes, installing these energy storage batteries requires specialized knowledge. We recommend hiring certified professionals to ensure safe integration with your electrical system.
