HYBO Energy
HYBO Energy
Conversion efficiency: 99%.
IP65 protection rating with ms-level on/off-grid switching.

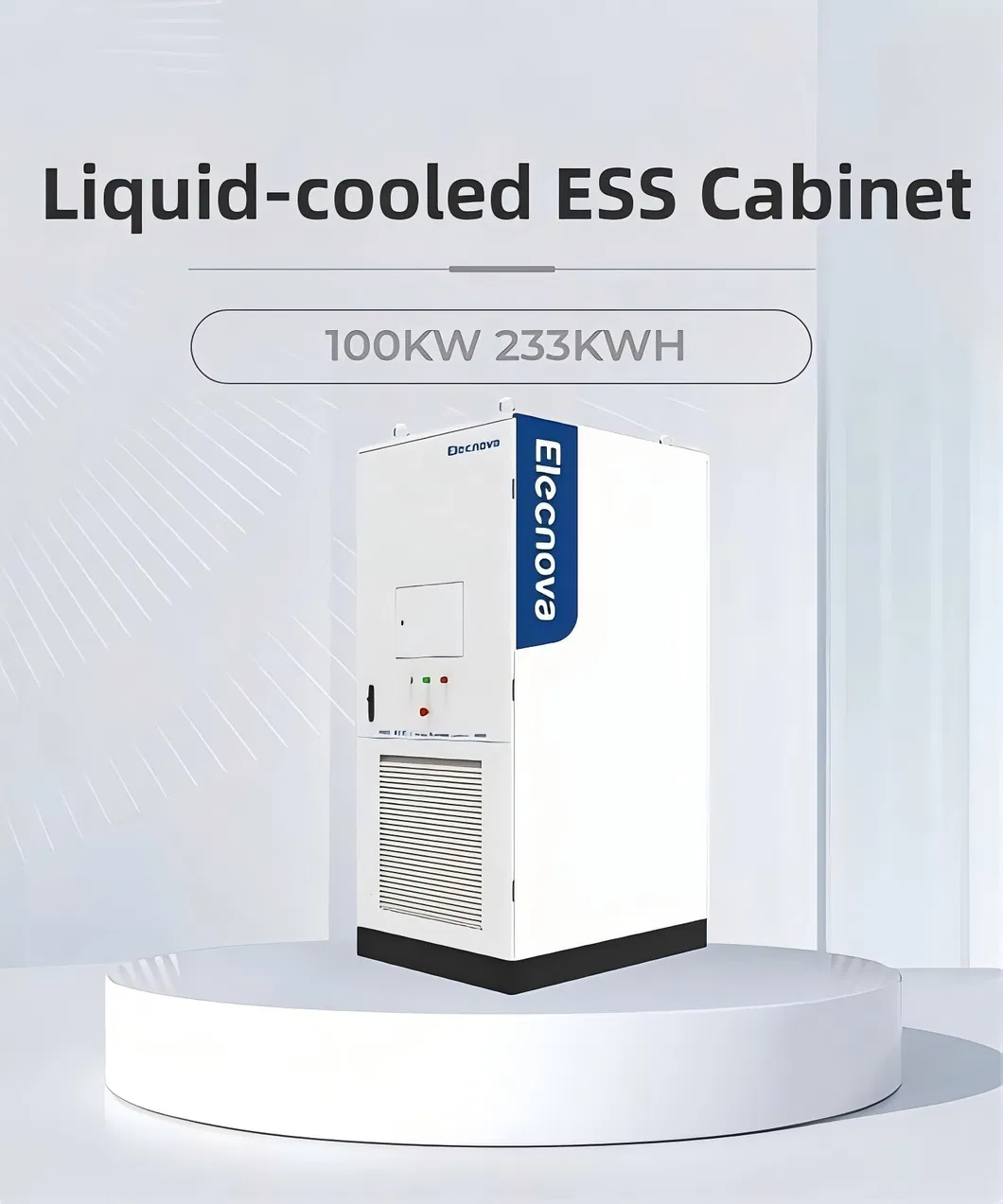

Suitable for C&I ESS, microgrid, and PV-plus energy storage scenarios.
Active thermal management system ensuring optimal cell performance.
Over 8,000 times cycle life with a 10-year designated lifespan.

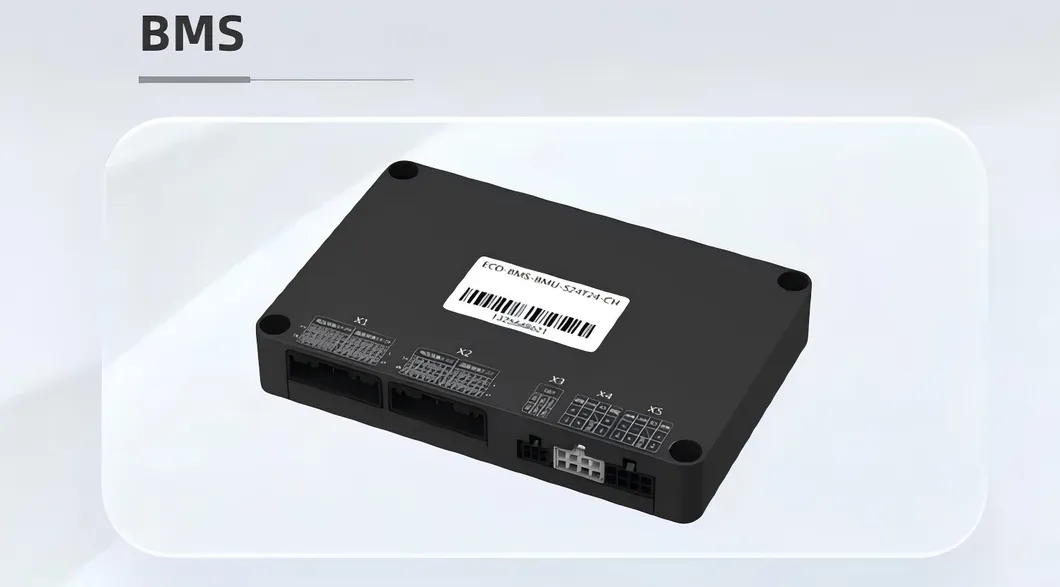

SOC Estimation Accuracy Error < 5%.
100ms sampling interval to ensure real-time data accuracy.
Multiple types of DI/DO interfaces for seamless integration.
| DC Side Specifications | |
|---|---|

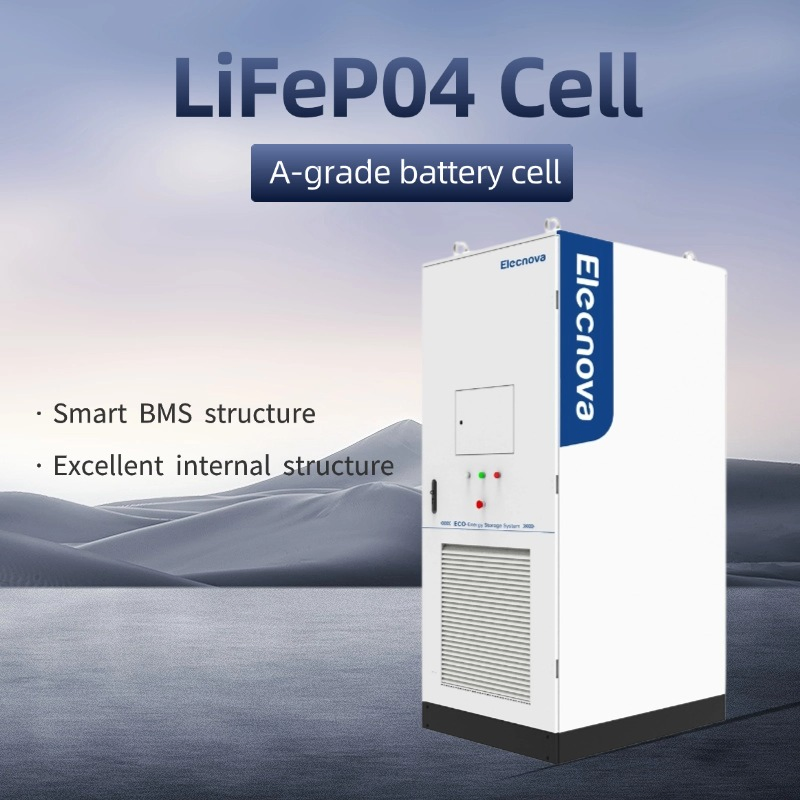

| Cell Type | LFP 280Ah |

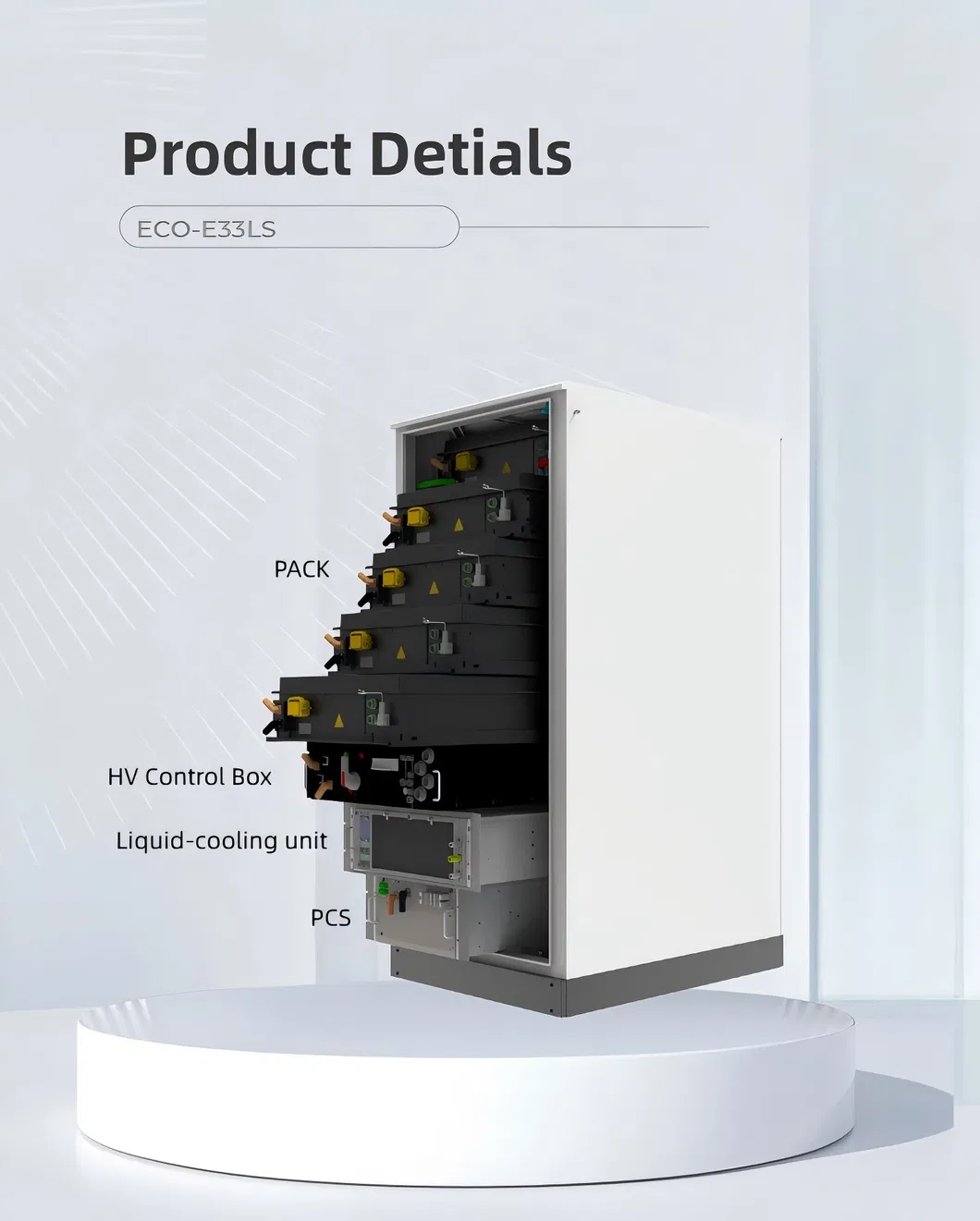

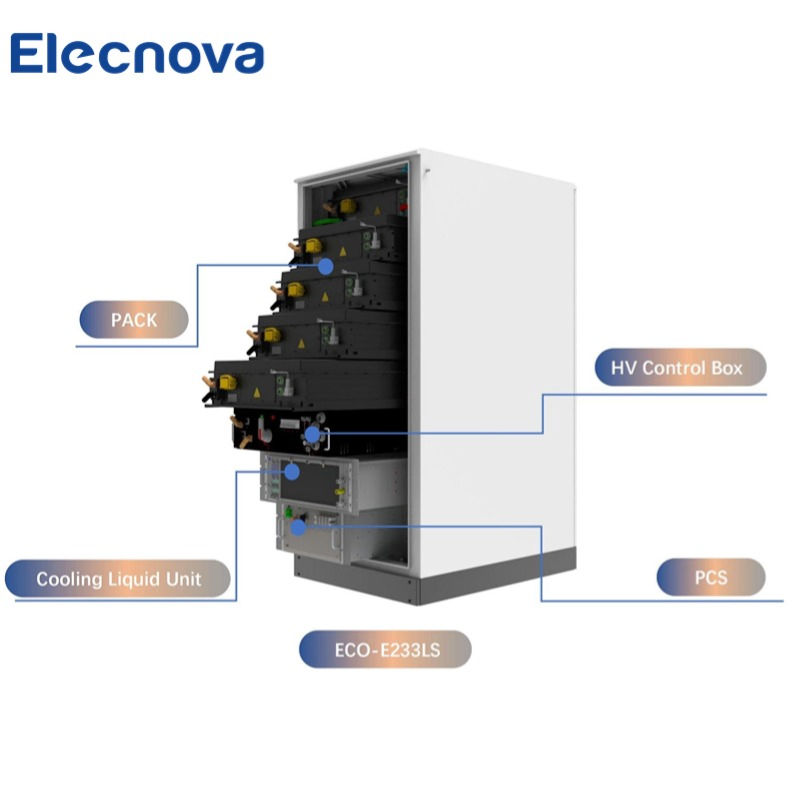

| PACK Capacity | 46.592kWh / 1P52S |

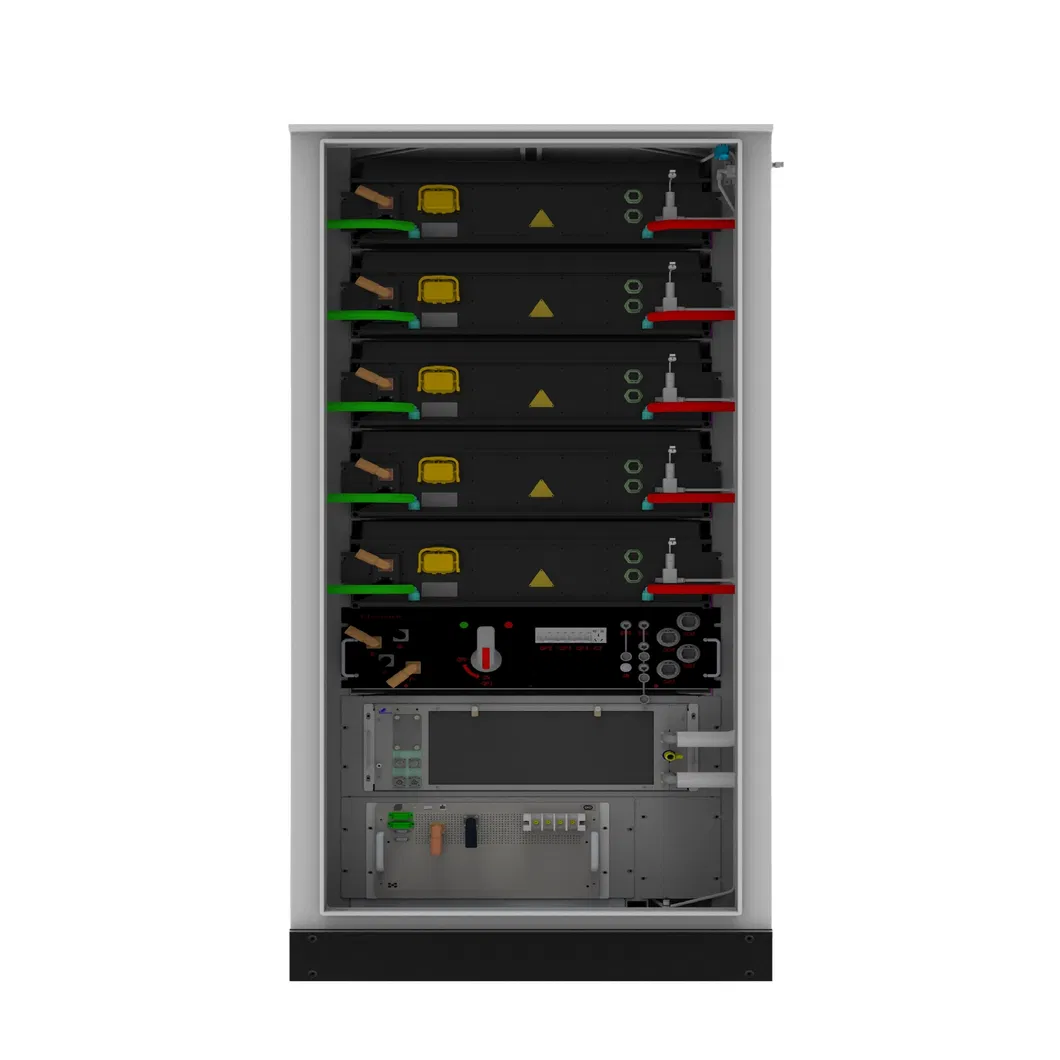

| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728 ~ 936Vdc |

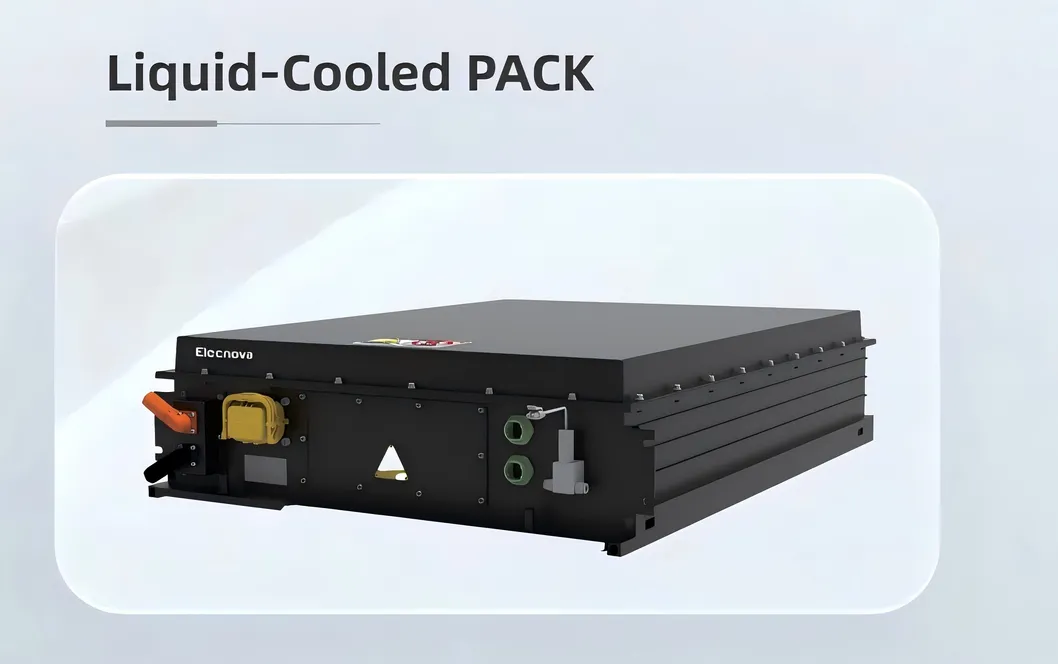

| PACK Ingress Rating | IP65 |

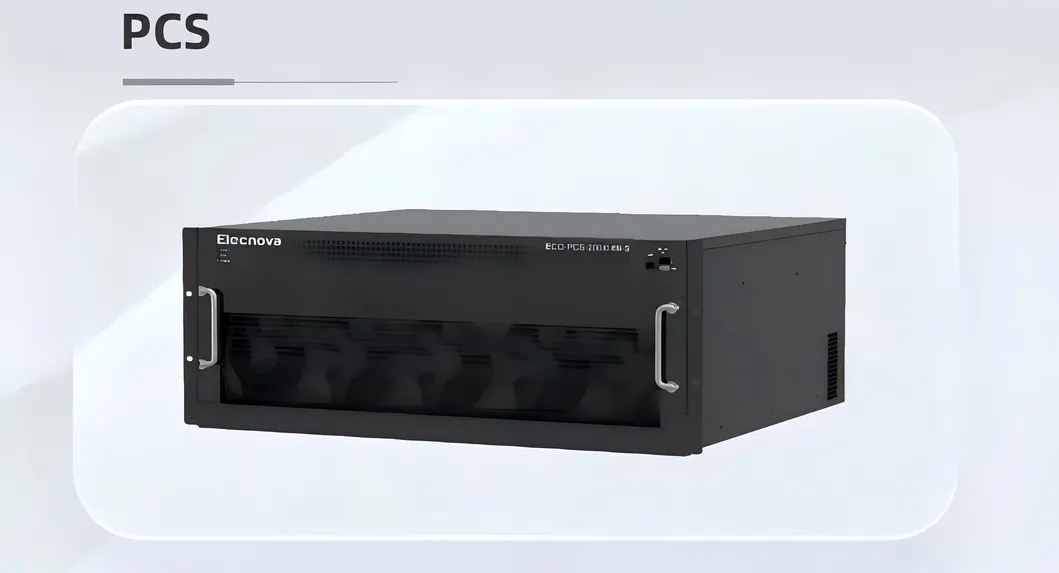

| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling Method | Active liquid cooling |
| Operating Temperature | -25ºC ~ 55ºC |

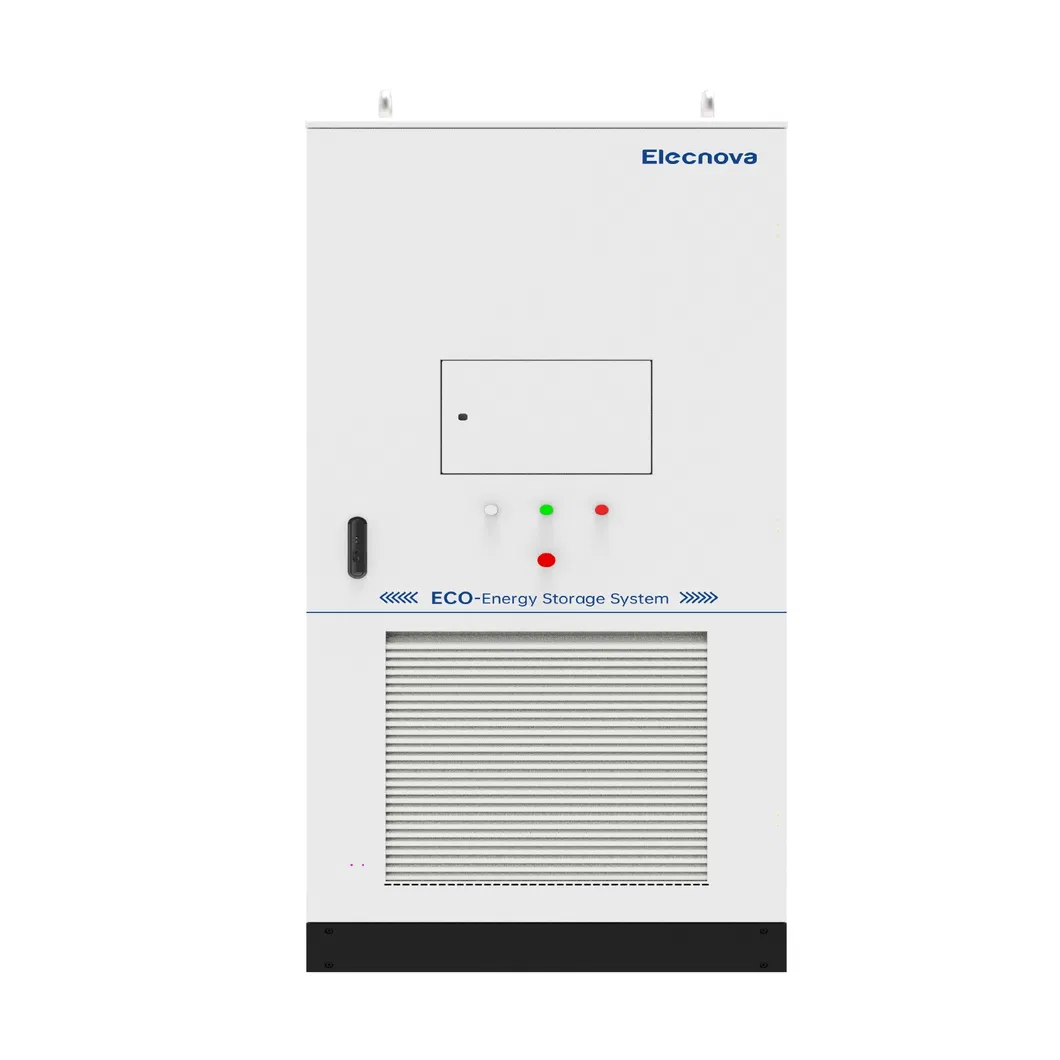

| Dimensions (W*D*H) | 1,050 * 1,350 * 2,400 (mm) |
| Weight | 2,570kg |

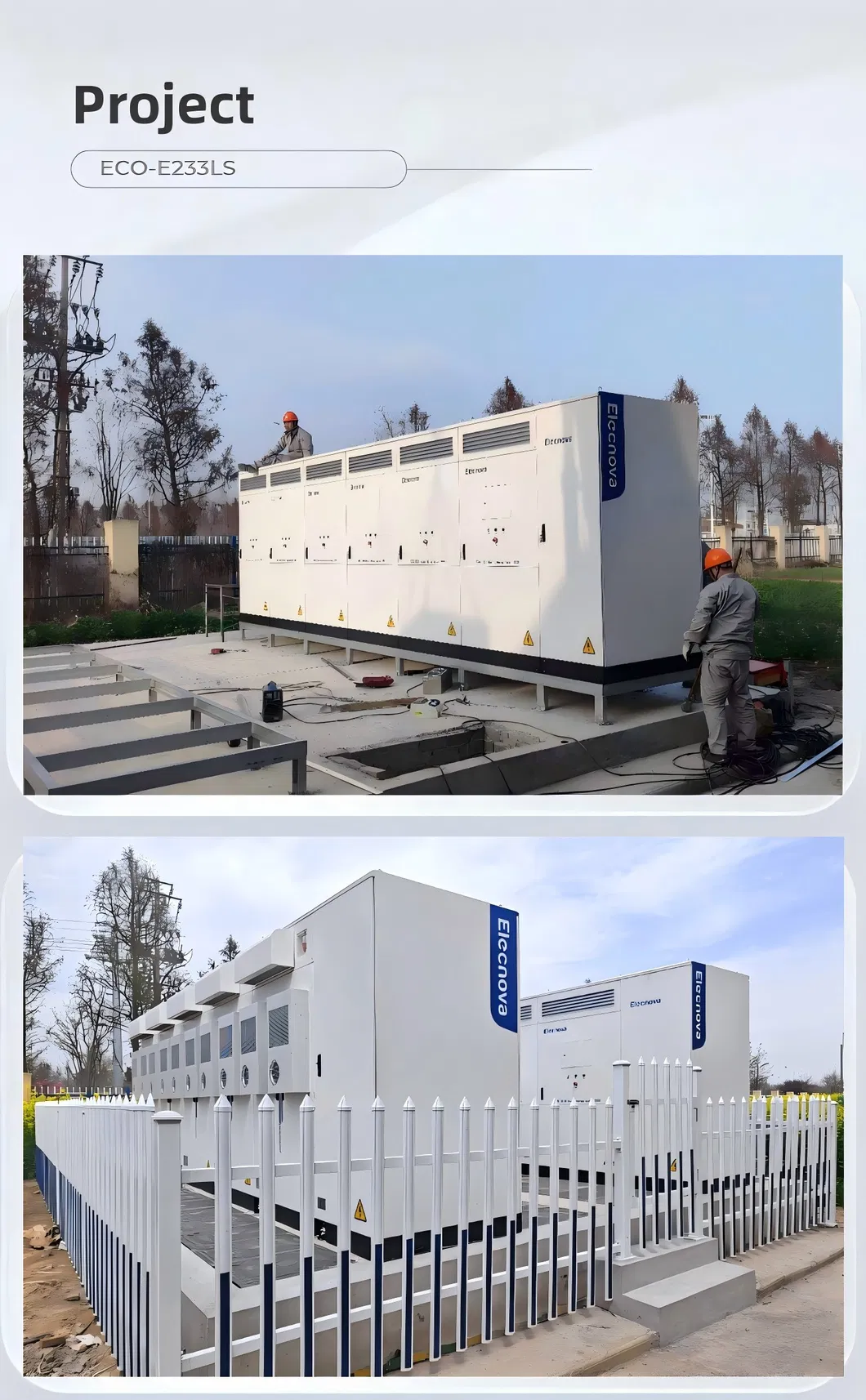

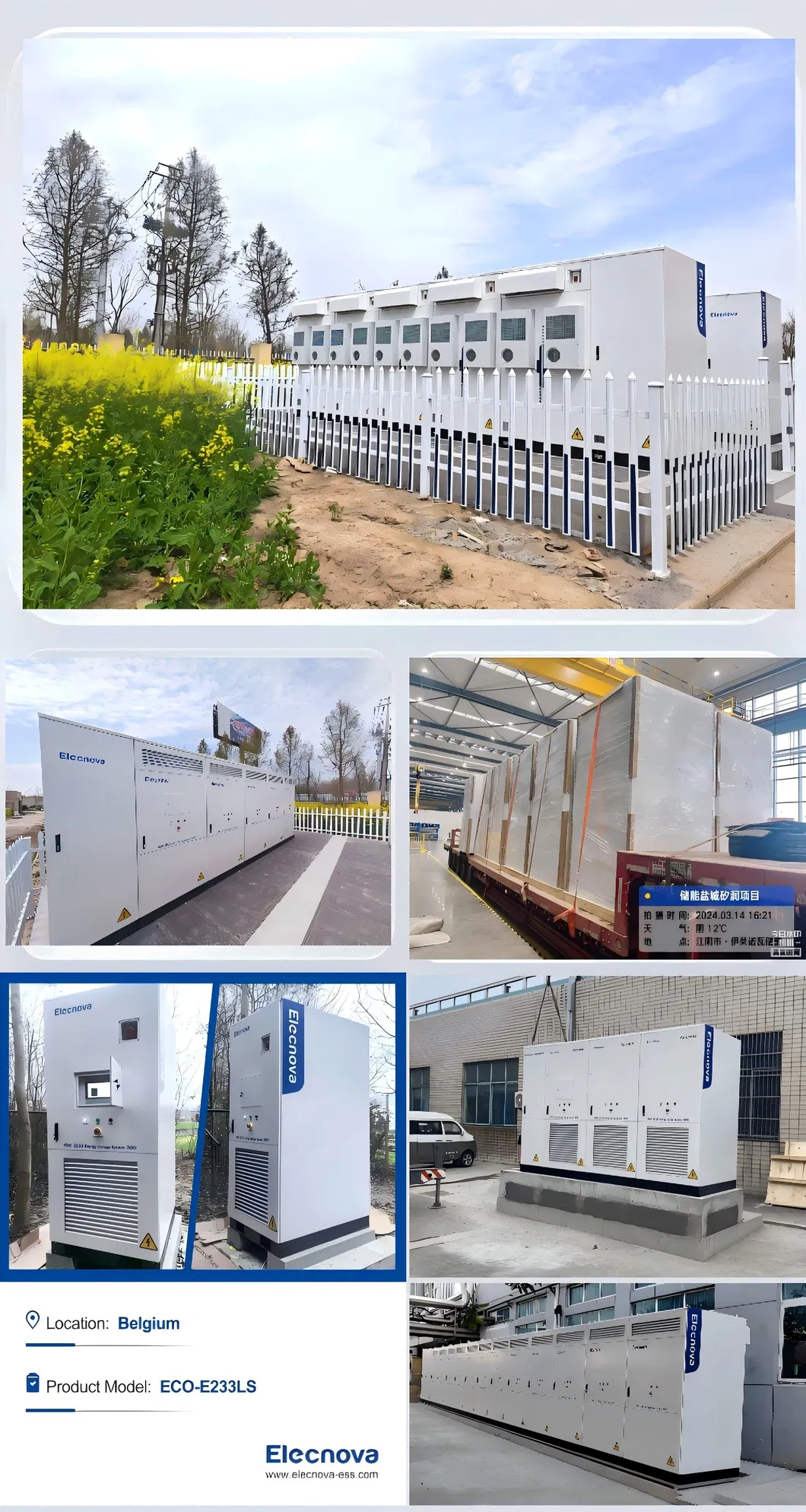

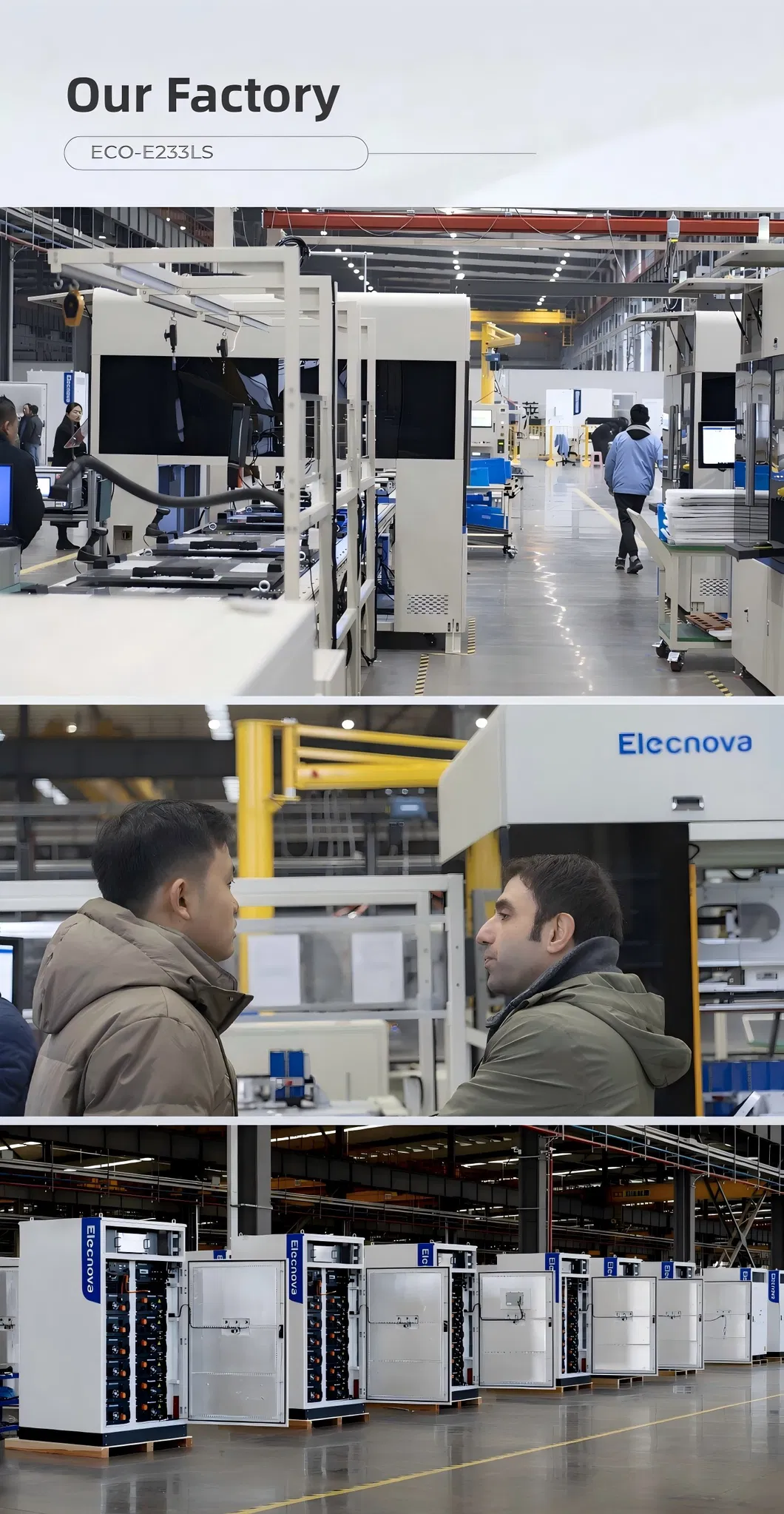

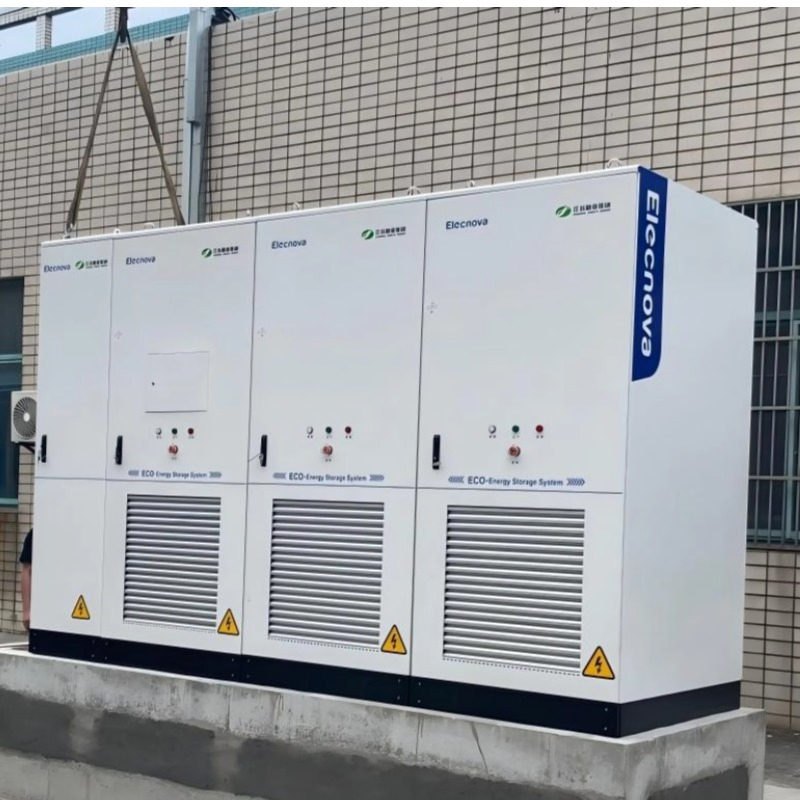

Our energy storage projects have been successfully connected to the grid across various industrial zones. By adopting advanced technology, we ensure high efficiency and stability for local power networks.
