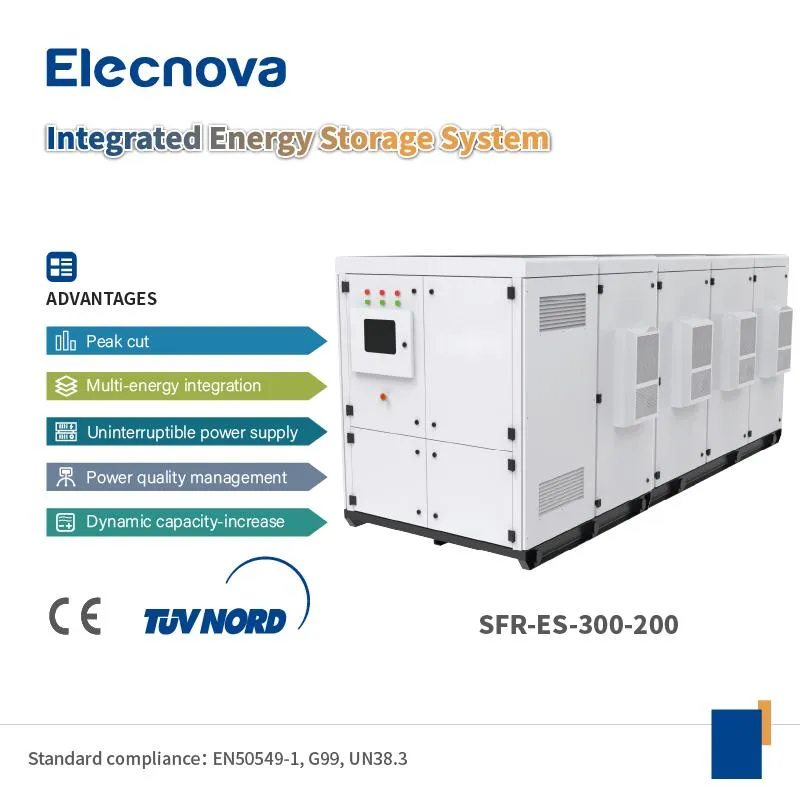

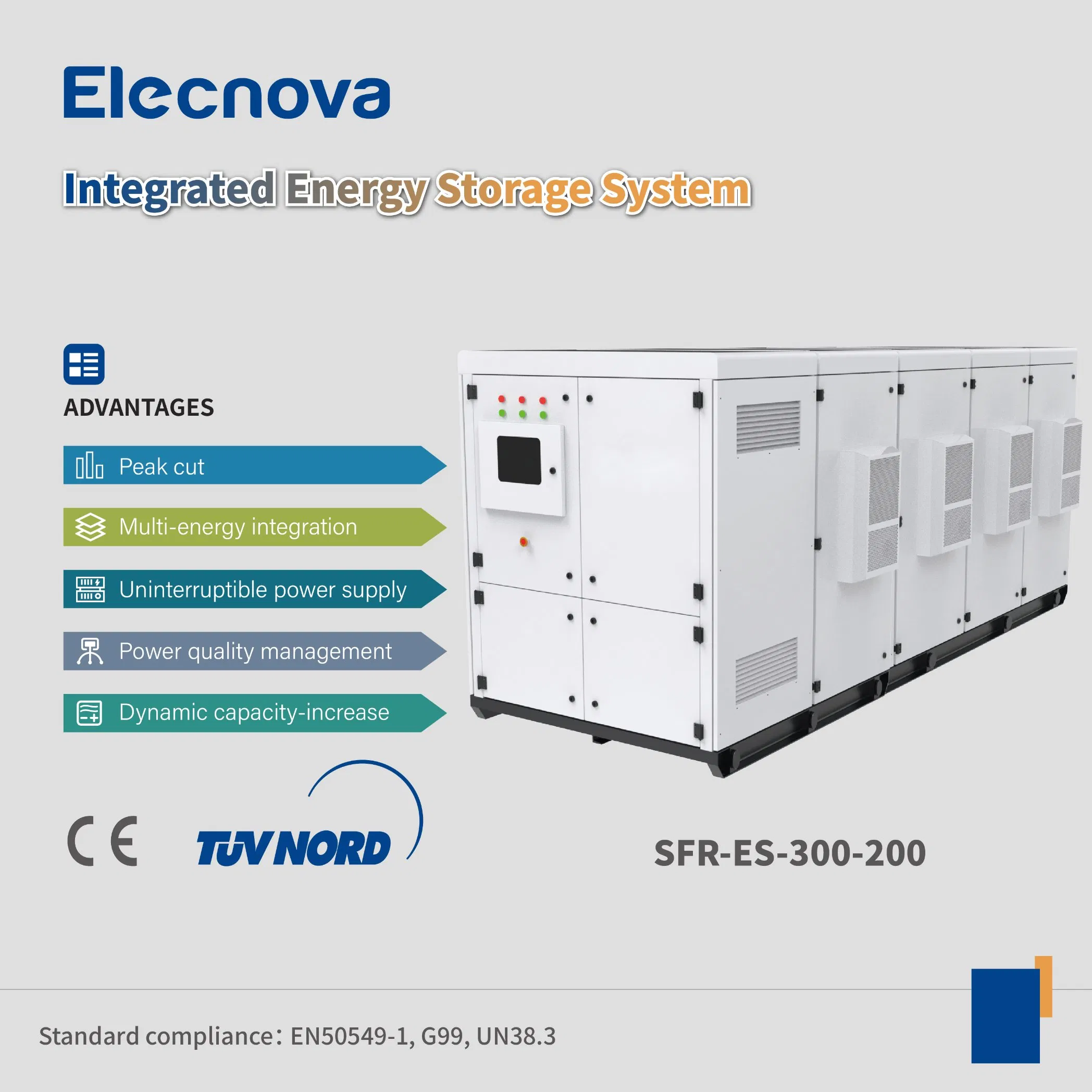

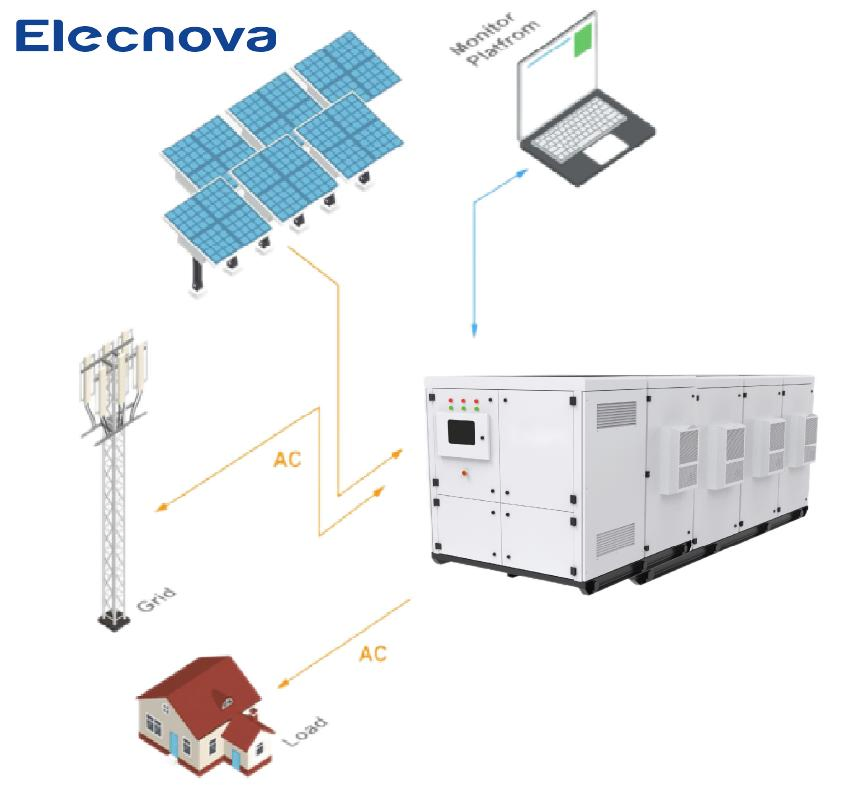

Elecnova PV Grid Tied Inverter Solar Energy Storage System Microgrid Solutions Smart Power Pack

i

Basic Specifications

Model NO.	SFR-ES-300-200	Nominal Capacity	300kwh
Cycle Life	4000 Cycles	Relative Humidity	0~95%(No Condensing)
Max Working Altitude	4000m (>2000m Derating)	On/Off Grid Switching	STS
Dimension (WDH)	168038302300mm	Origin	China

★

Product Description

Output Frequency	50/60Hz	Controller Type	MPPT
Battery Type	LiFePO4 Lithium Battery	Charging Ratio	2c
Components	PCS, Lithium Battery System	Work Time	24/7
Rated Grid Voltage	AC 380/400V	Application	Industrial, Solar Energy Systems

📋

Technical Parameters

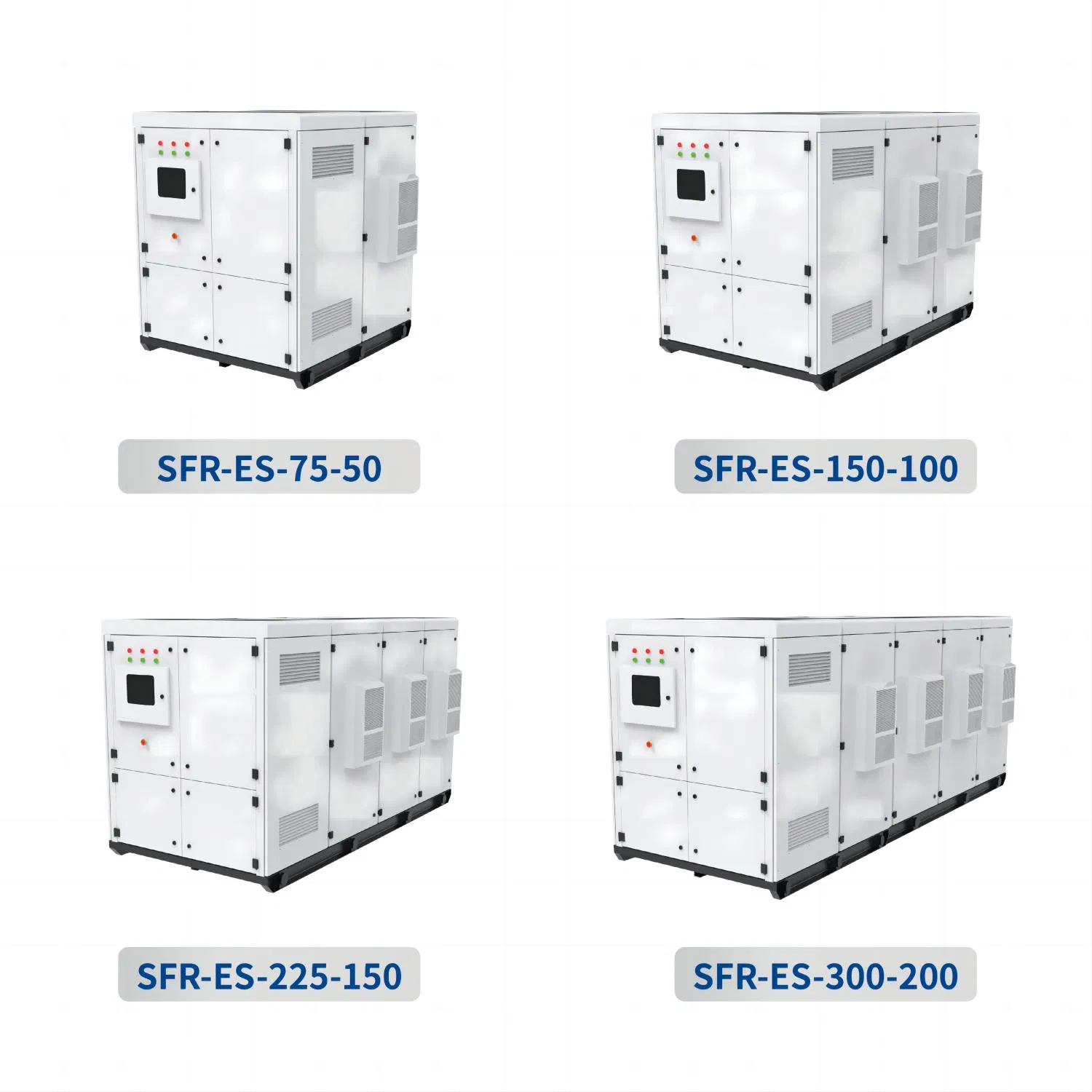

Model	SFR-ES-75-50	SFR-ES-150-100	SFR-ES-225-150	SFR-ES-300-200
AC Parameters (Grid Connected)
Rated Power (kW)	50	100	150	200
Max Power (kW)	55	110	165	220
Rated Voltage (V)	3W+N+PE, 380V
Battery System
Battery Type	Lithium Iron Phosphate
Total Power (kWh)	76.8	153.6	230.4	307.2
Cycle Life	25°C 0.5C/0.5C 100%DOD EOL80% >4000 times
System Efficiency & Environment
Max Efficiency	95%
Protection	Outdoor IP54
Communication	RS485, CAN, LAN (Modbus-RTU/TCP)

📷

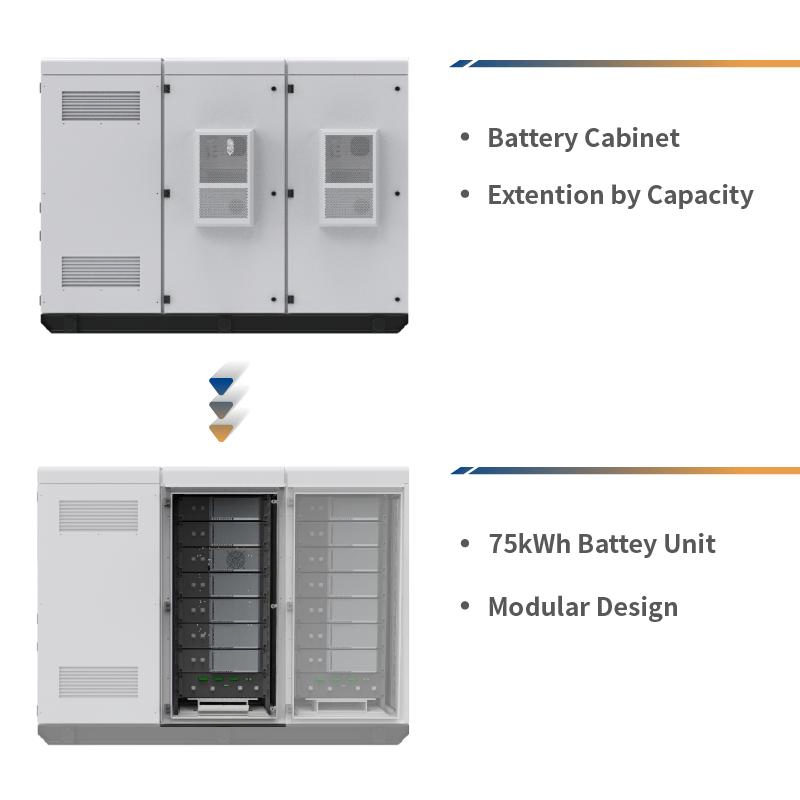

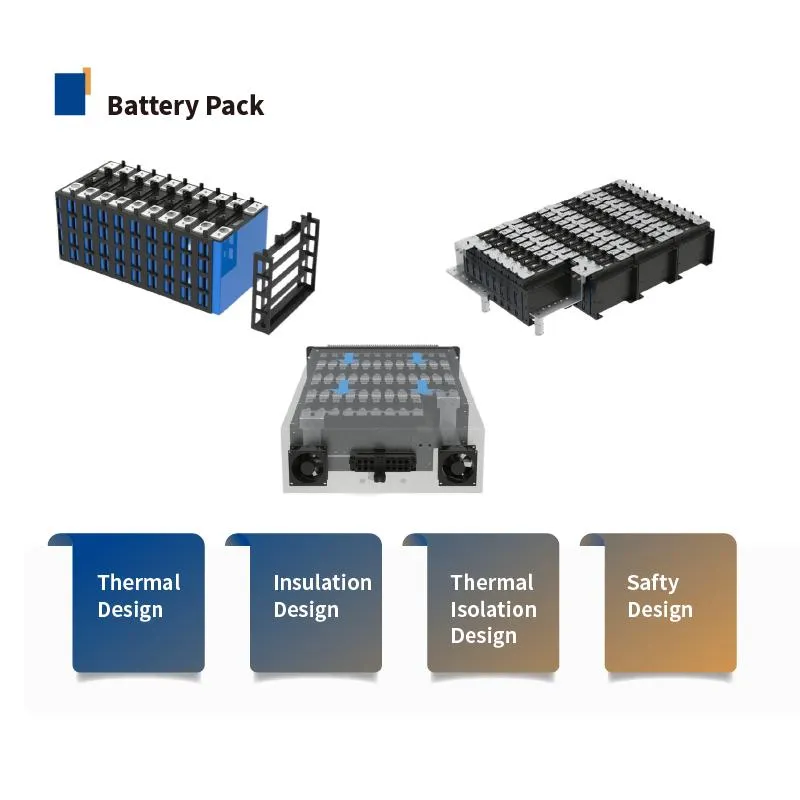

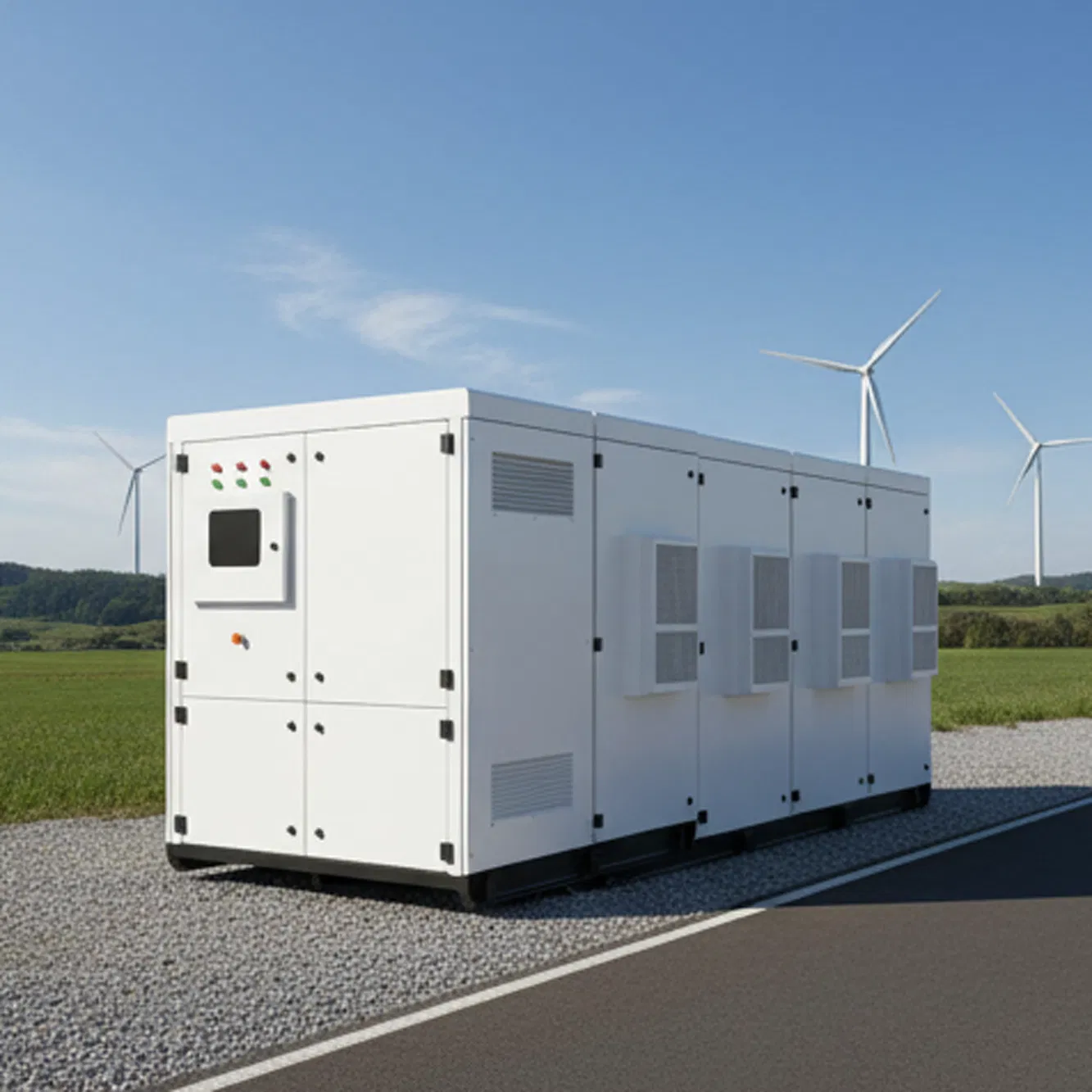

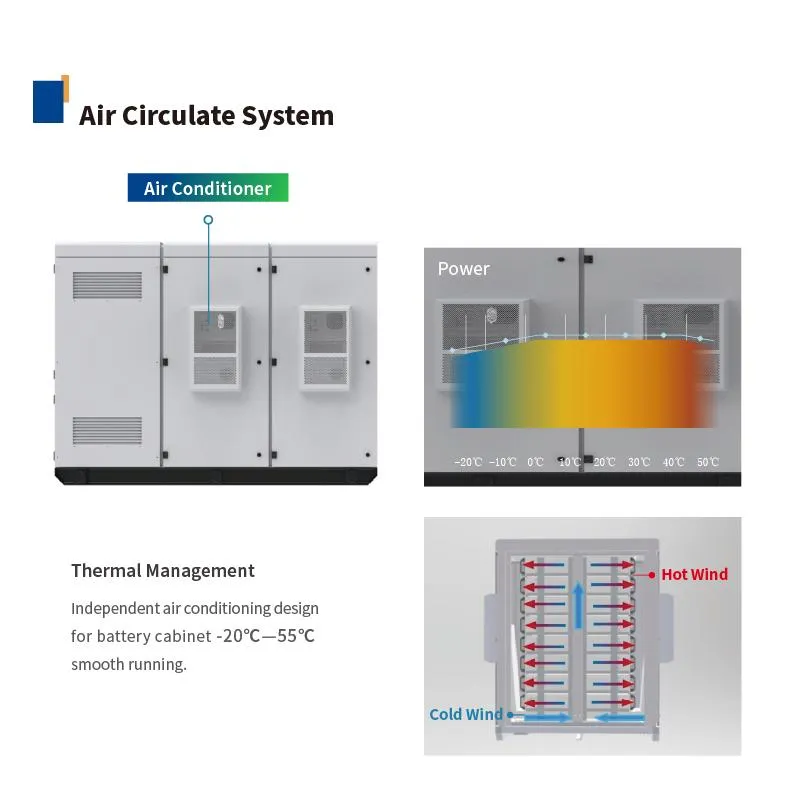

Detailed Product Gallery

🔍

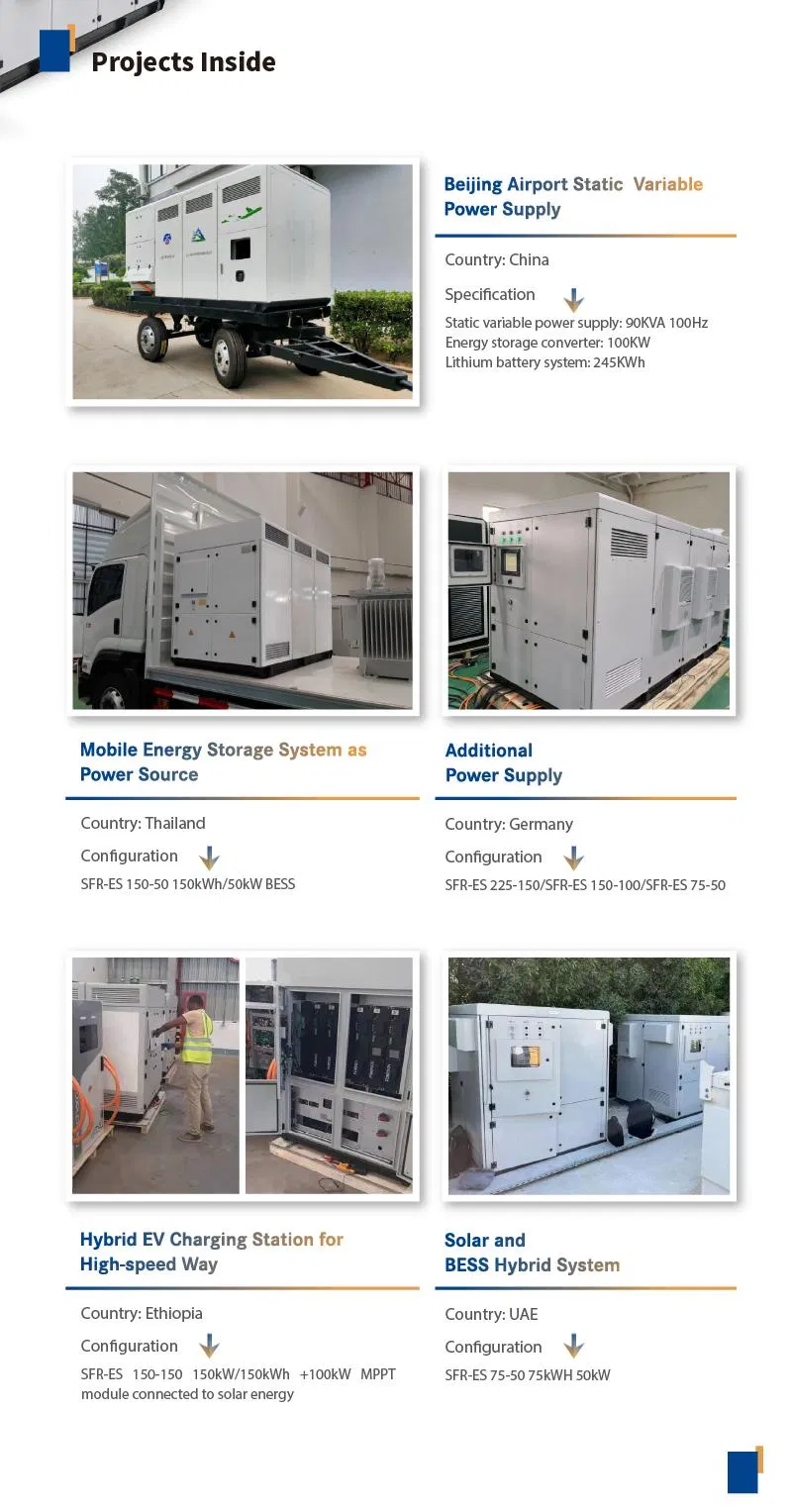

Reference & Quality Assurance

?

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional manufacturing factory.

Does your company provide customized manufacturing?

Yes, we provide comprehensive OEM/ODM services. Our experienced R&D team delivers high-efficiency solutions tailored to customer requirements.

How long is the delivery time?

For items in stock, it takes 3-5 working days. For items out of stock, the delivery time is approximately 15-21 days.

Do you provide samples for testing?

Samples are available; however, they require payment and the coverage of freight costs.

What are your standard terms of payment?

For orders under $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% paid before shipment.

What is the communication protocol for the storage system?

The system supports RS485, CAN, and LAN hardware interfaces using Modbus-RTU, Modbus-TCP, and CAN2.0B protocols.
