Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
1 / 5
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency
Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency

Heavy-Duty Anti-Corrosive Bag Unloading Device for Energy Efficiency

Customization: Available
Capacity(t/h): 150-300
Material: Carbon Steel / SS304 / SS316
Send Inquiry

Product Description

Technical Specifications

Model NO.
Ton Bag Unloader RX-1
Motor Power(kw)
1~10
Usage
Building Materials, Chemicals, Metallurgy, Food Industry
Control Method
Button / PLC
Voltage
220V~600V
Max Feeding (mm)
630
Warranty
1 Year
Type
Ton Bag Discharger
Movement Mode
Gravity Traction
Production Capacity
5000 Pieces/Year

Product Description

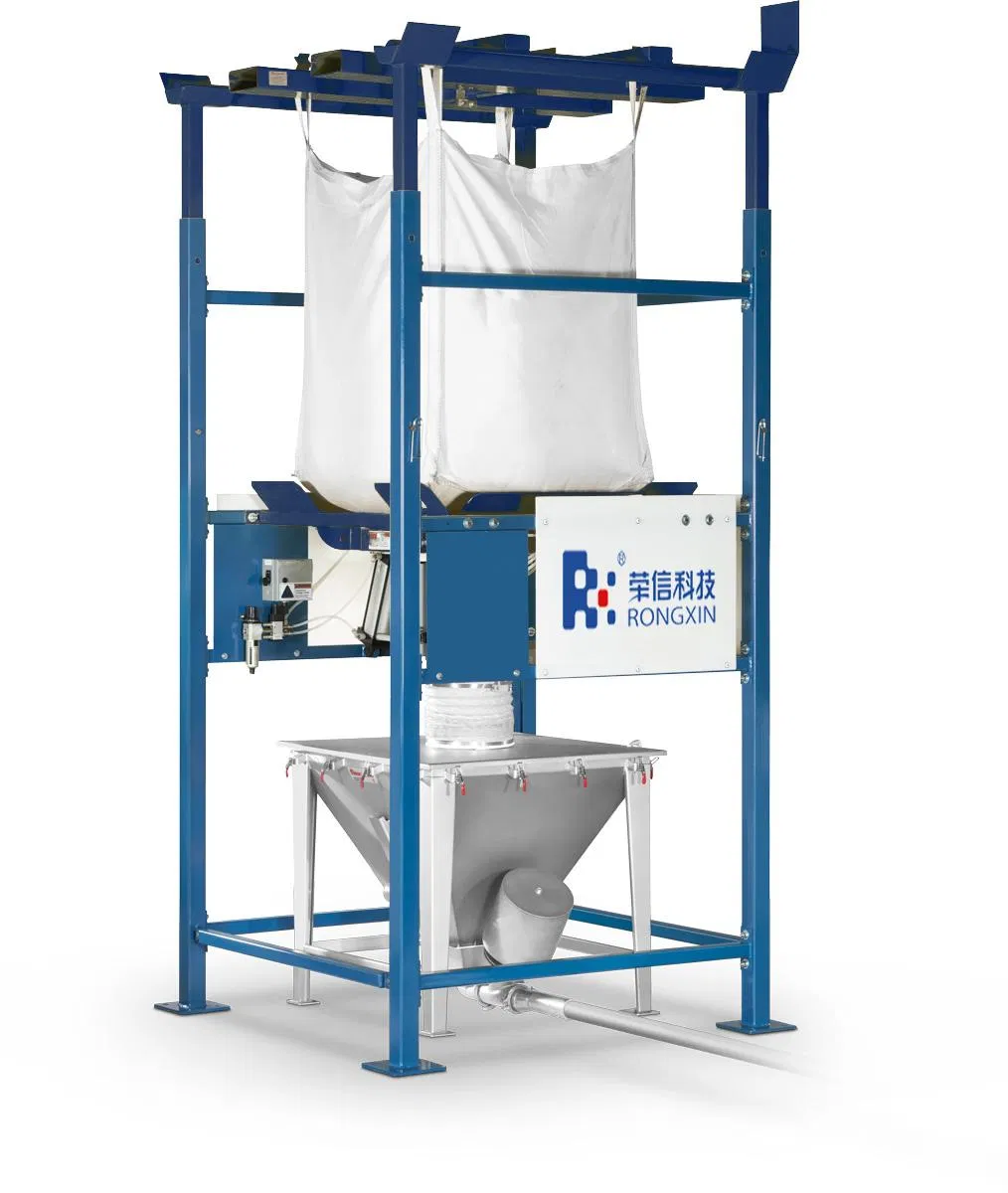

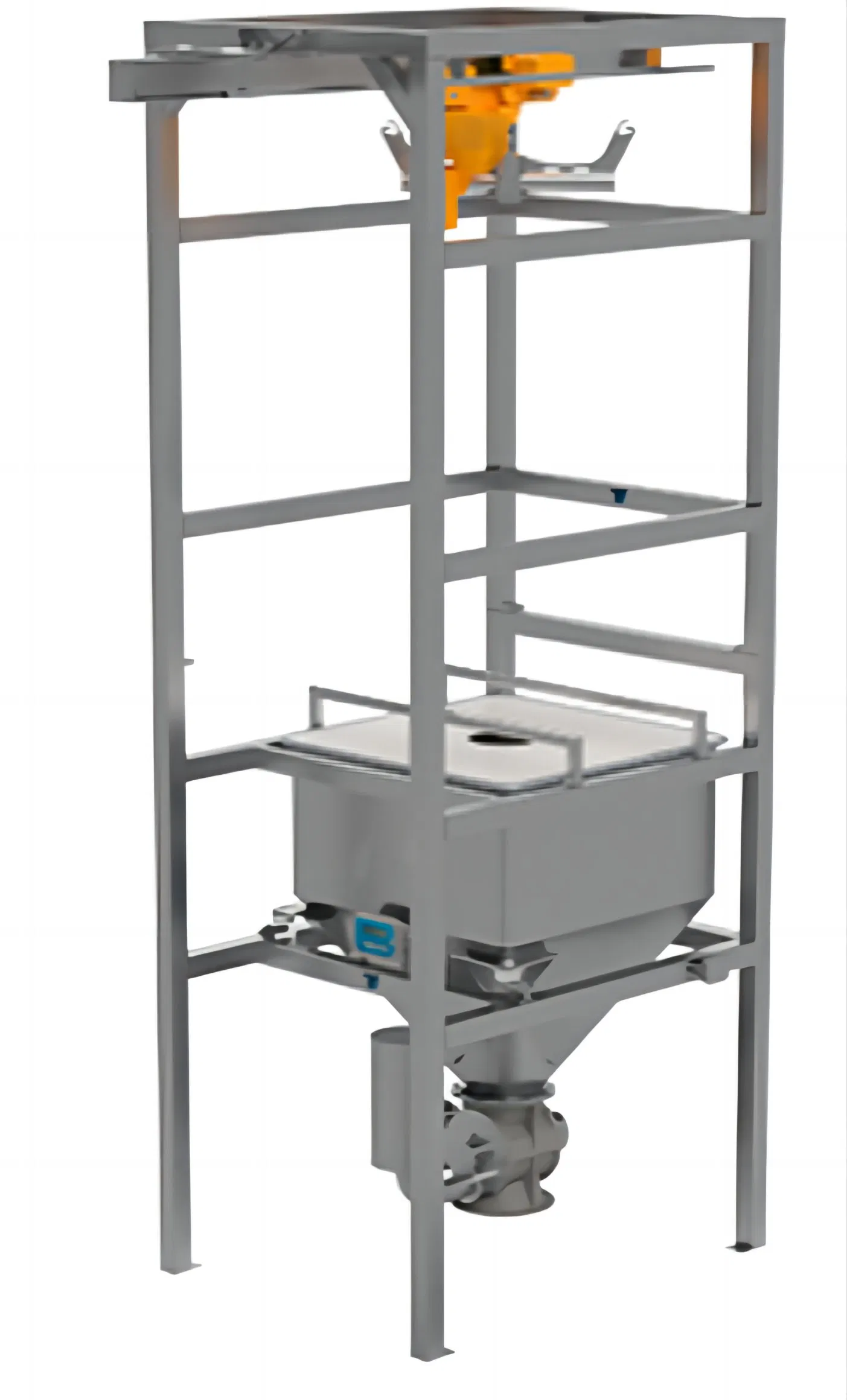

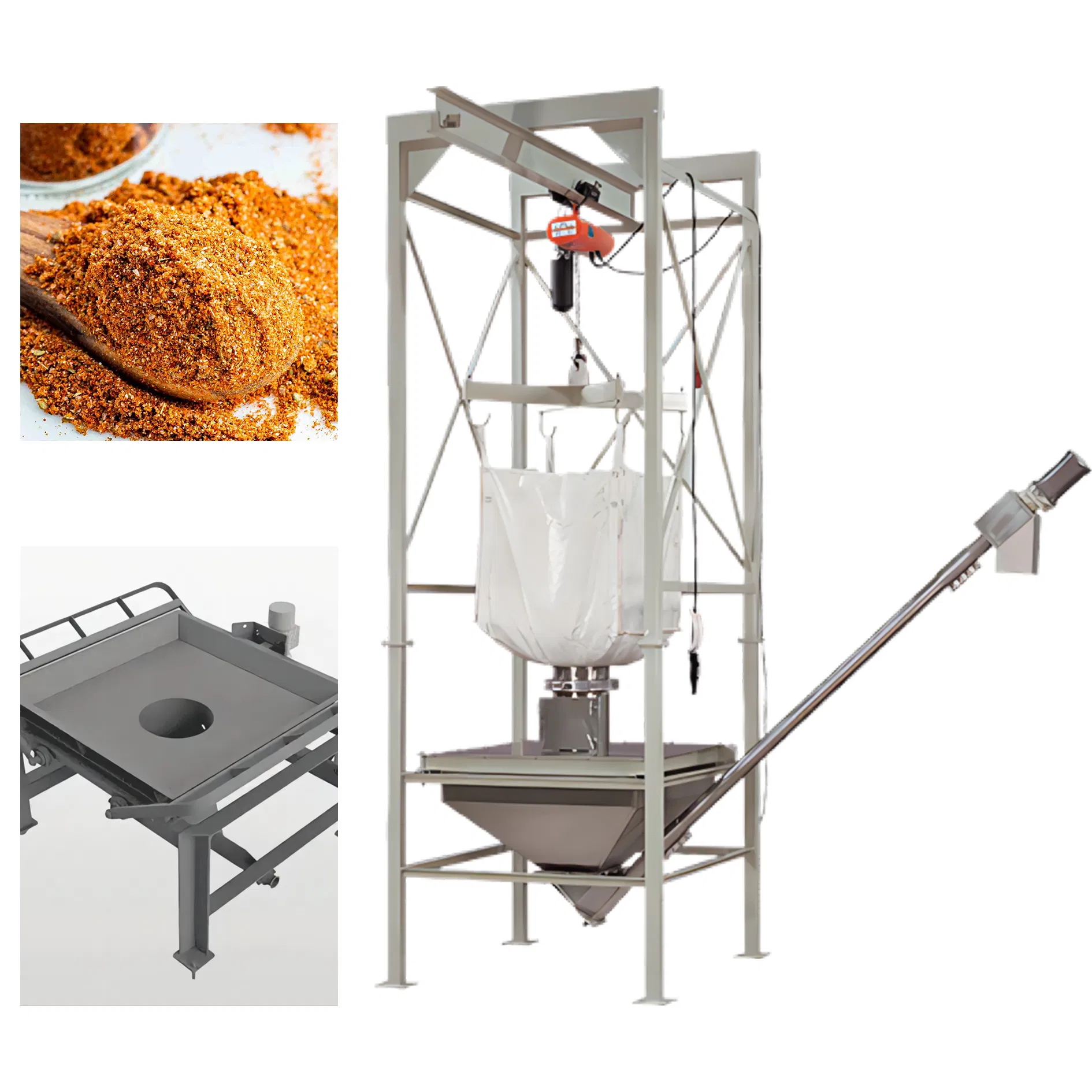

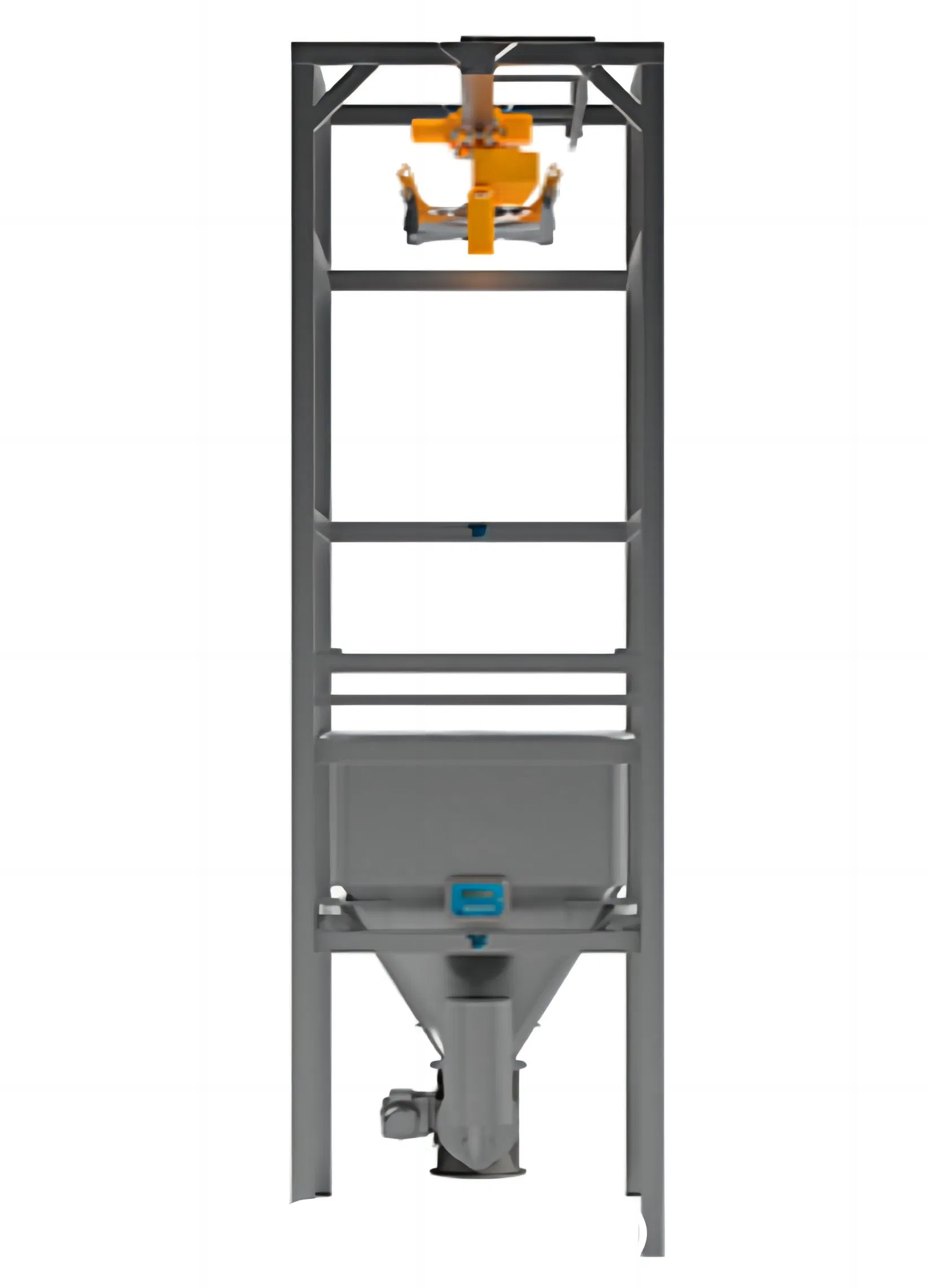

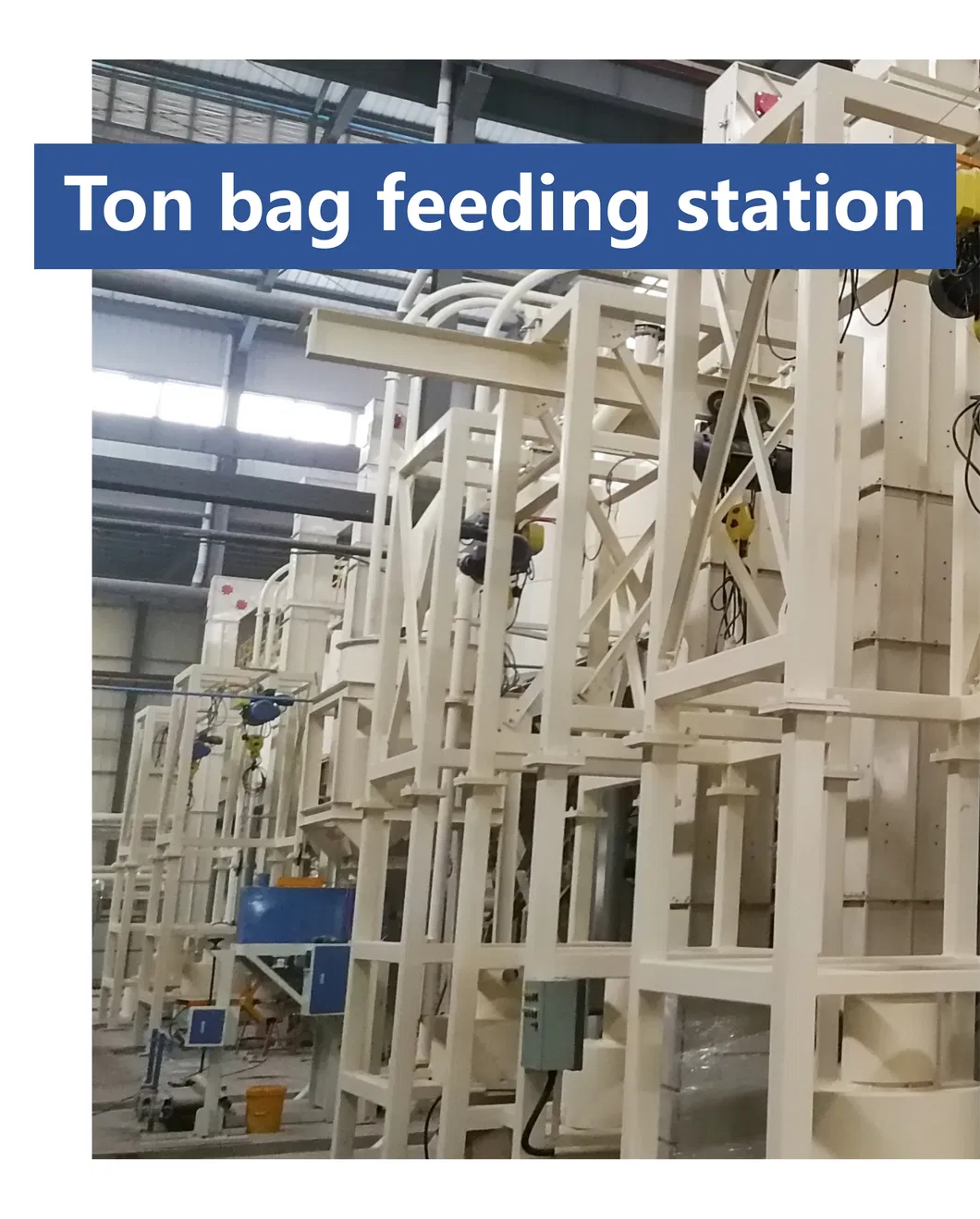

Ton Bag Unloader

The Ton Bag Feeding Station / Bulk Bag Discharger boasts a streamlined, intuitive design paired with advanced automation capabilities. This synergy significantly boosts feeding efficiency while drastically reducing the arduous manual labor typically required by operators.

Equipped with a sealed bag clamp to guarantee airtight bag opening, it effectively prevents dust dispersion. For materials with poor flowability, additional vibration or tapping devices can be incorporated to facilitate seamless unloading.

Separator
  • Simplistic structure, straightforward installation, and user-friendly operation.
  • Significantly reduces material residues, preventing potential cross-contamination.
  • Adeptly handles the unloading of a diverse array of materials with various accessories.
  • Ensures sealed unloading to eliminate dust dispersion, enhancing the working environment.
  • Effortlessly connects to equipment such as glove boxes, hoppers, and reactors.
  • Generates no heat during opening, ensuring safety and mitigating explosion risks.

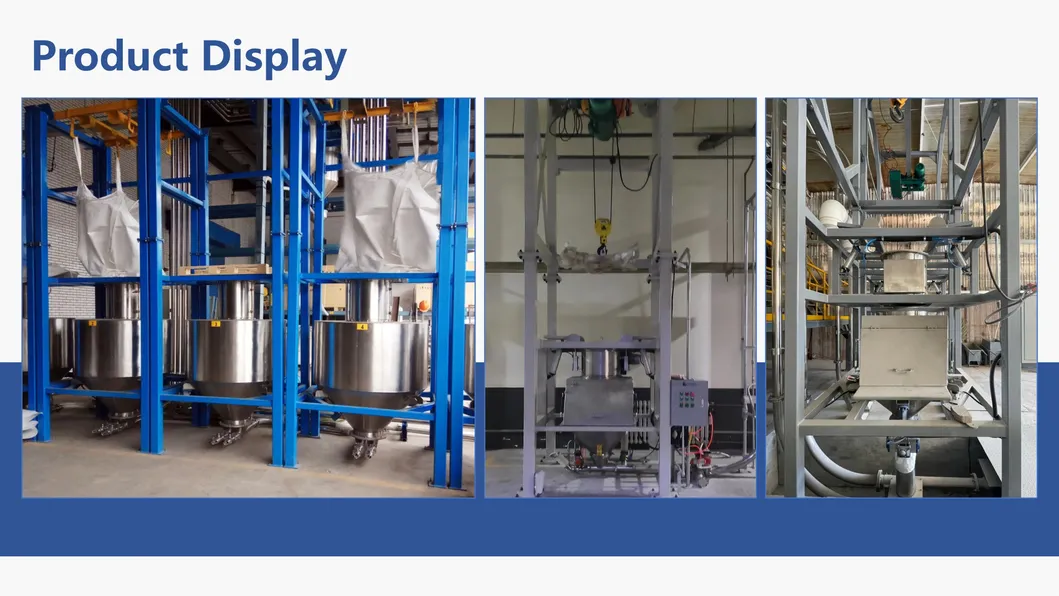

Heavy-Duty Device

Structural Units & Specifications

Separator
Structural Unit Specification Material
Pounding Device Pneumatic Control Q235 / 304 / 316L Stainless Steel
Electric Hoist 1T / 2T / 3T
Temporary Storage Bin 0.4m³
Hanging Bracket 800-1200mm
Dust Removal Device 0.5-10μm Filter Bag / Cartridge
Unpacking Method Manual / Automatic Q304 Stainless Steel

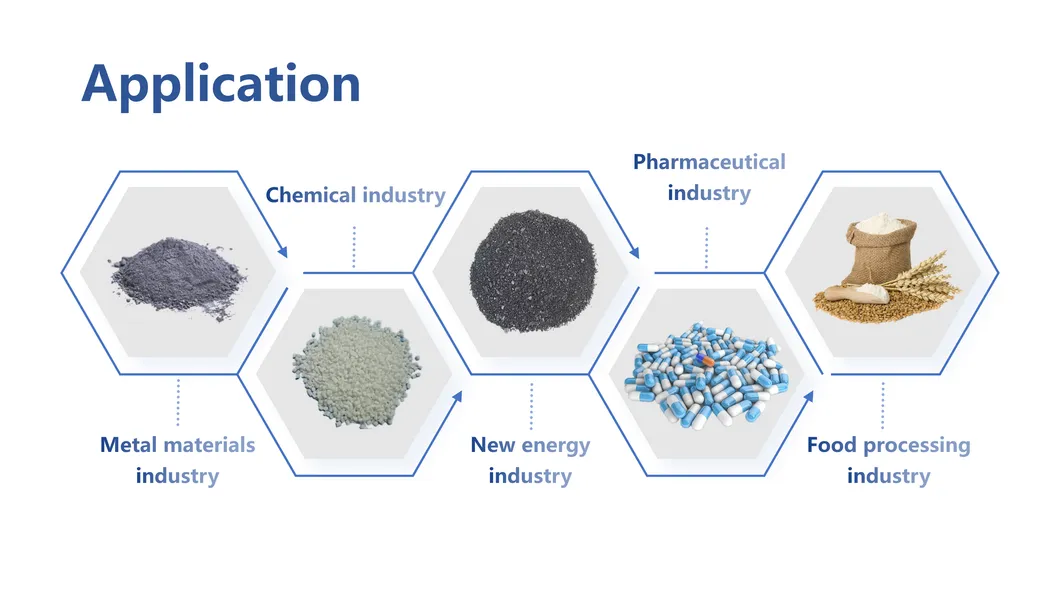

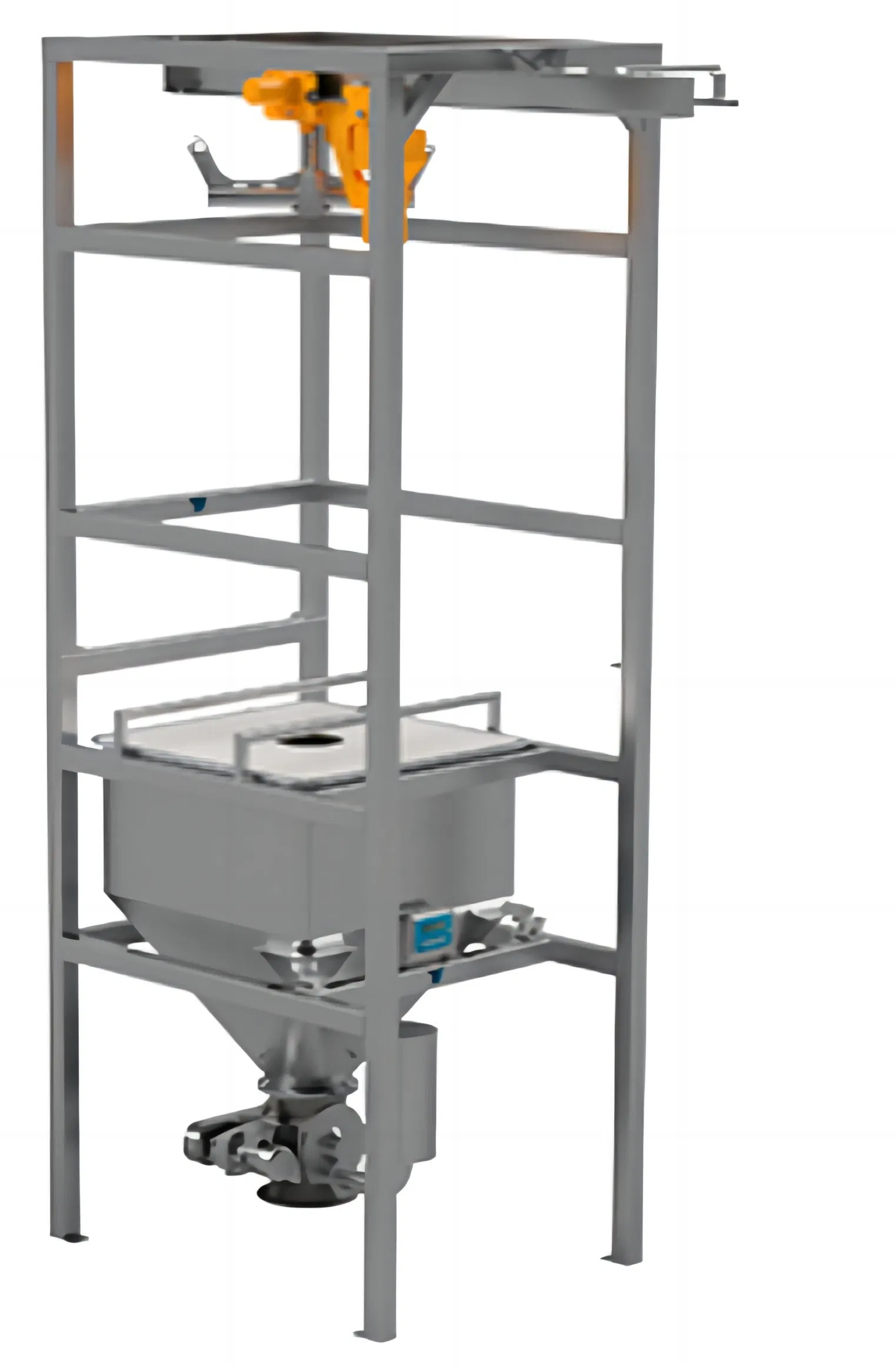

Equipment View 1
Equipment View 2

Our Valued Customers

Customer Applications

Frequently Asked Questions

What materials can the Ton Bag Unloader handle?
It is designed for a wide range of bulk materials in industries like building materials, chemicals, food processing, and metallurgy, especially those stored in large ton bags.
How does the system control dust during unloading?
The station uses a sealed bag clamp and can be integrated with dust removal devices (0.5-10μm filters) to ensure an airtight process and eliminate dust dispersion.
What if the material has poor flowability?
The system can be equipped with pneumatic pounding devices or vibration units to assist the material flow and ensure complete unloading.
Are there different unpacking methods available?
Yes, we offer both manual assistance for bag opening and automatic knife-cutting methods to suit different bag types and automation requirements.
What are the lifting capacity options for the electric hoist?
Standard configurations include 1T, 2T, and 3T lifting capacities to accommodate various ton bag weights.
Can the equipment be customized?
Absolutely. Parameters such as chute size, overall dimensions, and material (304 or 316L stainless steel) can be customized based on your specific facility requirements.
