| Model NO. | QSCDZ | Rated Current | 2A; 63A; 100A; 200A; 300A |
|---|---|---|---|
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw | Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Shell Material | Customized | Service Life | 8 Years; 10 Years |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging | Charging Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load); ≥0.92 (Light Load) | Harmonic Distortion | ≤5% (Total Harmonic Distortion); ≤3% |
| Voice Broadcast | Supported | Remote Control | Supported |
| Trademark | QS | Production Capacity | 5000PCS/Year |

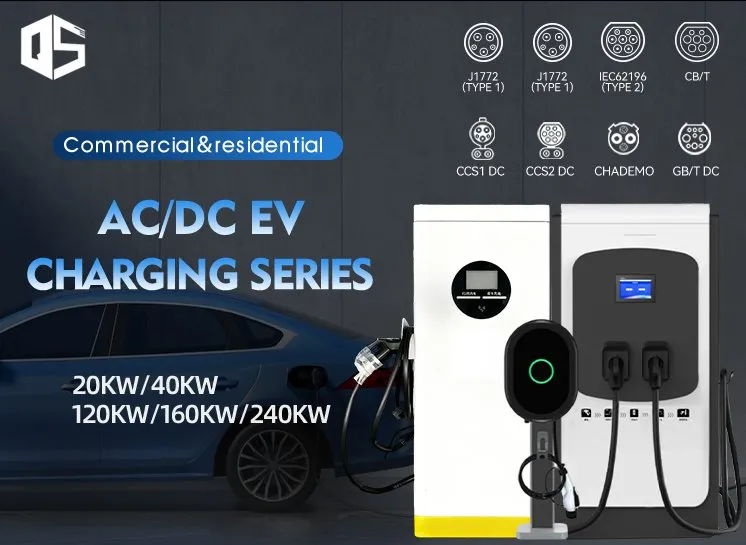

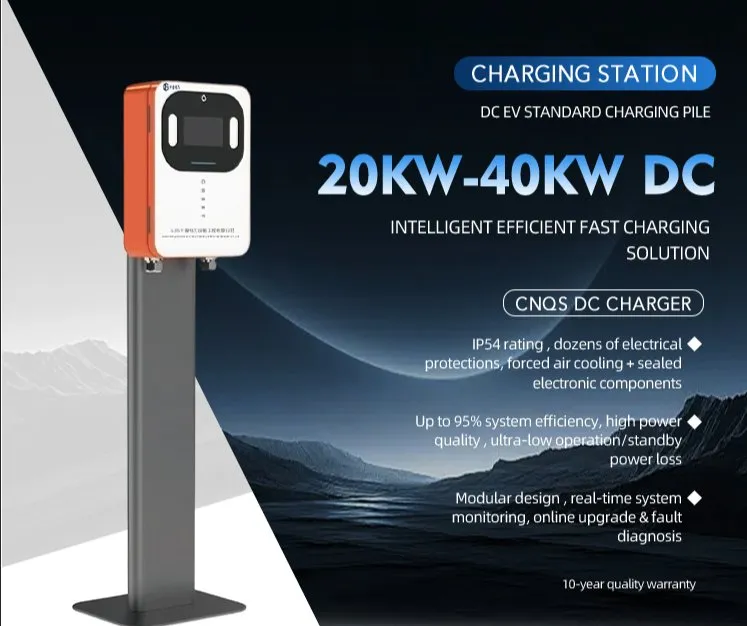

Reliable Charging Solutions

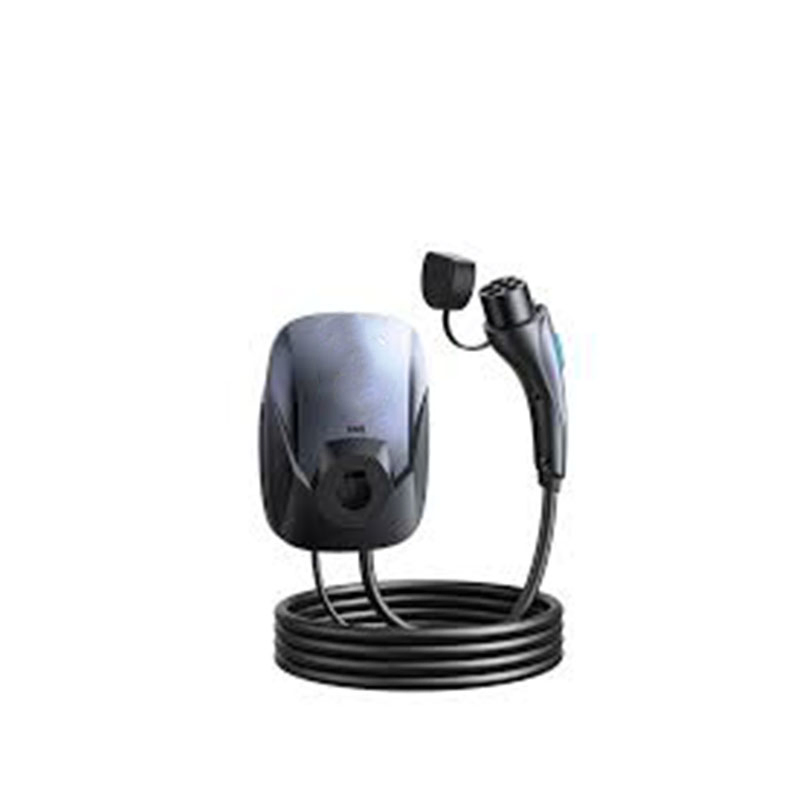

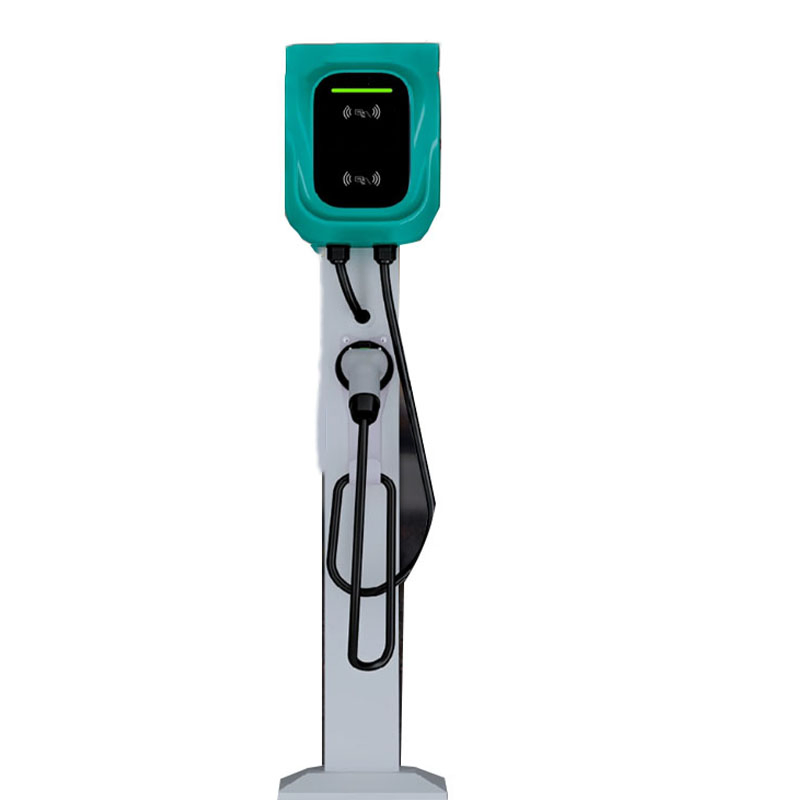

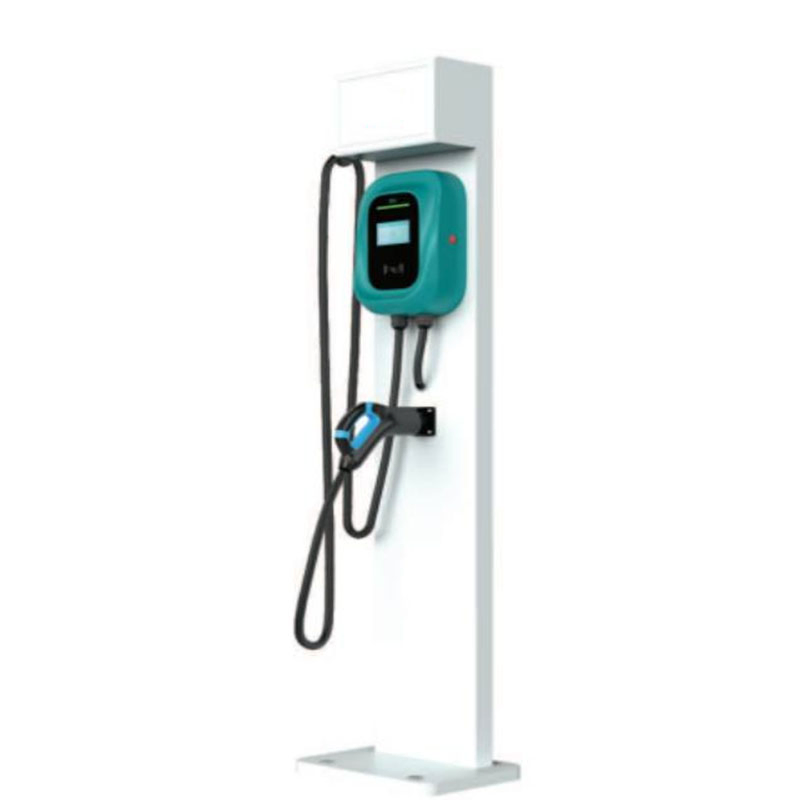

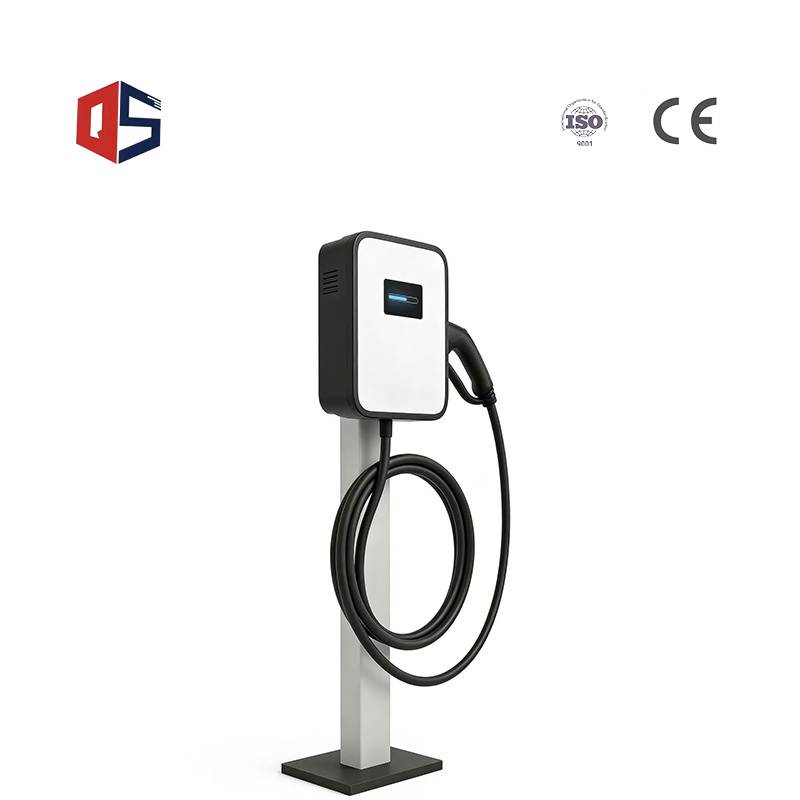

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and modular power configuration make them easy to maintain and perfect for residential and commercial use.
| Parameter | Details |
|---|---|
| Power Options | 20KW / 40KW / 120KW / 160KW / 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Working Frequency | 50/60±10% |
| Output Voltage | 200~1000V |
| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet |
| Protocols | OCPP1.6J (OCPP2.0 upgradable) |
| Protection | IP55 |
| Temperature Range | -20℃ to +50℃ (Operating) |
• Compatible with global certifications (CE/UL/PSE/KC).
• Supports ISO 15118-20 standard + PNC Plug & Charge.
• Compliant with V2G vehicle-to-grid protocol.
• Billing accuracy ±0.5% with MID/UL certification.
• replenishes 80% power in 30 mins.
• IP65 dustproof & waterproof; wide temperature adaptation (-30℃ to 60℃).
• Supports Apple Pay/Google Pay/credit card payment.

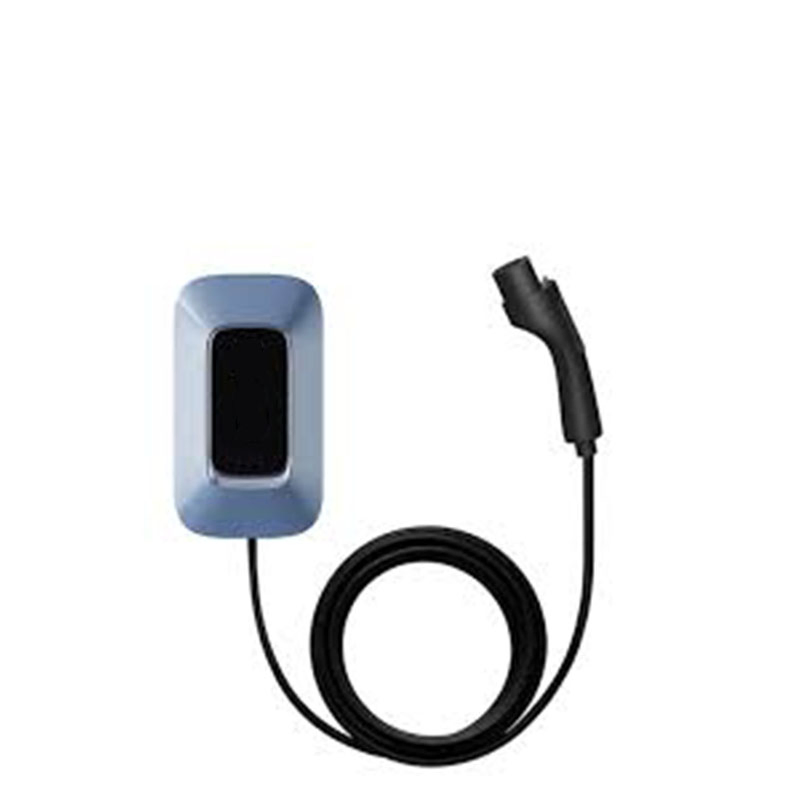

• Wall-mounted & column modes available.

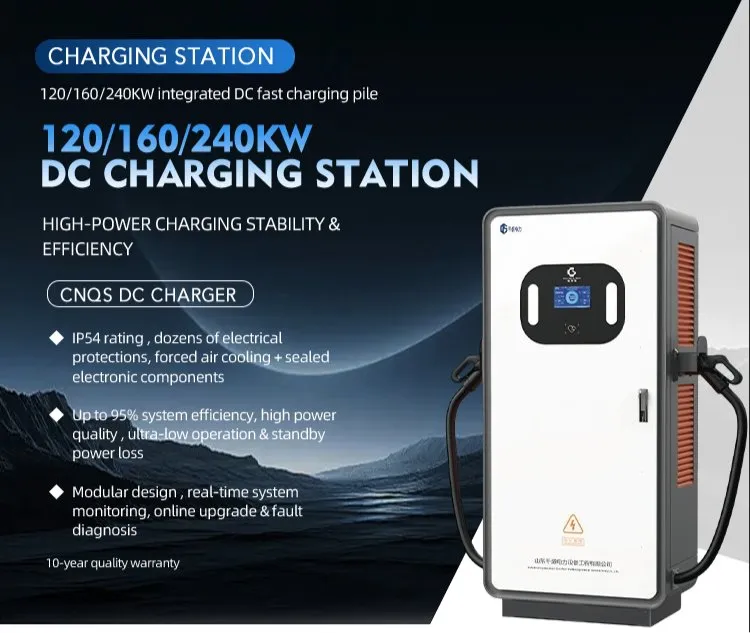

• 120kW: Super charging, 300+km range in 30 mins.
• 160kW: Passenger & commercial compatible with dynamic power allocation.
• 240kW: Ultra-fast charge, 80% battery in 15 mins; dual guns independent/linked.

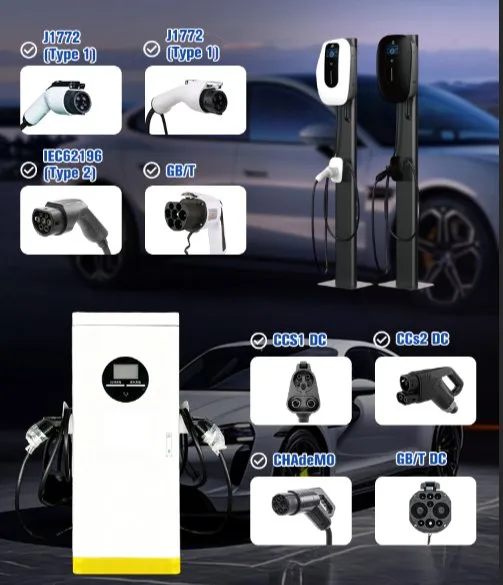

• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).
• Thickened high-temperature resistant cables, anti-aging & anti-stretching.

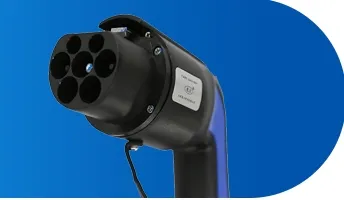

• Customizable cable lengths with self-locking anti-drop connectors.
| Package Size | 120.00cm * 45.00cm * 155.00cm |
|---|---|
| Package Gross Weight | 60.000kg |
| Transport Package | Wooden Box |

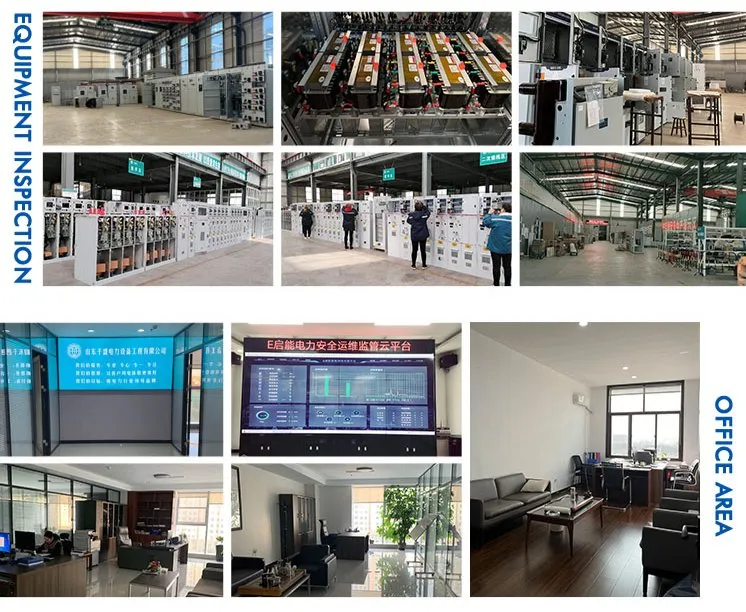

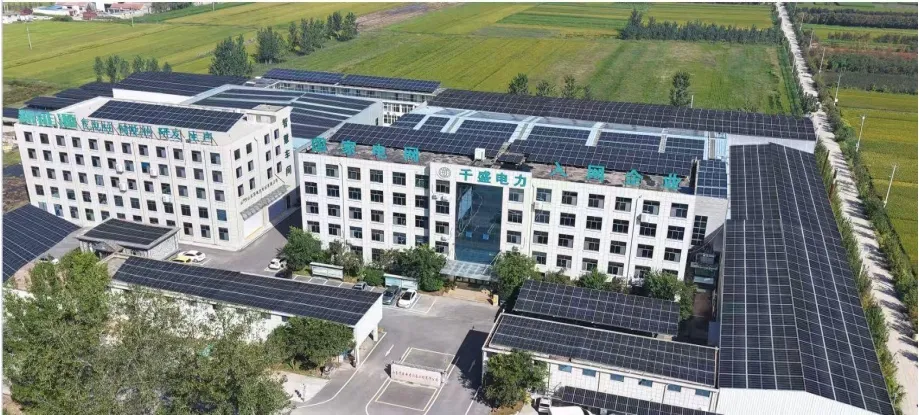

With over 20 years of industry expertise, we serve global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs nearly 100 dedicated staff members.
Certifications: ISO9001:2000, Environmental Management System, Occupational Health and Safety, CCC, and CQC product certifications.
Our Tenet: Safe Production, Quality First.
