Product Description

Basic Specifications

Model NO.

Ceiling Baffle

Shapes

Rectangle etc

Function

Sound-Absorption, Fireproof, Moistureproof

Main Materials

Glasswool, Fiberglass Tissue

Thickness

30mm, 40mm, 50mm, 60mm, 70mm etc

Type

Acoustic Panels

Eco-Friendly

E0 Grade

Fireproof Grade

Certification

CE, ISO

Warranty

5 Years

Density

120-130kg/cbm

NRC

0.8 - 0.9

Product Description

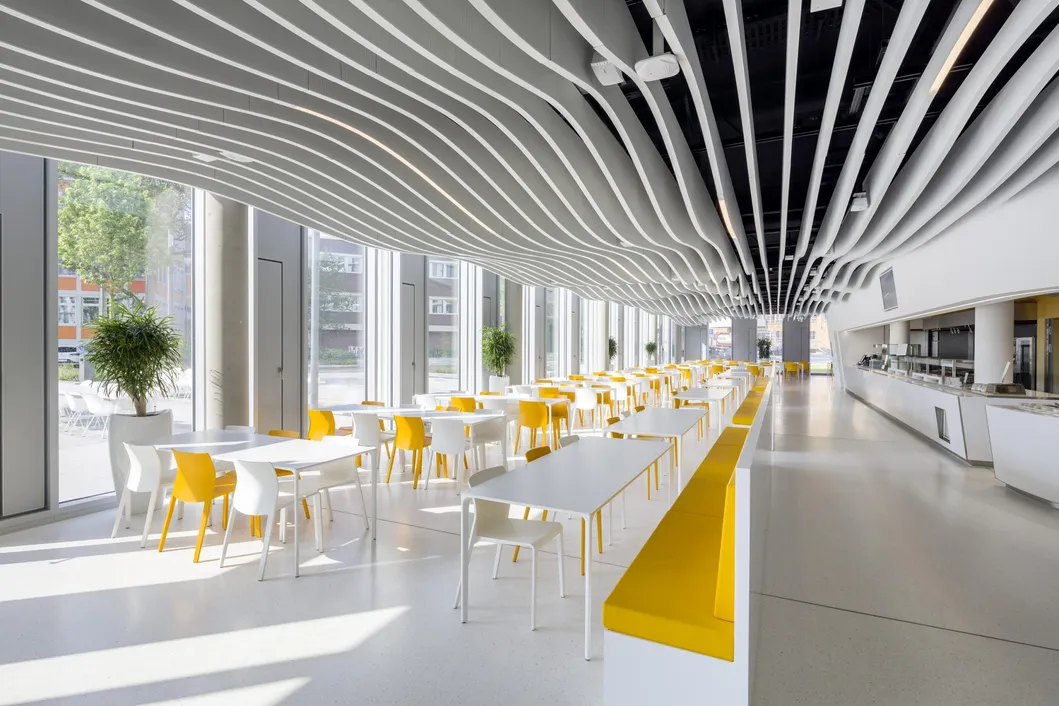

Office Ceiling Board Fiber Acoustic Baffle

1. Acoustic Ceiling Baffles - 1200x200mm

Acoustical ceiling baffles 1200x200x40mm size with a weight of 1.3kg/pcs. The baffles are manufactured from high density glass wool, with fiberglass felt on all sides. The edges are straight cut and wrapped by fiberglass felt.

These acoustical ceiling baffles are a tasteful option for reducing reverberations and improving intelligibility in any space. Designed to hang from the ceiling, they capture ambient energy by absorbing sound as it hits the face of the panel, while trapping reflections from the ceiling on the back side.

2. Acoustic Ceiling Baffles - 1200x300mm

Acoustical ceiling baffles 1200x300x40mm size with a weight of 1.8kg/pcs. The range of unique shapes and sizes on offer opens the door for architects and designers to present creative solutions that are bold yet architecturally pleasing.

3. Acoustic Ceiling Baffles - 1200x400mm

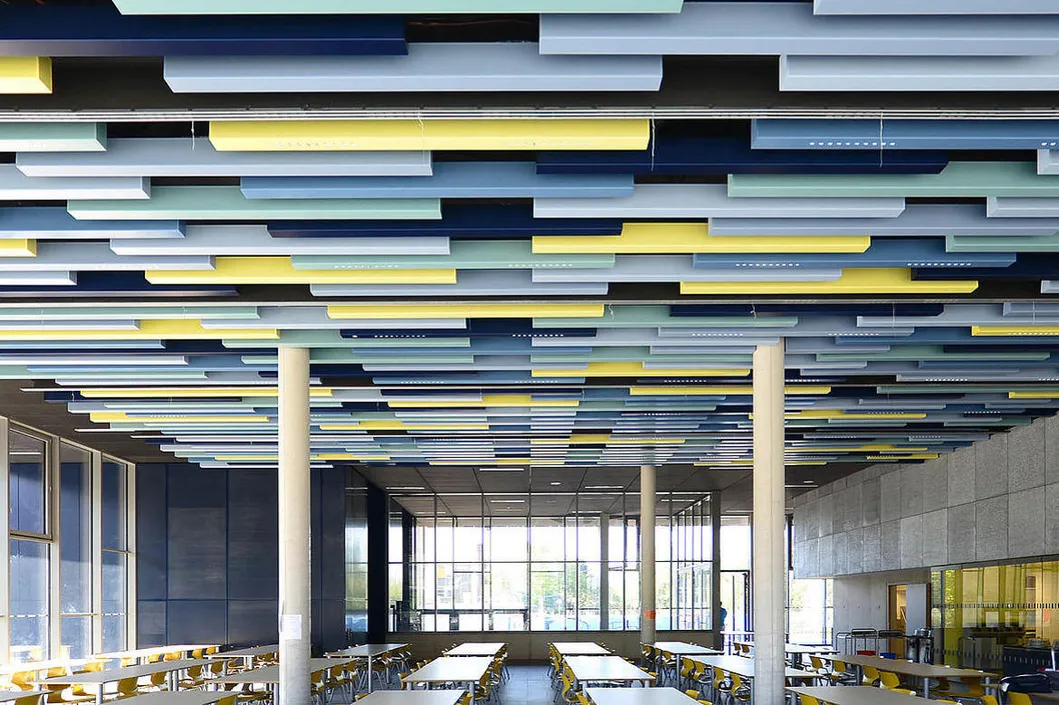

Acoustical ceiling baffles 1200x400x40mm size with a weight of 2.4kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety, achieving the most stringent Class-A1 rating by SGS, making them safe for all types of installations.

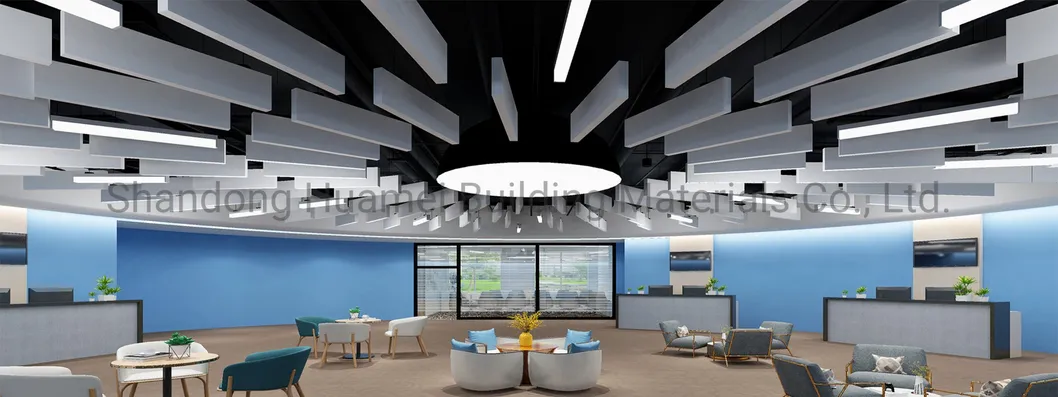

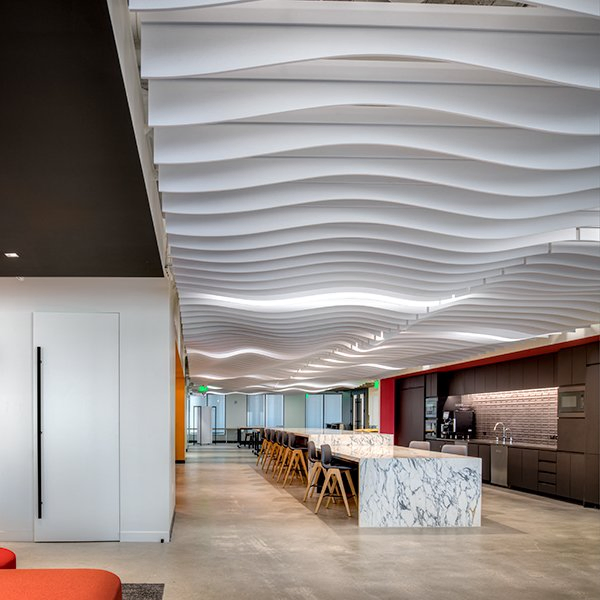

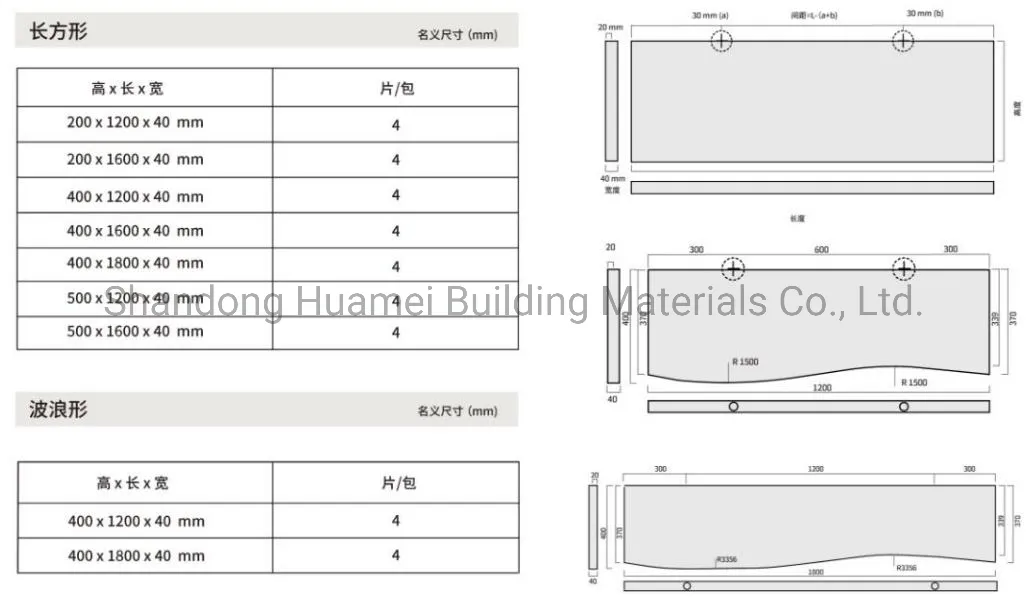

4. Available Shapes

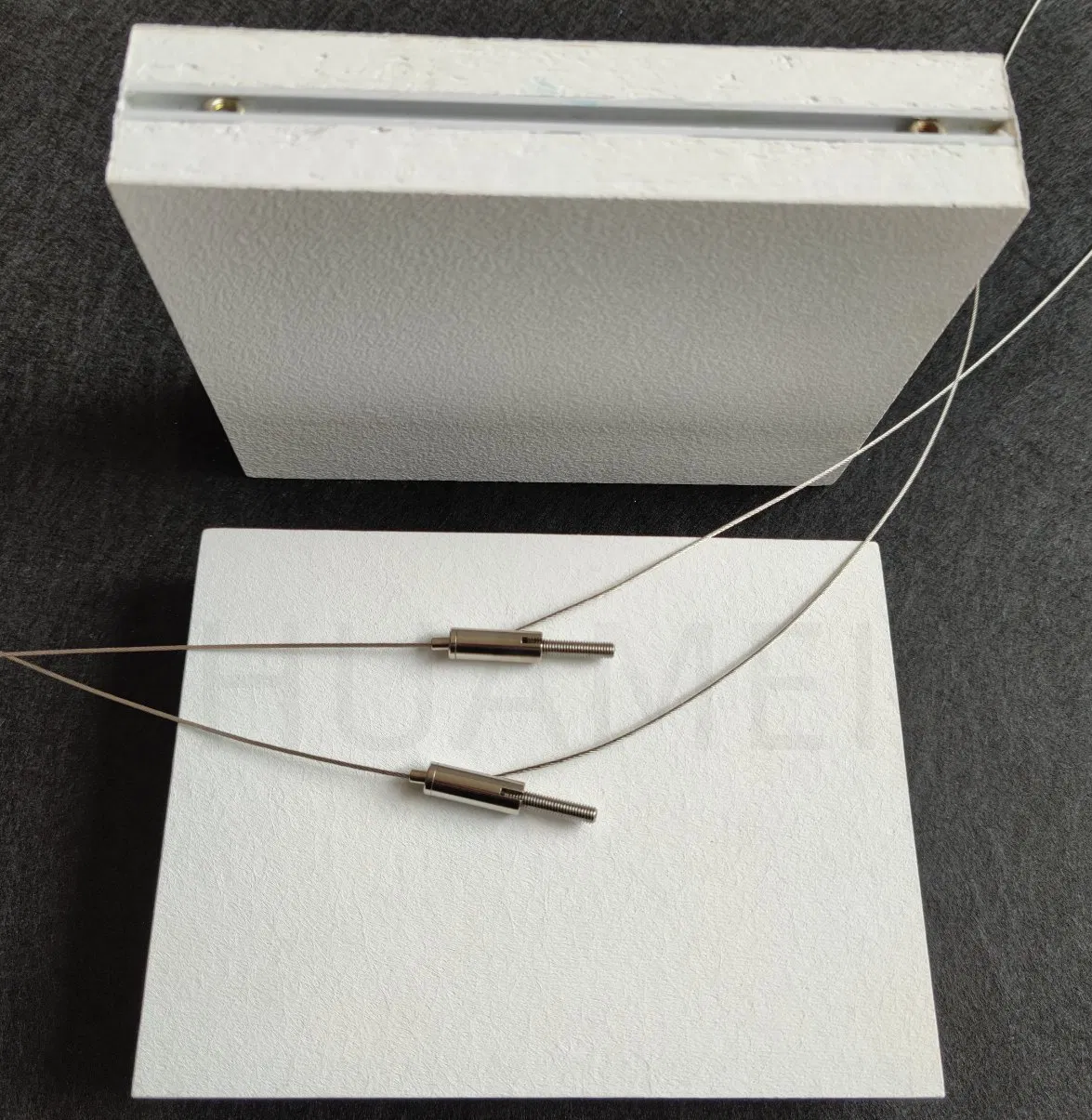

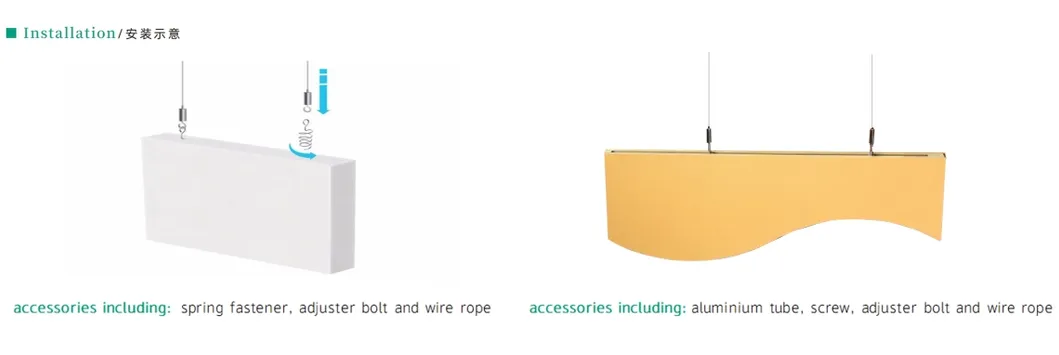

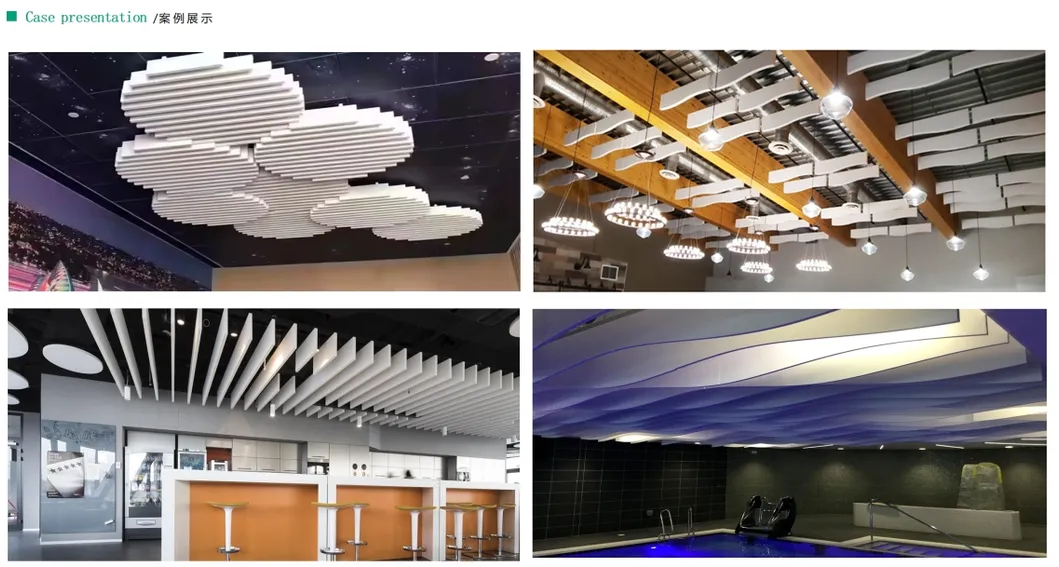

5. Installation Method

The suspension accessories are composed of a spiral spring, 2m cable, and adjusting hook for precise alignment.

6. Color Options

Technical Data

Main materials	High density glasswool and fiberglass tissue
Surface finishing	Special painted laminated with decorative fiberglass tissue
Surface designs	White plane / white point / black plane or other colors
NRC	0.8-0.9 (Tested by SGS ENISO354:2003)
Fire-Resistant	Class A1 tested by SGS (EN13501-1)
Thermal-Resistant	≥0.4(m².k)/W
Humidity	Stable with RH up to 95% at 40°C, no sagging or warping
Light Reflectivity	0.85
Size Options	1200x200mm, 1200x300mm, 1200x400mm, 1800x300mm etc.

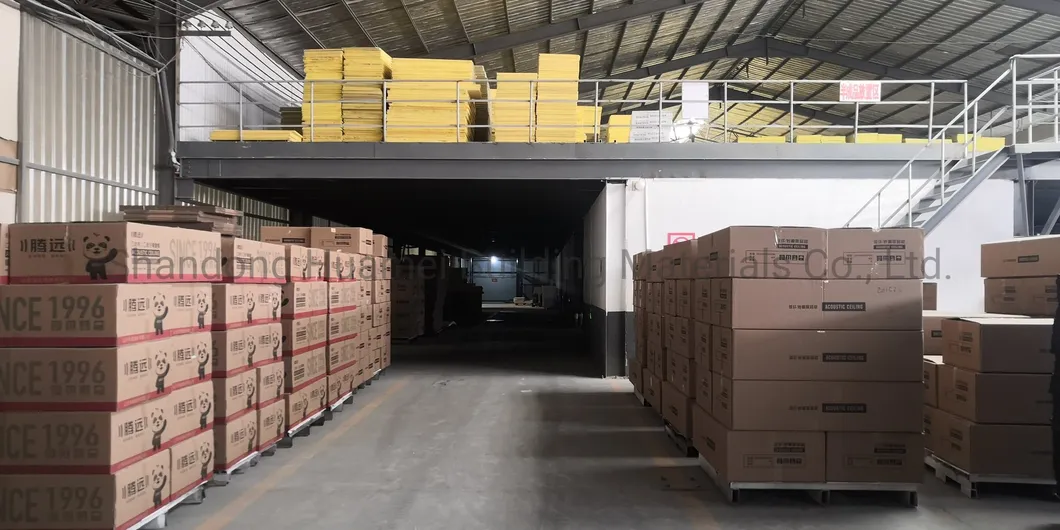

Manufacturing & Quality

Our facility integrates research, development, production, and sales of ceiling and wall decoration products. With a production history of nearly 20 years, the facility maintains an annual capacity of 5 million square meters. Our products are widely exported to Europe, America, the Middle East, Africa, and Southeast Asia.

Certificates & Global Presence

Frequently Asked Questions

What are the primary benefits of using acoustic ceiling baffles?

Acoustic baffles are designed to significantly reduce reverberation and echo in large spaces. They absorb sound from both sides, improving speech intelligibility and creating a more comfortable acoustic environment.

What is the fire safety rating of these panels?

Our glasswool acoustic baffles have achieved a Class A1 fire rating, which is the highest non-combustible rating, making them safe for use in public buildings, offices, and industrial spaces.

Can these baffles withstand high humidity?

Yes, they are dimensionally stable in environments with relative humidity (RH) up to 95% at 40°C. They are engineered to resist sagging, warping, or delaminating.

How are the baffles installed?

Installation is straightforward using suspension kits that include spiral springs, 2-meter cables, and adjusting hooks. This allows for flexible height and pattern adjustments.

What sizes and colors are available?

Standard sizes include 1200x200mm, 300mm, and 400mm with thicknesses from 30mm to 70mm. While white and black are standard, custom colors and shapes are available upon request.

What is the Sound Absorption Coefficient (NRC) of the panels?

Our acoustic baffles offer high performance with an NRC rating between 0.8 and 0.9, meaning they absorb 80% to 90% of the sound energy that hits them.
