Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
1 / 5
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System
Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System

Flipsky High-Current 12s 70A BMS with Protective Shell - Smart Battery Management System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Smart BMS Banner
✔ Basic Information
Model NO.
Smart BMS 12S 70A
Color
Black
Eco-Friendly
Yes
Power Source
Battery Operated
Noise Level
≤45 Db
Warranty
One Year
⚙ Product Specifications

Smart BMS 12S 70A with shell | Lithium Battery Protection Board For E-scooter / E-car / E-bike

Cell voltage range: 2V-5V
Recommended cells: 6S-12S
Charge/discharge voltage: 24V-52V
Continuous discharge current: 70A
Charge Current: ≤20A
Balance current: 86mA @4.2V
Working Temp: -20℃—+80℃

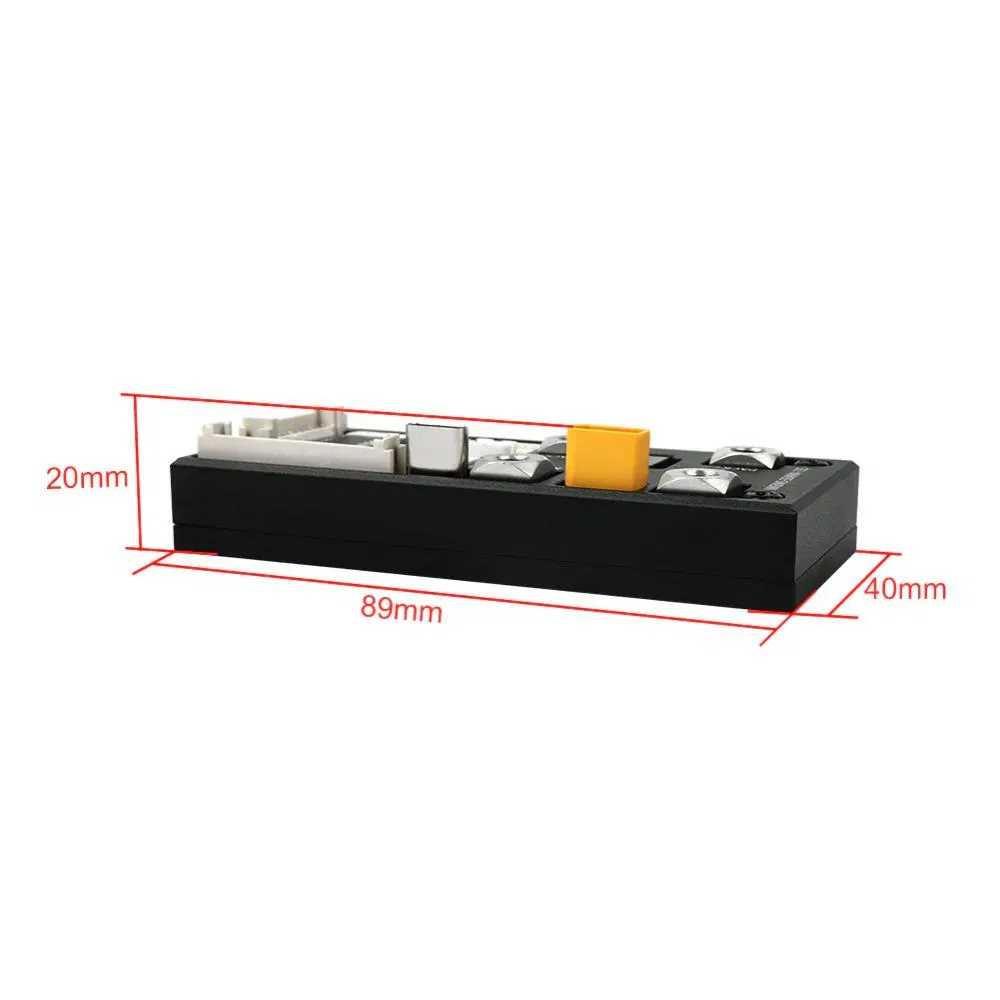

Size: 89 x 40 x 20.8mm
BMS Detail 1
BMS Detail 2
BMS Detail 3
★ Key Features
Aluminum alloy shell for superior heat dissipation.
Automotive grade monitoring & balancing IC for reliability.
SOC based on coulomb counting.
Integrated precharge circuit and humidity sensor.
Supports USB, UART, I2C & isolated CAN bus interface.
Compatible with Li-ion, Li-poly, and LiFePO4 batteries.

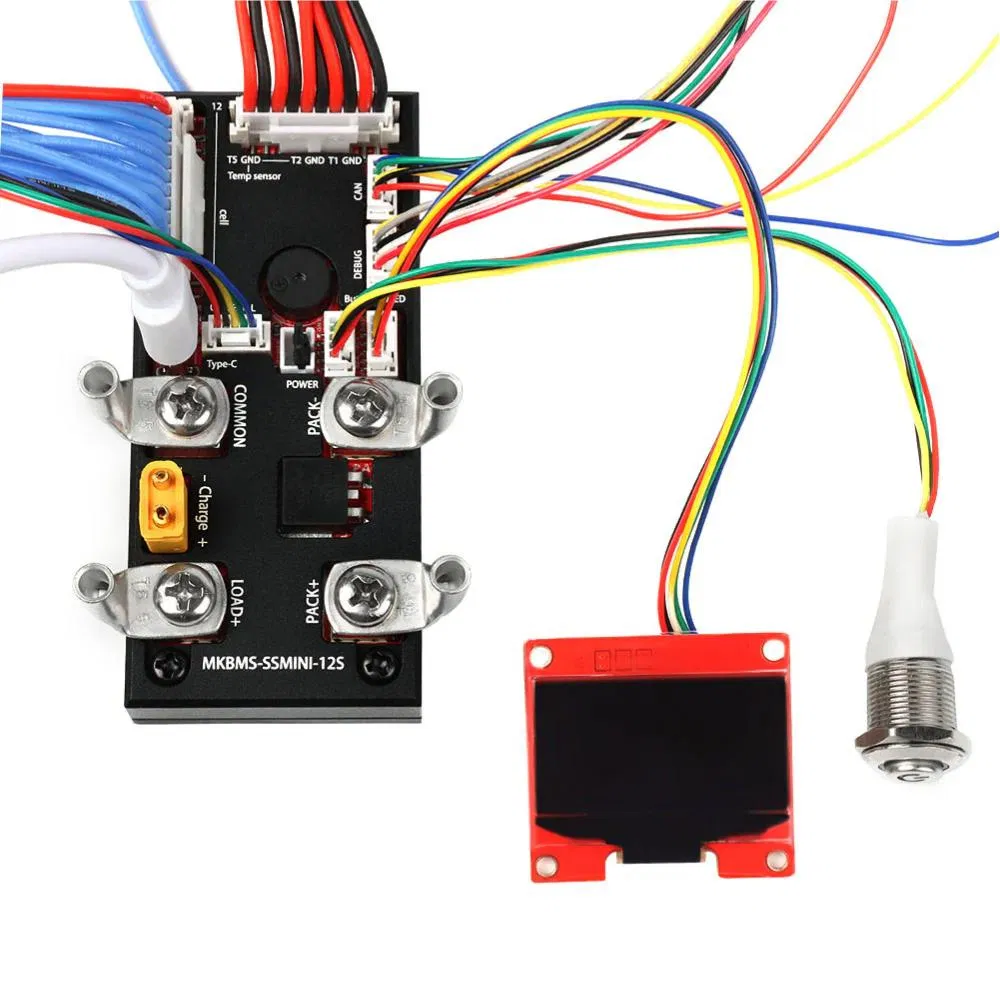

BMS Application 1
BMS Application 2
📦 Packing & Delivery
Shipping Package

Package includes: PCBA, HY2.0 lines, GH1.25 cables, USB-C cable, OLED display module, key switch, stainless steel screws, and connectors.

Quantity (pieces) 1 - 10 > 10
Lead time (days) 10 To be negotiated

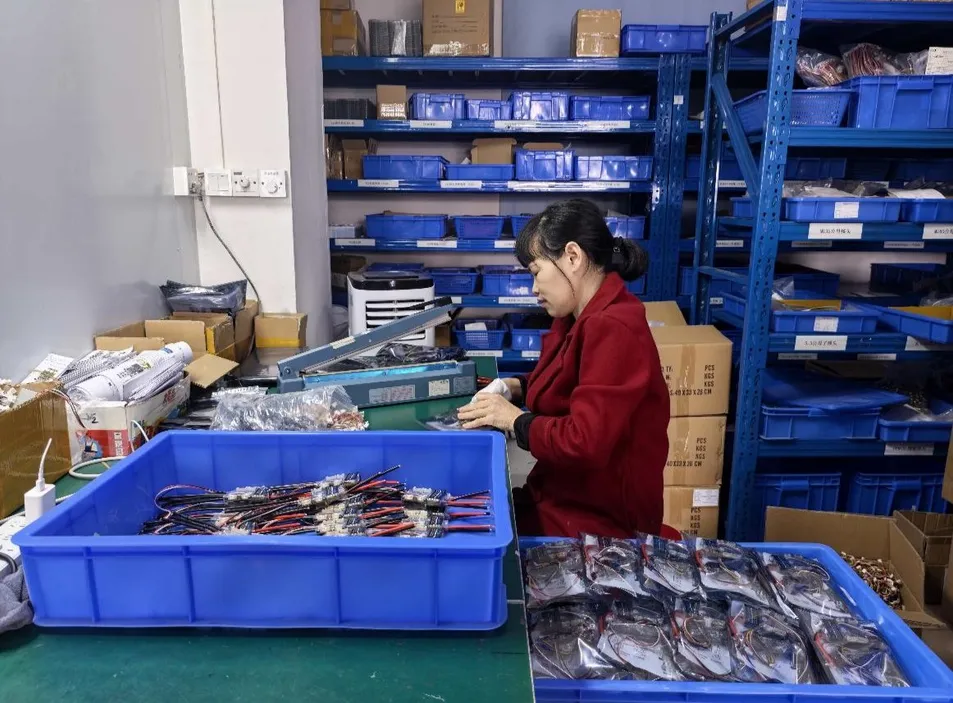

Package Detail 1
Package Detail 2
▶ Professional Manufacturing

Innovative electronic design and manufacturing specializing in electric vehicles, robots, and water power solutions with over a decade of expert experience.

Facility 1
Facility 2
Facility 3
Frequently Asked Questions
How to select the model?
Motor speed must be within ESC limits. Calculate: Motor speed = Battery voltage × KV; Stator speed = Motor speed × Magnetic poles.
Is customization supported?
Yes, full customization for hardware, software, and structure is supported for various applications like robots and scooters.
What after-sales support is available?
Customers have access to technical documentation, video tutorials, and repair support with quick response times.
Can samples be tested?
Sample testing is supported. Please specify your application for proper model matching.
Which certifications are compliant?
Basic certifications such as CE and RoHS are available. Custom products can be made to meet specific industry standards.
What determines the customization cost?
Costs depend on the complexity of the design, materials used, and the batch size. Quotes are provided during the demand analysis stage.
